Page 3585 of 4133

Seat belts/belt tensioners

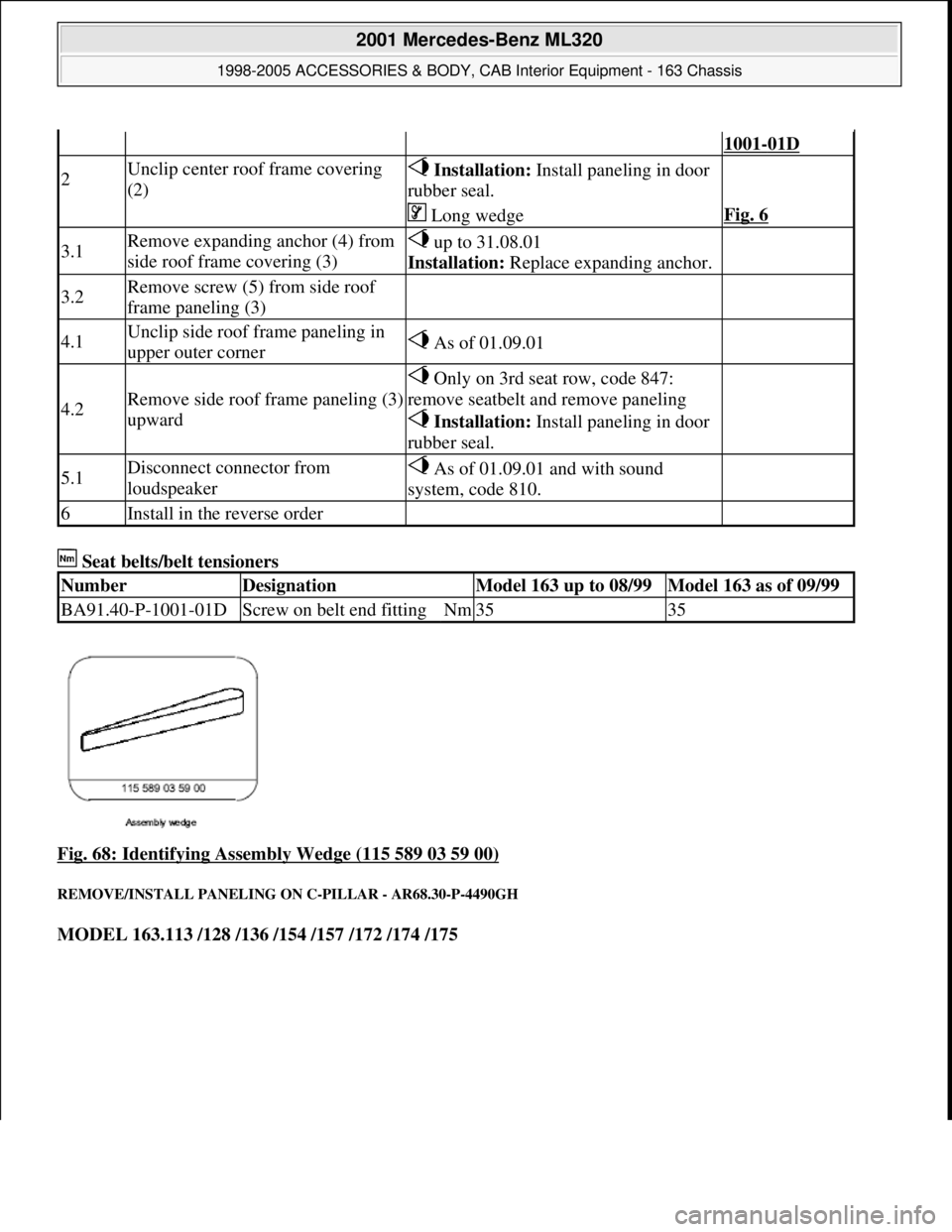

Fig. 68: Identifying Assembly Wedge (115 589 03 59 00)
REMOVE/INSTALL PANELING ON C-PILLAR - AR68.30-P-4490GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
1001-01D
2Unclip center roof frame covering
(2) Installation: Install paneling in door
rubber seal.
Long wedgeFig. 6
3.1Remove expanding anchor (4) from
side roof frame covering (3) up to 31.08.01
Installation: Replace expanding anchor.
3.2Remove screw (5) from side roof
frame paneling (3)
4.1Unclip side roof frame paneling in
upper outer corner As of 01.09.01
4.2Remove side roof frame paneling (3)
upward
Only on 3rd seat row, code 847:
remove seatbelt and remove paneling
Installation: Install paneling in door
rubber seal.
5.1Disconnect connector from
loudspeaker As of 01.09.01 and with sound
system, code 810.
6Install in the reverse order
NumberDesignationModel 163 up to 08/99Model 163 as of 09/99
BA91.40-P-1001-01DScrew on belt end fittingNm3535
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:22 PMPage 67 © 2006 Mitchell Repair Information Company, LLC.
Page 3586 of 4133

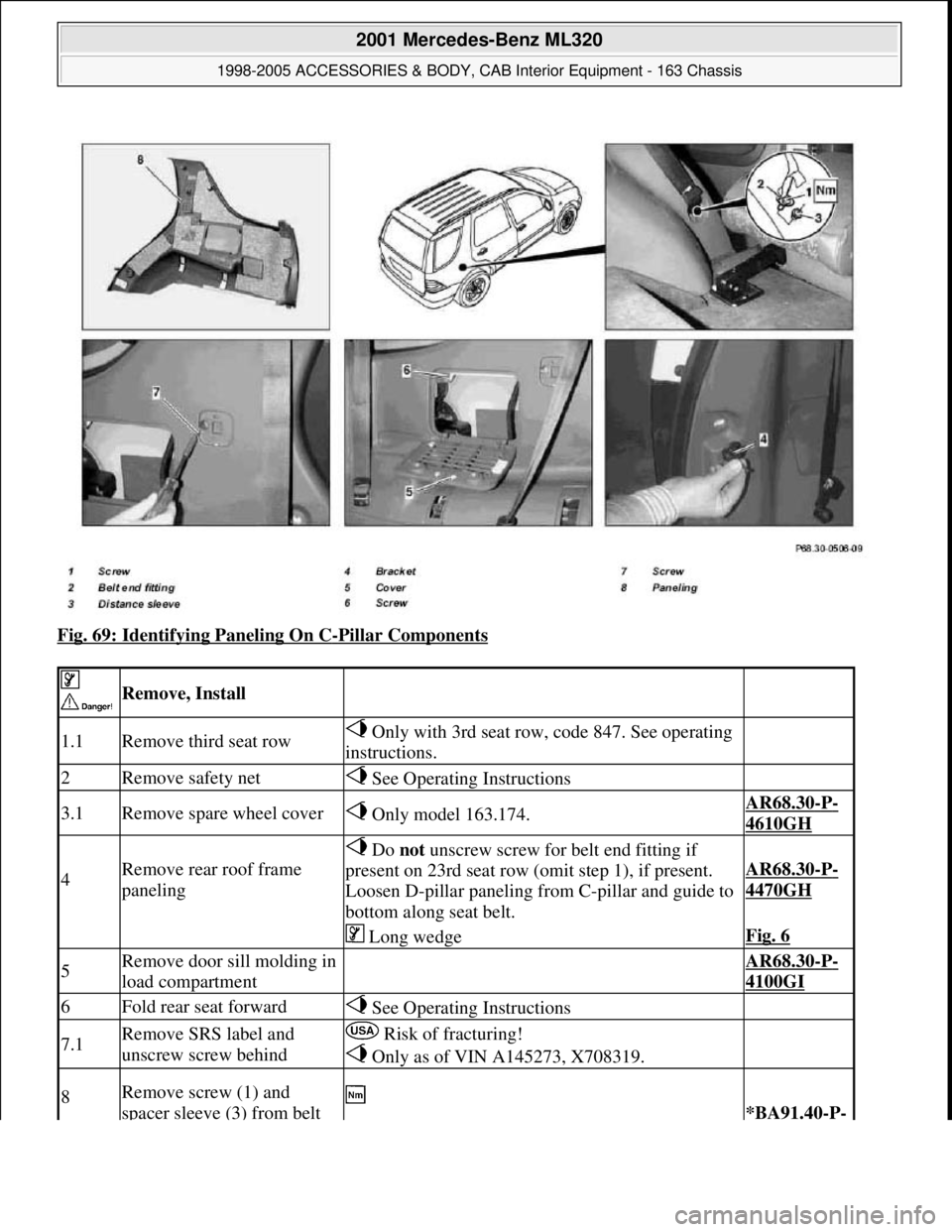

Fig. 69: Identifying Paneling On C-Pillar Components
Remove, Install
1.1Remove third seat row Only with 3rd seat row, code 847. See operating
instructions.
2Remove safety net See Operating Instructions
3.1Remove spare wheel cover Only model 163.174.AR68.30-P-
4610GH
4Remove rear roof frame
paneling
Do not unscrew screw for belt end fitting if
present on 23rd seat row (omit step 1), if present.
Loosen D-pillar paneling from C-pillar and guide to
bottom along seat belt.
AR68.30-P-
4470GH
Long wedgeFig. 6
5Remove door sill molding in
load compartment AR68.30-P-
4100GI
6Fold rear seat forward See Operating Instructions
7.1Remove SRS label and
unscrew screw behind Risk of fracturing!
Only as of VIN A145273, X708319.
8Remove screw (1) and
spacer sleeve (3) from belt *BA91.40-P-
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:22 PMPage 68 © 2006 Mitchell Repair Information Company, LLC.
Page 3587 of 4133

Seat belts/belt tensioners

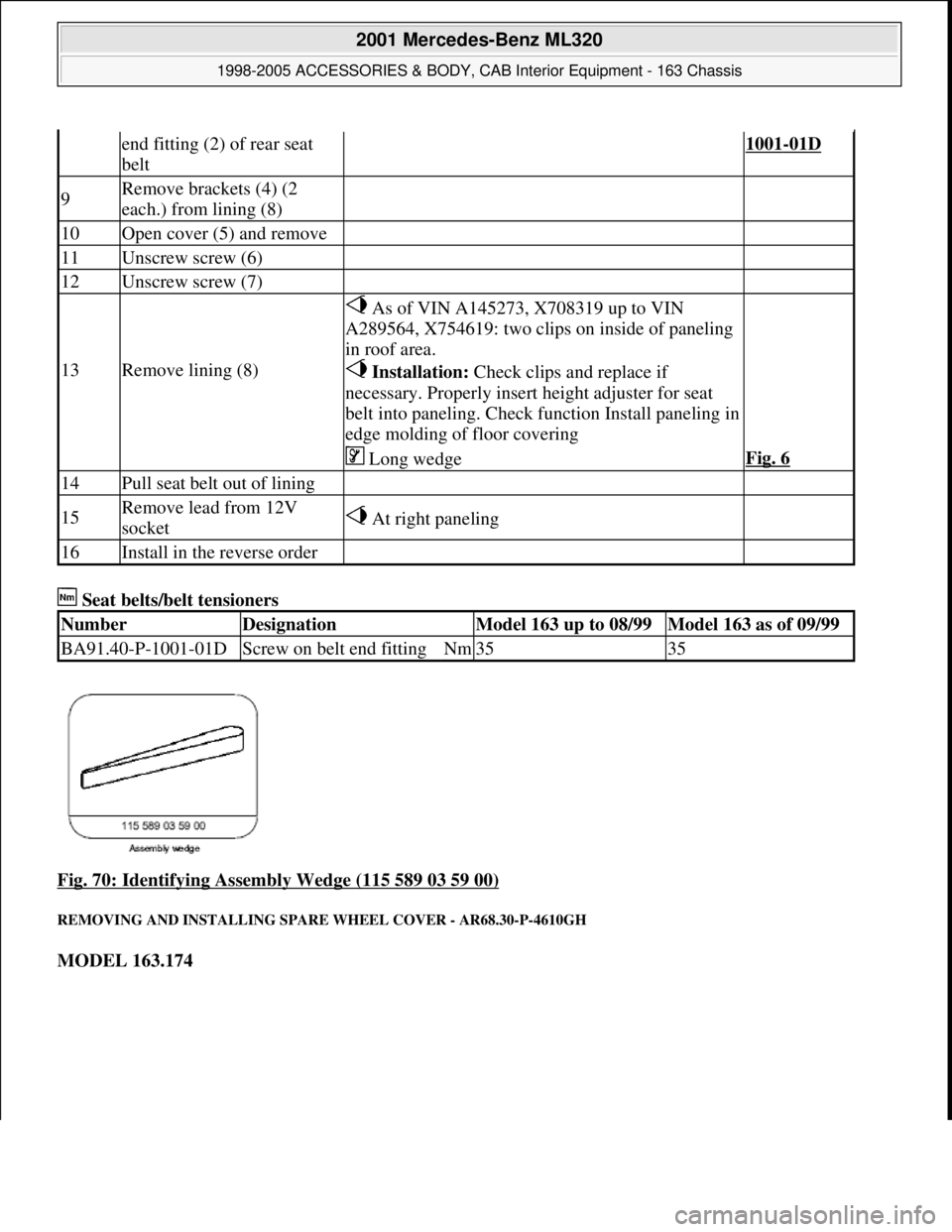

Fig. 70: Identifying Assembly Wedge (115 589 03 59 00)
REMOVING AND INSTALLING SPARE WHEEL COVER - AR68.30-P-4610GH
MODEL 163.174
end fitting (2) of rear seat
belt1001-01D
9Remove brackets (4) (2
each.) from lining (8)
10Open cover (5) and remove
11Unscrew screw (6)
12Unscrew screw (7)
13Remove lining (8)
As of VIN A145273, X708319 up to VIN
A289564, X754619: two clips on inside of paneling
in roof area.
Installation: Check clips and replace if
necessary. Properly insert height adjuster for seat
belt into paneling. Check function Install paneling in
edge molding of floor covering
Long wedgeFig. 6
14Pull seat belt out of lining
15Remove lead from 12V
socket At right paneling
16Install in the reverse order
NumberDesignationModel 163 up to 08/99Model 163 as of 09/99
BA91.40-P-1001-01DScrew on belt end fittingNm3535
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:22 PMPage 69 © 2006 Mitchell Repair Information Company, LLC.
Page 3588 of 4133

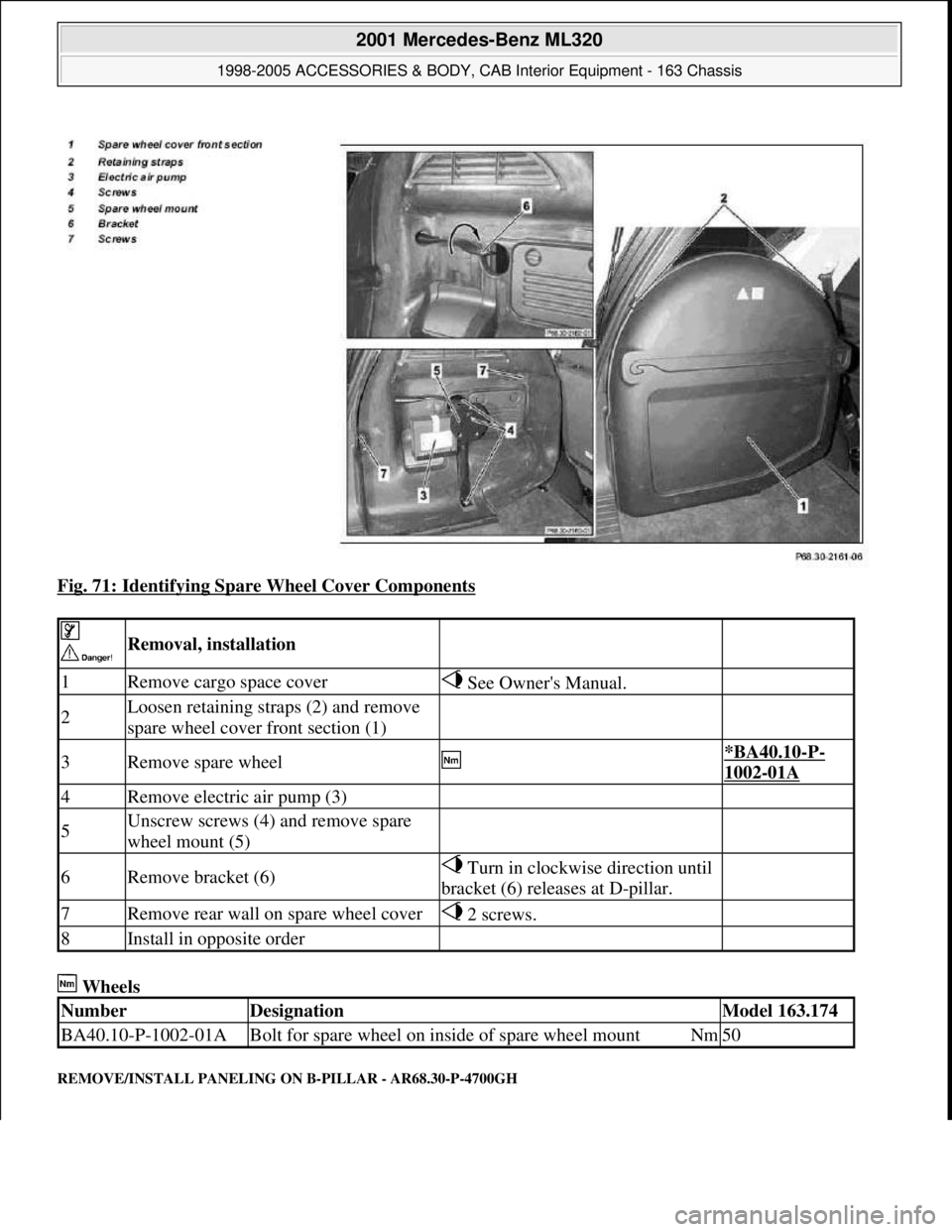

Fig. 71: Identifying Spare Wheel Cover Components
Wheels
REMOVE/INSTALL PANELING ON B-PILLAR - AR68.30-P-4700GH
Removal, installation
1Remove cargo space cover See Owner's Manual.
2Loosen retaining straps (2) and remove
spare wheel cover front section (1)
3Remove spare wheel *BA40.10-P-
1002-01A
4Remove electric air pump (3)
5Unscrew screws (4) and remove spare
wheel mount (5)
6Remove bracket (6) Turn in clockwise direction until
bracket (6) releases at D-pillar.
7Remove rear wall on spare wheel cover 2 screws.
8Install in opposite order
NumberDesignationModel 163.174
BA40.10-P-1002-01ABolt for spare wheel on inside of spare wheel mountNm50
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:22 PMPage 70 © 2006 Mitchell Repair Information Company, LLC.
Page 3589 of 4133
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

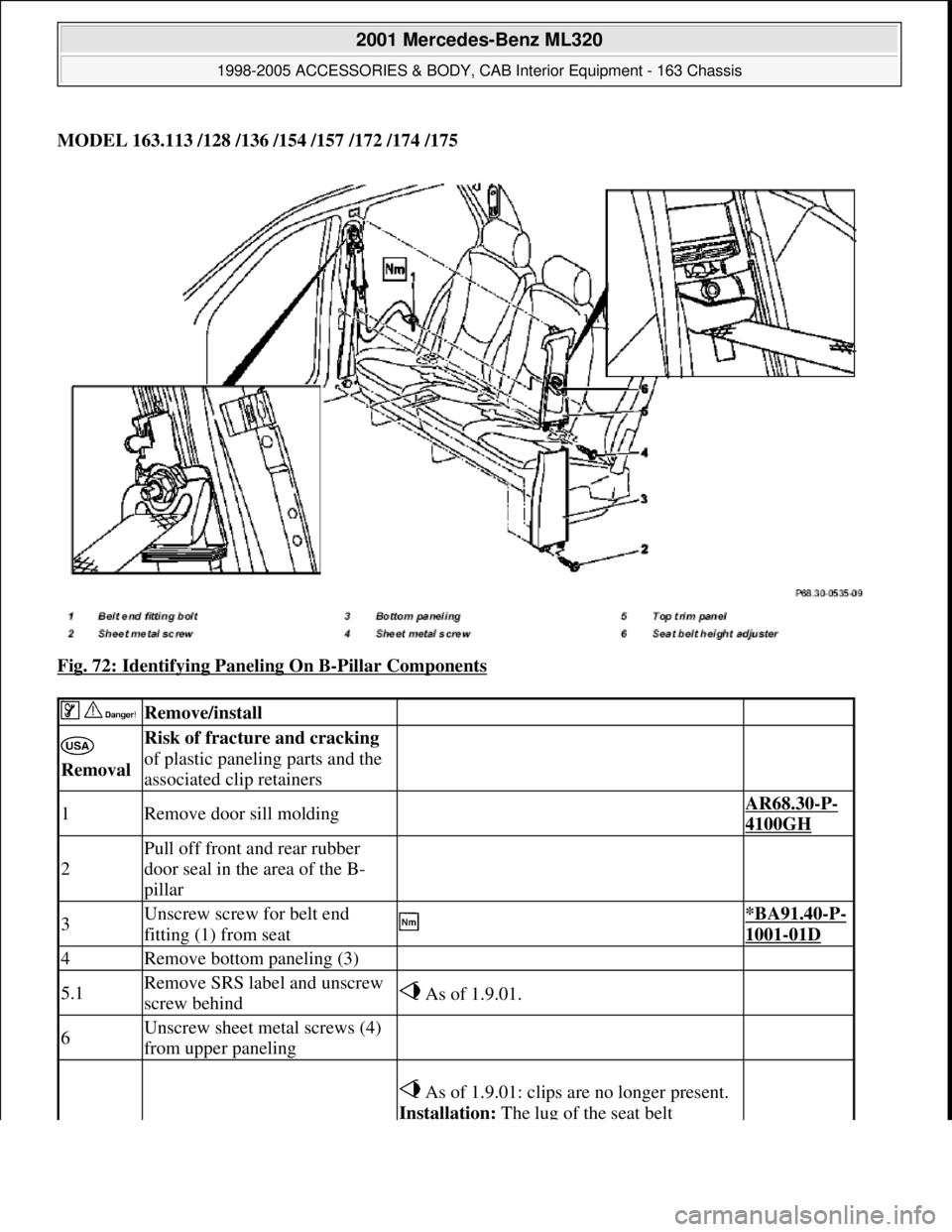

Fig. 72: Identifying Paneling On B
-Pillar Components
Remove/install
Removal Risk of fracture and cracking
of plastic paneling parts and the
associated clip retainers
1Remove door sill molding AR68.30-P-
4100GH
2
Pull off front and rear rubber
door seal in the area of the B-
pillar
3Unscrew screw for belt end
fitting (1) from seat *BA91.40-P-
1001-01D
4Remove bottom paneling (3)
5.1Remove SRS label and unscrew
screw behind As of 1.9.01.
6Unscrew sheet metal screws (4)
from upper paneling
As of 1.9.01: clips are no longer present.
Installation: The lug of the seat belt
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:22 PMPage 71 © 2006 Mitchell Repair Information Company, LLC.
Page 3590 of 4133

Safety belts/emergency tensioning retractors
REMOVING AND INSTALLING INSIDE REARVIEW MIRROR - AR68.40-P-0001GH
MODEL 163.136 /154 /172 #A up to 145272, 163.136 /154 /172 #X up to 708318

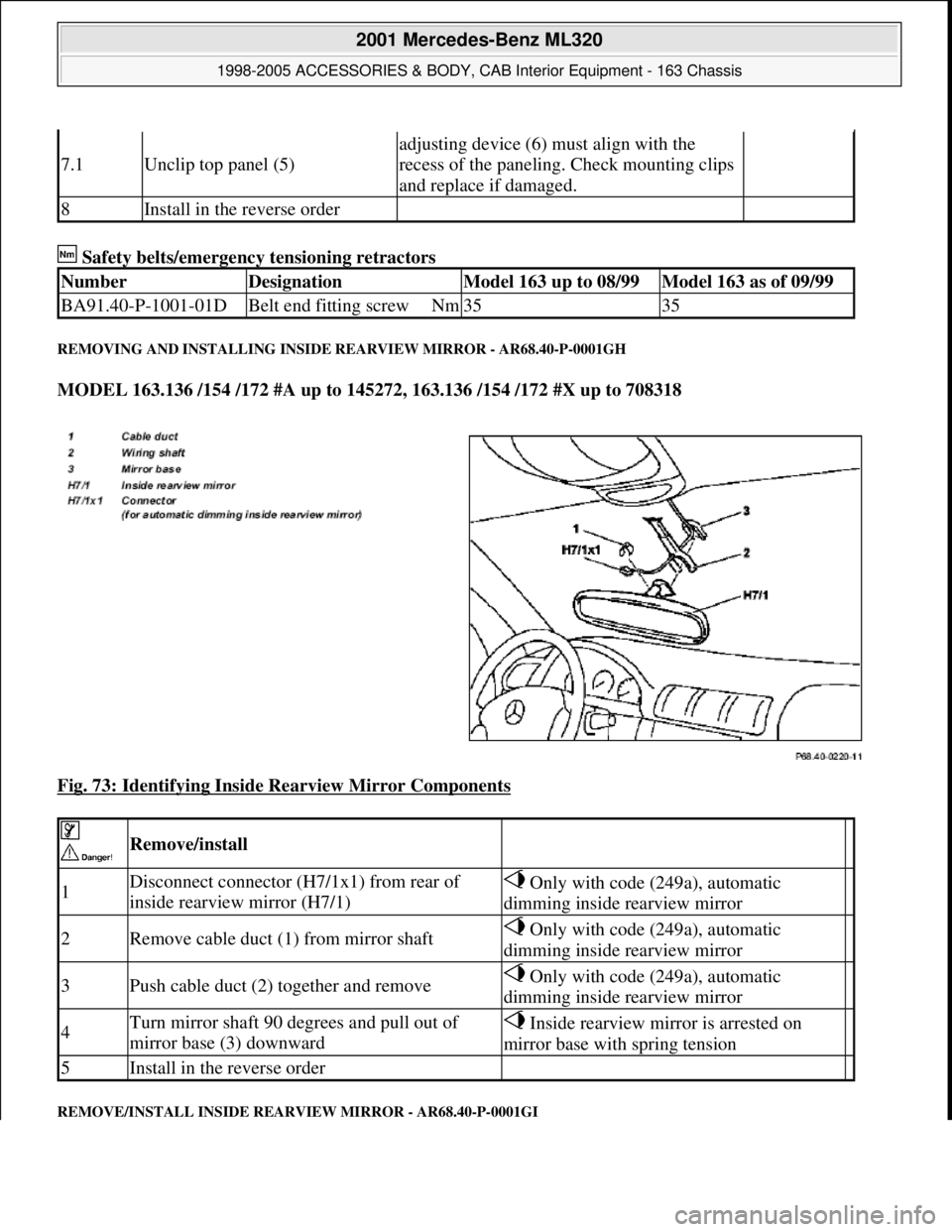

Fig. 73: Identifying Inside Rearview Mirror Components
REMOVE/INSTALL INSIDE REARVIEW MIRROR - AR68.40-P-0001GI
7.1Unclip top panel (5)
adjusting device (6) must align with the
recess of the paneling. Check mounting clips
and replace if damaged.
8Install in the reverse order
NumberDesignationModel 163 up to 08/99Model 163 as of 09/99
BA91.40-P-1001-01DBelt end fitting screwNm3535
Remove/install
1Disconnect connector (H7/1x1) from rear of
inside rearview mirror (H7/1) Only with code (249a), automatic
dimming inside rearview mirror
2Remove cable duct (1) from mirror shaft Only with code (249a), automatic
dimming inside rearview mirror
3Push cable duct (2) together and remove Only with code (249a), automatic
dimming inside rearview mirror
4Turn mirror shaft 90 degrees and pull out of
mirror base (3) downward Inside rearview mirror is arrested on
mirror base with spring tension
5Install in the reverse order
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:22 PMPage 72 © 2006 Mitchell Repair Information Company, LLC.
Page 3591 of 4133
MODEL 163.136 /154 /172 #A as of 145273, 163.136 /154 /172 #X as of 708319, 163.113 /128 /157 /174 /175

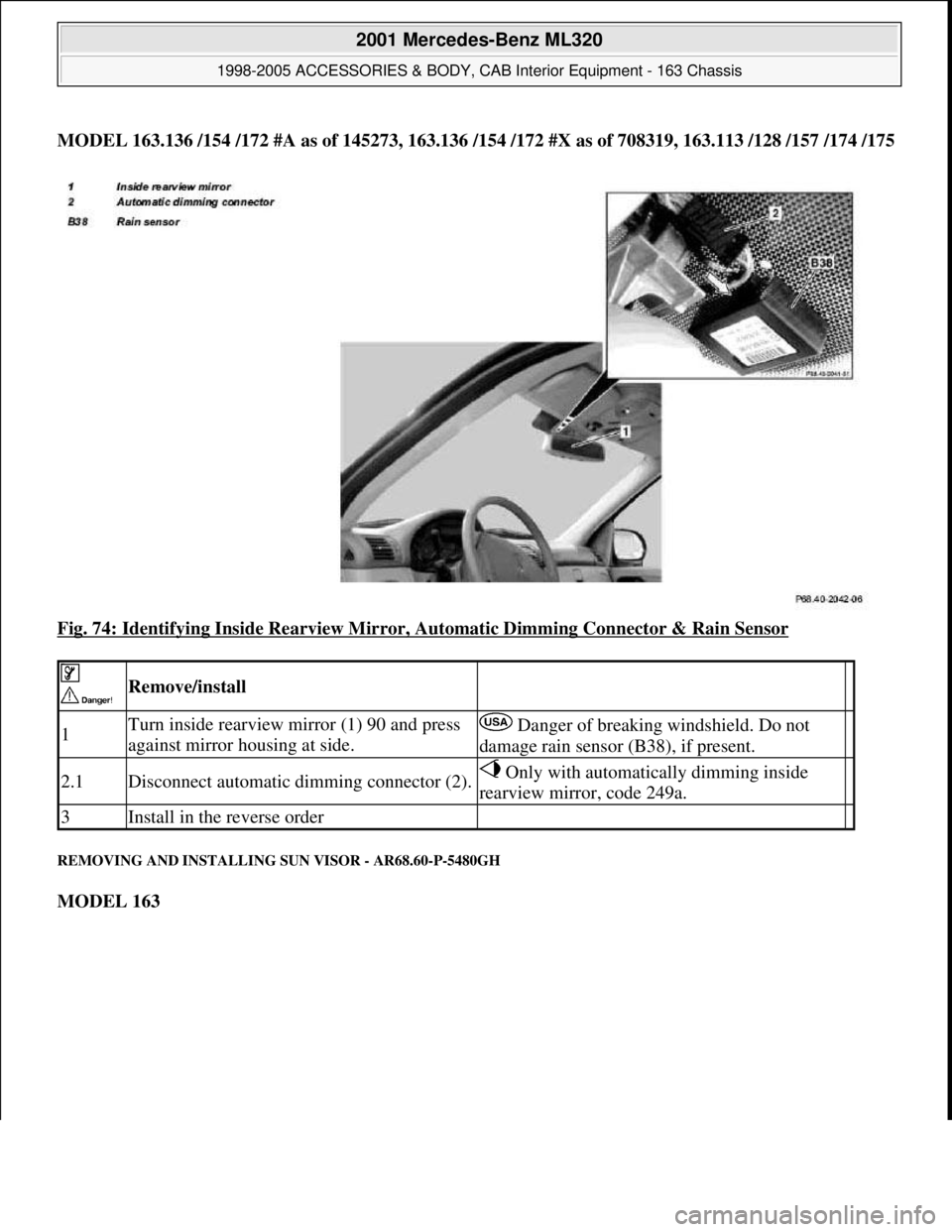

Fig. 74: Identifying Inside Rearview Mirror, Automatic Dimming Connector & Rain Sensor
REMOVING AND INSTALLING SUN VISOR - AR68.60-P-5480GH
MODEL 163
Remove/install
1Turn inside rearview mirror (1) 90 and press
against mirror housing at side. Danger of breaking windshield. Do not
damage rain sensor (B38), if present.
2.1Disconnect automatic dimming connector (2). Only with automatically dimming inside
rearview mirror, code 249a.
3Install in the reverse order
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:22 PMPage 73 © 2006 Mitchell Repair Information Company, LLC.
Page 3592 of 4133

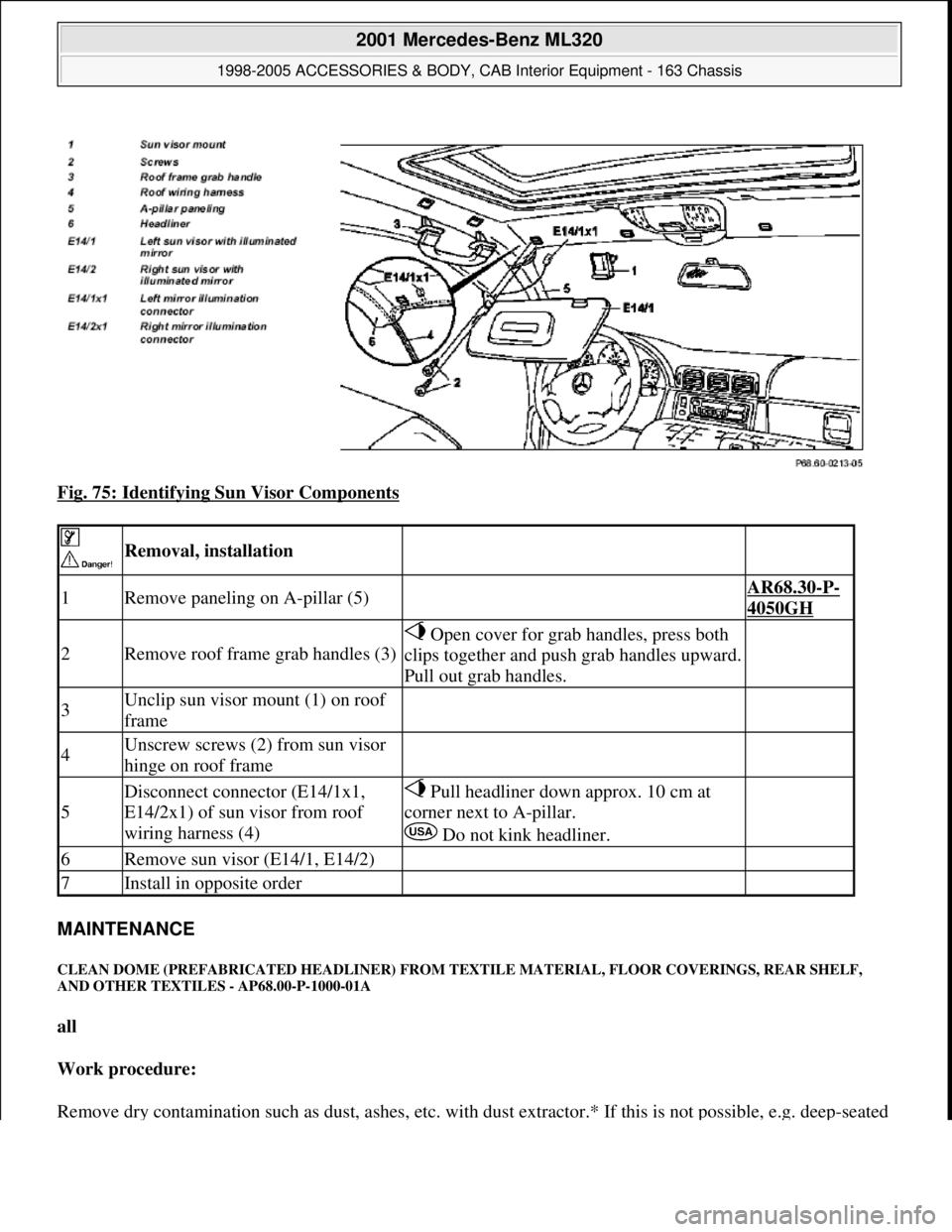

Fig. 75: Identifying Sun Visor Components
MAINTENANCE
CLEAN DOME (PREFABRICATED HEADLINER) FROM TEXTILE MATERIAL, FLOOR COVERINGS, REAR SHELF,
AND OTHER TEXTILES - AP68.00-P-1000-01A
all
Work procedure:
Remove dr
y contamination such as dust, ashes, etc. with dust extractor.* If this is not possible, e.g. deep-seated
Removal, installation
1Remove paneling on A-pillar (5) AR68.30-P-
4050GH
2Remove roof frame grab handles (3)
Open cover for grab handles, press both
clips together and push grab handles upward.
Pull out grab handles.
3Unclip sun visor mount (1) on roof
frame
4Unscrew screws (2) from sun visor
hinge on roof frame
5
Disconnect connector (E14/1x1,
E14/2x1) of sun visor from roof
wiring harness (4) Pull headliner down approx. 10 cm at
corner next to A-pillar.
Do not kink headliner.
6Remove sun visor (E14/1, E14/2)
7Install in opposite order
