MERCEDES-BENZ ML320 1997 Complete Repair Manual 21 At a glance Cockpit Instrument cluster Center console Overhead control panel

Page 826 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 22 At a glanceCockpit Cockpit

Page 827 of 4133

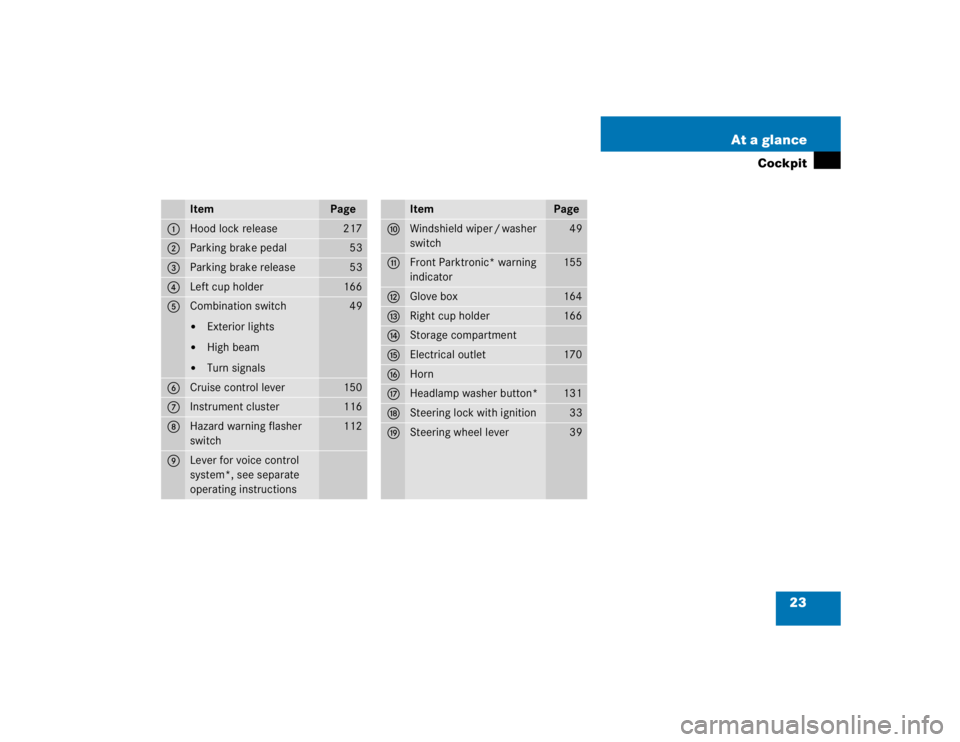

MERCEDES-BENZ ML320 1997 Complete Repair Manual 23 At a glance Cockpit Item Page 1 Hood lock release 217 2 Parking brake pedal 53 3 Parking brake release 53 4 Left cup holder 166 5 Combination switch Exterior lights  High beam  Turn signals 49 6

Page 828 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 24 At a glanceInstrument cluster Instrument cluster

Page 829 of 4133

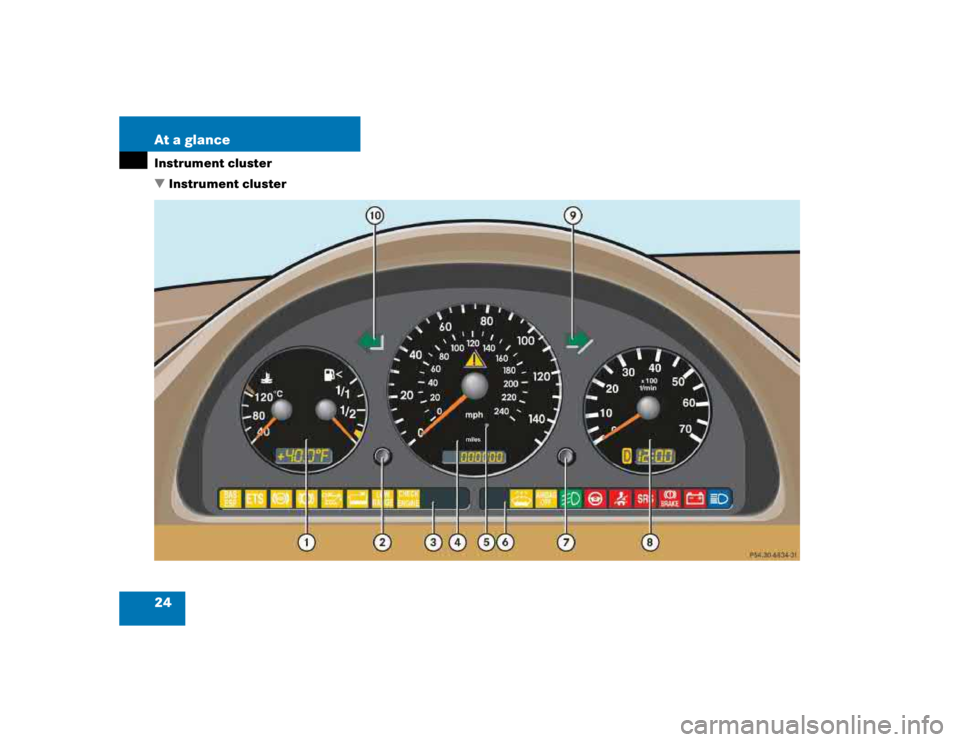

MERCEDES-BENZ ML320 1997 Complete Repair Manual 25 At a glance Instrument cluster Item Page 1 Gauge for Coolant tempera- ture 117 Outside tempera- ture 118 Fuel reserve warning lamp 252 2 Knob for Activating instru- ment cluster 116 Adjusting inte

Page 830 of 4133

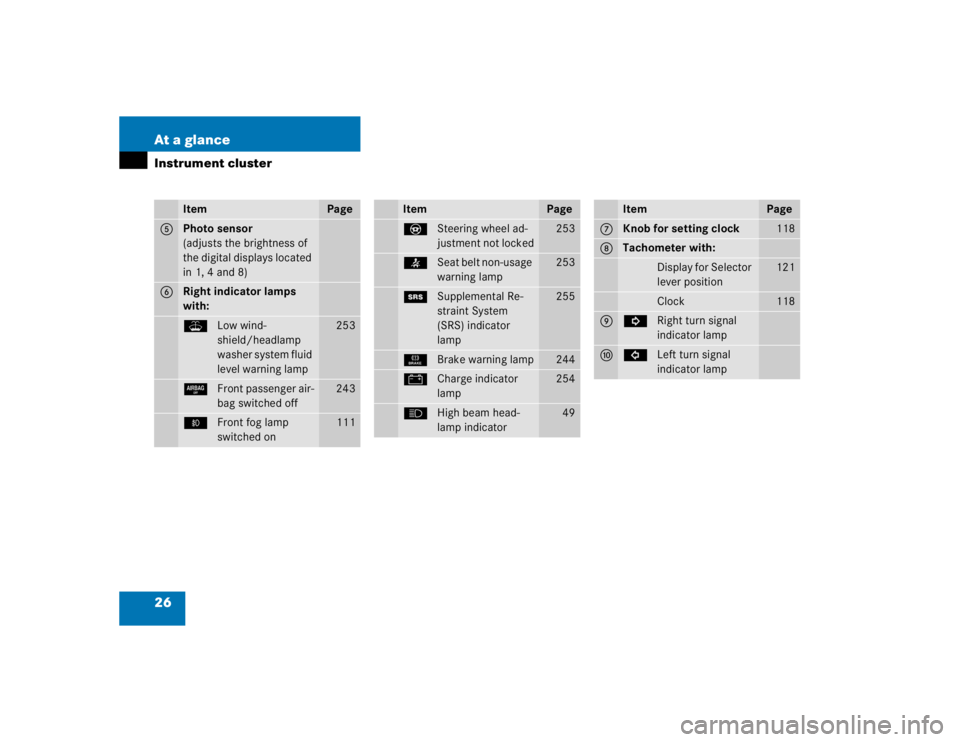

MERCEDES-BENZ ML320 1997 Complete Repair Manual 26 At a glanceInstrument cluster Item Page 5 Photo sensor (adjusts the brightness of the digital displays located in 1, 4 and 8) 6 Right indicator lamps with:WLow wind- shield/headlamp washer syst

Page 831 of 4133

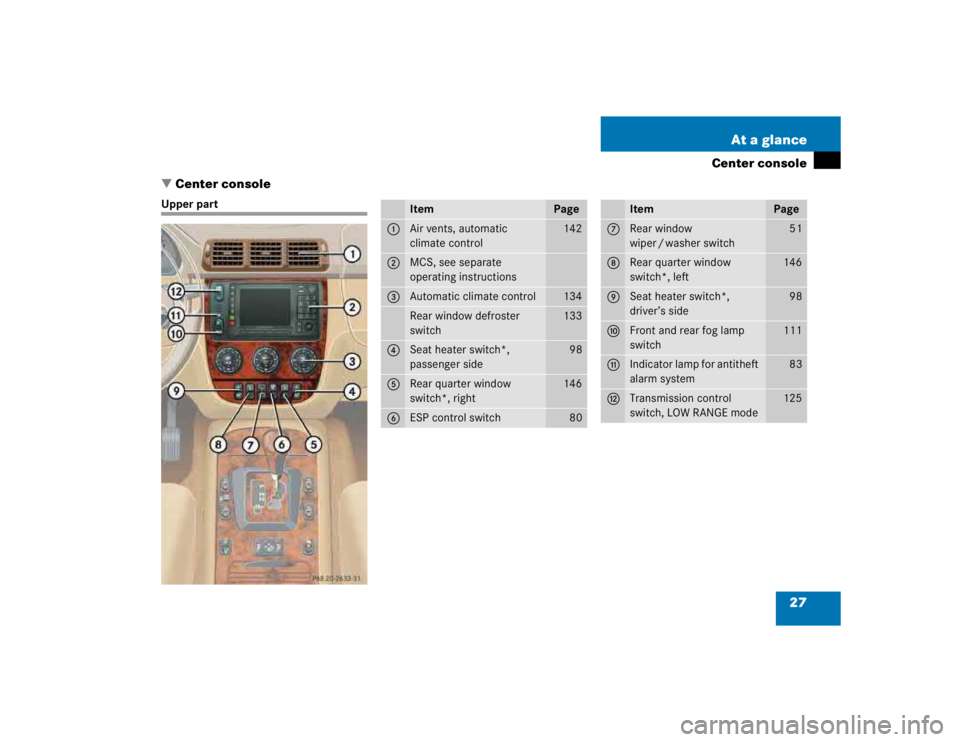

MERCEDES-BENZ ML320 1997 Complete Repair Manual 27 At a glance Center console Center console Upper part Item Page 1 Air vents, automatic climate control 142 2 MCS, see separate operating instructions 3 Automatic climate control 134 Rear window d

Page 832 of 4133

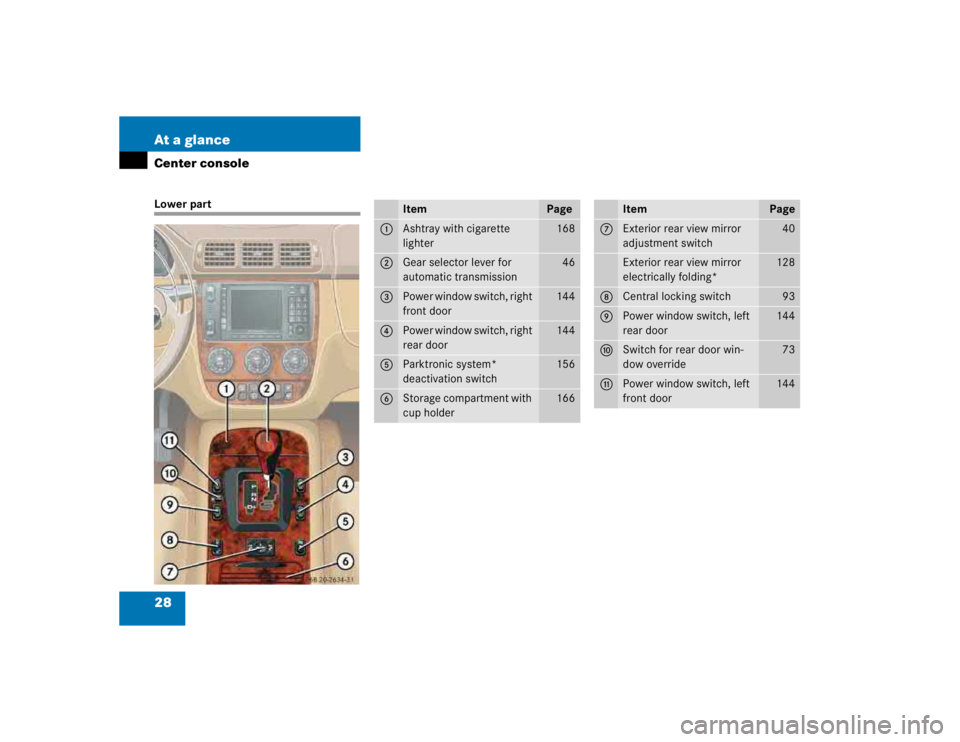

MERCEDES-BENZ ML320 1997 Complete Repair Manual 28 At a glanceCenter consoleLower part Item Page 1 Ashtray with cigarette lighter 168 2 Gear selector lever for automatic transmission 46 3 Power window switch, right front door 144 4 Power window
