MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:27 PMPage 144 © 2006 Mitchell Repair Information Company,

Page 1314 of 4133

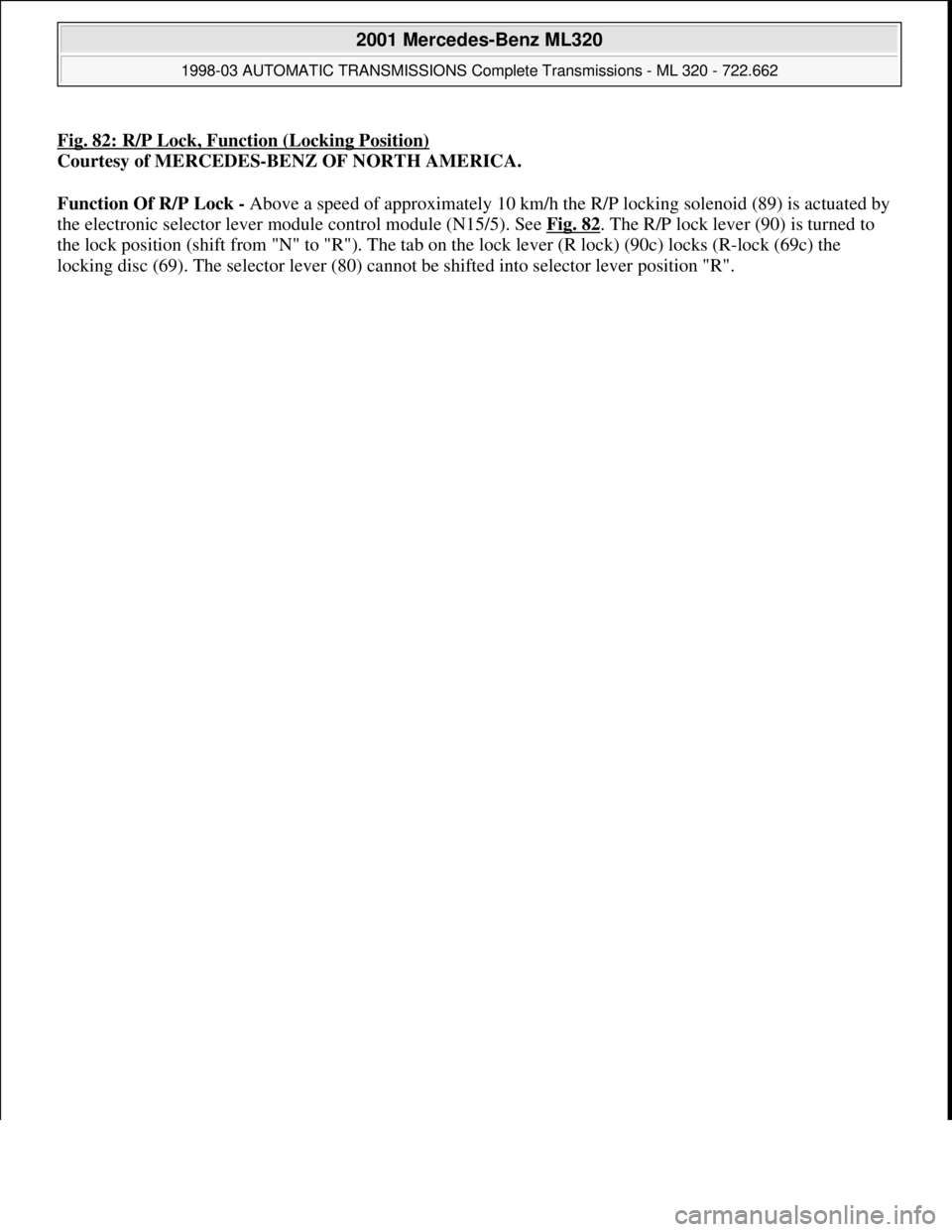

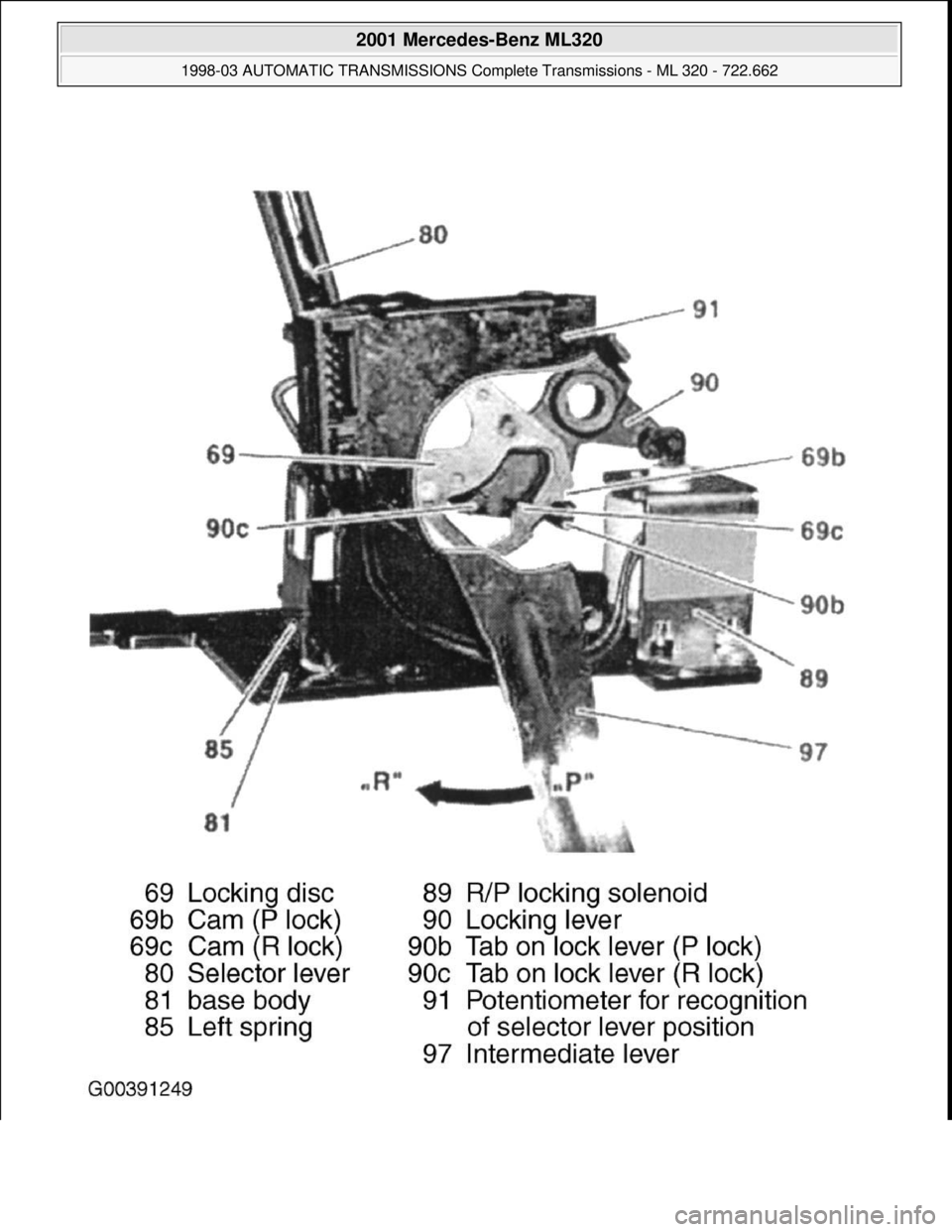

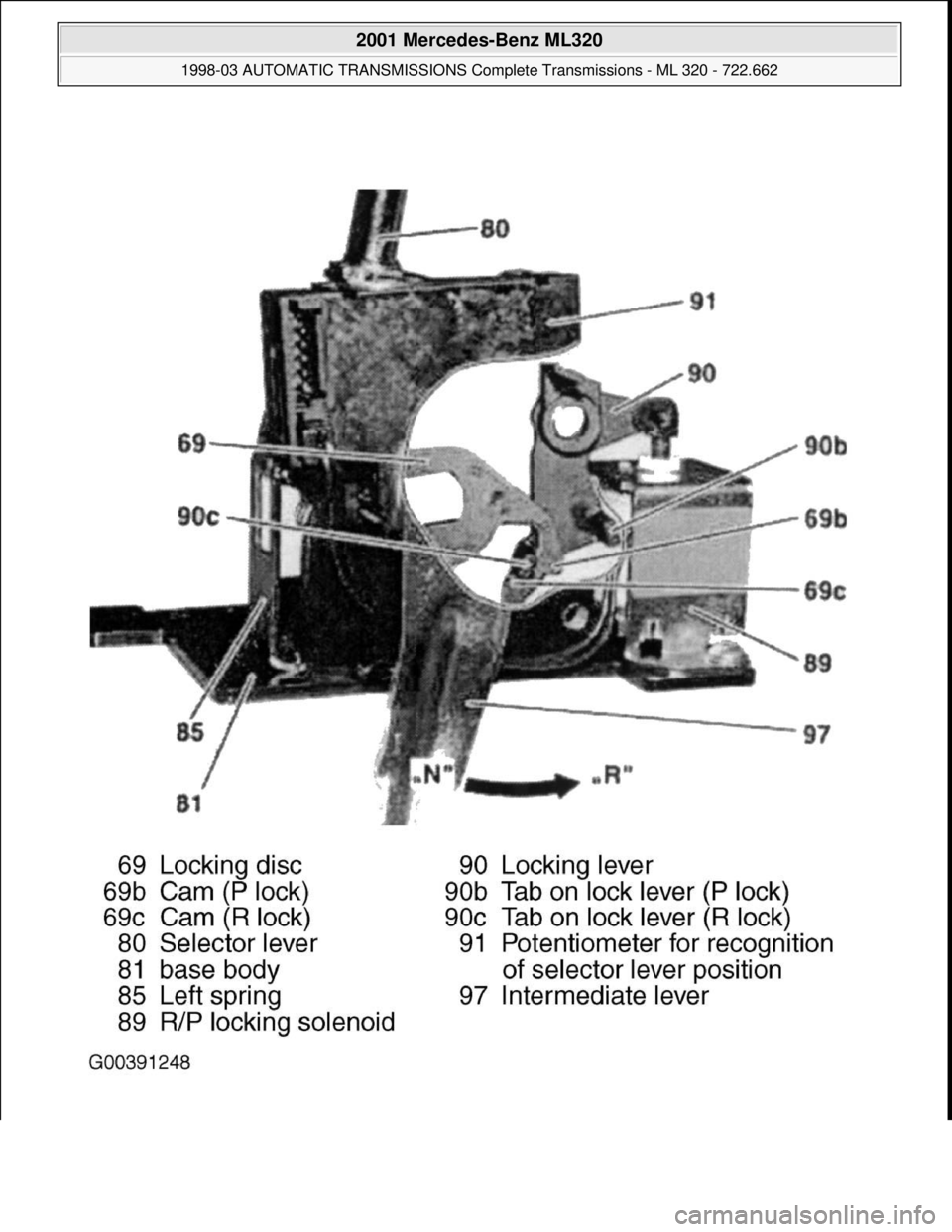

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 82: R/P Lock, Function (Locking Position) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Function Of R/P Lock - Above a speed of approximately 10 km/h the R/P locking solenoid (89) is actuated by

Page 1315 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:27 PMPage 146 © 2006 Mitchell Repair Information Company,

Page 1316 of 4133

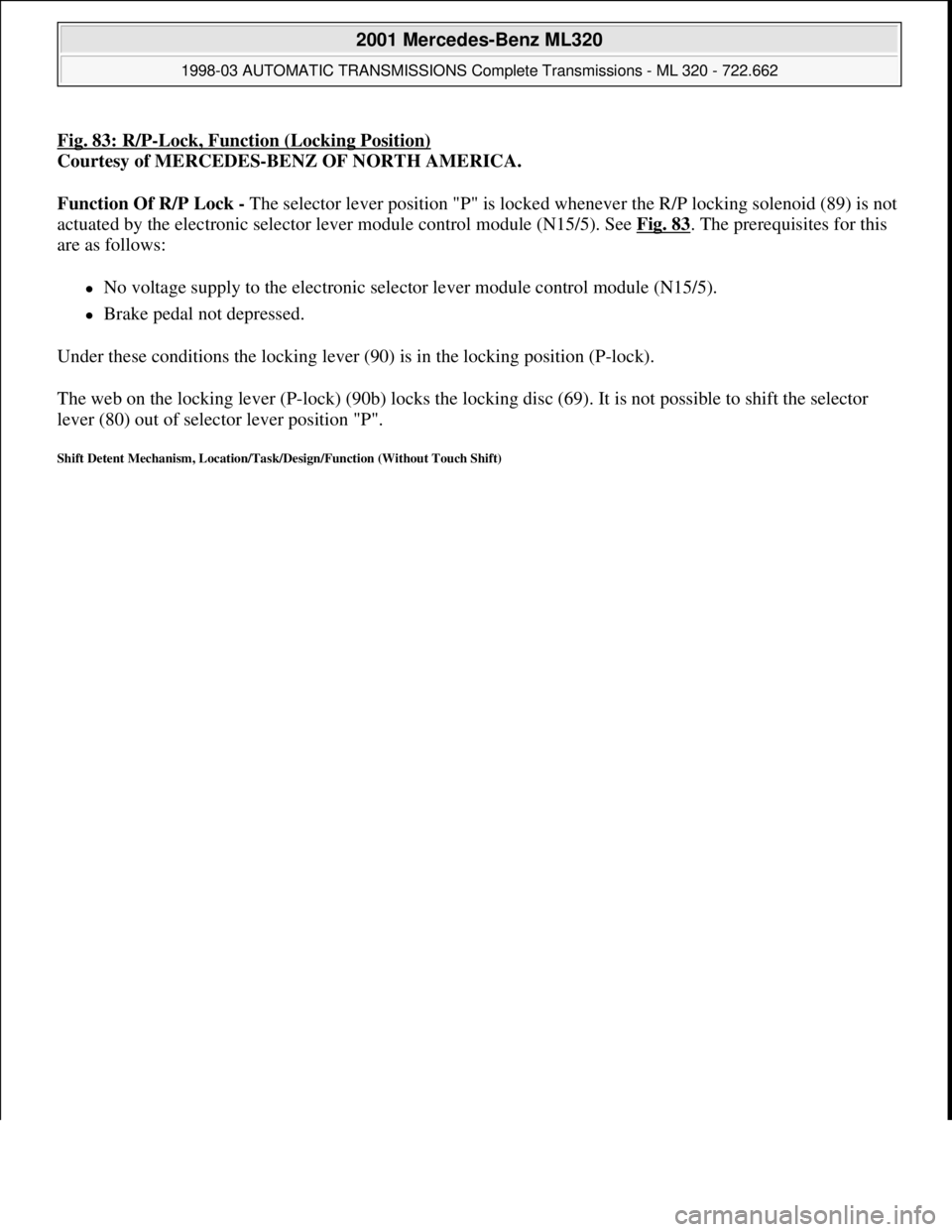

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 83: R/P-Lock, Function (Locking Position) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Function Of R/P Lock - The selector lever position "P" is locked whenever the R/P locking solenoid (89) is n

Page 1317 of 4133

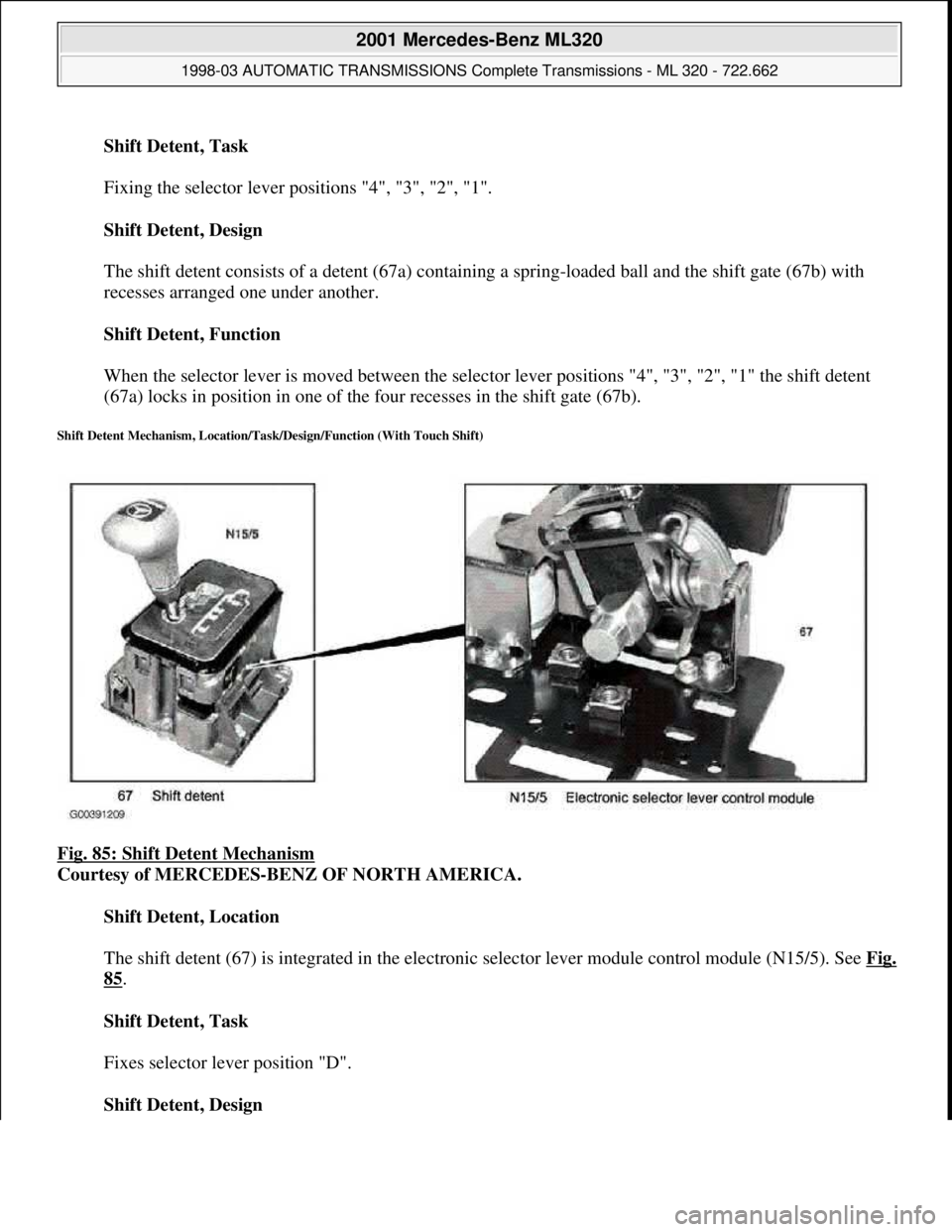

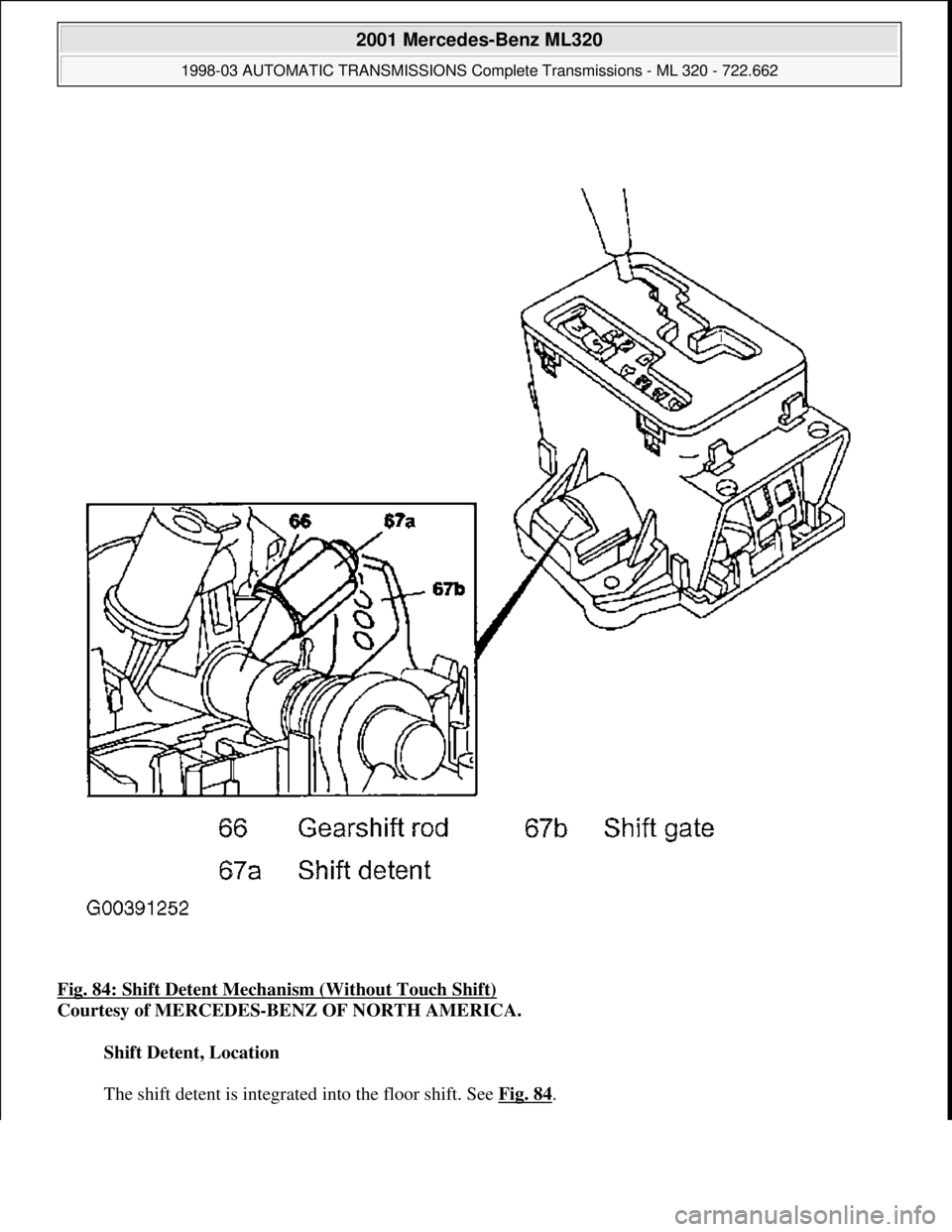

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 84: Shift Detent Mechan ism (Without Touch Shift) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Shift Detent, Location The shift detent is integrated into the floor shift. See Fig. 84

Page 1318 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Shift Detent, Task Fixing the selector lever positions "4", "3", "2", "1". Shift Detent, Design The shift detent consists of a detent (67a) containing a spring-loaded ball and the shift gate (6

Page 1319 of 4133

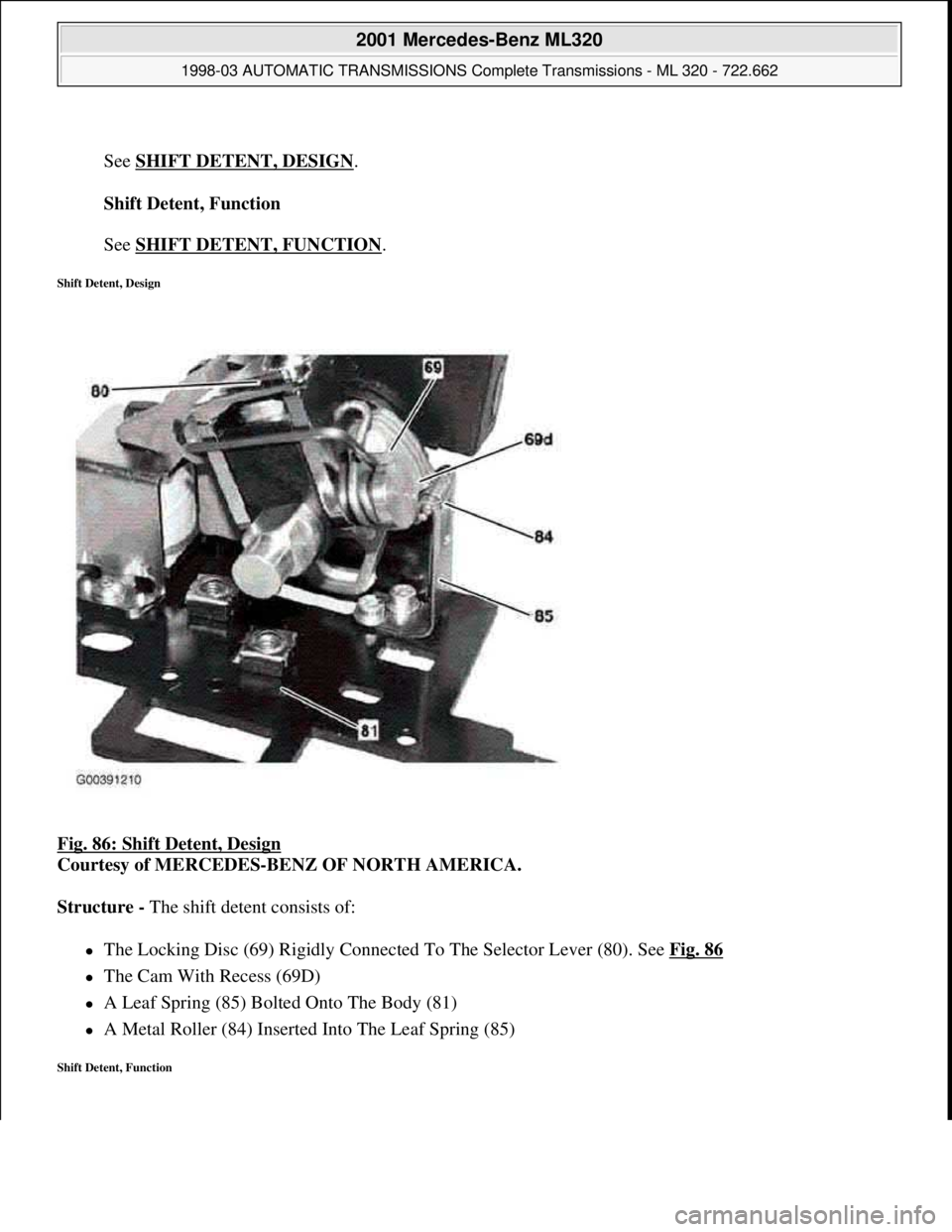

MERCEDES-BENZ ML320 1997 Complete Repair Manual See SHIFT DETENT, DESIGN . Shift Detent, Function See SHIFT DETENT, FUNCTION . Shift Detent, Design Fig. 86: Shift Detent, Design Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Structure - The

Page 1320 of 4133

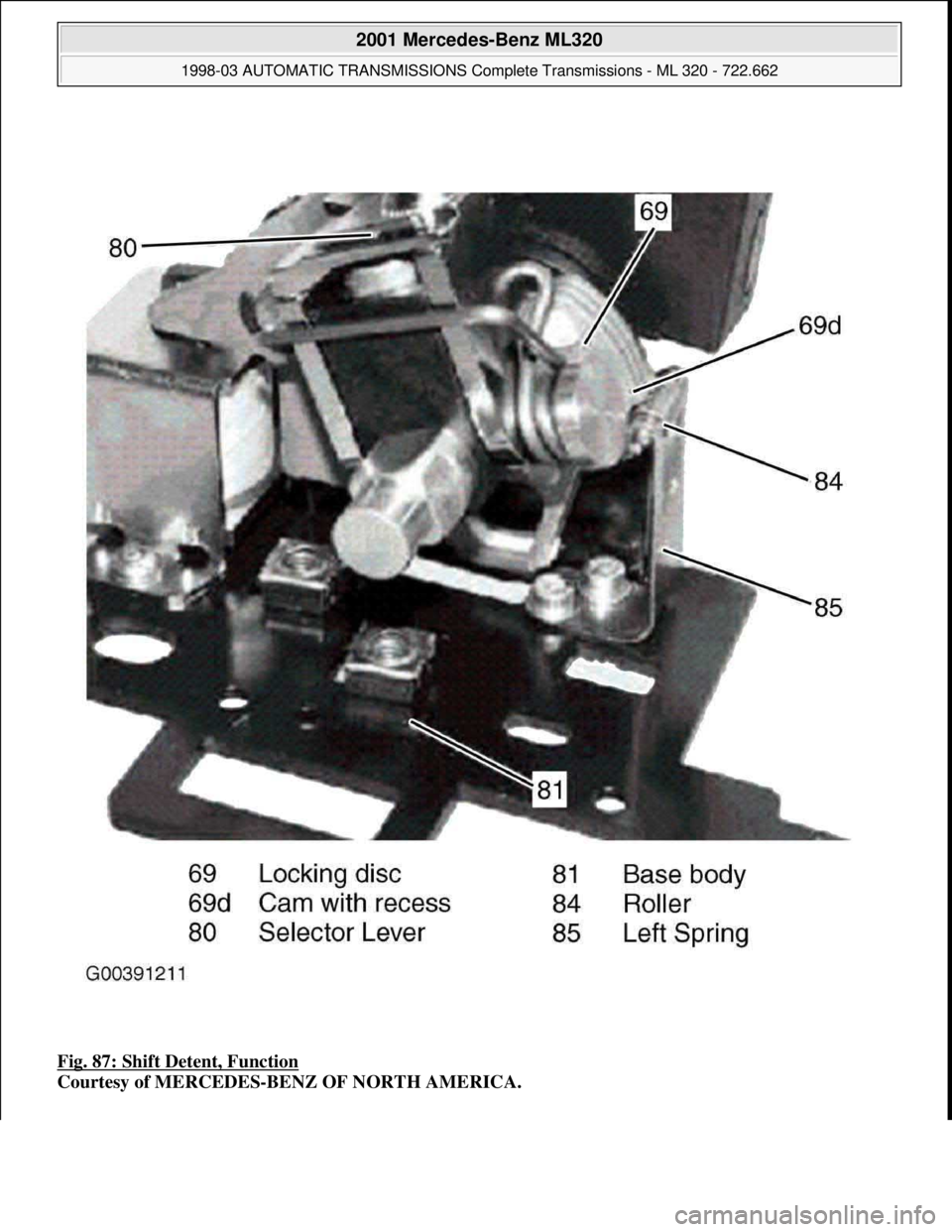

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 87: Shift Detent, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, Octo
