1997 MERCEDES-BENZ ML320 Complete Repair Manual

catalytic converteraudiooil viscositychild restraintdimensionstechnical data
Popular search:
phonedrain the coolantspark plugssteering wheel adjustmentturn signalMode Eengine overheat
Previous
Next
Load previous 8 pages

Page 2969 of 4133

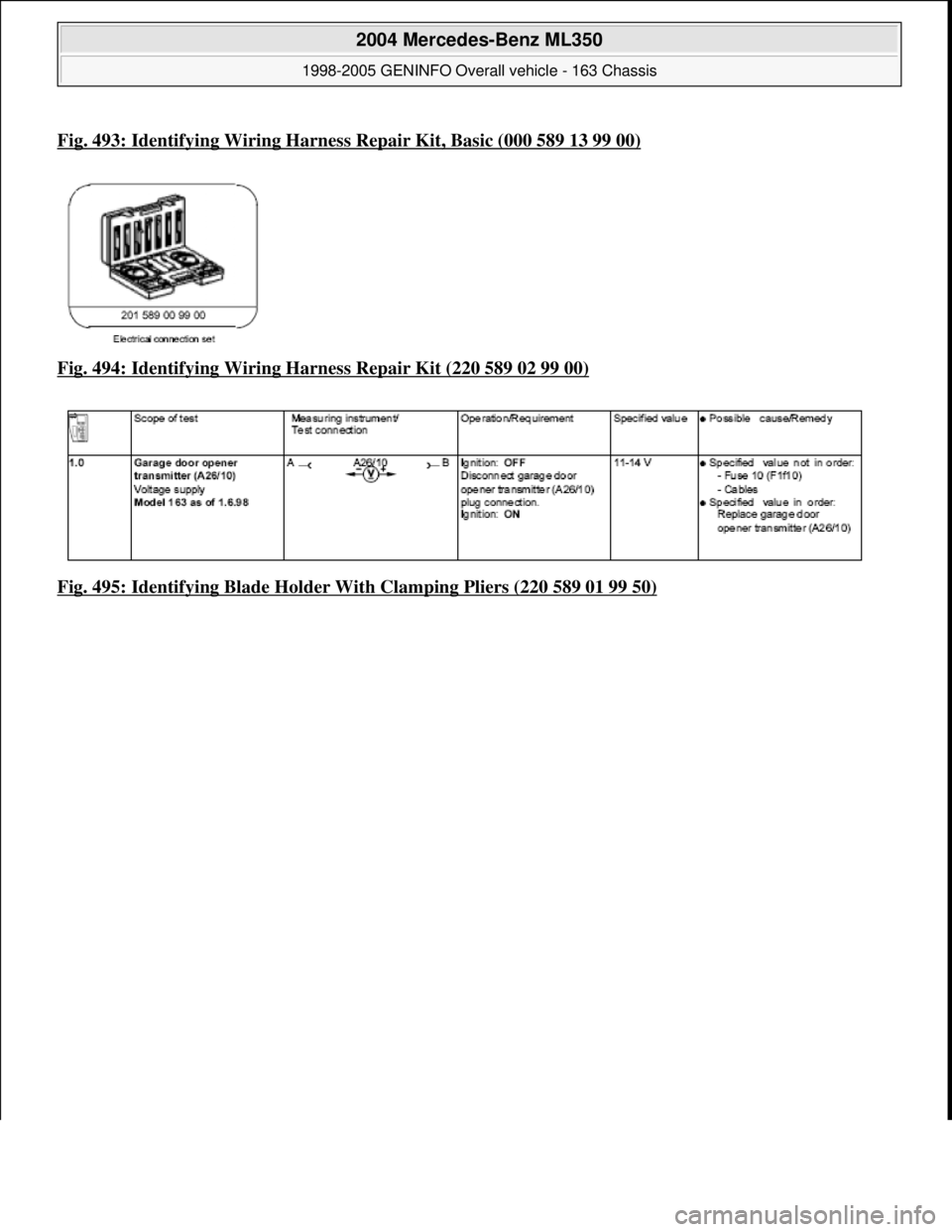

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 493: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00) Fig. 494: Identifying Wiring Ha rness Repair Kit (220 589 02 99 00) Fig. 495: Identifying Blad e Holder With Clamping Plier

Page 2970 of 4133

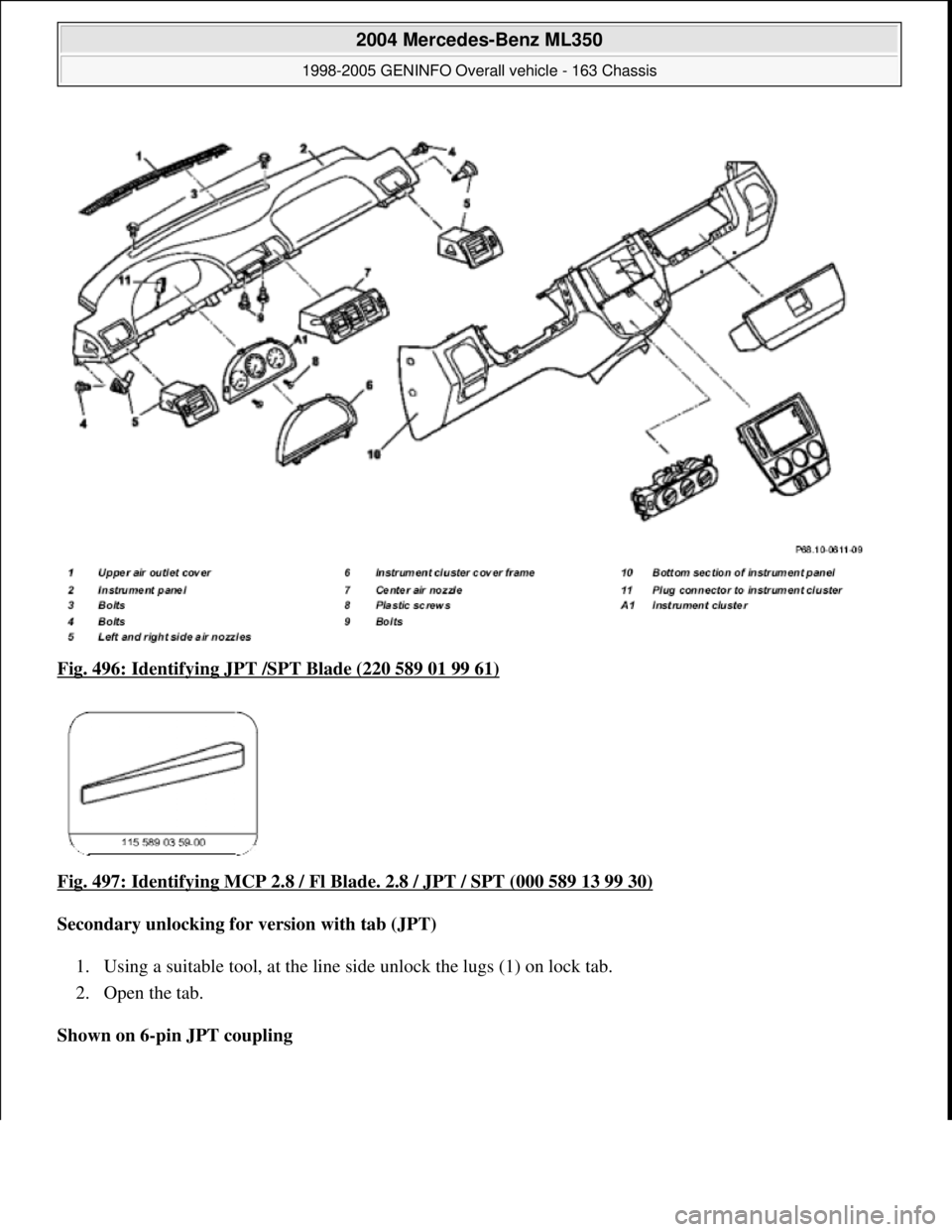

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 496: Identifying JPT /SPT Blade (220 589 01 99 61) Fig. 497: Identifying MCP 2.8 / Fl Blade. 2.8 / JPT / SPT (000 589 13 99 30) Secondary unlocking for version with tab (JPT) 1. Using a

Page 2971 of 4133

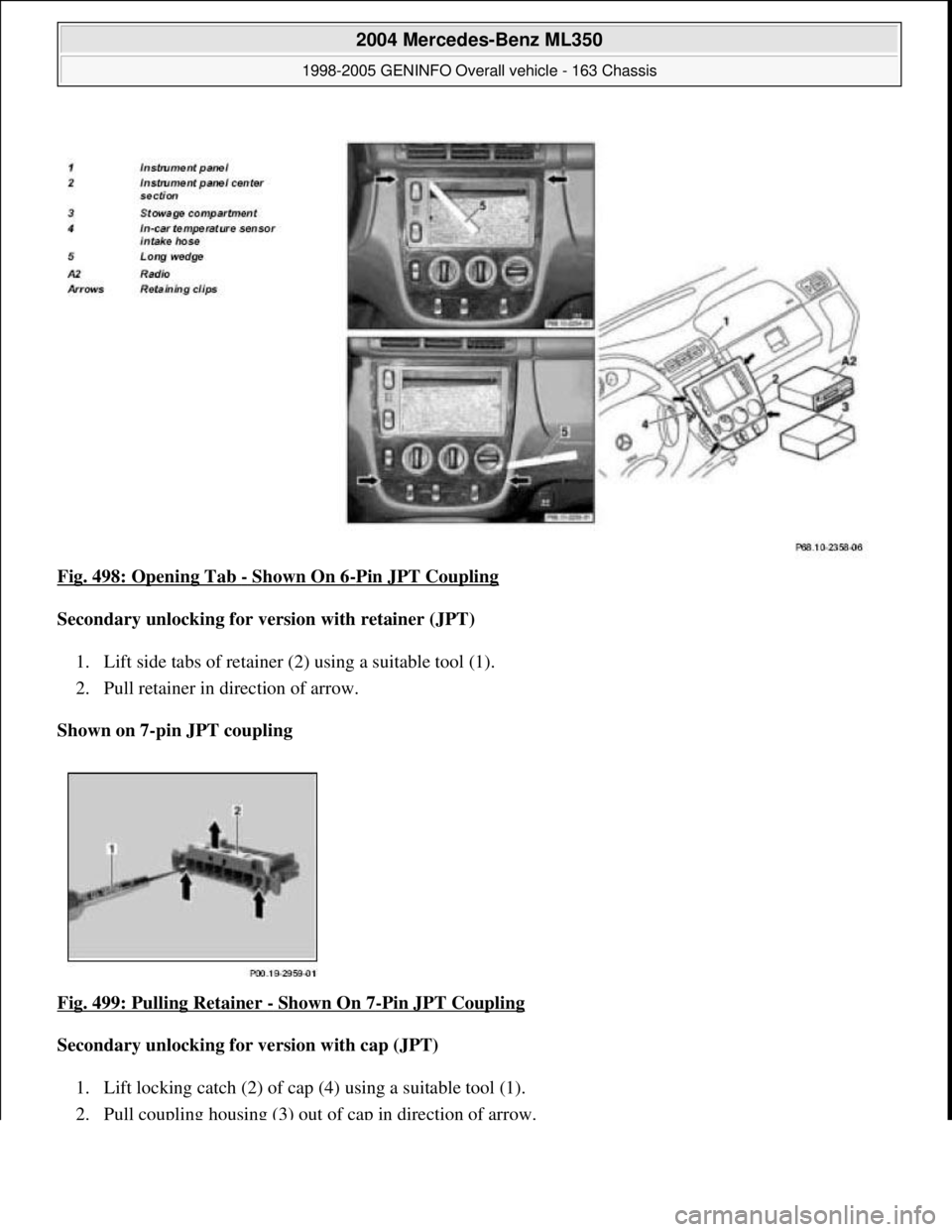

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 498: Opening Tab - Shown On 6-Pin JPT Coupling Secondary unlocking for version with retainer (JPT) 1. Lift side tabs of retainer (2 ) using a suitable tool (1). 2. Pull retainer in dir

Page 2972 of 4133

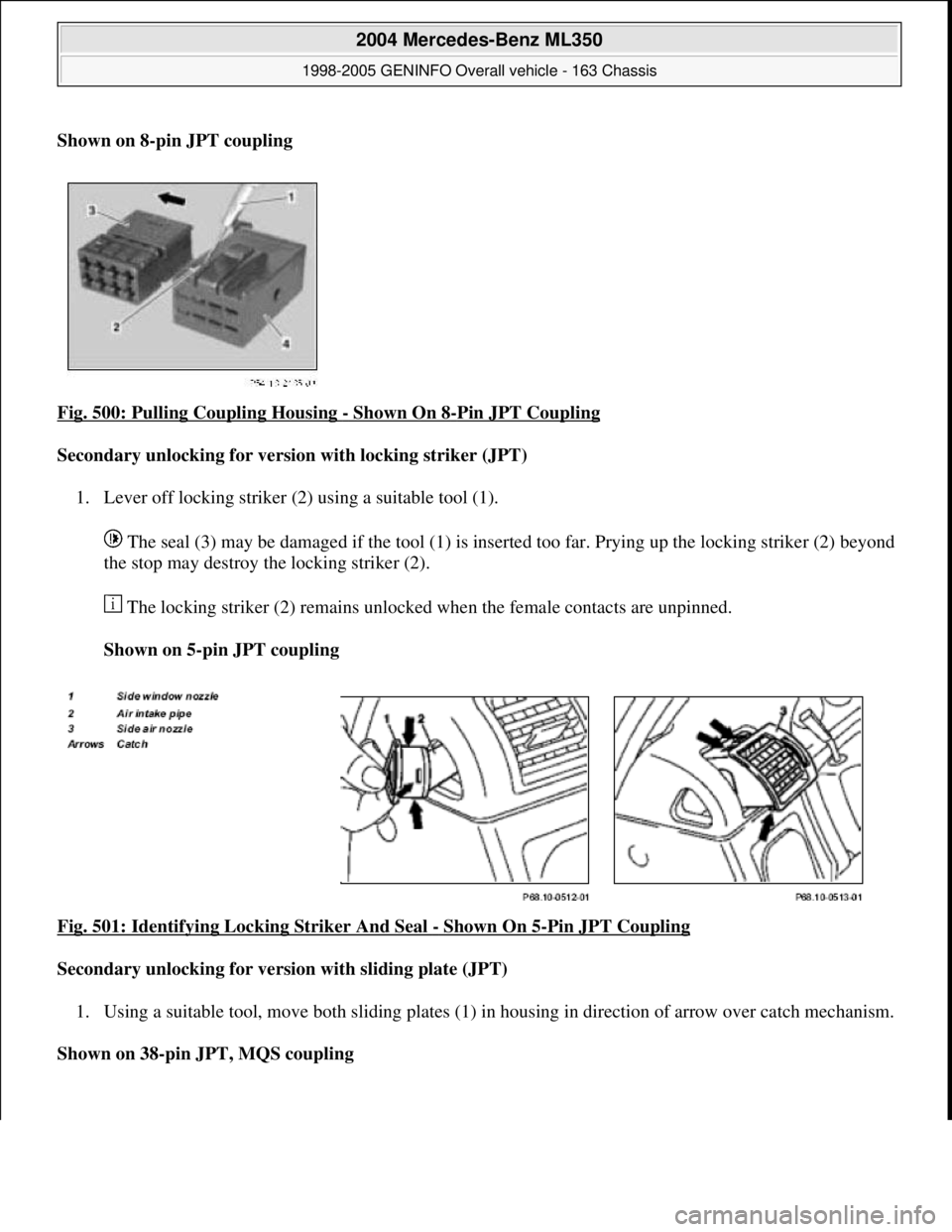

MERCEDES-BENZ ML320 1997 Complete Repair Manual Shown on 8-pin JPT coupling Fig. 500: Pulling Coupling Housing - Shown On 8-Pin JPT Coupling Secondary unlocking for version with locking striker (JPT) 1. Lever off locking striker (2) using a s

Page 2973 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 502: Moving Both Sliding Plates - Shown On 38-Pin JPT, MQS Coupling Secondary unlocking for version with contact retainer (JPT) 1. Using a suitable tool, move contact retainer (1 ) in dir

Page 2974 of 4133

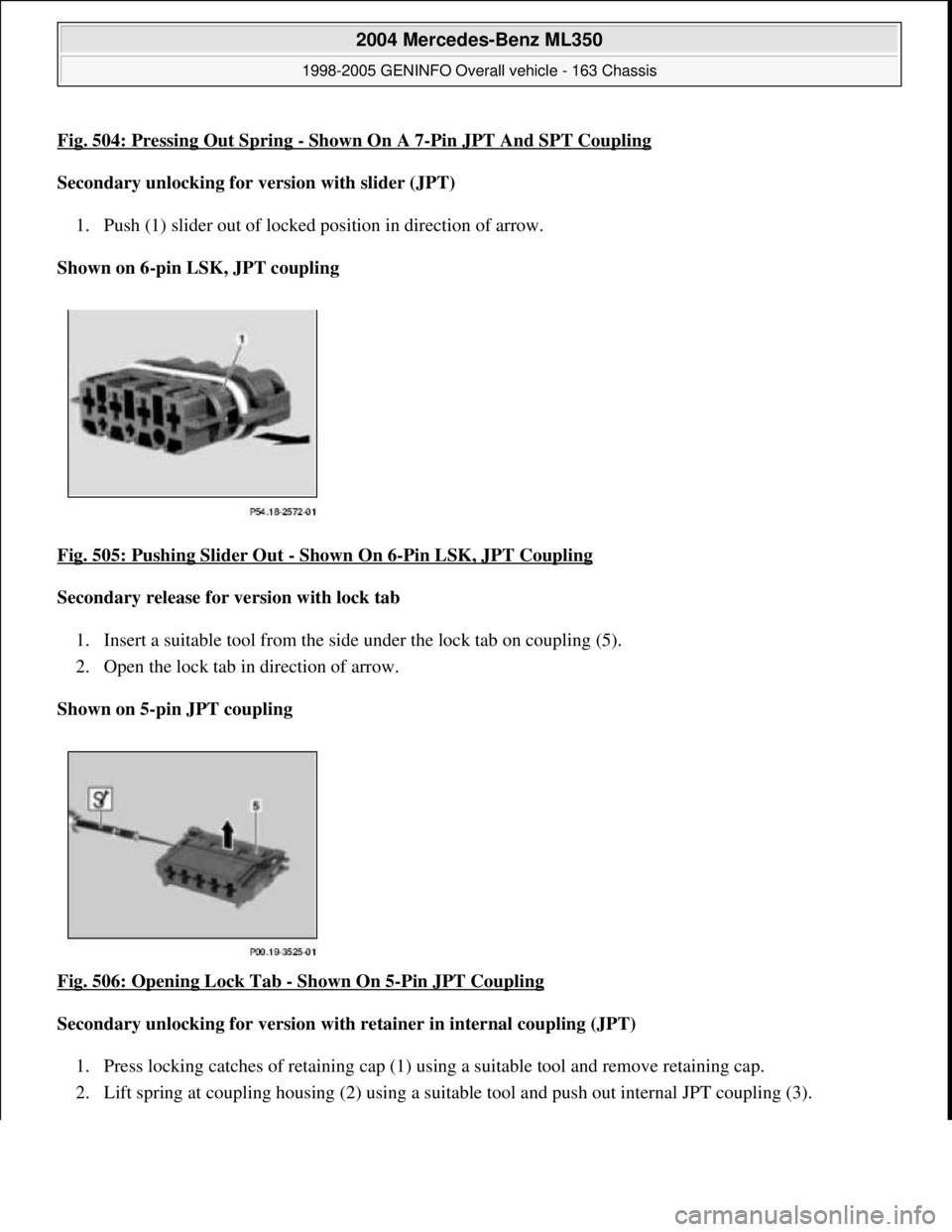

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 504: Pressing Out Spring - Shown On A 7-Pin JPT And SPT Coupling Secondary unlocking for version with slider (JPT) 1. Push (1) slider out of locked position in direction of arrow. Shown

Page 2975 of 4133

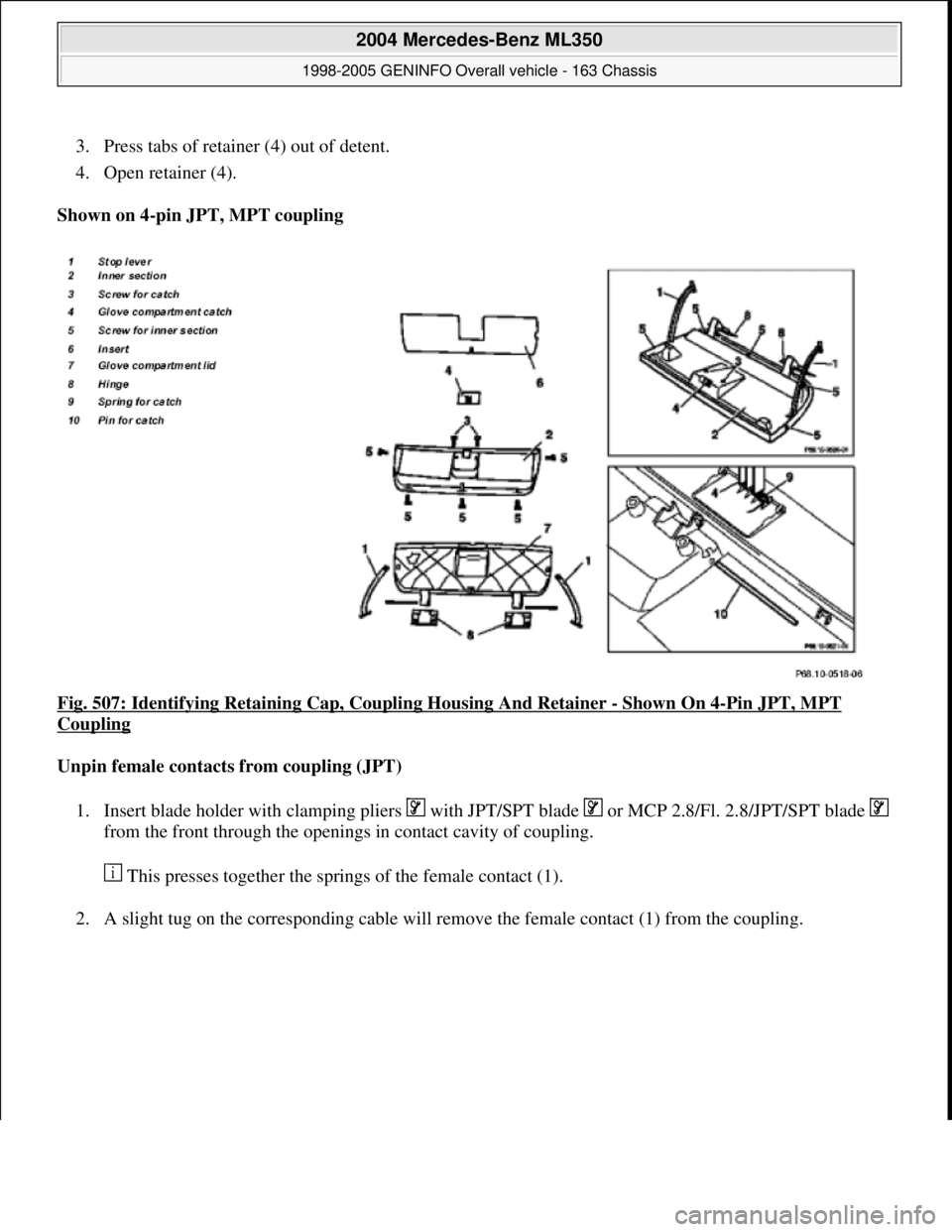

MERCEDES-BENZ ML320 1997 Complete Repair Manual 3. Press tabs of retainer (4) out of detent. 4. Open retainer (4). Shown on 4-pin JPT, MPT coupling Fig. 507: Identifying Retaining Cap, Coupling Housing And Retainer - Shown On 4-Pin JPT, MPT

Page 2976 of 4133

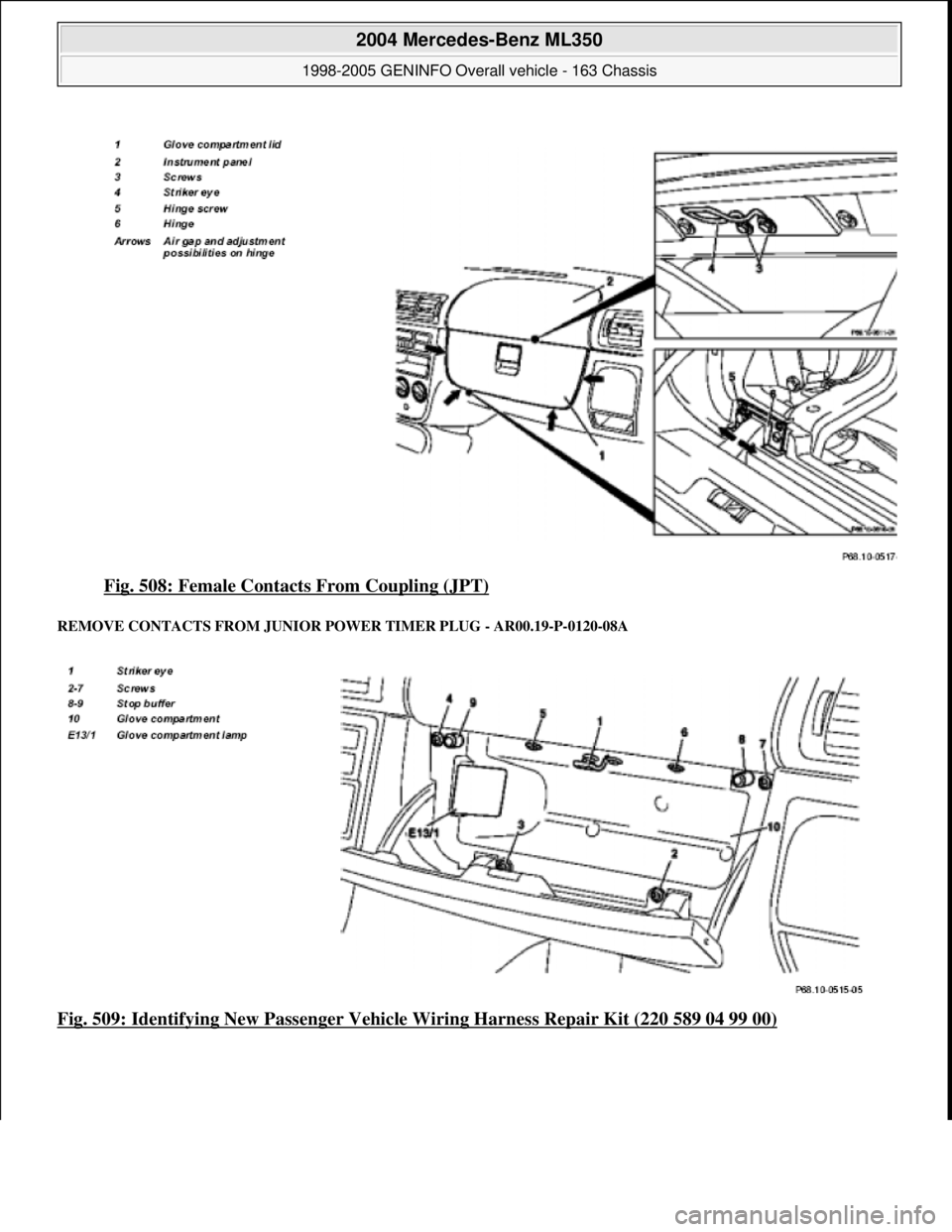

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 508: Female Contacts From Coupling (JPT) REMOVE CONTACTS FROM JUNIOR POWER TIMER PLUG - AR00.19-P-0120-08A Fig. 509: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 0
