Page 1233 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:26 PMPage 64 © 2006 Mitchell Repair Information Company, L

Page 1234 of 4133

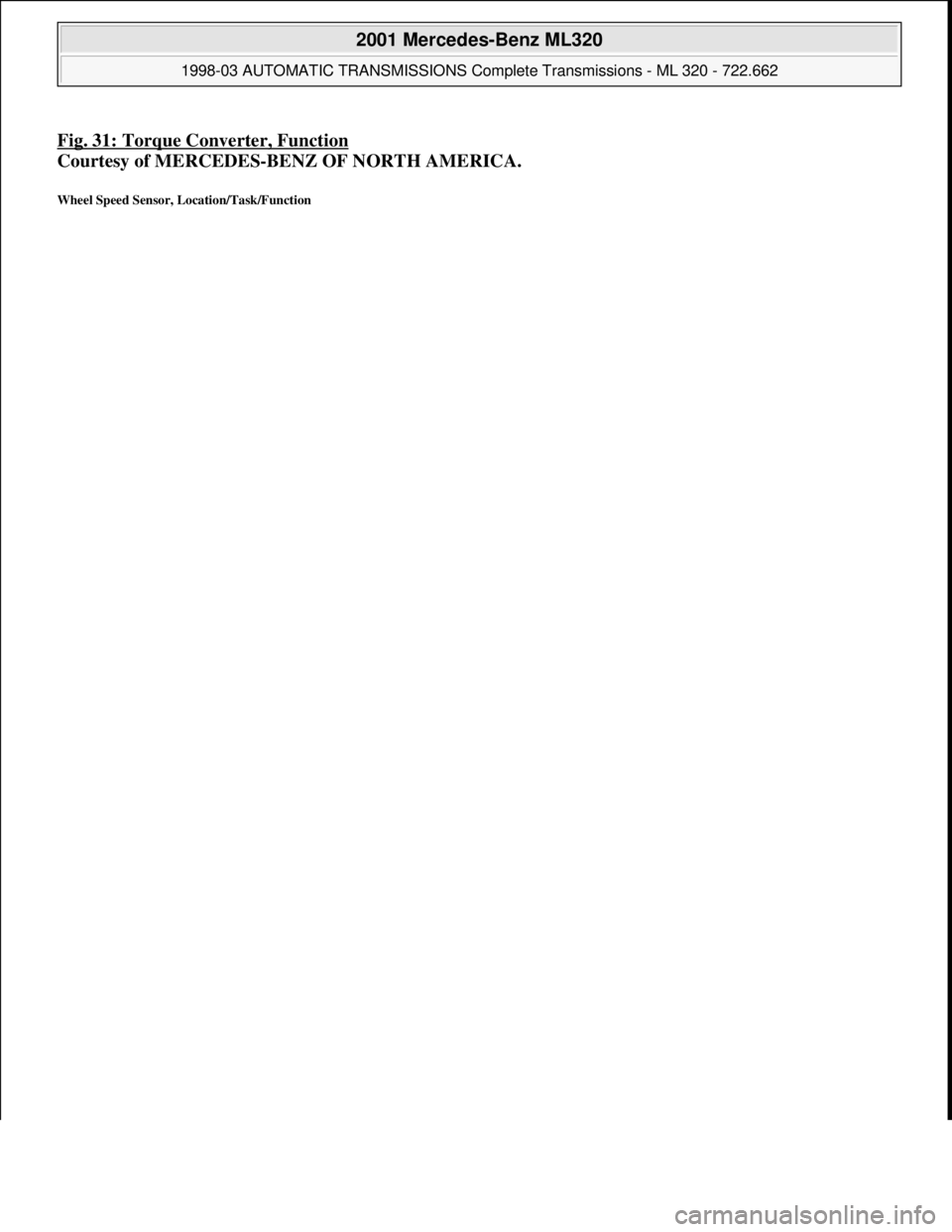

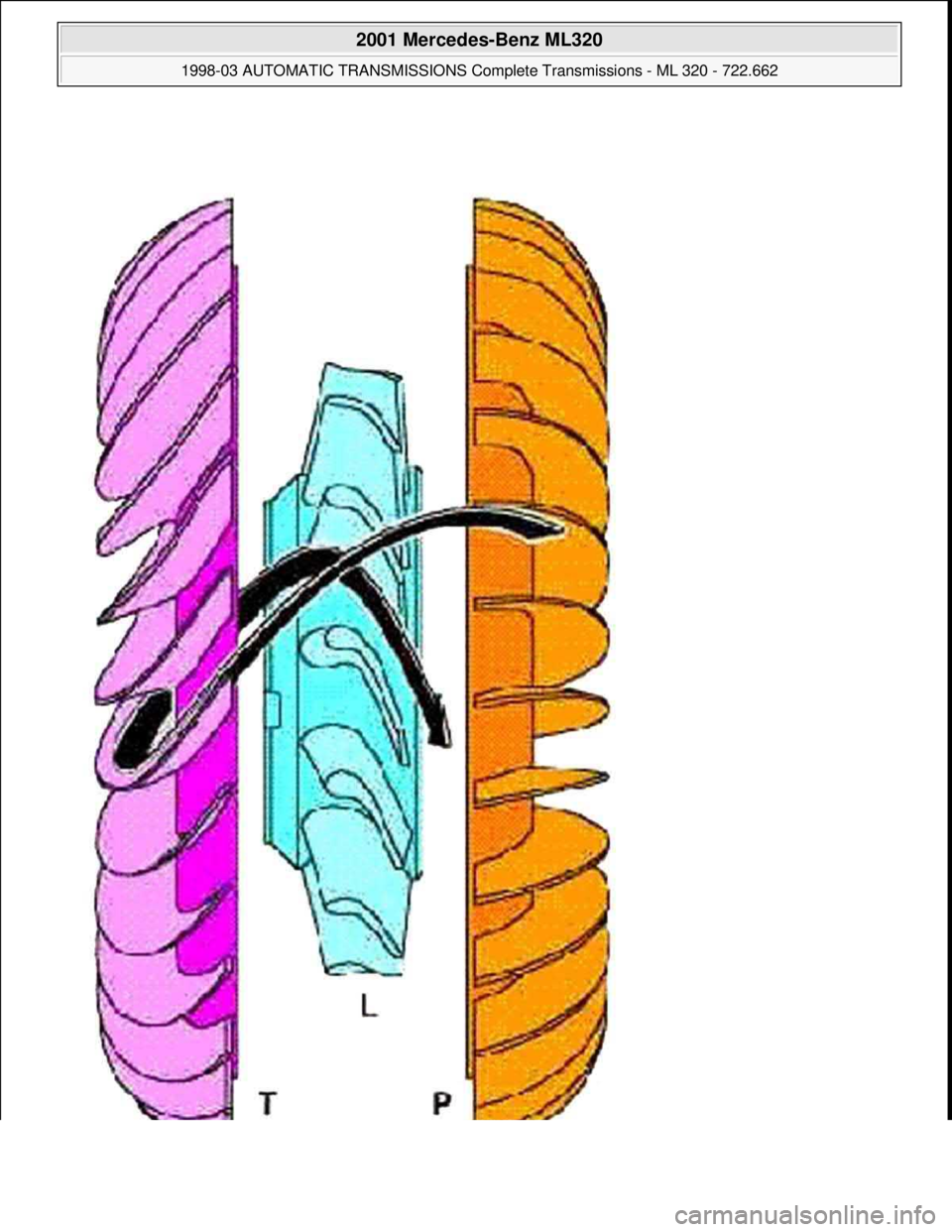

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 31: Torque Converter, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Wheel Speed Sensor, Location/Task/Function 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Trans

Page 1235 of 4133

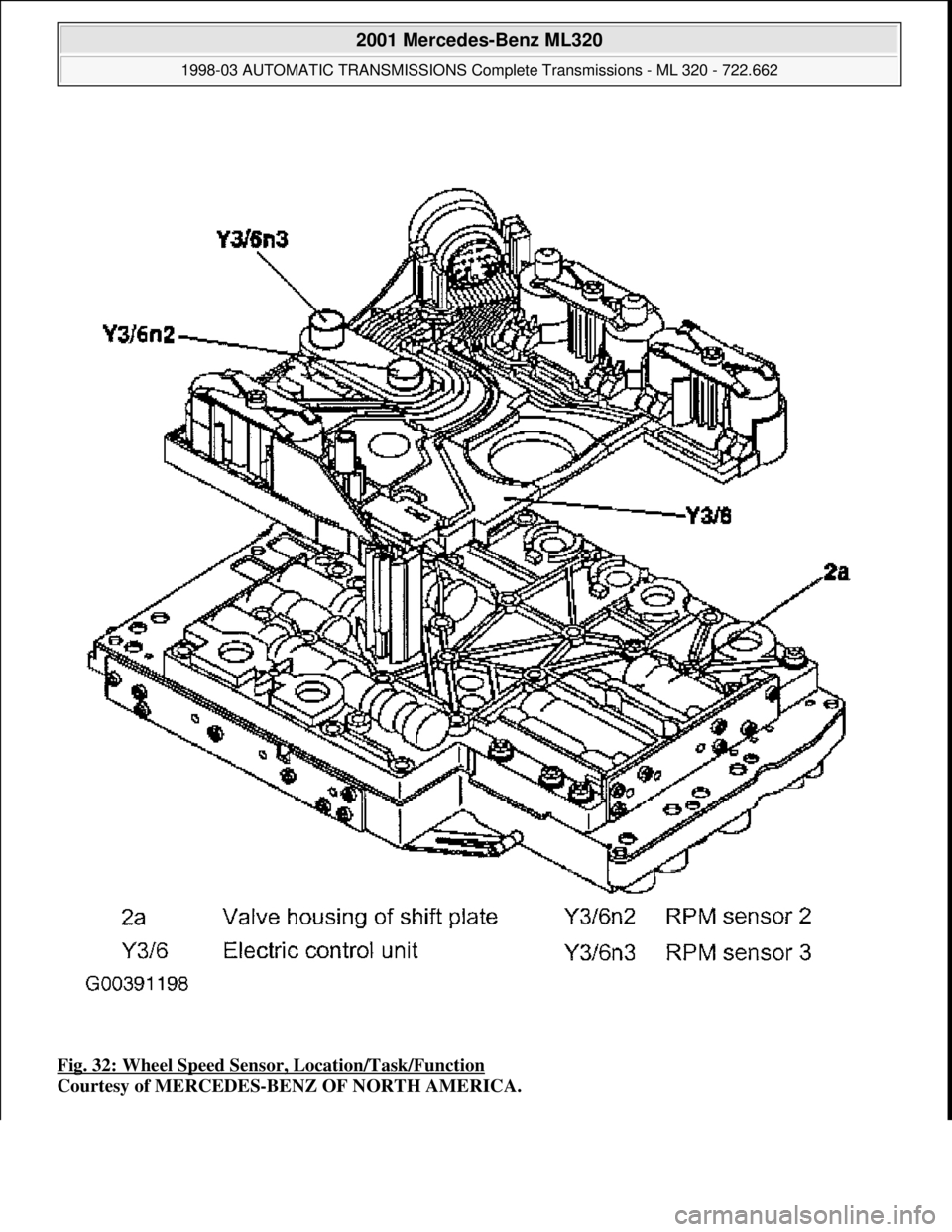

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 32: Wheel Speed Sensor , Location/Task/Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.6

Page 1236 of 4133

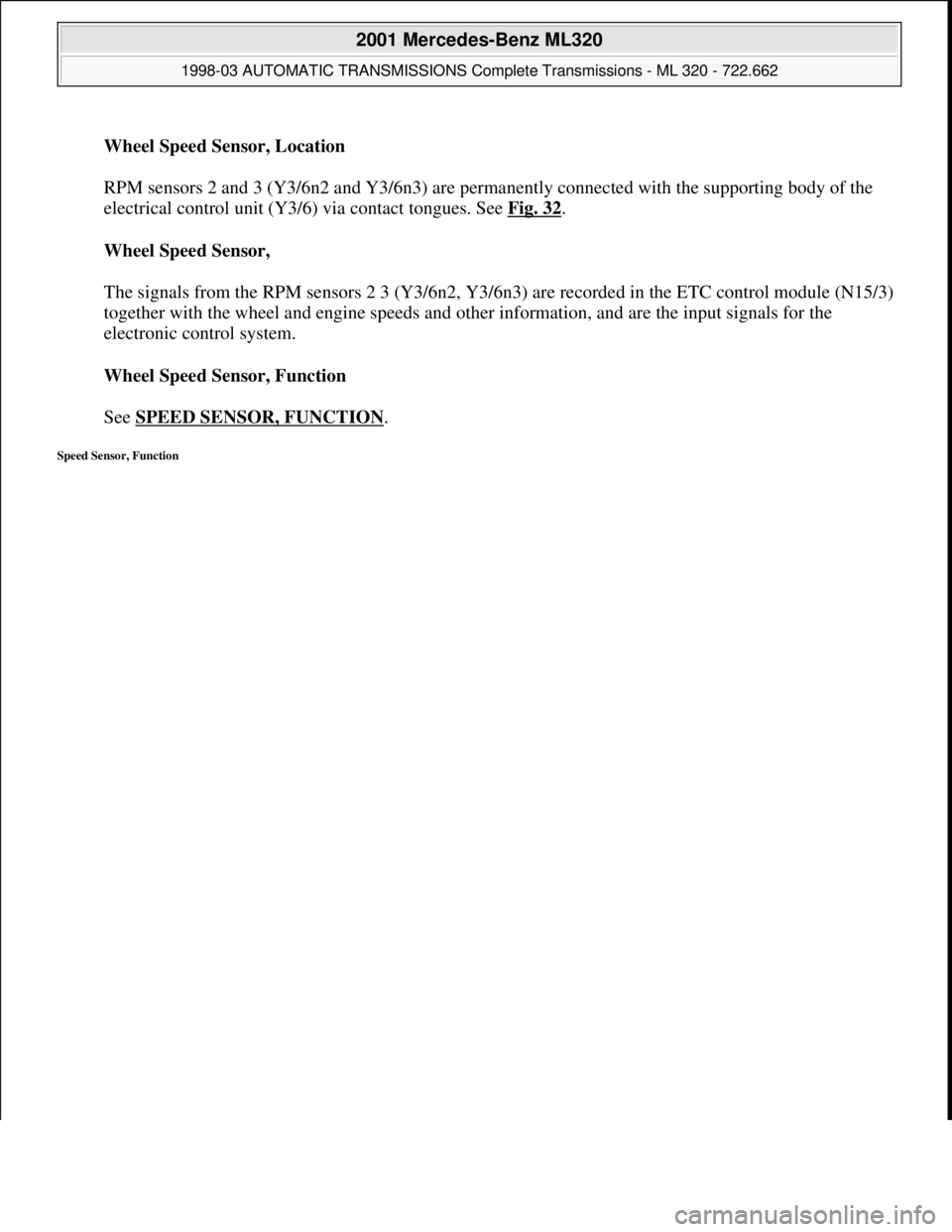

MERCEDES-BENZ ML320 1997 Complete Repair Manual Wheel Speed Sensor, Location RPM sensors 2 and 3 (Y3/6n2 and Y3/6n3) are permanently connected with the supporting body of the electrical control unit (Y3/6) via contact tongues. See Fig. 32 . Wh

Page 1237 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 33: Speed Sensor, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Operation The RPM sensors are pressed against the transmission housing (51) by a spring (49) which is held against the

Page 1238 of 4133

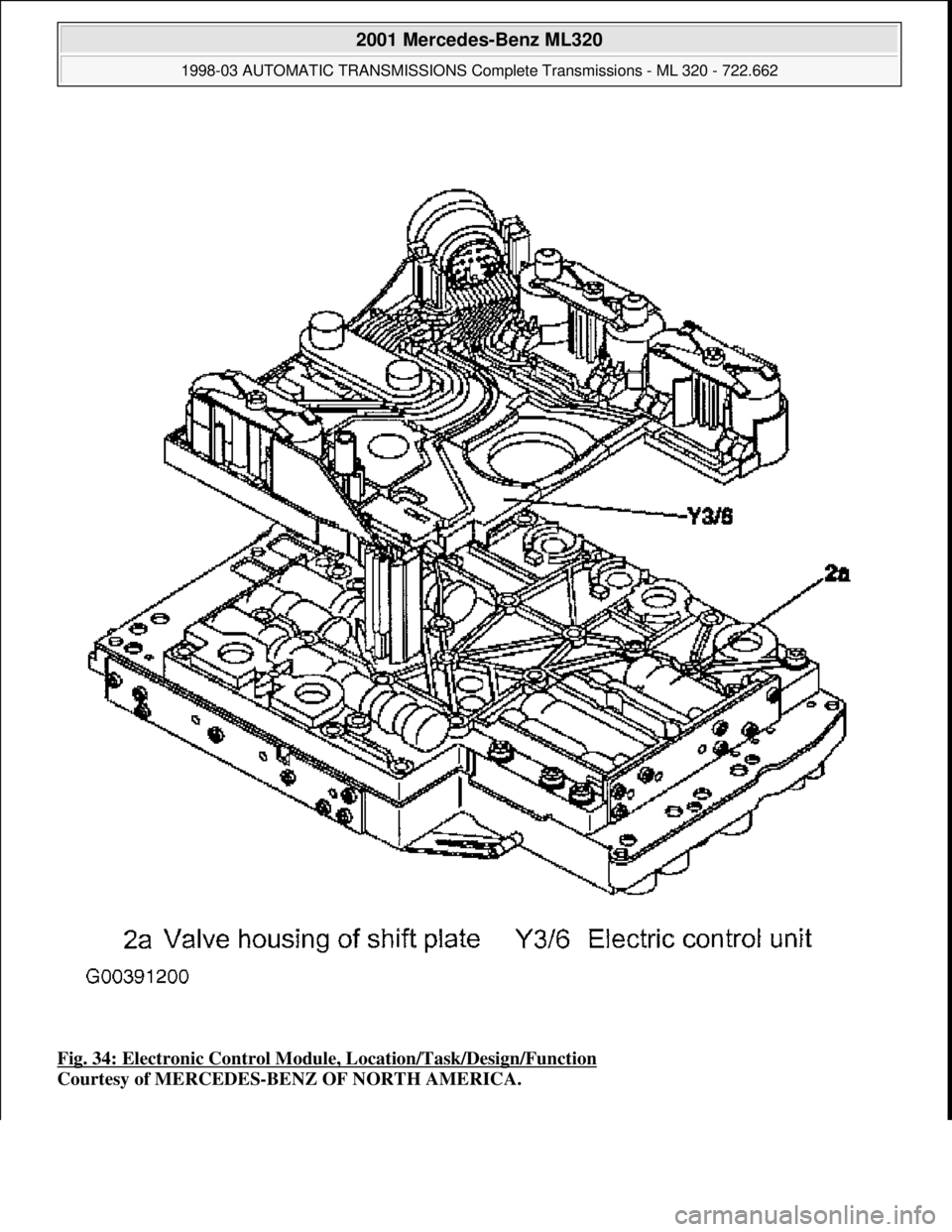

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 34: Electronic Control Module, Location/Task/Design/Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions -

Page 1239 of 4133

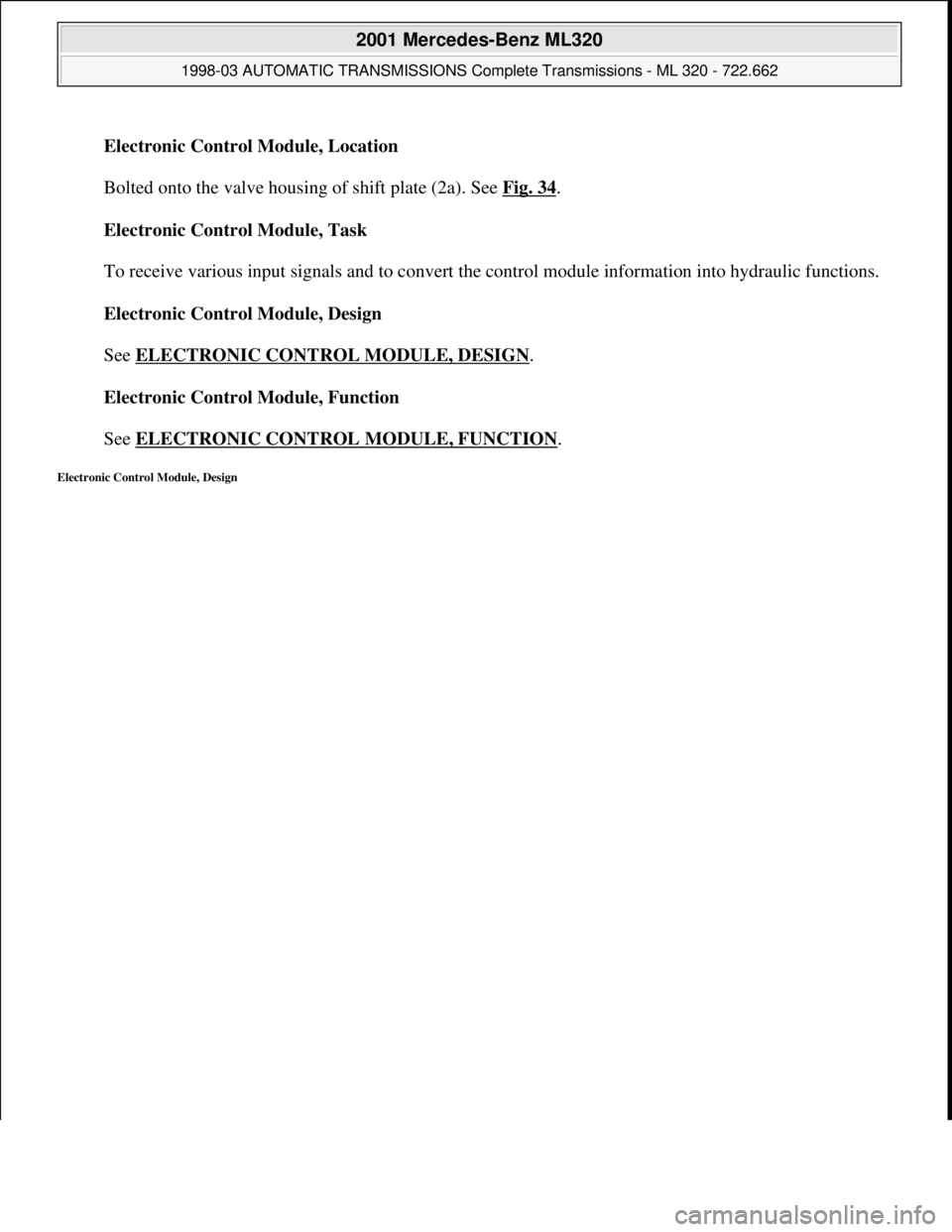

MERCEDES-BENZ ML320 1997 Complete Repair Manual Electronic Control Module, Location Bolted onto the valve housing of shift plate (2a). See Fig. 34 . Electronic Control Module, Task To receive various input signals and to convert the control

Page 1240 of 4133

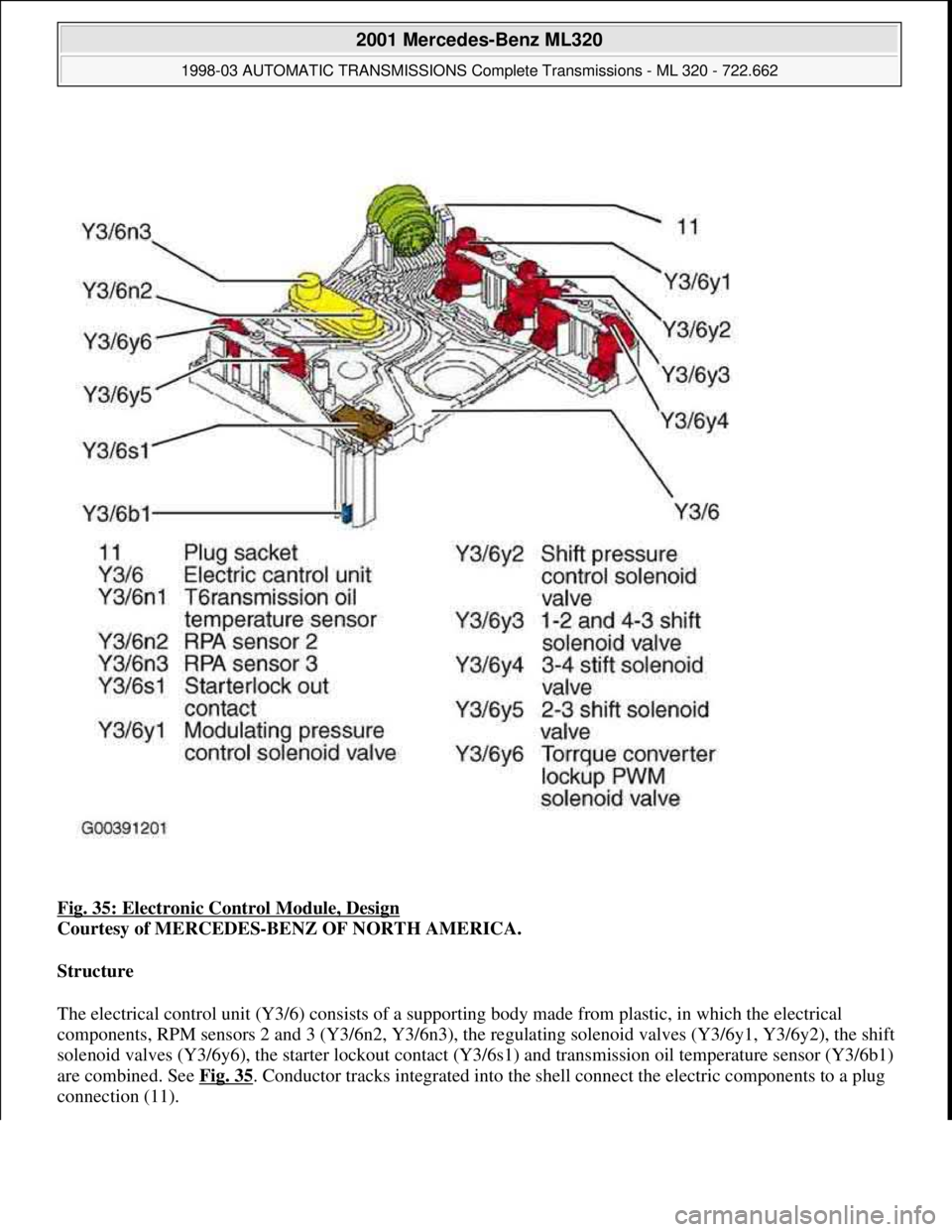

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 35: Electronic Control Module, Design Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Structure The electrical control unit (Y3/6) consists of a supporting body made from plastic, in which the el
