MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVE/INSTALL FRONT OVERHEAD CONTROL PANEL - AR82.20-P-1100GH MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 Fig. 175: Identifying Front Overhead Control Panel Components without Parktronic sy

Page 1770 of 4133

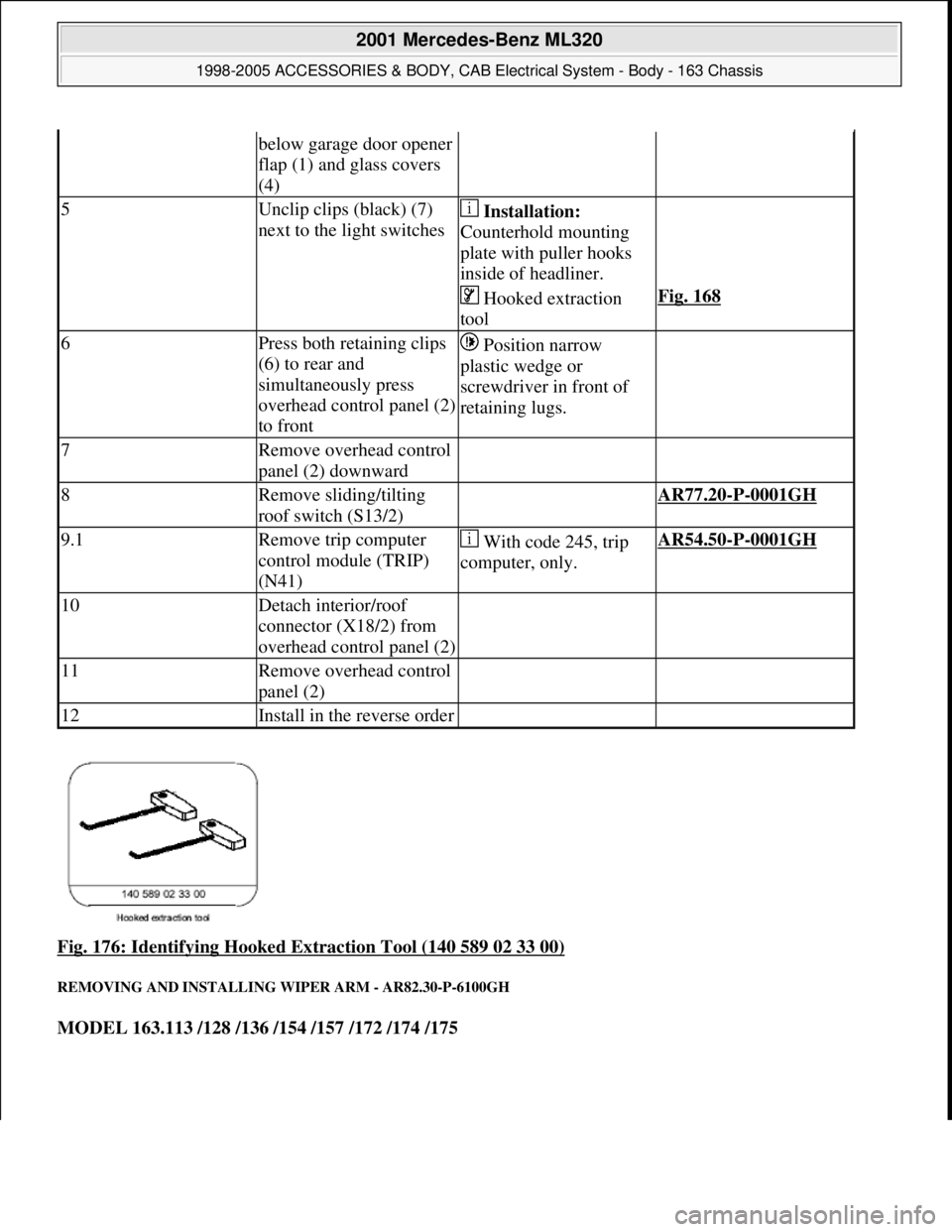

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 176: Identifying Hooked Extraction Tool (140 589 02 33 00) REMOVING AND INSTALLING WIPER ARM - AR82.30-P-6100GH MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 below garage door opener flap (

Page 1771 of 4133

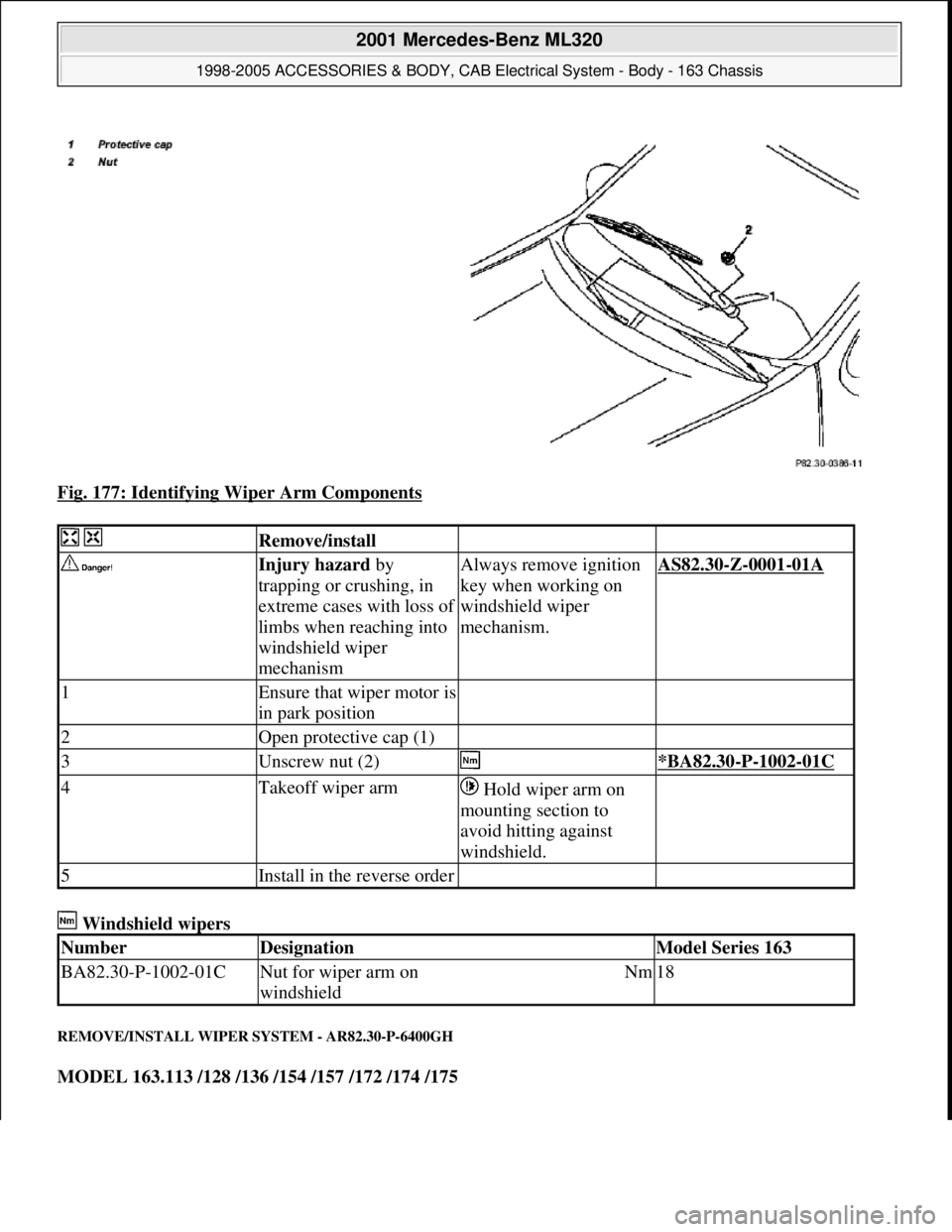

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 177: Identifying Wiper Arm Components Windshield wipers REMOVE/INSTALL WIPER SYSTEM - AR82.30-P-6400GH MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 Remove/install Injury hazard by t

Page 1772 of 4133

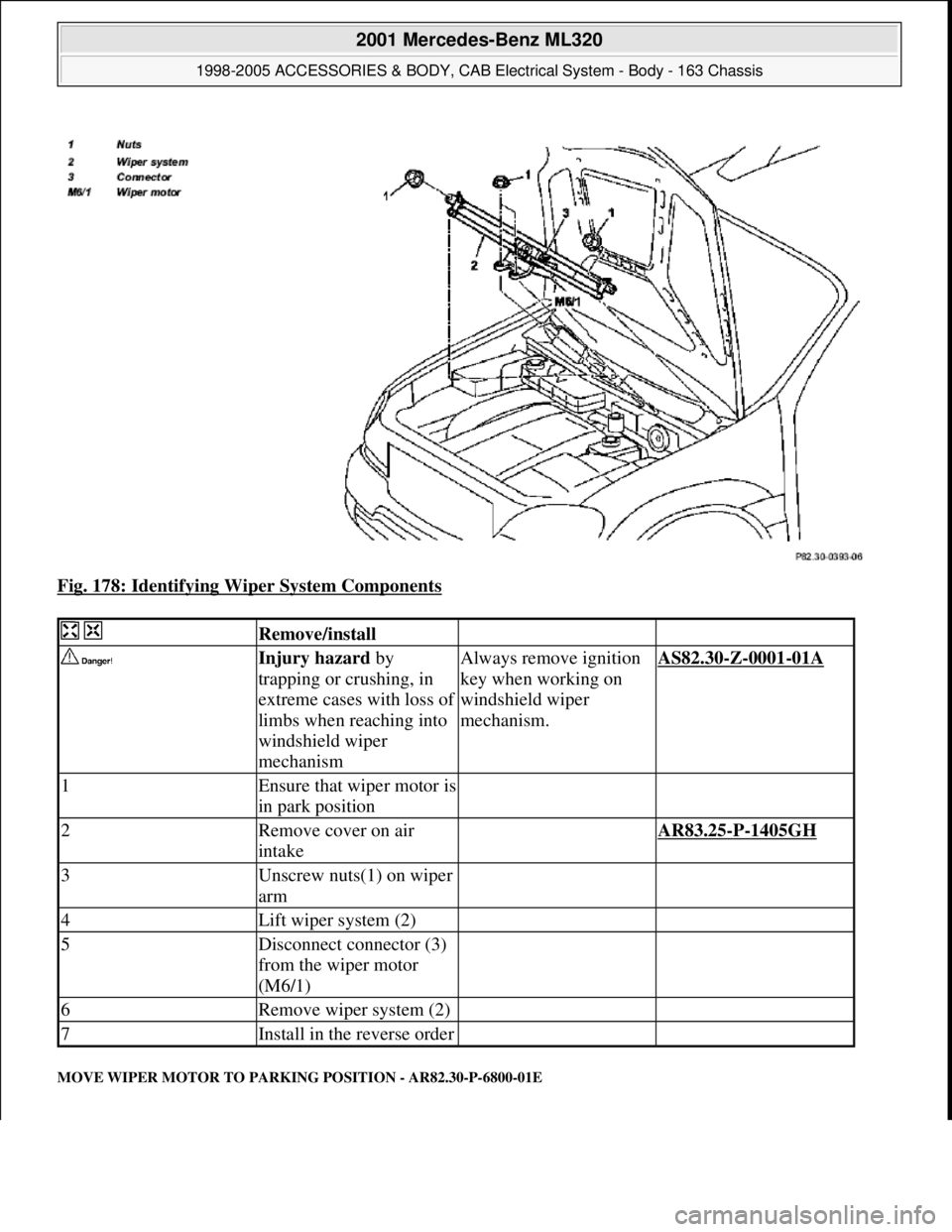

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 178: Identifying Wiper System Components MOVE WIPER MOTOR TO PARKING POSITION - AR82.30-P-6800-01E Remove/install Injury hazard by trapping or crushing, in extreme cases with loss of lim

Page 1773 of 4133

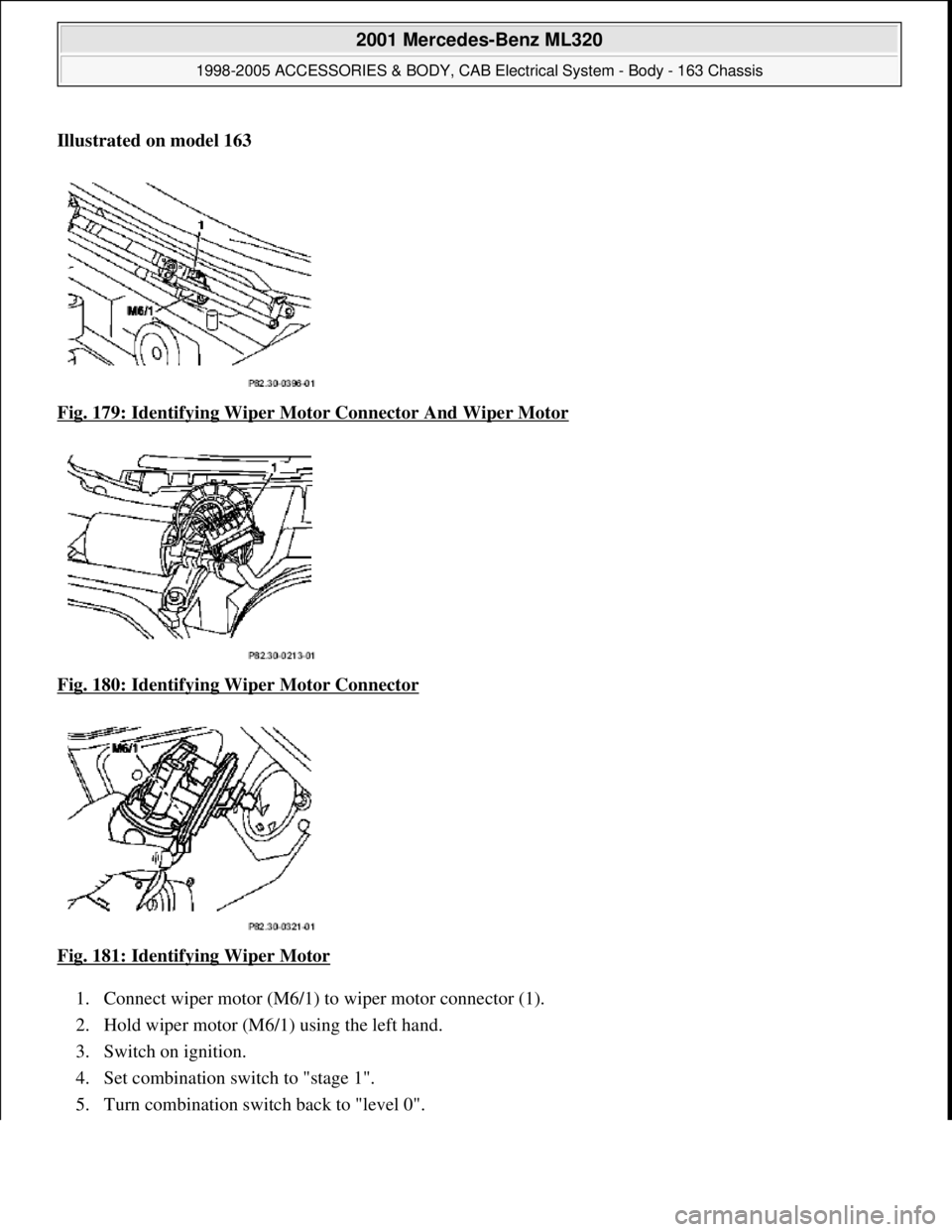

MERCEDES-BENZ ML320 1997 Complete Repair Manual Illustrated on model 163 Fig. 179: Identifying Wiper Moto r Connector And Wiper Motor Fig. 180: Identifying Wiper Motor Connector Fig. 181: Identifying Wiper Motor 1. Connect wiper motor

Page 1774 of 4133

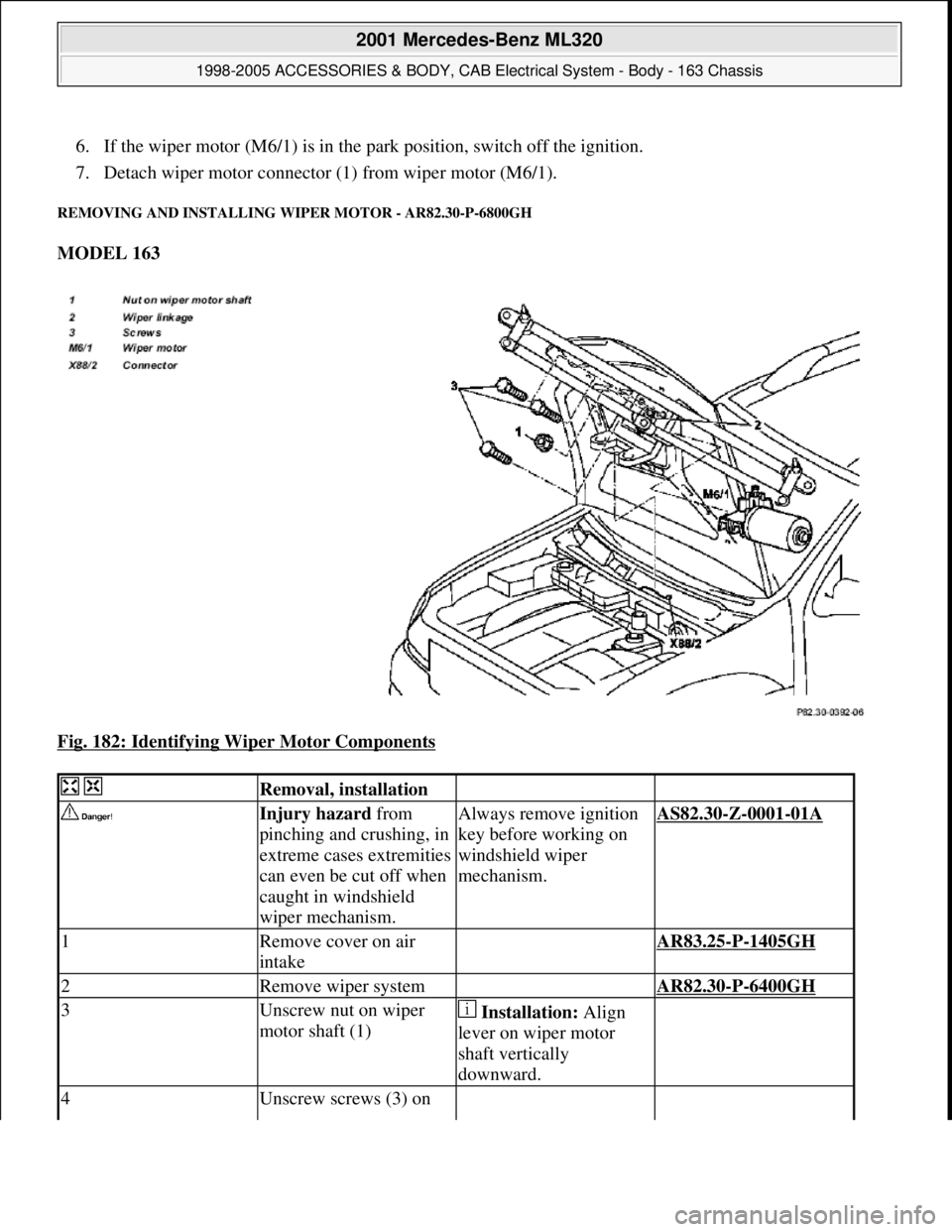

MERCEDES-BENZ ML320 1997 Complete Repair Manual 6. If the wiper motor (M6/1) is in the park position, switch off the ignition. 7. Detach wiper motor connector (1) from wiper motor (M6/1). REMOVING AND INSTALLING WIPER MOTOR - AR82.30-P-6800GH

Page 1775 of 4133

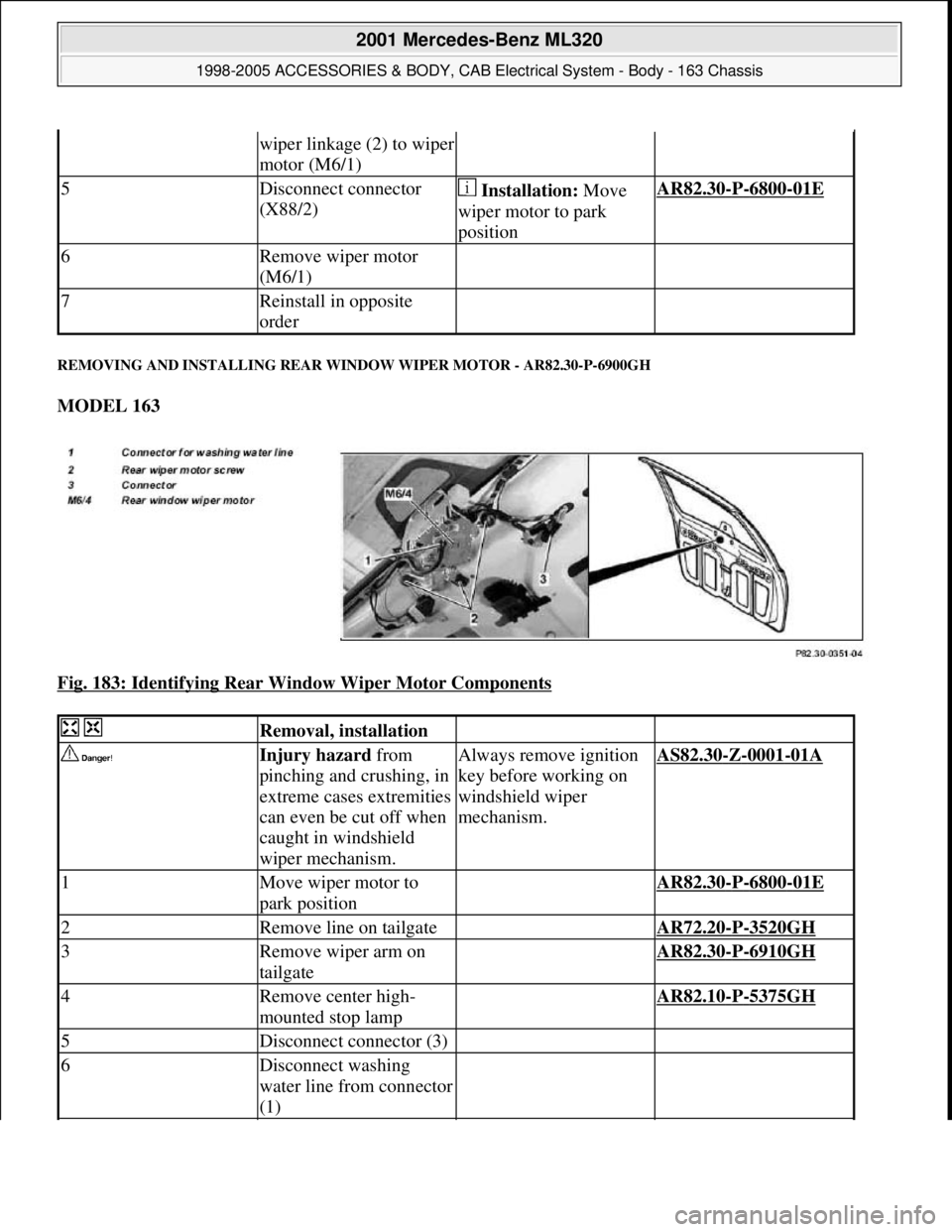

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVING AND INSTALLING REAR WINDOW WIPER MOTOR - AR82.30-P-6900GH MODEL 163 Fig. 183: Identifying Rear Window Wiper Motor Components wiper linkage (2) to wiper motor (M6/1) 5Disconnect connecto

Page 1776 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVING AND INSTALLING TAILGATE WIPER ARM - AR82.30-P-6910GH MODEL 163 Fig. 184: Identifying Tailgate Wiper Arm Components 7Unscrew screw for wiper system on tailgate (2) 8Remove rear window
