Page 2417 of 4133

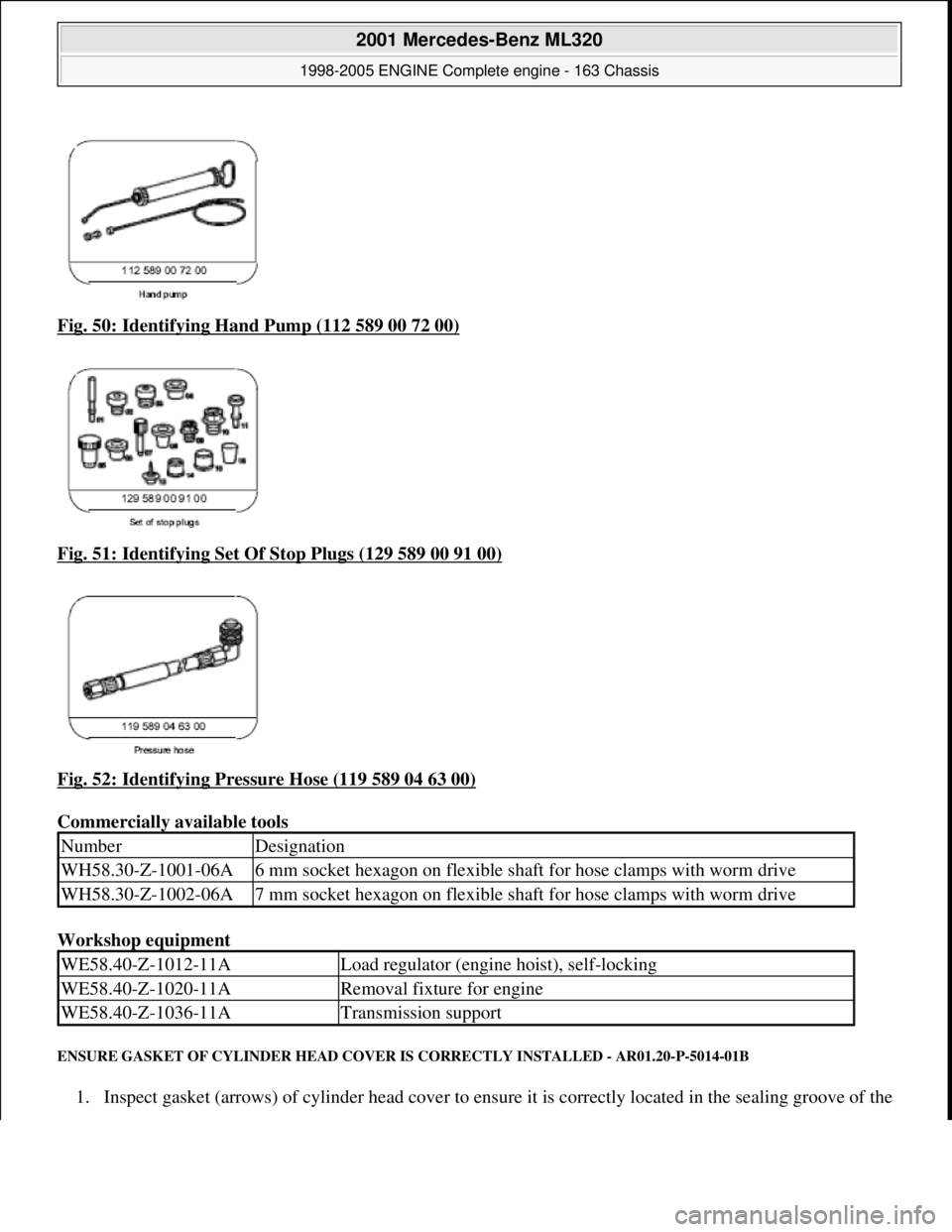

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 50: Identifying Hand Pump (112 589 00 72 00) Fig. 51: Identifying Set Of Stop Plugs (129 589 00 91 00) Fig. 52: Identifying Pressure Hose (119 589 04 63 00) Commercially available tools

Page 2418 of 4133

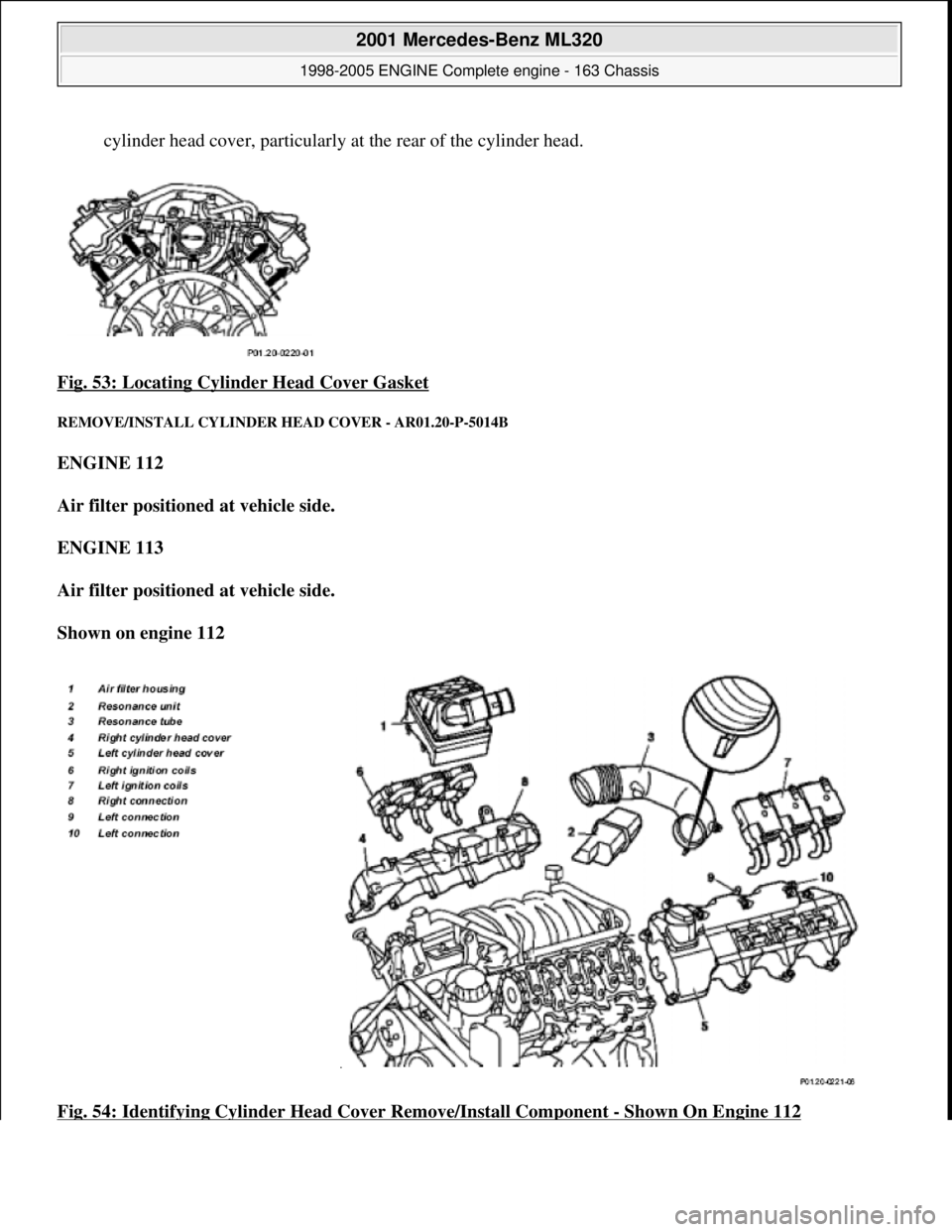

MERCEDES-BENZ ML320 1997 Complete Repair Manual cylinder head cover, particularly at the rear of the cylinder head. Fig. 53: Locating Cylinder Head Cover Gasket REMOVE/INSTALL CY LINDER HEAD COVER - AR01.20-P-5014B ENGINE 112 Air filter p

Page 2419 of 4133

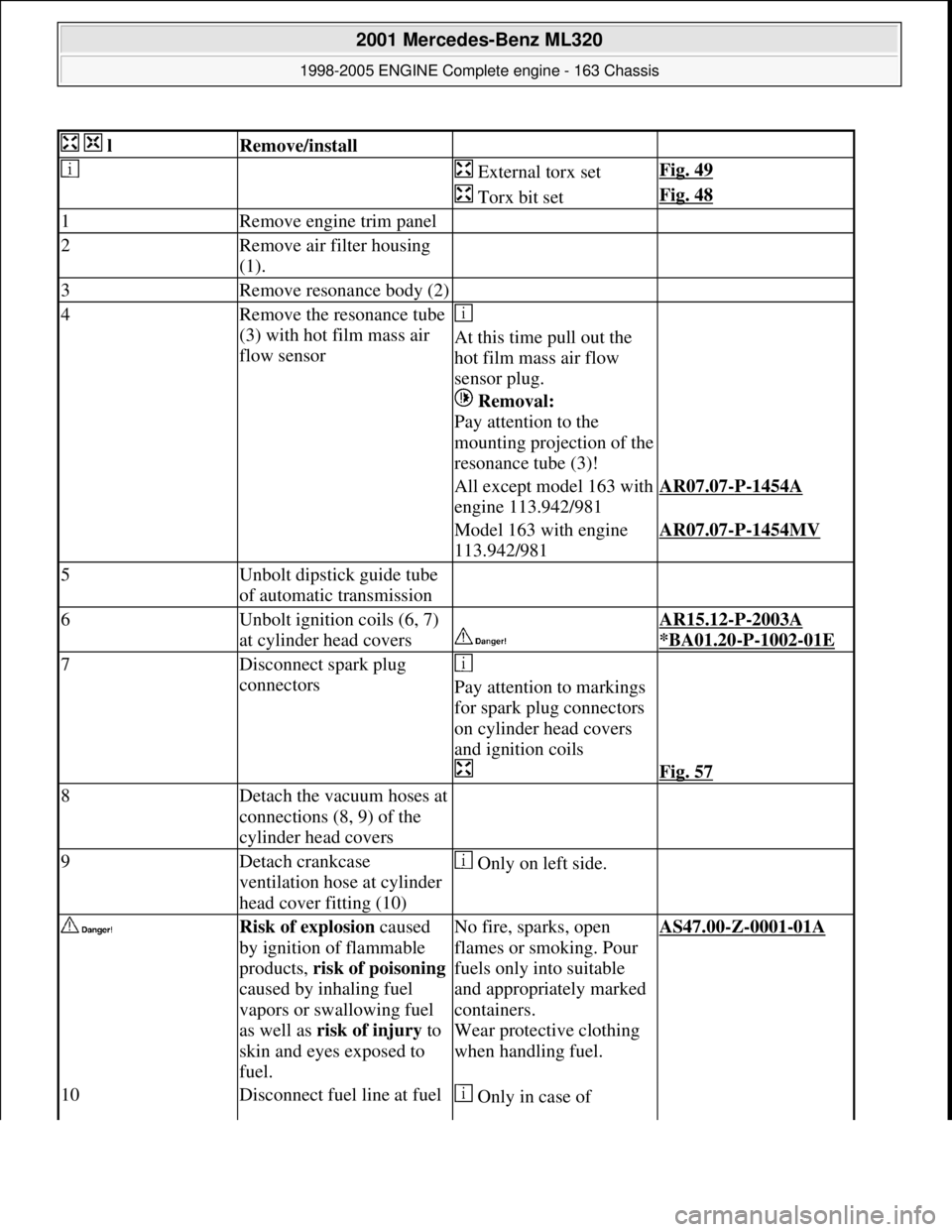

MERCEDES-BENZ ML320 1997 Complete Repair Manual lRemove/install External torx setFig. 49 Torx bit setFig. 48 1Remove engine trim panel 2Remove air filter housing (1). 3Remove resonance body (2) 4Remove the resonance tube (3) with h

Page 2420 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Crankcase ventilation, cylinder head cover Fuel rail railvehicles with a non- flexible fuel line. Release fuel pressure through service valve! Pressure hoseFig. 52 *BA07.52-P-1001-01A

Page 2421 of 4133

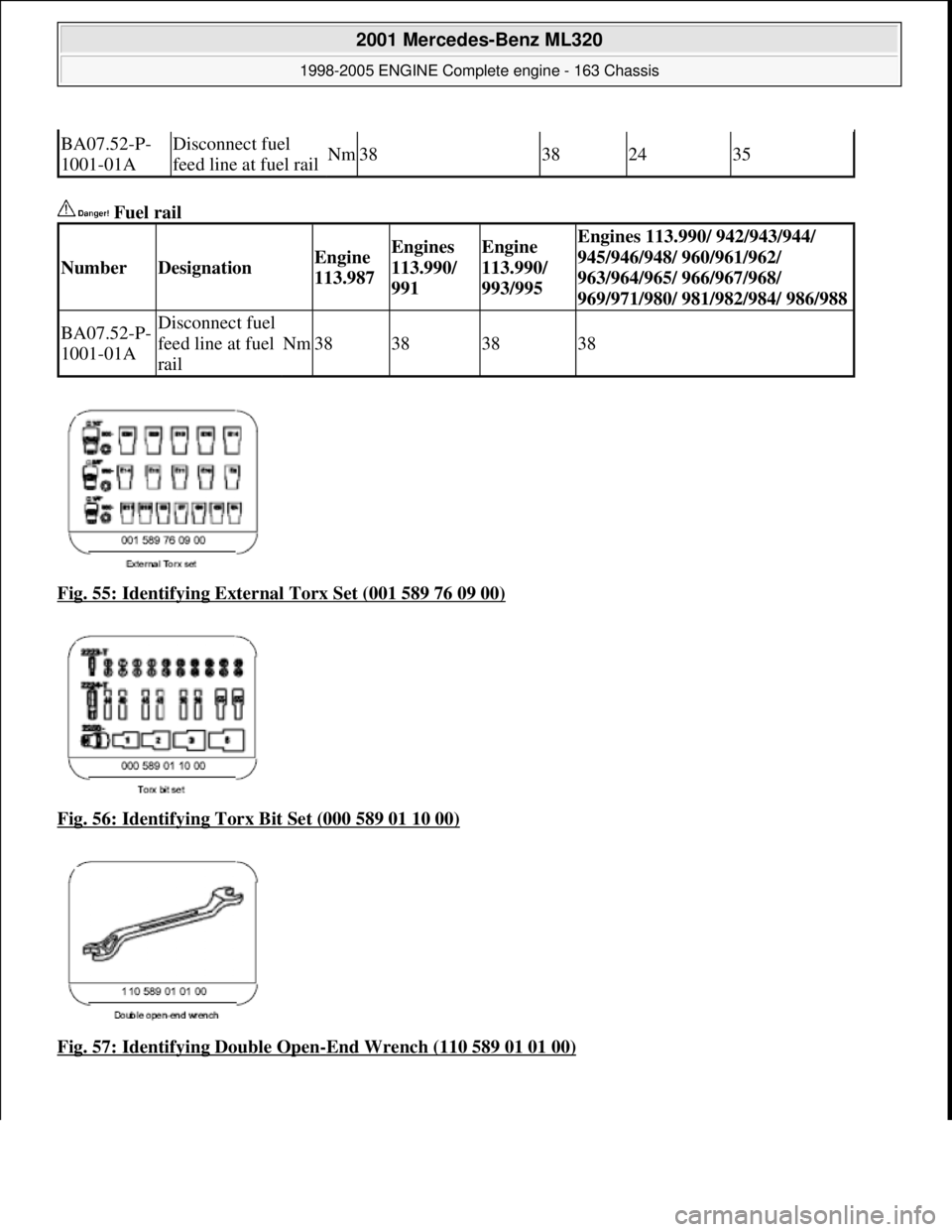

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fuel rail Fig. 55: Identifying External Torx Set (001 589 76 09 00) Fig. 56: Identifying Torx Bit Set (000 589 01 10 00) Fig. 57: Identifying Double Open -End Wrench (110 589 01 01 00) BA07.

Page 2422 of 4133

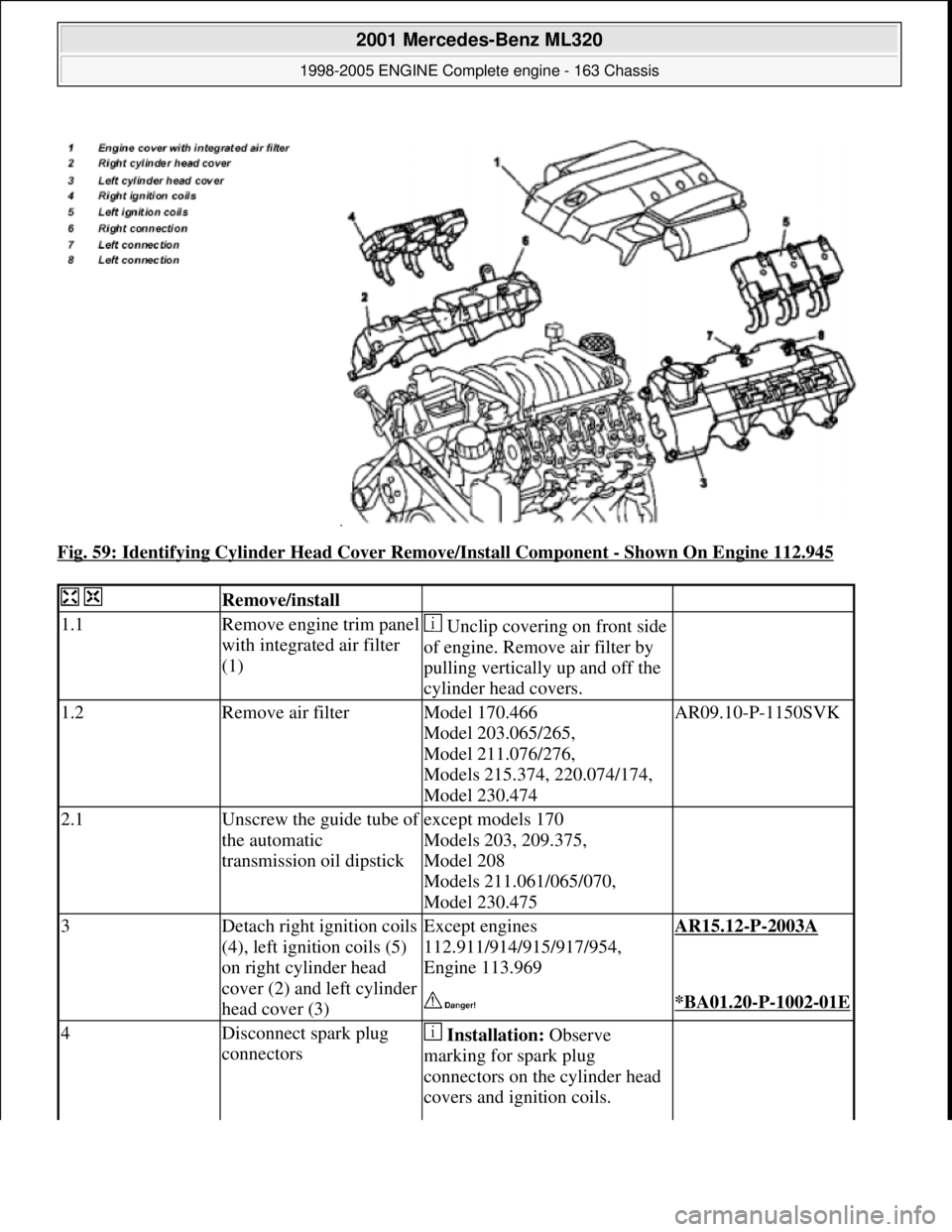

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 58: Identifying Pressure Hose (119 589 04 63 00) REMOVE/INSTALL CY LINDER HEAD COVER - AR01.20-P-5014BV ENGINE 112 Air filter motor page arranged ENGINE 113 (except 113.995) in MODEL 12

Page 2423 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 59: Identifying Cylinder Head Cover Remove/Install Component - Shown On Engine 112.945 Remove/install 1.1Remove engine trim panel with integrated air filter (1) Unclip covering on fron

Page 2424 of 4133

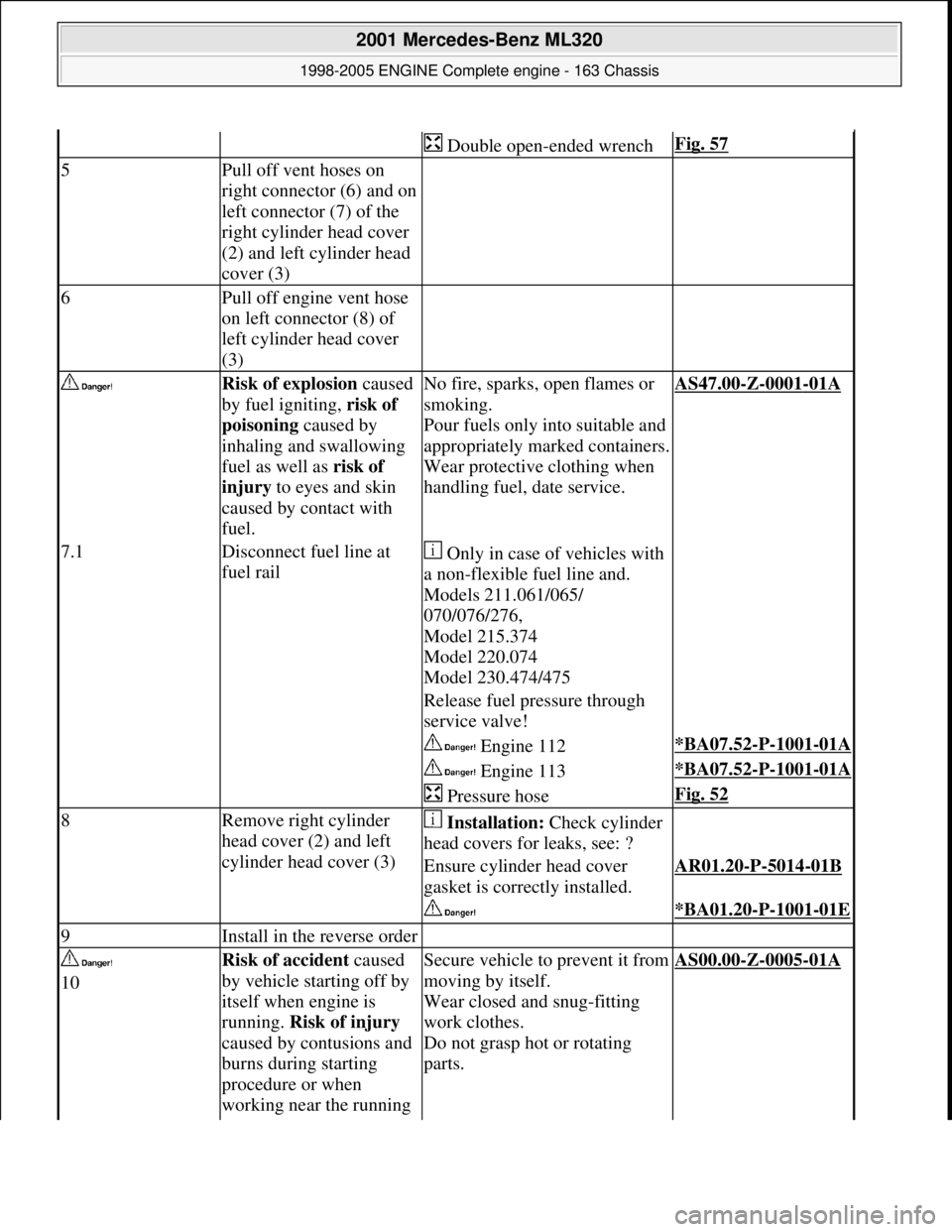

MERCEDES-BENZ ML320 1997 Complete Repair Manual Double open-ended wrenchFig. 57 5Pull off vent hoses on right connector (6) and on left connector (7) of the right cylinder head cover (2) and left cylinder head cover (3) 6Pull off engin
