Exterior lamps
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index
Headlamp assembly (Xenon)
1  Headlamp vertical adjustment screw
2  Headlamp horizontal adjustment screw
3  Headlamp cover with locking tab
4  Bulb socket for turn signal, parking, standing, and
side marker lamp  5
Electrical connector for low beam headlamp bulb
6  Electrical connector for high beam headlamp bulb
7  Auxiliary fog lamp (if so equipped)


        Page 730 of 4133
263
Exterior lamps
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index
Bulbs for high beam (only Halogen headlamps)
H1 U (55 W)
Bulbs for low beam
H7 (55 W)
Open hood.
Push down tab at top end of cover (3) and remove. Pull
off electrical connector (5 or 6). Unhook and move aside
clamping ring. Remove bulb.
Insert new bulb (seating properly in cutouts of bulb
socket), mount clamping ring. Reinstall and push
electrical connector on securely. Reinstall cover (3).  Xenon
 (optional)
Bulb for low beam
Xenon   (optional)
Bulb for high beam
Note:
Vehicles with Xenon headlamps:
We recommend that you have changed the bulb for the
high beam by a qualified technician.
Wa r n i n g !
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the lamp
and its components. We recommend that you have
such work done by a qualified technician.


        Page 731 of 4133
264
Exterior lamps
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index
Parking, standing, side marker and turn signal lamp
115 6 N A  ( 3 2 / 4 c p b u l b )
Open hood.
Twist bulb socket (4) counterclockwise and pull out.
Push bulb into socket, turn counterclockwise and
remove.
Insert new bulb in socket, push in and twist clockwise.
Reinstall bulb socket.  Bulbs for auxiliary fog lamp
(optional)
H3 U (55 W)
Open hood.
Remove cover (9). Unhook clamping ring and remove
bulb. Pull off electrical connector.
Insert new bulb in socket (seating properly in cutouts of
bulb socket), and mount clamping ring. Reinstall and
push electrical connector on securely.
Reinstall cover (9).


        Page 732 of 4133
265
Exterior lamps
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index

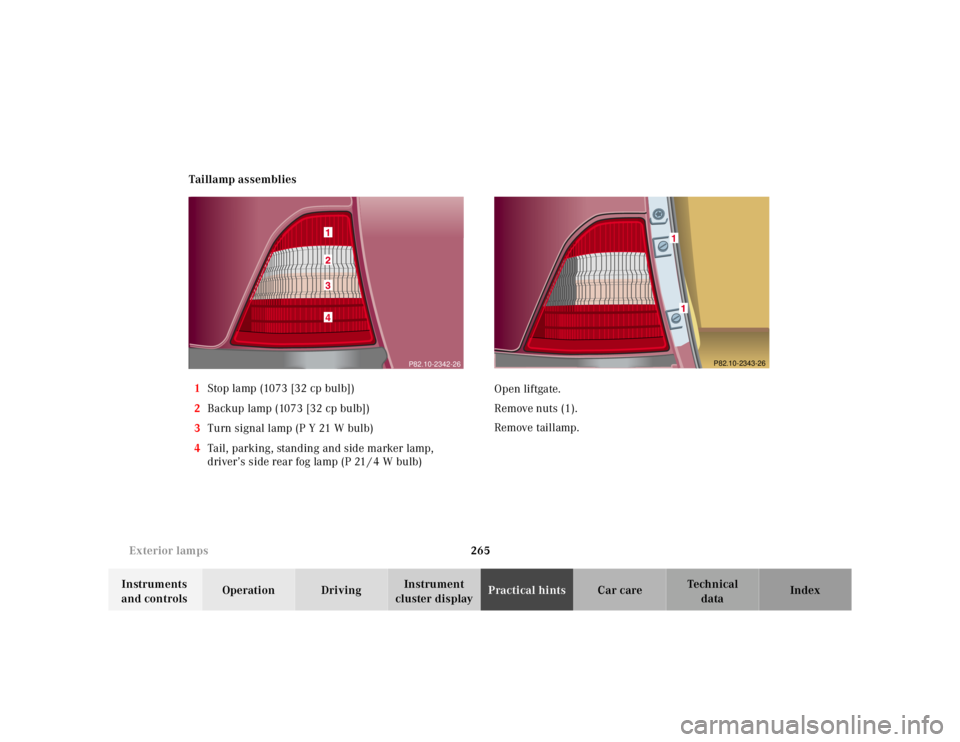

Taillamp assemblies
1  Stop lamp (1073 [32 cp bulb])
2  Backup lamp (1073 [32 cp bulb])
3  Turn signal lamp (P Y 21 W bulb)
4  Tail, parking, standing and side marker lamp,
driver’s side rear fog lamp (P 21 / 4 W bulb)  Open liftgate.
Remove nuts (1).
Remove taillamp.
P82.10-2342-26
P82.10-2343-26


        Page 733 of 4133
266
Exterior lamps
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index
Pull off electrical connector (2).
Squeeze tabs (3) together and remove bulb holder.
Push bulb into socket, turn counterclockwise and
remove.
Insert new bulb in socket, push in and twist clockwise.
Reinstall bulb holder.
Reinstall electrical connector (2).
Reinstall taillamp.  Turn signal lamp, side
(168 [3 cp bulb])
Carefully slide lamp slightly towards rear (arrow), lift
away its front end first, then remove lamp from panel.
Twist bulb socket counterclockwise and pull out. Pull
bulb out of socket.
Insert new bulb in socket. Reinstall bulb socket.
To reinstall lamp, set rear end of lamp into panel and let
front end snap into place.


        Page 734 of 4133
267
Exterior lamps
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index

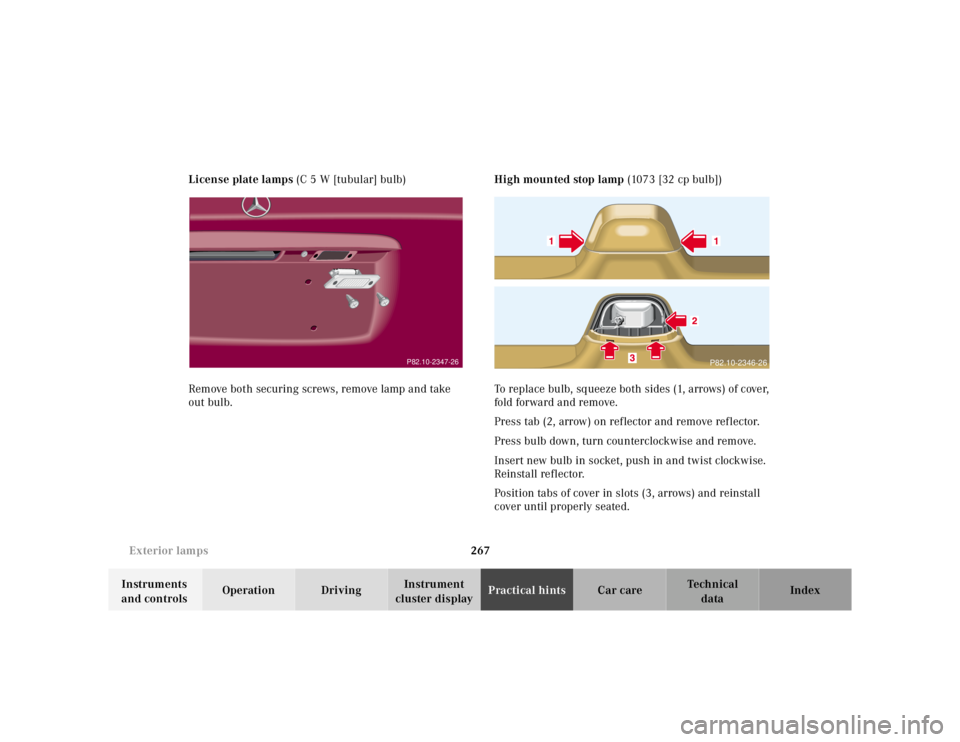

License plate lamps
(C 5 W [tubular] bulb)
Remove both securing screws, remove lamp and take
out bulb.  High mounted stop lamp
(1073 [32 cp bulb])
To replace bulb, squeeze both sides (1, arrows) of cover,
fold forward and remove.
Press tab (2, arrow) on reflector and remove reflector.
Press bulb down, turn counterclockwise and remove.
Insert new bulb in socket, push in and twist clockwise.
Reinstall reflector.
Position tabs of cover in slots (3, arrows) and reinstall
cover until properly seated.
P82.10-2347-26
P82.10-2346-26


        Page 735 of 4133

268
Exterior lamps
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index
Adjusting headlamp aim
Correct headlamp adjustment is extremely important.
To check and readjust a headlamp, follow steps 1
through 7.
Please note:
•  High beam adjustments simultaneously aim the low
beam.
•  Vehicle should have a normal trunk load.  1. Park vehicle on level surface approximately 6 inches
(152 mm) from a vertical test screen or wall. The
centerline of the vehicle must be at a 90  ° angle to
the test screen.
2. (High beams on):
Using a carpenter’s level, align and mark a vertical
centerline (1) on the test screen for each headlamp
lens at a distance of 25
3/4inches (654 mm) from
the vertical centerline. As a check, the distance
between centerlines should be 51
1/2inches
(1308 mm). The star emblem on the hood may be
used to determine the vehicle centerline. If the
distance does not check, have the system verified at
an authorized Mercedes-Benz Light Truck Center.
3. Move vehicle on the level surface 25 feet (7.6 m)   straight back from the wall.
4. Open hood.
V  H
low beam


        Page 736 of 4133

269
Exterior lamps
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index
5. (High beams on):
Simultaneously turn adjusting screws (1 and 2 on
page 261 or 262) counterclockwise to adjust
headlamp downward, clockwise upward) equally
until bubble in the level (7 on page 261) is centered
on the “0” mark.
Graduations:
screw 1: 0.50  ° pitch,
screw 2: 0.67  ° pitch.
6. Horizontal headlamp aim (High beams on): Turn adjusting screw (2) (left headlamp:
counterclockwise to adjust to the left, clockwise to
the right [right headlamp in opposite direction])
until the headlamp (high beam pattern) is centered
about the vertical centerline (1) as shown.
The left and right headlamps must be adjusted
individually.  7. For proper aim, the indicator (8 on page 261) should
align with the “0” mark after horizontal adjustment.
Graduations: 0.33  ° pitch.
Note:
If it is not possible to obtain a proper headlamp
adjustment, have the system checked at your authorized
Mercedes-Benz Light Truck Center.
