Page 1273 of 4133

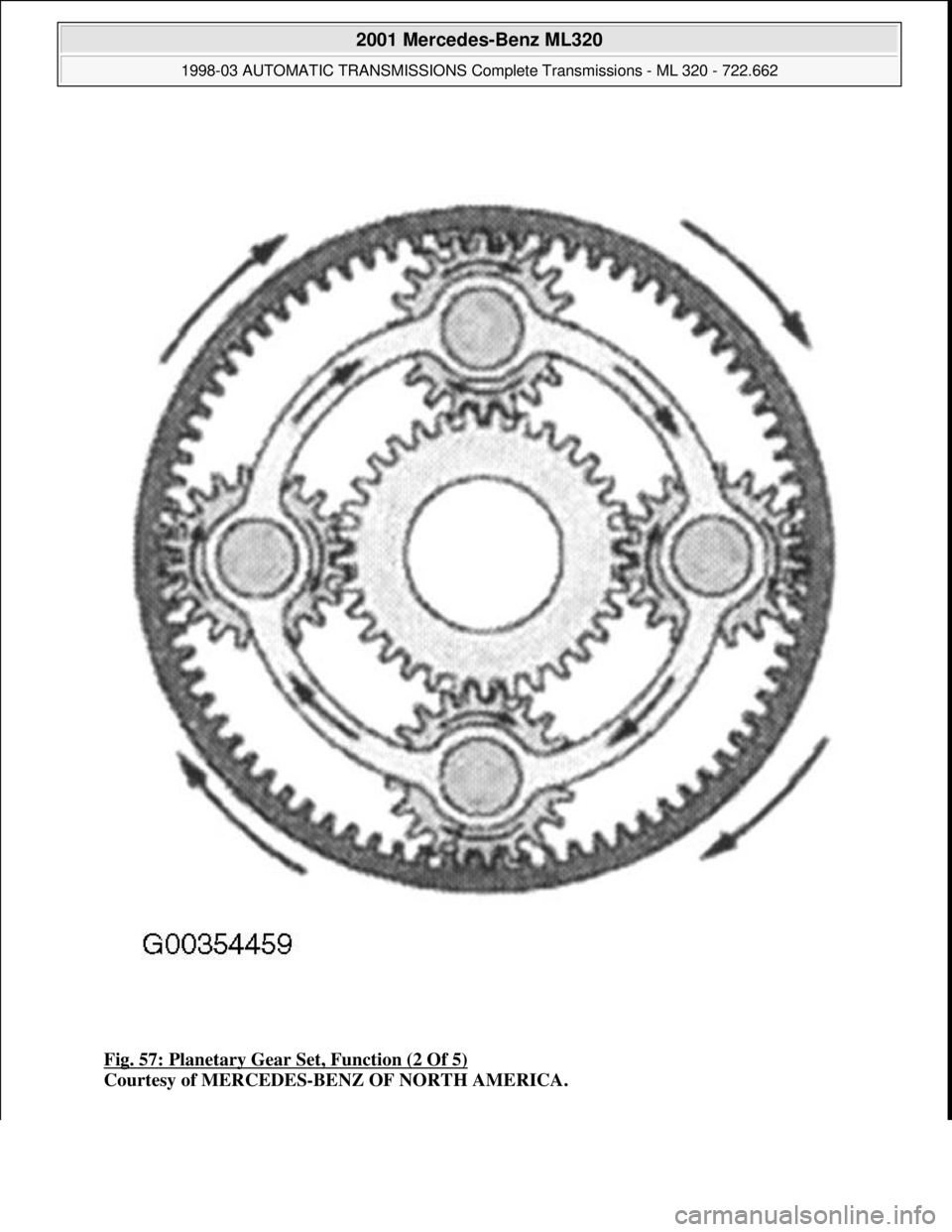

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 57: Planetary Gear Set, Function (2 Of 5) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me

Page 1274 of 4133

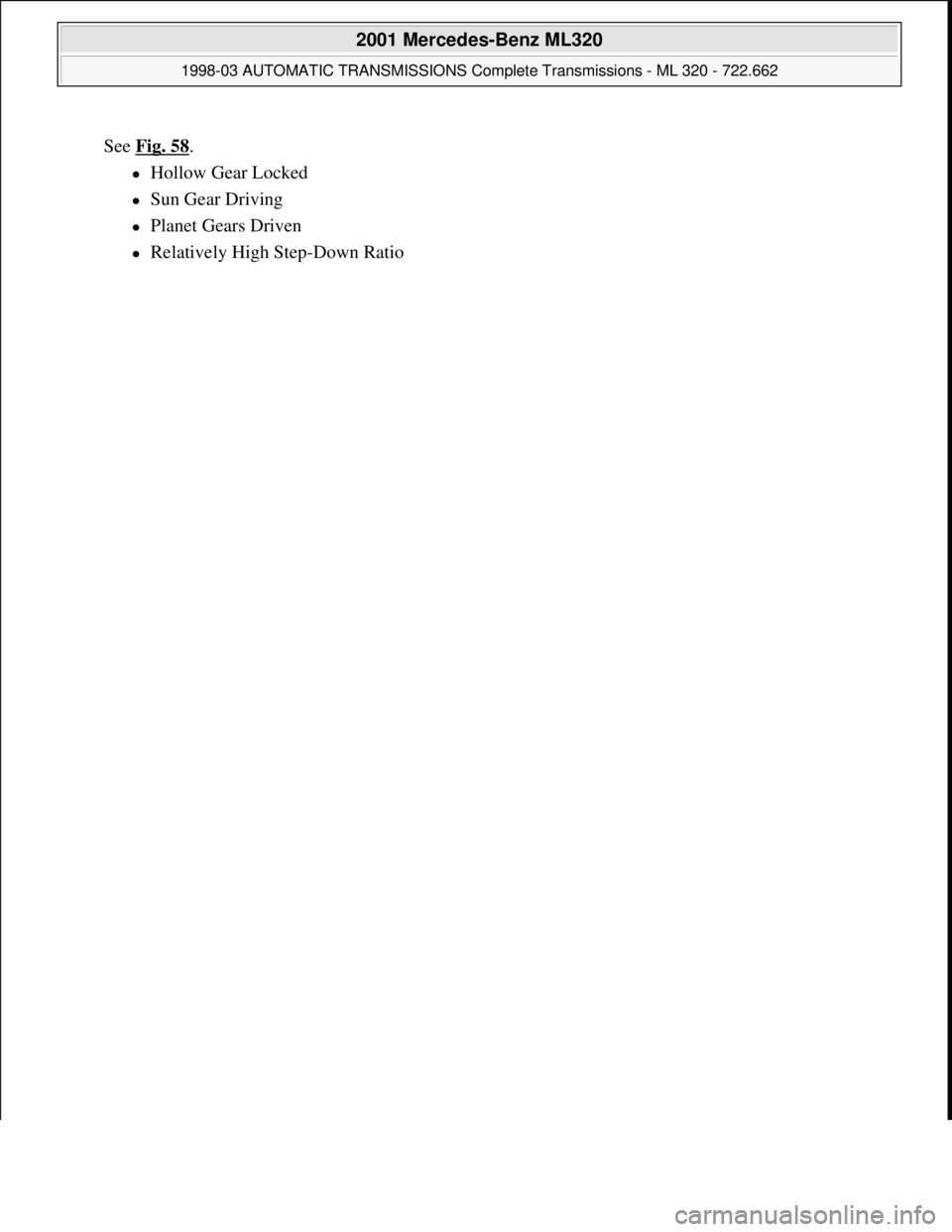

MERCEDES-BENZ ML320 1997 Complete Repair Manual See Fig. 58. Hollow Gear Locked Sun Gear Driving Planet Gears Driven Relatively High Step-Down Ratio 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissi

Page 1275 of 4133

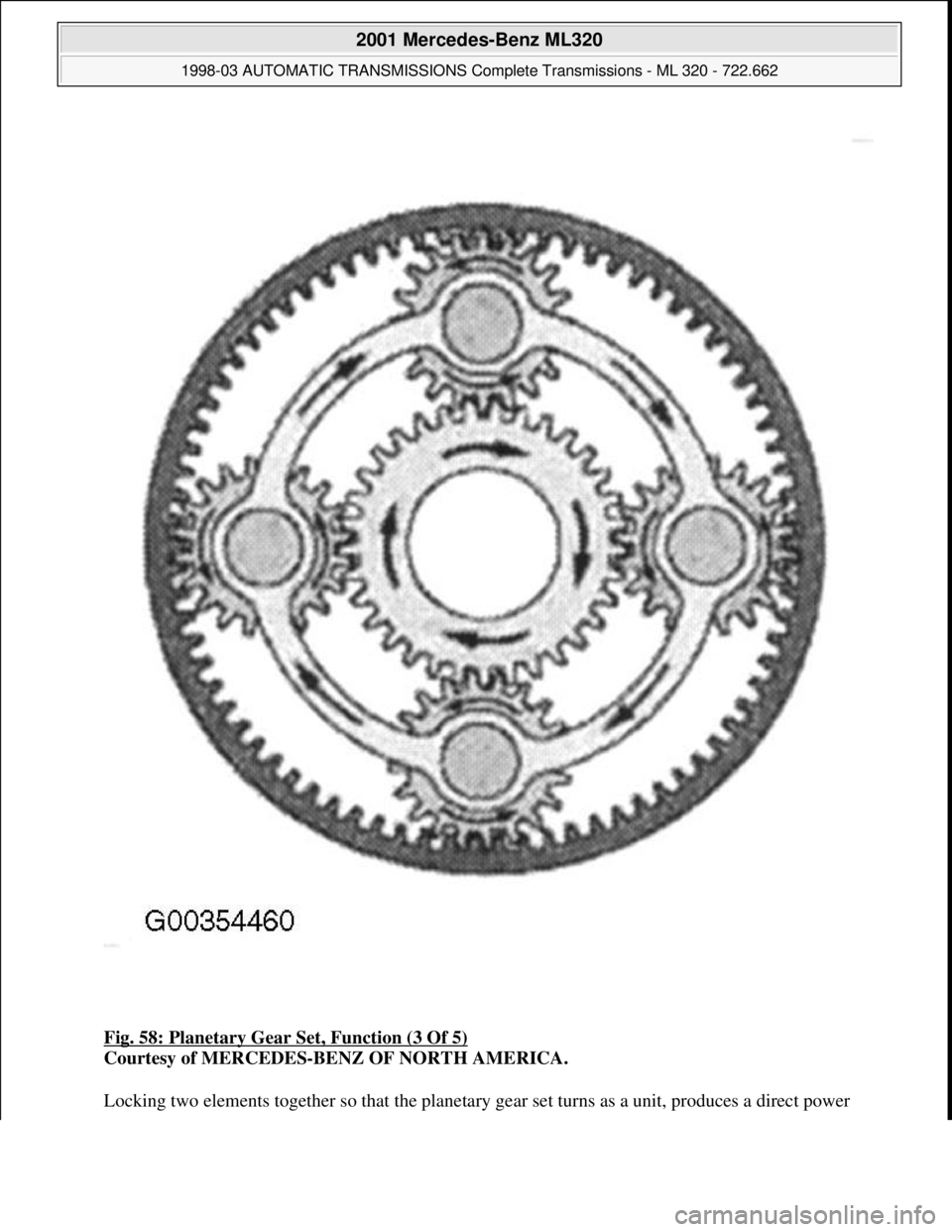

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 58: Planetary Gear Set, Function (3 Of 5) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Locking two elements together so that the planetary gear set turns as a unit, produces a direct power 20

Page 1276 of 4133

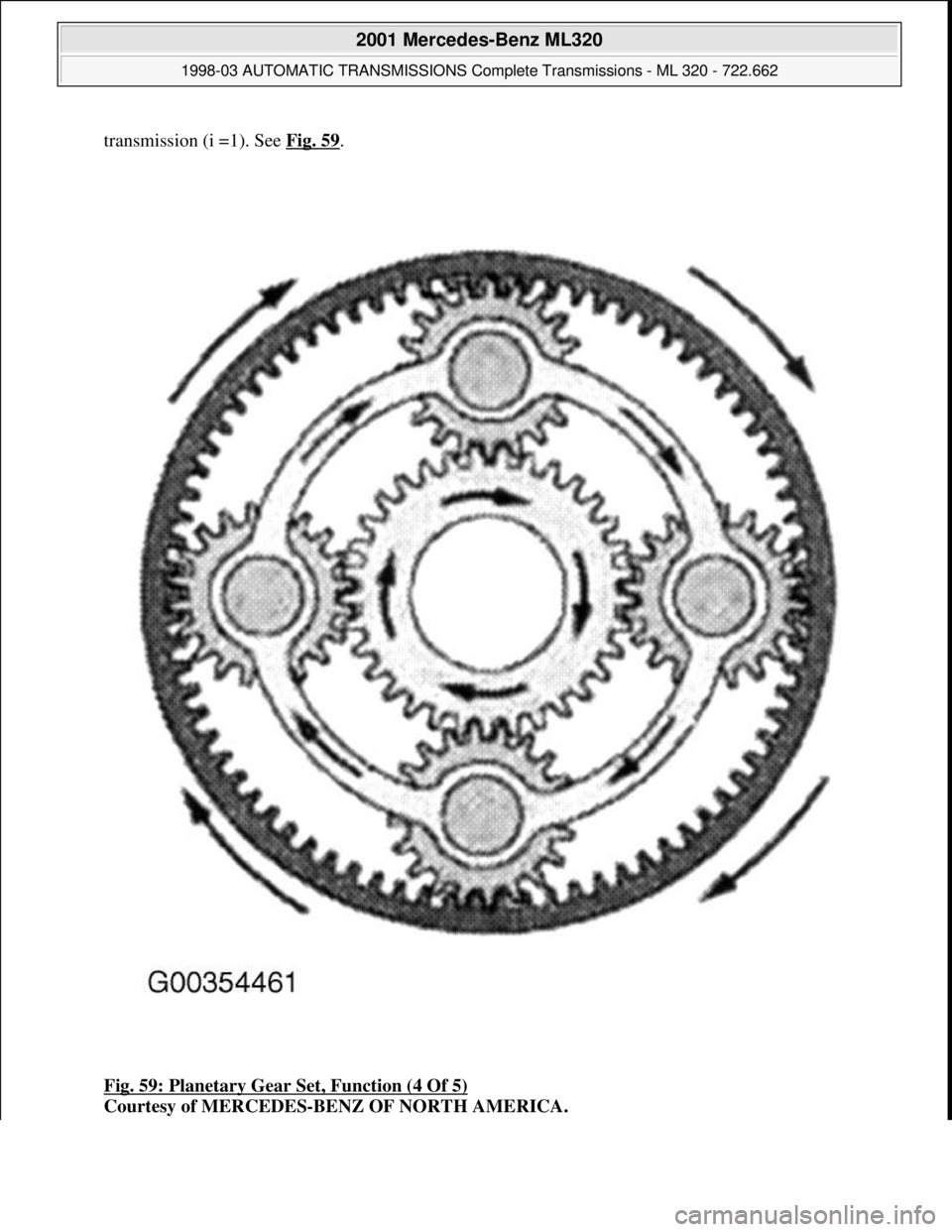

MERCEDES-BENZ ML320 1997 Complete Repair Manual transmission (i =1). See Fig. 59. Fig. 59: Planetary Gear Set, Function (4 Of 5) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Tra

Page 1277 of 4133

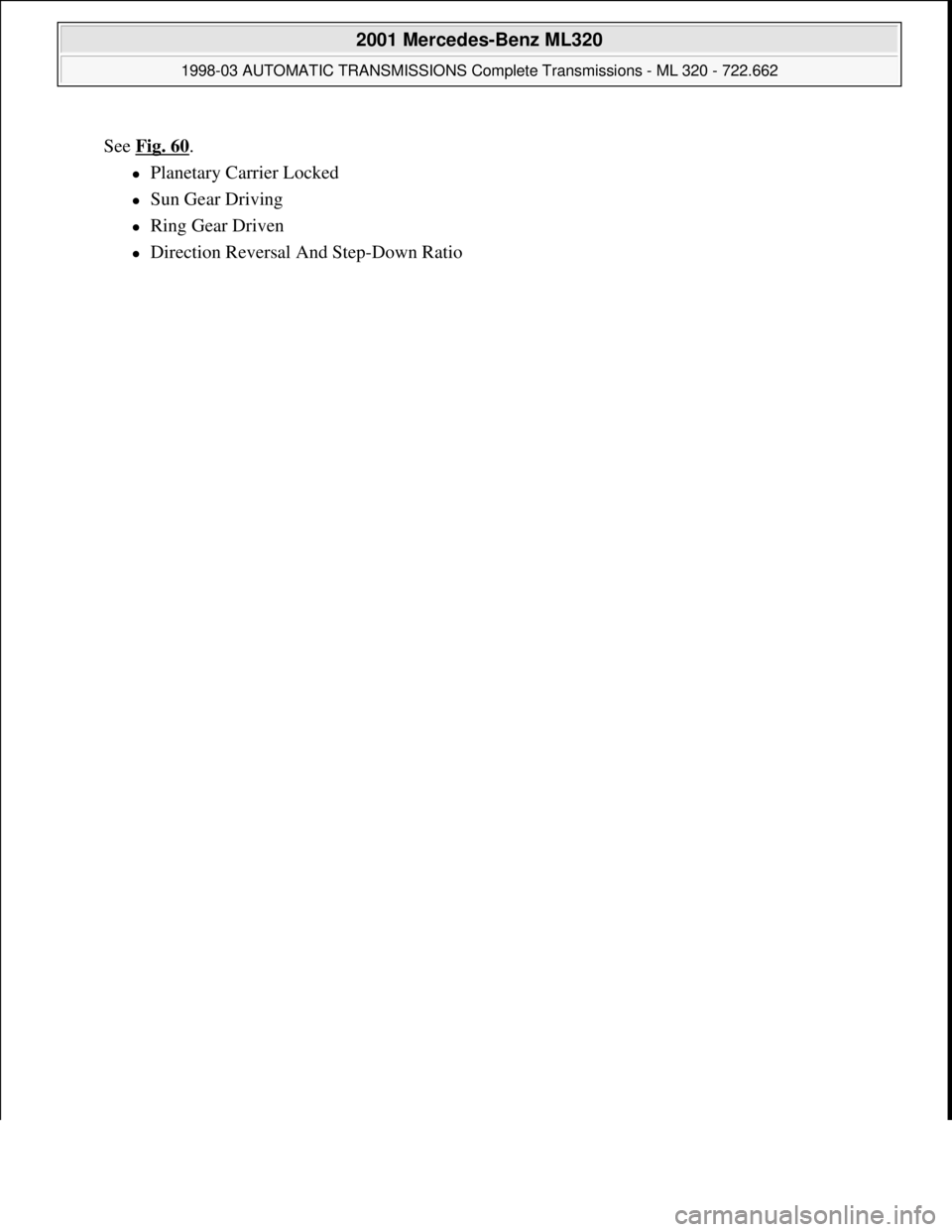

MERCEDES-BENZ ML320 1997 Complete Repair Manual See Fig. 60. Planetary Carrier Locked Sun Gear Driving Ring Gear Driven Direction Reversal And Step-Down Ratio 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete

Page 1278 of 4133

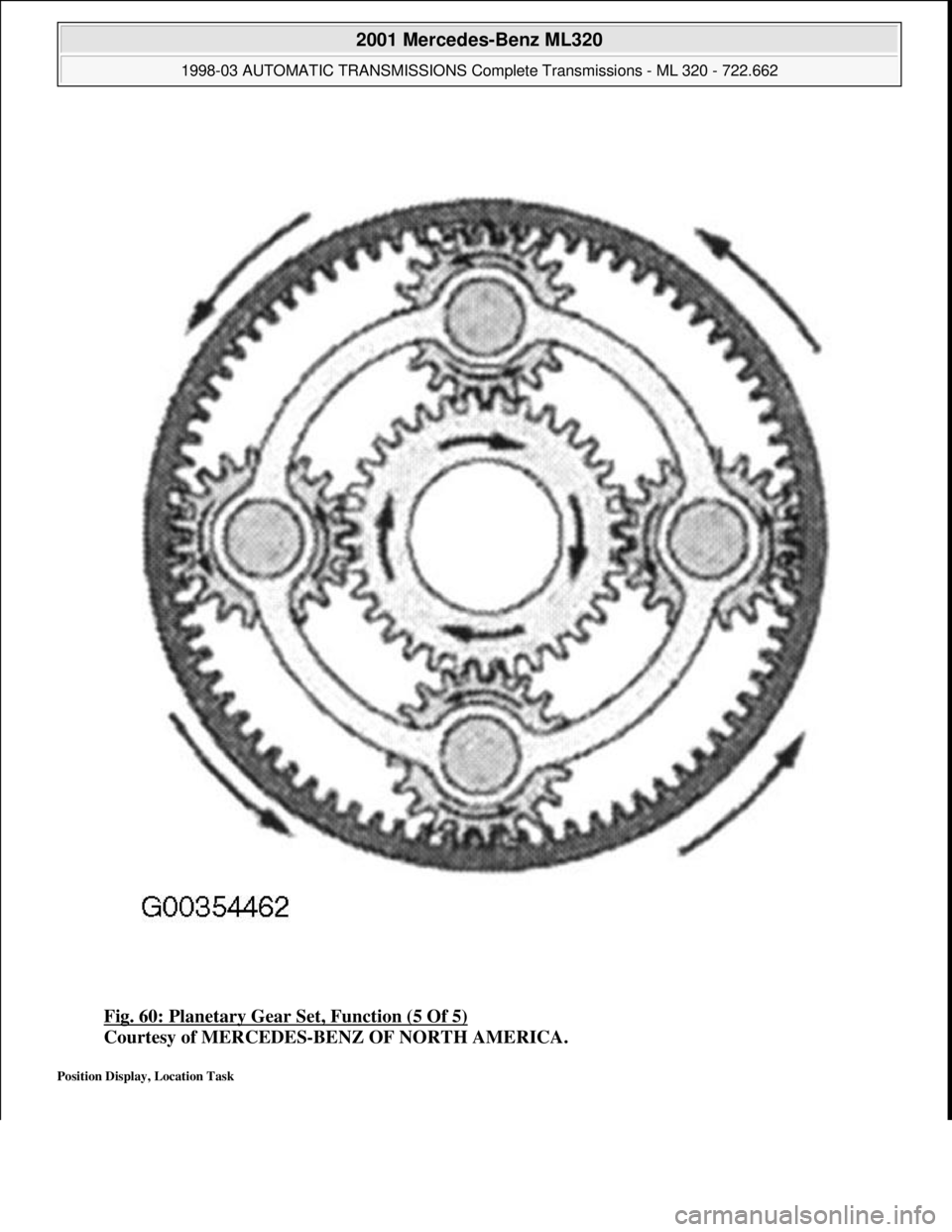

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 60: Planetary Gear Set, Function (5 Of 5) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Position Display, Location Task 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Trans

Page 1279 of 4133

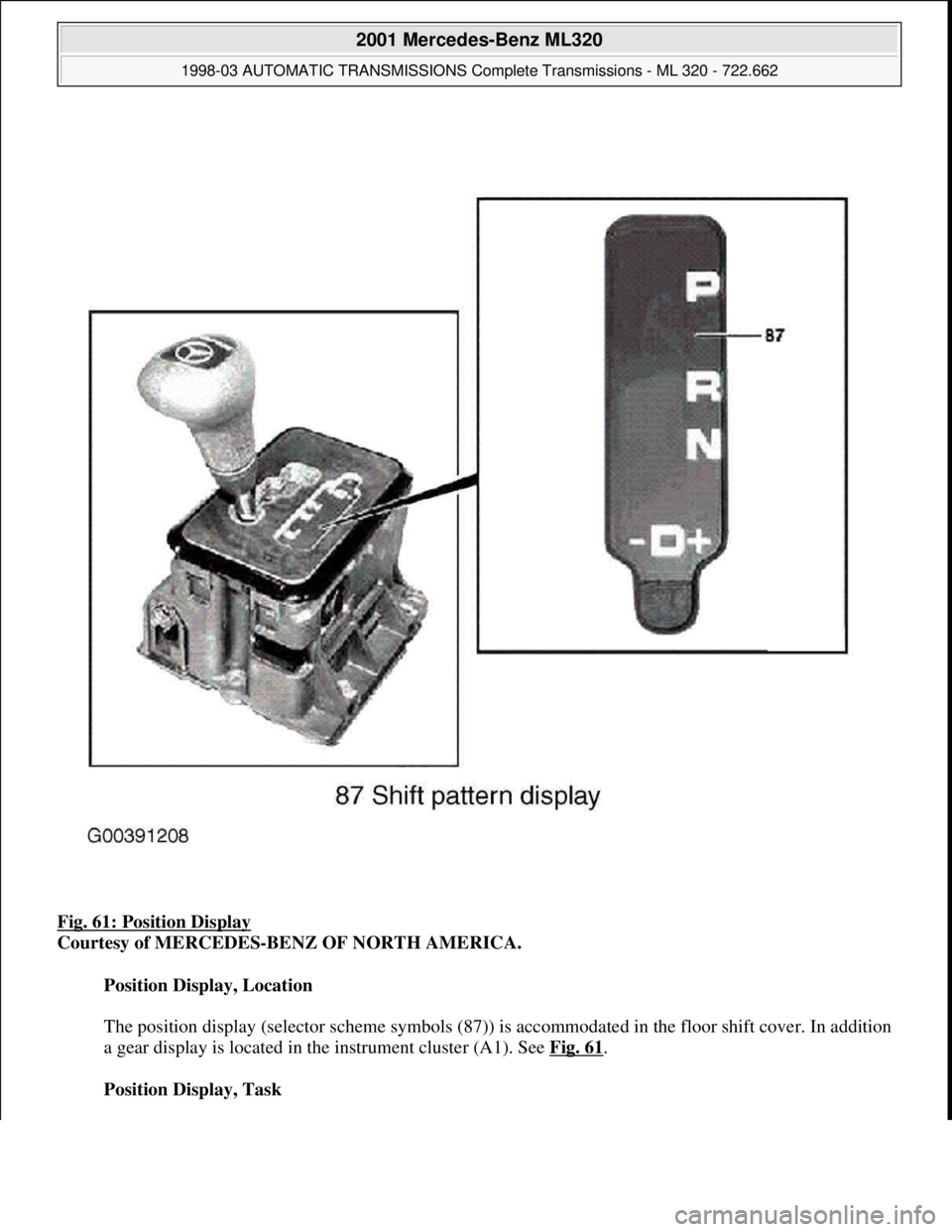

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 61: Position Display Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Position Display, Location The position display (selector scheme symbols (87)) is accommodated in the floor shift cover. In a

Page 1280 of 4133

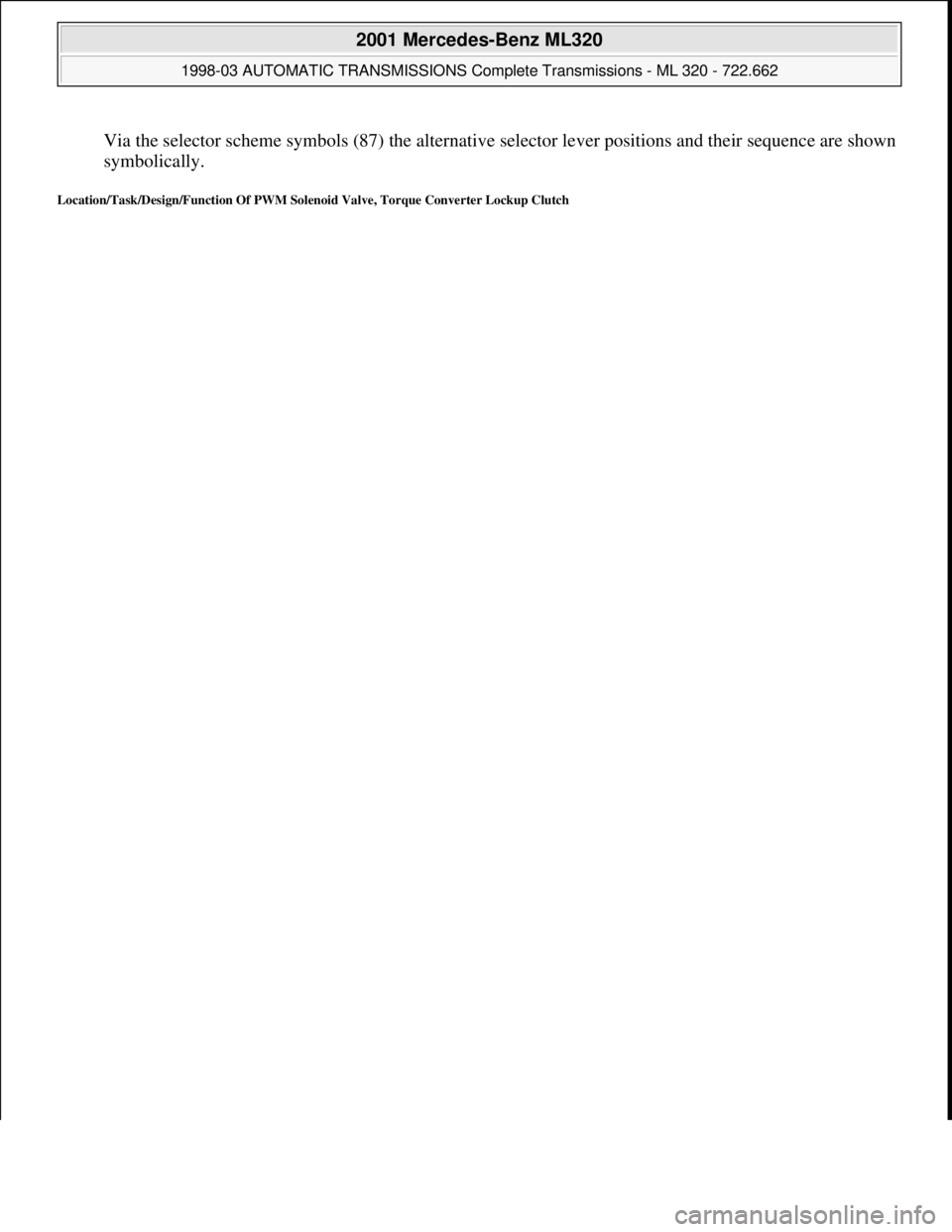

MERCEDES-BENZ ML320 1997 Complete Repair Manual Via the selector scheme symbols (87) the alternative selector lever positions and their sequence are shown symbolically. Location/Task/Design/Function Of PWM Solenoid Valve, Torque Converter Lockup
