Page 1745 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Remove/install headlamp unitMODEL 163.113/128 /136 /154 /157 /172 /174 /175AR82.10-P- 4730GH Remove/install side wall taillampMODEL 163AR82.10-P- 4920GH Remove/install fog lampMODEL 163.113/128

Page 1746 of 4133

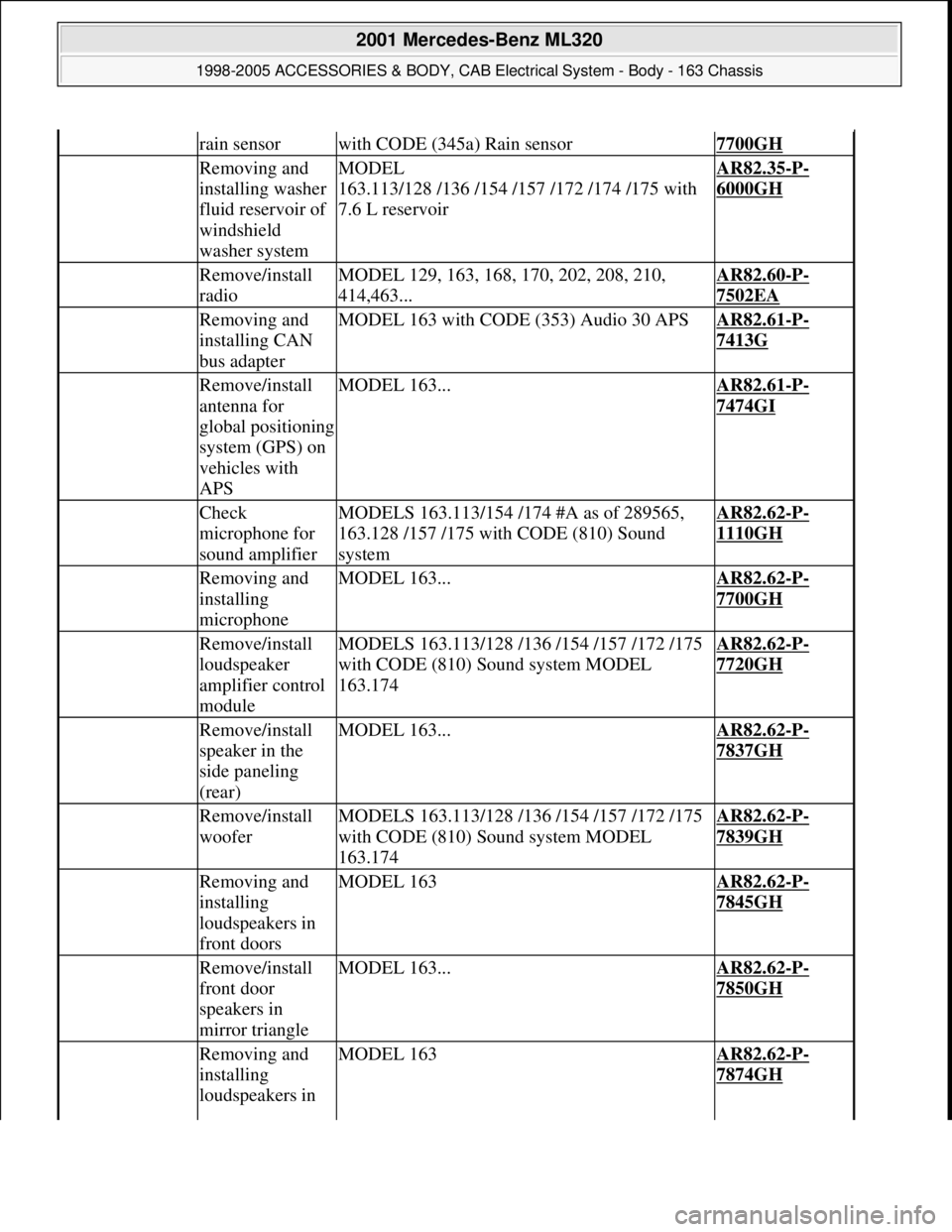

MERCEDES-BENZ ML320 1997 Complete Repair Manual rain sensorwith CODE (345a) Rain sensor7700GH Removing and installing washer fluid reservoir of windshield washer systemMODEL 163.113/128 /136 /154 /157 /172 /174 /175 with 7.6 L reservoirAR82.

Page 1747 of 4133

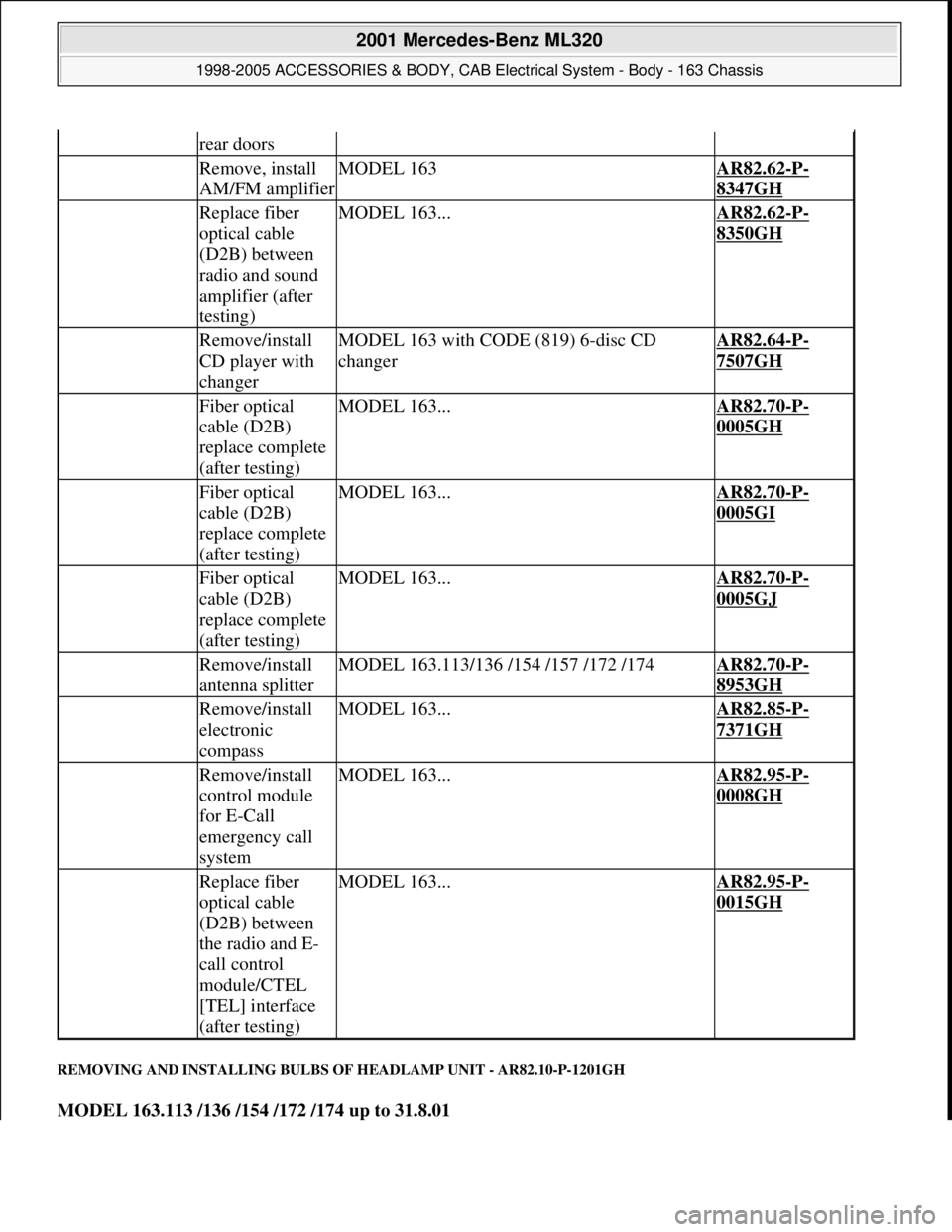

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVING AND INSTALLING BULBS OF HEADLAMP UNIT - AR82.10-P-1201GH MODEL 163.113 /136 /154 /172 /174 up to 31.8.01 rear doors Remove, install AM/FM amplifierMODEL 163AR82.62-P- 8347GH Replace fiber

Page 1748 of 4133

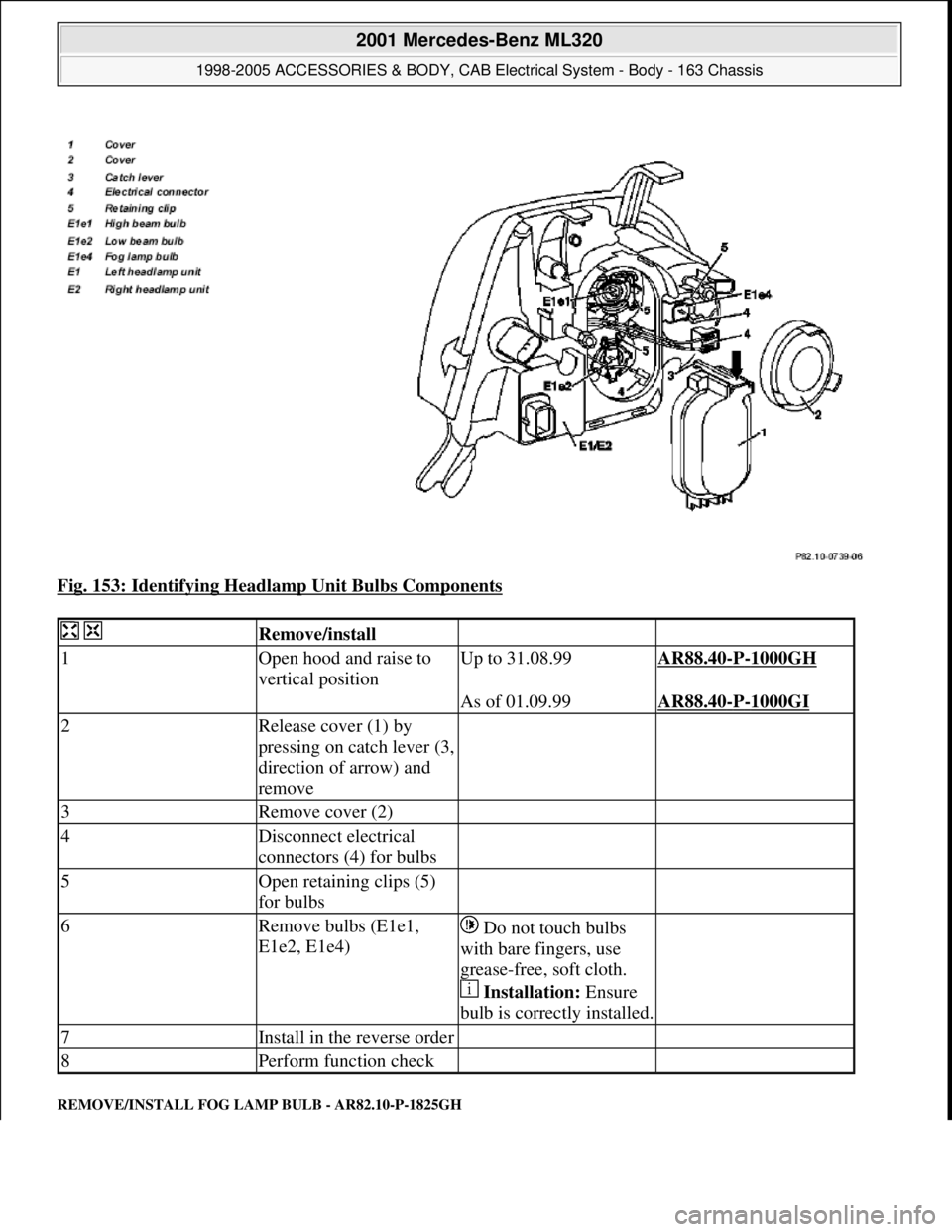

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 153: Identifying Headlamp Unit Bulbs Components REMOVE/INSTALL FOG LAMP BULB - AR82.10-P-1825GH Remove/install 1Open hood and raise to vertical positionUp to 31.08.99AR88.40-P-1000GH As

Page 1749 of 4133

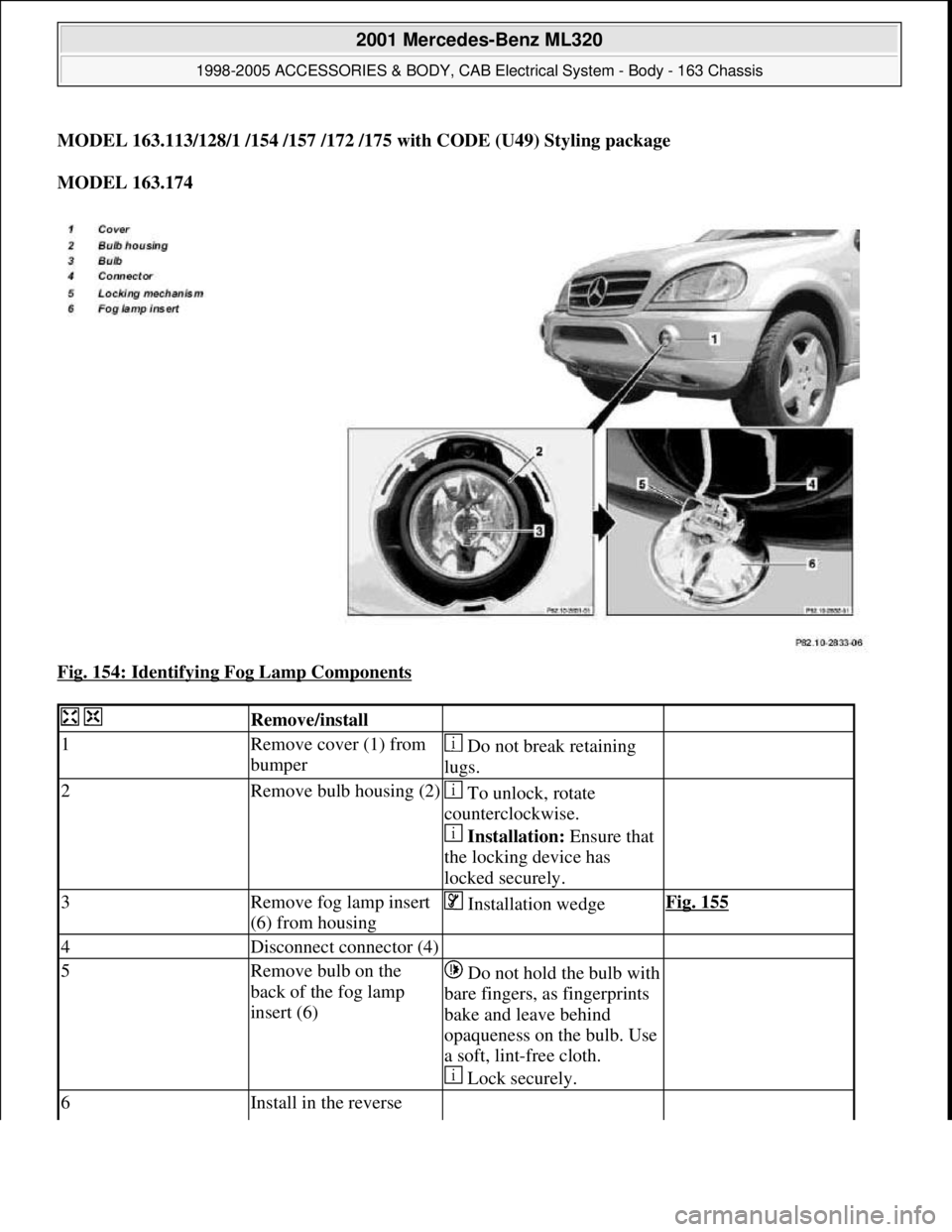

MERCEDES-BENZ ML320 1997 Complete Repair Manual MODEL 163.113/128/1 /154 /157 /172 /175 with CODE (U49) Styling package MODEL 163.174 Fig. 154: Identifying Fog Lamp Components Remove/install 1Remove cover (1) from bumper Do not break ret

Page 1750 of 4133

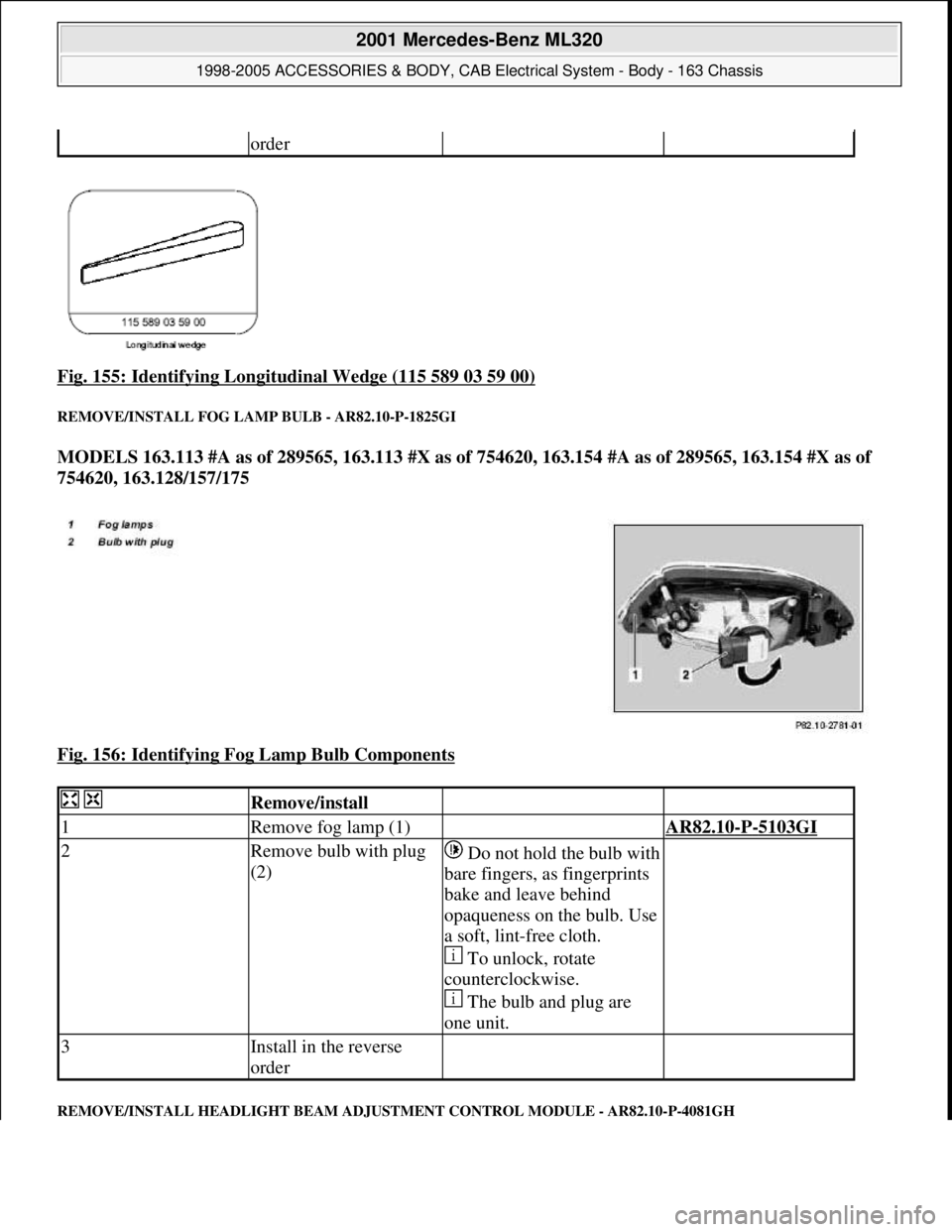

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 155: Identifying Longitudinal Wedge (115 589 03 59 00) REMOVE/INSTALL FOG LA MP BULB - AR82.10-P-1825GI MODELS 163.113 #A as of 289565, 163.113 #X as of 754620, 163.154 #A as of 289565, 163.15

Page 1751 of 4133

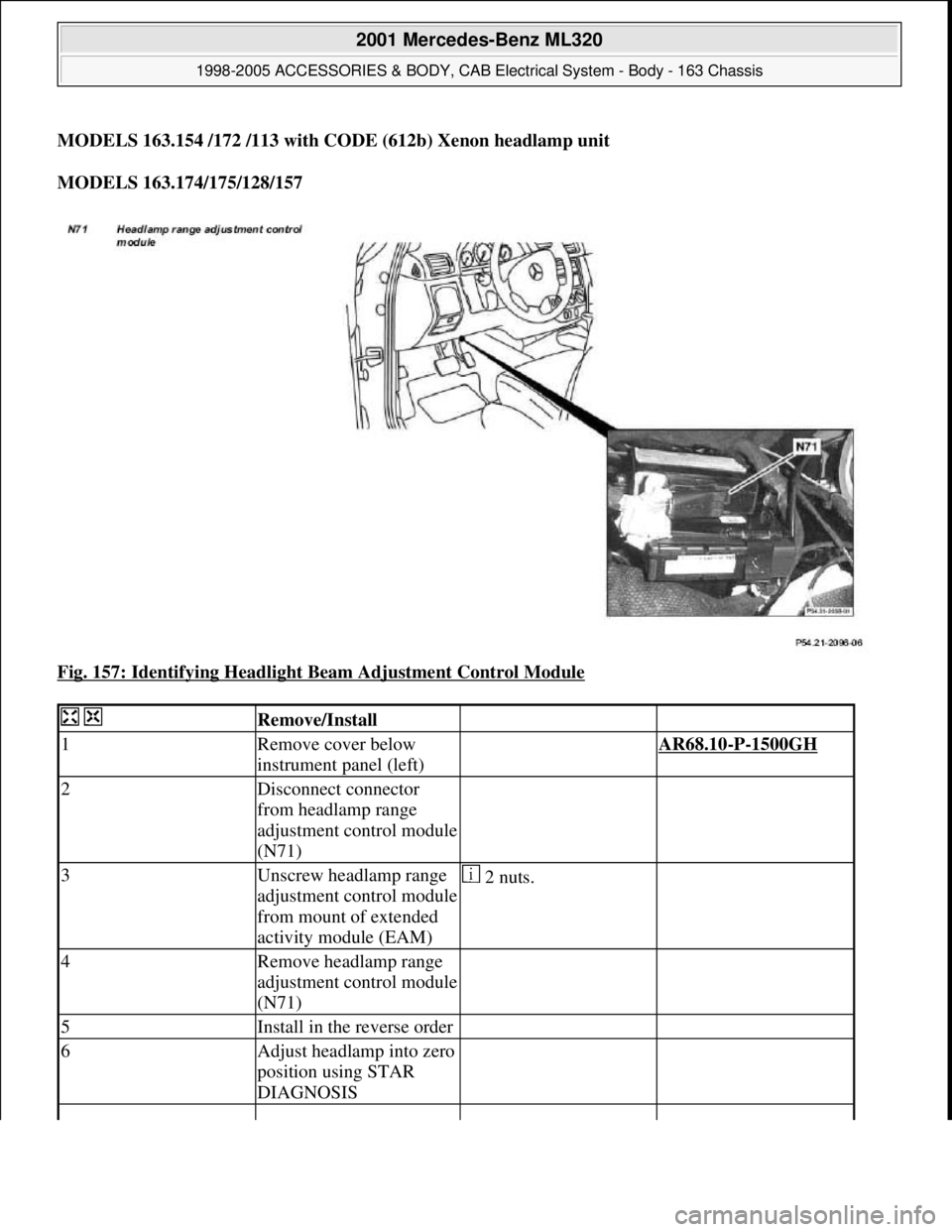

MERCEDES-BENZ ML320 1997 Complete Repair Manual MODELS 163.154 /172 /113 with CODE (612b) Xenon headlamp unit MODELS 163.174/175/128/157 Fig. 157: Identifying Headlight Beam Adjustment Control Module Remove/Install 1Remove cover below inst

Page 1752 of 4133

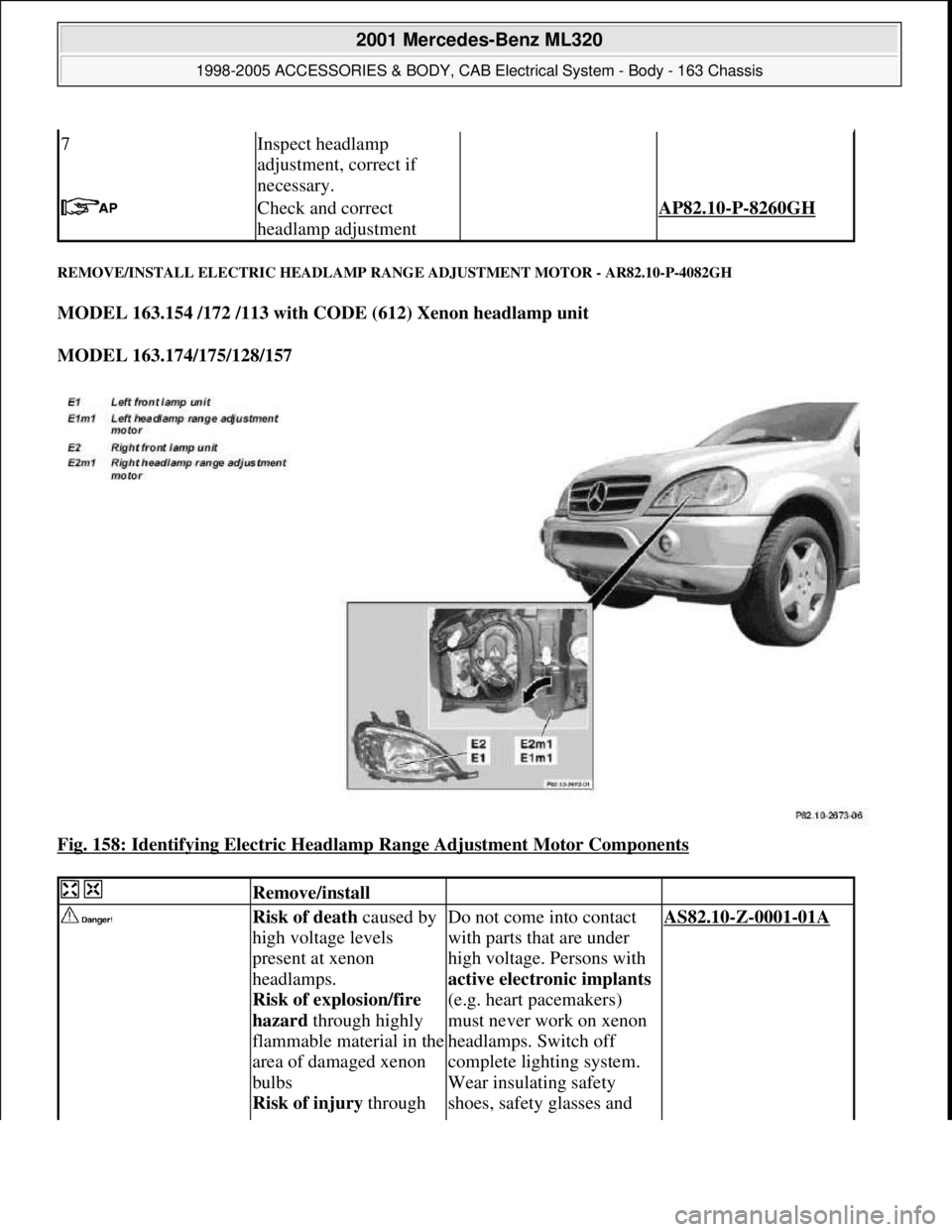

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVE/INSTALL ELECTRIC HEADLAMP RANGE ADJUSTMENT MOTOR - AR82.10-P-4082GH MODEL 163.154 /172 /113 with CODE (612) Xenon headlamp unit MODEL 163.174/175/128/157 Fig. 158: Identifying Electric Hea
