MERCEDES-BENZ ML320 1997 Complete Repair Manual Intake manifold 211.061/065/070, 230.475 Models 220, 230.474 22.2Install electric fanModel 170AR20.40-P-5000SV Models 203, 209AR20.40-P-5000PV Model 163.174AR20.40-P-5000GH 23Install cylinder he

Page 2274 of 4133

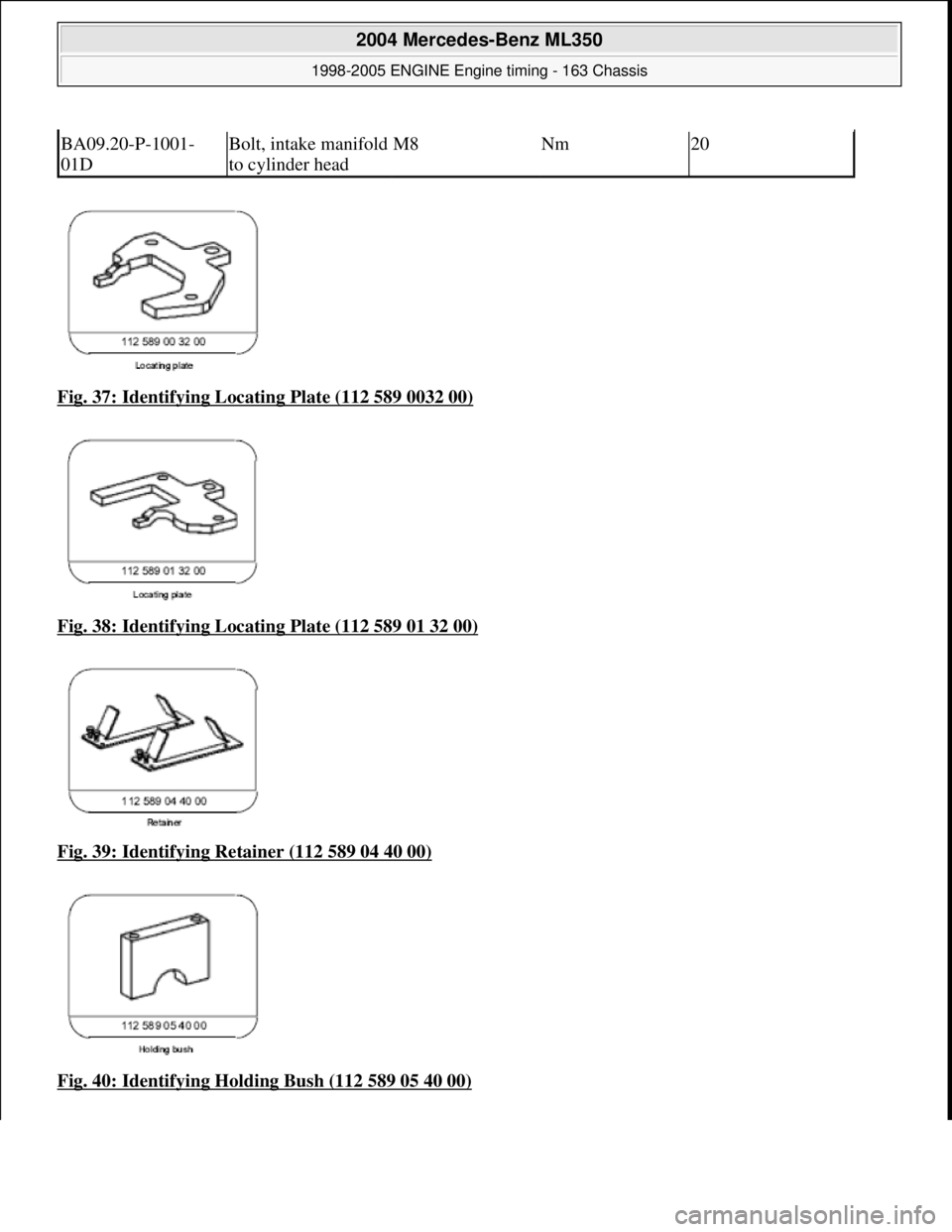

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 37: Identifying Locating Plate (112 589 0032 00) Fig. 38: Identifying Locating Plate (112 589 01 32 00) Fig. 39: Identifying Retainer (112 589 04 40 00) Fig. 40: Identifying Holding Bush

Page 2275 of 4133

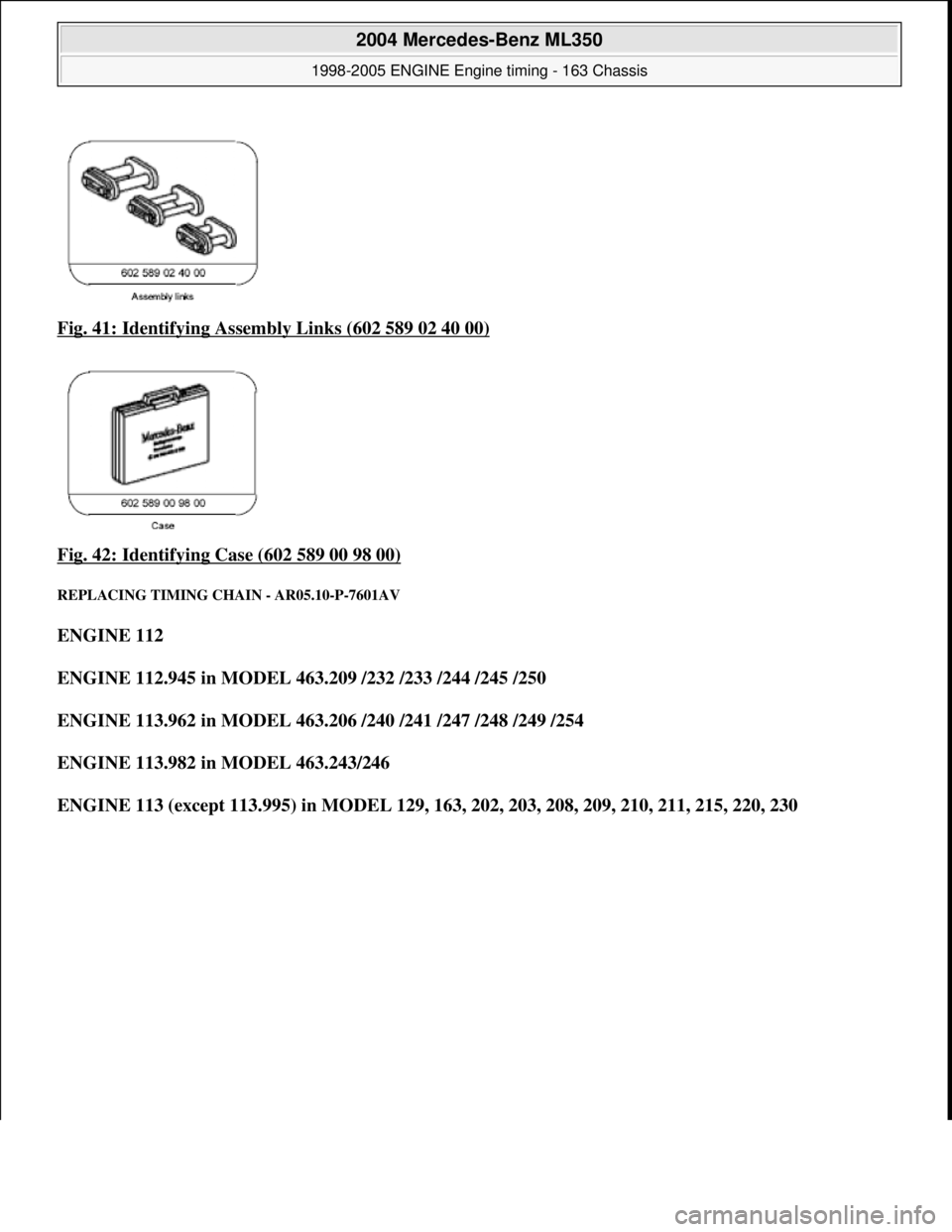

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 41: Identifying Asse mbly Links (602 589 02 40 00) Fig. 42: Identifying Case (602 589 00 98 00) REPLACING TIMING CHAIN - AR05.10-P-7601AV ENGINE 112 ENGINE 112.945 in MODEL 463.209 /232

Page 2276 of 4133

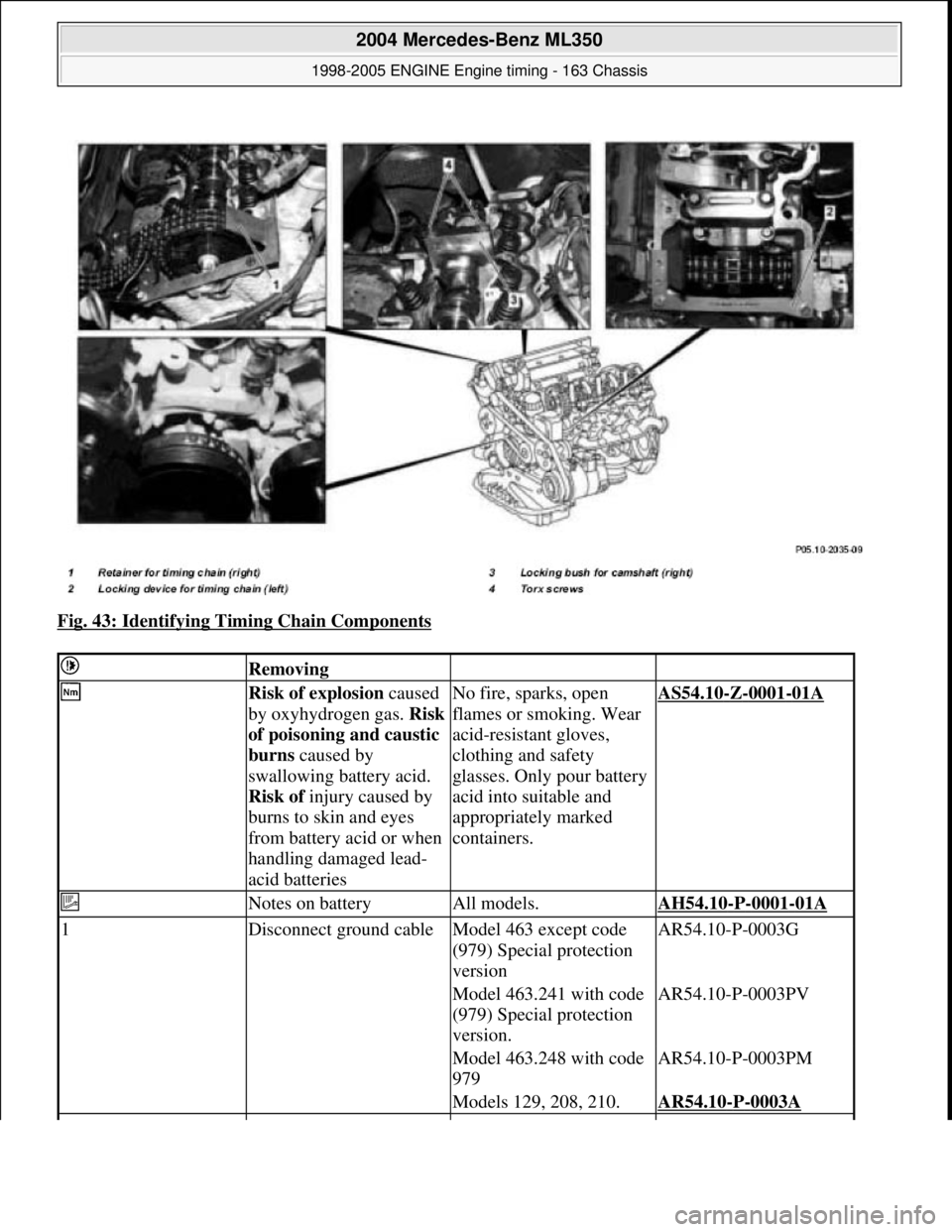

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 43: Identifying Timing Chain Components Removing Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of

Page 2277 of 4133

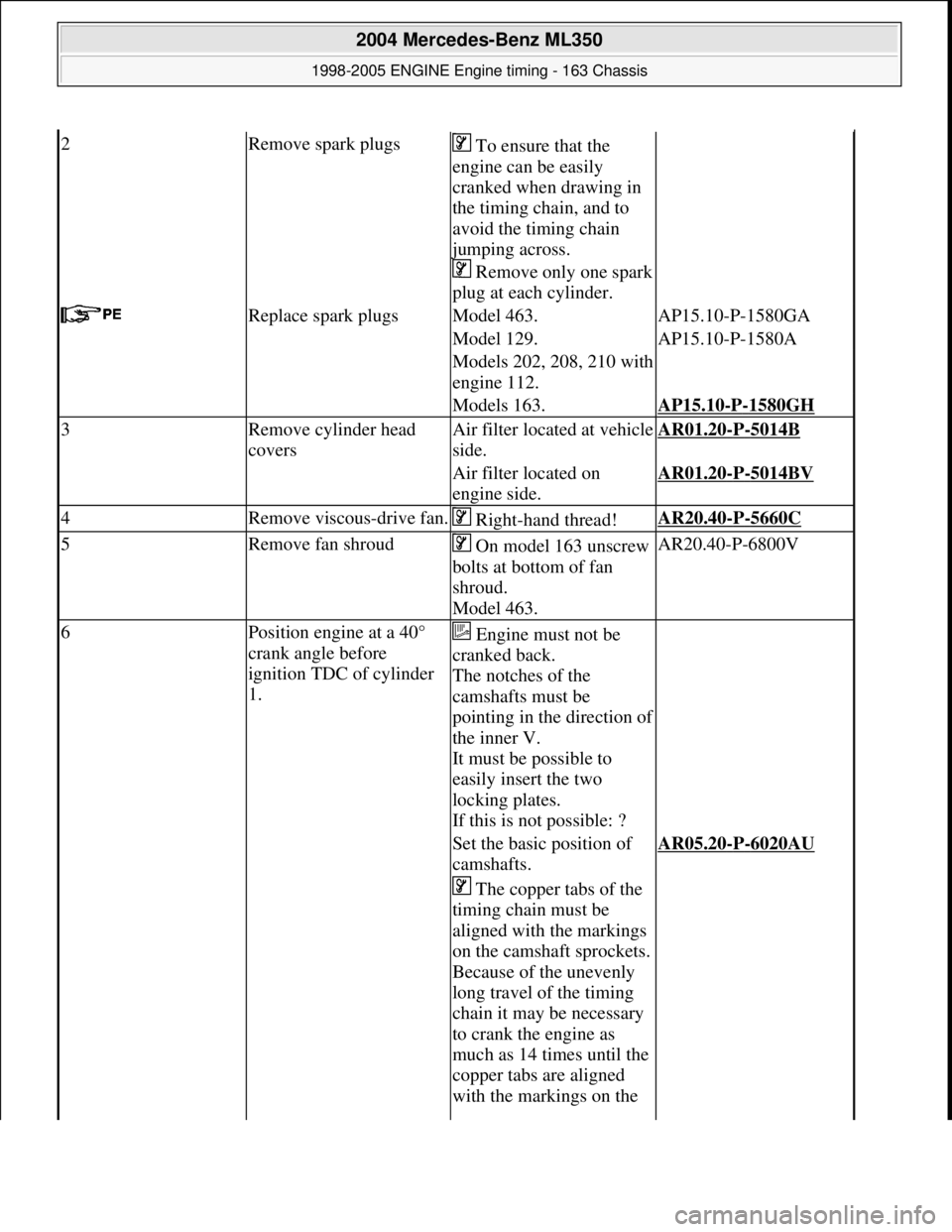

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2Remove spark plugs To ensure that the engine can be easily cranked when drawing in the timing chain, and to avoid the timing chain jumping across. Remove only one spark plug at each cyli

Page 2278 of 4133

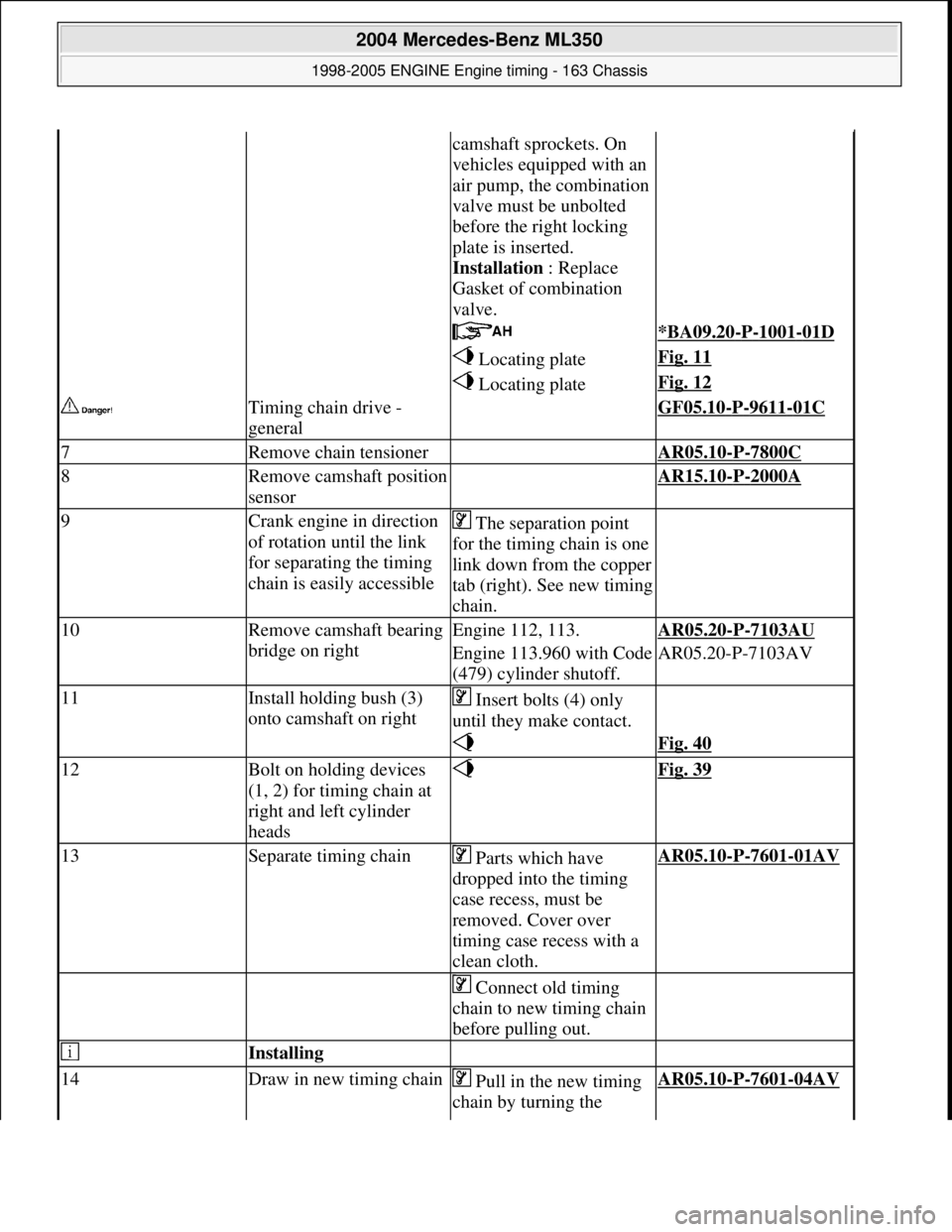

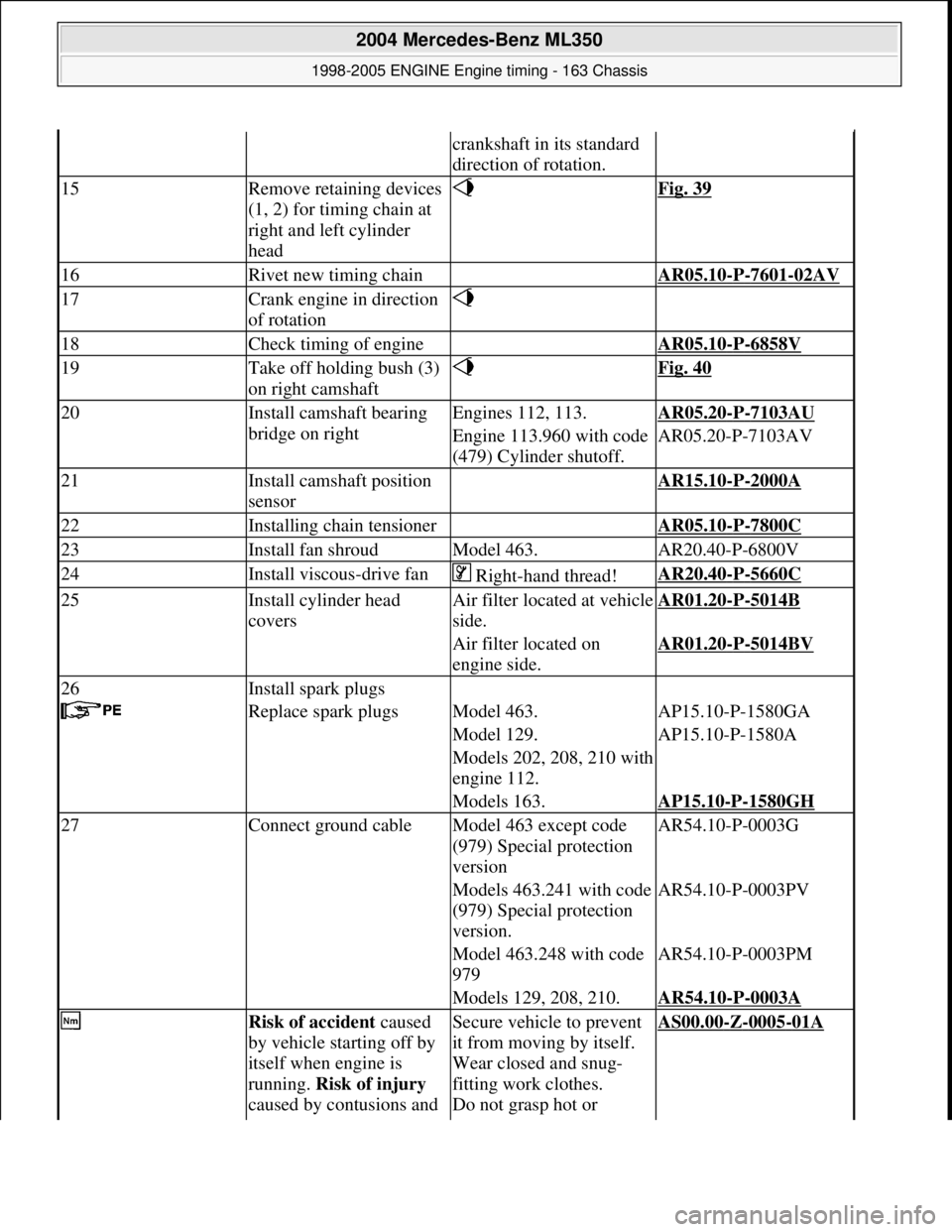

MERCEDES-BENZ ML320 1997 Complete Repair Manual camshaft sprockets. On vehicles equipped with an air pump, the combination valve must be unbolted before the right locking plate is inserted. Installation : Replace Gasket of combinatio

Page 2279 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual crankshaft in its standard direction of rotation. 15Remove retaining devices (1, 2) for timing chain at right and left cylinder head Fig. 39 16Rivet new timing chain AR05.10-P-7601-02AV 17Crank

Page 2280 of 4133

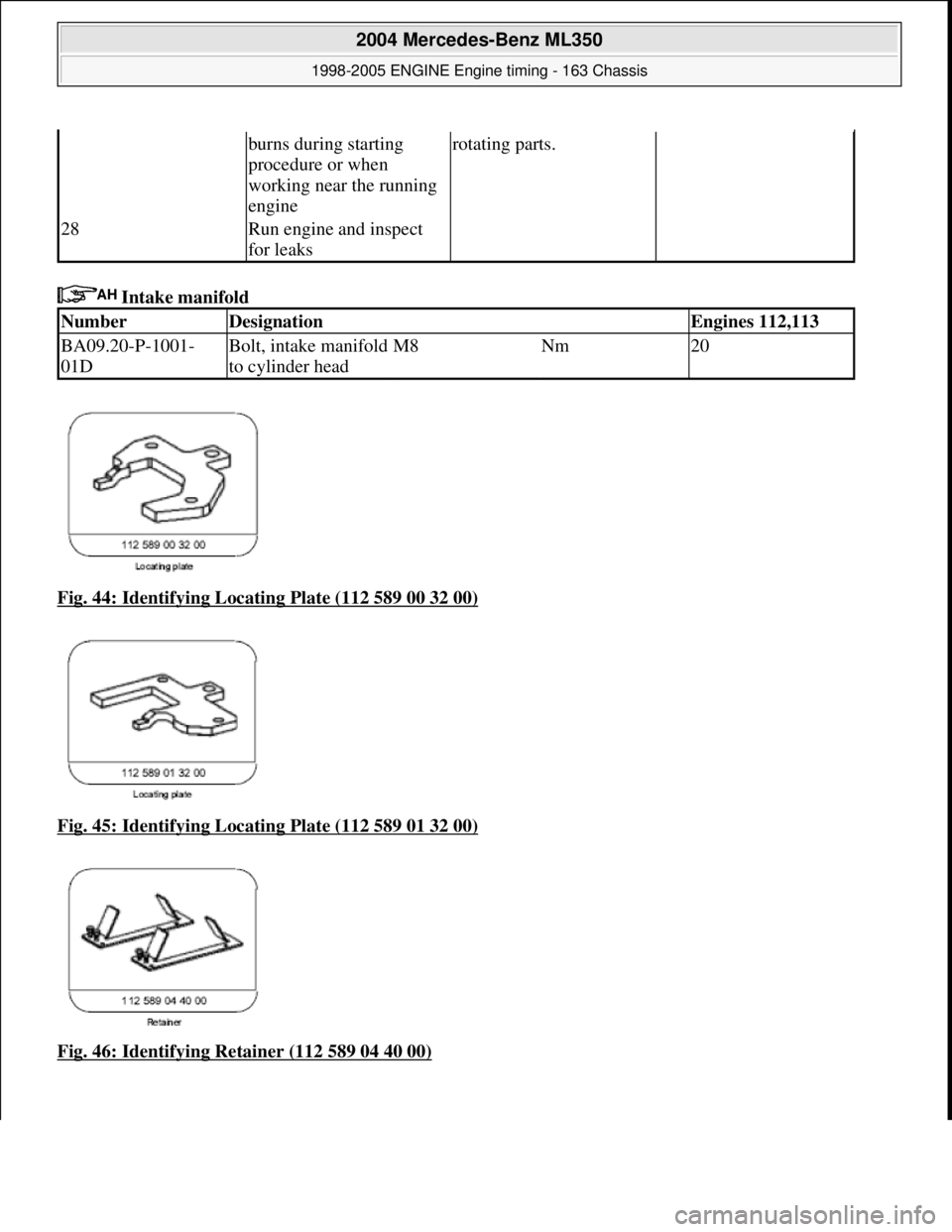

MERCEDES-BENZ ML320 1997 Complete Repair Manual Intake manifold Fig. 44: Identifying Locating Plate (112 589 00 32 00) Fig. 45: Identifying Locating Plate (112 589 01 32 00) Fig. 46: Identifying Retainer (112 589 04 40 00) burns during st
