Jump starting
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index
Proceed as follows:  1. Position the vehicle with the charged battery so that   the jumper cables will reach, but never let the
vehicles touch. Make sure the jumper cables do not
have loose or missing insulation.
2. On both vehicles: • Turn off engine and all lights and accessories,
except hazard warning flashers or work lights.
•  Apply parking brake and shift selector lever to
position “P”.
Important!
3. Clamp one end of the first jumper cable to the   positive (+) under hood terminal of the discharged
battery and the other end to the positive (+) terminal
of the charged battery. Make sure the cable clamps
do not touch any other metal parts.
4. Clamp one end of the second jumper cable to the   grounded negative (–) terminal of the charged
battery and the final connection to the negative (–)
terminal of the discharged battery.  Important!
5. Start engine of the vehicle with the charged battery   and run at high idle. Make sure the cables are not
on or near pulleys, fans, or other parts that move
when the engine is started. Allow the discharged
battery to charge for a few minutes. Start engine of
the disabled vehicle in the usual manner.
6. After the engine has started, remove jumper cables   by exactly reversing the above installation
sequence, starting with the last connection made
first. When removing each clamp, make sure that it
does not touch any other metal while the other end
is still attached.
Notes:
If engine does not run after several unsuccessful
starting attempts, have it checked at the nearest
authorized Mercedes-Benz Light Truck Center.
Excessive unburned fuel may damage the catalytic
converter.


        Page 722 of 4133
255
Towing
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index
Tow in g  t h e  ve hic l e
Important!
When towing the vehicle, please, note the following:
With the automatic central locking activated and the
engine running, the vehicle doors lock if the left front
wheel is turning at vehicle speeds of approximately
9 mph (15 km / h) or more.
To prevent the vehicle door locks from locking,

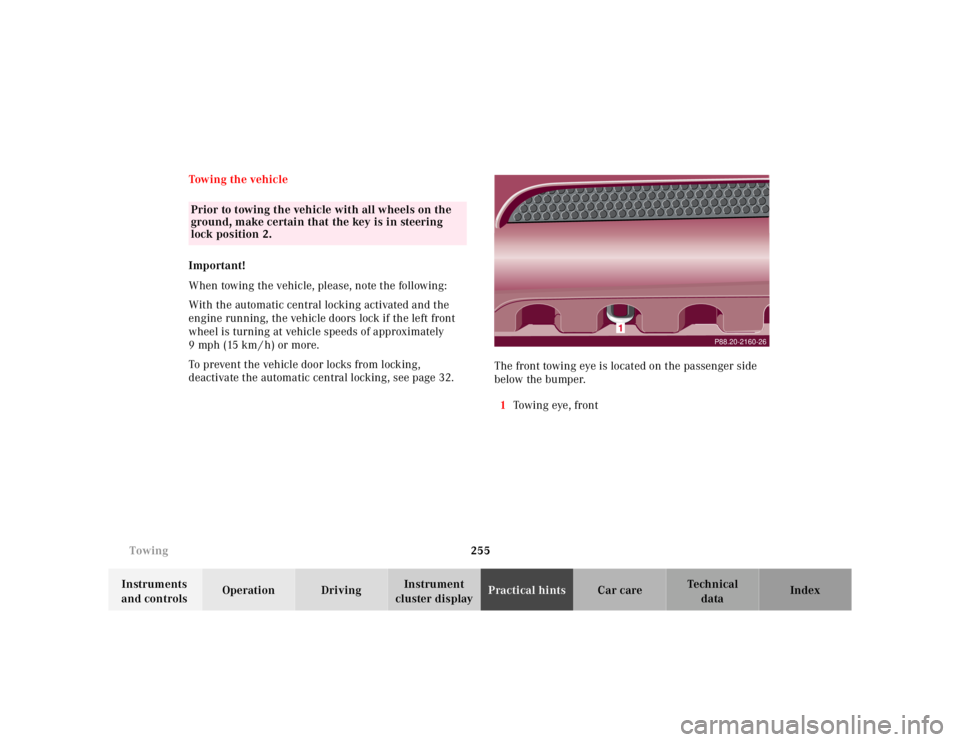

deactivate the automatic central locking, see page 32.  The front towing eye is located on the passenger side
below the bumper.
1  To w i n g  eye ,  f r o n t
Prior to towing the vehicle with all wheels on the
ground, make certain that the key is in steering
lock position 2.
P88.20-2160-26


        Page 723 of 4133
256
Towing
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index

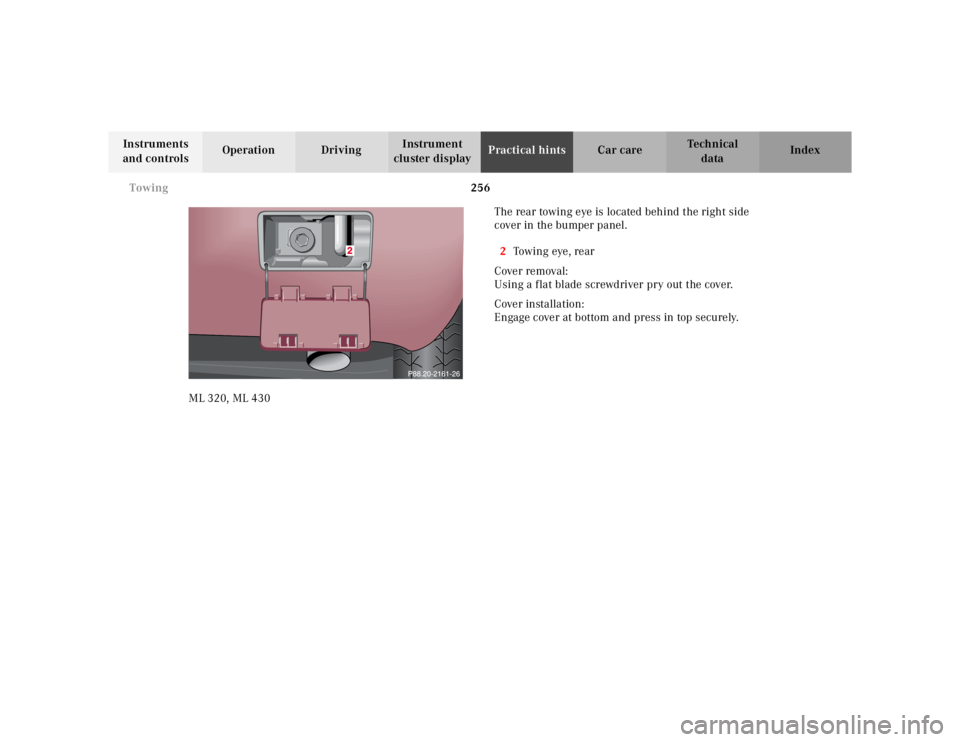

ML 320, ML 430  The rear towing eye is located behind the right side
cover in the bumper panel.
2  To w i n g  eye ,  r e a r
Cover removal:
Using a flat blade screwdriver pry out the cover.
Cover installation:
Engage cover at bottom and press in top securely.


        Page 724 of 4133
257
Towing
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index
ML 55 AMG

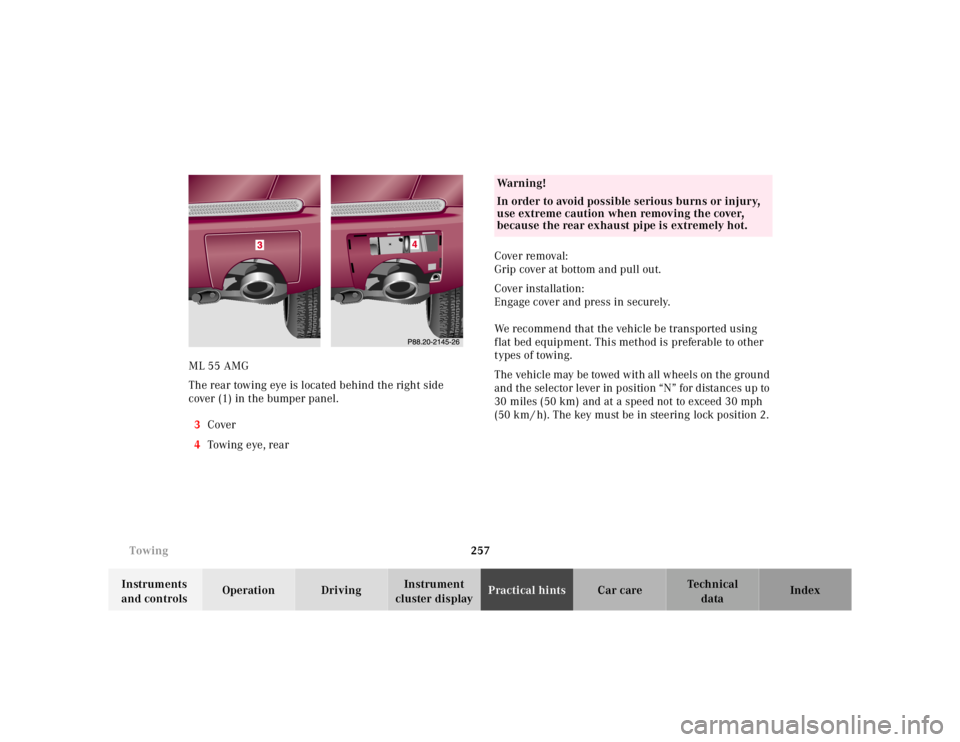

The rear towing eye is located behind the right side
cover (1) in the bumper panel.
3  Cover
4  Towing eye, rear  Cover removal:
Grip cover at bottom and pull out.
Cover installation:
Engage cover and press in securely.
We recommend that the vehicle be transported using
flat bed equipment. This method is preferable to other
types of towing.
The vehicle may be towed with all wheels on the ground
and the selector lever in position “N” for distances up to
30 miles (50 km) and at a speed not to exceed 30 mph
(50 k m / h). The  key mu st be  in stee ring lo ck p o sitio n 2.
Wa r n i n g !
In order to avoid possible serious burns or injury,
use extreme caution when removing the cover,
because the rear exhaust pipe is extremely hot.


        Page 725 of 4133

258
Towing
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index
To be certain to avoid additional damage to the vehicle
powertrain, however you should d o the following:
•  With damage to front axle, raise front axle. Remove
flexible drive shaft between rear axle and transfer
case
•  With damage to rear axle, raise rear axle and tow
vehicle with wheel lift or dolly placed under front
wheels.
•  With damage to transfer case, remove flexible drive
shafts to the drive axles.
Note:
Always install new self-locking nuts when reinstalling
the flexible drive shaft.  Caution!
If the vehicle is towed with the front axle raised, the
engine must be shut off (key in steering lock position 1).
Otherwise, the 4-ETS+ may become engaged which may
cause loss of towing control. Switch off the tow-away
alarm (see page 36) as well as the ESP (see page 207).
Note:
To signal turns while being towed with hazard warning
flasher in use, turn key in steering lock to position 2
and activate combination switch for left or right turn
signal in usual manner. Now deactivate the hazard
warning flasher, only the selected turn signal will
operate. Upon canceling the turn signal, the hazard
warning flasher must be activated again.
Wa r n i n g !
With the engine not running, there is no power
assistance for the braking and steering systems. In
this case, it is important to keep in mind that a
considerably higher degree of effort is necessary to
brake and steer the vehicle.


        Page 726 of 4133

259
Towing
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index

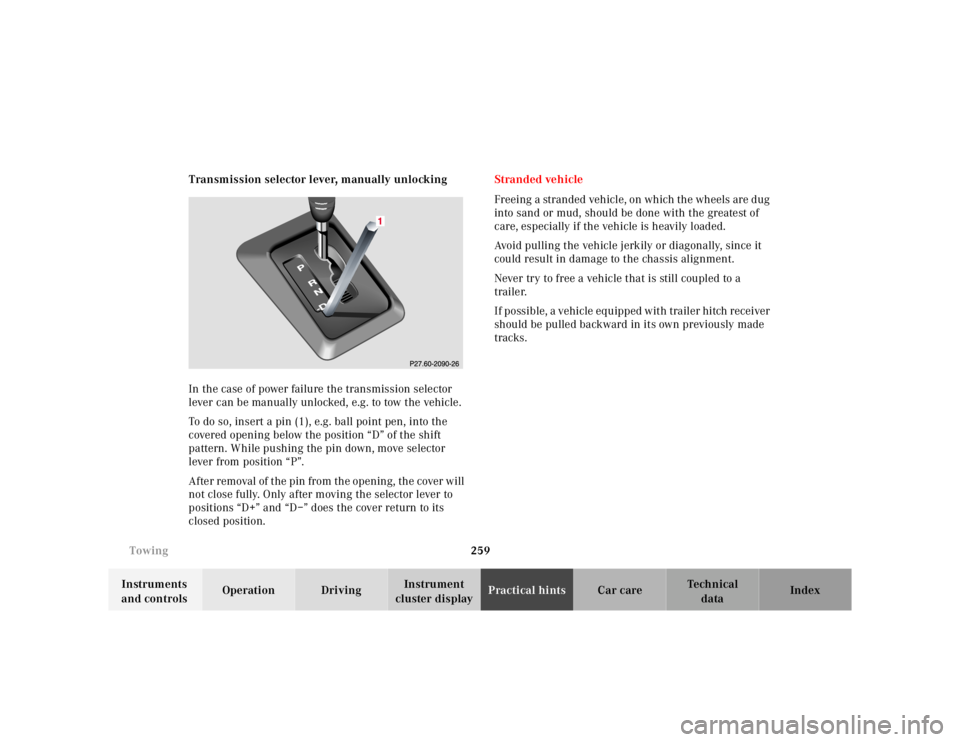

Transmission selector lever, manually unlocking
In the case of power failure the transmission selector
lever can be manually unlocked, e.g. to tow the vehicle.
To do so, insert a pin (1), e.g. ball point pen, into the
covered opening below the position “D” of the shift
pattern. While pushing the pin down, move selector
lever from position “P”.
After removal of the pin from the opening, the cover will
not close fully. Only after moving the selector lever to
positions “D+” and “D–” does the cover return to its
closed position.  Stranded vehicle
Freeing a stranded vehicle, on which the wheels are dug
into sand or mud, should be done with the greatest of
care, especially if the vehicle is heavily loaded.
Avoid pulling the vehicle jerkily or diagonally, since it
could result in damage to the chassis alignment.
Never try to free a vehicle that is still coupled to a
trailer.
If possible, a vehicle equipped with trailer hitch receiver
should be pulled backward in its own previously made
tracks.


        Page 727 of 4133

260
Exterior lamps
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index
Exterior lamps
Headlamp adjustment
Correct headlamp adjustment is extremely important.
Check and readjust headlamps at regular intervals and
when a bulb has been replaced.
For adjusting headlamp aim see page 268.  Replacing bulbs
To prevent a possible electrical short circuit, switch off
lamp prior to replacing a bulb.
When replacing bulbs, install only 12 volt bulbs with
the specified watt rating.
When replacing halogen bulbs do not touch glass
portion of bulb with bare hands. Use plain paper or a
clean cloth.
Wa r n i n g !
Bulbs and bulb holders can be very hot. Allow the
lamp to cool down before changing a bulb.
Halogen lamps contain pressurized gas. A bulb can
explode if you:  • touch or move it when hot,
•drop the bulb,
•scratch the bulb.Wear eye and hand protection.
Wa r n i n g !
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb of repair the lamp
and its components. We recommend that you have
such work done by a qualified technician.


        Page 728 of 4133
261
Exterior lamps
Te ch n ica l
data
Instruments
and controls  Operation Driving
Instrument
cluster display  Practical hints
Car care Index

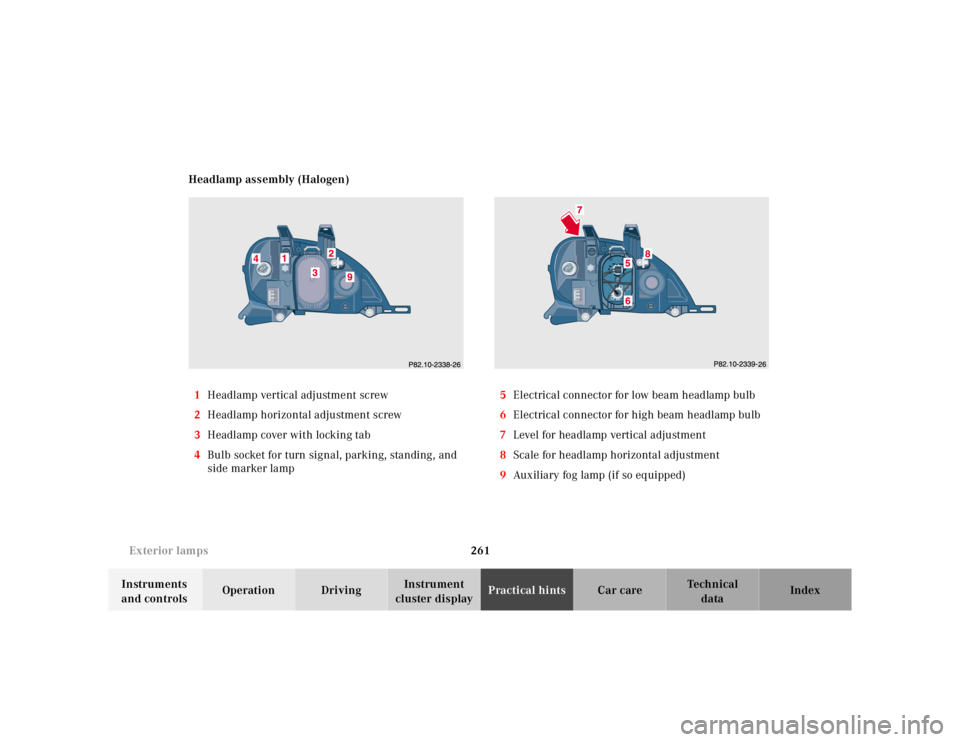

Headlamp assembly (Halogen)
1  Headlamp vertical adjustment screw
2  Headlamp horizontal adjustment screw
3  Headlamp cover with locking tab
4  Bulb socket for turn signal, parking, standing, and
side marker lamp  5
Electrical connector for low beam headlamp bulb
6  Electrical connector for high beam headlamp bulb
7  Level for headlamp vertical adjustment
8  Scale for headlamp horizontal adjustment
9  Auxiliary fog lamp (if so equipped)
