Page 3873 of 4133

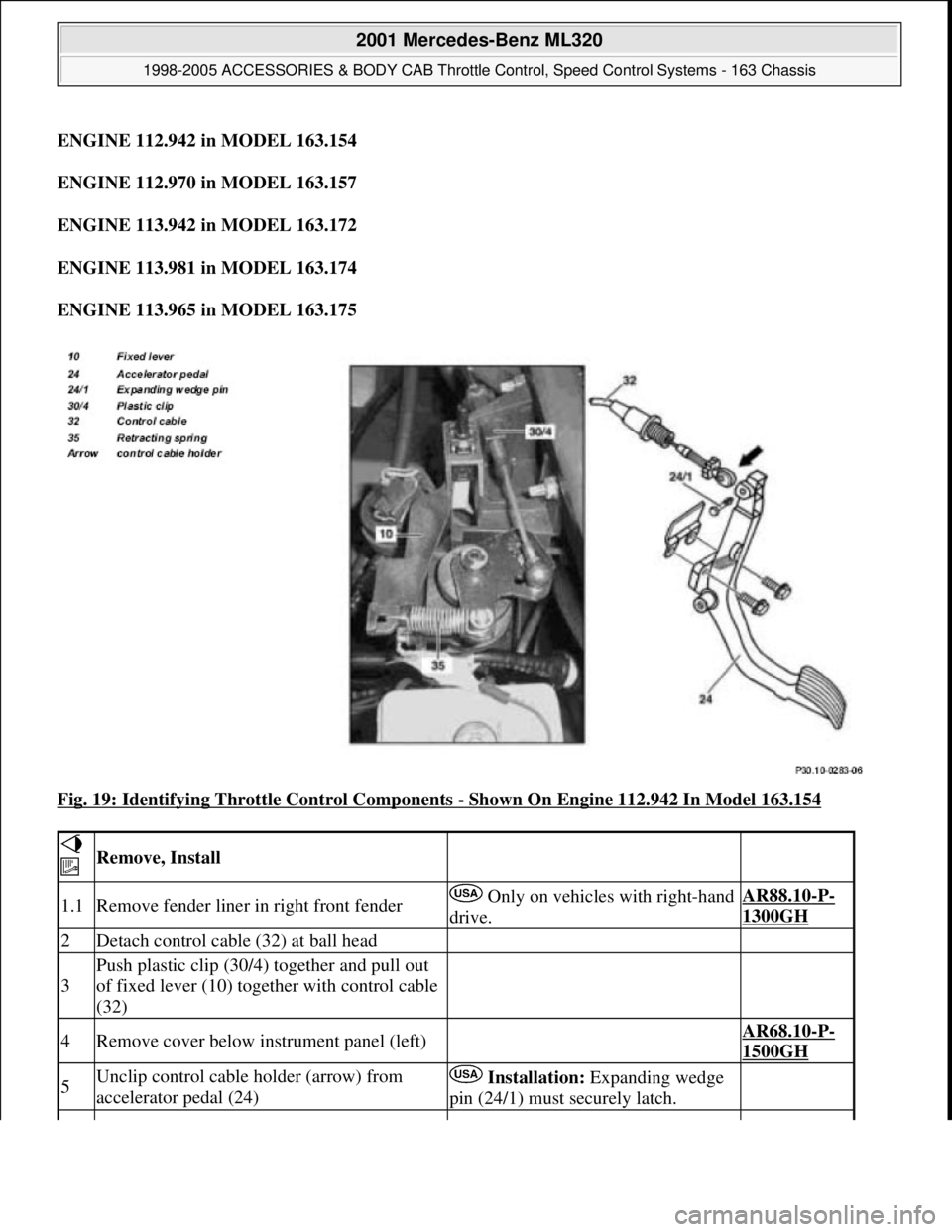

MERCEDES-BENZ ML320 1997 Complete Repair Manual ENGINE 112.942 in MODEL 163.154 ENGINE 112.970 in MODEL 163.157 ENGINE 113.942 in MODEL 163.172 ENGINE 113.981 in MODEL 163.174 ENGINE 113.965 in MODEL 163.175 Fig. 19: Identifying Throttle

Page 3874 of 4133

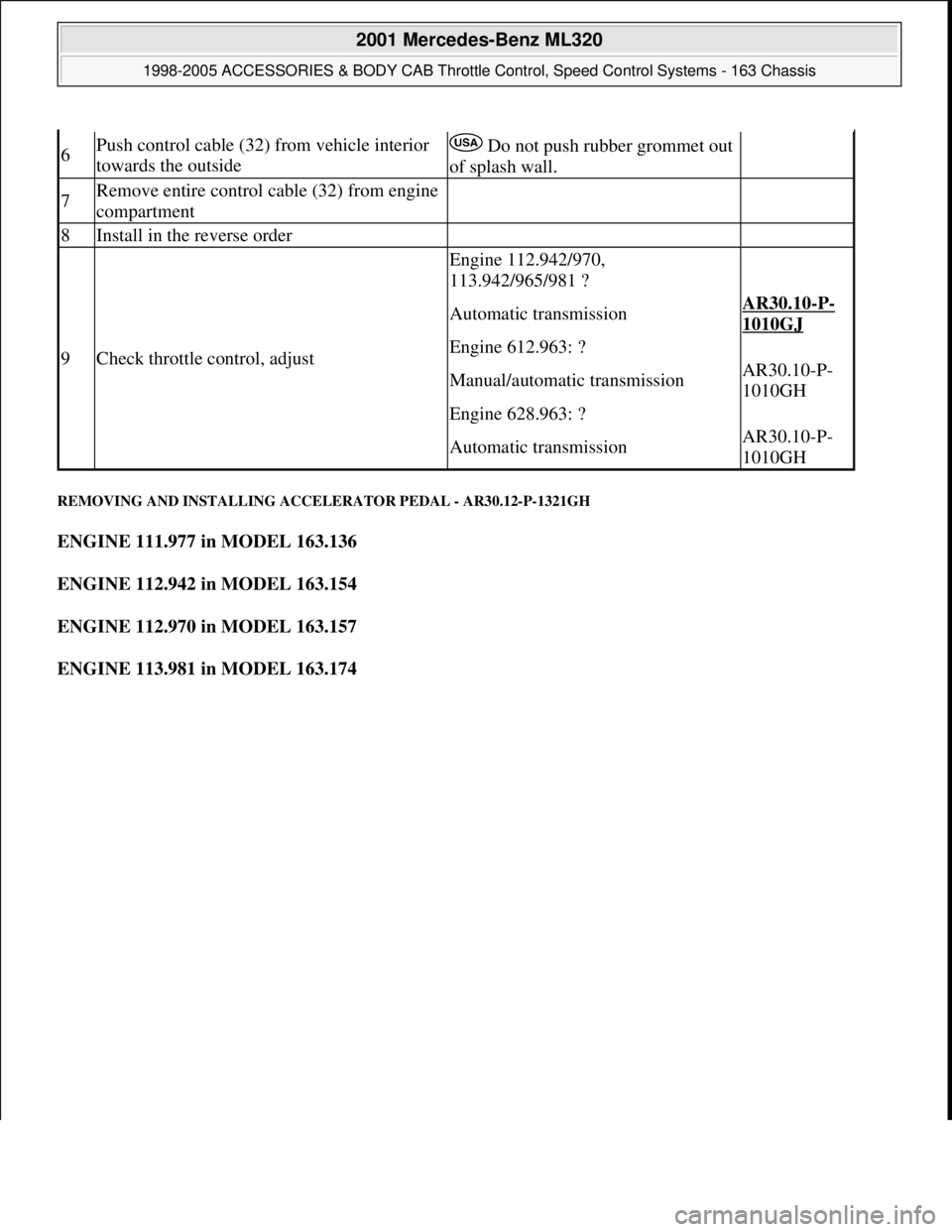

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVING AND INSTALLING ACCELERATOR PEDAL - AR30.12-P-1321GH ENGINE 111.977 in MODEL 163.136 ENGINE 112.942 in MODEL 163.154 ENGINE 112.970 in MODEL 163.157 ENGINE 113.981 in MODEL 163.174 6P

Page 3875 of 4133

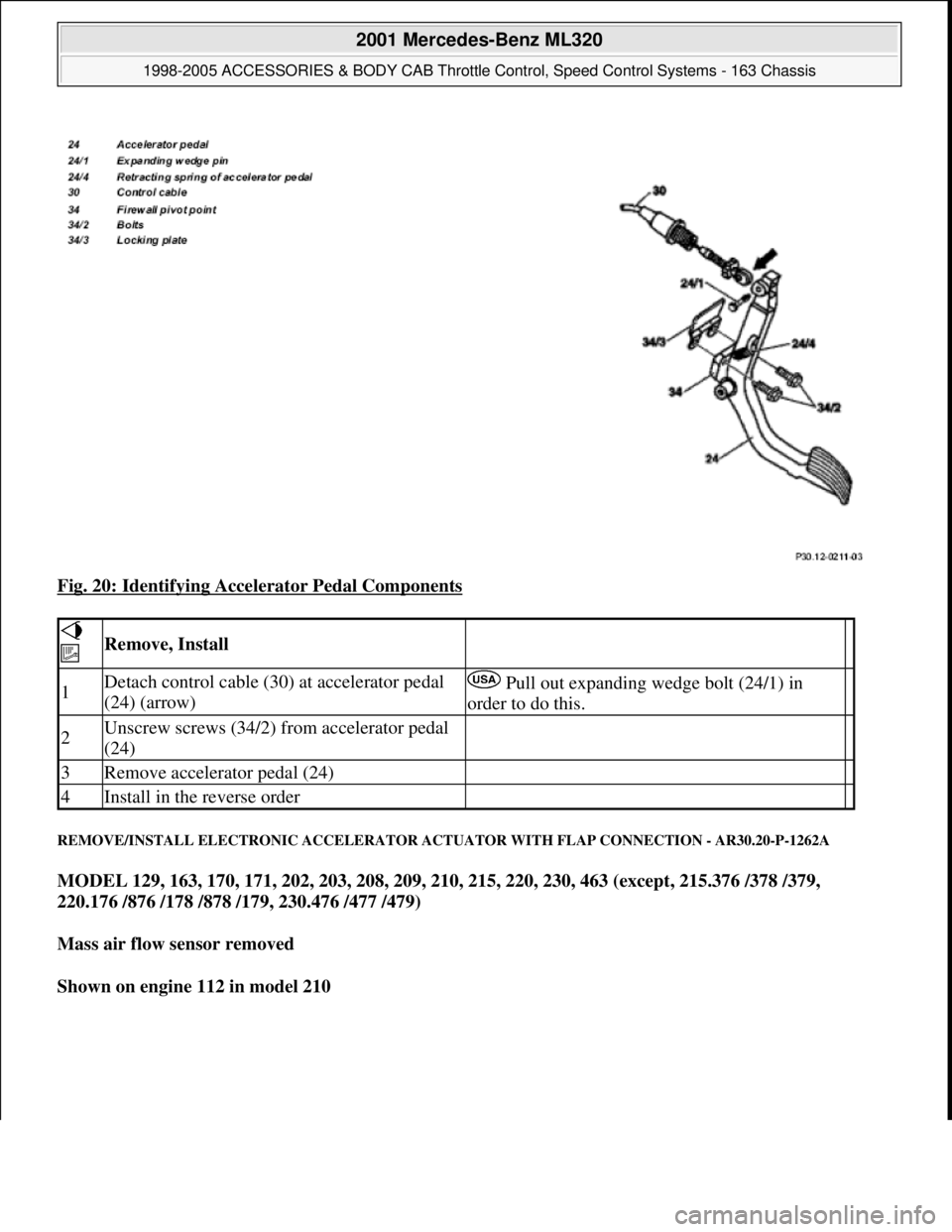

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 20: Identifying Accelerator Pedal Components REMOVE/INSTALL ELECTRONIC ACCELERATOR ACTUATOR WITH FLAP CONNECTION - AR30.20-P-1262A MODEL 129, 163, 170, 171, 202, 203, 208, 209, 210, 215, 220, 2

Page 3876 of 4133

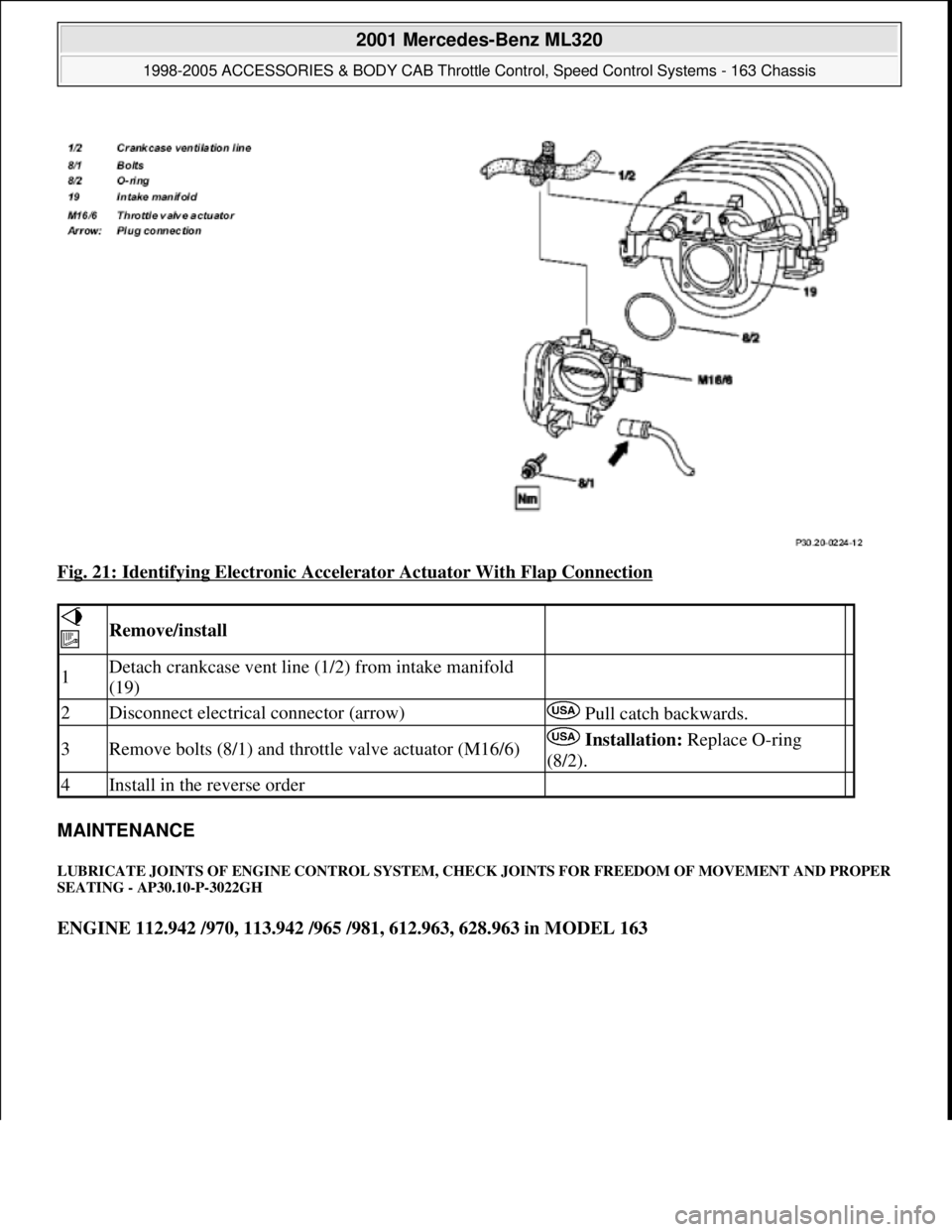

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 21: Identifying Electronic Accelerator Actuator With Flap Connection MAINTENANCE LUBRICATE JOINTS OF ENGINE CONTROL SYSTEM, CHECK JOINTS FOR FREEDOM OF MOVEMENT AND PROPER SEATING - AP30.10-P

Page 3877 of 4133

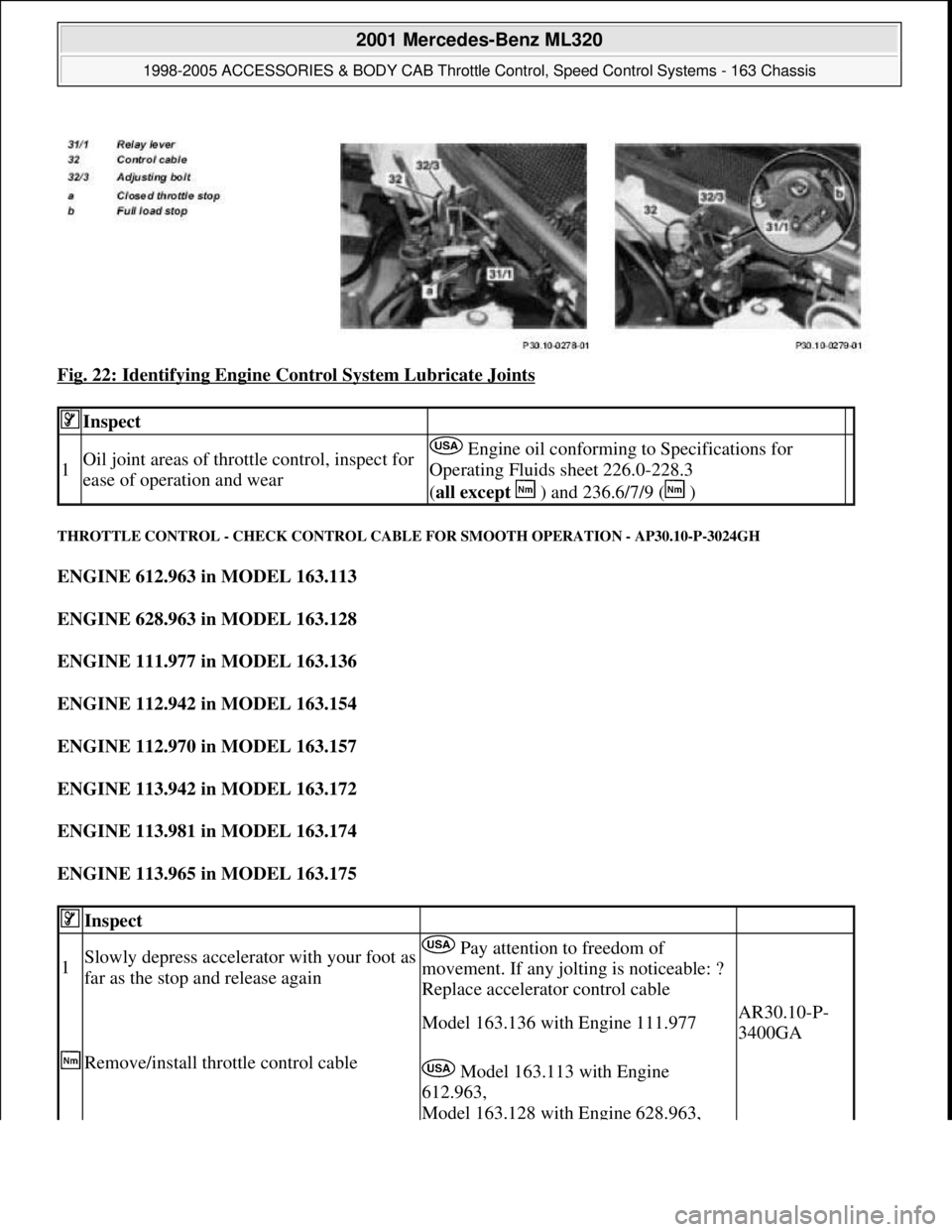

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 22: Identifying Engine Control System Lubricate Joints THROTTLE CONTROL - CHECK CONTROL CABLE FOR SMOOTH OPERATION - AP30.10-P-3024GH ENGINE 612.963 in MODEL 163.113 ENGINE 628.963 in MODEL 1

Page 3878 of 4133

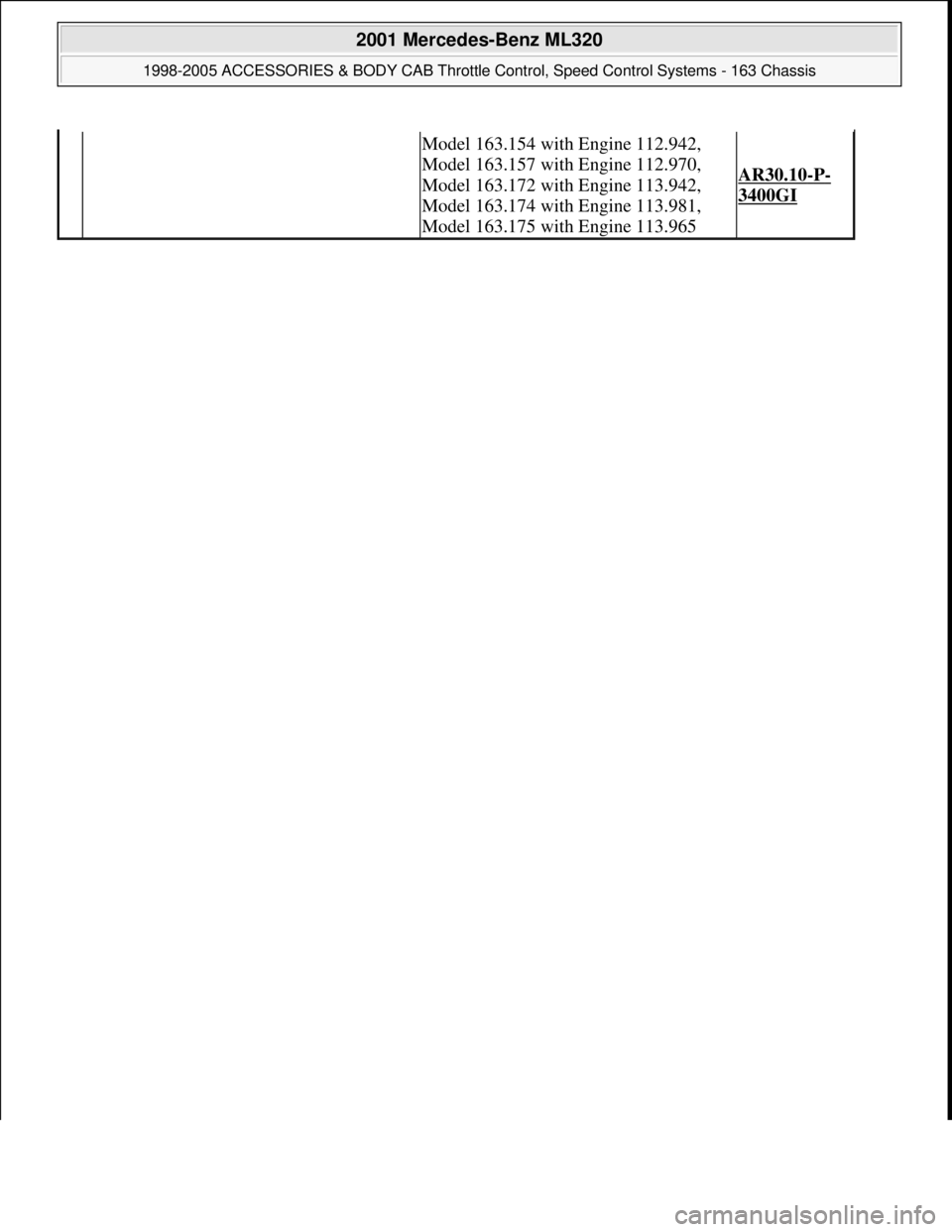

MERCEDES-BENZ ML320 1997 Complete Repair Manual Model 163.154 with Engine 112.942, Model 163.157 with Engine 112.970, Model 163.172 with Engine 113.942, Model 163.174 with Engine 113.981, Model 163.175 with Engine 113.965 AR30.10-P- 3400GI 20

Page 3879 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual

Page 3880 of 4133

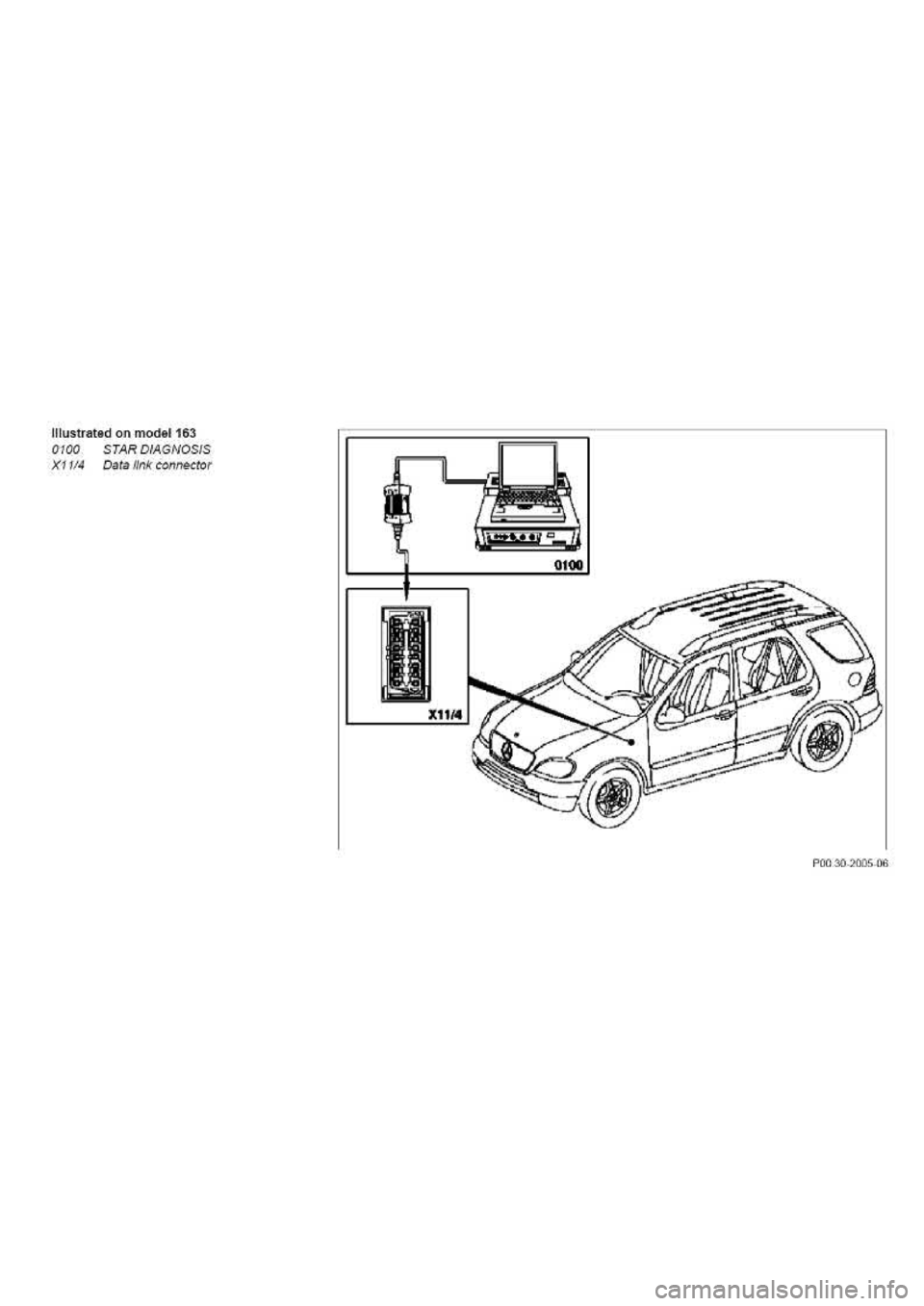

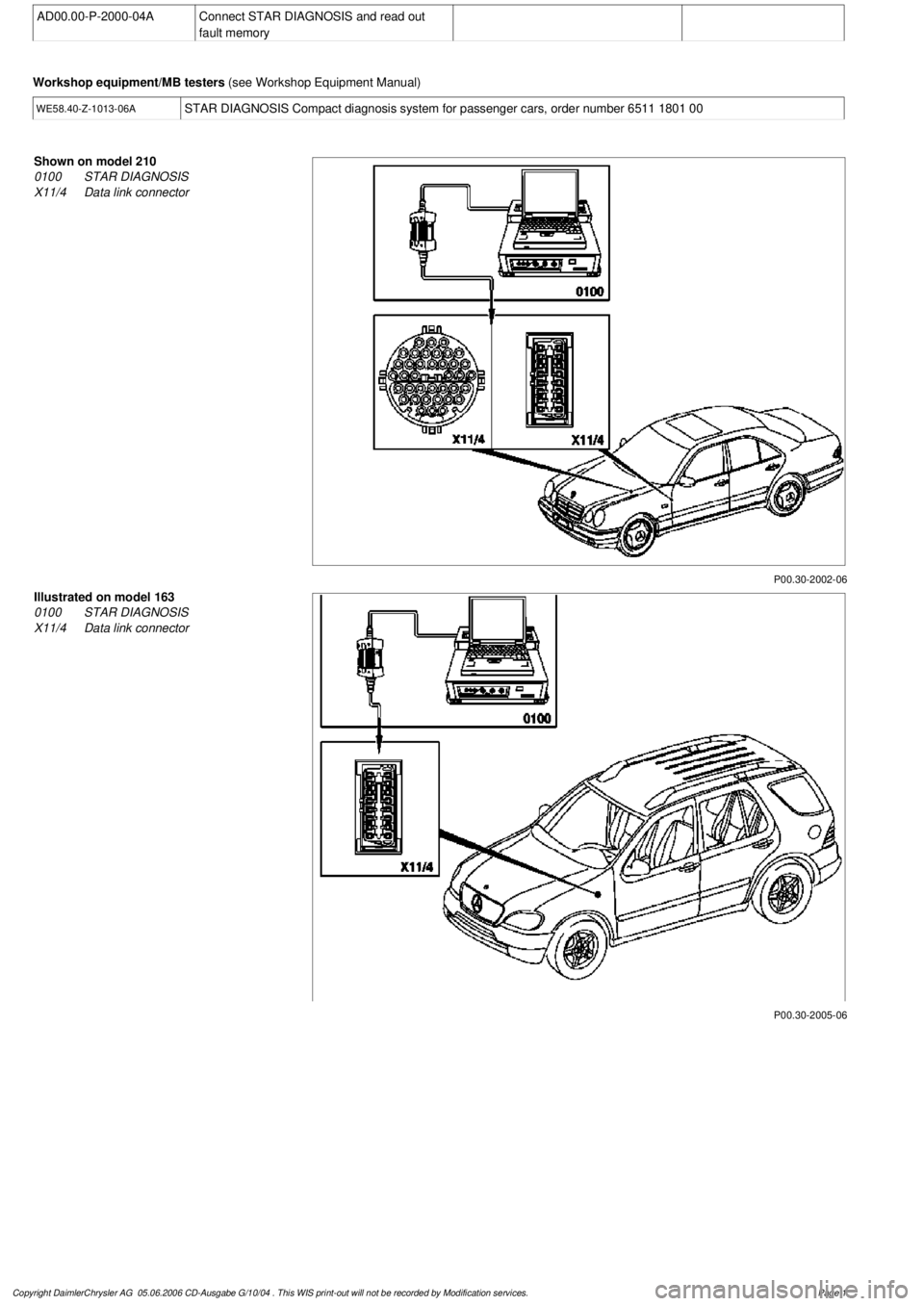

MERCEDES-BENZ ML320 1997 Complete Repair Manual AD00.00-P-2000-04A Connect STAR DIAGNOSIS and read out fault memory Workshop equipment/MB testers (see Workshop Equipment Manual) WE58.40-Z-1013-06A STAR DIAGNOSIS Compact diagnosis system for
