Page 2281 of 4133

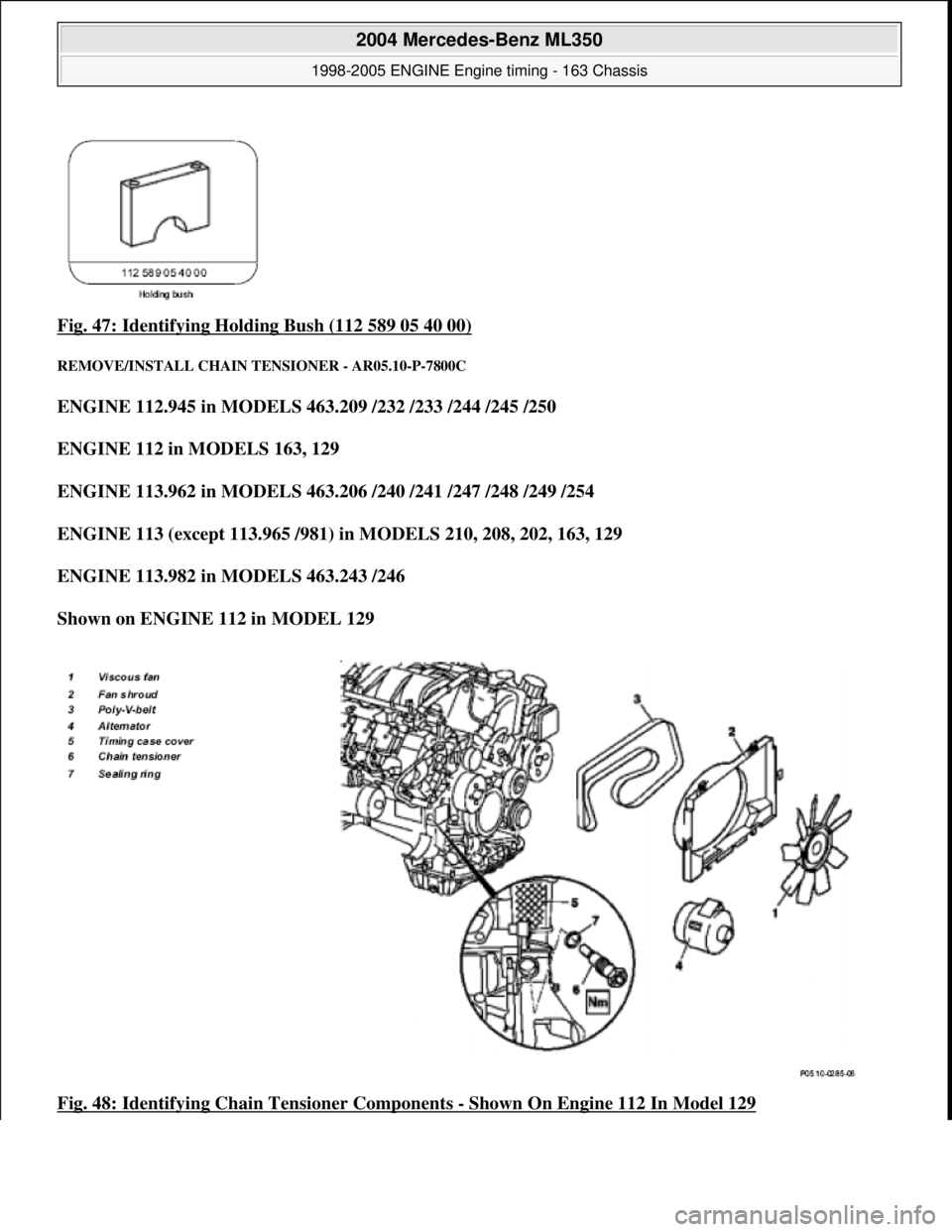

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 47: Identifying Holding Bush (112 589 05 40 00) REMOVE/INSTALL CHAIN TE NSIONER - AR05.10-P-7800C ENGINE 112.945 in MODELS 463.209 /232 /233 /244 /245 /250 ENGINE 112 in MODELS 163, 129

Page 2282 of 4133

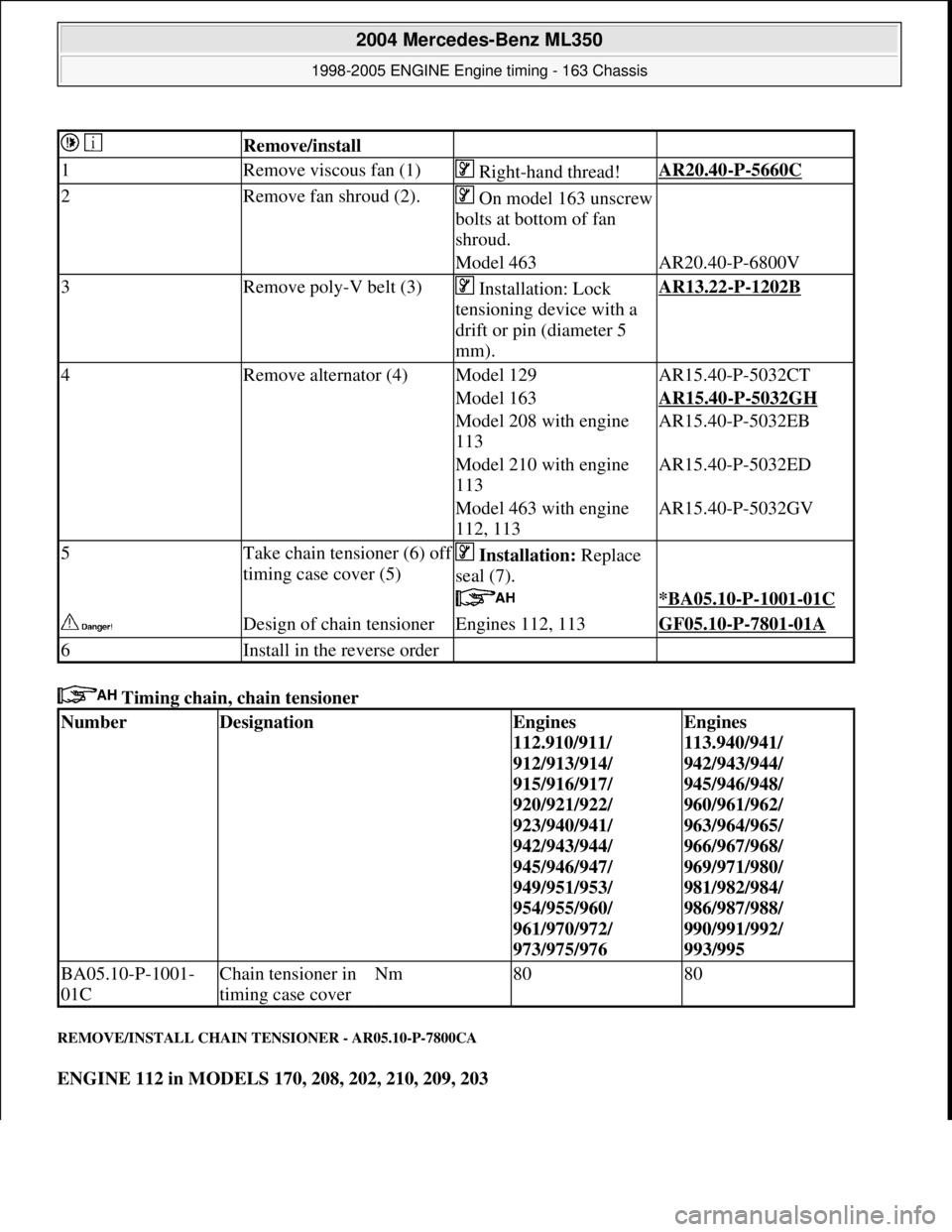

MERCEDES-BENZ ML320 1997 Complete Repair Manual Timing chain, chain tensioner REMOVE/INSTALL CHAIN TE NSIONER - AR05.10-P-7800CA ENGINE 112 in MODELS 170, 208, 202, 210, 209, 203 Remove/install 1Remove viscous fan (1) Right-hand thread!AR20

Page 2283 of 4133

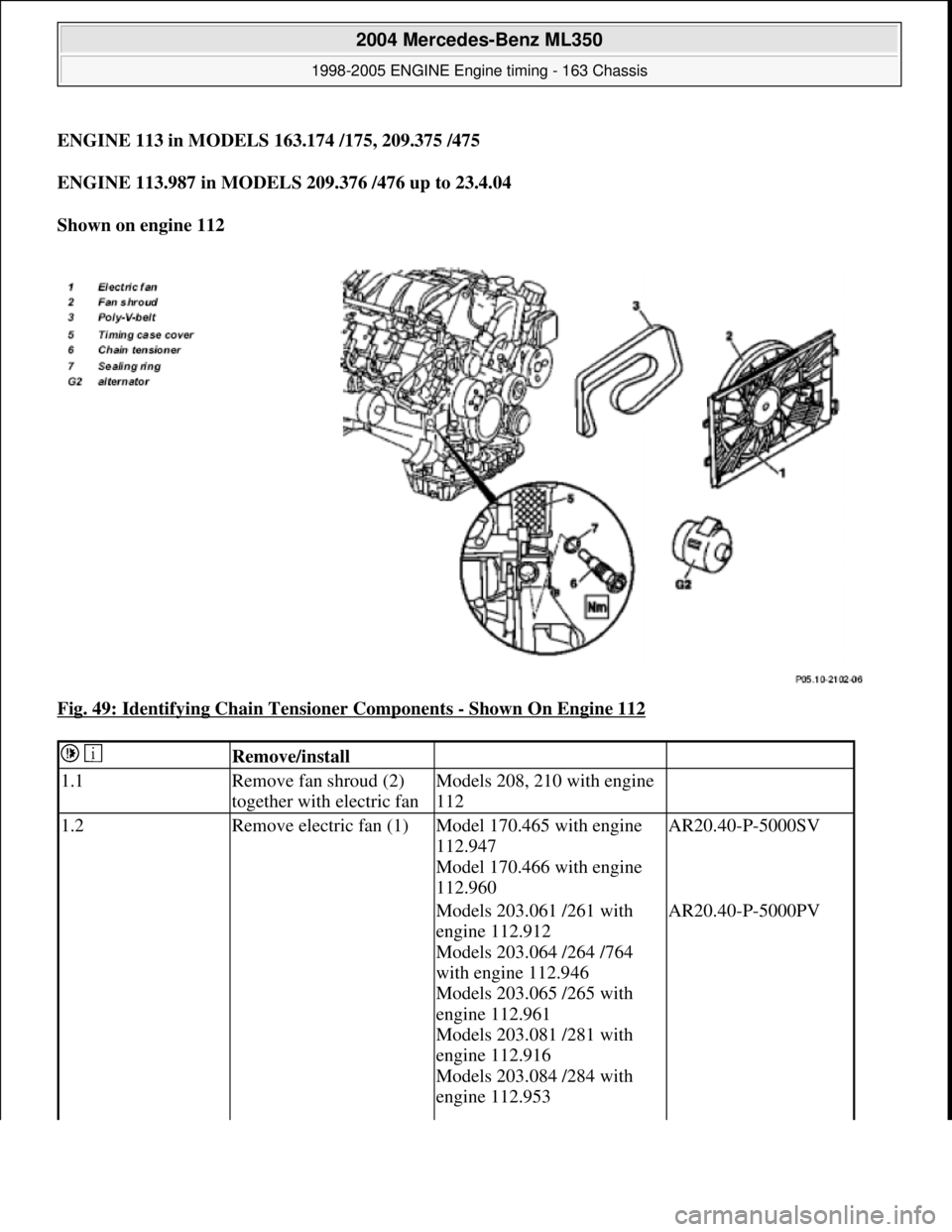

MERCEDES-BENZ ML320 1997 Complete Repair Manual ENGINE 113 in MODELS 163.174 /175, 209.375 /475 ENGINE 113.987 in MODELS 209.376 /476 up to 23.4.04 Shown on engine 112 Fig. 49: Identifying Chain Tensioner Components - Shown On Engine 11

Page 2284 of 4133

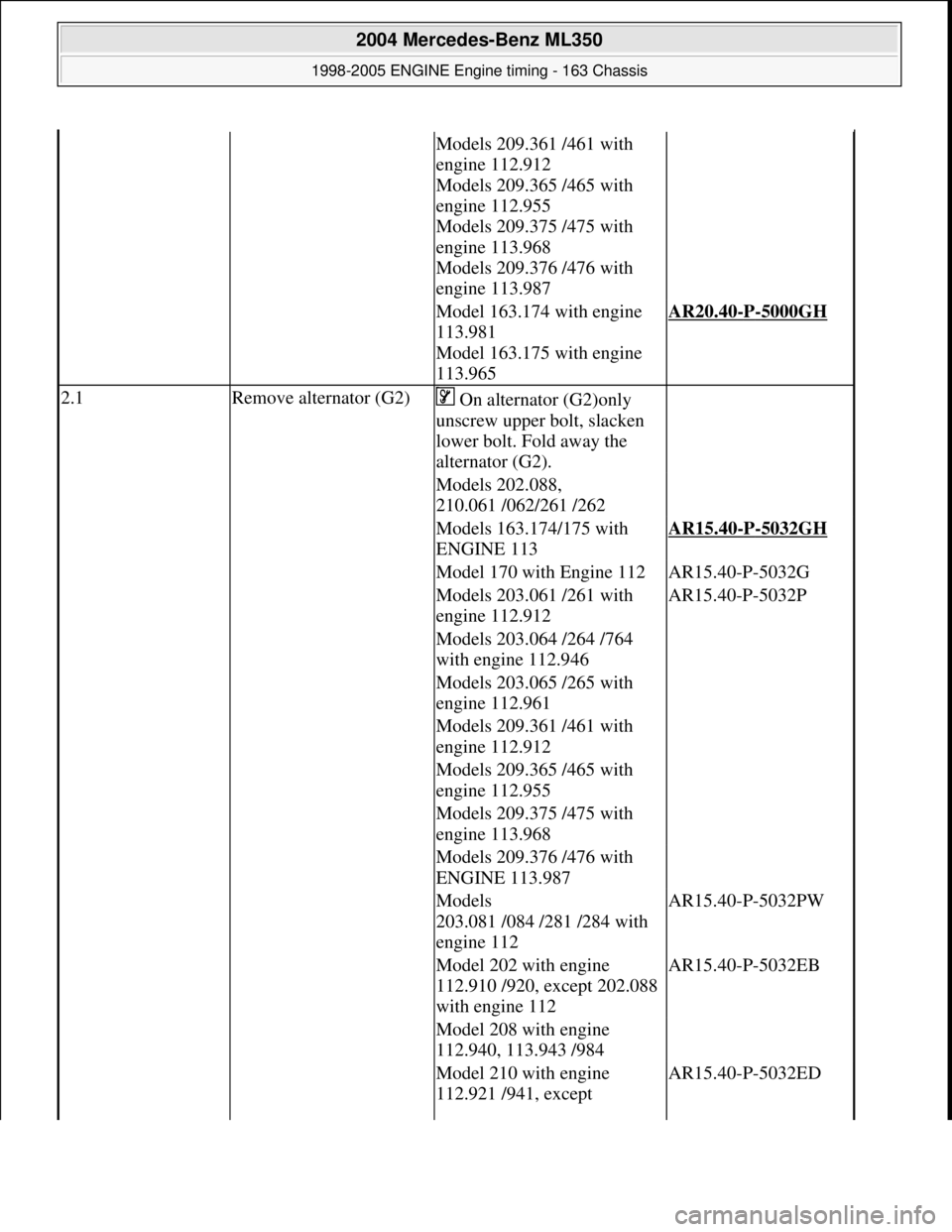

MERCEDES-BENZ ML320 1997 Complete Repair Manual Models 209.361 /461 with engine 112.912 Models 209.365 /465 with engine 112.955 Models 209.375 /475 with engine 113.968 Models 209.376 /476 with engine 113.987 Model 163.174 with engine

Page 2285 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Timing chain, chain tensioner Fig. 50: Identifying External Torx Set (001 589 76 09 00) REMOVE/INSTALL SLIDE RAIL IN TI MING CASE COVER - AR05.10-P-8484V ENGINE 112.945 in MODEL 463.209 /232 /

Page 2286 of 4133

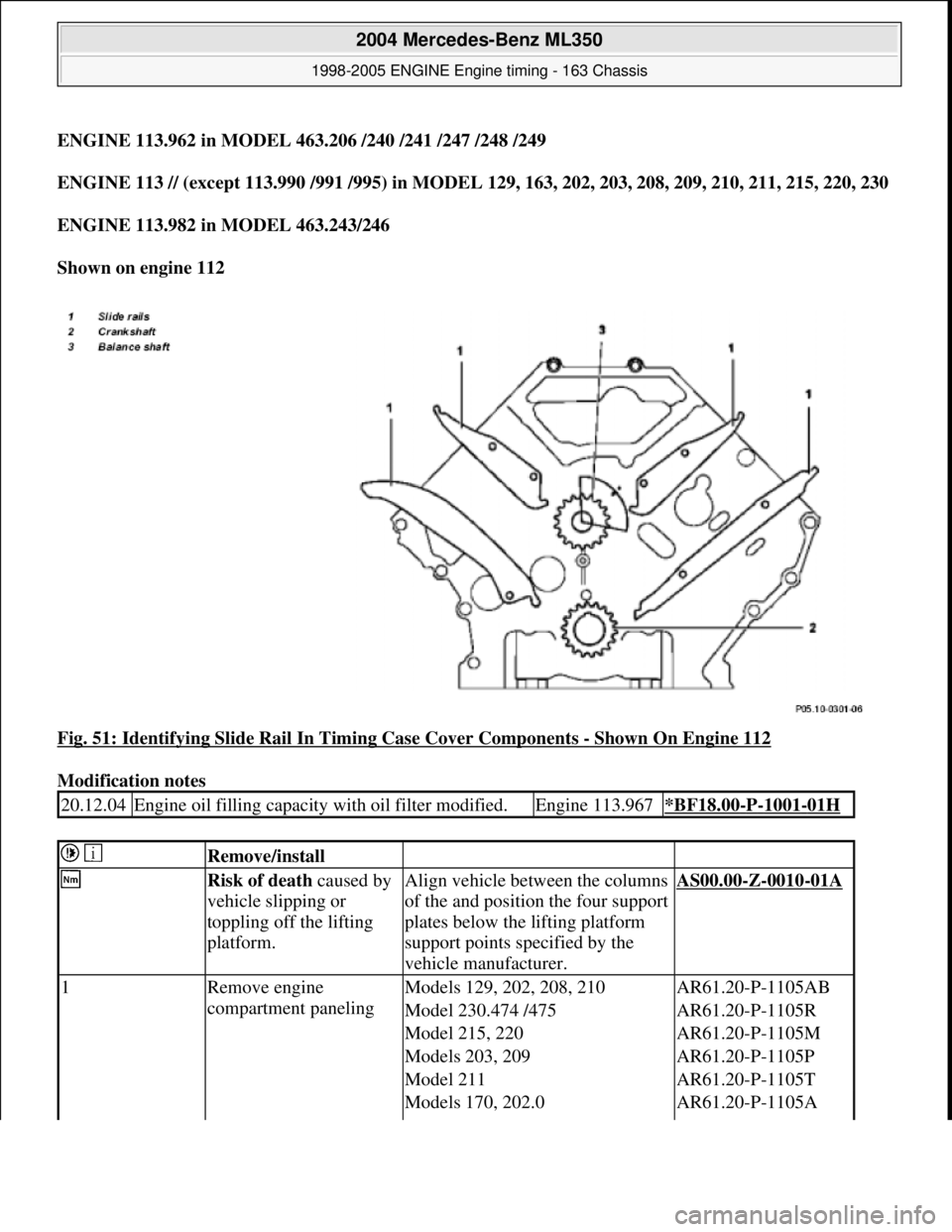

MERCEDES-BENZ ML320 1997 Complete Repair Manual ENGINE 113.962 in MODEL 463.206 /240 /241 /247 /248 /249 ENGINE 113 // (except 113.990 /991 /995) in MODEL 129, 163, 202, 203, 208, 209, 210, 211, 215, 220, 230 ENGINE 113.982 in MODEL 463.243/2

Page 2287 of 4133

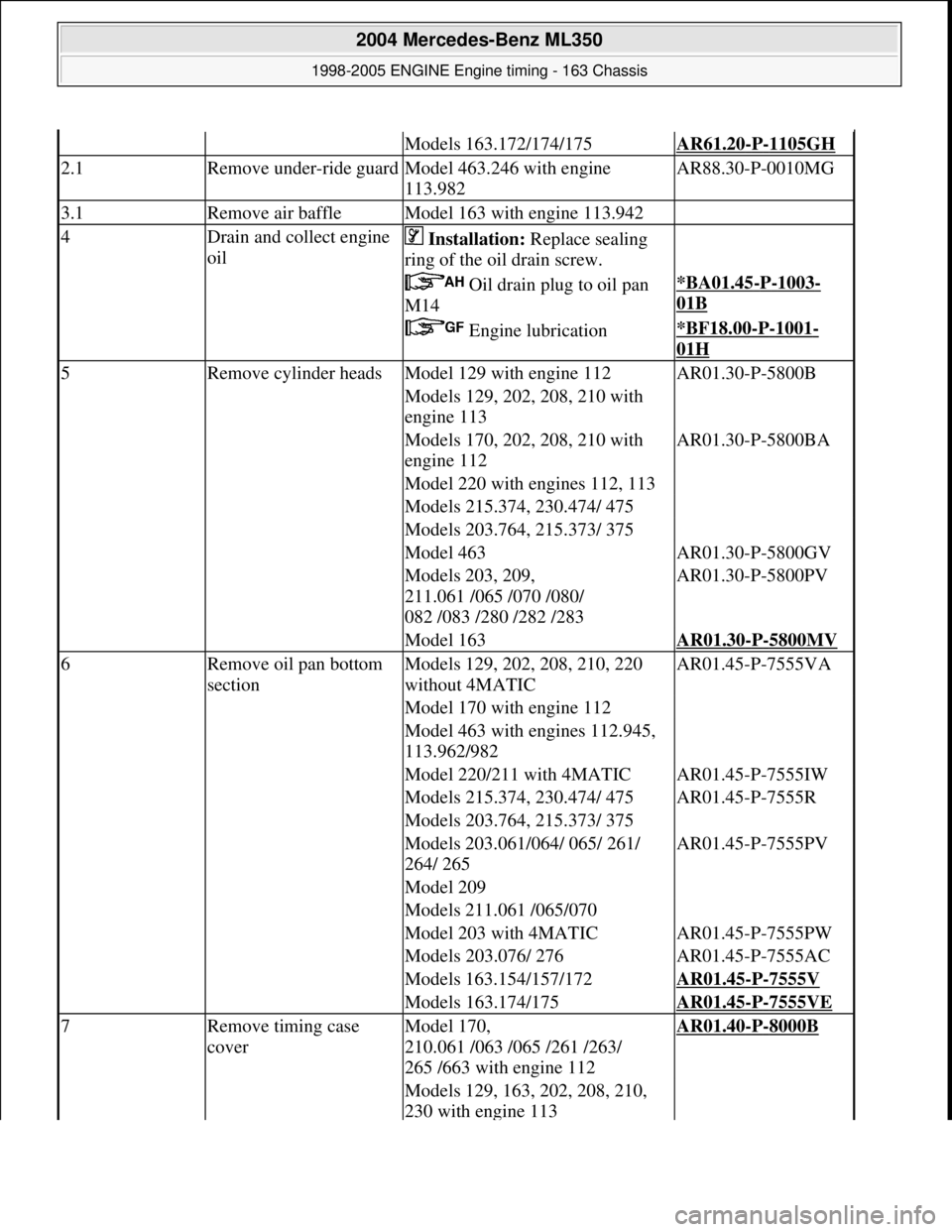

MERCEDES-BENZ ML320 1997 Complete Repair Manual Models 163.172/174/175AR61.20-P-1105GH 2.1Remove under-ride guardModel 463.246 with engine 113.982AR88.30-P-0010MG 3.1Remove air baffleModel 163 with engine 113.942 4Drain and collect engine oil

Page 2288 of 4133

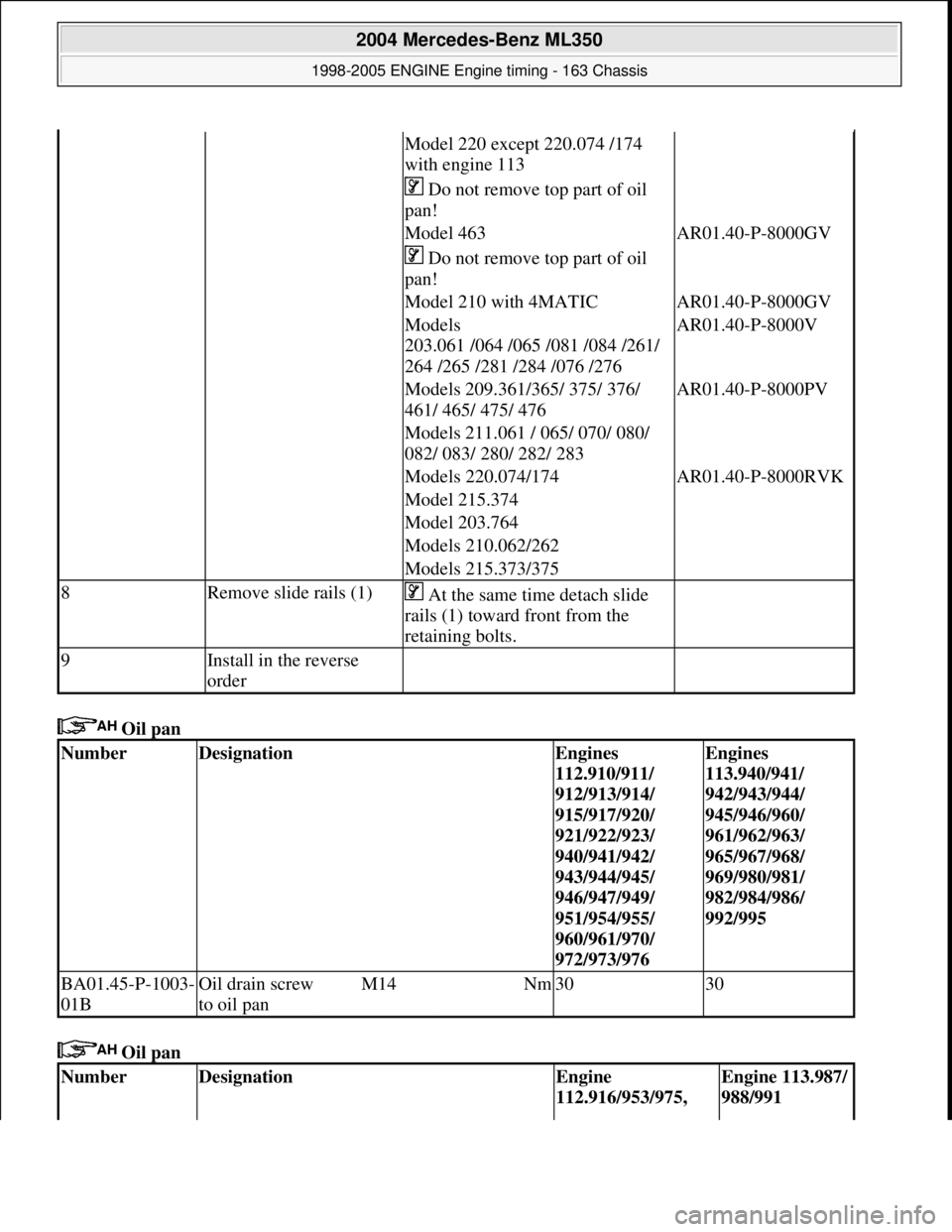

MERCEDES-BENZ ML320 1997 Complete Repair Manual Oil pan Oil pan Model 220 except 220.074 /174 with engine 113 Do not remove top part of oil pan! Model 463AR01.40-P-8000GV Do not remove top part of oil pan! Model 210 with 4MATICAR0
