Page 2993 of 4133

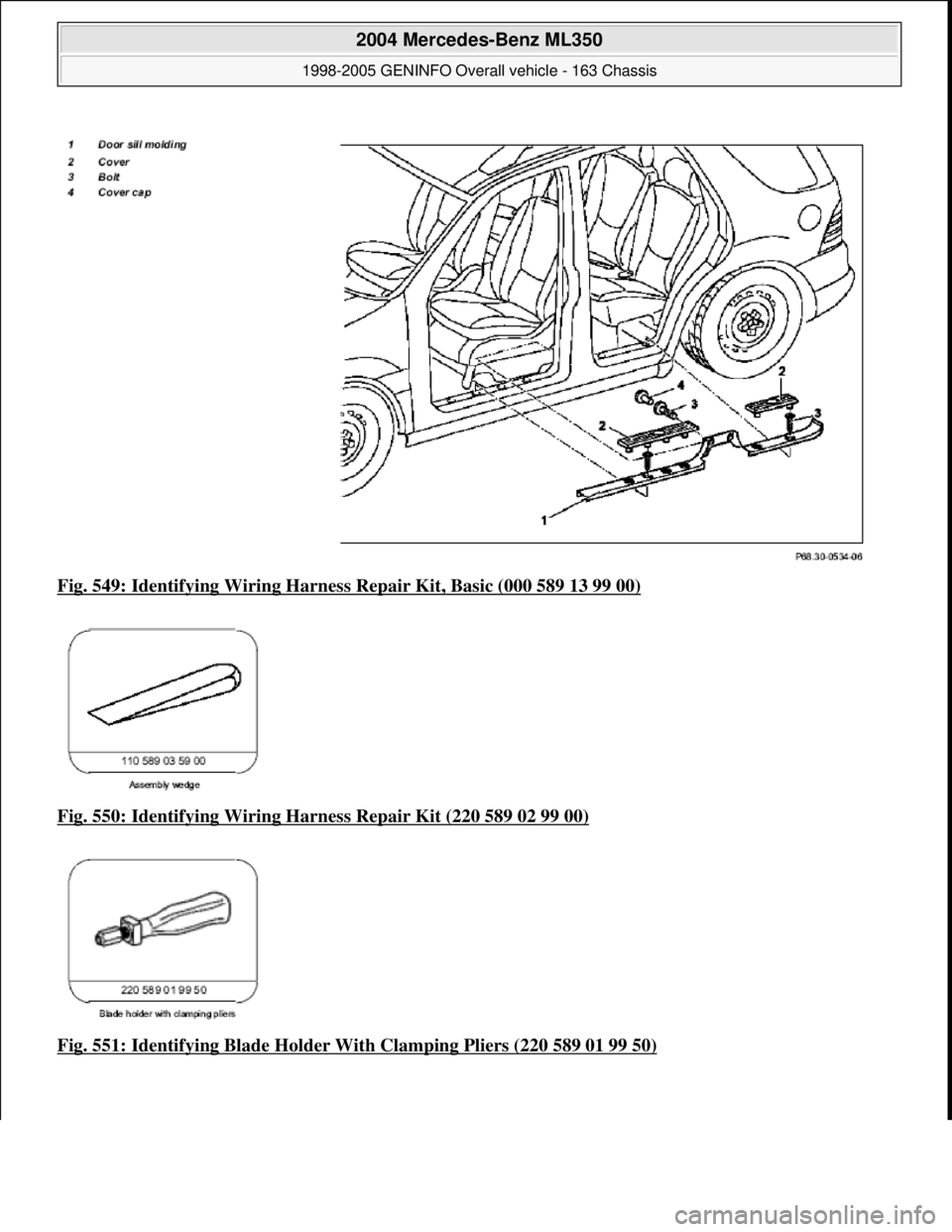

Fig. 549: Identifying Wiring Harness  Repair Kit, Basic (000 589 13 99 00)
Fig. 550: Identifying Wiring Ha  rness Repair Kit (220 589 02 99 00)

Fig. 551: Identifying Blad  e Holder With Clamping Pliers (220 589 01 99 50)

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:50 PMPage 348 © 2006 Mitchell Repair Information Company, LLC.


        Page 2994 of 4133

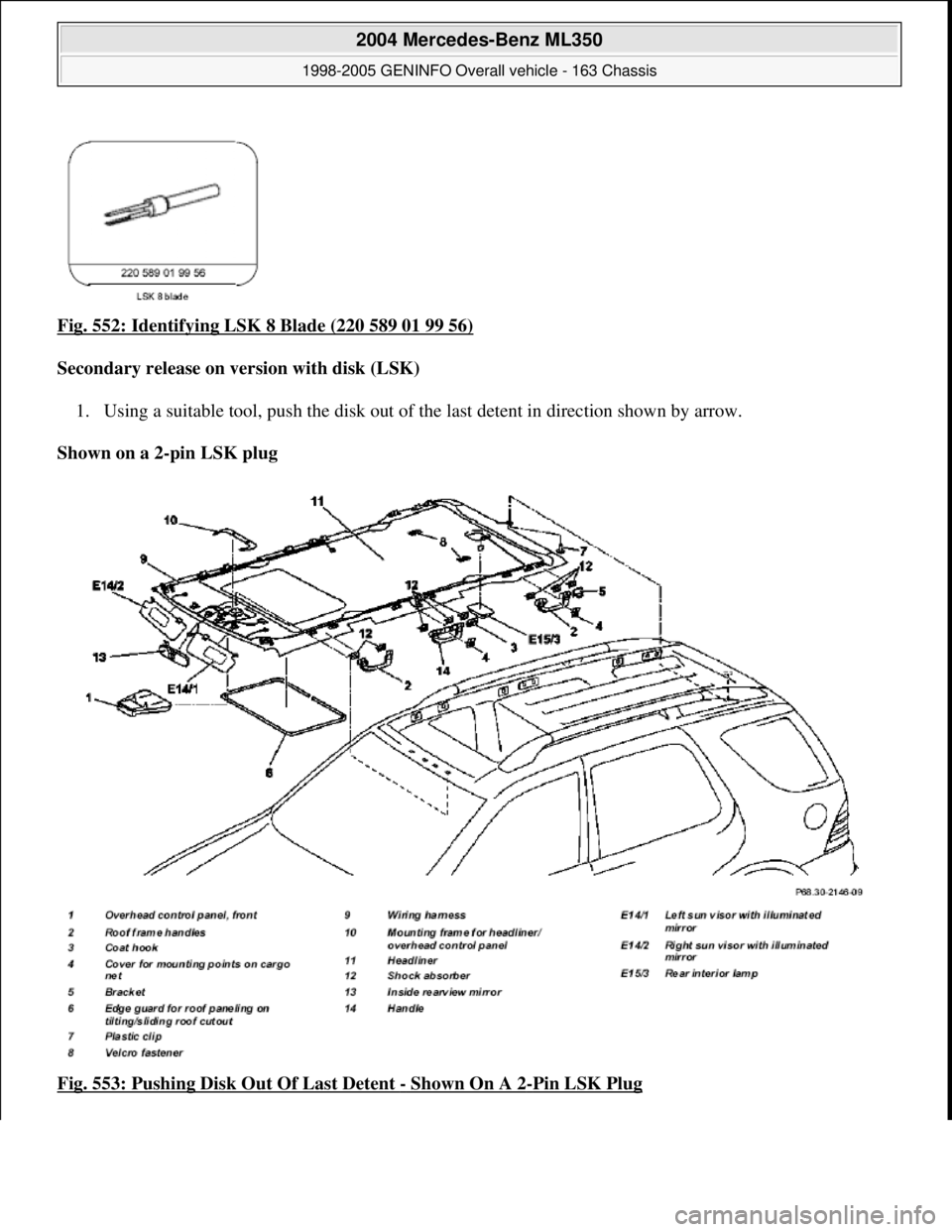

Fig. 552: Identifying LSK 8 Blade (220 589 01 99 56)
Secondary release on version with disk (LSK)
1. Using a suitable tool, push the disk out of th  e last detent in direction shown by arrow.
Shown on a 2-pin LSK plug
Fig. 553: Pushing Disk Out Of Last Detent
- Shown On A 2-Pin LSK Plug

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:50 PMPage 349 © 2006 Mitchell Repair Information Company, LLC.


        Page 2995 of 4133
Unpin female contacts from plug (LSK)
1. Insert blade holder with clamping pliers   and LSK 8 blade   from front end through the openings in
plug contact cavity (1).
 This step compresses the spring tabs (2) on the contact pin.
2. Now the pull line extending from contact-pin slightly to remove it from the back of the plug.
Fig. 554: Female Contact From Plug (LSK)

REMOVE CONTACTS FROM MAXI POWER TIMER COUPLING - AR00.19-P-0120-14A
Fig. 555: Identifying Wiring Harness Repair Kit, Supplement For Passenger Cars (220 589 04 99 00)

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:50 PMPage 350 © 2006 Mitchell Repair Information Company, LLC.


        Page 2996 of 4133

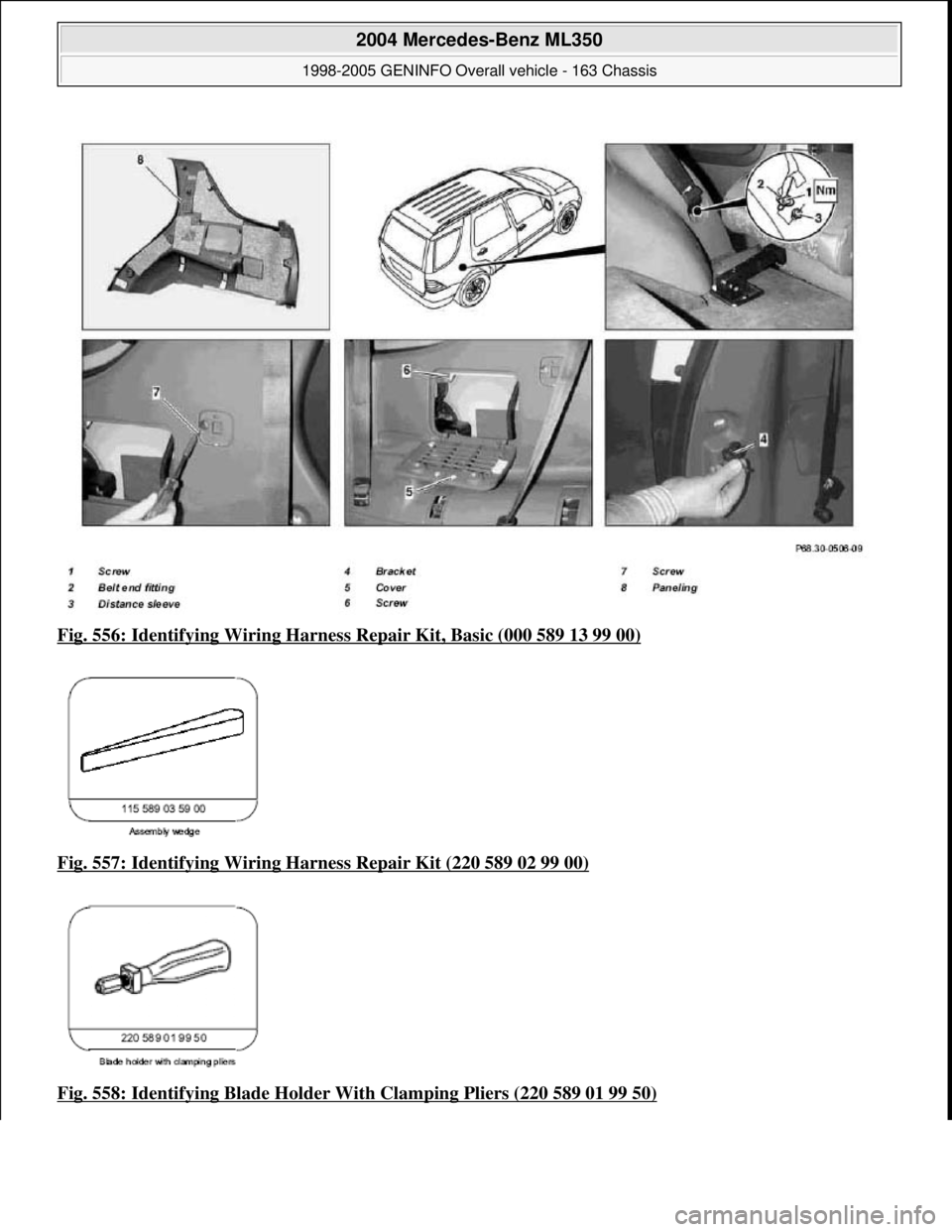

Fig. 556: Identifying Wiring Harness  Repair Kit, Basic (000 589 13 99 00)
Fig. 557: Identifying Wiring Ha  rness Repair Kit (220 589 02 99 00)

Fig. 558: Identifying Blad  e Holder With Clamping Pliers (220 589 01 99 50)

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:50 PMPage 351 © 2006 Mitchell Repair Information Company, LLC.


        Page 2997 of 4133

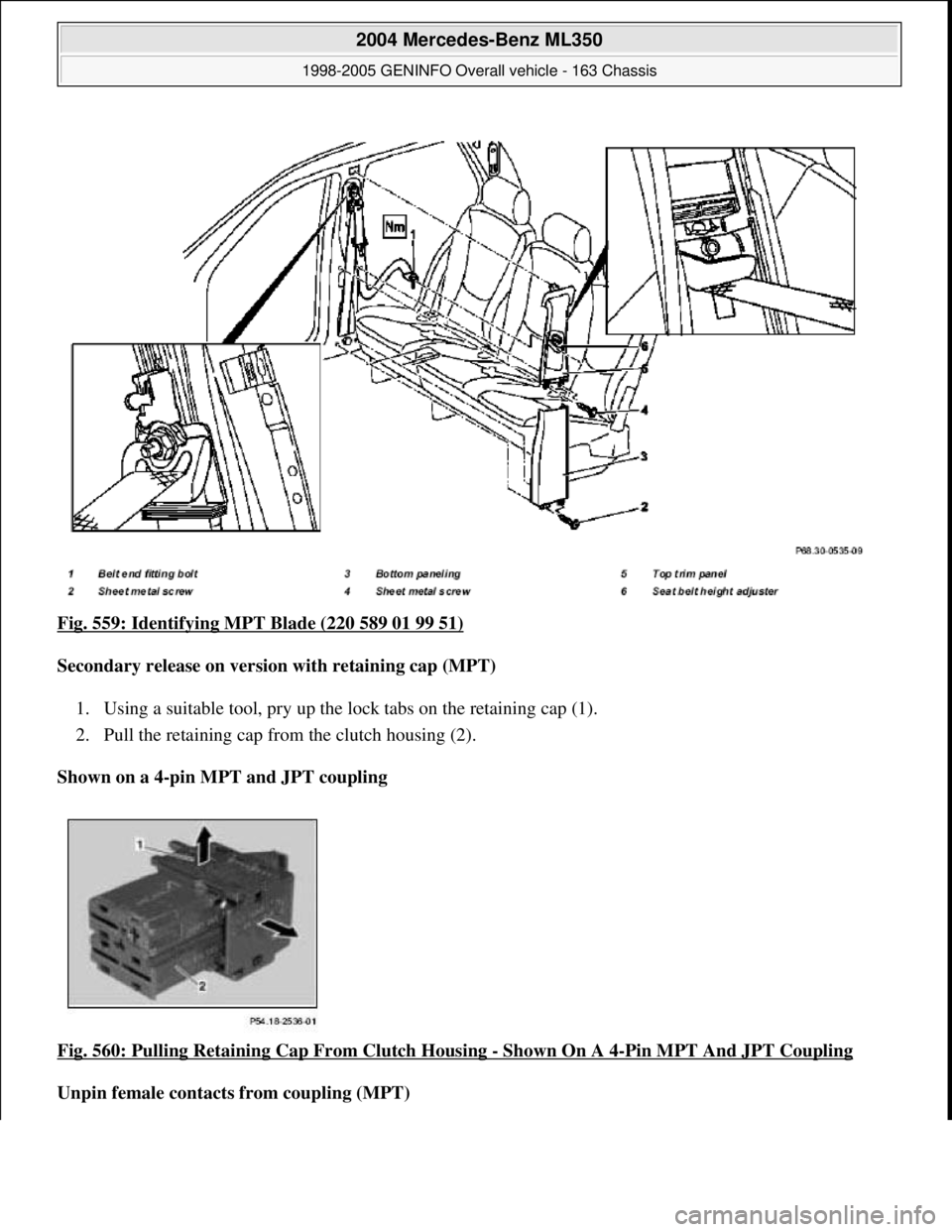

Fig. 559: Identifying MPT Blade (220 589 01 99 51)
Secondary release on version with retaining cap (MPT)
1. Using a suitable tool, pry up the lo  ck tabs on the retaining cap (1).
2. Pull the retaining cap from the clutch housing (2).
Shown on a 4-pin MPT and JPT coupling
Fig. 560: Pulling Retaining Cap From Clutch Housing
- Shown On A 4-Pin MPT And JPT Coupling
Unpin female contacts   from coupling (MPT)

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:50 PMPage 352 © 2006 Mitchell Repair Information Company, LLC.


        Page 2998 of 4133

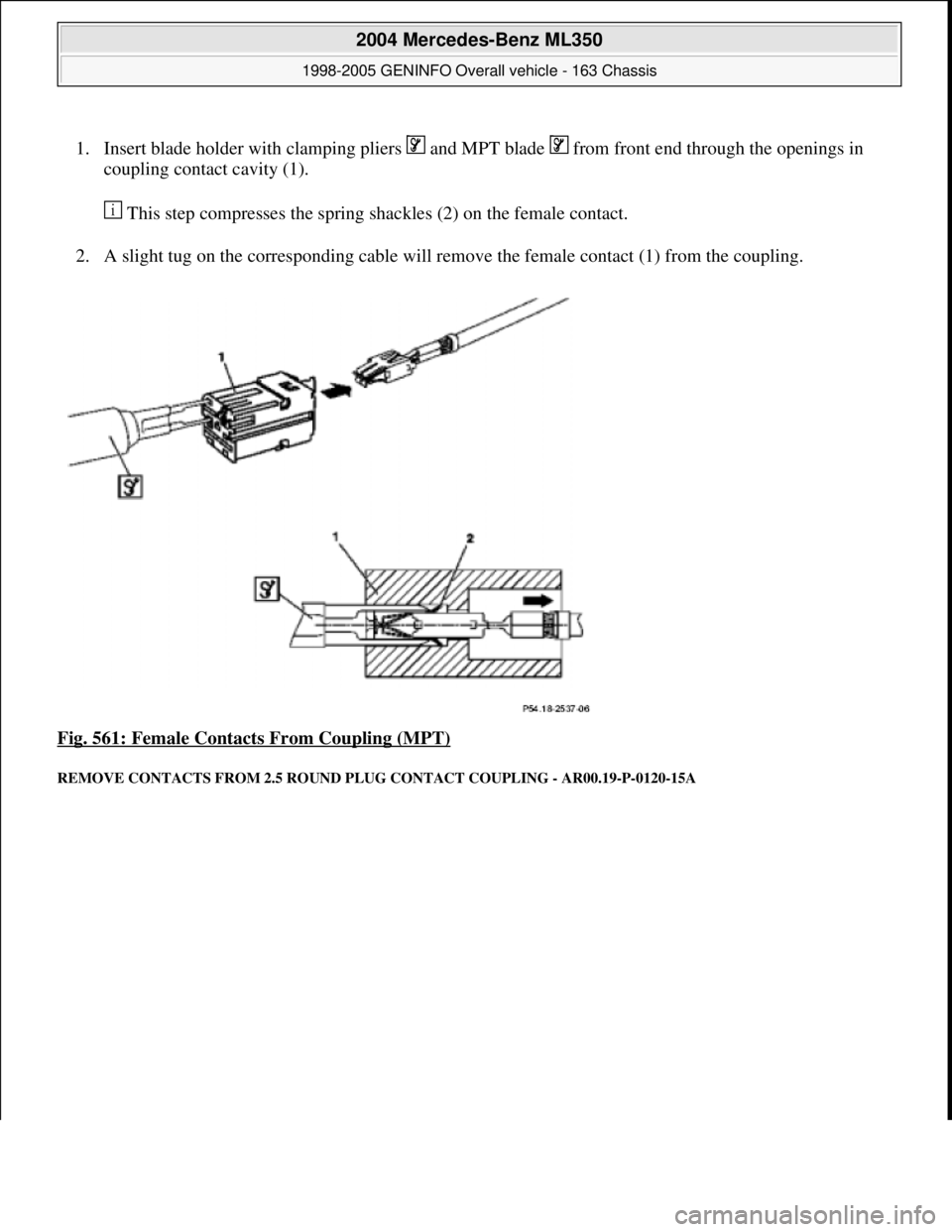

1. Insert blade holder with clamping pliers   and MPT blade   from front end through the openings in
coupling contact cavity (1).
 This step compresses the spring shackles (2) on the female contact.
2. A slight tug on the corresponding cable will remove the female contact (1) from the coupling.
Fig. 561: Female Contacts From Coupling (MPT)

REMOVE CONTACTS FROM 2.5 ROUND PLUG CONTACT COUPLING - AR00.19-P-0120-15A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:50 PMPage 353 © 2006 Mitchell Repair Information Company, LLC.


        Page 2999 of 4133

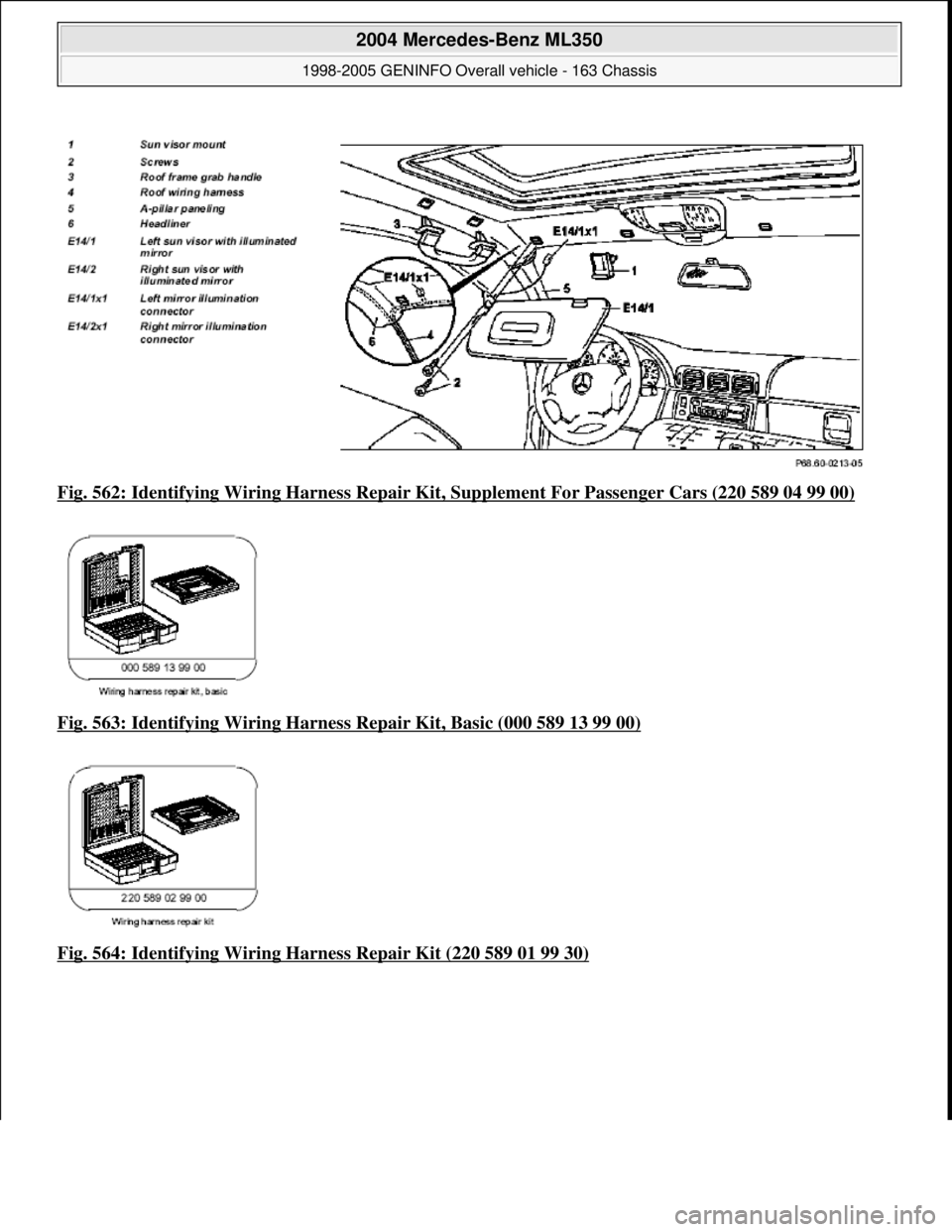

Fig. 562: Identifying Wiring Ha rness Repair Kit, Supplement Fo r Passenger Cars (220 589 04 99 00)
Fig. 563: Identifying Wiring Harness   Repair Kit, Basic (000 589 13 99 00)

Fig. 564: Identifying Wiring Ha  rness Repair Kit (220 589 01 99 30)

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:50 PMPage 354 © 2006 Mitchell Repair Information Company, LLC.


        Page 3000 of 4133

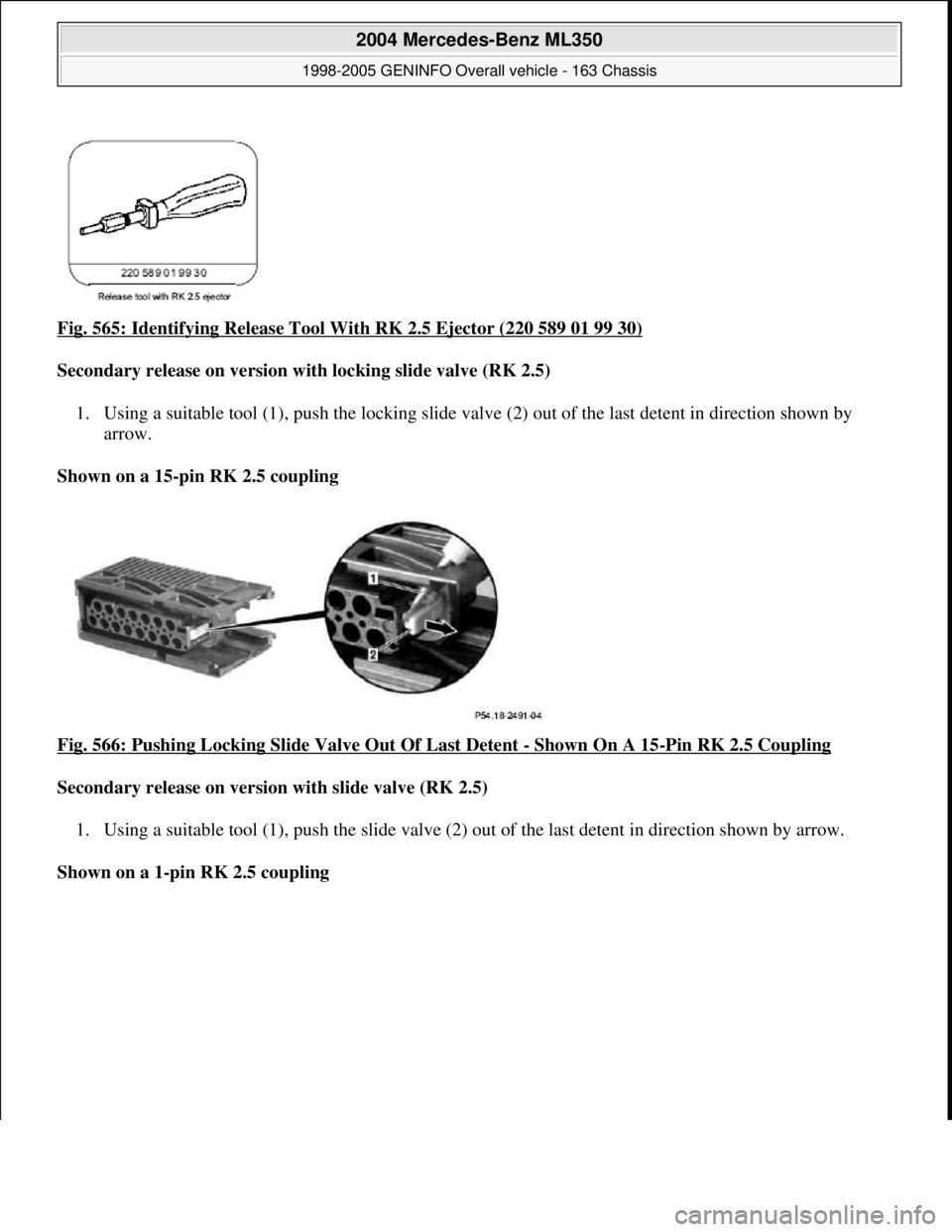

Fig. 565: Identifying Release Tool  With RK 2.5 Ejector (220 589 01 99 30)
Secondary release on version with locking slide valve (RK 2.5)
1. Using a suitable tool (1), push the locking slide va  lve (2) out of the last detent in direction shown by
arrow.
Shown on a 15-pin RK 2.5 coupling
Fig. 566: Pushing Lock  ing Slide Valve Out Of Last Detent
- Shown On A 15-Pin RK 2.5 Coupling
Secondary release on versio  n with slide valve (RK 2.5)
1. Using a suitable tool (1), push the slide valve (2) out   of the last detent in direction shown by arrow.
Shown on a 1-pin RK 2.5 coupling

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:50 PMPage 355 © 2006 Mitchell Repair Information Company, LLC.
