Page 3513 of 4133

 AR91.60-P-0680GH
Remove/install passenger airbag unit
27.2.01
MODEL
163.113 /128 /136 /154 /157 /172 /174 /175
P91.60-2371-12
up to 31.08.01
1
 Instrument panel
2
 Self-locking nuts
4
 Connector
P91.60-2337-12
as of 01.09.01
2
 Self-locking nuts
3
 Lock
4
 Connector
5
 Connector

Remove/Install

Danger!
Risk of injury.
  Injuries may result when
performing testing or repair work on airbag or
emergency tensioning retractor units.
Store airbag unit with deployment face up, do
not subject to temperatures above
100 °C. When working on these units,
disconnect the power supply.
AS91.00-Z-0001-01A

Instructions for performing repair, body work
and welding on vehicles with airbags and
ETR units
Models 129 as of 1.7.93, 163, 168, 170, 202
as of 1.7.93, 208, 210, 414, 638, 690.6, 901,
902, 903, 904, 905
Model 461 with engine 602.983
Model 463 up to 30.11.00
ModelS WD141, WD241, WD341, WD641,
WD741, XD141, XD241, XD341, XD441,
XD541, XD641, XD741, YD141, YD241,
YD341, YD441, YD541, YD641, YD741
AH91.00-P-0002-01B
Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
 d by Modification services.
Page 1


        Page 3514 of 4133


Legal regulations on handling and storing
airbags and emergency tensioning retractors
Models 124, 129, 140, 163, 168, 170, 202,
203, 208, 209, 210, 211.004/ 006/ 016/ 061/
065/ 070, 215, 220, 230, 314, 316, 318, 414,
461, 463, 638, 668, 670, 690.6, 901, 902,
903, 904, 905, 950, 952, 953, 954, 970, 972,
974, 975, 976
Model WD141, WD241, WD341,  WD641,
WD741, XD141, XD241, XD341, XD441,
XD541, XD641, XD741, YD141, YD241,
YD341, YD441, YD541, YD641, YD741
AH91.00-P-0004-01A

o
Notes on disposing of airbag and emergency
tensioning retractor units
All models
OS91.00-P-0001-01A
1
Disconnect ground cable of battery

To prevent unintended contact, insulate
the ground lead cable lug.
AR54.10-P-0003A
2
Remove instrument panel
AR68.10-P-1000GH
3.1
Open lock (3) on both plugs (4, 5)
 As of 01.09.01.
4
Detach plugs (4, 5) from squib

 Up to 31.8.01, only one plug (4) is present.

Installation:
  Plug/s must audibly latch.
As of 01.09.01: Close lock (3) on plugs after
latching.
5
Slacken self-locking nuts (2) from the front
passenger airbag

*BA91.60-P-1003-01A
6
Remove front passenger airbag
7.1
Render airbag units unusable

 Only if airbag unit is replaced.
AR91.60-P-0611A
8
Install in the reverse order
9
Carry out diagnosis

a
Airbag (AB) electrical system test

 up to 30.11.99.
AD91.60-P-6000GH


As of 1.12.99: Perform diagnosis with
STAR DIAGNOSIS.
 Airbag
Number
Designation
Model
163
BA91.60-P-1003-01A
Nut of front passenger airbag unit to
instrument panel mounting
Nm
8
Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
 d by Modification services.
Page 2


        Page 3515 of 4133

 AR68.10-P-1000GH
Removing and installing instrument panel
13.3.97
MODEL
163.113 /128 /136 /154 /157 /172 /174 /175
P68.10-0611-09
1
Upper air outlet cover
2
 Instrument panel
3
 Bolts
4
 Bolts
5
 Left and right side air nozzles
 10
Bottom section of instrument panel
11
 Plug connector to instrument cluster
A1
 Instrument cluster
6
Instrument cluster cover frame
7
 Center air nozzle
8
 Plastic screws
9
 Bolts

Remove/install
1
Remove instrument panel bottom section (10)
AR68.10-P-1040GH
2
Remove A-pillar trim on left and right
AR68.30-P-4050GH
3
Remove upper section of air outlet panel (1)

 Long wedge
*115589035900
4
Unscrew screws (3) from upper side of
instrument panel
5
Remove instrument cluster (A1remove
AR54.30-P-6015GH
6.1
Disconnect sun sensor connector
 Only as of 01.09.01: Connector is located
behind instrument cluster
7.1
Remove Parktronic display
 Only with Parktronic system (PTS), Code
220a.
AR54.65-P-0003GH
8.1
Disconnect connector from actuator motor for
air distribution flap
 Only as of 01.09.01: Connector is located
at center air outlet nozzle on driver's side.
9.1
Disconnect connector from temperature sensor
 Only as of 01.09.01: Connector is located
on right side of center air outlet nozzle.
10
Remove screws (9) from center of instrument
panel
11
Remove screws (4) from sides of instrument
panel
12
Remove instrument panel (2)
 Danger of damaging instrument panel
when removing and installing
13
Install in the reverse order
Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
 d by Modification services.
Page 1


        Page 3516 of 4133
 Long wedge
115 589 03 59 00
Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2


        Page 3517 of 4133
 AF63.20-P-1120AG
Ticking noise from junction of instrument panel and A-pillar
23.1.02
MODEL
163.136 /154 /172 #A as of 145273,
163.136 /154 /172 #X as of 708319,
163.113 /128 /174 /175
Damage Code
Cause
Remedy
 In case of complaints:
#
Hood hinge lower support plate contacting
upper sheet metal.
1
 Locate noise.
2
Eliminate noise:
#
Strengthen left hood hinge support
SM63.20-P-0002GH
Strengthen right hood hinge support
SM63.20-P-0003GI
Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
 d by Modification services.
Page 1


        Page 3518 of 4133

 AR07.52-P-1465A
Remove/install intake air temperature sensor
16.2.99
ENGINE
604, 611.960 /961 /962, 612.961 /962 /963 /967, 613.961 /960, 628.960
P15.18-2021-11
Shown on Engine 613.961
1
 Tie strap
2
 Connector
3
 Locking arm
4
 Sealing ring
B17
 Intake air temperature sensor

Remove/Install
1
Cut through cable strap (1) at locking arm (3)

Installation:
  Replace tie strap.
2
Unplug plug (2) at intake air temperature
sensor (B17)
 The connector secures simultaneously the
snap-in brackets of the intake air temperature
sensor (B17).
3
Unlatch intake air temperature sensor (B17)
at the mount
 Press together snap-in brackets (arrows)
and detach intake air temperature sensor
(B17).

Do not unlatch or latch intake air
temperature sensor (B17) with put on plug,
otherwise the snap-in brackets will be over-
tensioned and therefore damaged.
Replace intake air temperature sensor (B17)
with defective snap-in brackets.
4
Replace seal ring (4)
5
Install in the reverse order
6
Read diagnostic trouble code memory and
erase
Stored faults possibly caused by previous
simulation or by cables disconnected in the
process of installation or testing must be
processed and erased in the DTC memories
once all work is completed.

a
Connect Hand-Held Tester (HHT) and read
out DTC memory
Engine 611 up to 6.99
See
#
AD00.00-P-2000-03A
Diagnosis Manual Diesel Engine Volume 1.2
Engine 611 as of 7.99, 611.962, 612, 613, 628
See
#
STAR DIAGNOSIS
Copyright DaimlerChrysler AG  12.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
 d by Modification services.
Page 1


        Page 3519 of 4133

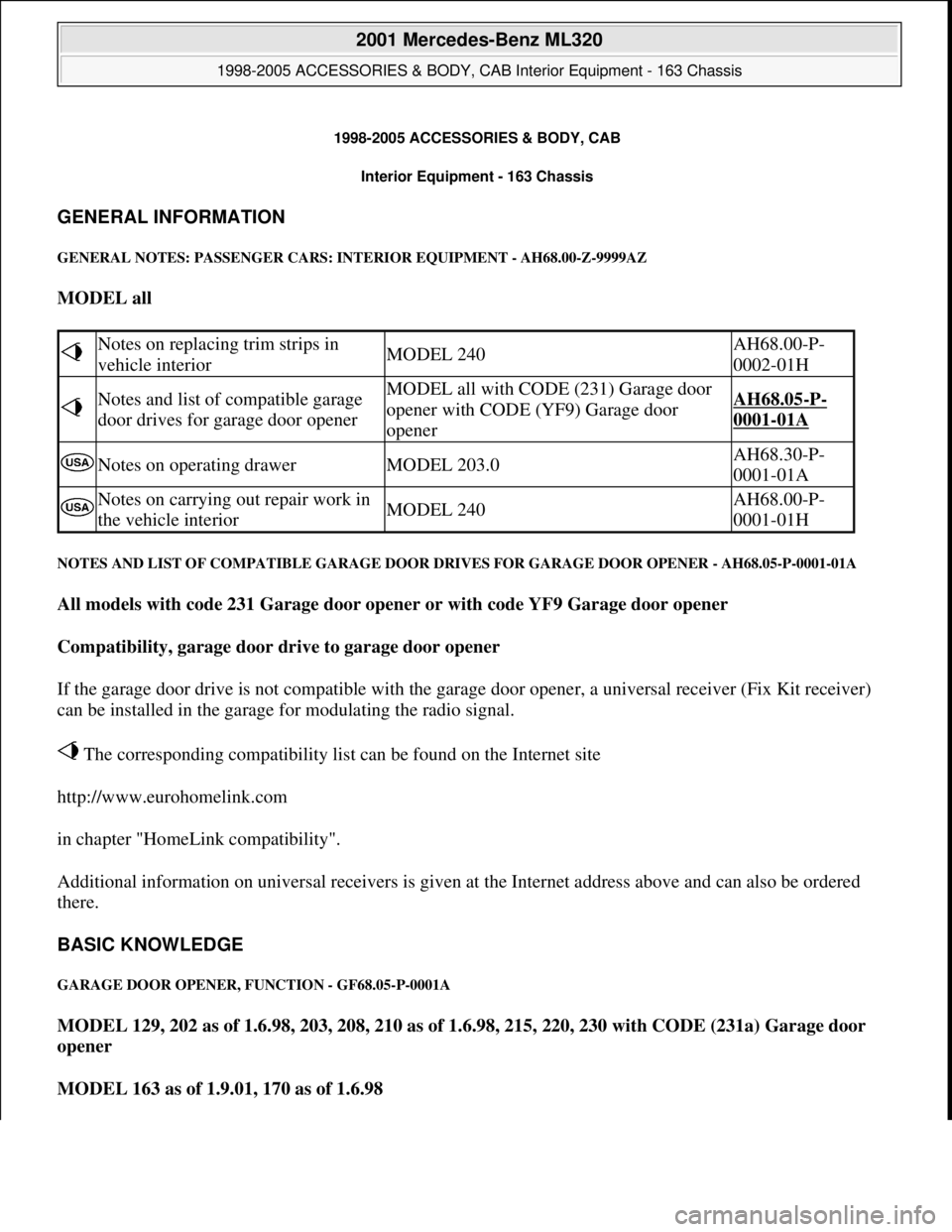

1998-2005 ACCESSORIES & BODY, CAB
Interior Equipment - 163 Chassis
GENERAL INFORMATION
GENERAL NOTES: PASSENGER CARS: INTERIOR EQUIPMENT - AH68.00-Z-9999AZ
MODEL all
NOTES AND LIST OF COMPATIBLE GARAGE DOOR DRIVES FOR GARAGE DOOR OPENER - AH68.05-P-0001-01A
All models with code 231 Garage door opener or with code YF9 Garage door opener
Compatibility, garage door drive to garage door opener
If the garage door drive is not compatible with the garage door opener, a universal receiver (Fix Kit receiver)
can be installed in the garage for modulating the radio signal.
 The corresponding compatibility list can be found on the Internet site
http://www.eurohomelink.com
in chapter "HomeLink compatibility".
Additional information on universal receivers is given at the Internet address above and can also be ordered
there.
BASIC KNOWLEDGE
GARAGE DOOR OPENER, FUNCTION - GF68.05-P-0001A
MODEL 129, 202 as of 1.6.98, 203, 208, 210 as of 1.6.98, 215, 220, 230 with CODE (231a) Garage door
opener
MODEL 163 as of 1.9.01, 170 as of 1.6.98
 Notes on replacing trim strips in
vehicle interiorMODEL 240AH68.00-P-
0002-01H
 Notes and list of compatible garage
door drives for garage door openerMODEL all with CODE (231) Garage door
opener with CODE (YF9) Garage door
openerAH68.05-P-
0001-01A
 Notes on operating drawerMODEL 203.0AH68.30-P-
0001-01A
 Notes on carrying out repair work in
the vehicle interiorMODEL 240AH68.00-P-
0001-01H

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.
me
Saturday, October 02, 2010 3:35:25 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.


        Page 3520 of 4133

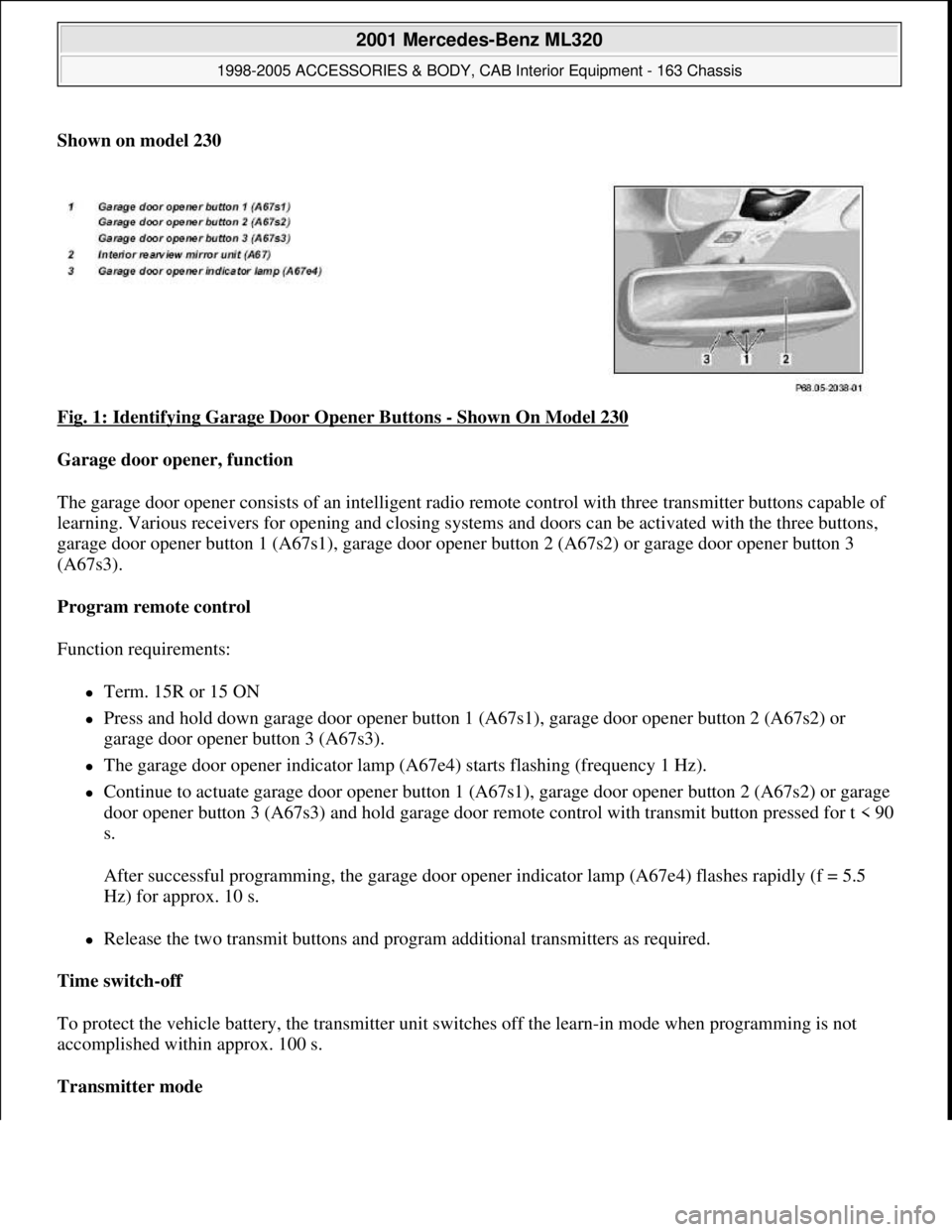

Shown on model 230
Fig. 1: Identifying Garage Door Opener Buttons
- Shown On Model 230
Garage door opener, function
The garage door opener consists of an intelligent radio remote control with three transmitter buttons capable of
learning. Various receivers for opening and closing systems and doors can be activated with the three buttons,
garage door opener button 1 (A67s1), garage door opener button 2 (A67s2) or garage door opener button 3
(A67s3).
Program remote control
Function requirements:
Term. 15R or 15 ON
Press and hold down garage door opener button 1 (A67s1), garage door opener button 2 (A67s2) or
garage door opener button 3 (A67s3).
The garage door opener indicator lamp (A67e4) starts flashing (frequency 1 Hz).
Continue to actuate garage door opener button 1 (A67s1), garage door opener button 2 (A67s2) or garage
door opener button 3 (A67s3) and hold garage door remote control with transmit button pressed for t < 90
s.
After successful programming, the garage door opener indicator lamp (A67e4) flashes rapidly (f = 5.5
Hz) for approx. 10 s.
Release the two transmit buttons and program additional transmitters as required.
Time switch-off
To protect the vehicle battery, the transmitter unit switches off the learn-in mode when programming is not
accomplished within approx. 100 s.
Transmitter mode

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 2 © 2006 Mitchell Repair Information Company, LLC.
