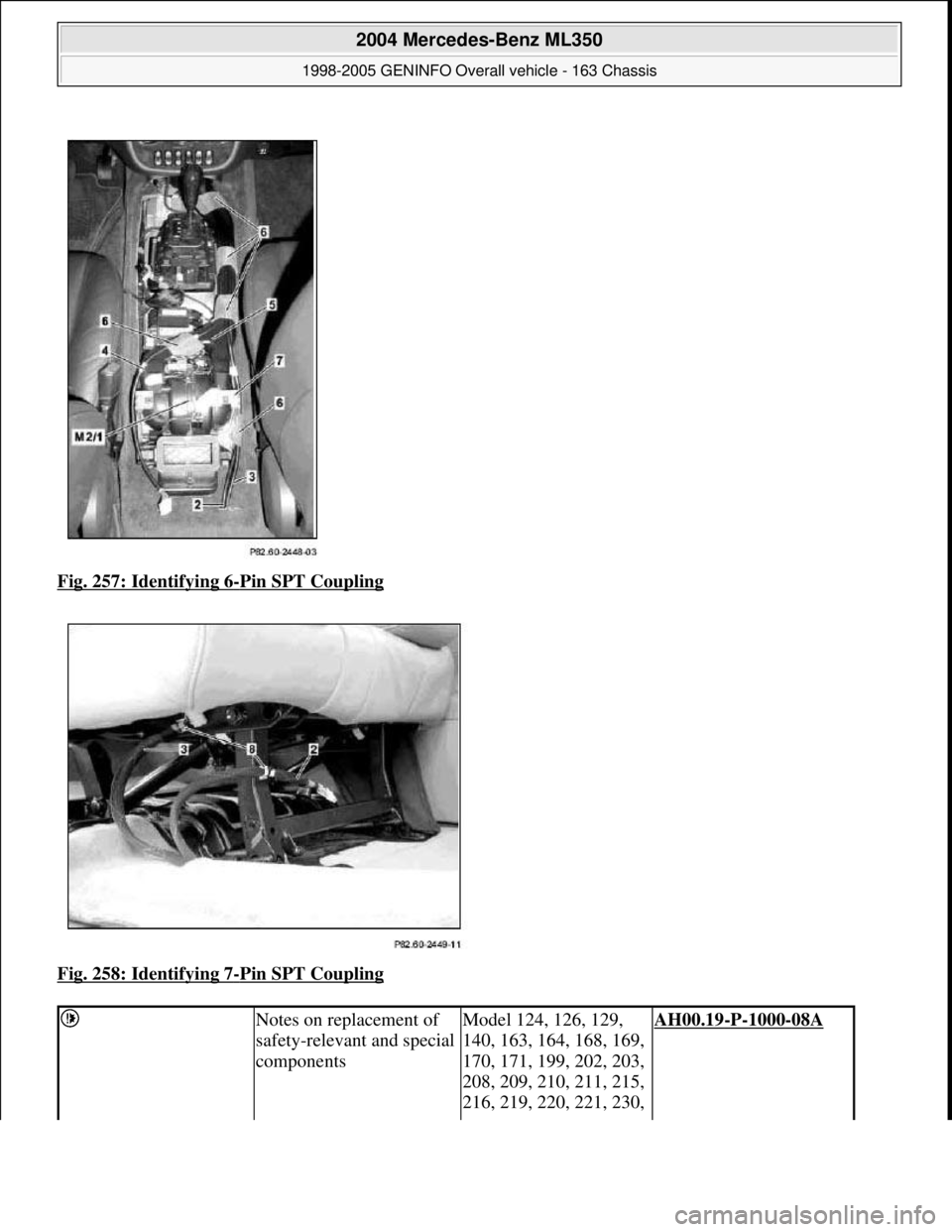

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 257: Identifying 6-Pin SPT Coupling Fig. 258: Identifying 7 -Pin SPT Coupling Notes on replacement of safety-relevant and special componentsModel 124, 126, 129, 140, 163, 164, 168, 169,

Page 2818 of 4133

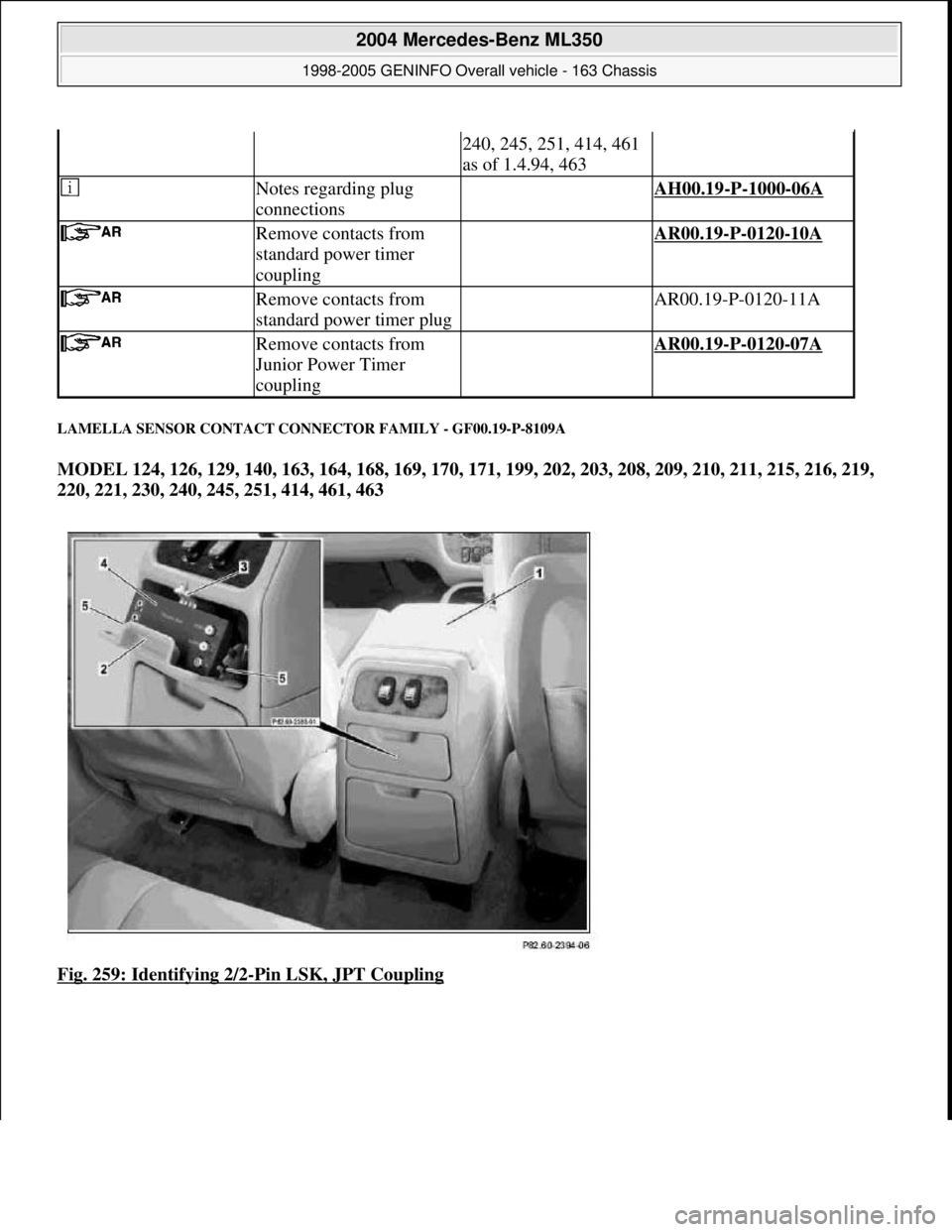

MERCEDES-BENZ ML320 1997 Complete Repair Manual LAMELLA SENSOR CONTACT CONNECTOR FAMILY - GF00.19-P-8109A MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219, 220, 221, 230, 240, 245, 251, 414,

Page 2819 of 4133

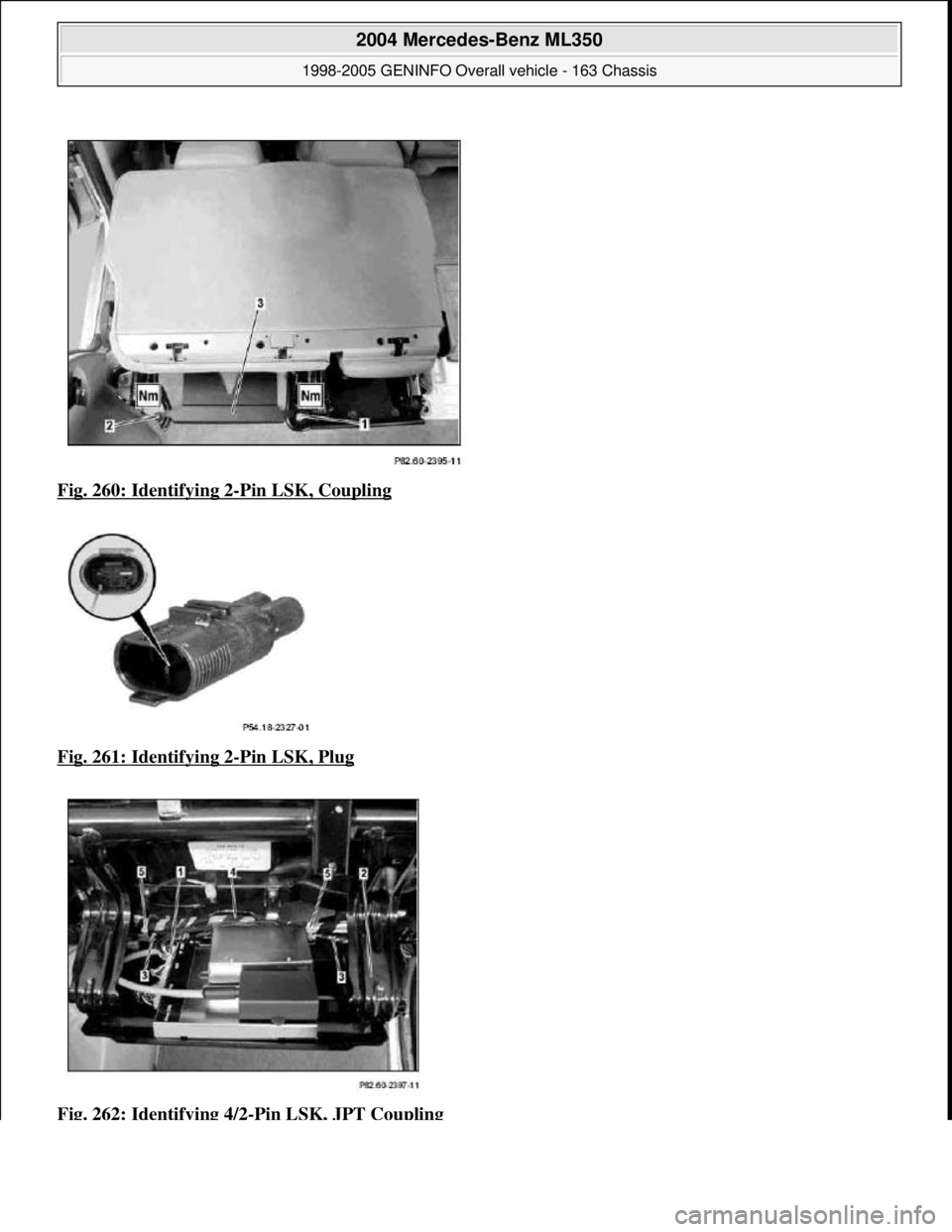

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 260: Identifying 2-Pin LSK, Coupling Fig. 261: Identifying 2 -Pin LSK, Plug Fig. 262: Identifying 4/2 -Pin LSK, JPT Coupling 2004 Mercedes-Benz ML350 1998-2005 GENINFO Overall vehicle - 16

Page 2820 of 4133

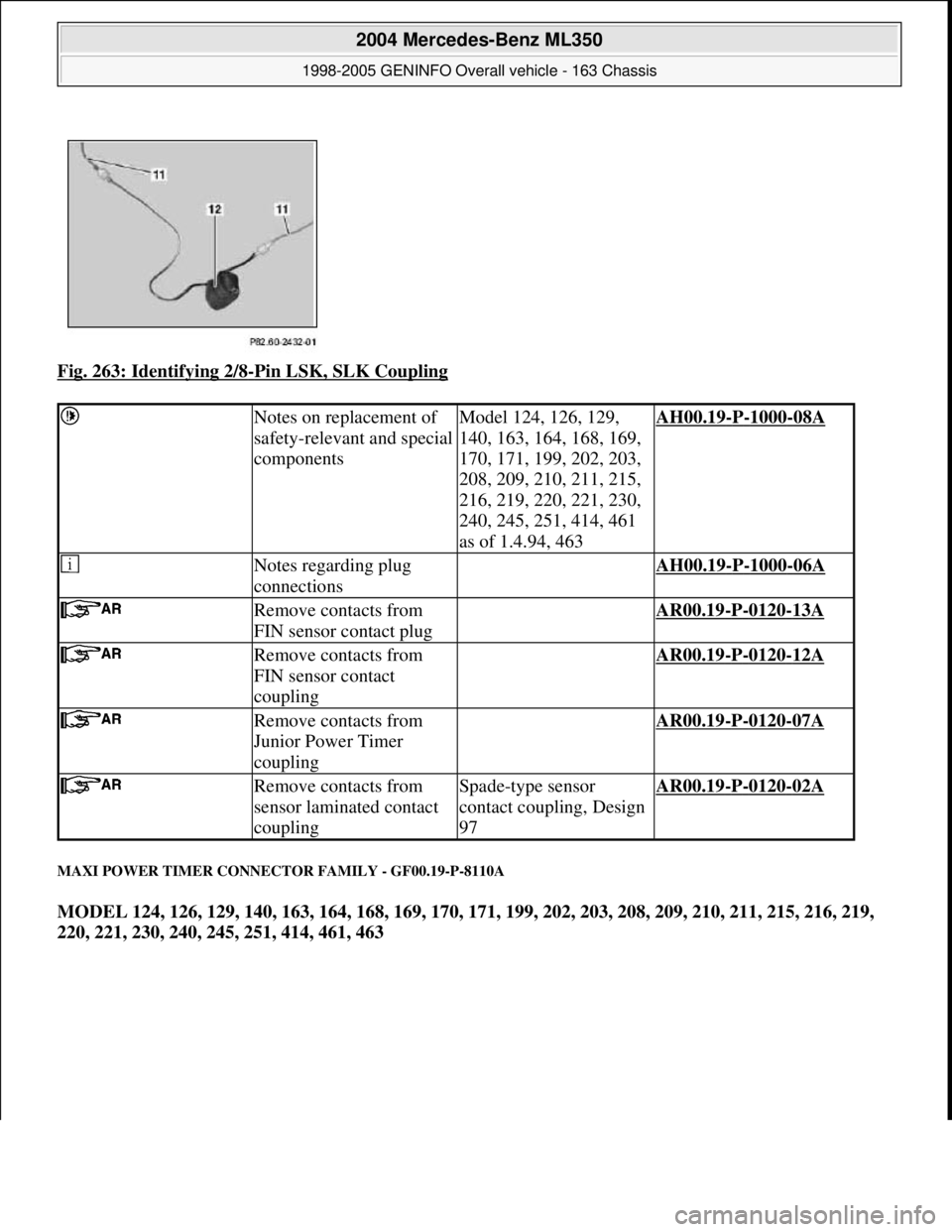

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 263: Identifying 2/8-Pin LSK, SLK Coupling MAXI POWER TIMER CONNECTOR FAMILY - GF00.19-P-8110A MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 21

Page 2821 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 264: Identifying 3/1-Pin MPT, JPT Coupling ROUND PLUG CONTACT 2.5 VARIANT 1 CONNECTOR FAMILY - GF00.19-P-8111A MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 2

Page 2822 of 4133

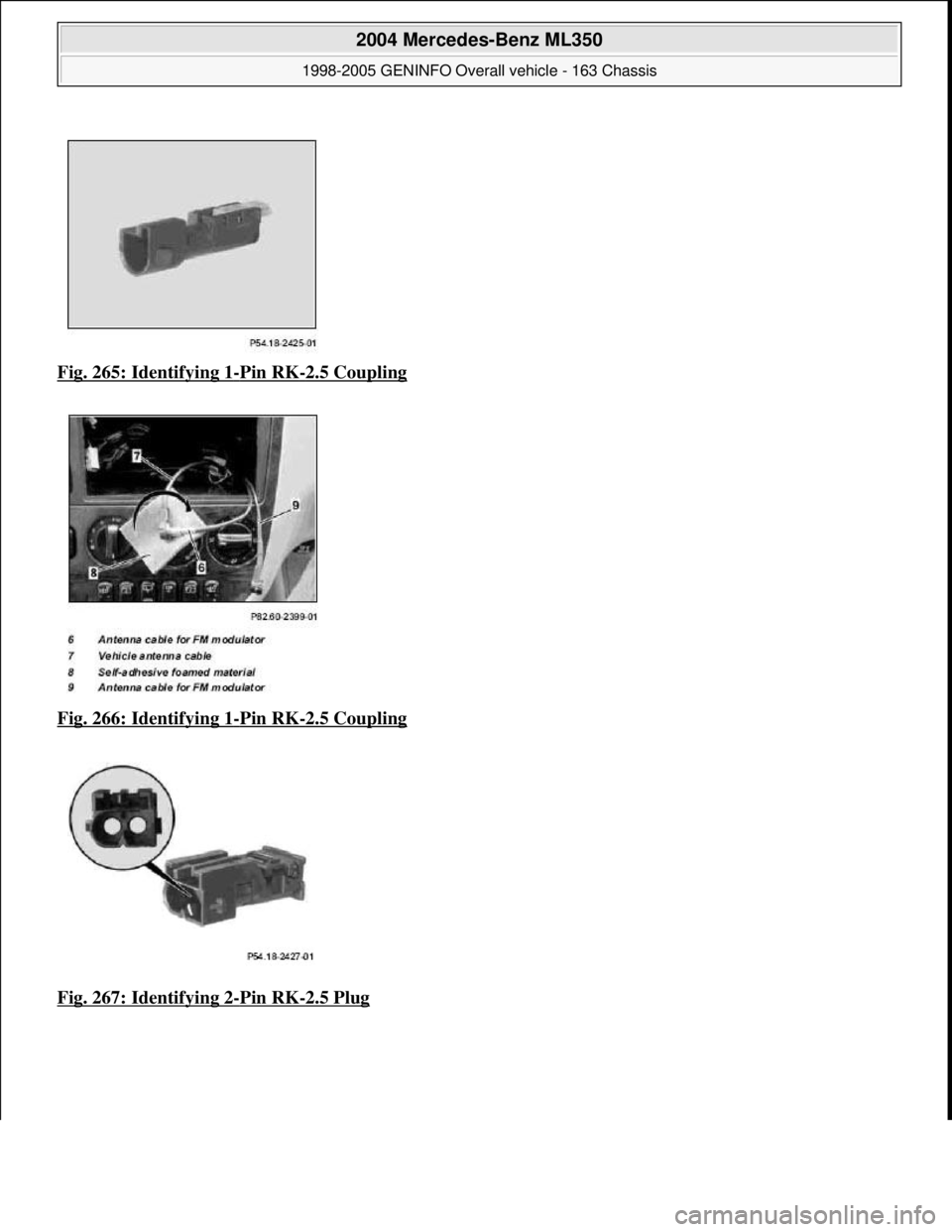

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 265: Identifying 1-Pin RK-2.5 Coupling Fig. 266: Identifying 1 -Pin RK-2.5 Coupling Fig. 267: Identifying 2 -Pin RK-2.5 Plug 2004 Mercedes-Benz ML350 1998-2005 GENINFO Overall vehicle - 1

Page 2823 of 4133

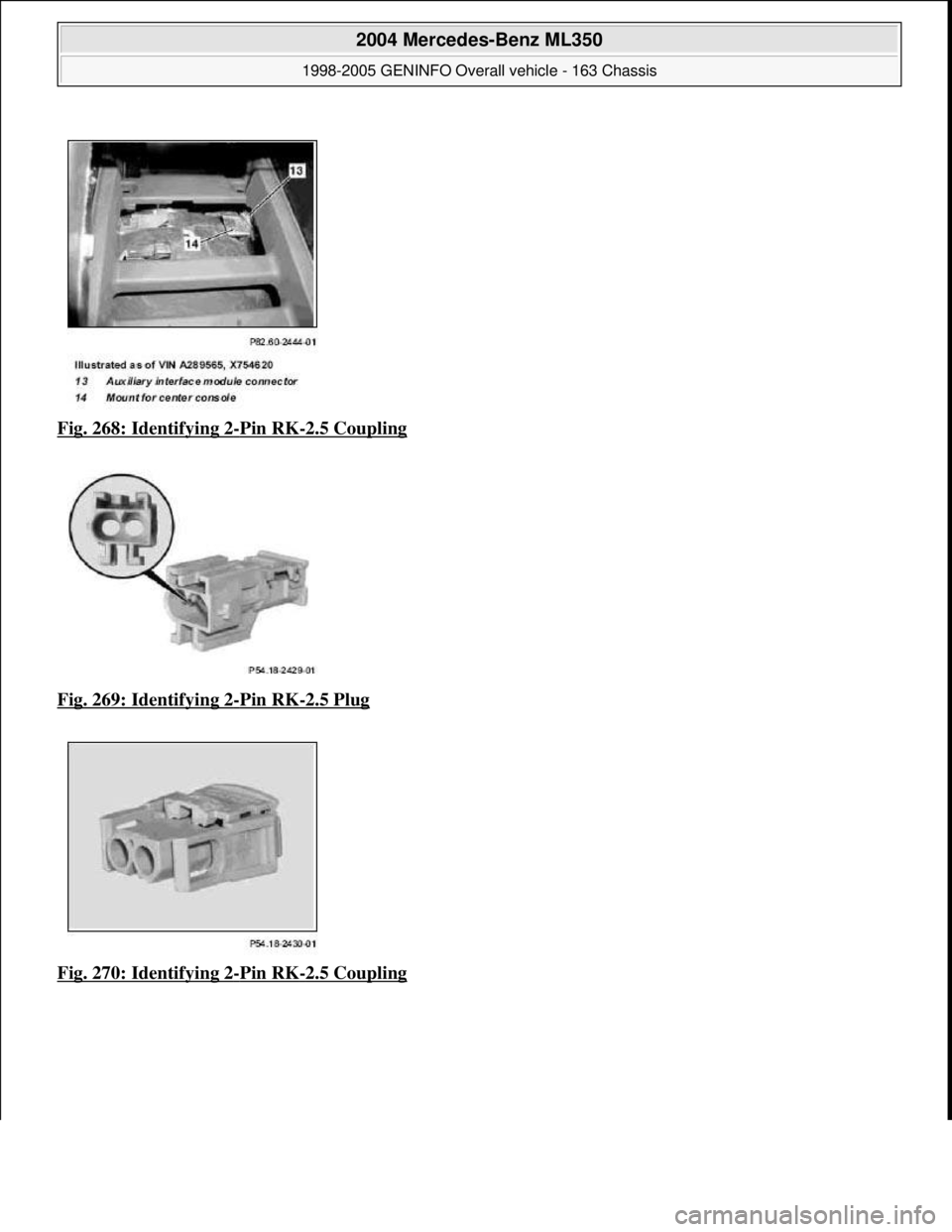

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 268: Identifying 2-Pin RK-2.5 Coupling Fig. 269: Identifying 2 -Pin RK-2.5 Plug Fig. 270: Identifying 2 -Pin RK-2.5 Coupling 2004 Mercedes-Benz ML350 1998-2005 GENINFO Overall vehicle - 16

Page 2824 of 4133

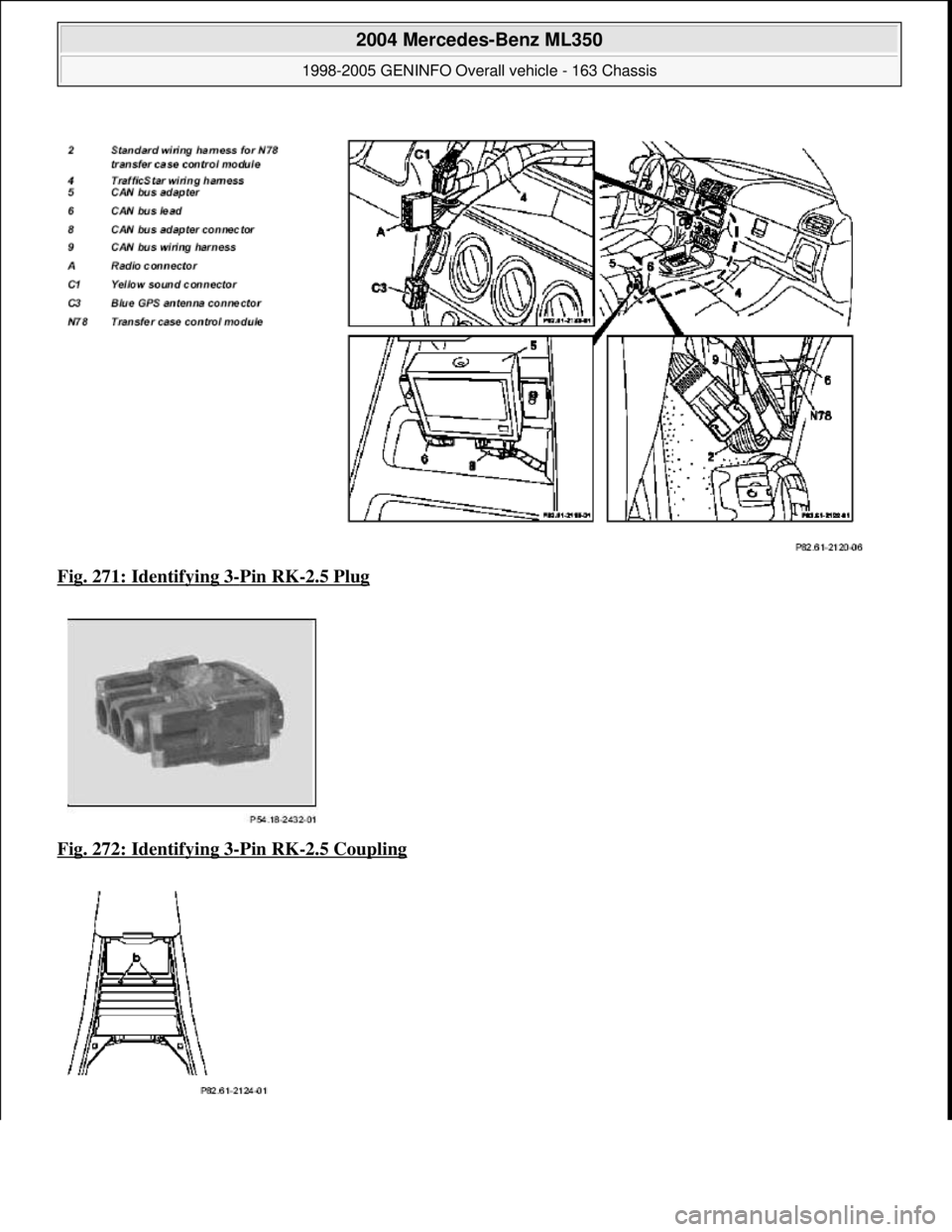

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 271: Identifying 3-Pin RK-2.5 Plug Fig. 272: Identifying 3 -Pin RK-2.5 Coupling 2004 Mercedes-Benz ML350 1998-2005 GENINFO Overall vehicle - 163 Chassis me Saturday, October 02, 2010 3:
