Page 1673 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Parts ordering notes
1.7.00 with CODE (854)
MB portable CTEL
MODEL 208.3 as of
1.7.00 with CODE (854)
MB portable CTELAR82.70-P-7379EA
Insert interference
suppression converter
between comp

Page 1674 of 4133

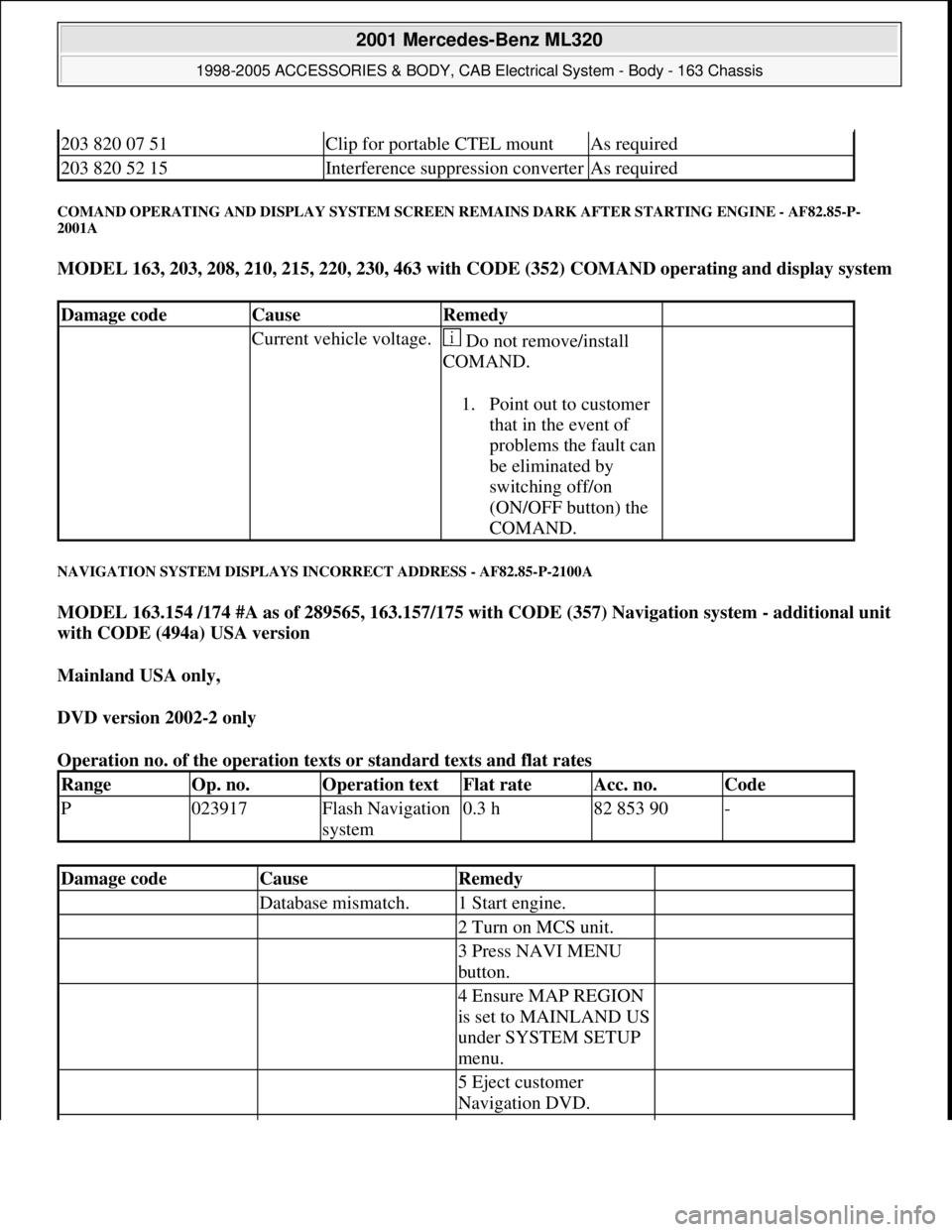

MERCEDES-BENZ ML320 1997 Complete Repair Manual COMAND OPERATING AND DISPLAY SYSTEM SCREEN REMAINS DARK AFTER STARTING ENGINE - AF82.85-P-
2001A
MODEL 163, 203, 208, 210, 215, 220, 230, 463 with CODE (352) COMAND operating and display system
NAVI

Page 1675 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Parts ordering notes
ERROR IN COMAND OPERATING AND DISPLAY SYSTEM - AF82.85-P-6000-01B
Error patterns for COMAND update CD 10/2001.
The service update CD COMAND with part number W 215 589 00 22 00

Page 1676 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual The personal symbols on the map are not updated during active guidance.
Voice control does not react to commands
Occasionally no sound (duration approx. 1 second).
TV screen switches

The personal symbols on the map are not updated during active guidance.
Voice control does not react to commands
Occasionally no sound (duration approx. 1 second).
TV screen switches off when standing still
After switching on CD player plays CD1/track 1 instead of title played last
No message when CD magazine sticks during ejection
Wavy interference in navigation display when TV picture is switched off (as if station is not correctly
received)
TCS icons are occasionally not displayed on the map with active dynamic guidance
Telephone book is not activated.
COMAND: A 208 820 40 89, A 210 820 54 89, A 163 820 14 89
Error patterns:
Increased quiescent current.
The personal symbols on the map are not updated during active guidance.
Voice control does not react to commands
No message when CD magazine sticks during ejection
TCS cannot be activated sporadically.
Time in instrument cluster and COMAND differs approx. 1-2 seconds.
COMAND signals CD reading error without any obvious cause
PERFORMING SOFTWARE DOWNLOAD - AF82.85-P-6000-04A
COMAND 2.0-ECE / 2.5-ECE - Perform software download of CD:
Do not start vehicle during download, do not cause other voltage drops in the vehicle electrical system, do
not remove CD and do not switch off unit! (Unit will be damaged!)
In the case of erroneous operation of the download control module, the download starts again or is terminated if
the old software has not been erased previously.
1. Switch off ignition.
2. Remove navigation CD and insert download CD.
3. Switch off control module.
4. After a waiting time of min. 5 s and with buttons * and # pressed simultaneously, switch on unit.
The menu "Service download of CD" appears with menu points "Control module" and "Termination".
5. Select "Start control module" with right knob

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:07 PMPage 181 © 2006 Mitchell Repair Information Company, LLC.

Page 1677 of 4133

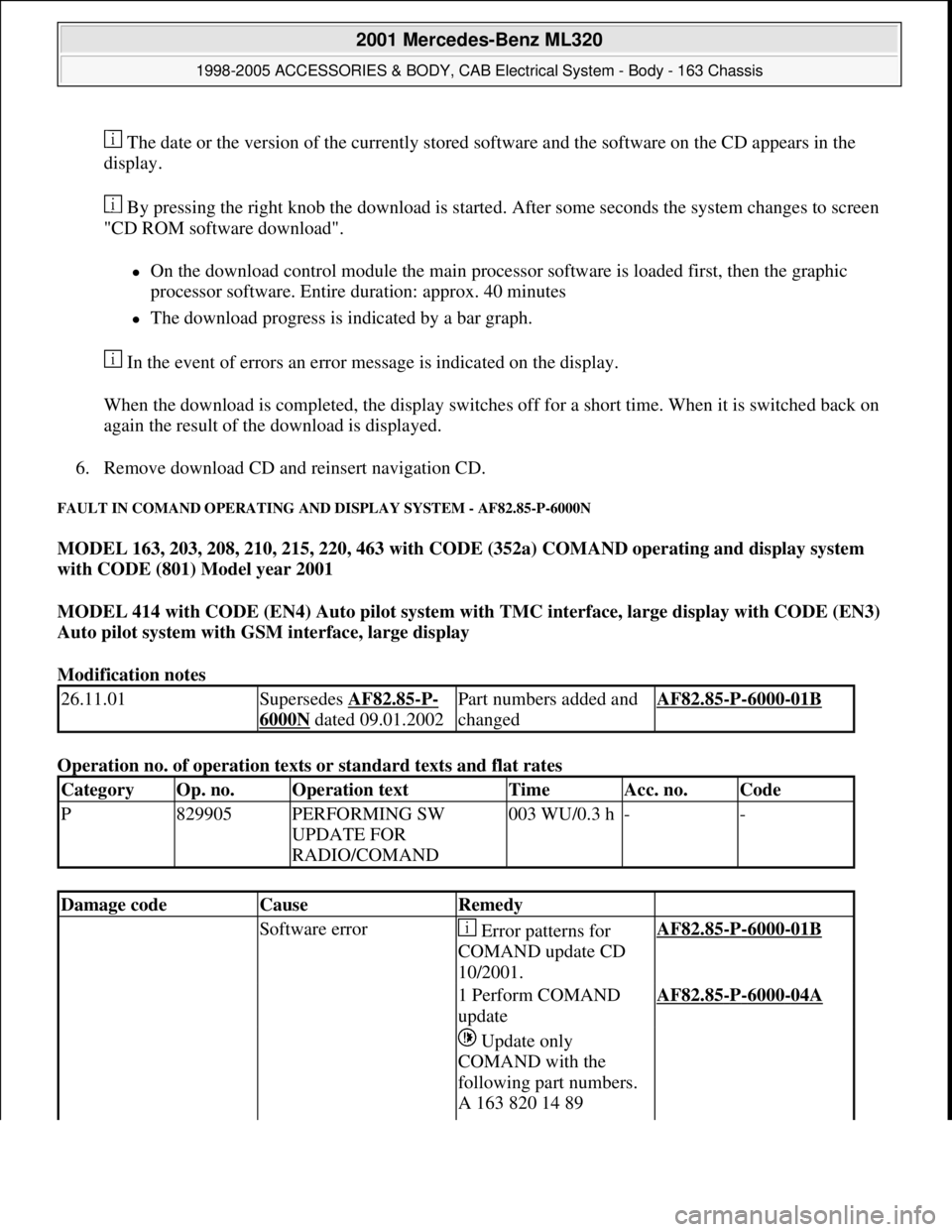

MERCEDES-BENZ ML320 1997 Complete Repair Manual The date or the version of the currently stored software and the software on the CD appears in the
display.
By pressing the right knob the download is started. After some seconds the system change

Page 1678 of 4133

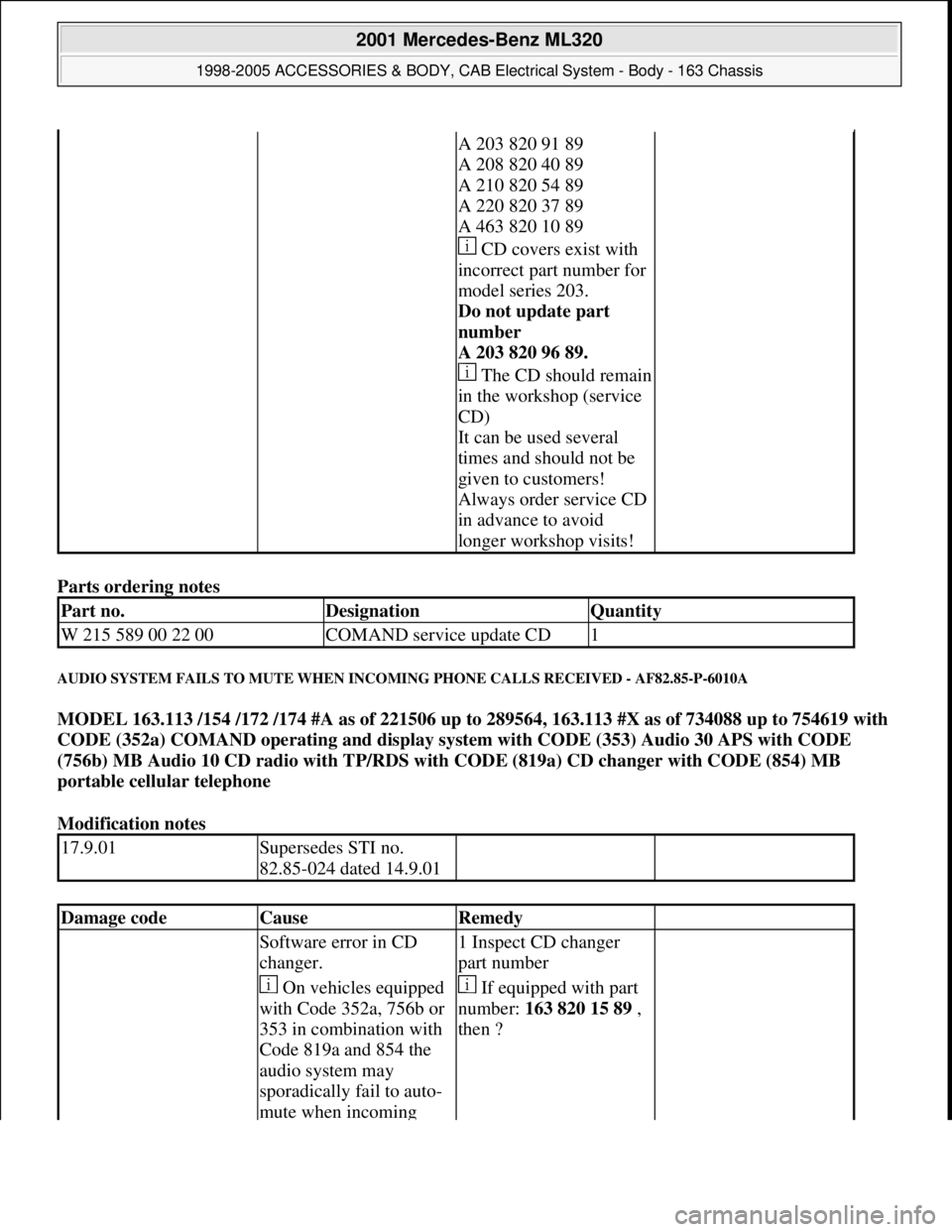

MERCEDES-BENZ ML320 1997 Complete Repair Manual Parts ordering notes
AUDIO SYSTEM FAILS TO MUTE WHEN INCOMING PHONE CALLS RECEIVED - AF82.85-P-6010A
MODEL 163.113 /154 /172 /174 #A as of 221506 up to 289564, 163.113 #X as of 734088 up to 754619 w

Page 1679 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Parts ordering notes
NAVIGATION SYSTEM ERRONEOUS OR NO GUIDANCE - AF82.85-P-6061A
MODEL 163, 168, 170, 203, 208, 209, 210, 211, 215, 220, 230, 414, 463
phone calls are received.
2 Replace CD cha

Page 1680 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual MCS MALFUNCTION - OCCASIONAL FAILURE OF STARGUIDE, SOUND OR CD CHANGER. DTCS N1111, N1112, N1116
- AF82.95-P-6002A
MODEL 163.157 /174 /175 #A as of 409851 up to 419036 with CODE (349) E Call emerge
