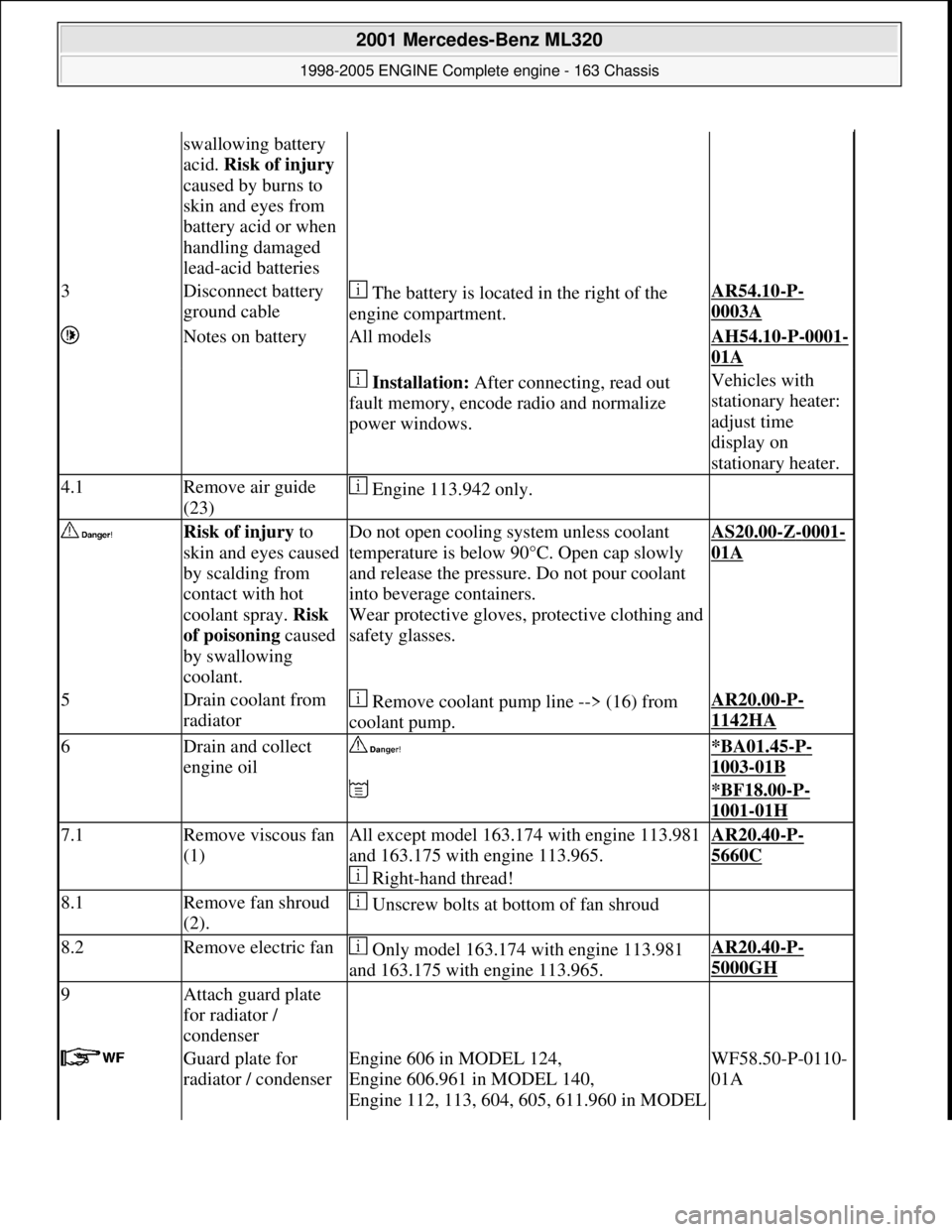

Page 2409 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries 3Disconnect battery ground cable The battery is l

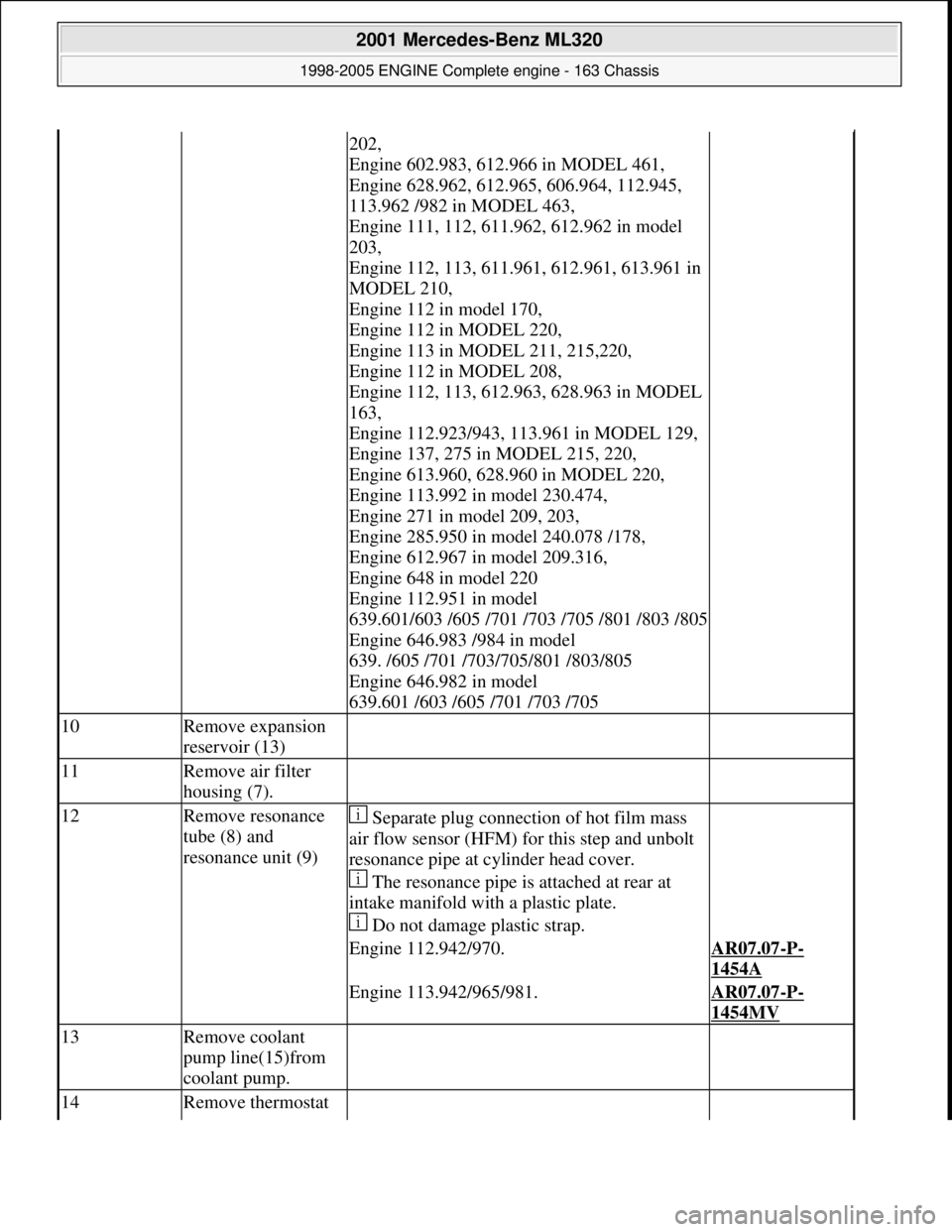

Page 2410 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 202, Engine 602.983, 612.966 in MODEL 461, Engine 628.962, 612.965, 606.964, 112.945, 113.962 /982 in MODEL 463, Engine 111, 112, 611.962, 612.962 in model 203, Engine 112, 113, 611.961, 61

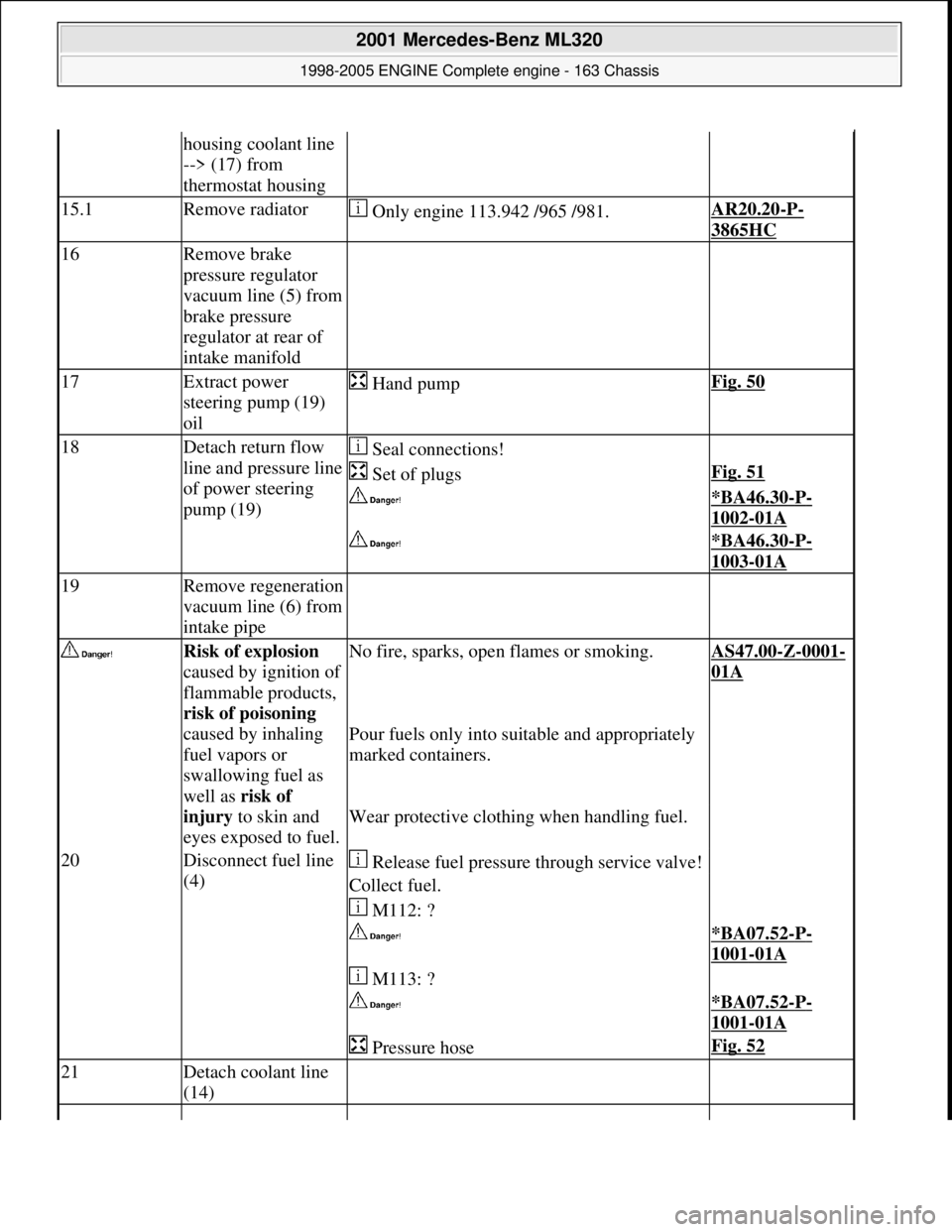

Page 2411 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual housing coolant line --> (17) from thermostat housing 15.1Remove radiator Only engine 113.942 /965 /981.AR20.20-P- 3865HC 16Remove brake pressure regulator vacuum line (5) from brake pressu

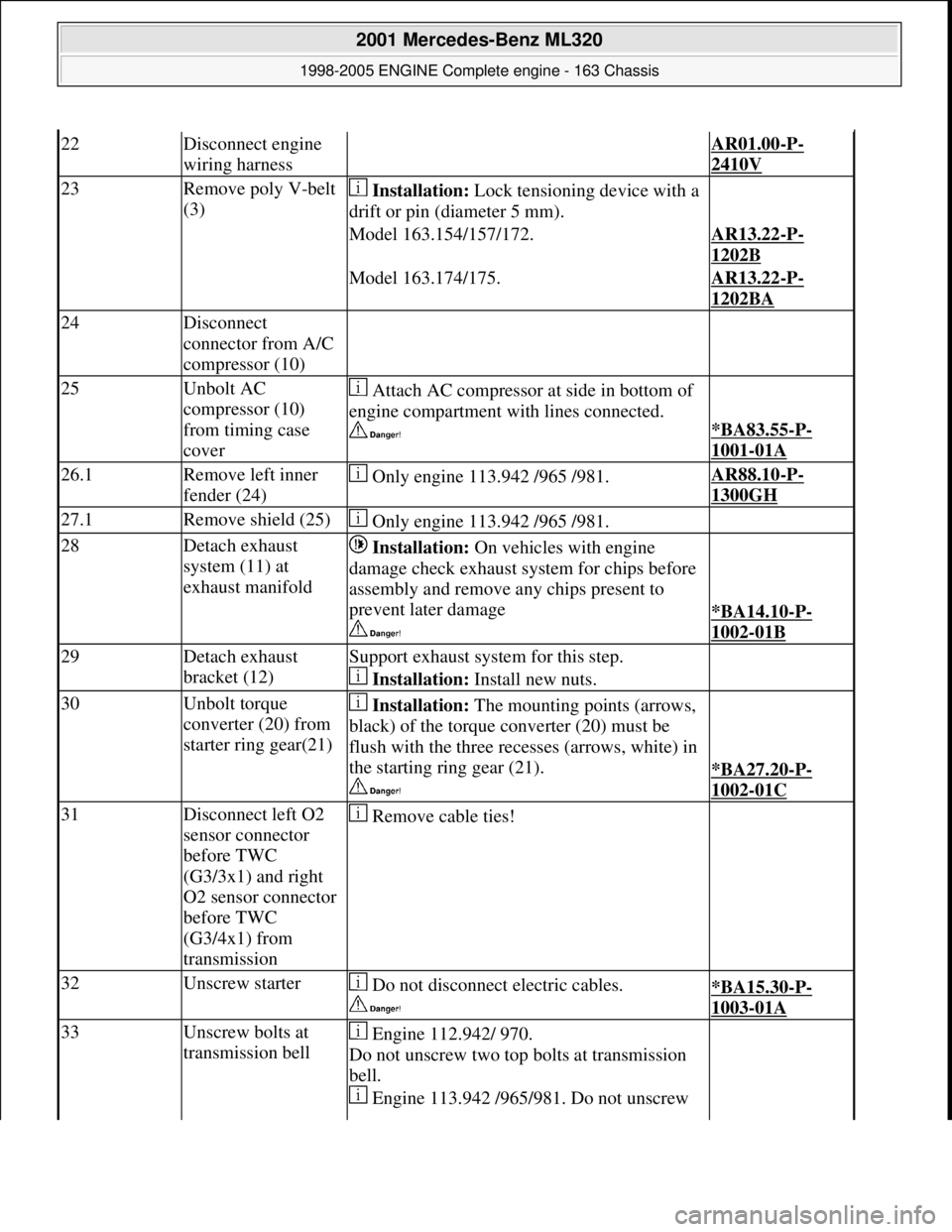

Page 2412 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 22Disconnect engine wiring harness AR01.00-P- 2410V 23Remove poly V-belt (3) Installation: Lock tensioning device with a drift or pin (diameter 5 mm). Model 163.154/157/172.AR13.22-P- 1202B

Page 2413 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual two bottom bolts at transmission bell. *BA27.40-P- 1008-01A 34Unscrew nuts (18) for engine mount Before unscrewing left engine mount, press oil line of power stee ring out of fixture. *BA

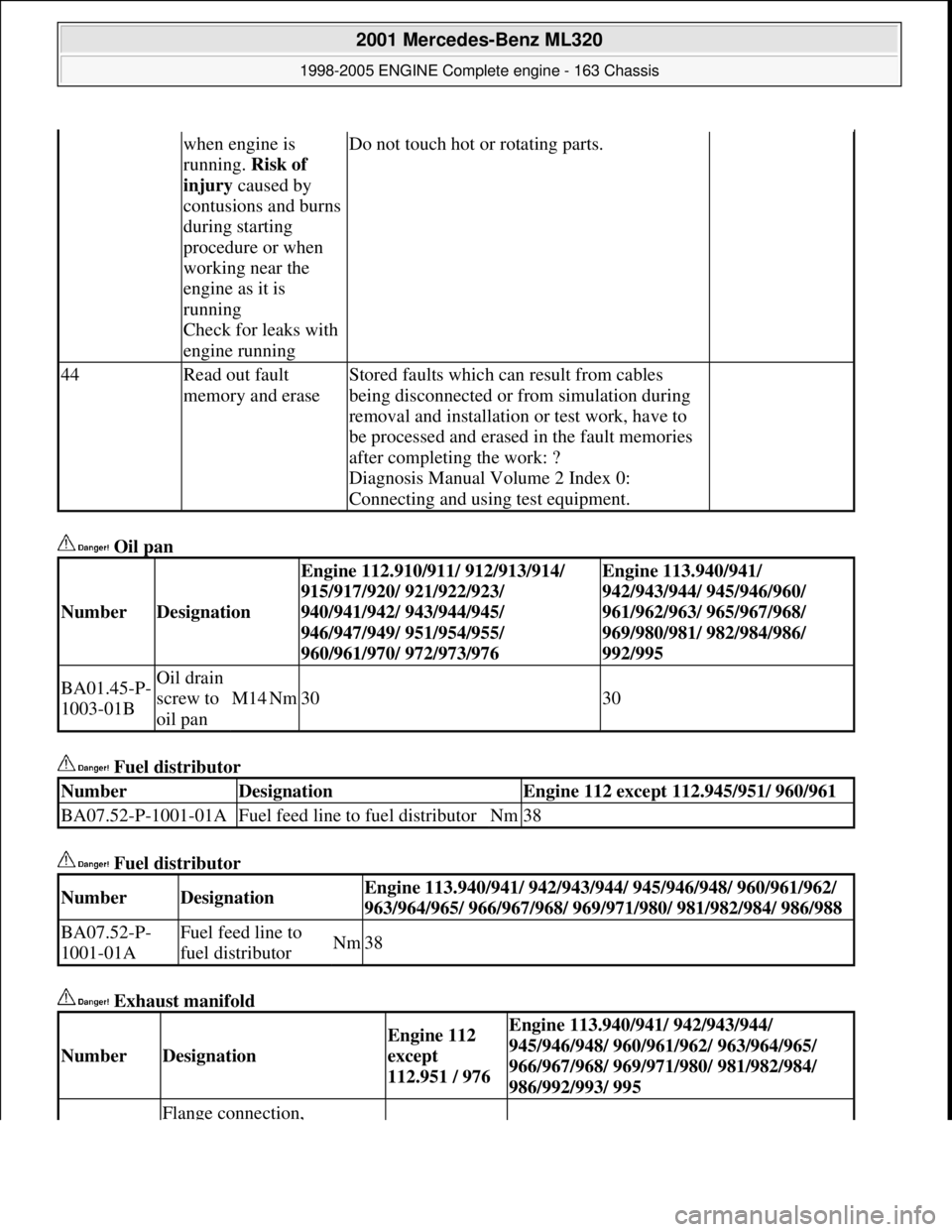

Page 2414 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Oil pan Fuel distributor Fuel distributor Exhaust manifold when engine is running. Risk of injury caused by contusions and burns during starting procedure or when work

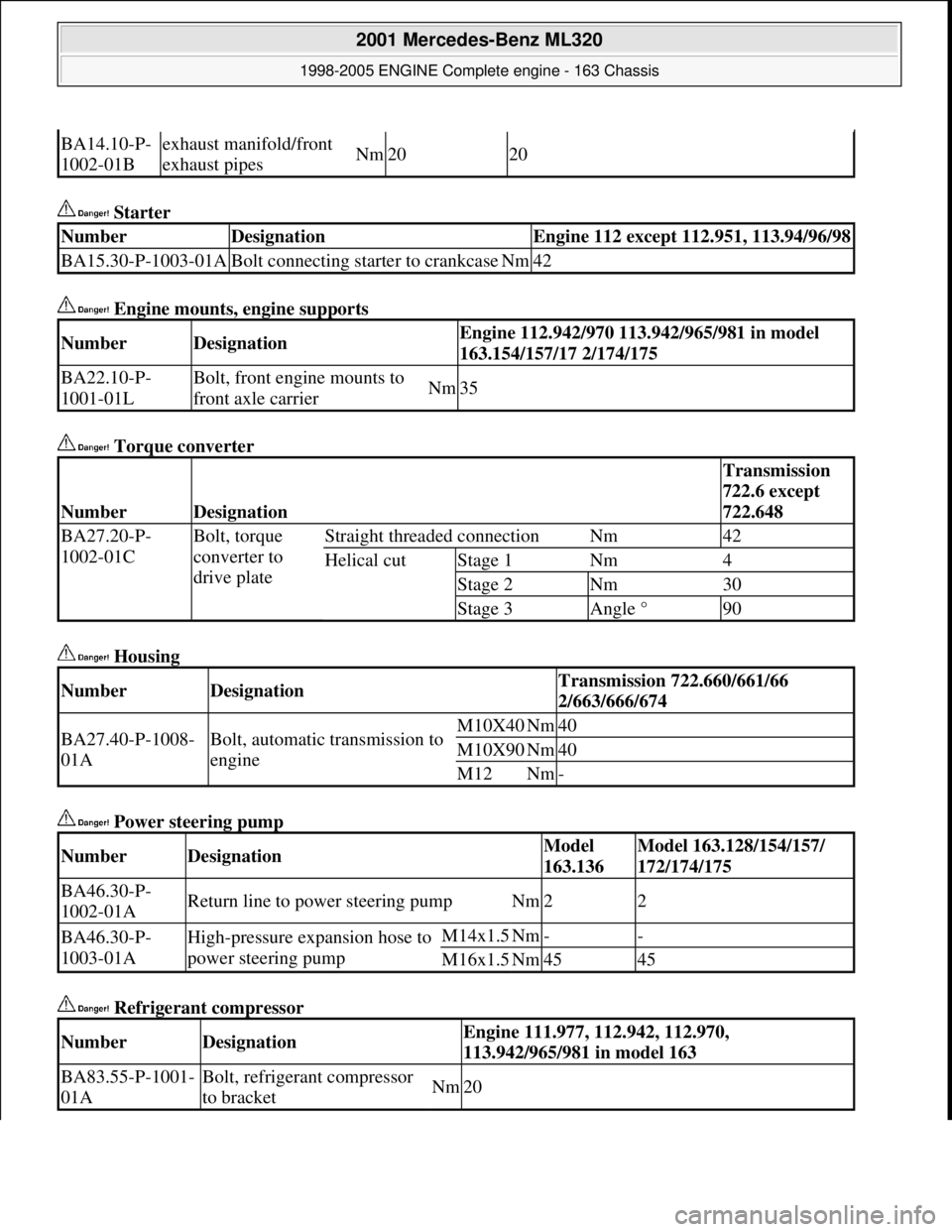

Page 2415 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Starter Engine mounts, engine supports Torque converter Housing Power steering pump Refrigerant compressor BA14.10-P- 1002-01Bexhaust manifold/front exhaust pipesNm2020 N

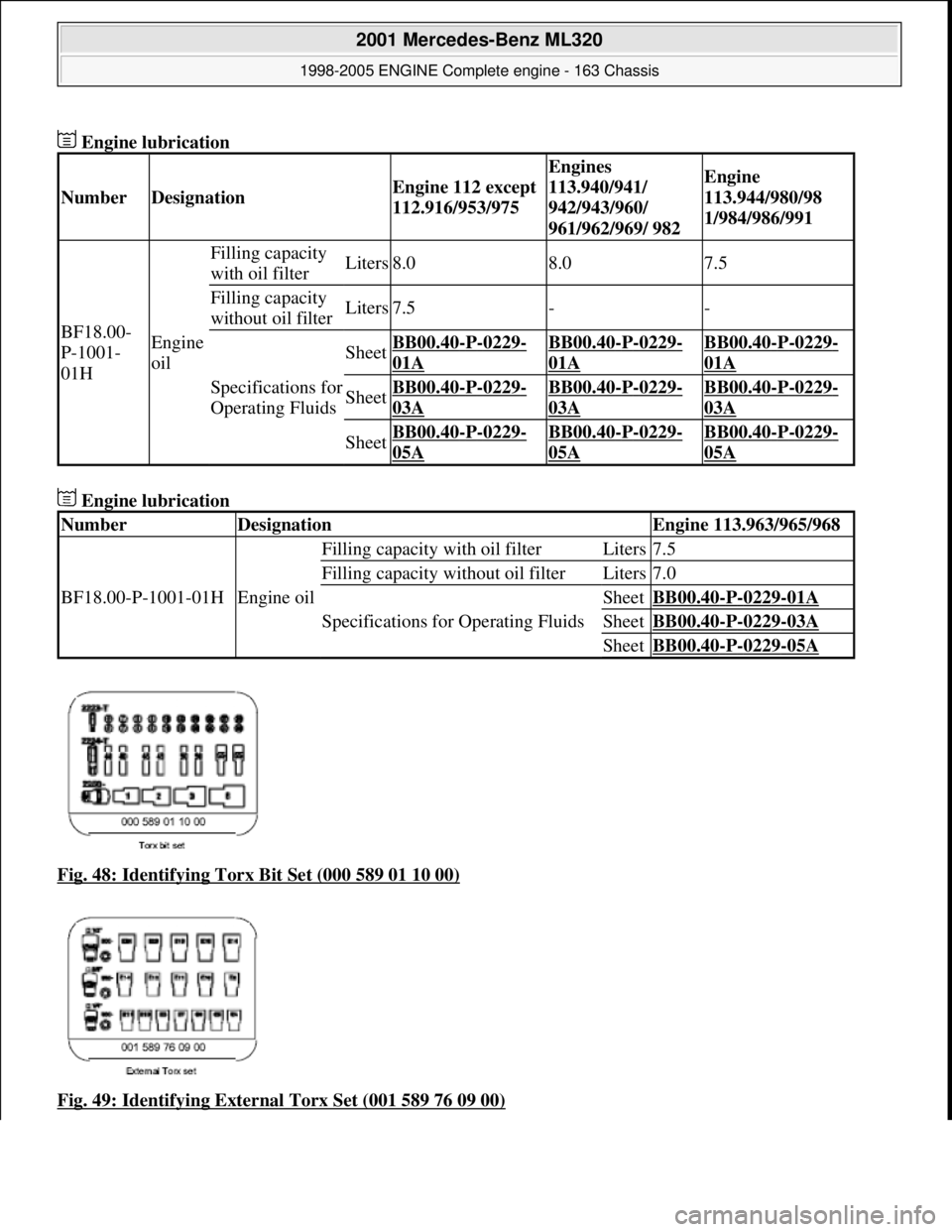

Page 2416 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Engine lubrication Engine lubrication Fig. 48: Identifying Torx Bit Set (000 589 01 10 00) Fig. 49: Identifying External Torx Set (001 589 76 09 00) NumberDesignationEngine 112 except 11
