Page 1953 of 4133

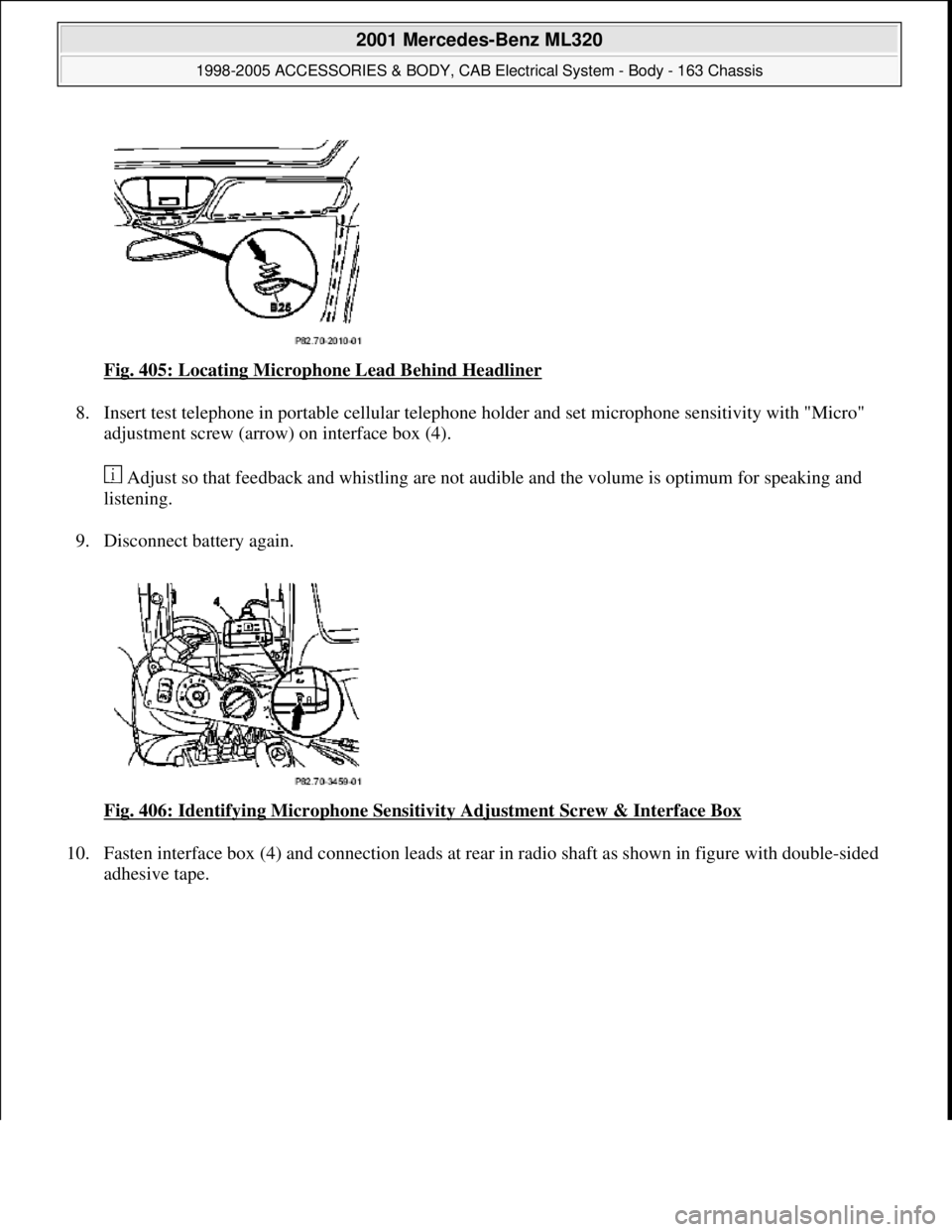

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 405: Locating Microphone Lead Behind Headliner 8. Insert test telephone in portable cellular telephone holder and set microphone sensitivity with "Micro" adjustment screw (arrow) on interface b

Page 1954 of 4133

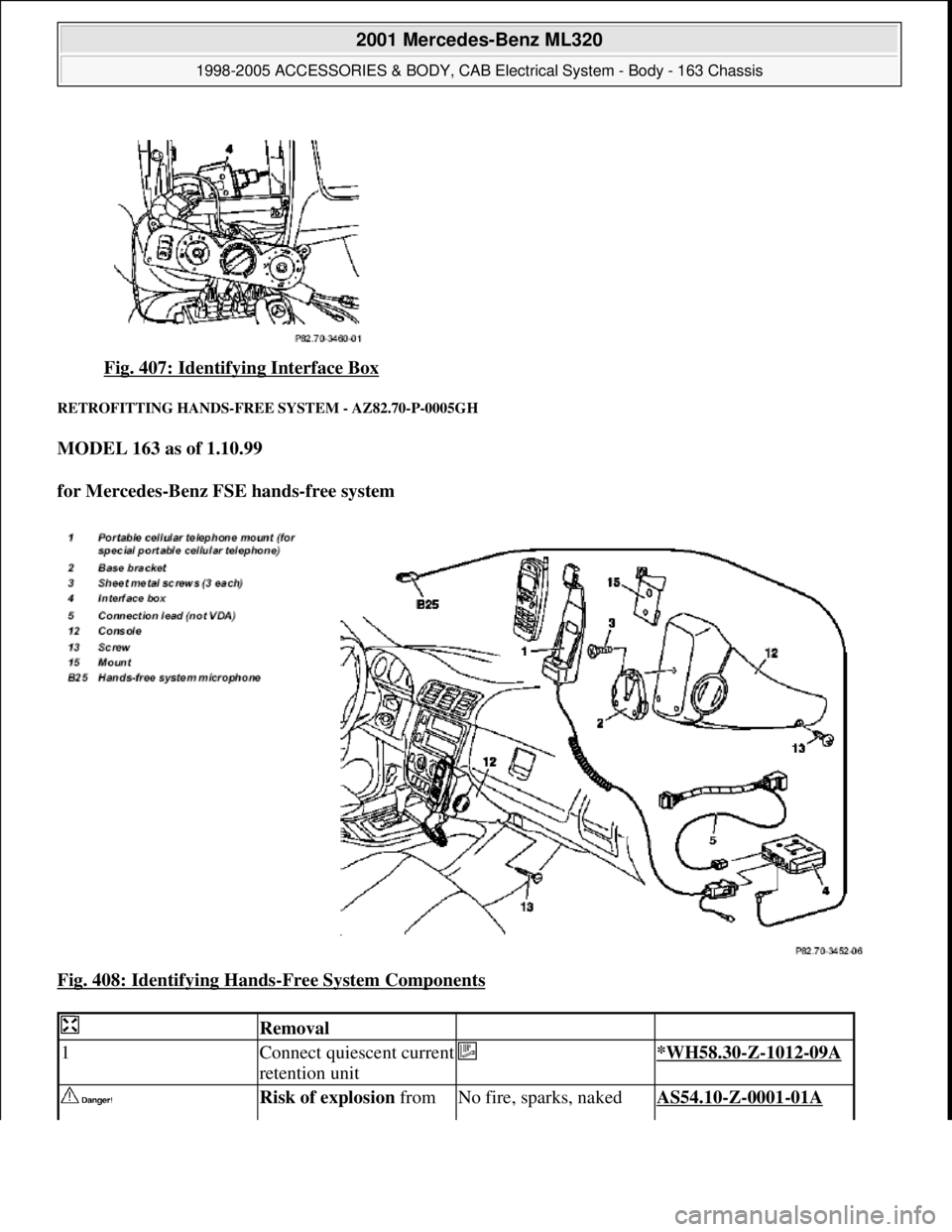

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 407: Identifying Interface Box RETROFITTING HANDS-FREE SYSTEM - AZ82.70-P-0005GH MODEL 163 as of 1.10.99 for Mercedes-Benz FSE hands-free system Fig. 408: Identifying Hands -Free Syste

Page 1955 of 4133

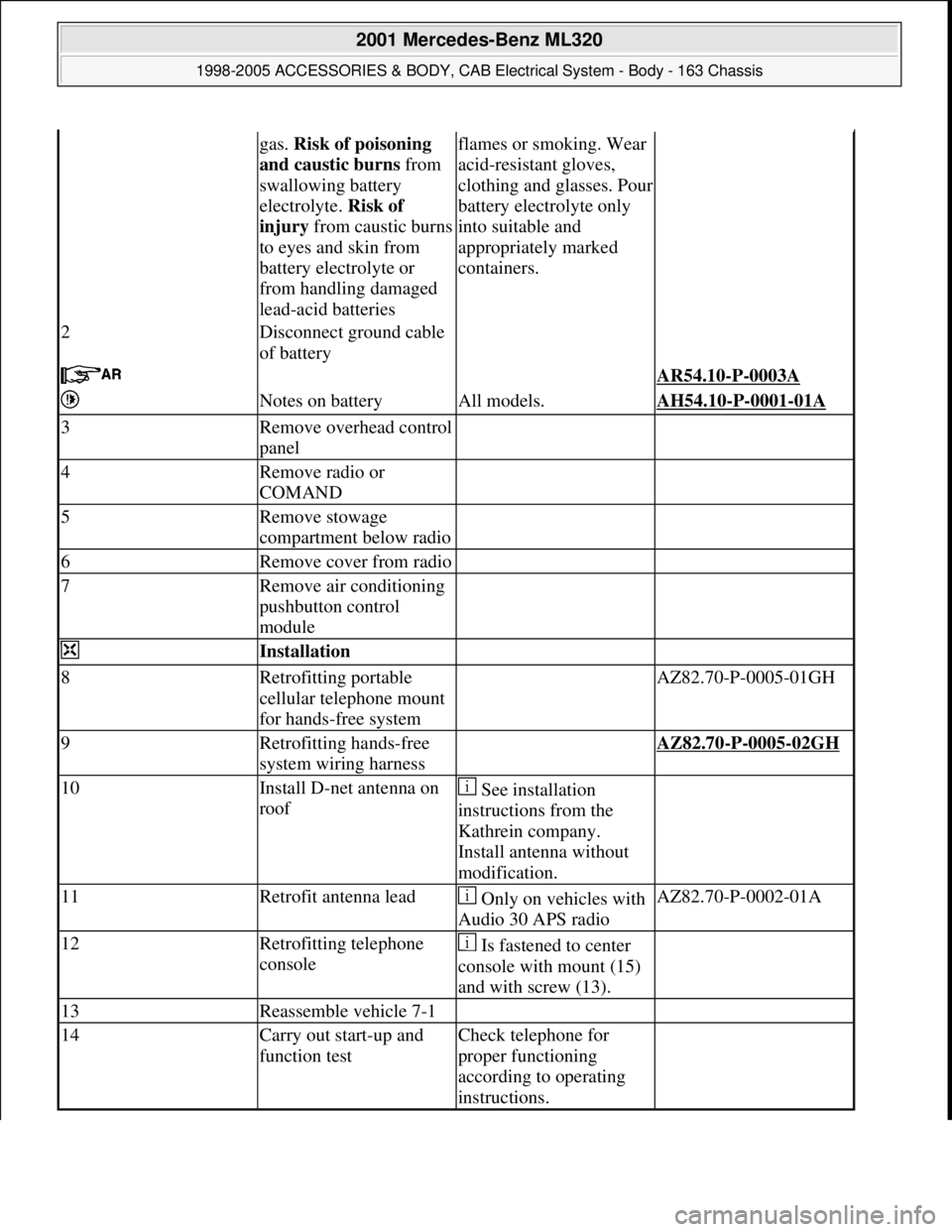

MERCEDES-BENZ ML320 1997 Complete Repair Manual gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead-acid bat

Page 1956 of 4133

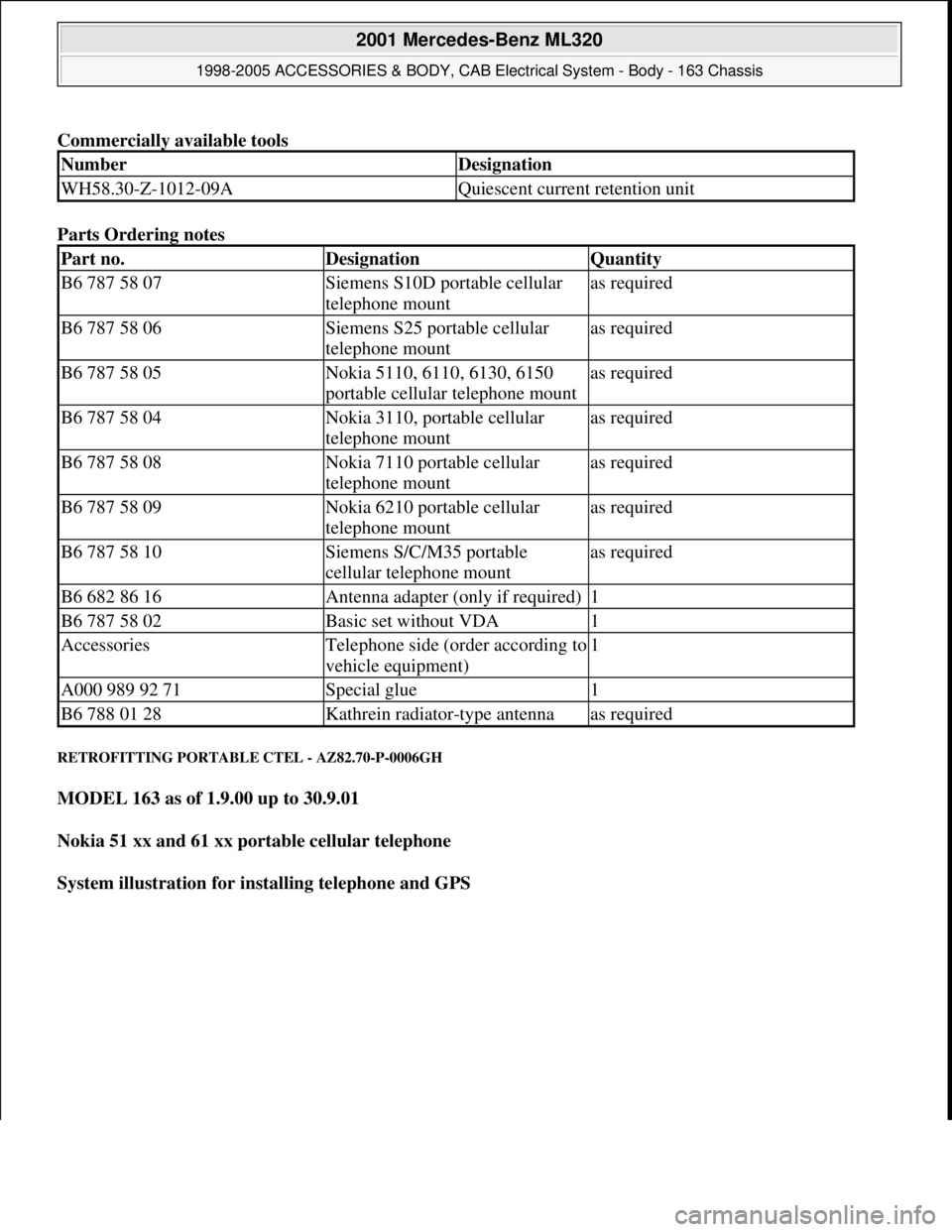

MERCEDES-BENZ ML320 1997 Complete Repair Manual Commercially available tools Parts Ordering notes RETROFITTING PORTABLE CTEL - AZ82.70-P-0006GH MODEL 163 as of 1.9.00 up to 30.9.01 Nokia 51 xx and 61 xx portable cellular telephone System ill

Page 1957 of 4133

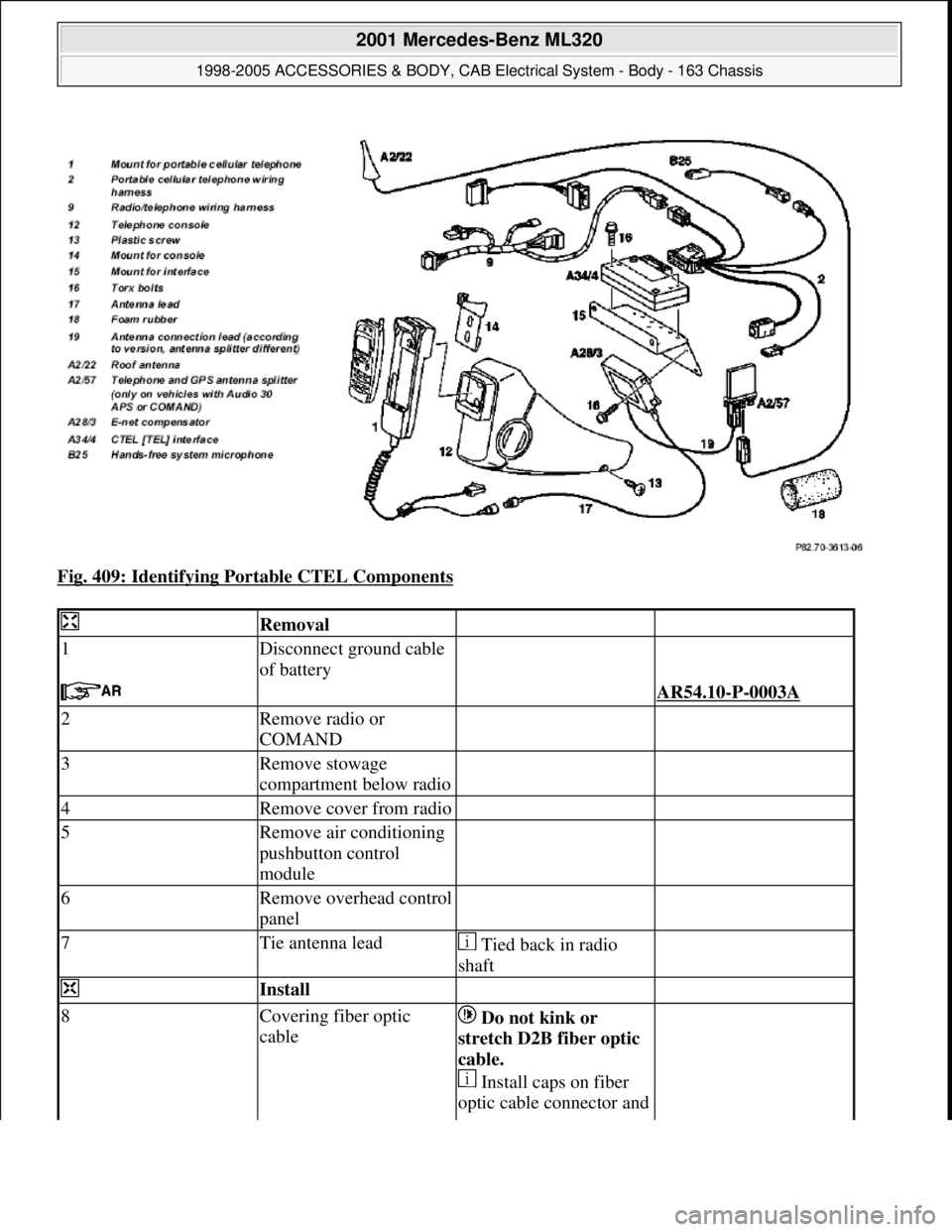

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 409: Identifying Portable CTEL Components Removal 1Disconnect ground cable of battery AR54.10-P-0003A 2Remove radio or COMAND 3Remove stowage compartment below radio 4Remove cove

Page 1958 of 4133

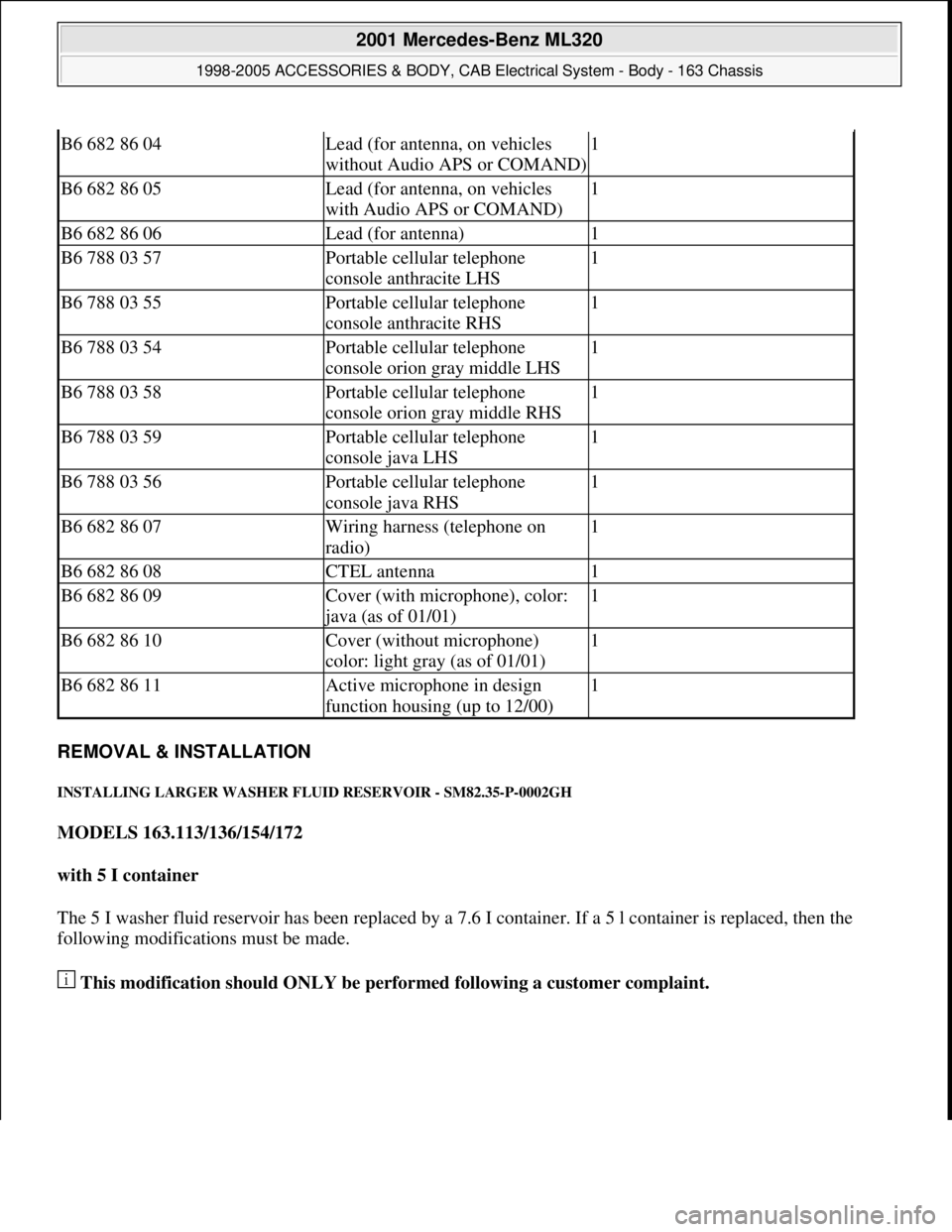

MERCEDES-BENZ ML320 1997 Complete Repair Manual Parts ordering notes equipment connection. AR82.95-P-0005-01A 9Retrofit fiber optic cable wiring harnessVehicles without CD player with changer (code 819).AN82.70-P-0002-01GH Vehicles with CD

Page 1959 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVAL & INSTALLATION INSTALLING LARGER WASHER FLUID RESERVOIR - SM82.35-P-0002GH MODELS 163.113/136/154/172 with 5 I container The 5 I washer fluid reservoir has been replaced by a 7.6 I conta

Page 1960 of 4133

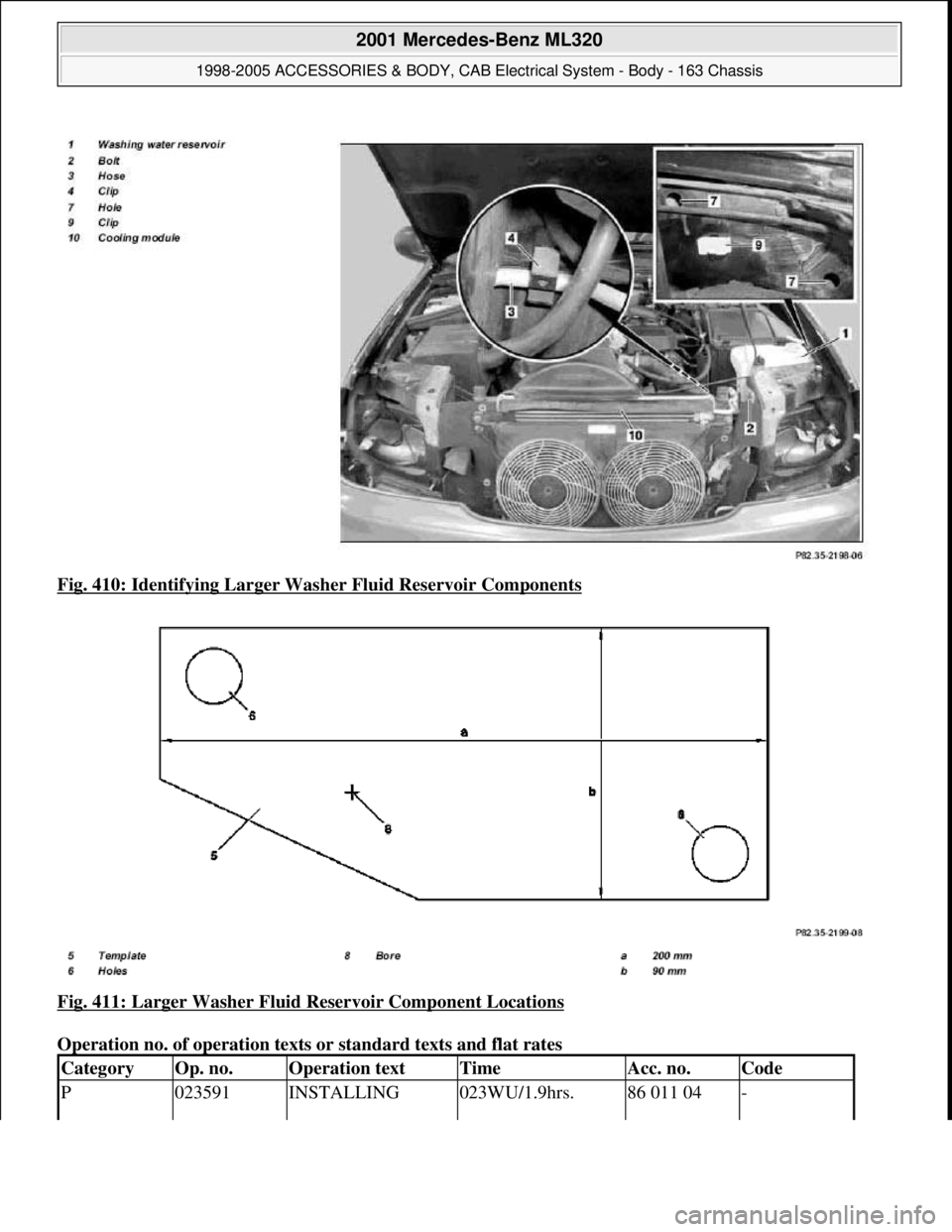

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 410: Identifying Larger Was her Fluid Reservoir Components Fig. 411: Larger Washer Fluid Reservoir Component Locations Operation no. of operation texts or standard texts and flat rates Ca
