Page 4009 of 4133

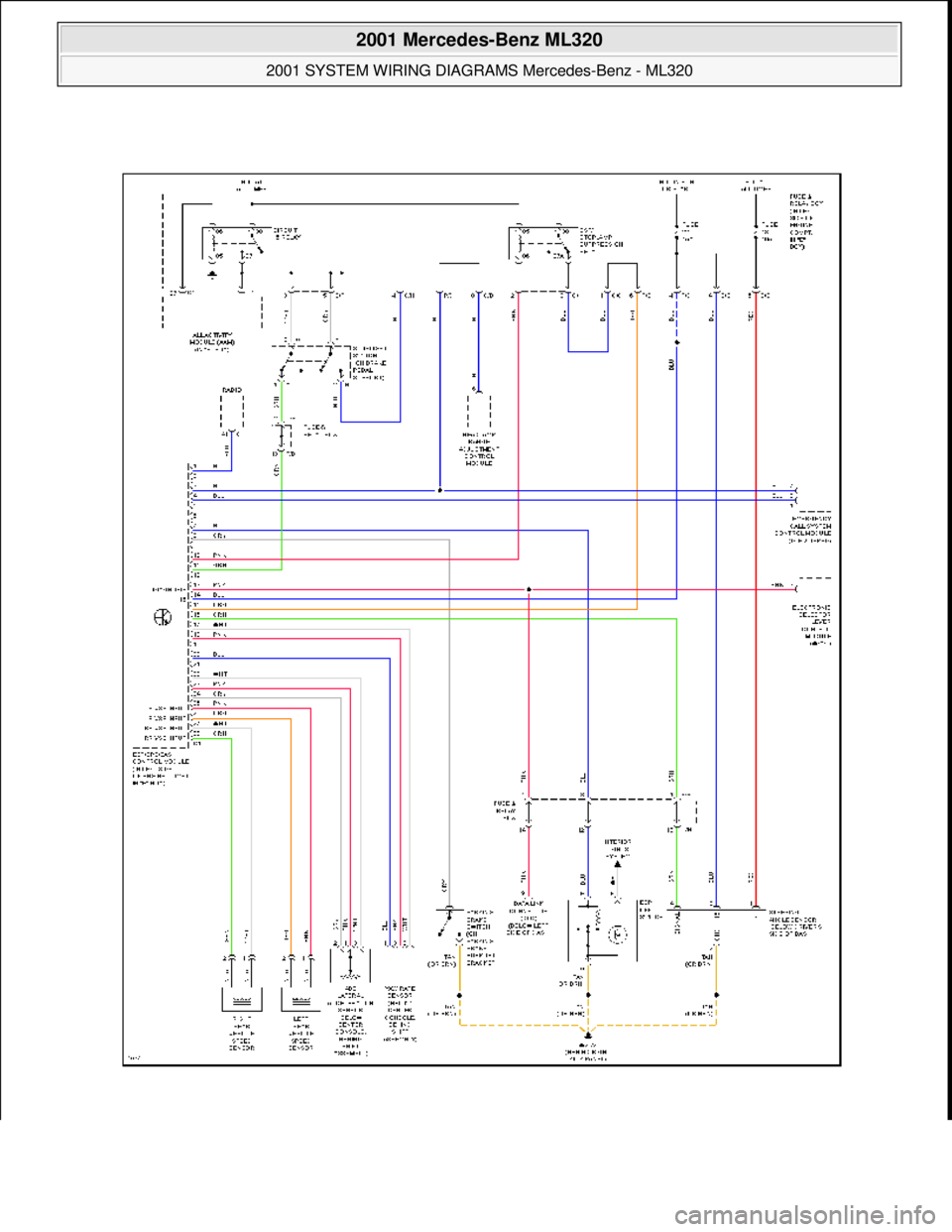

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 5: Anti-Lock Brakes Circuit (1 of 2) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:58 PMPage 11 © 2006 Mitchell Repair Inf

Page 4010 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 12 © 2006 Mitchell Repair Information Company, LLC.

Page 4011 of 4133

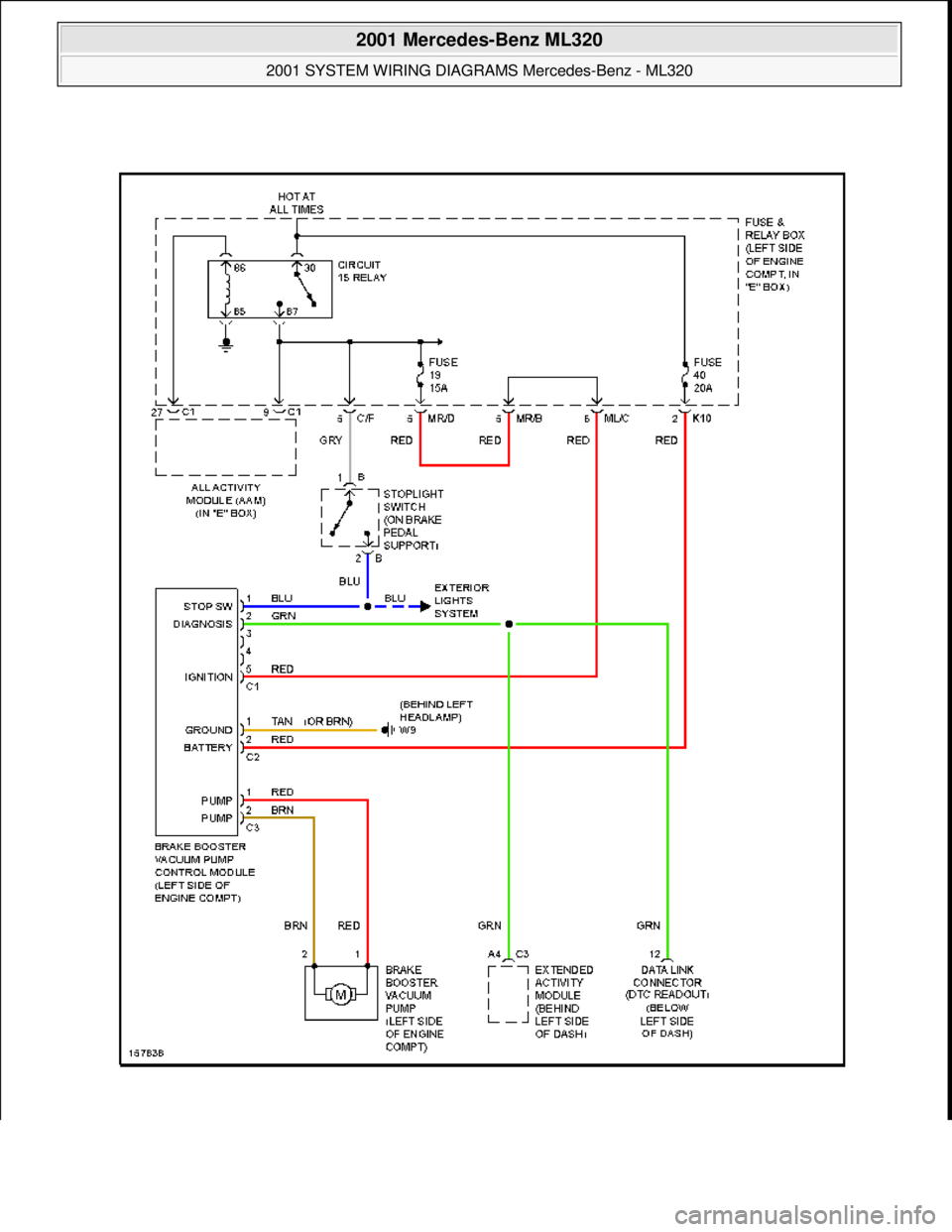

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 6: Anti-Lock Brakes Circuit (2 of 2) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 13 © 2006 Mitchell Repair Inf

Page 4012 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 14 © 2006 Mitchell Repair Information Company, LLC.

Page 4013 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 7: Brake Assist Circuit ANTI-THEFT 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 15 © 2006 Mitchell Repair Info

Page 4014 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 16 © 2006 Mitchell Repair Information Company, LLC.

Page 4015 of 4133

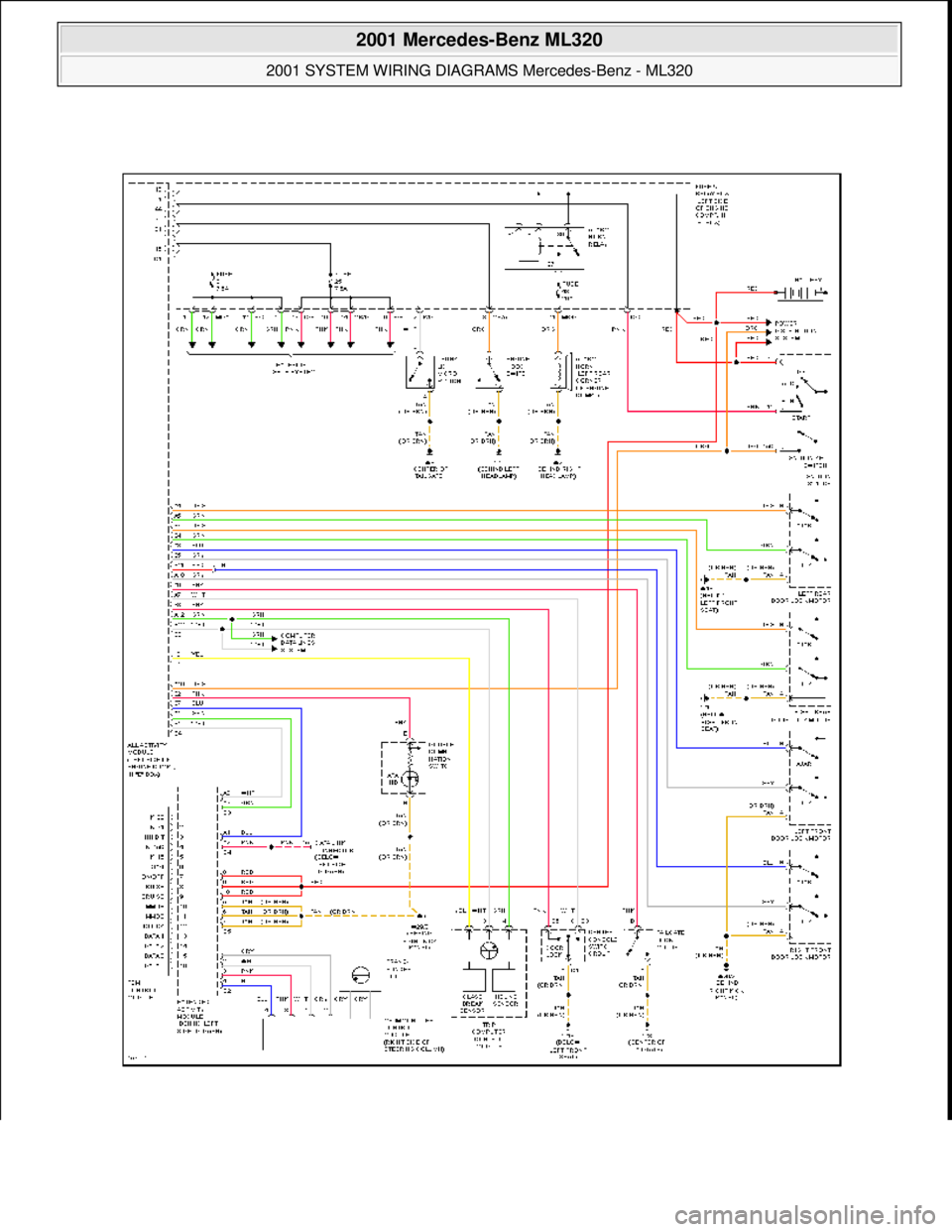

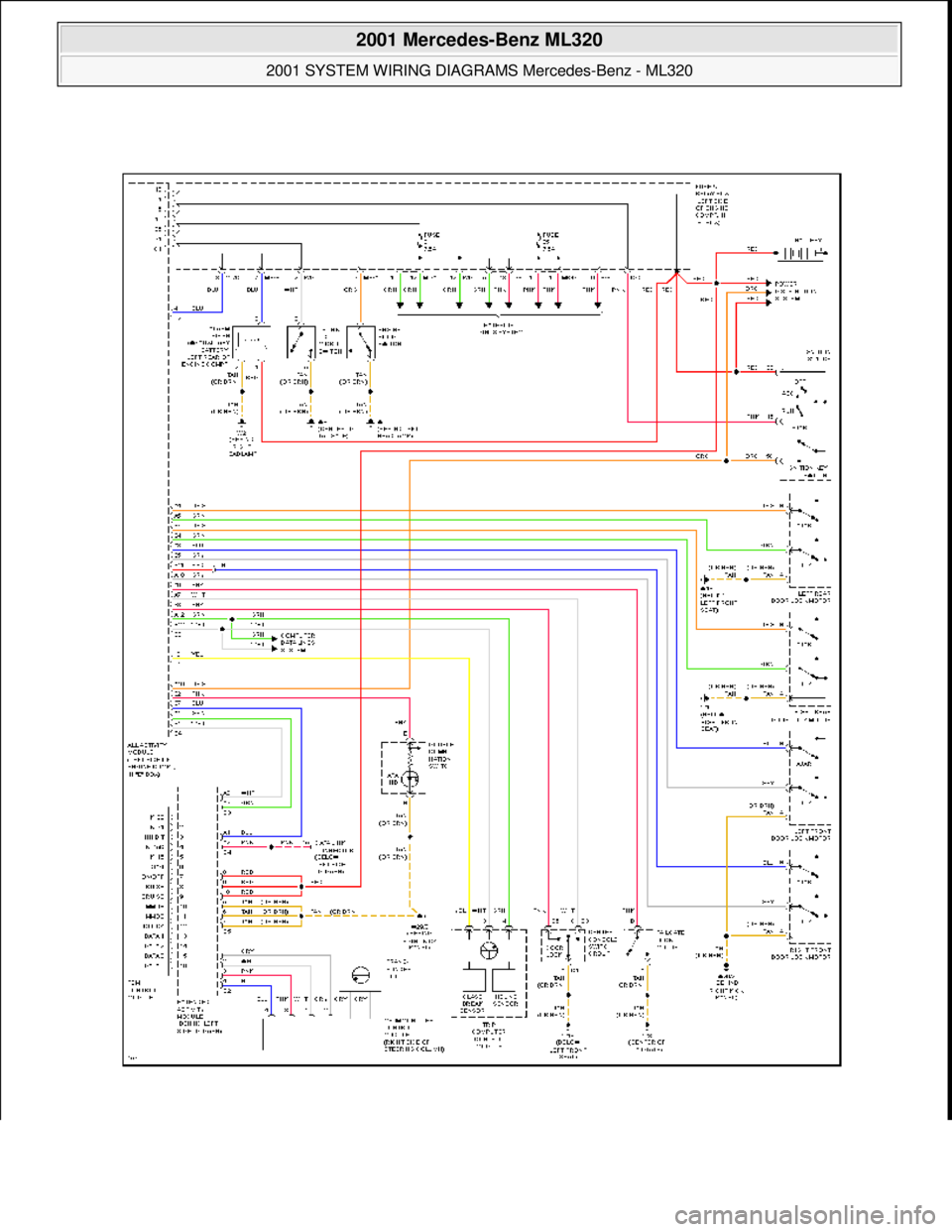

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 8: Anti-theft Circuit, W/ Auxiliary Alarm 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 17 © 2006 Mitchell Repair

Page 4016 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 18 © 2006 Mitchell Repair Information Company, LLC.
