Fig. 15: Identifying Cruise Control Function - Shown On Engine 111 Euro3/4
Task
Maintaining the preselected vehicle speed constant irrespective of the engine load, without operation of the
accelerator pedal.
Function
The cruise control function is integrated in the engine control unit. It can be activated from > 40 km/h with the
cruise control switch. The engine control unit operates the throttle valve actuator for the cruise control function
with the aid of the input signals and the position of the cruise control switch.
The cruise control mode is switched off by:
pushing the cruise control push-button switch (S40) or variable cruise control push-button switch (S40/4)
into the "OFF" position
Operating the service brake
Moving selector lever into position "N"
Control intervention function of traction system
Vehicles with column sleeve module (MRM)
The signals from the push-button switch for the cruise control are detected by the steering column module and
transmitted to the CAN data bus.

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis
me
Saturday, October 02, 2010 3:36:27 PMPage 26 © 2006 Mitchell Repair Information Company, LLC.


        Page 3867 of 4133

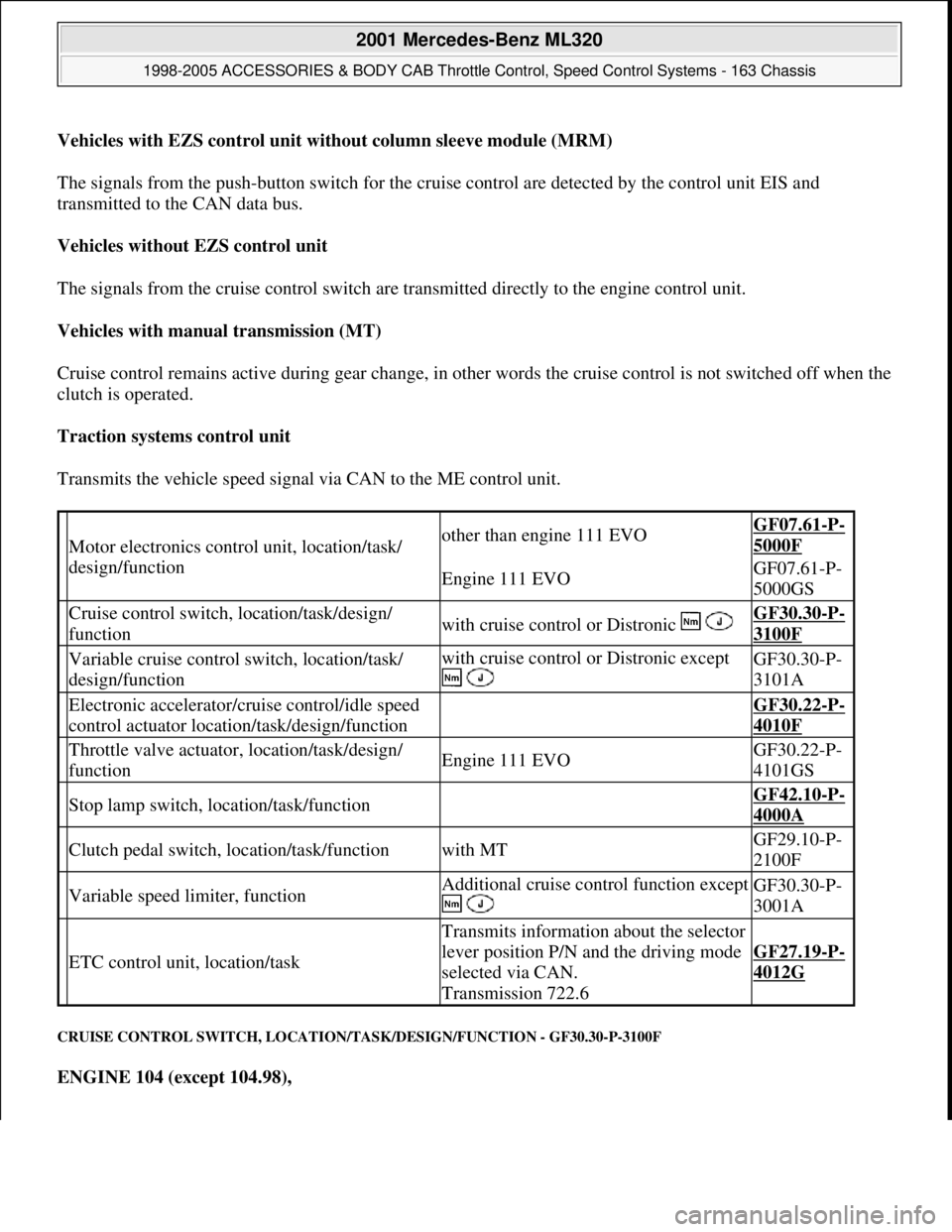

Vehicles with EZS control unit without column sleeve module (MRM)
The signals from the push-button switch for the cruise control are detected by the control unit EIS and
transmitted to the CAN data bus.
Vehicles without EZS control unit
The signals from the cruise control switch are transmitted directly to the engine control unit.
Vehicles with manual transmission (MT)
Cruise control remains active during gear change, in other words the cruise control is not switched off when the
clutch is operated.
Traction systems control unit
Transmits the vehicle speed signal via CAN to the ME control unit.
CRUISE CONTROL SWITCH, LOCATION/TASK/DESIGN/FUNCTION - GF30.30-P-3100F
ENGINE 104 (except 104.98),
 Motor electronics control unit, location/task/
design/functionother than engine 111 EVOGF07.61-P-
5000F
Engine 111 EVOGF07.61-P-
5000GS
 Cruise control switch, location/task/design/
functionwith cruise control or Distronic     GF30.30-P-
3100F
 Variable cruise control switch, location/task/
design/functionwith cruise control or Distronic except
  GF30.30-P-
3101A
 Electronic accelerator/cruise control/idle speed
control actuator location/task/design/function GF30.22-P-
4010F
 Throttle valve actuator, location/task/design/
functionEngine 111 EVOGF30.22-P-
4101GS
 Stop lamp switch, location/task/function GF42.10-P-
4000A
 Clutch pedal switch, location/task/functionwith MTGF29.10-P-
2100F
 Variable speed limiter, functionAdditional cruise control function except
  GF30.30-P-
3001A
 ETC control unit, location/task
Transmits information about the selector
lever position P/N and the driving mode
selected via CAN.
Transmission 722.6
GF27.19-P-
4012G

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis
me
Saturday, October 02, 2010 3:36:27 PMPage 27 © 2006 Mitchell Repair Information Company, LLC.


        Page 3868 of 4133
111.946 up to 31.5.98,
111.943,
111.973 up to 31.5.97,
111.920,
111.921 up to 31.8.98,
111.941,
111.942 up to 31.8.98,
111.944 up to 31.5.98,
111.945 up to 31.8.98, 111.974,
111.947/970, 112.942 up to 31.5.98,
119, 120 up to 31.5.97,
668.940/941,611.960/961
with CODE (440a) Cruise control
with CODE (443a) Cruise control and electrically adjustable steering column (codes 400 and 441)
with CODE (446) Cruise control, electrically adjustable steering column and airbag (440, 441 and 442)
ENGINE 104, 111, 112, 113, 119, 120, 137, 613.960, 628.960 (except, 112.96, 113.99) with CODE (494a)
USA version

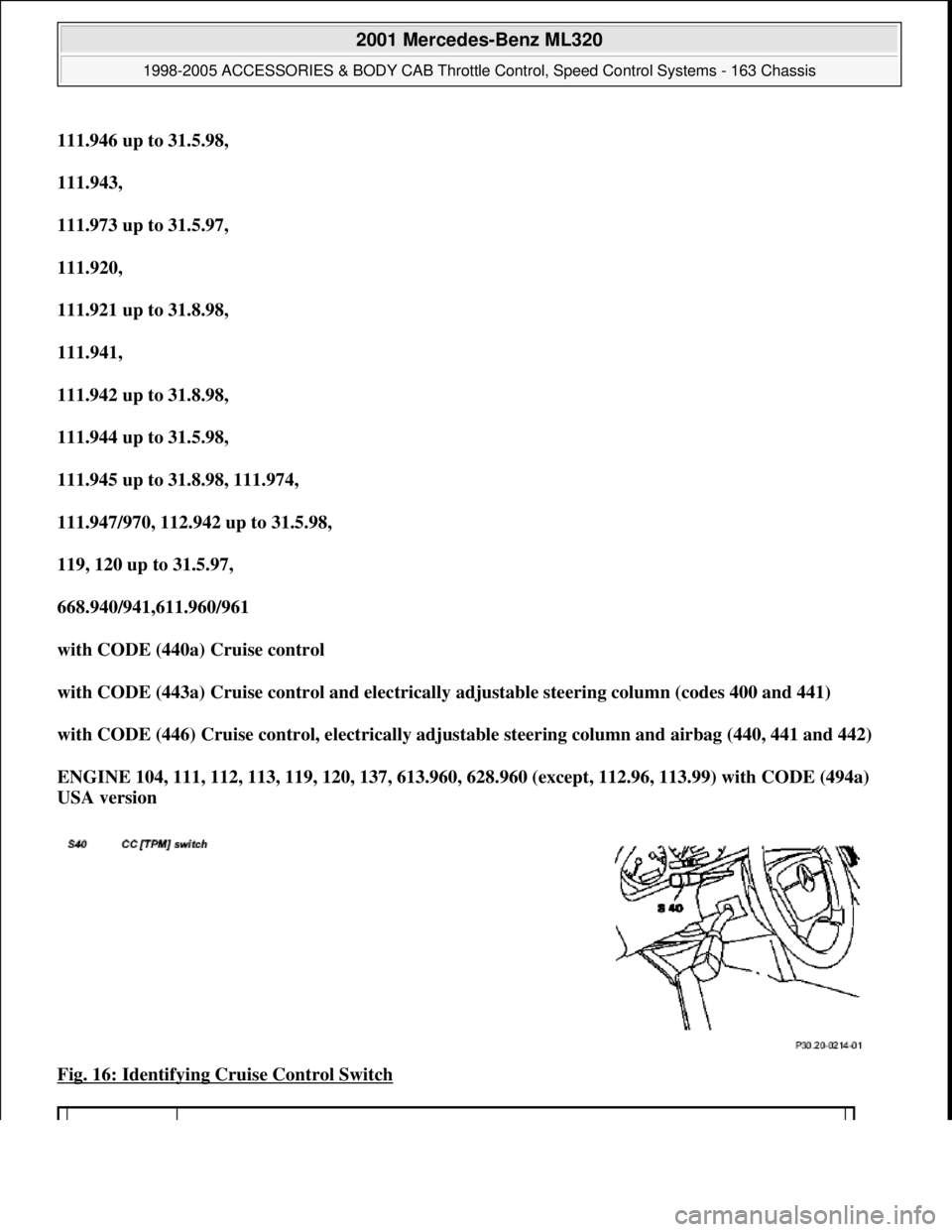

Fig. 16: Identifying Cruise Control Switch


2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis
me
Saturday, October 02, 2010 3:36:27 PMPage 28 © 2006 Mitchell Repair Information Company, LLC.


        Page 3869 of 4133

KICKDOWN SWITCH LOCATION/TASK/DESIGN/FUNCTION - GF30.30-P-4000A
ENGINE 112, 113, 119, 120 in MODEL 129
ENGINE 104, 119, 120 in MODEL 140
ENGINE 112, 113 in MODEL 163
ENGINE 166 in MODEL 168
ENGINE 111,112 (except, 112.96) in MODEL 170
ENGINE 111,112, 113 in MODEL 202
ENGINE 111,112 (except, 112.96) in MODEL 203
ENGINE 111,112, 113 in MODEL 208
ENGINE 111,112, 113 in MODEL 210
ENGINE 112,113,137 (except, 113.99) in MODEL 220
ENGINE 113,137 (except 113.99) in MODEL 215
ENGINE 112,113 (except, 113.99) in MODEL 230
ENGINE 112, 113 in MODEL 211
ENGINE 112, 113 in MODEL 209

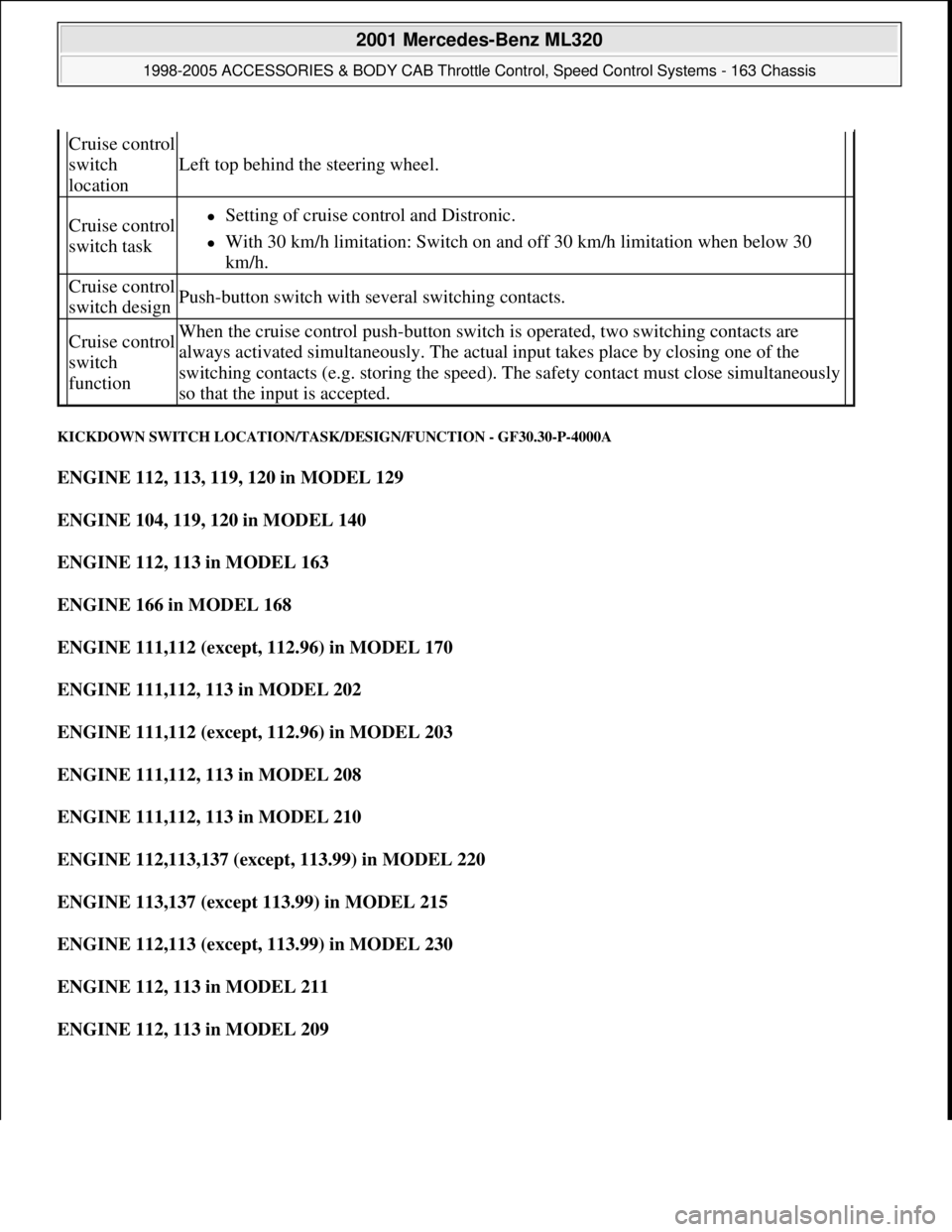

Cruise control
switch
location
Left top behind the steering wheel.
 Cruise control
switch taskSetting of cruise control and Distronic.
With 30 km/h limitation: Switch on and off 30 km/h limitation when below 30
km/h.
 Cruise control
switch designPush-button switch with several switching contacts.

Cruise control
switch
functionWhen the cruise control push-button switch is operated, two switching contacts are
always activated simultaneously. The actual input takes place by closing one of the
switching contacts (e.g. storing the speed). The safety contact must close simultaneously
so that the input is accepted.


2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis
me
Saturday, October 02, 2010 3:36:27 PMPage 29 © 2006 Mitchell Repair Information Company, LLC.


        Page 3870 of 4133

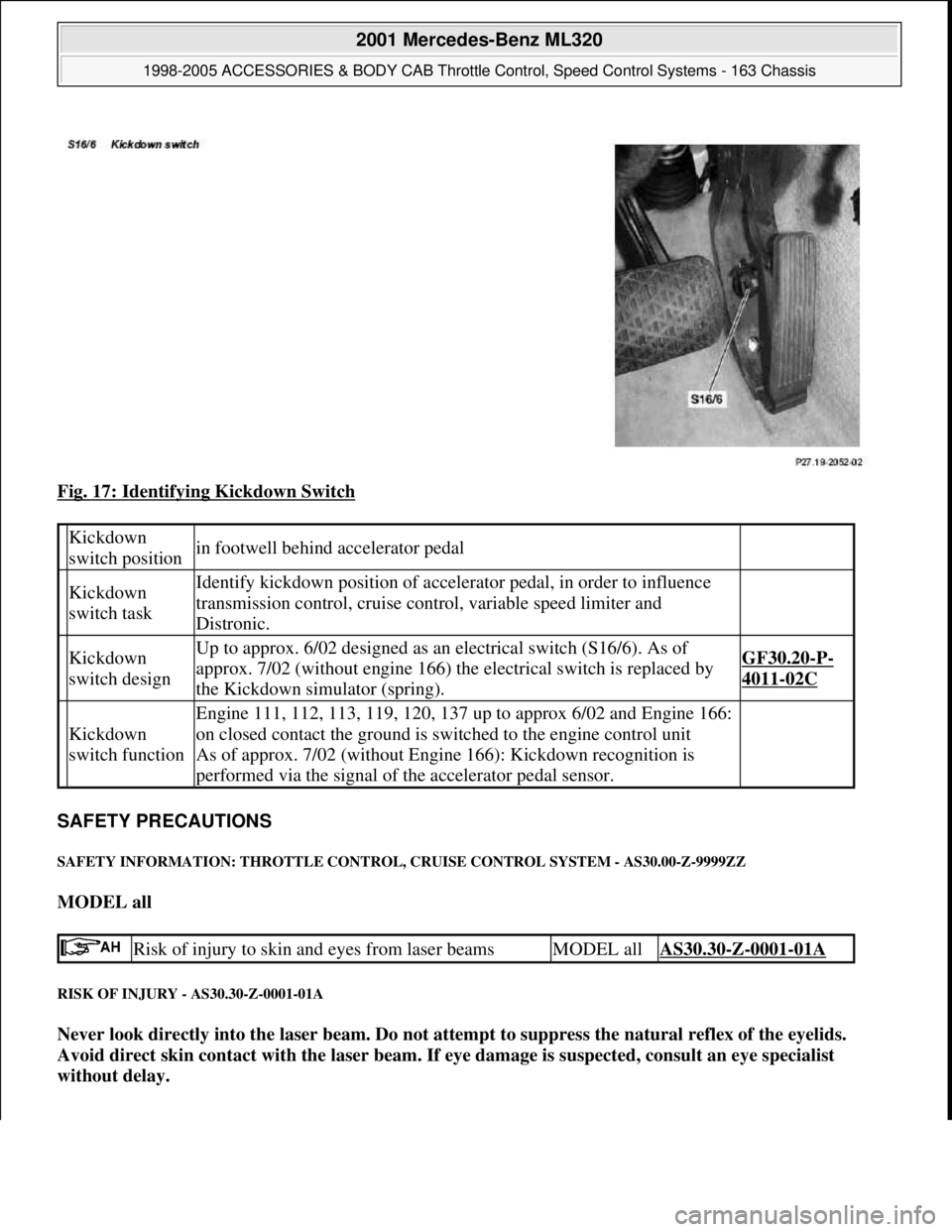

Fig. 17: Identifying Kickdown Switch
SAFETY PRECAUTIONS
SAFETY INFORMATION: THROTTLE CONTROL, CRUISE CONTROL SYSTEM - AS30.00-Z-9999ZZ
MODEL all
RISK OF INJURY - AS30.30-Z-0001-01A
Never look directly into the laser beam. Do not attempt to suppress the natural reflex of the eyelids.
Avoid direct skin contact with the laser beam. If eye damage is suspected, consult an eye specialist
without delay.
 Kickdown
switch positionin footwell behind accelerator pedal
 Kickdown
switch taskIdentify kickdown position of accelerator pedal, in order to influence
transmission control, cruise control, variable speed limiter and
Distronic.

 Kickdown
switch designUp to approx. 6/02 designed as an electrical switch (S16/6). As of
approx. 7/02 (without engine 166) the electrical switch is replaced by
the Kickdown simulator (spring).GF30.20-P-
4011-02C
 Kickdown
switch function
Engine 111, 112, 113, 119, 120, 137 up to approx 6/02 and Engine 166:
on closed contact the ground is switched to the engine control unit
As of approx. 7/02 (without Engine 166): Kickdown recognition is
performed via the signal of the accelerator pedal sensor.

 Risk of injury to skin and eyes from laser beamsMODEL allAS30.30-Z-0001-01A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis
me
Saturday, October 02, 2010 3:36:27 PMPage 30 © 2006 Mitchell Repair Information Company, LLC.


        Page 3871 of 4133

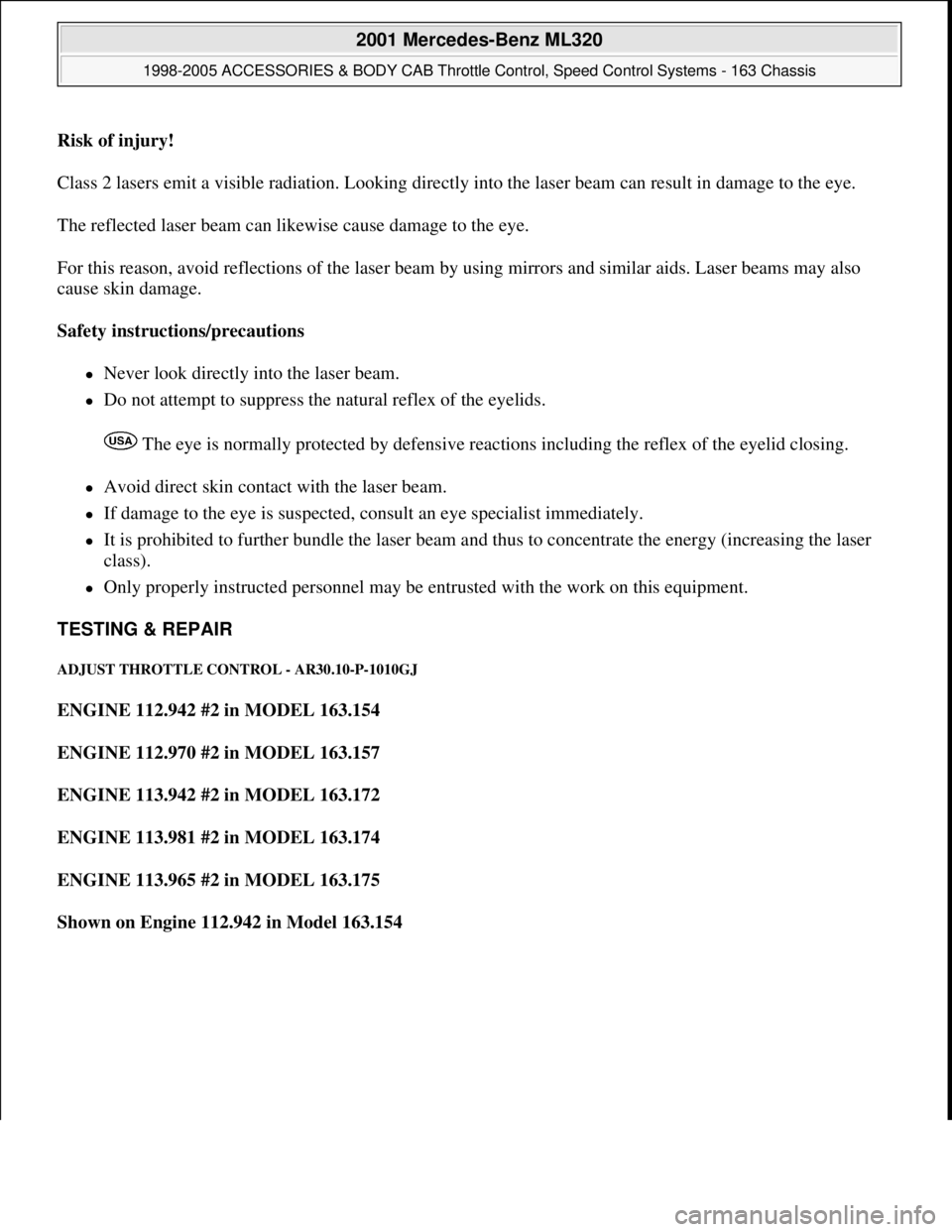

Risk of injury!
Class 2 lasers emit a visible radiation. Looking directly into the laser beam can result in damage to the eye.
The reflected laser beam can likewise cause damage to the eye.
For this reason, avoid reflections of the laser beam by using mirrors and similar aids. Laser beams may also
cause skin damage.
Safety instructions/precautions
Never look directly into the laser beam.
Do not attempt to suppress the natural reflex of the eyelids.
 The eye is normally protected by defensive reactions including the reflex of the eyelid closing.
Avoid direct skin contact with the laser beam.
If damage to the eye is suspected, consult an eye specialist immediately.
It is prohibited to further bundle the laser beam and thus to concentrate the energy (increasing the laser
class).
Only properly instructed personnel may be entrusted with the work on this equipment.
TESTING & REPAIR
ADJUST THROTTLE CONTROL - AR30.10-P-1010GJ
ENGINE 112.942 #2 in MODEL 163.154
ENGINE 112.970 #2 in MODEL 163.157
ENGINE 113.942 #2 in MODEL 163.172
ENGINE 113.981 #2 in MODEL 163.174
ENGINE 113.965 #2 in MODEL 163.175
Shown on Engine 112.942 in Model 163.154

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis
me
Saturday, October 02, 2010 3:36:27 PMPage 31 © 2006 Mitchell Repair Information Company, LLC.


        Page 3872 of 4133

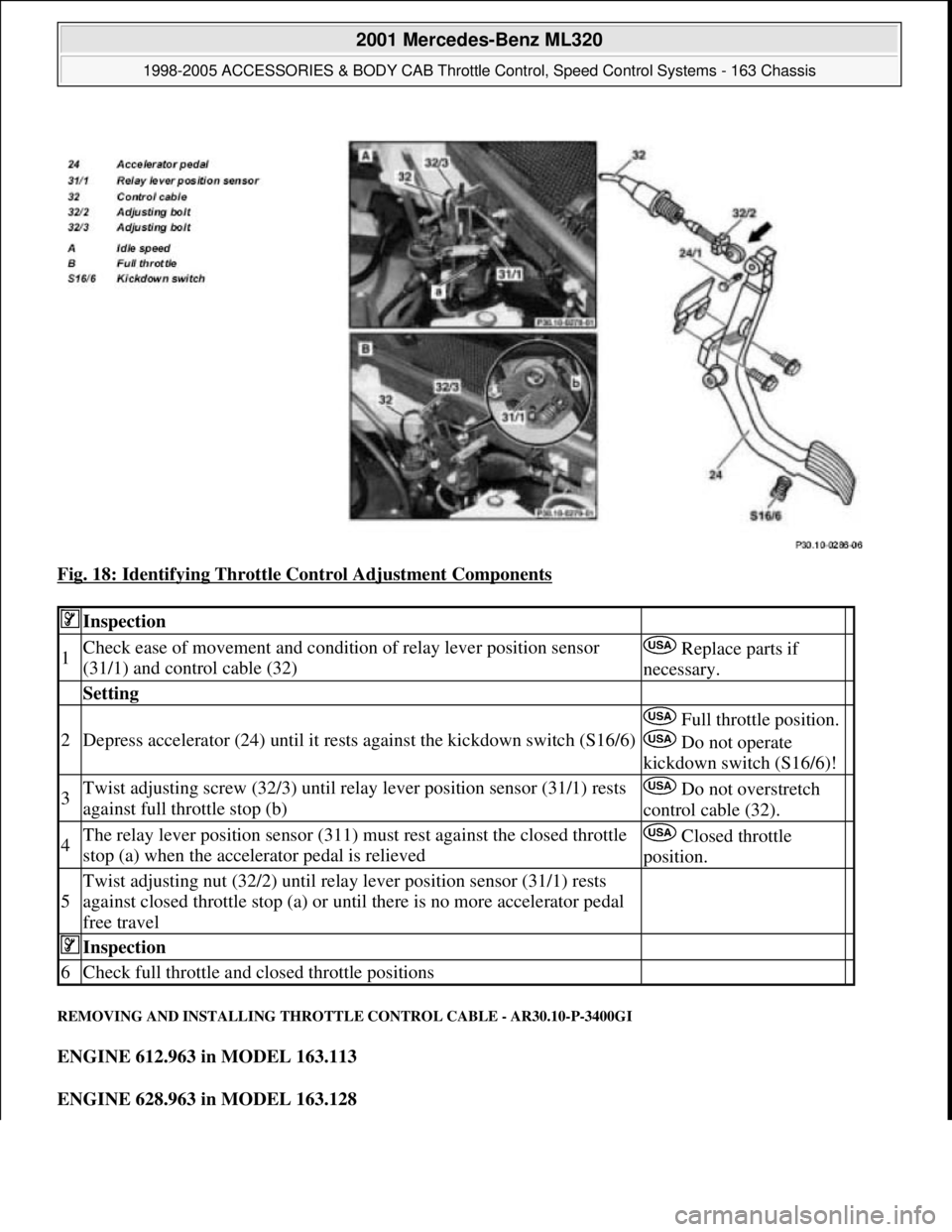

Fig. 18: Identifying Throttle Control Adjustment Components
