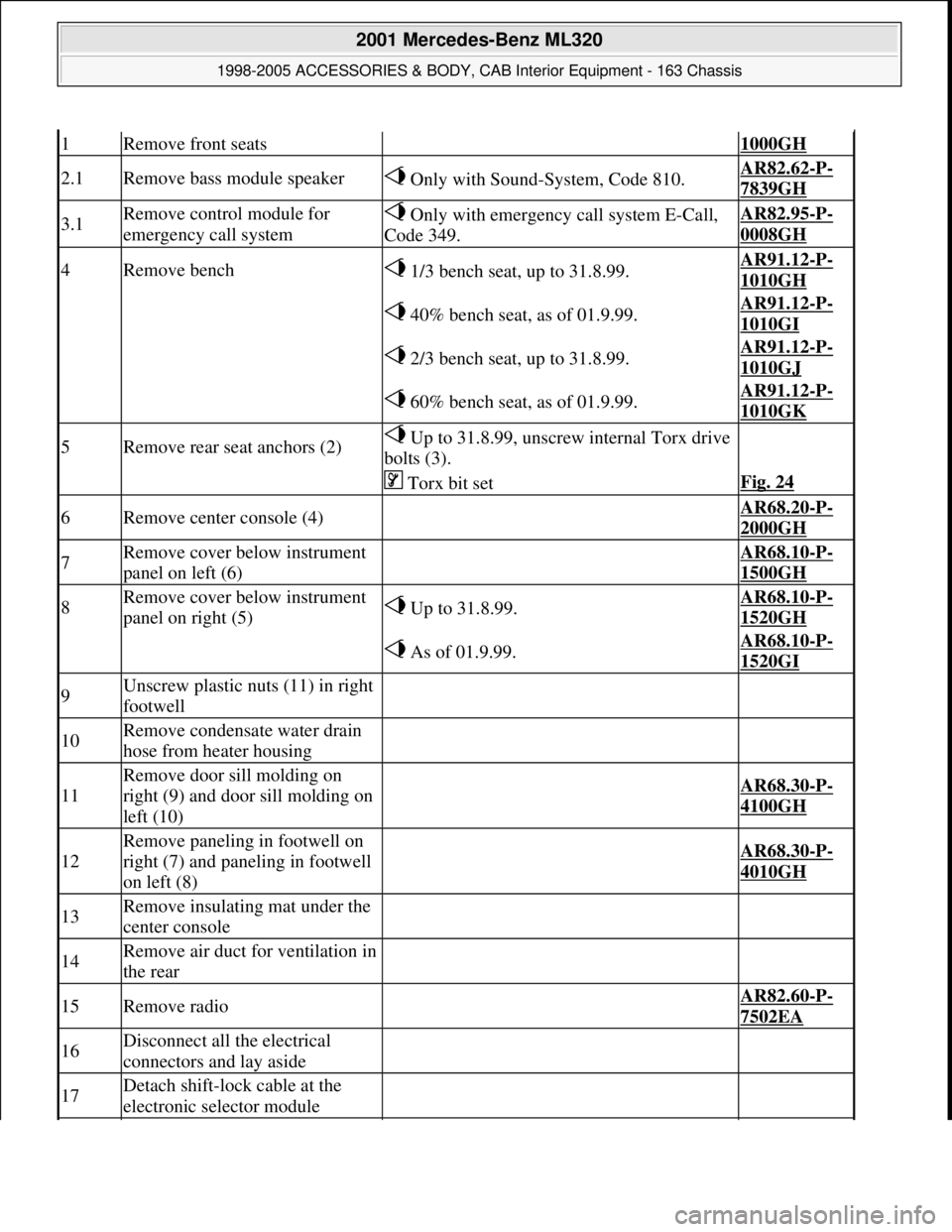

Page 3561 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 1Remove front seats 1000GH 2.1Remove bass module speaker Only with Sound-System, Code 810.AR82.62-P- 7839GH 3.1Remove control module for emergency call system Only with emergency call system E-Call

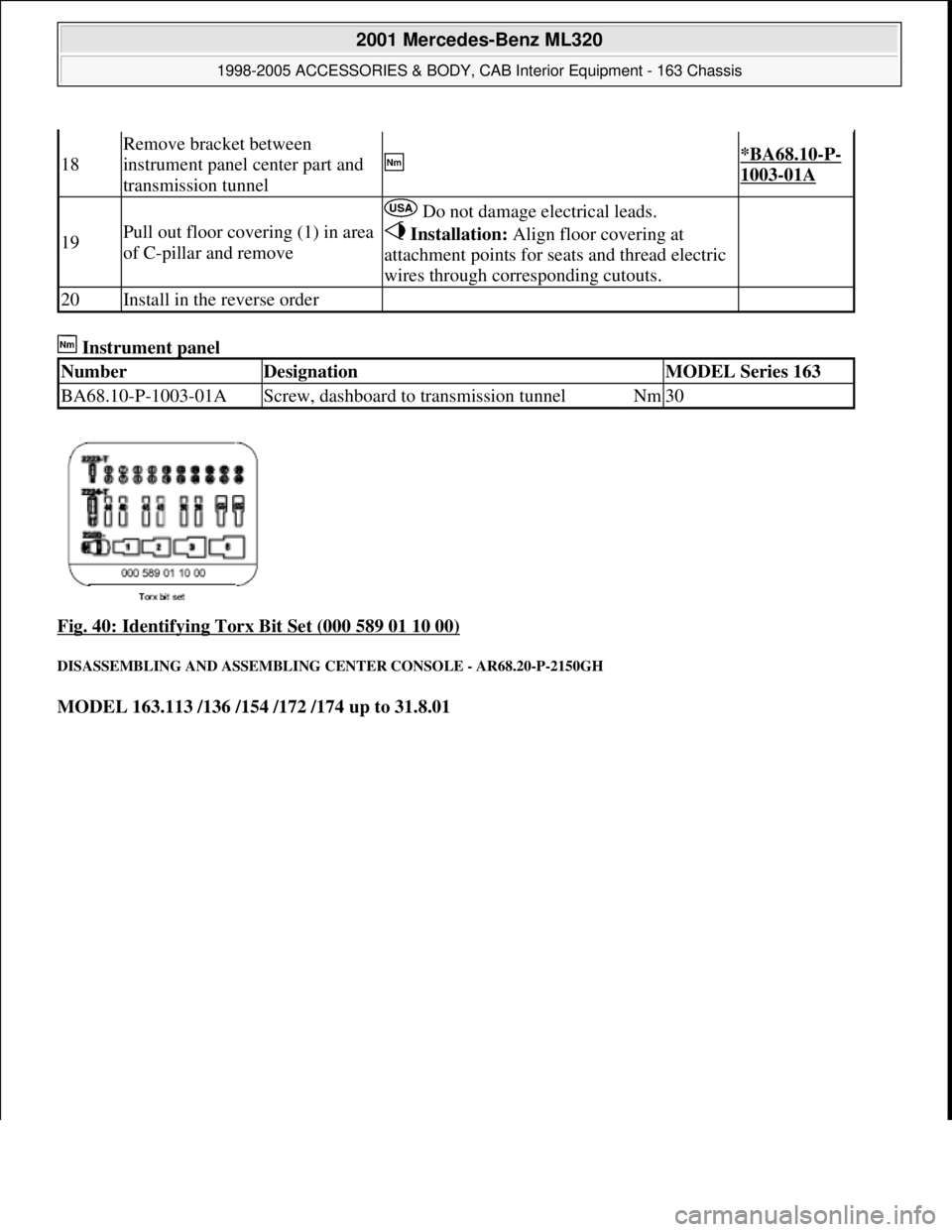

Page 3562 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Instrument panel Fig. 40: Identifying Torx Bit Set (000 589 01 10 00) DISASSEMBLING AND ASSEMBLING CENTER CONSOLE - AR68.20-P-2150GH MODEL 163.113 /136 /154 /172 /174 up to 31.8.01 18 Remove brac

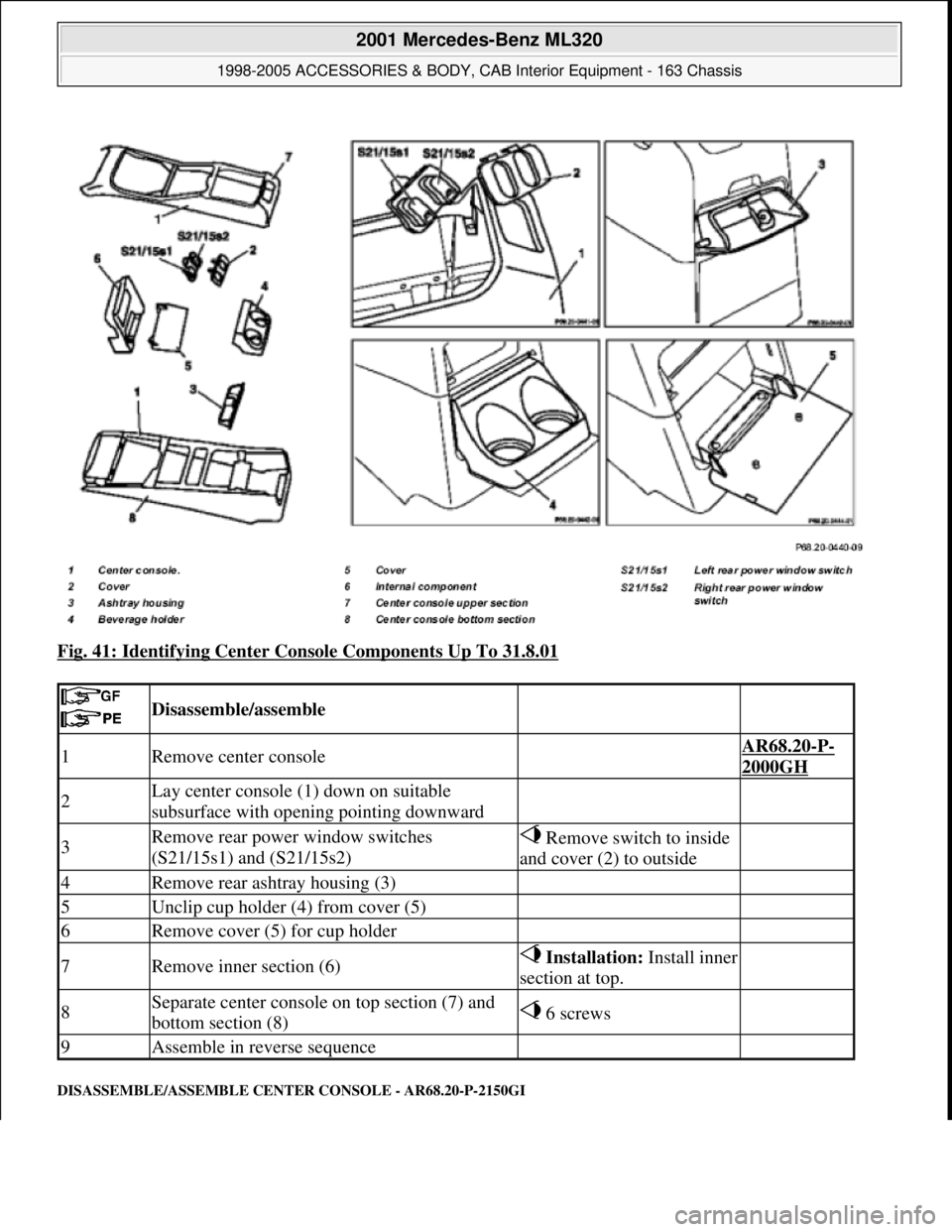

Page 3563 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 41: Identifying Center Console Components Up To 31.8.01 DISASSEMBLE/ASSEMBLE CENTER CONSOLE - AR68.20-P-2150GI Disassemble/assemble 1Remove center console AR68.20-P- 2000GH 2Lay center cons

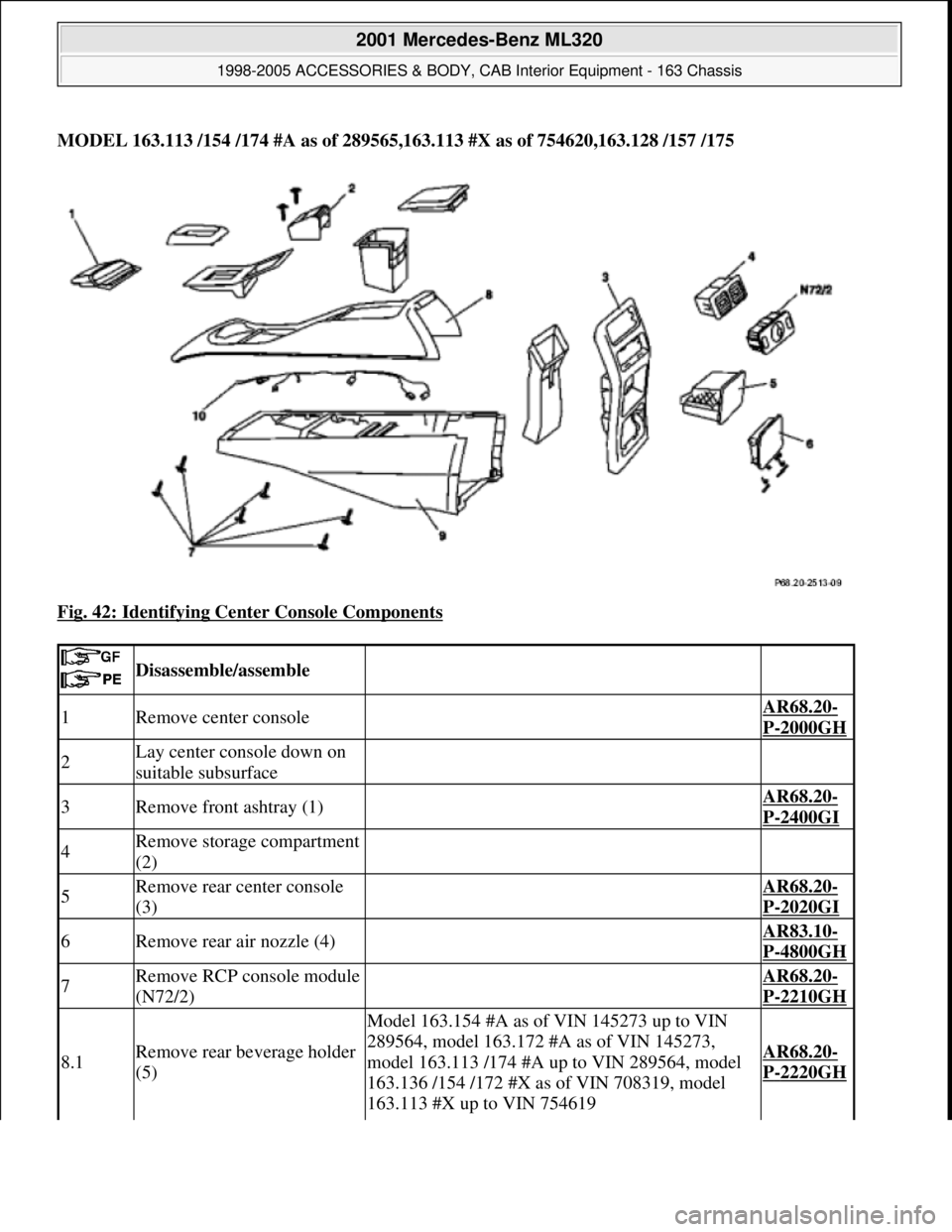

Page 3564 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual MODEL 163.113 /154 /174 #A as of 289565,163.113 #X as of 754620,163.128 /157 /175 Fig. 42: Identifying Center Console Components Disassemble/assemble 1Remove center console AR68.20- P-2000GH

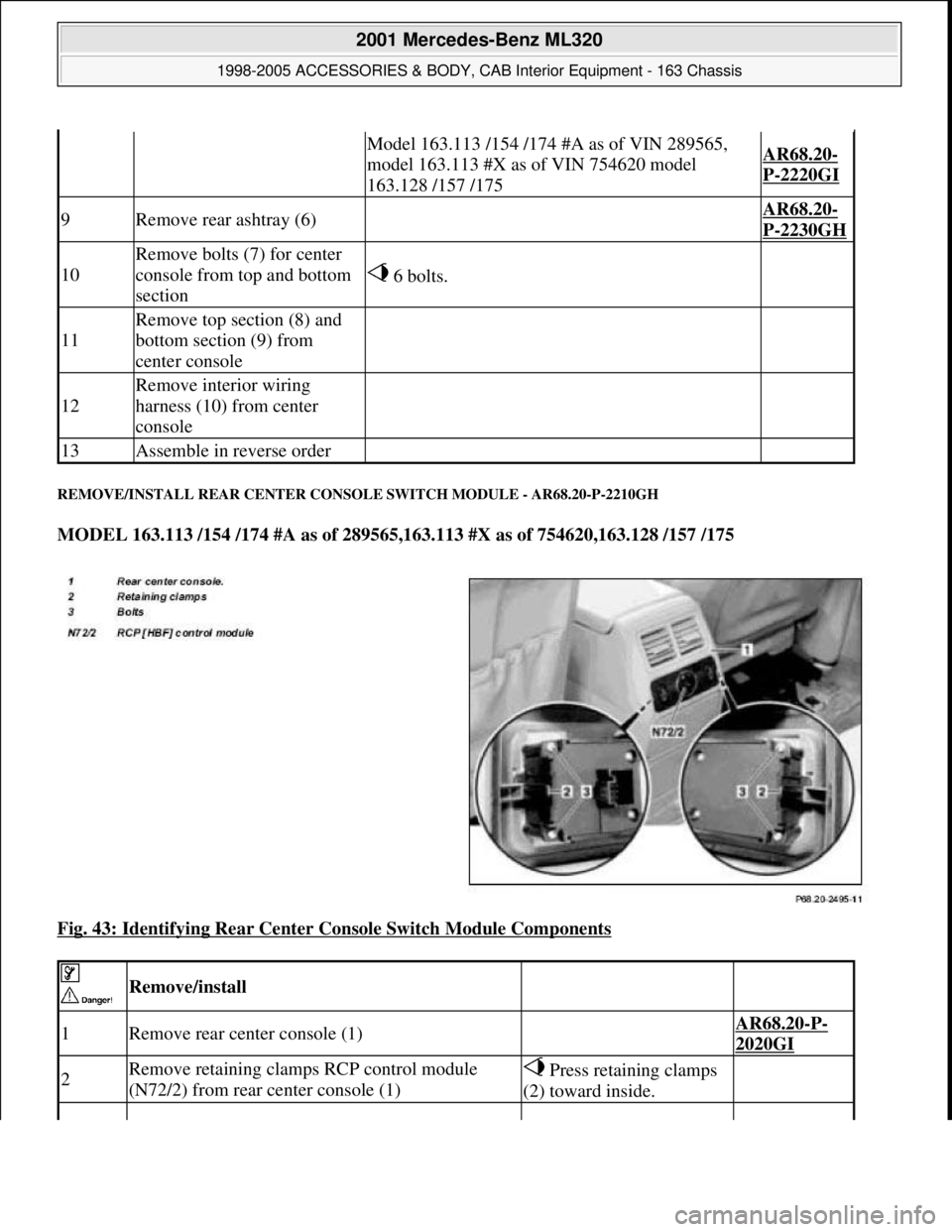

Page 3565 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVE/INSTALL REAR CENTER CONSOLE SWITCH MODULE - AR68.20-P-2210GH MODEL 163.113 /154 /174 #A as of 289565,163.113 #X as of 754620,163.128 /157 /175 Fig. 43: Identifying Rear Center Console Switch

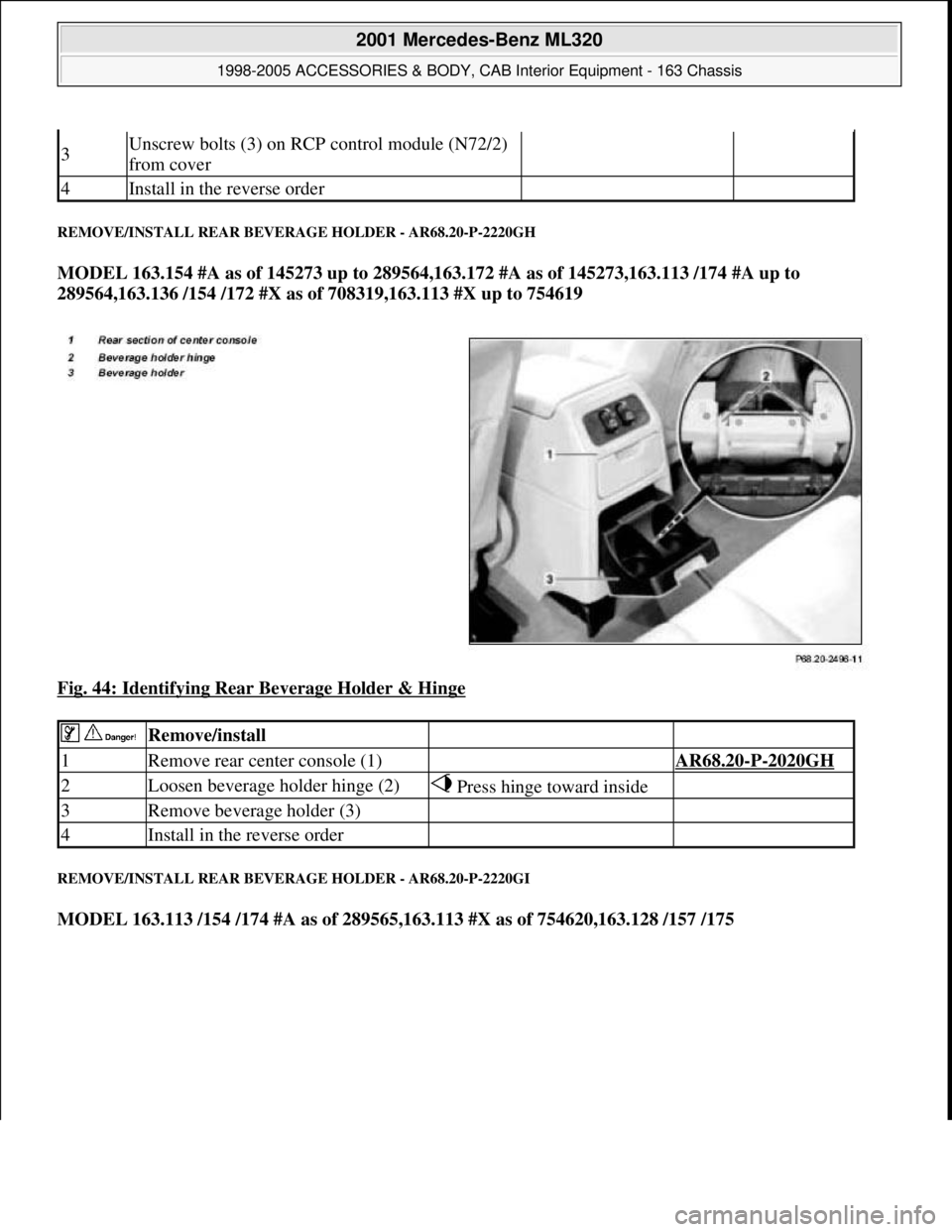

Page 3566 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVE/INSTALL REAR BEVERAGE HOLDER - AR68.20-P-2220GH MODEL 163.154 #A as of 145273 up to 289564,163.172 #A as of 145273,163.113 /174 #A up to 289564,163.136 /154 /172 #X as of 708319,163.113 #X up

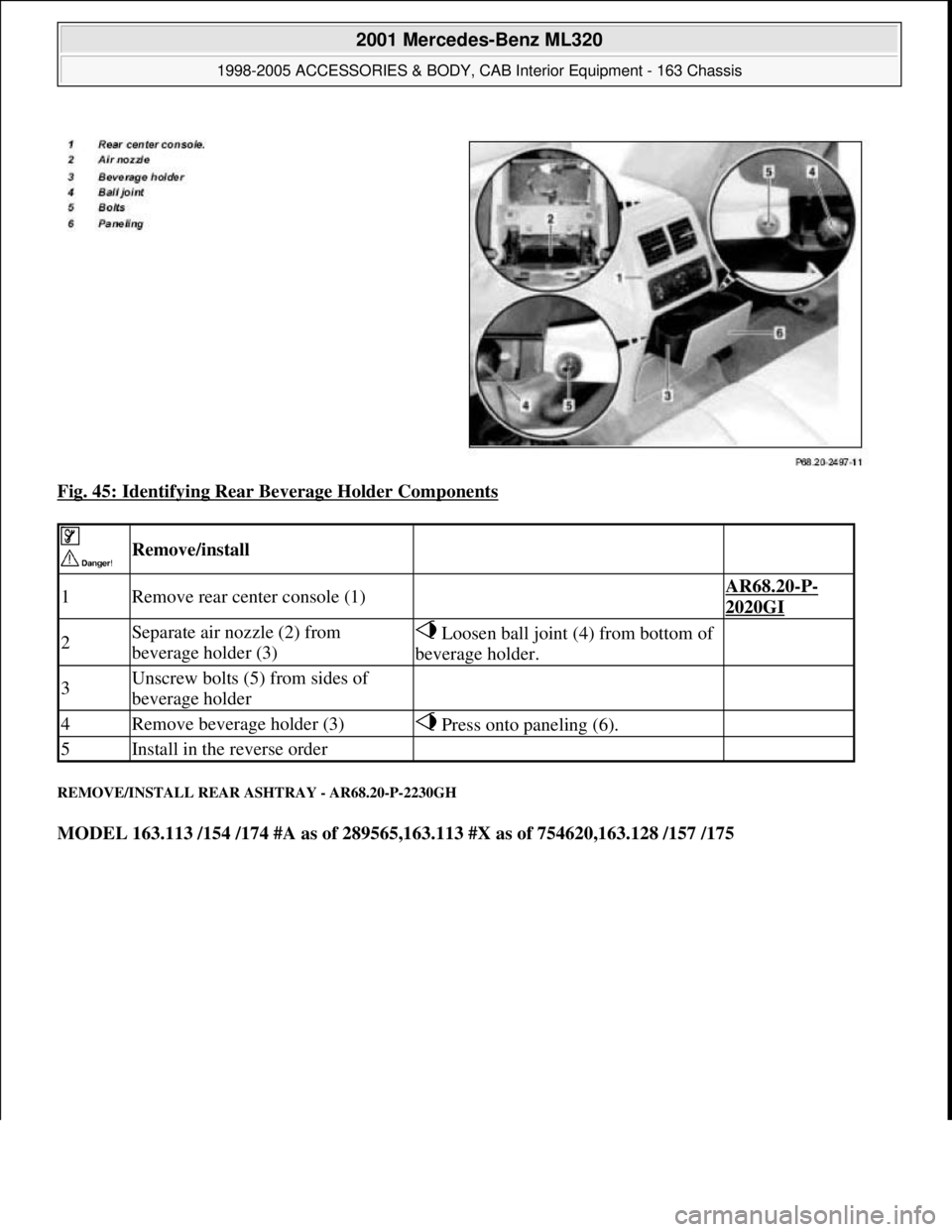

Page 3567 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 45: Identifying Rear Beverage Holder Components REMOVE/INSTALL REAR ASHTRAY - AR68.20-P-2230GH MODEL 163.113 /154 /174 #A as of 289565,163.113 #X as of 754620,163.128 /157 /175 Remove/inst

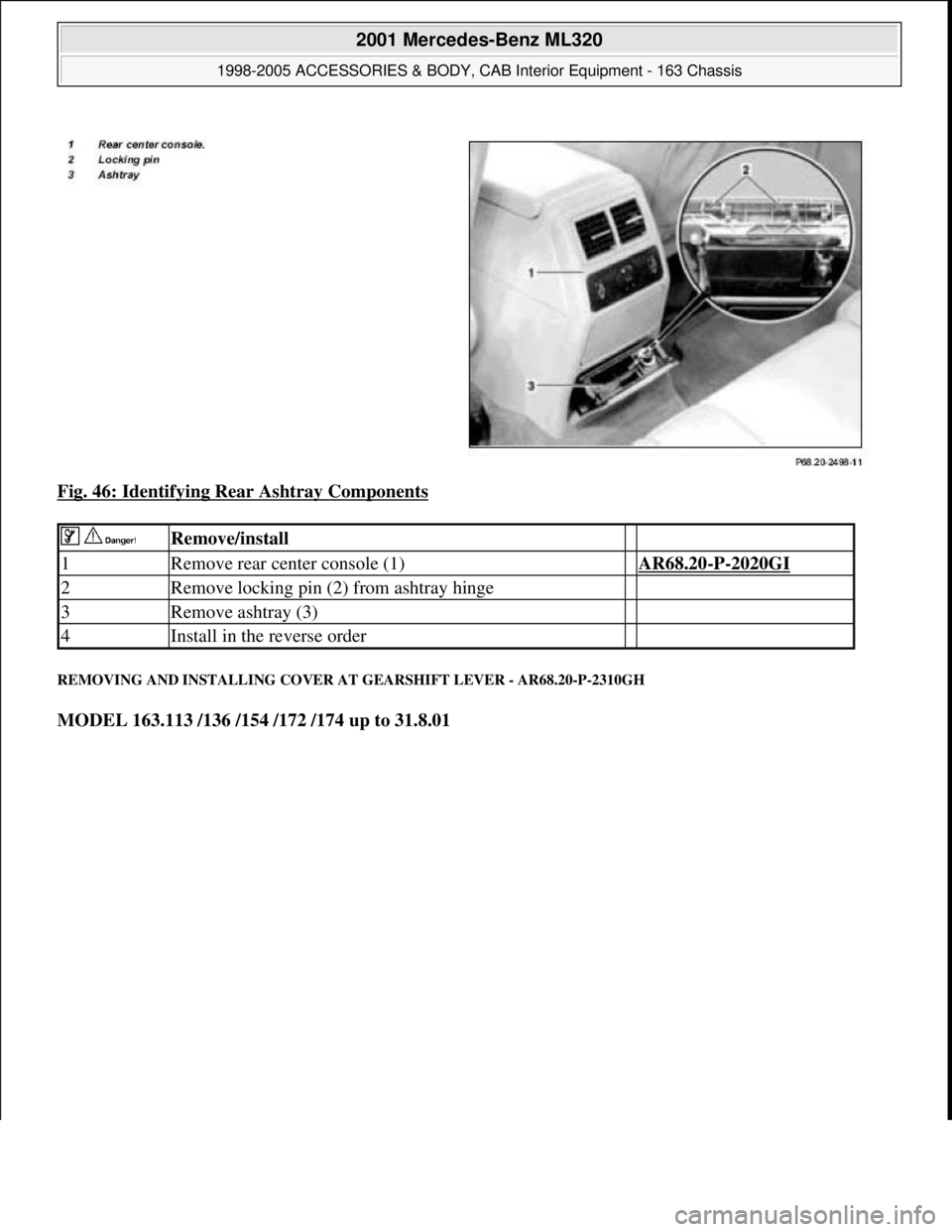

Page 3568 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 46: Identifying Rear Ashtray Components REMOVING AND INSTALLING COVER AT GEARSHIFT LEVER - AR68.20-P-2310GH MODEL 163.113 /136 /154 /172 /174 up to 31.8.01 Remove/install 1Remove rear cente
