Page 2945 of 4133

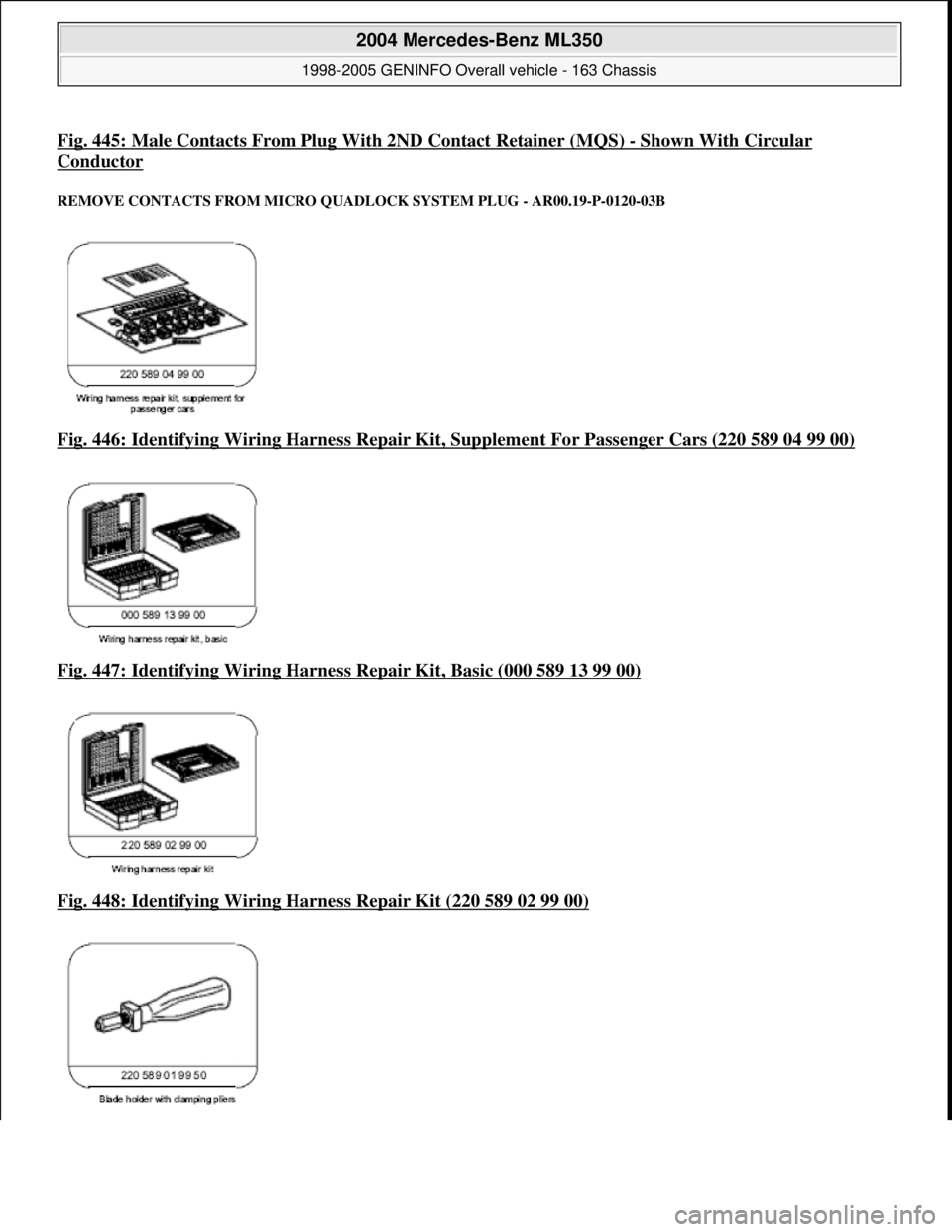

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 445: Male Contacts From Plug With 2ND Contact Retainer (MQS) -Shown With Circular Conductor REMOVE CONTACTS FROM MICRO QUADLOCK SYSTEM PLUG - AR00.19-P-0120-03B Fig. 446: Identifying Wiring

Page 2946 of 4133

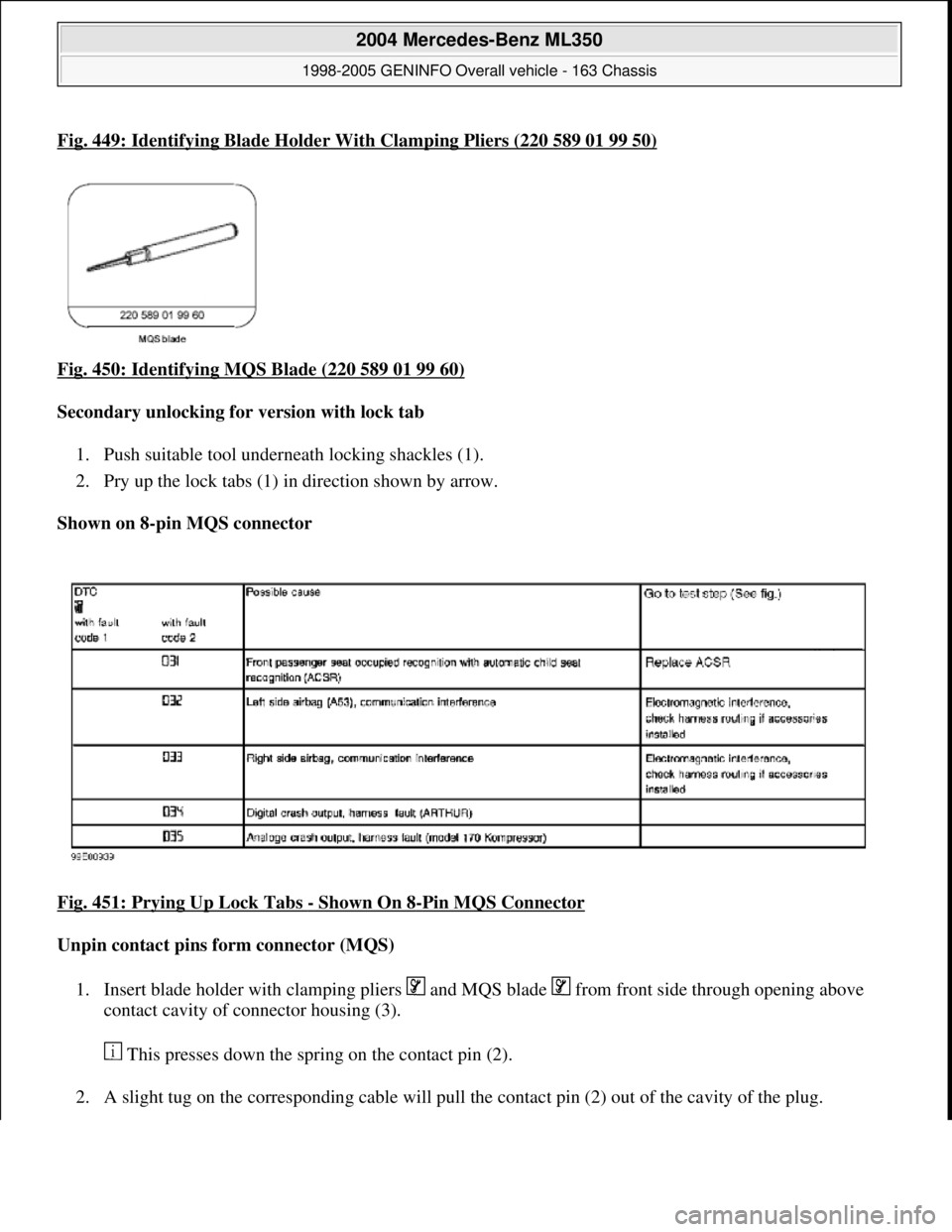

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 449: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50) Fig. 450: Identifying MQS Blade (220 589 01 99 60) Secondary unlocking for version with lock tab 1. Push suitable tool

Page 2947 of 4133

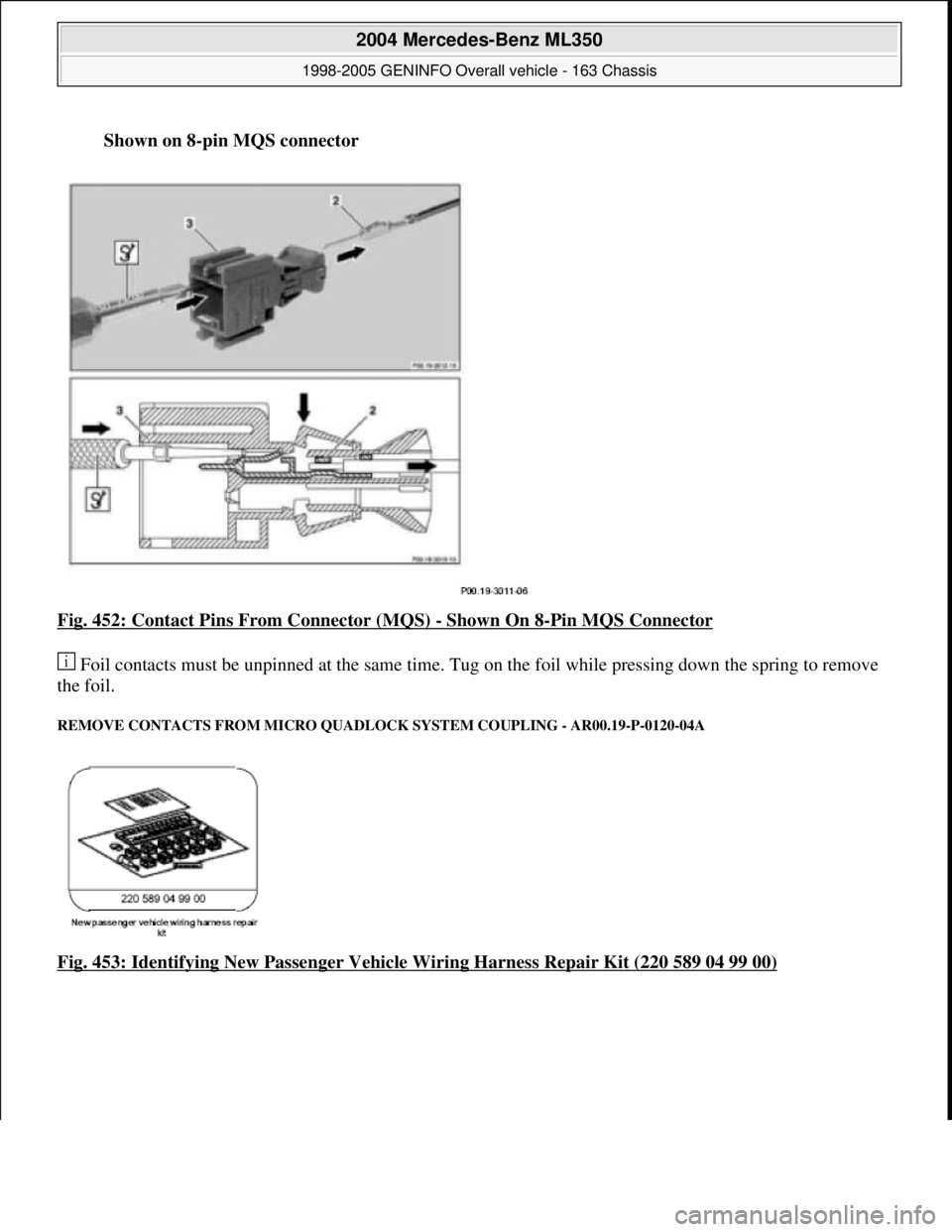

MERCEDES-BENZ ML320 1997 Complete Repair Manual Shown on 8-pin MQS connector Fig. 452: Contact Pins From Connector (MQS) - Shown On 8-Pin MQS Connector Foil contacts must be unpinned at the same time. Tug on the foil while pressing down the sp

Page 2948 of 4133

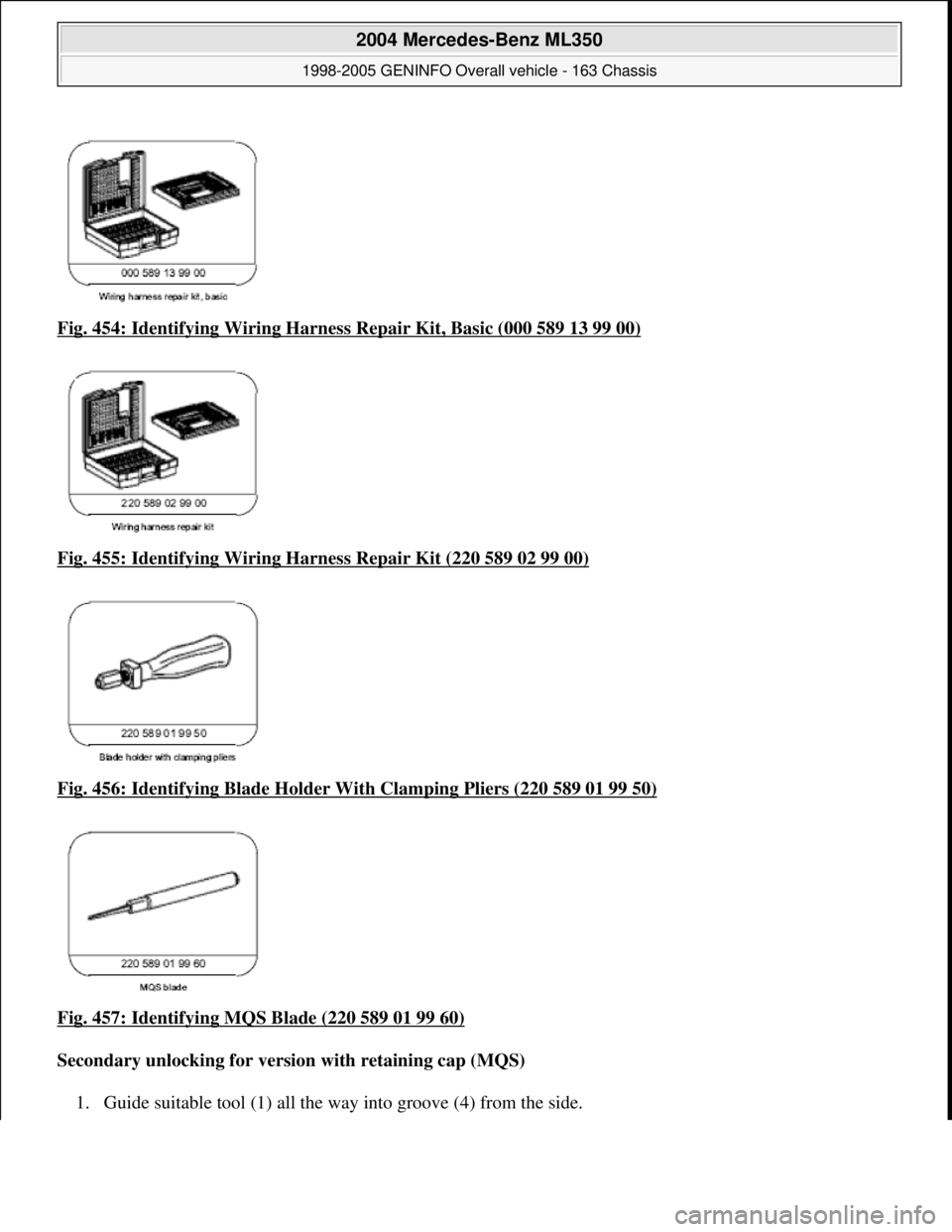

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 454: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00) Fig. 455: Identifying Wiring Ha rness Repair Kit (220 589 02 99 00) Fig. 456: Identifying Blad e Holder With Clamping

Page 2949 of 4133

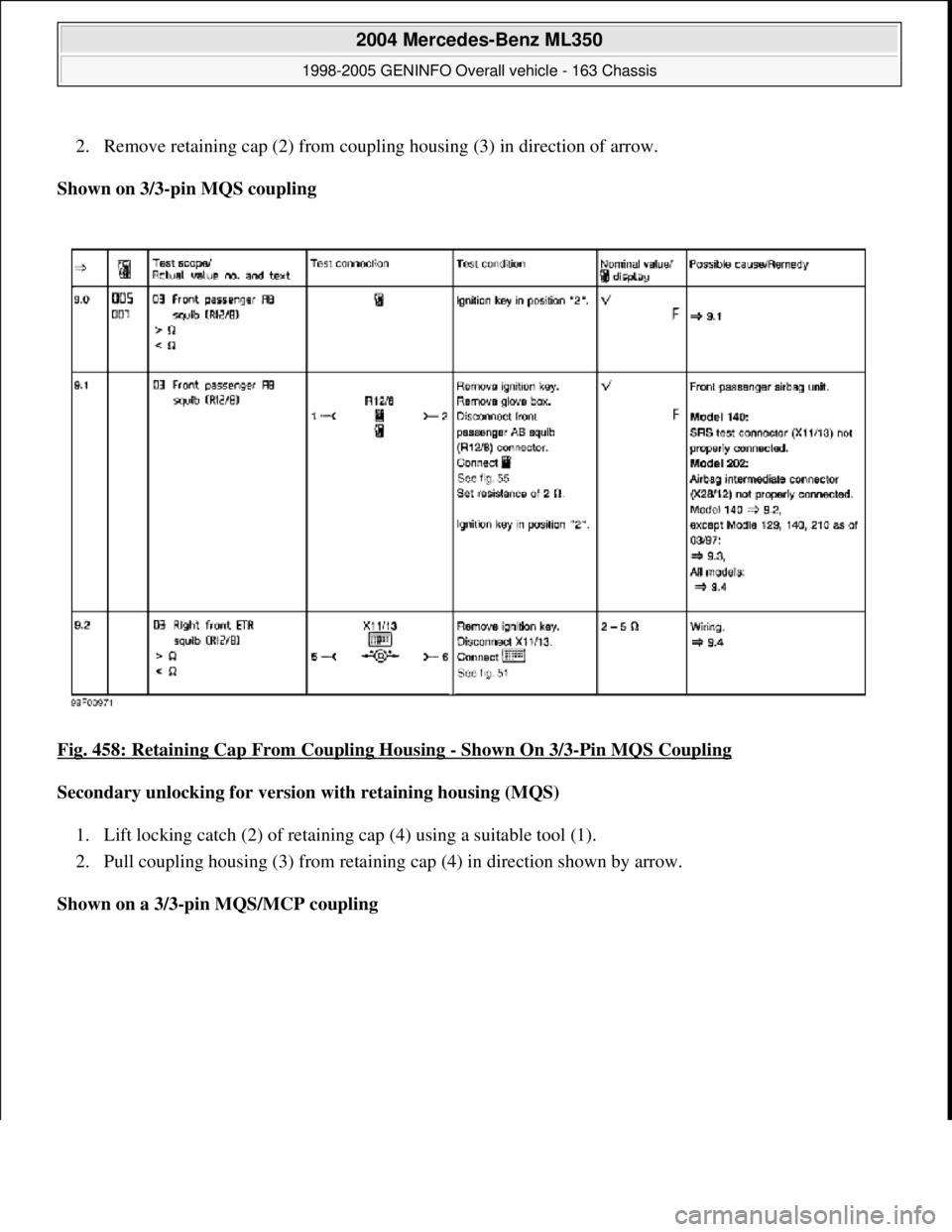

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2. Remove retaining cap (2) from coupli ng housing (3) in direction of arrow. Shown on 3/3-pin MQS coupling Fig. 458: Retaining Cap From Coupling Housing - Shown On 3/3-Pin MQS Coupling Sec

Page 2950 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 459: Pulling Coupling Housing From Retaining Cap - Shown On A 3/3-Pin MQS/MCP Coupling Secondary unlocking for version with cap (MQS) 1. Detach cover (1) from cap (2) in direct ion of arr

Page 2951 of 4133

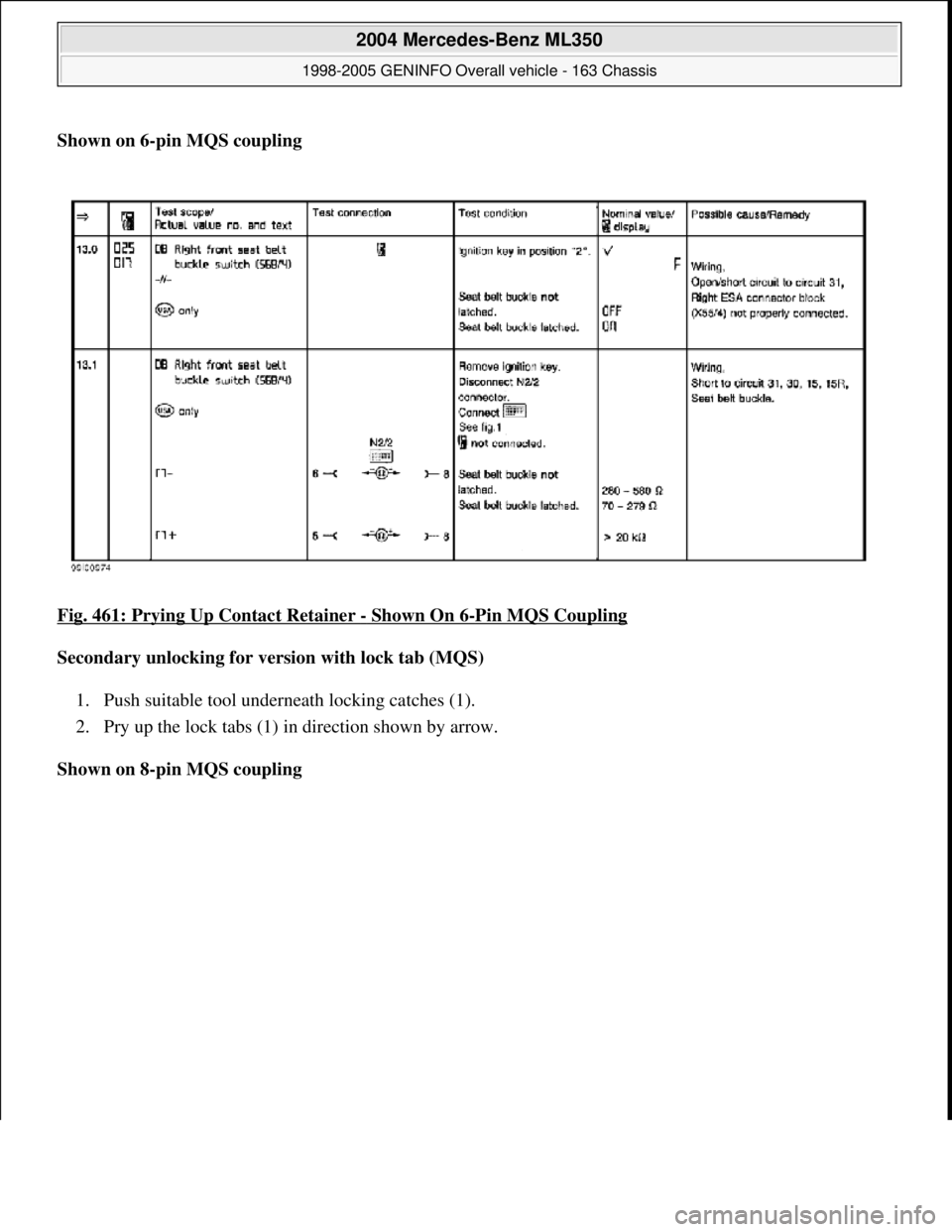

MERCEDES-BENZ ML320 1997 Complete Repair Manual Shown on 6-pin MQS coupling Fig. 461: Prying Up Contact Retainer - Shown On 6-Pin MQS Coupling Secondary unlocking for version with lock tab (MQS) 1. Push suitable tool undern eath locking

Page 2952 of 4133

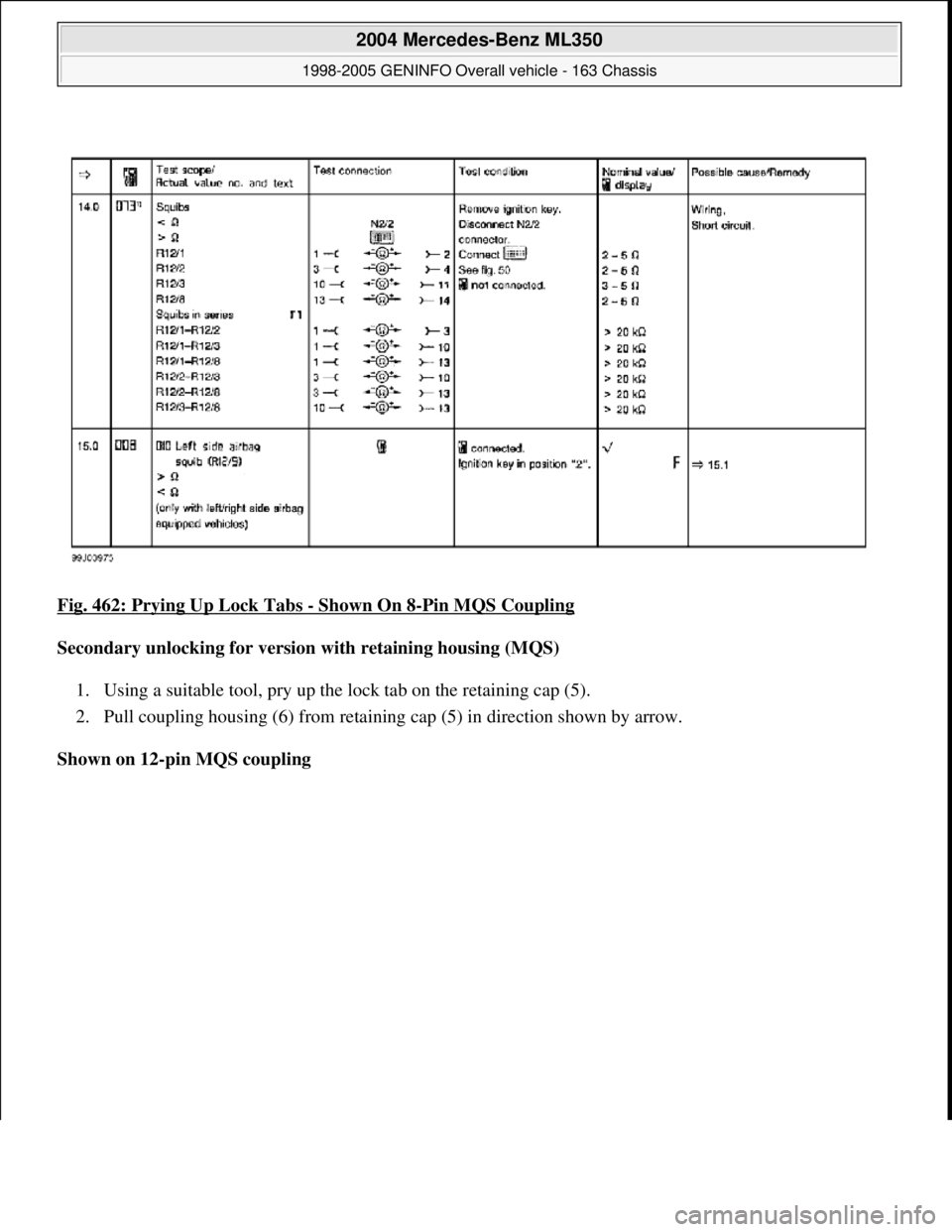

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 462: Prying Up Lock Tabs - Shown On 8-Pin MQS Coupling Secondary unlocking for version with retaining housing (MQS) 1. Using a suitable tool, pry up the lock tab on the retaining cap (5).
