Page 3033 of 4133

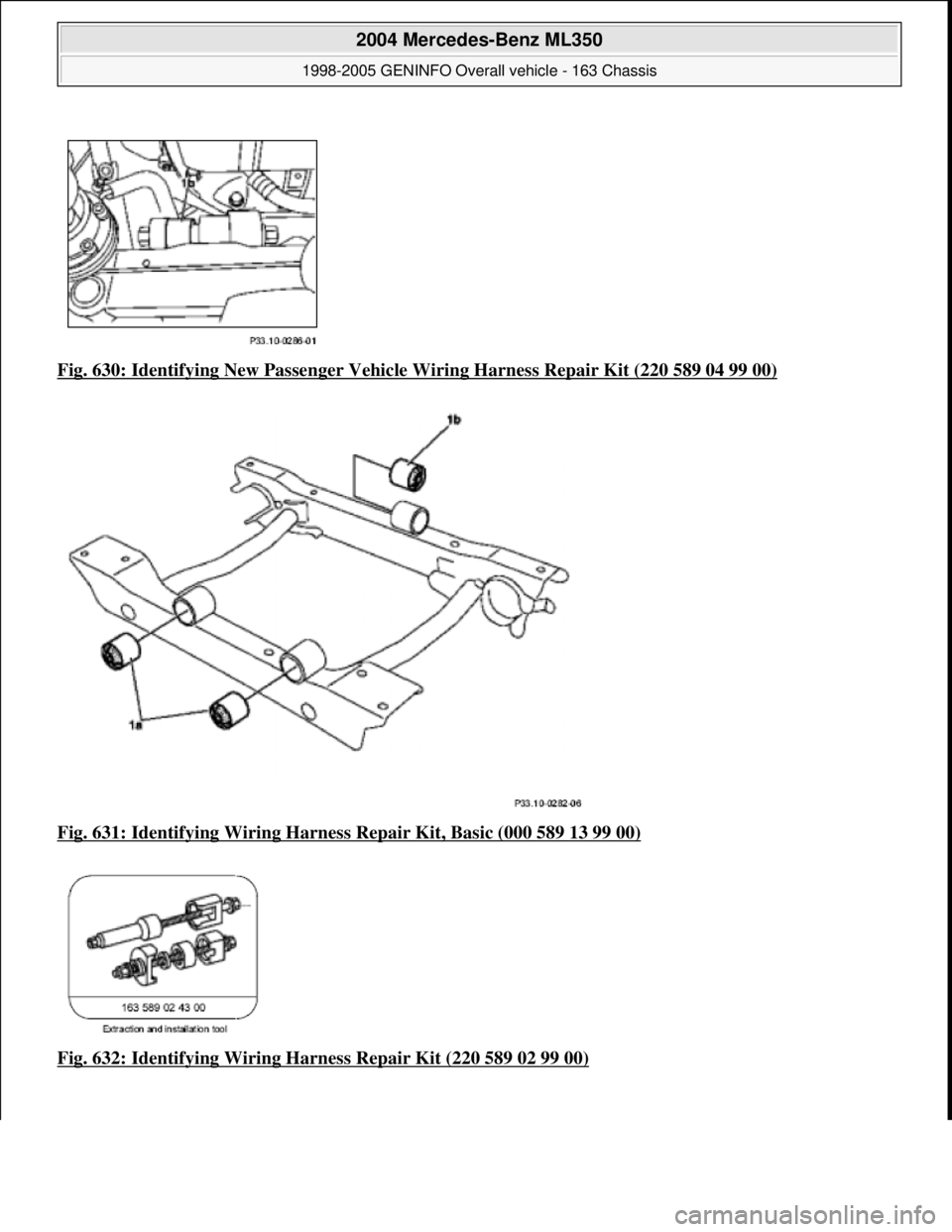

Fig. 630: Identifying New Passe nger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)
Fig. 631: Identifying Wiring Harness   Repair Kit, Basic (000 589 13 99 00)

Fig. 632: Identifying Wiring Ha  rness Repair Kit (220 589 02 99 00)

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:51 PMPage 388 © 2006 Mitchell Repair Information Company, LLC.


        Page 3034 of 4133

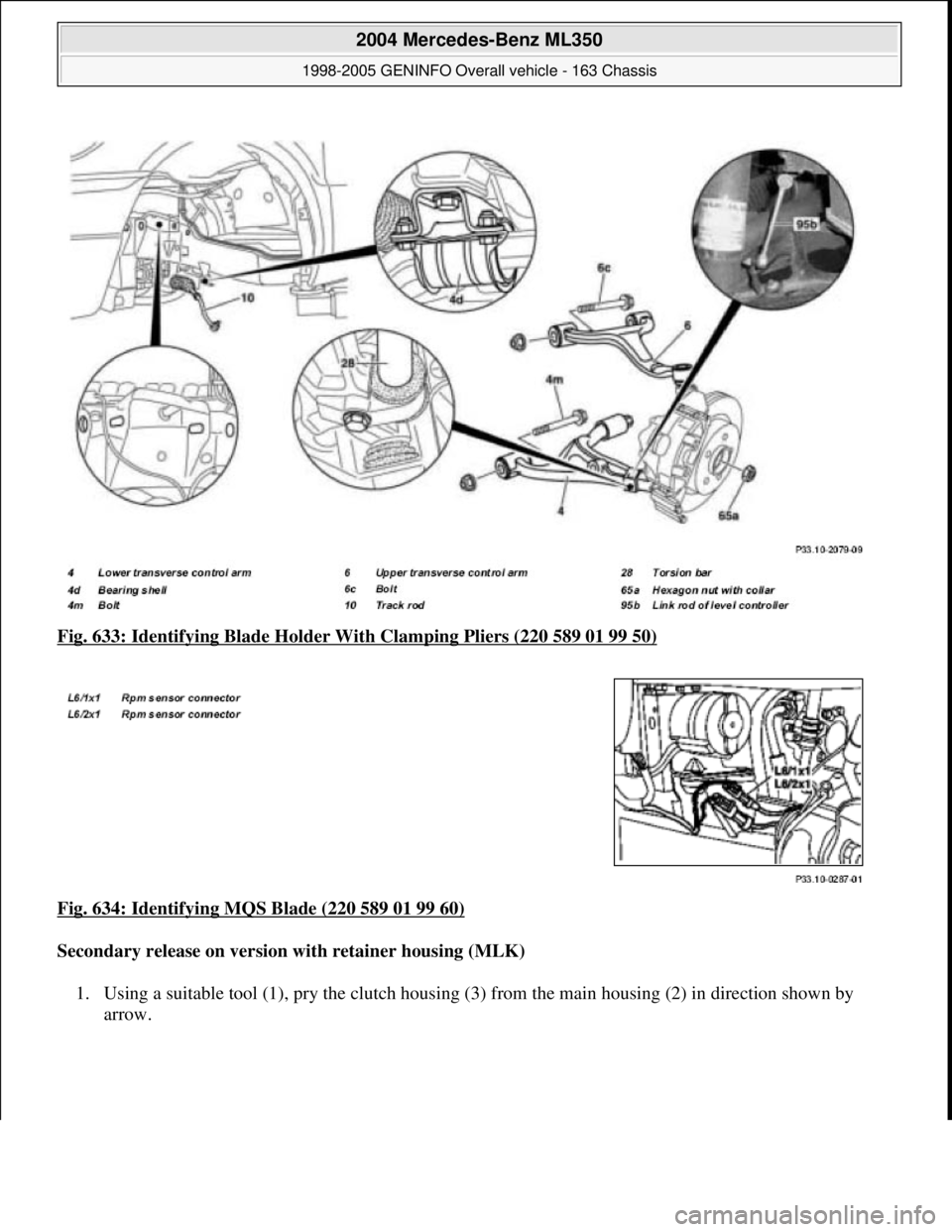

Fig. 633: Identifying Blad e Holder With Clamping Pliers (220 589 01 99 50)
Fig. 634: Identifying MQS Blade (220 589 01 99 60)

Secondary release on version with retainer housing (MLK)
1. Using a suitable tool (1), pry the clutch housing   (3) from the main housing (2) in direction shown by
arrow.

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:51 PMPage 389 © 2006 Mitchell Repair Information Company, LLC.


        Page 3035 of 4133
Fig. 635: Prying Clutch Housing From Main Housing - Shown On A 2-Pin MLK Plug
 During assembly, make sure that the gasket (4) is not damaged. Otherwise, water entering the
connector may lead to contact problems.
Shown on a 2-pin MLK plug
Secondary release on design with cap (MLK)
1. Using a suitable tool (1), pry up lock tab (2) for cap (3).
2. Slowly pull the plug housing (4) from the cap (3) in direction shown by arrow.
 The retaining clamp (5) is under tension due to the lock tab.
3. Before installing the cap (3), center the retaining clamp (5) in the groove and hold it down.
Shown on an 8-pin MLK plug

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:51 PMPage 390 © 2006 Mitchell Repair Information Company, LLC.


        Page 3036 of 4133

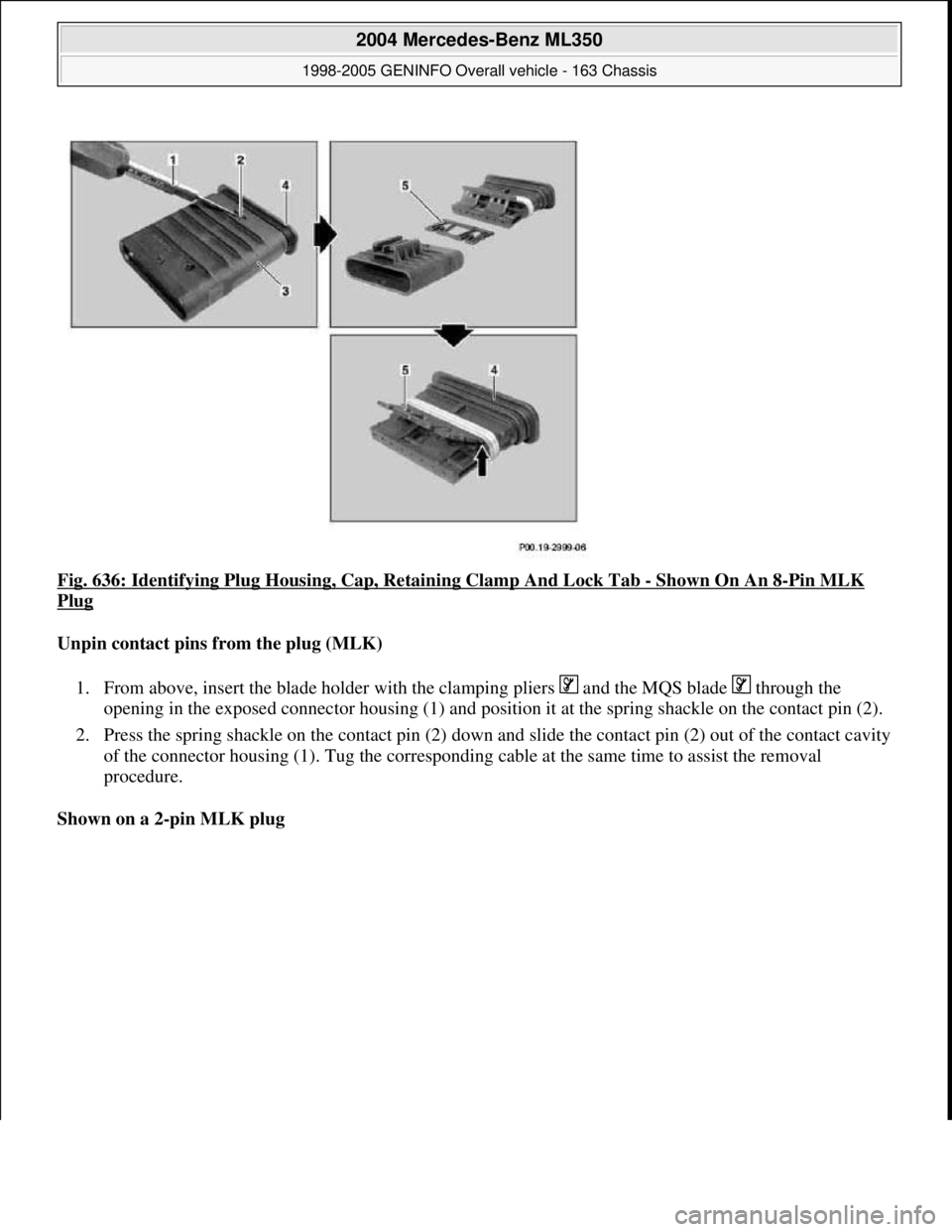

Fig. 636: Identifying Plug Housing, Cap, Retaining Clamp And Lock Tab - Shown On An 8-Pin MLK
Plug
Unpin contact pins from the plug (MLK)
1. From above, insert the blade holder with the clamping pliers   and the MQS blade   through the
opening in the exposed connector housing (1) and position it at the spring shackle on the contact pin (2).
2. Press the spring shackle on the contact pin (2) down and slide the contact pin (2) out of the contact cavity
of the connector housing (1). Tug the corresponding cable at the same time to assist the removal
procedure.
Shown on a 2-pin MLK plug

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:51 PMPage 391 © 2006 Mitchell Repair Information Company, LLC.


        Page 3037 of 4133

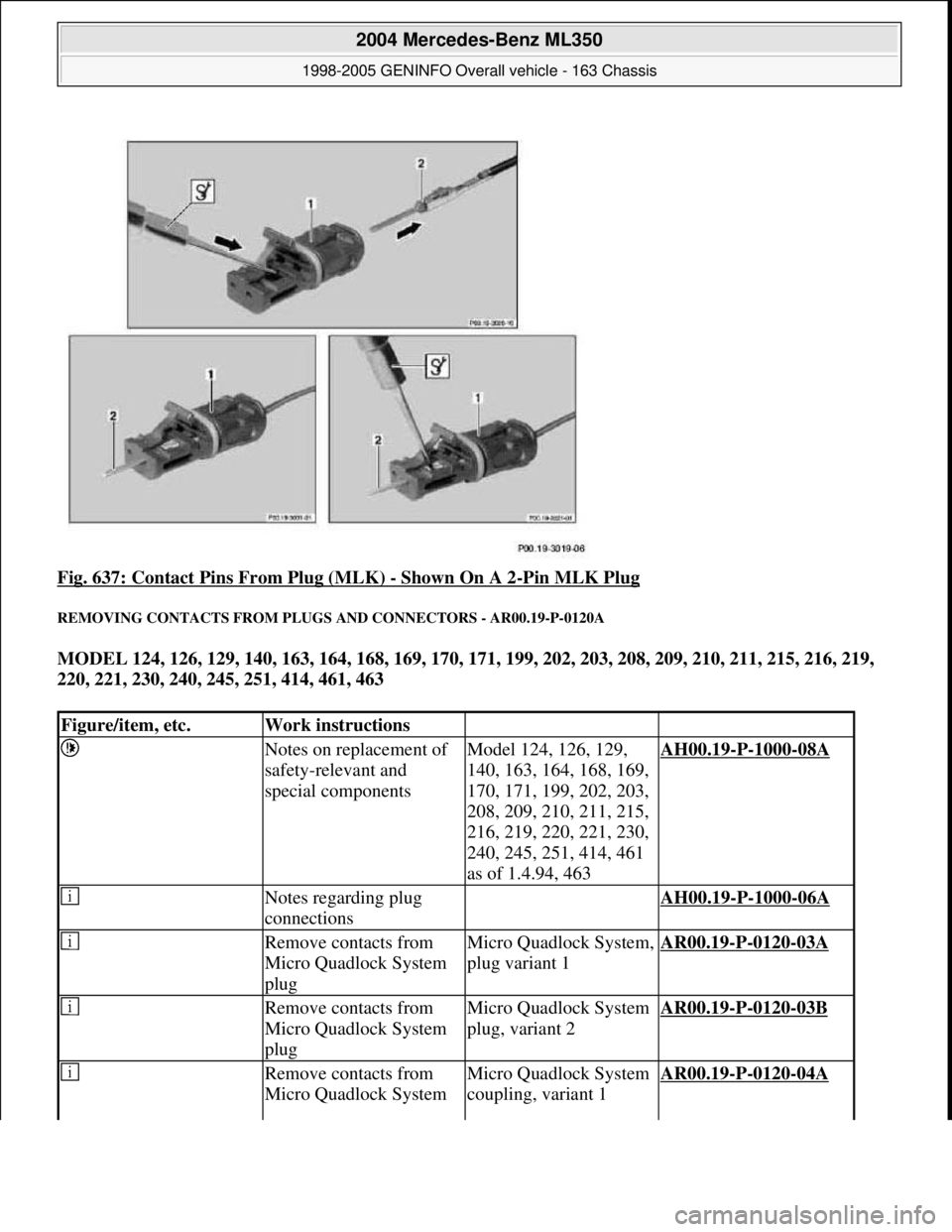

Fig. 637: Contact Pins From Plug (MLK) - Shown On A 2-Pin MLK Plug
REMOVING CONTACTS FROM PLUGS AND CONNECTORS - AR00.19-P-0120A
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Figure/item, etc.Work instructions
 Notes on replacement of
safety-relevant and
special componentsModel 124, 126, 129,
140, 163, 164, 168, 169,
170, 171, 199, 202, 203,
208, 209, 210, 211, 215,
216, 219, 220, 221, 230,
240, 245, 251, 414, 461
as of 1.4.94, 463AH00.19-P-1000-08A
 Notes regarding plug
connections AH00.19-P-1000-06A
 Remove contacts from
Micro Quadlock System
plugMicro Quadlock System,
plug variant 1AR00.19-P-0120-03A
 Remove contacts from
Micro Quadlock System
plugMicro Quadlock System
plug, variant 2AR00.19-P-0120-03B
 Remove contacts from
Micro Quadlock System Micro Quadlock System
coupling, variant 1AR00.19-P-0120-04A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:51 PMPage 392 © 2006 Mitchell Repair Information Company, LLC.


        Page 3038 of 4133

coupling
 Remove contacts from
Micro Quadlock System
couplingMicro Quadlock System,
coupling variant 2AR00.19-P-0120-04B
 Remove contacts from E
95 coupling AR00.19-P-0120-05A
 Remove contacts from
Junior Power Timer
coupling AR00.19-P-0120-07A
 Remove contacts from
Junior Power Timer plug AR00.19-P-0120-08A
 Remove contacts from
sensor laminated contact
plugSpade-type sensor
contact plug
Design 97AR00.19-P-0120-01A
 Remove contacts from
sensor laminated contact
couplingSpade-type sensor
contact coupling,
Design 97AR00.19-P-0120-02A
 Remove contacts from
sensor laminated contact
plugSpade-type sensor
contact plug
Variant 2AR00.19-P-0120-01B
 Remove contacts from
sensor laminated contact
couplingSpade-type sensor
contact coupling, variant
2AR00.19-P-0120-02B
 Remove contacts from
standard power timer
coupling AR00.19-P-0120-10A
 Remove contacts from
standard power timer plug AR00.19-P-0120-11A
 Remove contacts from
FIN sensor contact plug AR00.19-P-0120-13A
 Remove contacts from
FIN sensor contact
coupling AR00.19-P-0120-12A
 Remove contacts from
maxi power timer
coupling AR00.19-P-0120-14A
 Remove contacts from
round plug contact 2.5-
plugRound plug contact 2.5
variant 1AR00.19-P-0120-16A
 Remove contacts from
round plug contact 2.5-
couplingRound plug contact 2.5,
variant 1AR00.19-P-0120-15A
 Remove contacts from 2.5
solder contact plug round
plug contact AR00.19-P-0120-18A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:51 PMPage 393 © 2006 Mitchell Repair Information Company, LLC.


        Page 3039 of 4133

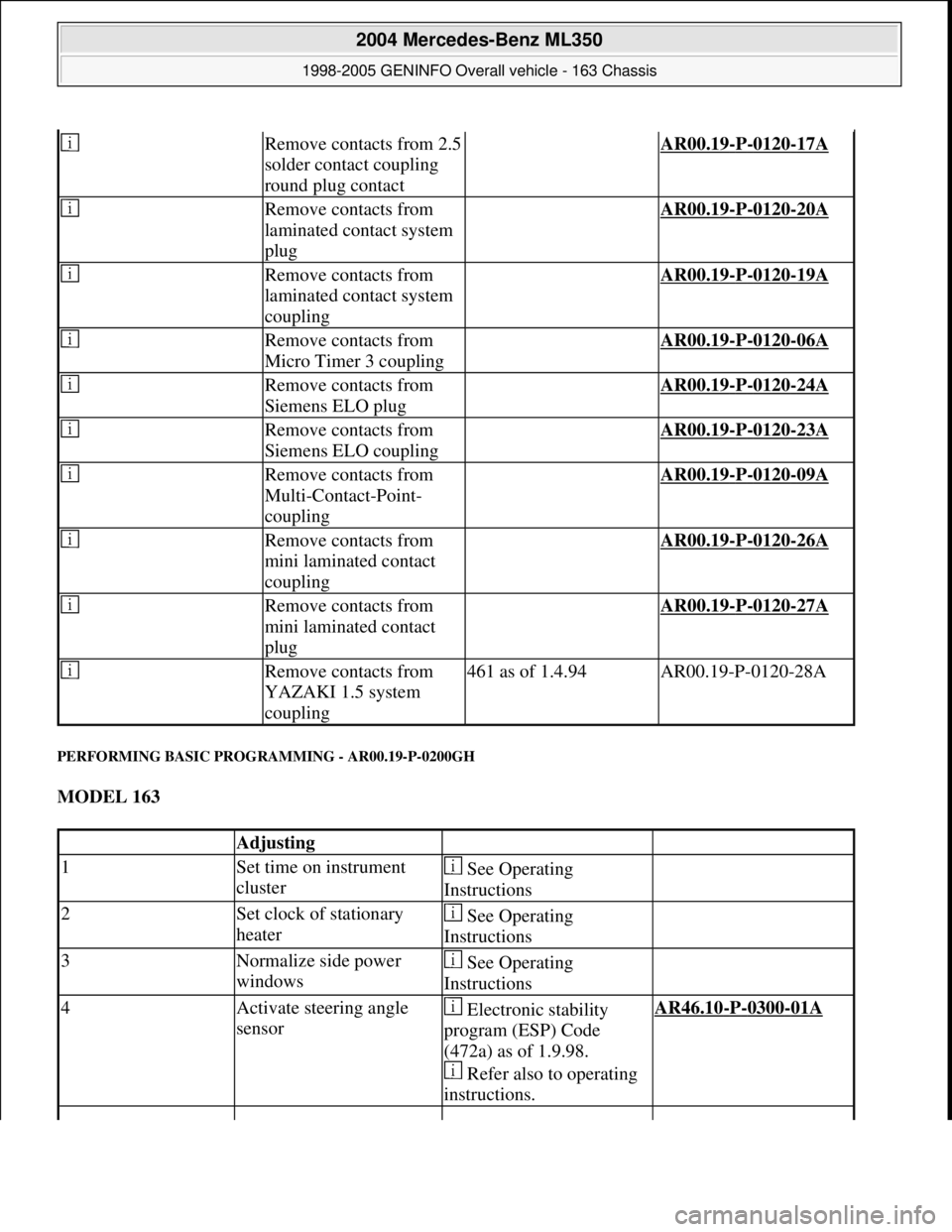

PERFORMING BASIC PROGRAMMING - AR00.19-P-0200GH
MODEL 163
 Remove contacts from 2.5
solder contact coupling
round plug contact AR00.19-P-0120-17A
 Remove contacts from
laminated contact system
plug AR00.19-P-0120-20A
 Remove contacts from
laminated contact system
coupling AR00.19-P-0120-19A
 Remove contacts from
Micro Timer 3 coupling AR00.19-P-0120-06A
 Remove contacts from
Siemens ELO plug AR00.19-P-0120-24A
 Remove contacts from
Siemens ELO coupling AR00.19-P-0120-23A
 Remove contacts from
Multi-Contact-Point-
coupling AR00.19-P-0120-09A
 Remove contacts from
mini laminated contact
coupling AR00.19-P-0120-26A
 Remove contacts from
mini laminated contact
plug AR00.19-P-0120-27A
 Remove contacts from
YAZAKI 1.5 system
coupling461 as of 1.4.94AR00.19-P-0120-28A
 Adjusting
1Set time on instrument
cluster See Operating
Instructions
2Set clock of stationary
heater See Operating
Instructions
3Normalize side power
windows See Operating
Instructions
4Activate steering angle
sensor Electronic stability
program (ESP) Code
(472a) as of 1.9.98.
 Refer also to operating
instructions.AR46.10-P-0300-01A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:52 PMPage 394 © 2006 Mitchell Repair Information Company, LLC.


        Page 3040 of 4133

LIFTING VEHICLE WITH PIT LIFT OR WORKSHOP JACK - AR00.60-P-1000-01GH
Lifting at front

Place inspection pit lift or garage jack at the front cross bridge for the front-axle carrier The garage jack can use
the side jacking points.
Fig. 638: Identifying Lifting At Front

Lifting at rear

Place inspection pit lift or
garage jack at the rear cross bridge for the rear-axle carrier The garage jack can use
5Synchronize sliding/pop-
up roof Refer also to operating
instructions.

  Glass electric
sliding/tilting roof, code
(414a).GF77.20-P-3002GH
6Standardize lamella sliding
roof Refer also to operating
instructions.
   Lamella sliding roof,
code (417a).GF77.20-P-3006GH
7Code radioMB   Refer also to
operating instructions.AR82.60-P-7502-01B

 Hi-Line, Premium with
Bose.
 Refer also to operating
instructions.AR82.60-P-7502-01GH
8Calibrate compass See Operating
Instructions
