AN68.30-P-0001-02B
Modify roof paneling for installing handle and
clamping strap mount
Model 163.113 /154 #A as of 289565,
Model 163.113 #X as of 754620,
Model 163.128/ 157/ 175
with code (847), 3rd seat row
P68.30-2527-10
1

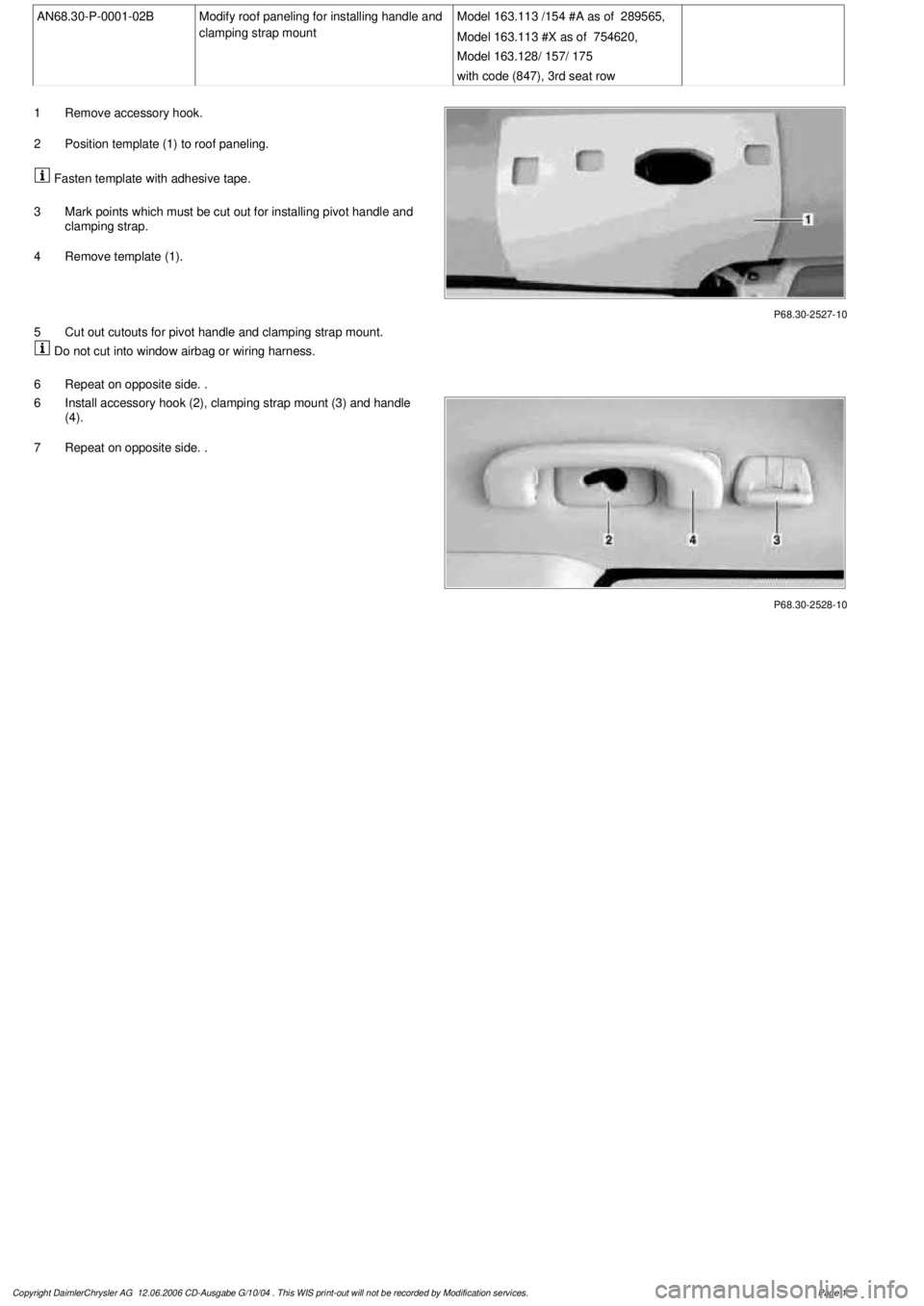

Remove accessory hook.
2
Position template (1) to roof paneling.
Fasten template with adhesive tape.
3
Mark points which must be cut out for installing pivot handle and
clamping strap.
4
Remove template (1).
5
Cut out cutouts for pivot handle and clamping strap mount.
Do not cut into window airbag or wiring harness.
6
Repeat on opposite side. .
P68.30-2528-10
6
Install accessory hook (2), clamping strap mount (3) and handle
(4).
7
Repeat on opposite side. .
Copyright DaimlerChrysler AG 12.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 3786 of 4133

AN68.30-P-0001-02A
Modify roof paneling for installing handle and
clamping strap mount
Model 163.113 /154 #A up to 289564,
#X up to 754619
Model 163.136/ 172
with code (847), 3rd seat row
Handles
Number
Designation
MODEL
Series 163
BA68.70-P-1001-02A
Screw for pivot handle/mount on roof frame
Nm
2.5
P68.30-2055-10

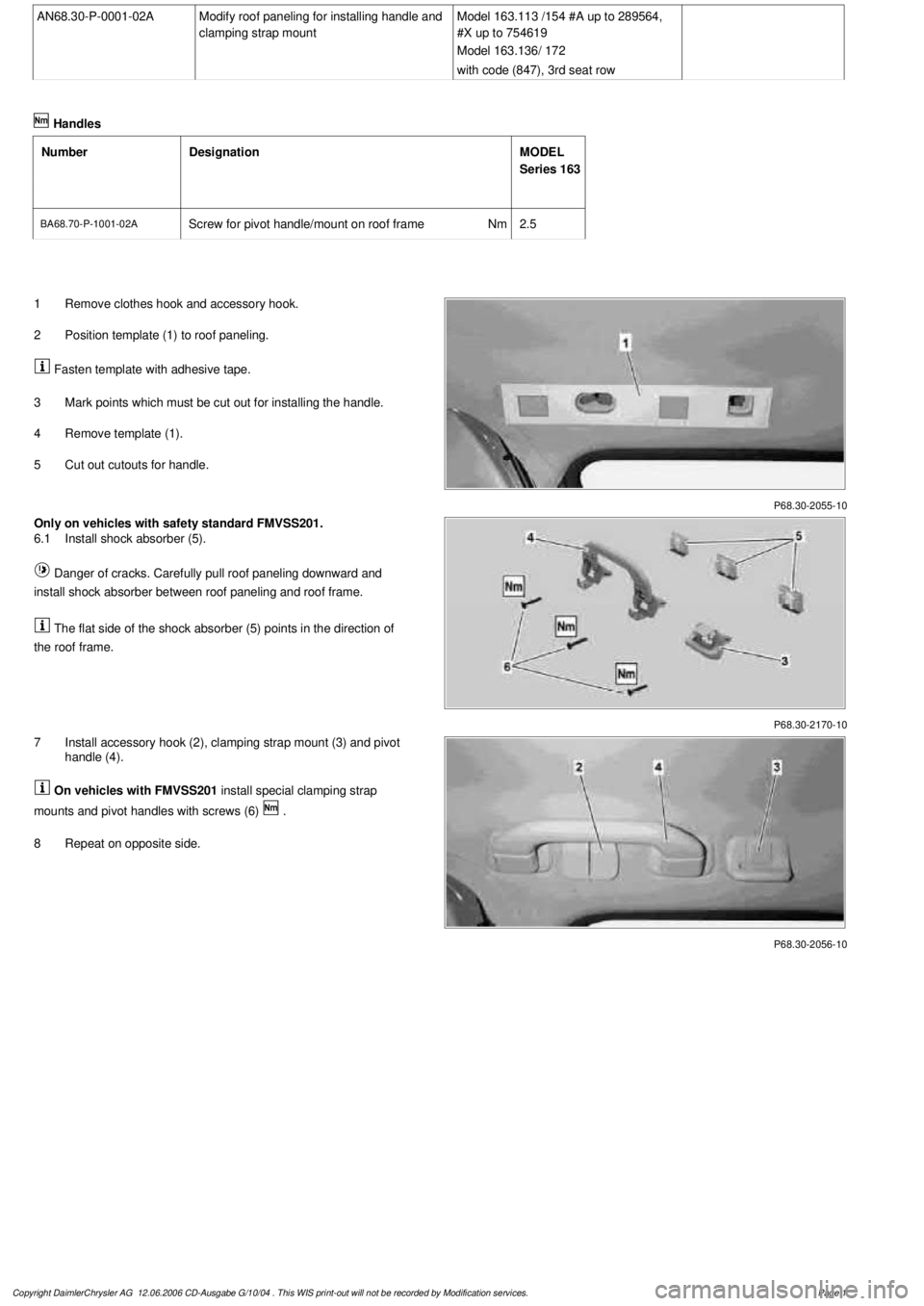

1
Remove clothes hook and accessory hook.
2
Position template (1) to roof paneling.
Fasten template with adhesive tape.
3
Mark points which must be cut out for installing the handle.
4
Remove template (1).
5
Cut out cutouts for handle.
P68.30-2170-10
Only on vehicles with safety standard FMVSS201.
6.1
Install shock absorber (5).
Danger of cracks. Carefully pull roof paneling downward and
install shock absorber between roof paneling and roof frame.
The flat side of the shock absorber (5) points in the direction of
the roof frame.
P68.30-2056-10
7
Install accessory hook (2), clamping strap mount (3) and pivot
handle (4).
On vehicles with FMVSS201
install special clamping strap
mounts and pivot handles with screws (6)
.
8
Repeat on opposite side.
Copyright DaimlerChrysler AG 12.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 3787 of 4133

AR46.40-P-0400GH
Check and replace rubber boot
12.3.97
MODEL
163.113 /128 /136 /154 /157 /172 /174 /175

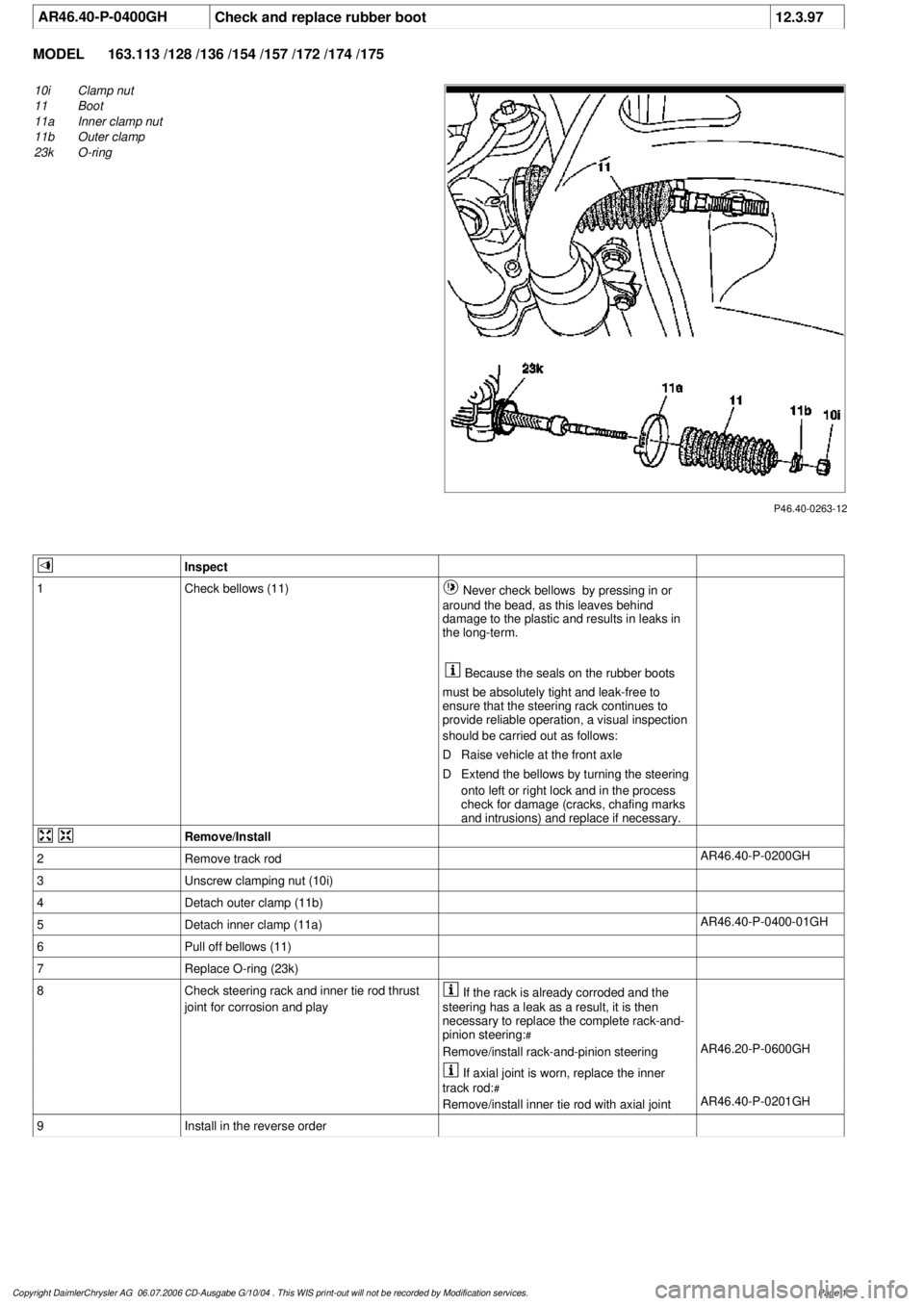

P46.40-0263-12
10i
Clamp nut
11
Boot
11a
Inner clamp nut
11b
Outer clamp
23k
O-ring
Inspect
1
Check bellows (11)
Never check bellows by pressing in or
around the bead, as this leaves behind
damage to the plastic and results in leaks in
the long-term.
Because the seals on the rubber boots
must be absolutely tight and leak-free to
ensure that the steering rack continues to
provide reliable operation, a visual inspection
should be carried out as follows:
D
Raise vehicle at the front axle
D
Extend the bellows by turning the steering
onto left or right lock and in the process
check for damage (cracks, chafing marks
and intrusions) and replace if necessary.
Remove/Install
2
Remove track rod
AR46.40-P-0200GH
3
Unscrew clamping nut (10i)
4
Detach outer clamp (11b)
5
Detach inner clamp (11a)
AR46.40-P-0400-01GH
6
Pull off bellows (11)
7
Replace O-ring (23k)
8
Check steering rack and inner tie rod thrust
joint for corrosion and play
If the rack is already corroded and the
steering has a leak as a result, it is then
necessary to replace the complete rack-and-
pinion steering:
#
Remove/install rack-and-pinion steering
AR46.20-P-0600GH
If axial joint is worn, replace the inner
track rod:
#
Remove/install inner tie rod with axial joint
AR46.40-P-0201GH
9
Install in the reverse order
Copyright DaimlerChrysler AG 06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 3788 of 4133

AF77.20-P-2005A
Seal on sliding/pop-up roof gutter loosens
28.6.00
MODEL
163.113 /136 /154 /172 /174 with CODE (414a) Electric glas sliding/pop-up roof
Modification notes
15.11.00
Damage code added
Damage code
Cause
Remedy
The seal on the sliding/pop-up roof loosens
when the sliding/pop-up roof moves
1
Remove sliding/pop-up roof
AR77.20-P-1000GH
2
Remove seal (1) from gutter (2)
3
Apply MB special glue along retaining
lip of gutter (arrows)
*BR00.45-Z-1003-02A
4
Install seal (1)
Allow MB special glue to dry before
installing sliding/-pop-up roof.
5
Install sliding/pop-up roof
AR77.20-P-1000GH
6
Adjust sliding/pop-up roof
AR77.20-P-1100GH

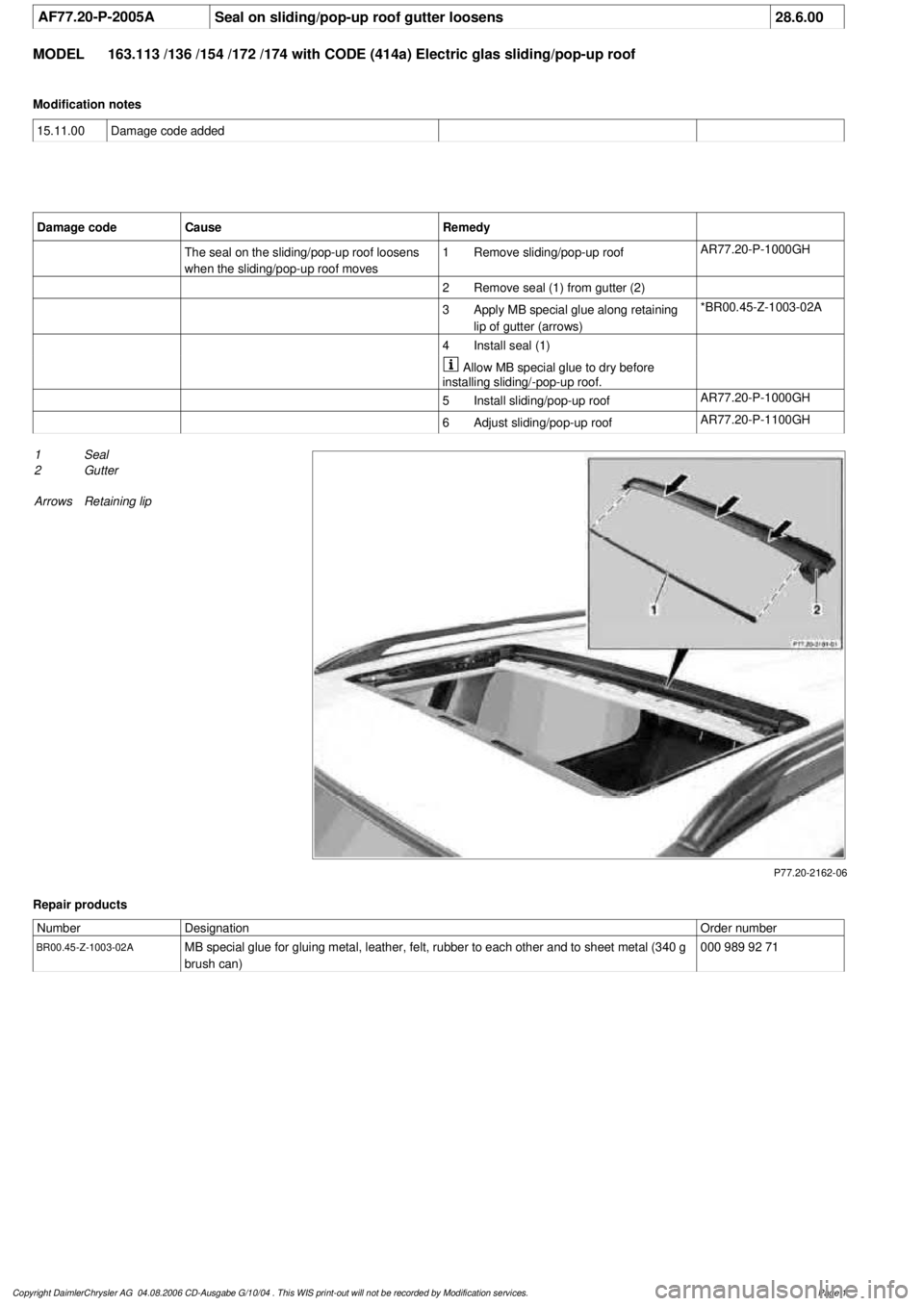

P77.20-2162-06
1
Seal
2
Gutter
Arrows
Retaining lip
Repair products
Number
Designation
Order number
BR00.45-Z-1003-02A
MB special glue for gluing metal, leather, felt, rubber to each other and to sheet metal (340 g
brush can)
000 989 92 71
Copyright DaimlerChrysler AG 04.08.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 3789 of 4133

AR91.29-P-0008GH
Remove/install seat adjustment control module
23.6.99
MODEL
163.113 /128,
163.136 /154 as of 1.9.99,
163.157,
163.172 as of 1.9.99,
163.175
with CODE (241) Memory for electrically adjustable left front seat
with CODE (242a) Memory for electrically adjustable right front seat
MODEL
163.174
P91.29-2108-06

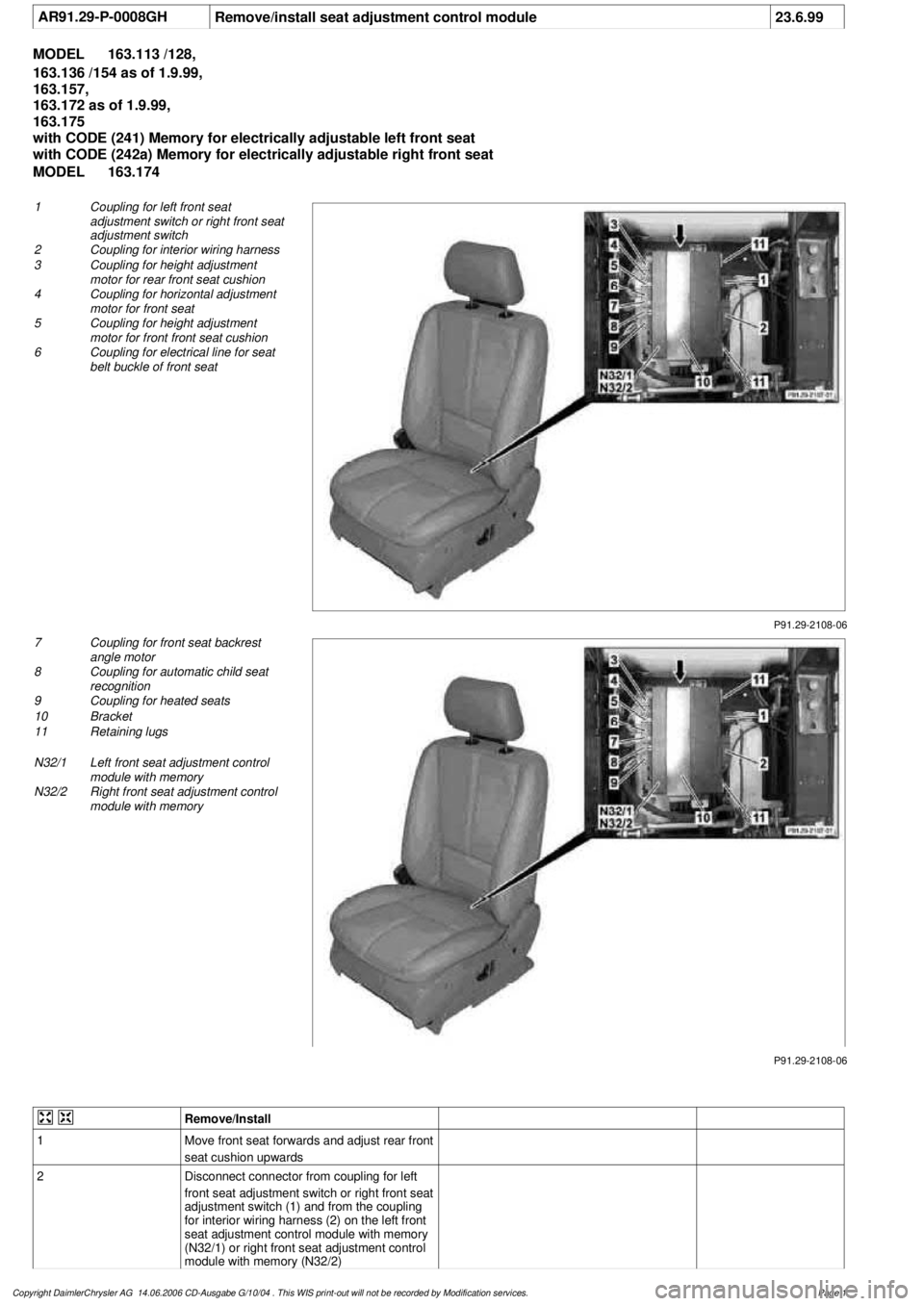

1
Coupling for left front seat
adjustment switch or right front seat
adjustment switch
2
Coupling for interior wiring harness
3
Coupling for height adjustment
motor for rear front seat cushion
4
Coupling for horizontal adjustment
motor for front seat
5
Coupling for height adjustment
motor for front front seat cushion
6
Coupling for electrical line for seat
belt buckle of front seat
P91.29-2108-06
7
Coupling for front seat backrest
angle motor
8
Coupling for automatic child seat
recognition
9
Coupling for heated seats
10
Bracket
11
Retaining lugs
N32/1
Left front seat adjustment control
module with memory
N32/2
Right front seat adjustment control
module with memory
Remove/Install
1
Move front seat forwards and adjust rear front
seat cushion upwards
2
Disconnect connector from coupling for left
front seat adjustment switch or right front seat
adjustment switch (1) and from the coupling
for interior wiring harness (2) on the left front
seat adjustment control module with memory
(N32/1) or right front seat adjustment control
module with memory (N32/2)
Copyright DaimlerChrysler AG 14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 3790 of 4133
3
Unscrew bolt (arrow) from bracket (10),
unhook front bracket and remove
4
Remove left front seat adjustment control
module with memory (N32/1) or right front
seat adjustment control module with memory
(N32/2) from bracket on front seat frame
Unhook two retaining lugs (11) on the side.
5
Disconnect the remaining connectors on the
left front seat adjustment control module with
memory (N32/1) or right front seat adjustment
control module with memory (N32/2)
6
Remove left front seat adjustment control
module with memory (N32/1) or right front
seat adjustment control module with memory
(N32/2)
7
Install in the reverse order
8
Perform function check
Copyright DaimlerChrysler AG 14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2
Page 3791 of 4133

AR91.29-P-0003GI
Remove/install seat adjustment switch unit on front seat
1.10.02
MODEL
163.113,
163.136 #A as of 051500,
163.136 #X as of 708319,
163.154 #A as of 051500,
163.154 #X as of 708319,
163.157 /172 with CODE (221b) Electrically adjustable driver and passenger seat
MODEL
163.128 /174 /175
P91.29-2109-11

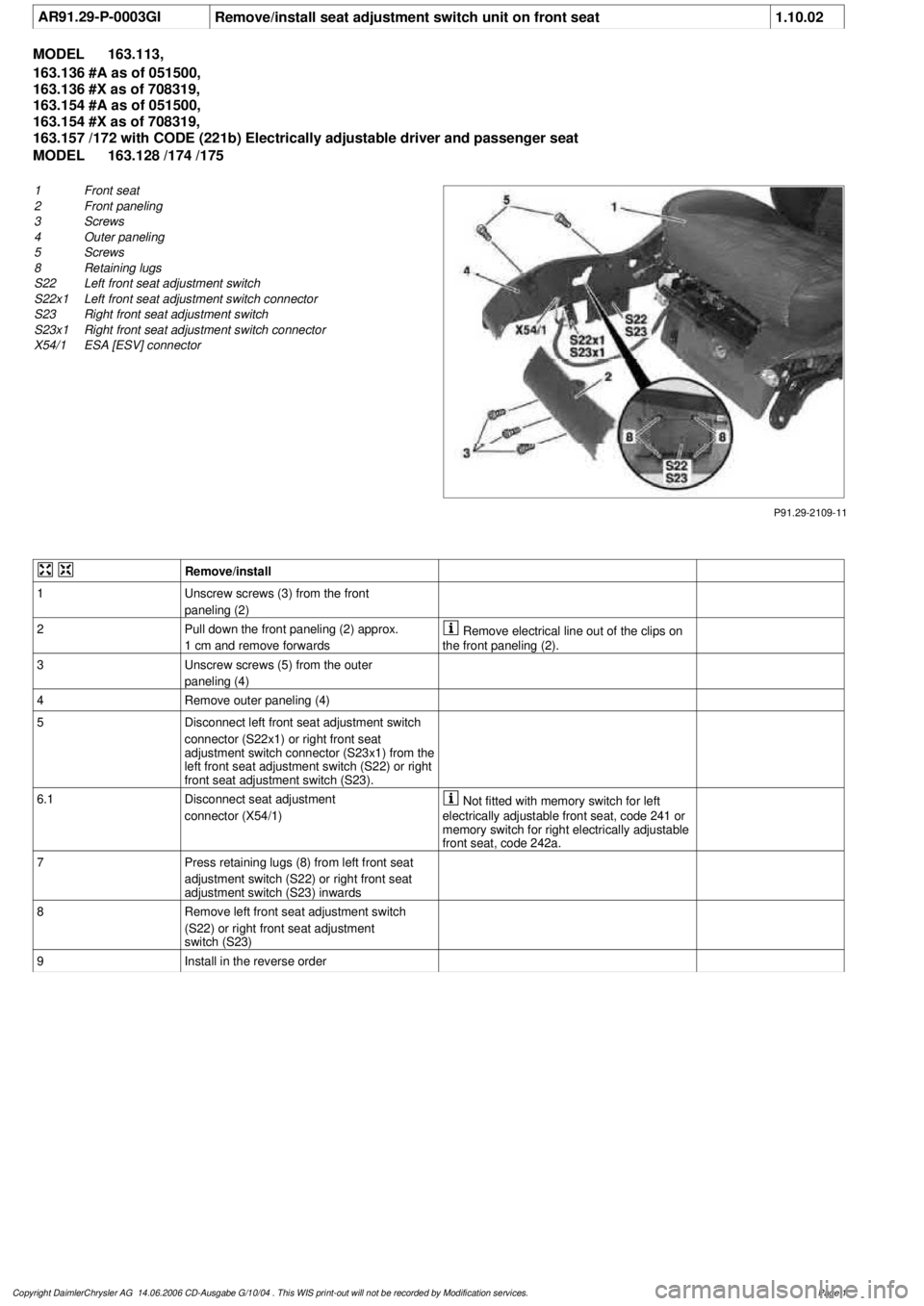

1
Front seat
2
Front paneling
3
Screws
4
Outer paneling
5
Screws
8
Retaining lugs
S22
Left front seat adjustment switch
S22x1
Left front seat adjustment switch connector
S23
Right front seat adjustment switch
S23x1
Right front seat adjustment switch connector
X54/1
ESA [ESV] connector
Remove/install
1
Unscrew screws (3) from the front
paneling (2)
2
Pull down the front paneling (2) approx.
1 cm and remove forwards
Remove electrical line out of the clips on
the front paneling (2).
3
Unscrew screws (5) from the outer
paneling (4)
4
Remove outer paneling (4)
5
Disconnect left front seat adjustment switch
connector (S22x1) or right front seat
adjustment switch connector (S23x1) from the
left front seat adjustment switch (S22) or right
front seat adjustment switch (S23).
6.1
Disconnect seat adjustment
connector (X54/1)
Not fitted with memory switch for left
electrically adjustable front seat, code 241 or
memory switch for right electrically adjustable
front seat, code 242a.
7
Press retaining lugs (8) from left front seat
adjustment switch (S22) or right front seat
adjustment switch (S23) inwards
8
Remove left front seat adjustment switch
(S22) or right front seat adjustment
switch (S23)
9
Install in the reverse order
Copyright DaimlerChrysler AG 14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 3792 of 4133

AR91.10-P-1060GH
Remove and install front seat backrest
5.3.97
MODEL
163.113 /136 /154 /157 /172
with CODE (221b) Electrically adjustable driver and passenger seat
with CODE (241) Memory for electrically adjustable left front seat
with CODE (242a) Memory for electrically adjustable right front seat
MODEL
163.128 /175
with CODE (241) Memory for electrically adjustable left front seat
with CODE (242a) Memory for electrically adjustable right front seat
MODEL
163.174
P91.10-0550-06
Shown on front seat without memory
switch for left electrically adjustable front
seat, code 241/memory switch for right
electrically adjustable front seat, code 242a
1
Front seat backrest
2
Screws
P91.10-2149-06
Shown on front seat with memory switch
for left electrically adjustable front seat,
code 241/memory switch for right
electrically adjustable front seat, code 242a
1
Front seat backrest
2
Screws
3
Heated seats connector
4
Connector for front seat backrest
incline motor
N32/1
Left front seat adjustment control
module with memory
N32/2
Right front seat adjustment control
module with memory
Remove/install
1
Remove front seat
AR91.10-P-1000GH
2
Remove paneling on front seat frame
AR91.10-P-1200GH
Copyright DaimlerChrysler AG 09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
