Page 2265 of 4133

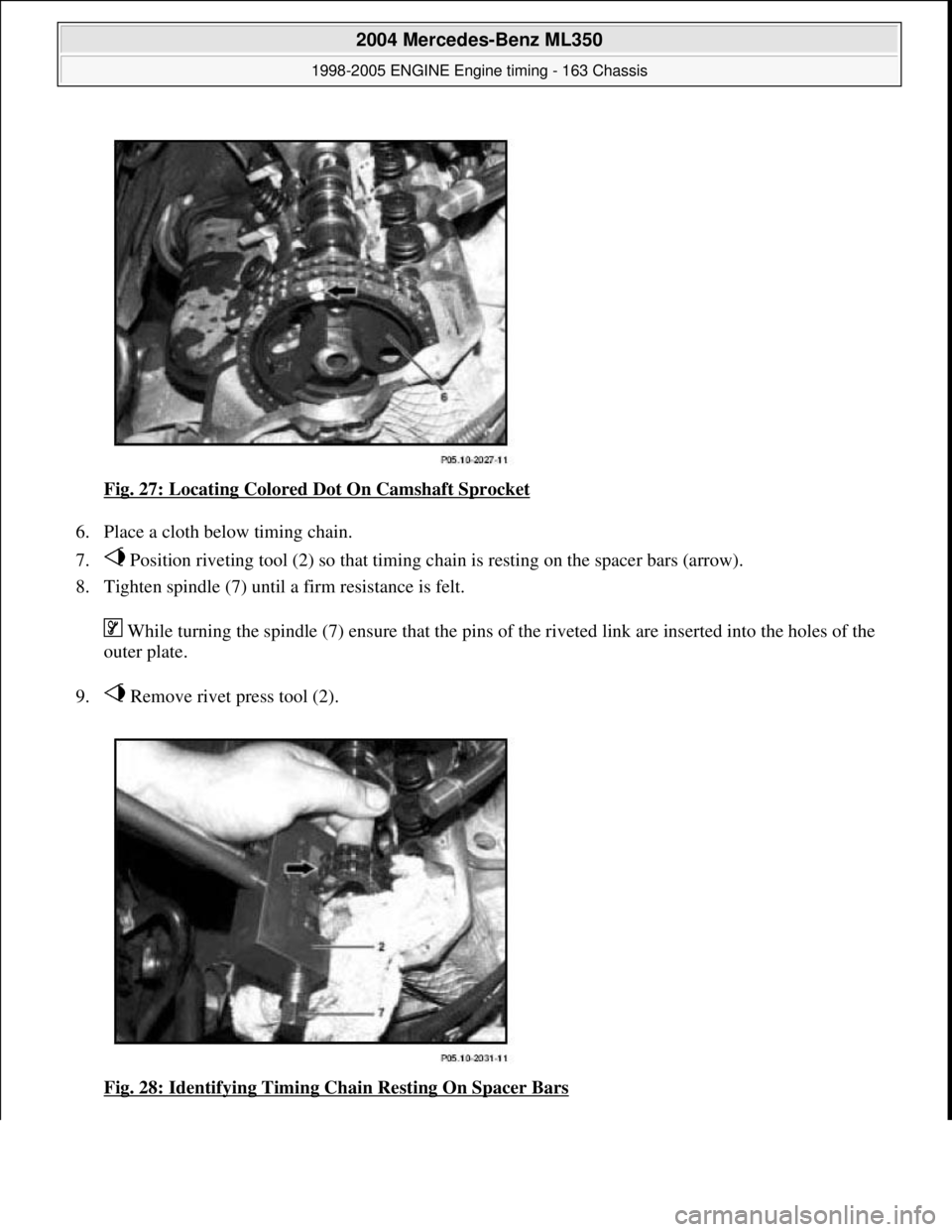

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 27: Locating Colored Dot On Camshaft Sprocket 6. Place a cloth be low timing chain. 7. Position riveting tool (2) so that timing chai n is resting on the spacer bars (arrow). 8. Tighte

Page 2266 of 4133

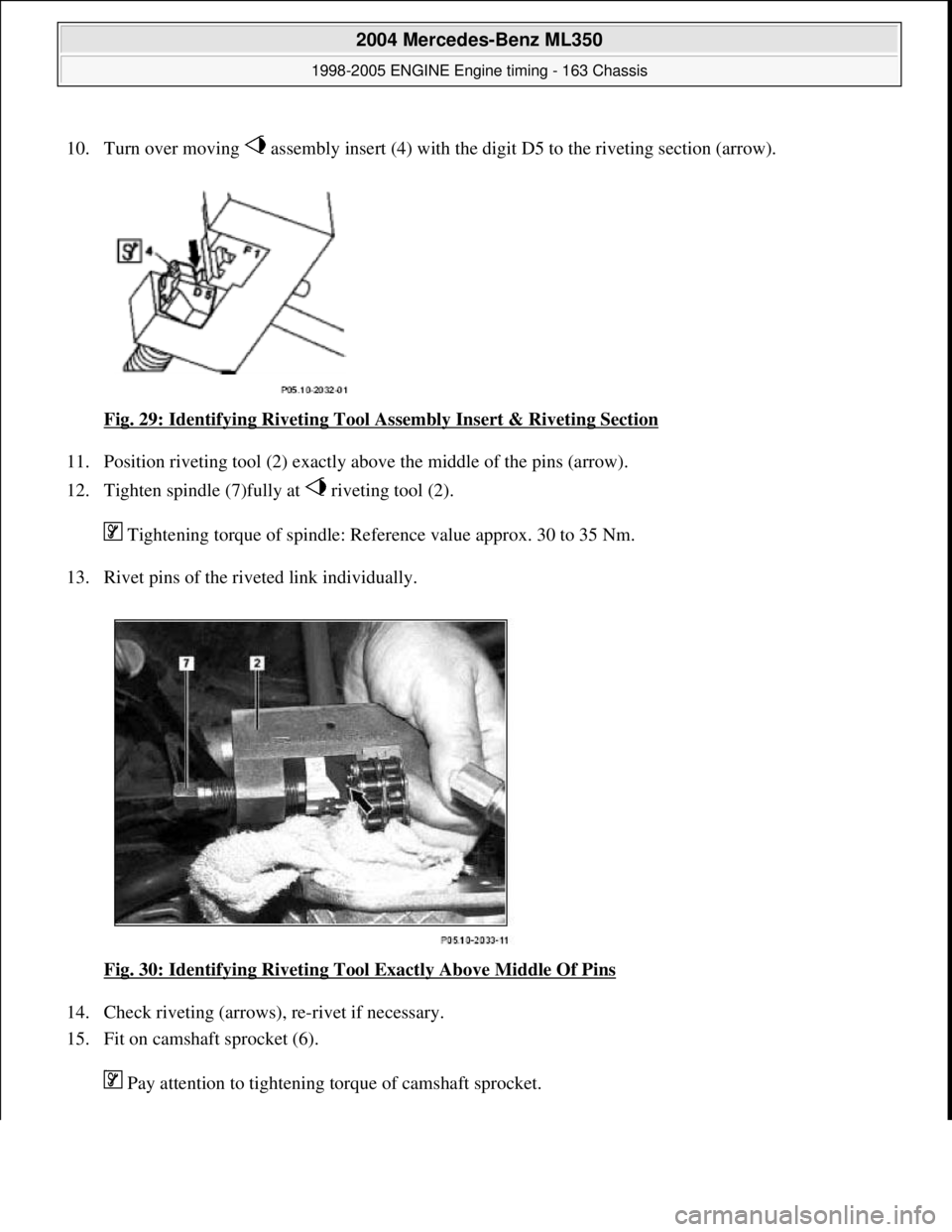

MERCEDES-BENZ ML320 1997 Complete Repair Manual 10. Turn over moving assembly in sert (4) with the digit D5 to the riveting section (arrow). Fig. 29: Identifying Riveting Tool As sembly Insert & Riveting Section 11. Position riveting tool (

Page 2267 of 4133

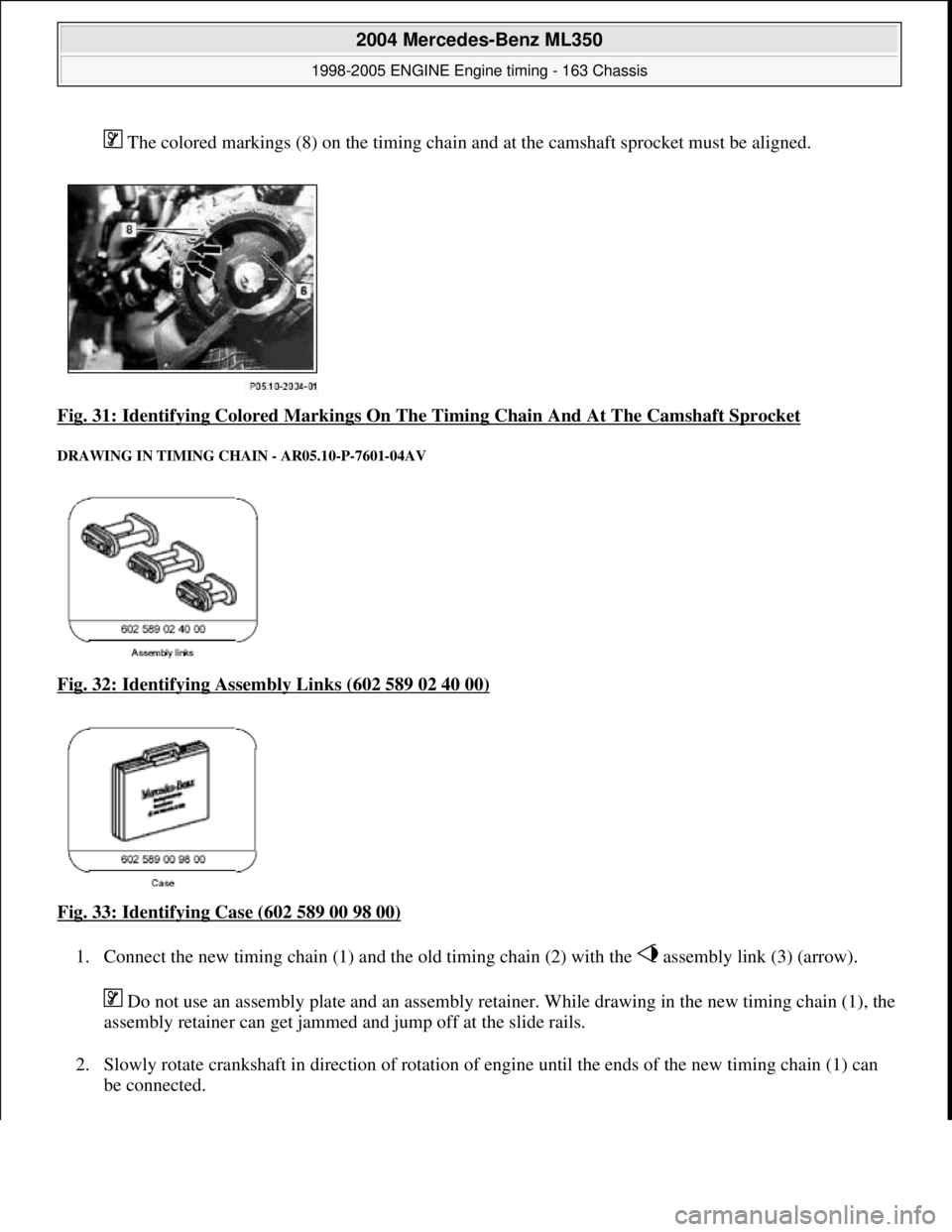

MERCEDES-BENZ ML320 1997 Complete Repair Manual The colored markings (8) on the timing chain and at the camshaft sprocket must be aligned. Fig. 31: Identifying Colored Markings On The Timing Chain And At The Camshaft Sprocket DRAWING IN TIM

Page 2268 of 4133

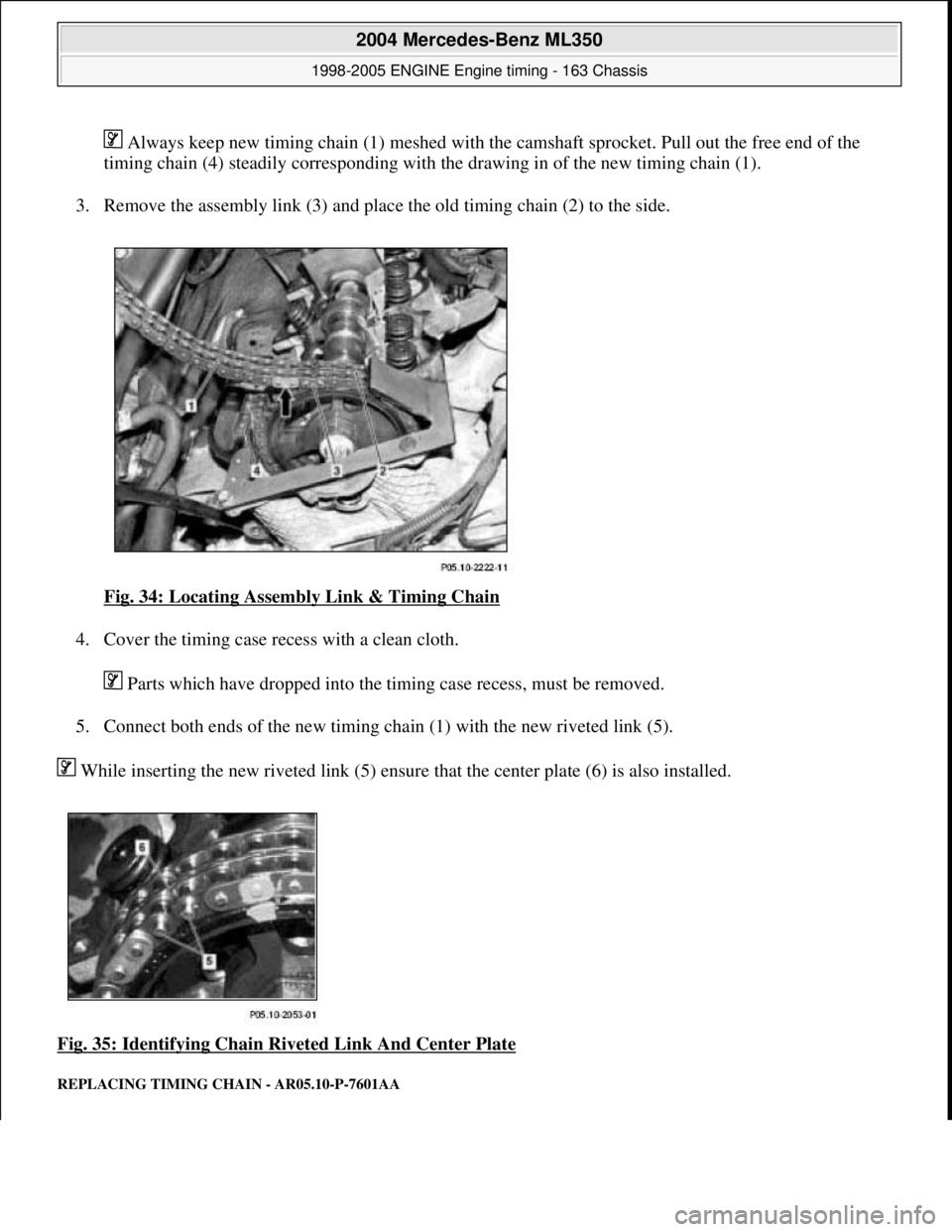

MERCEDES-BENZ ML320 1997 Complete Repair Manual Always keep new timing chain (1) meshed with the camshaft sprocket. Pull out the free end of the timing chain (4) steadily corresponding with the drawing in of the new timing chain (1). 3. Rem

Page 2269 of 4133

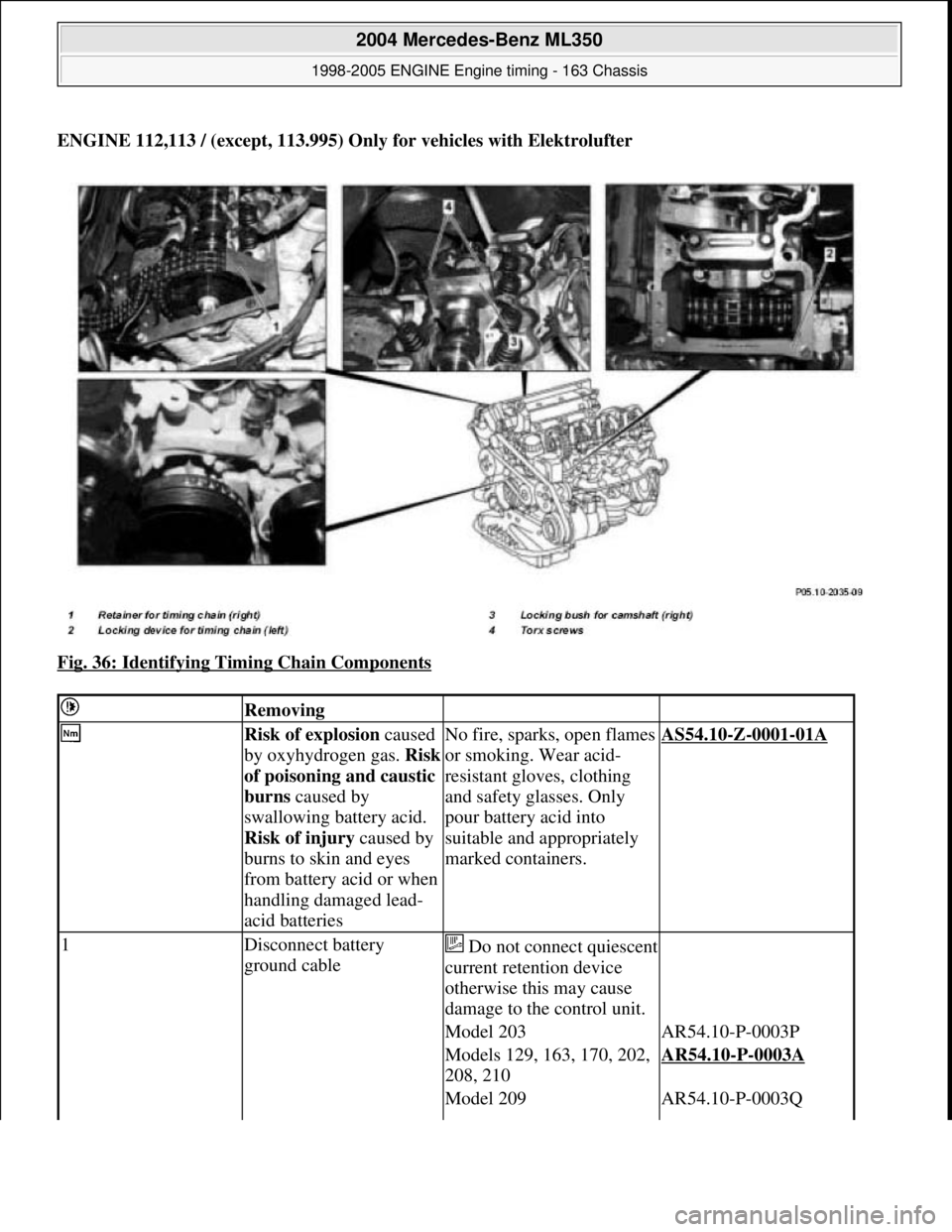

MERCEDES-BENZ ML320 1997 Complete Repair Manual ENGINE 112,113 / (except, 113.995) Only for vehicles with Elektrolufter Fig. 36: Identifying Timing Chain Components Removing Risk of explosion caused by oxyhydrogen gas. Risk of poison

Page 2270 of 4133

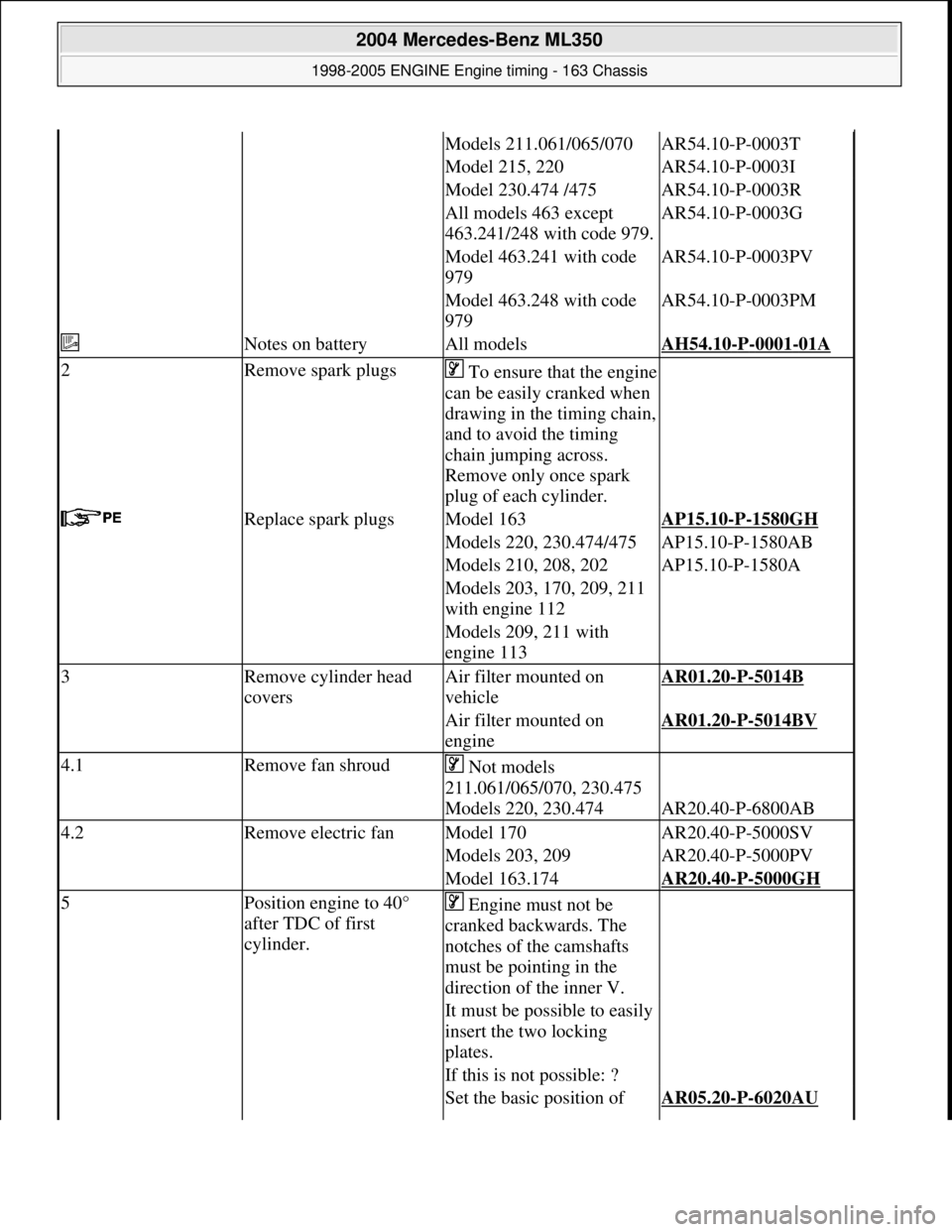

MERCEDES-BENZ ML320 1997 Complete Repair Manual Models 211.061/065/070AR54.10-P-0003T Model 215, 220AR54.10-P-0003I Model 230.474 /475AR54.10-P-0003R All models 463 except 463.241/248 with code 979.AR54.10-P-0003G Model 463.241 with code 979AR54

Page 2271 of 4133

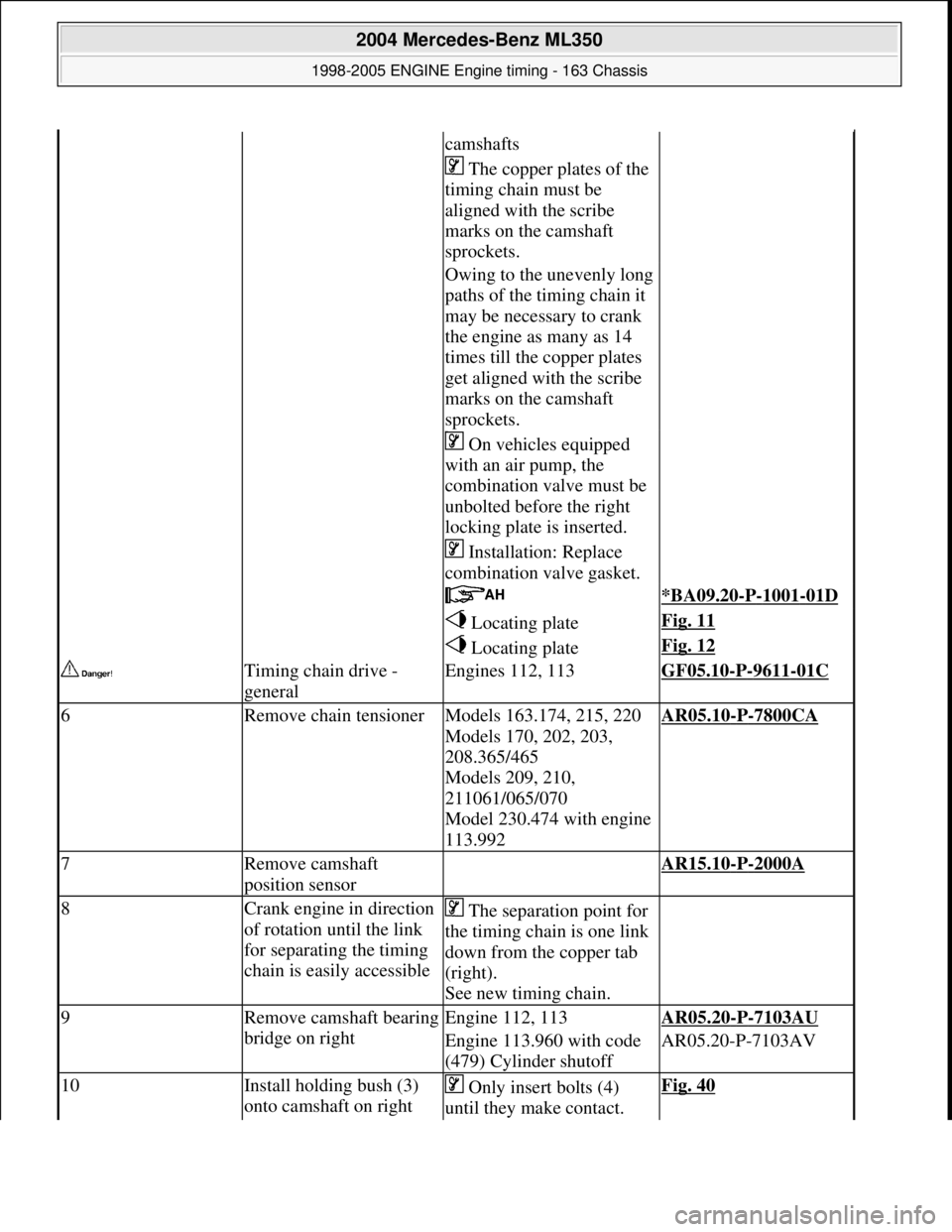

MERCEDES-BENZ ML320 1997 Complete Repair Manual camshafts The copper plates of the timing chain must be aligned with the scribe marks on the camshaft sprockets. Owing to the unevenly long paths of the timing chain it may be necessary to

Page 2272 of 4133

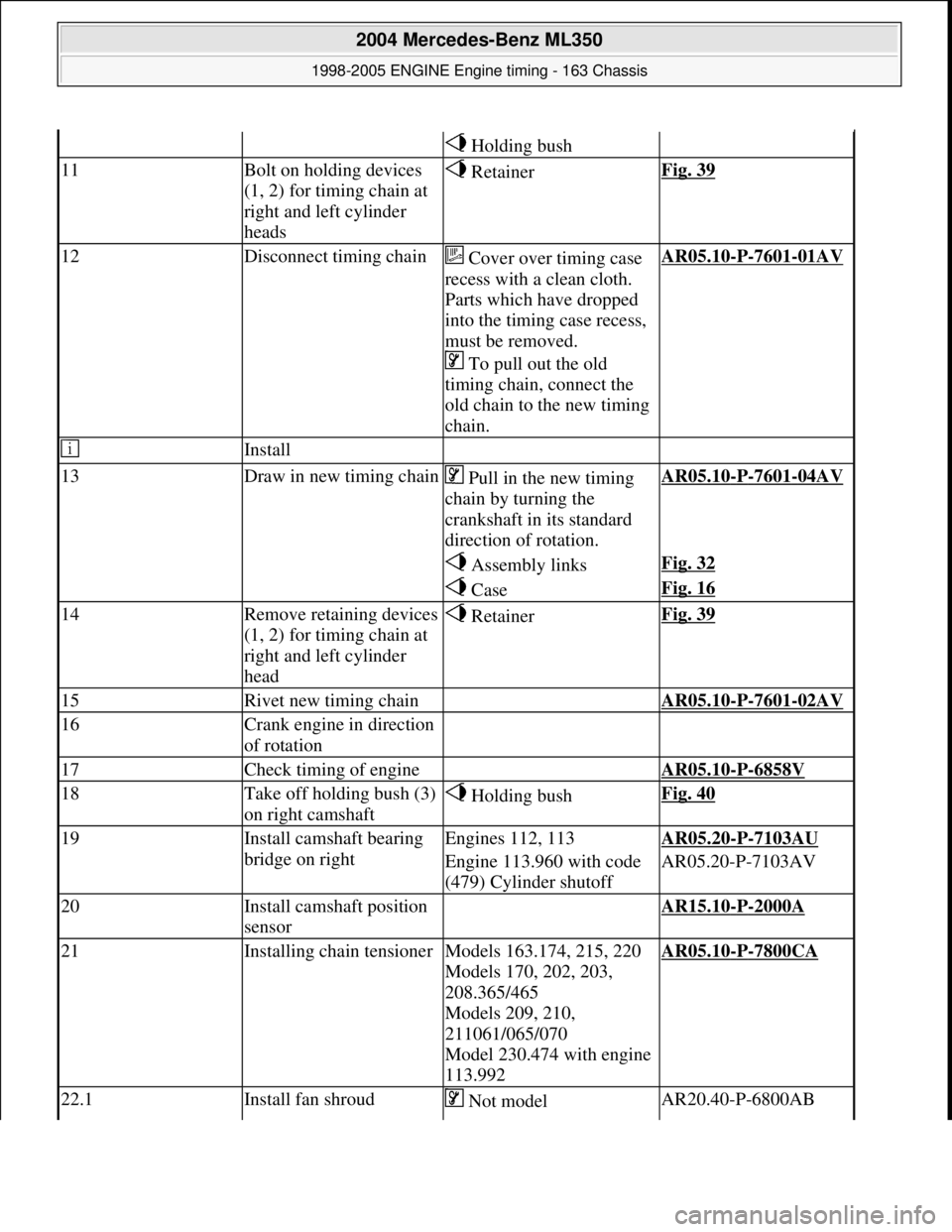

MERCEDES-BENZ ML320 1997 Complete Repair Manual Holding bush 11Bolt on holding devices (1, 2) for timing chain at right and left cylinder heads RetainerFig. 39 12Disconnect timing chain Cover over timing case recess with a clean cloth. Pa
