Page 1441 of 4133

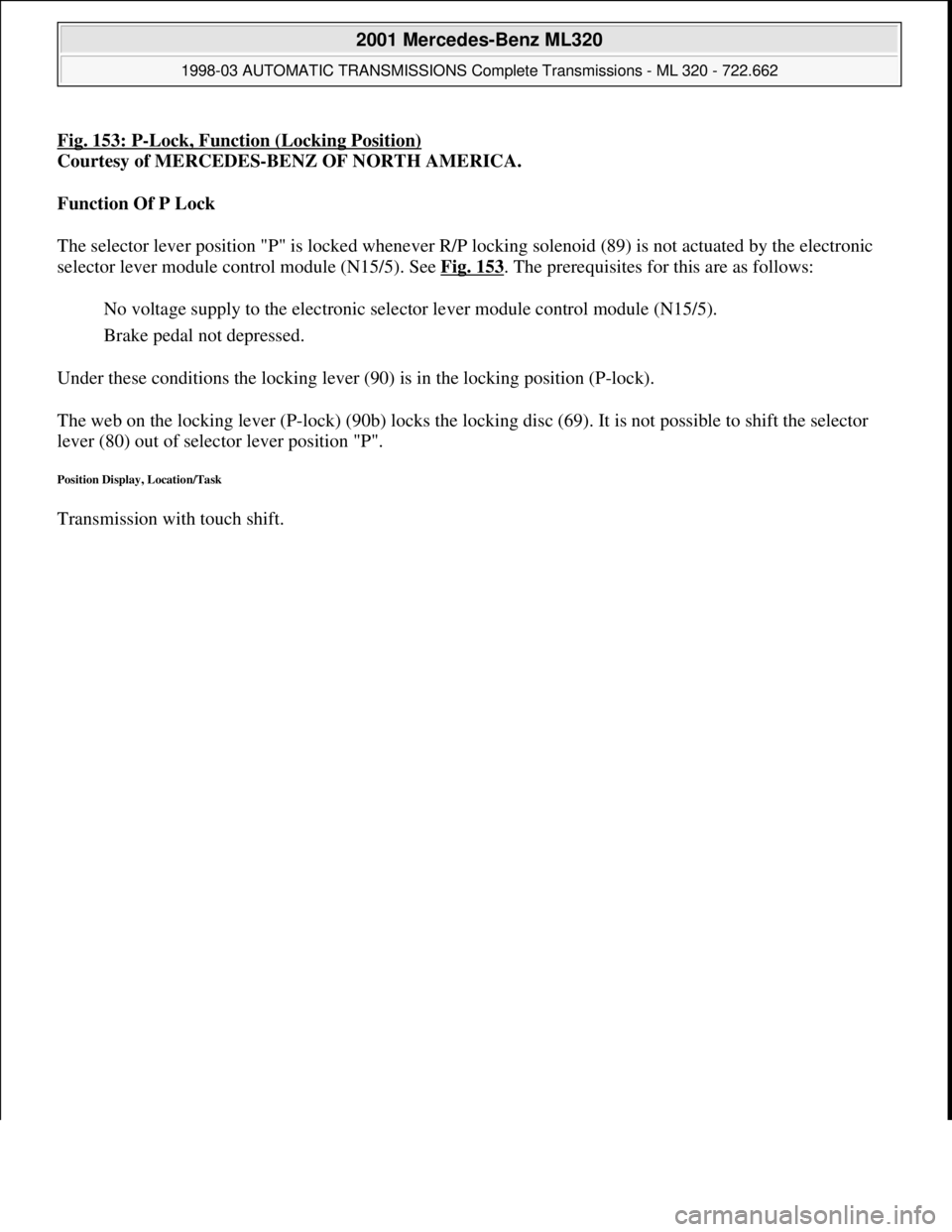

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 153: P-Lock, Function (Locking Position) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Function Of P Lock The selector lever position "P" is locked whenever R/P locking solenoid (89) is not actu

Page 1442 of 4133

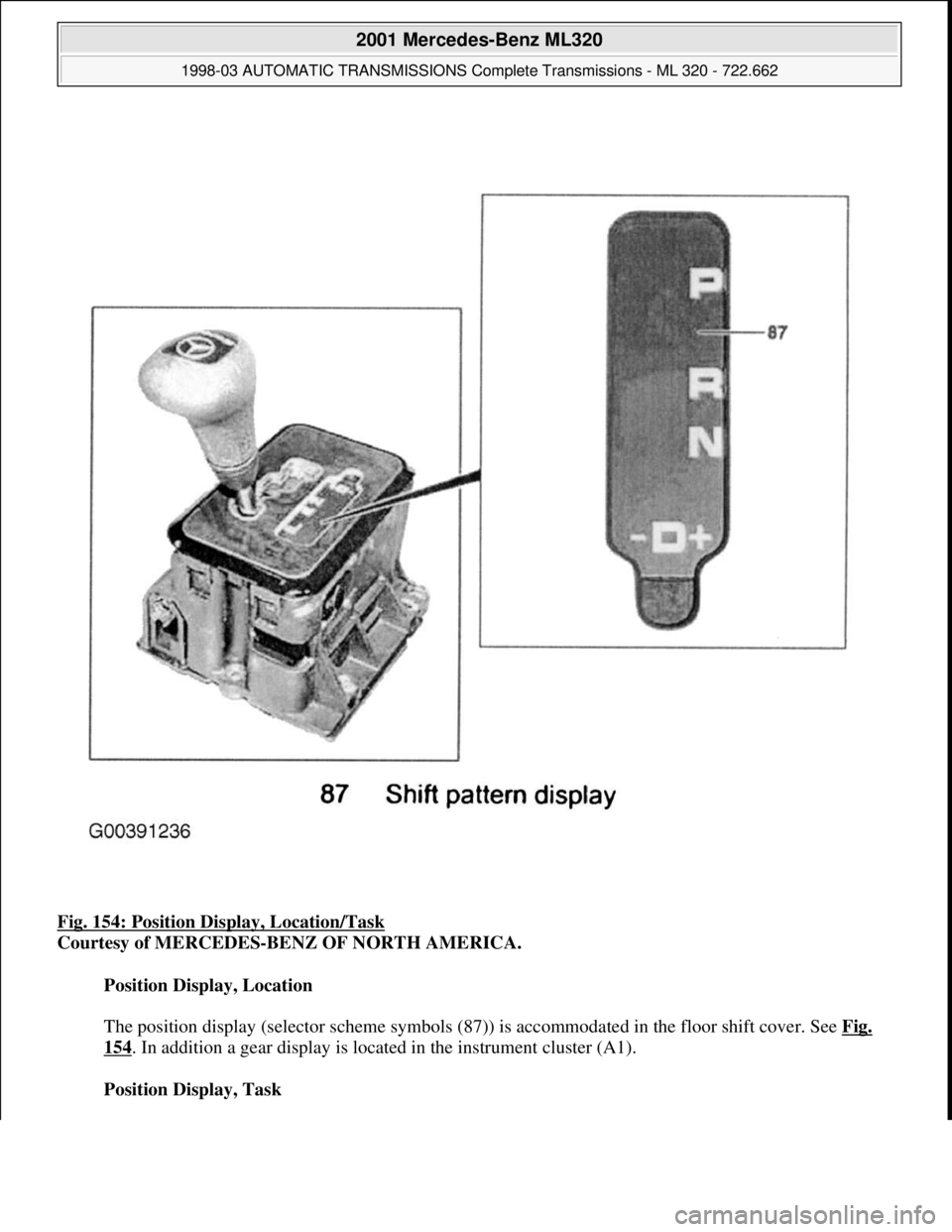

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 154: Position Display, Location/Task Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Position Display, Location The position display (selector scheme symbols (87)) is accommodated in the floor s

Page 1443 of 4133

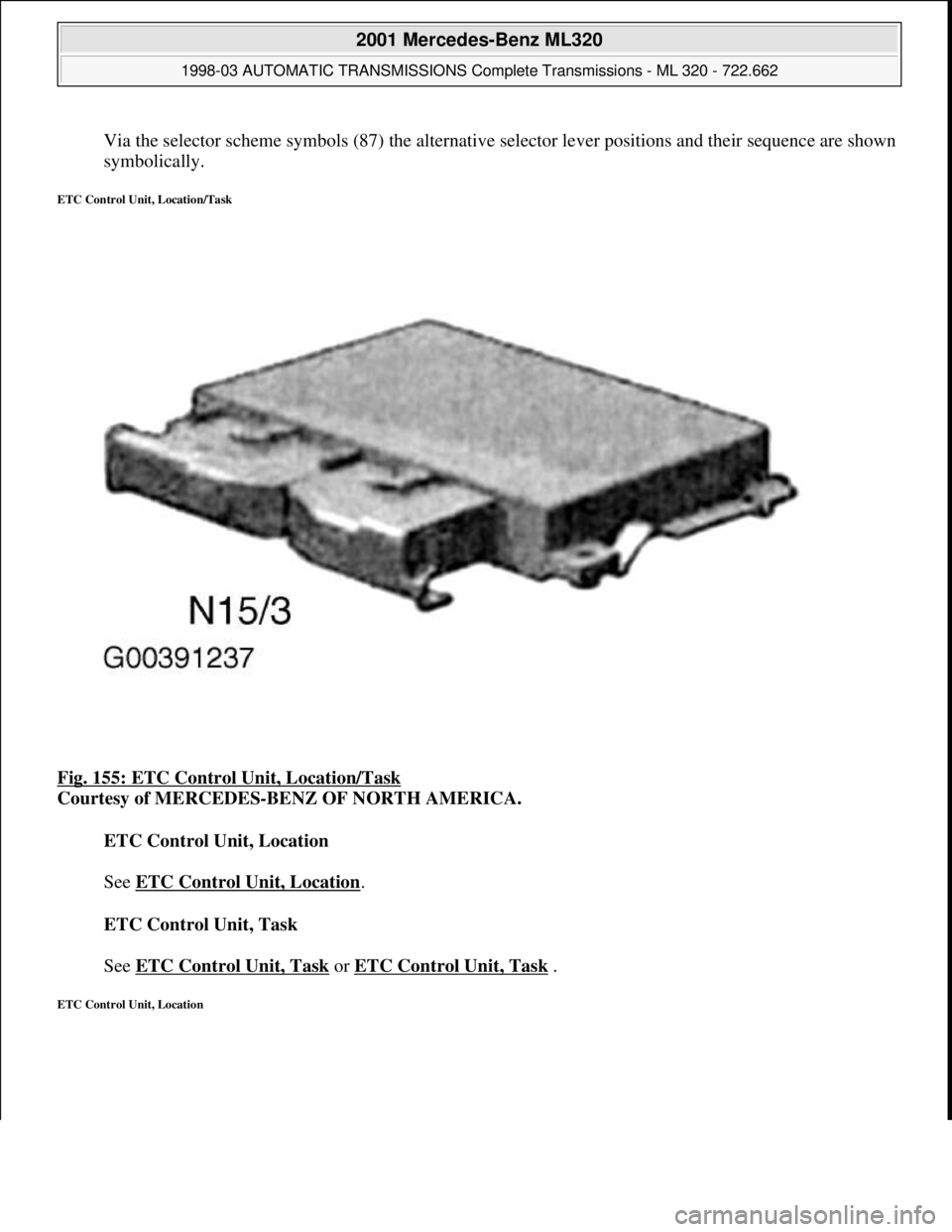

MERCEDES-BENZ ML320 1997 Complete Repair Manual Via the selector scheme symbols (87) the alternative selector lever positions and their sequence are shown symbolically. ETC Control Unit, Location/Task Fig. 155: ETC Control Unit, Location/Task

Page 1444 of 4133

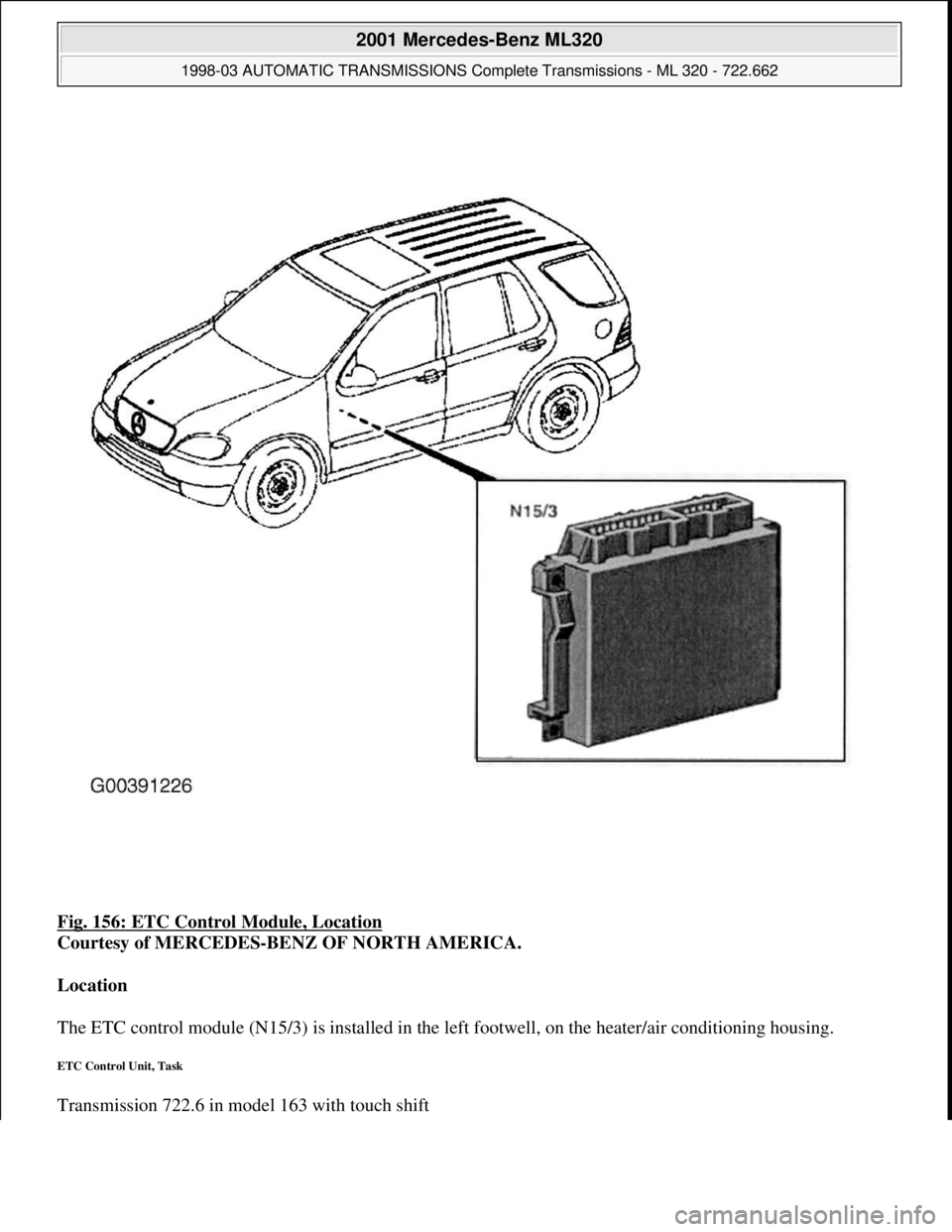

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 156: ETC Control Module, Location Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Location The ETC control module (N15/3) is installed in the left footwell, on the heater/air conditioning housing

Page 1445 of 4133

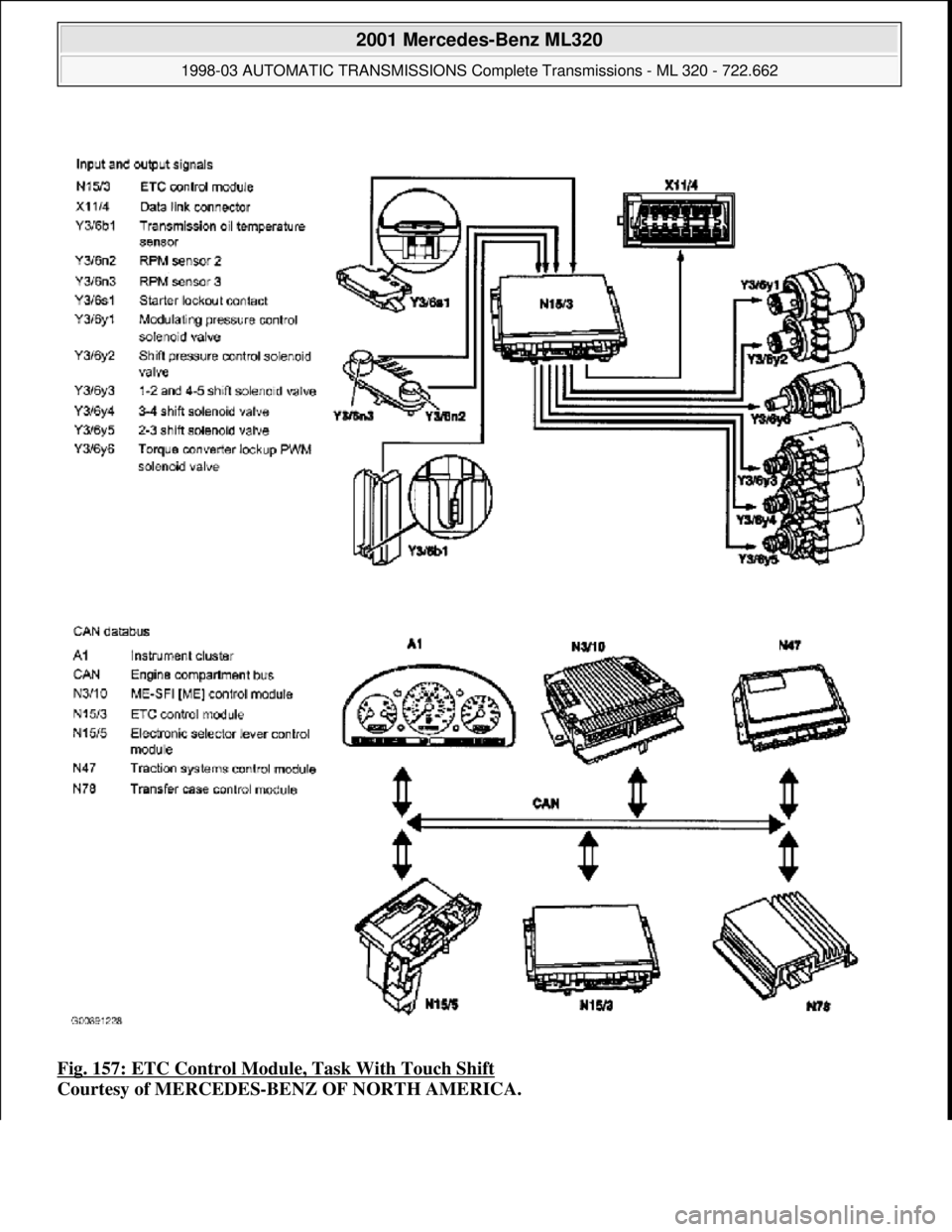

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 157: ETC Control Module, Task With Touch Shift Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.66

Page 1446 of 4133

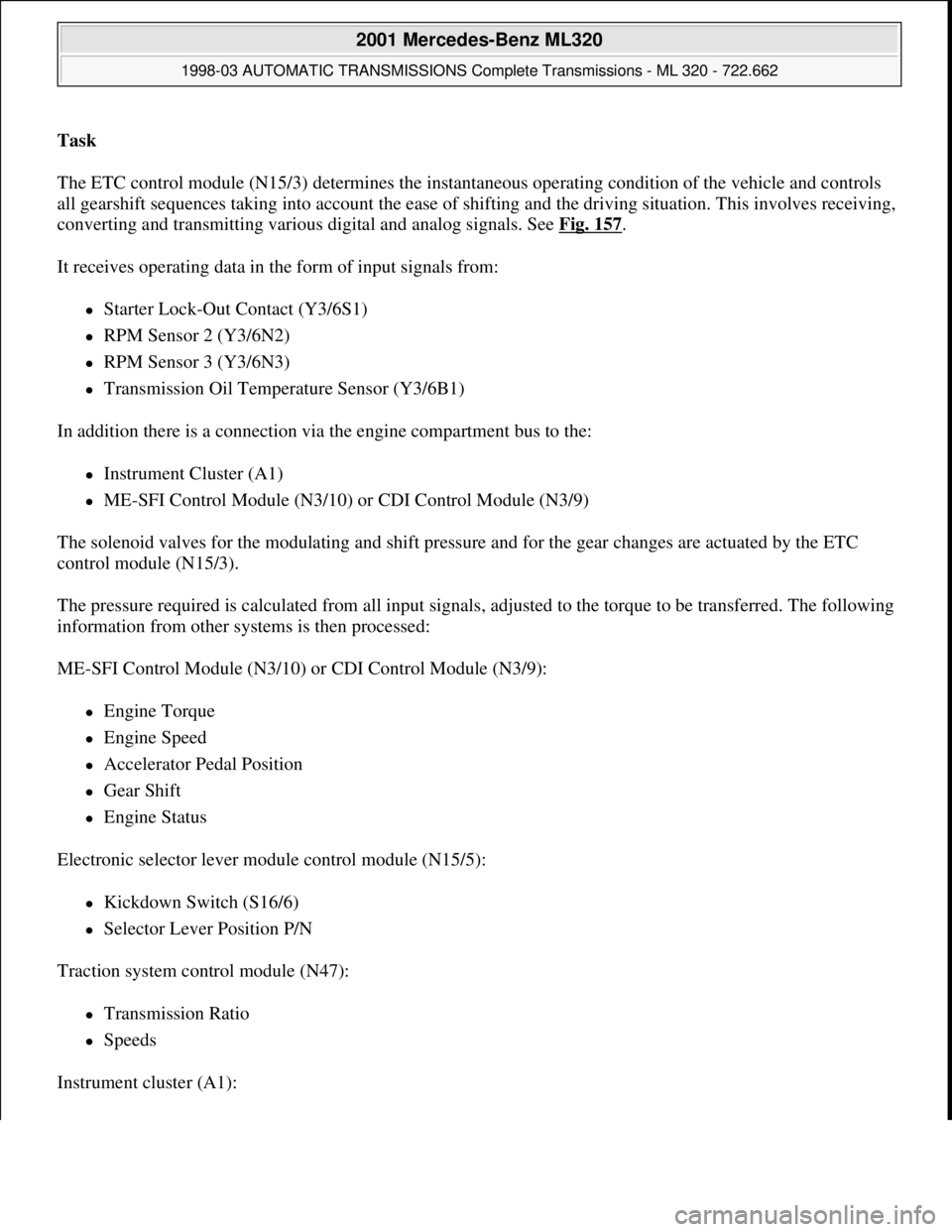

MERCEDES-BENZ ML320 1997 Complete Repair Manual Task The ETC control module (N15/3) determines the instantaneous operating condition of the vehicle and controls all gearshift sequences taking into account the ease of shifting and the driving sit

Page 1447 of 4133

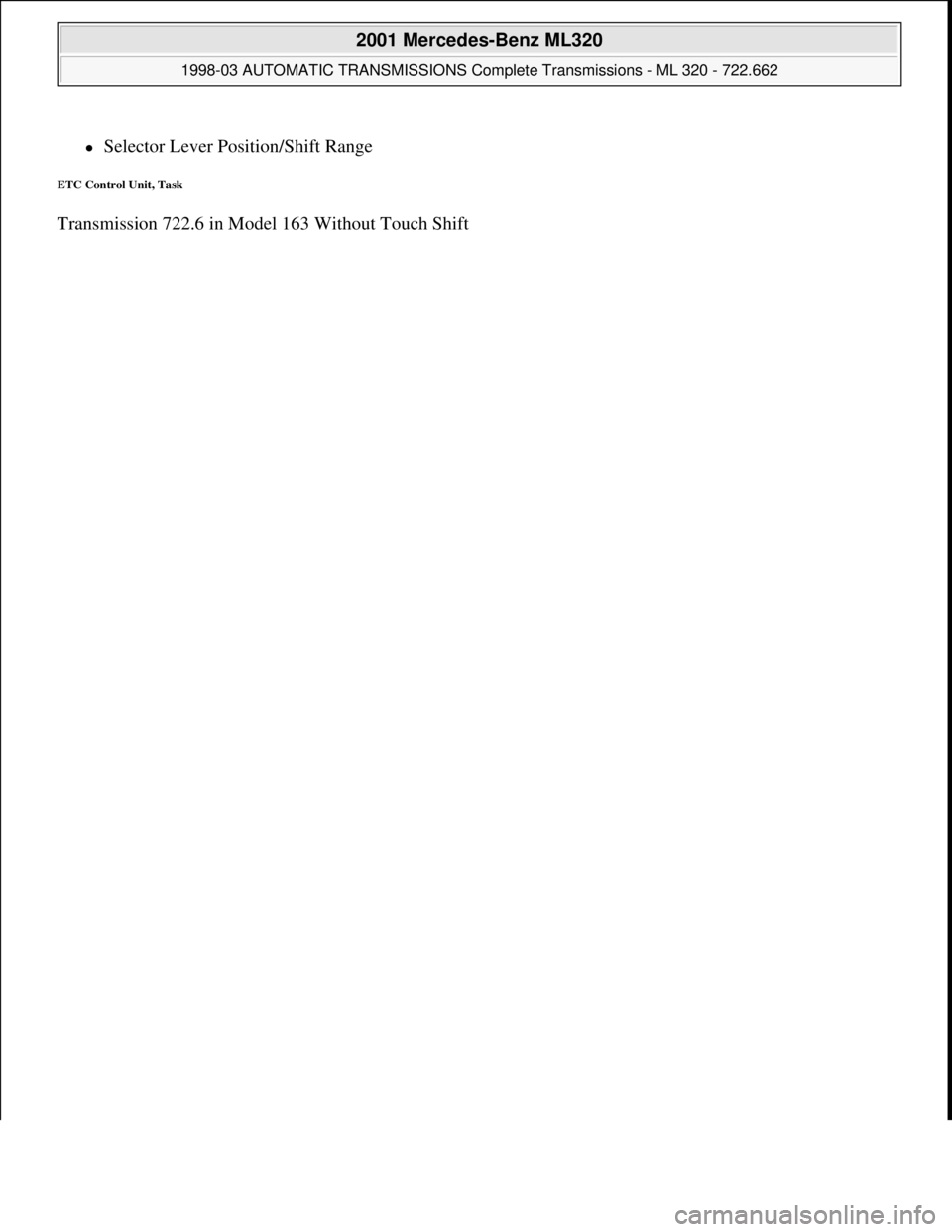

MERCEDES-BENZ ML320 1997 Complete Repair Manual Selector Lever Position/Shift Range ETC Control Unit, Task Transmission 722.6 in Model 163 Without Touch Shift 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions

Page 1448 of 4133

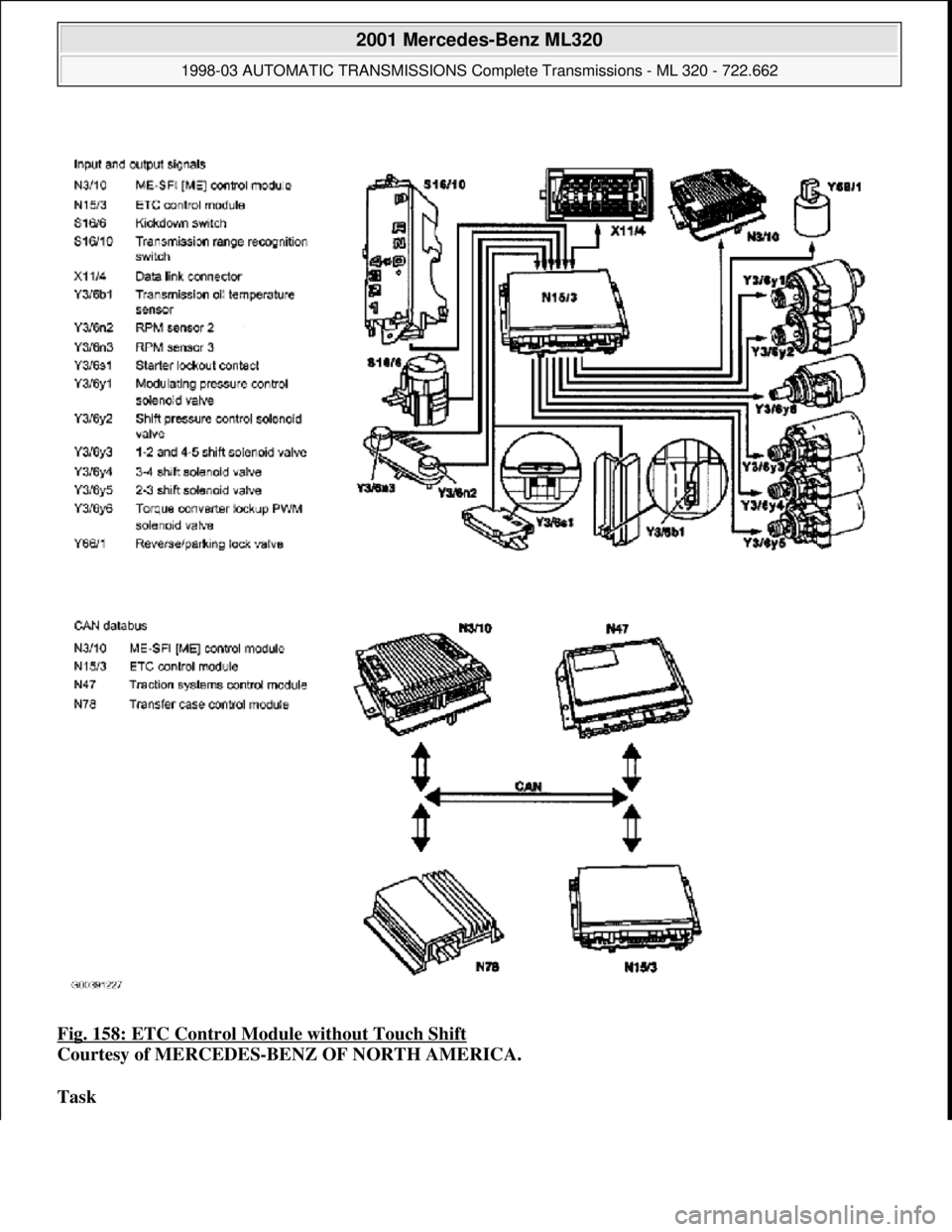

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 158: ETC Control Module without Touch Shift Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Task 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320
