Page 1801 of 4133

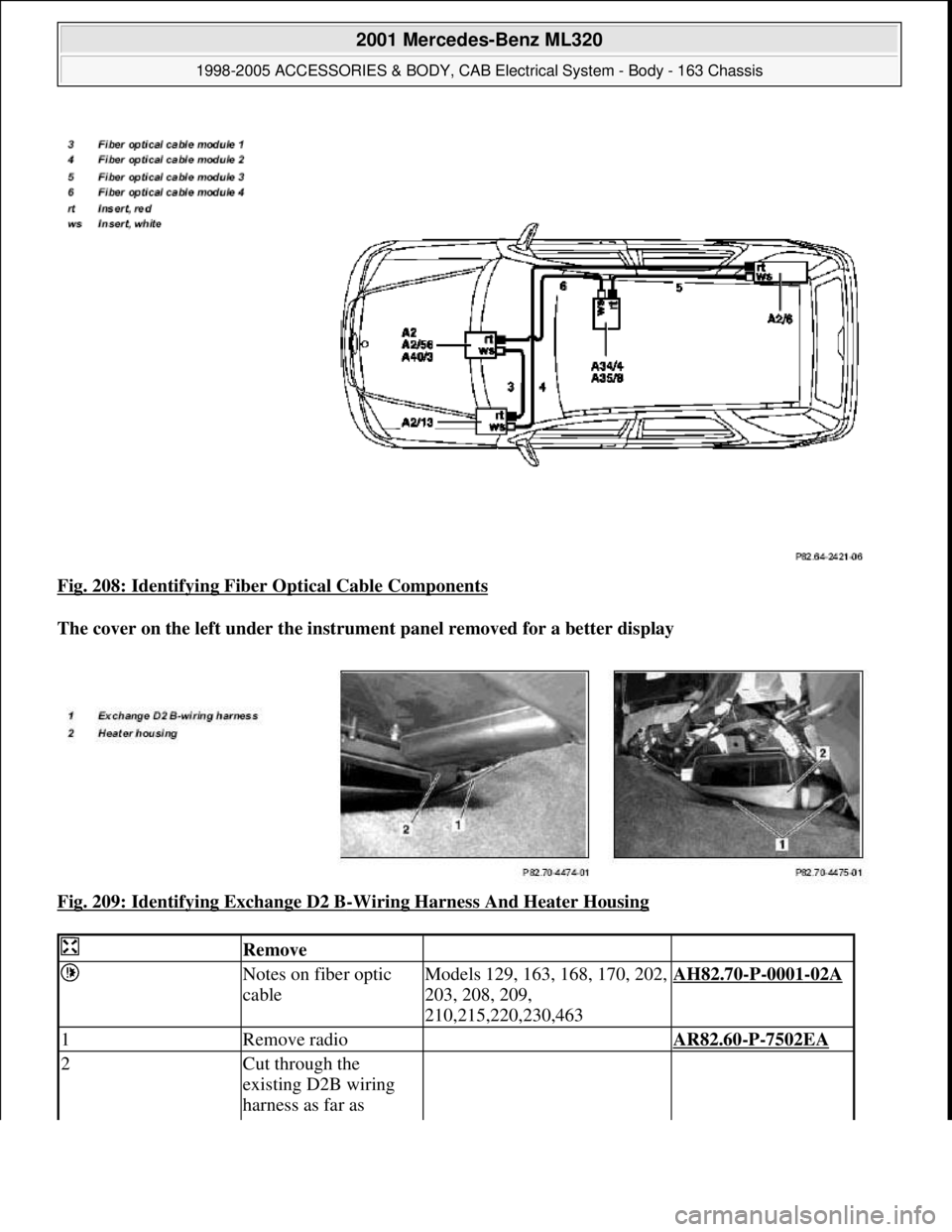

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 208: Identifying Fiber Optical Cable Components The cover on the left under the instrume nt panel removed for a better display Fig. 209: Identifying Exchange D2 B -Wiring Harness And Heate

Page 1802 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual possible from the connector on the radio 3Remove cover on right under the instrument panel Left hand steering vehicle up to 31.8.99.AR68.10-P-1520GH Left hand steering vehicle as of 1.9.99.AR

Page 1803 of 4133

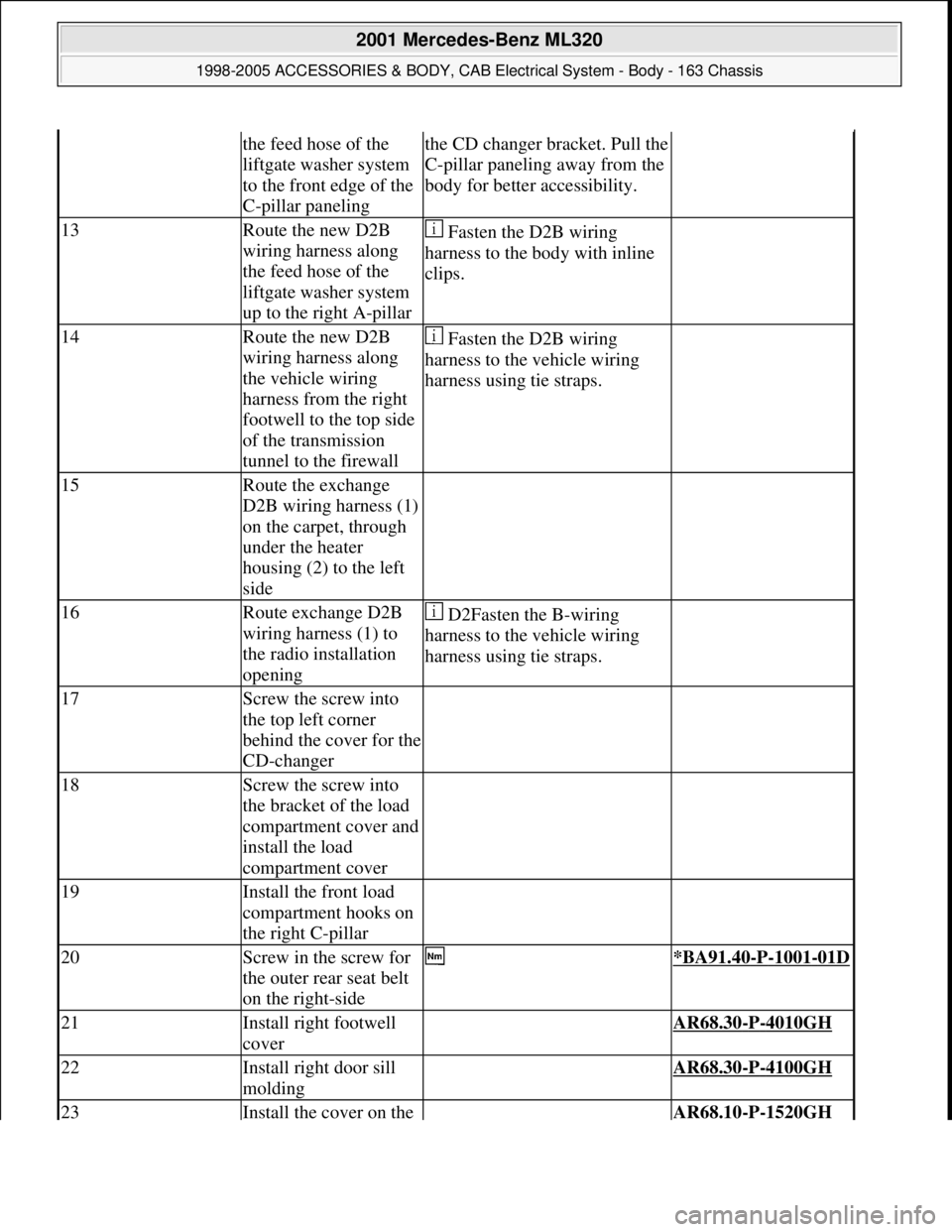

MERCEDES-BENZ ML320 1997 Complete Repair Manual the feed hose of the liftgate washer system to the front edge of the C-pillar panelingthe CD changer bracket. Pull the C-pillar paneling away from the body for better accessibility. 13Route the n

Page 1804 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Seat belts/emergency tensioning retractors FIBER OPTICAL CABLE (D2B) REPLACE COMPLETE (AFTER TESTING) - AR82.70-P-0005GI MODEL 163.136 #A as of 051500, 163.136 #X as of 708319, 163.154 #A as of 051

Page 1805 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 211: Identifying Fiber Optical Cable Components Cover on left under the instrument panel removed for a better display Fig. 212: Identifying Exchange D2 B -Wiring Harness And Heater Housin

Page 1806 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual connector to the radio 3Remove cover on right under the instrument panel Left hand steering vehicle up to 31.8.99.AR68.10-P-1520GH Left hand steering vehicle as of 1.9.99.AR68.10-P-1520GI R

Page 1807 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 11Route exchange D2B wiring harness (1) along the existing wiring harness from the right footwell to the top side of the transmission tunnel at the firewall Fasten D2B wiring harness to the ve

Page 1808 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Front seats Seat belts/emergency tensioning retractors FIBER OPTICAL CABLE (D2B) REPLACE COMPLETE (AFTER TESTING) - AR82.70-P-0005GJ MODEL 163.113 /154 /174 #A as of 289565, 163.113 #X as of 7546
