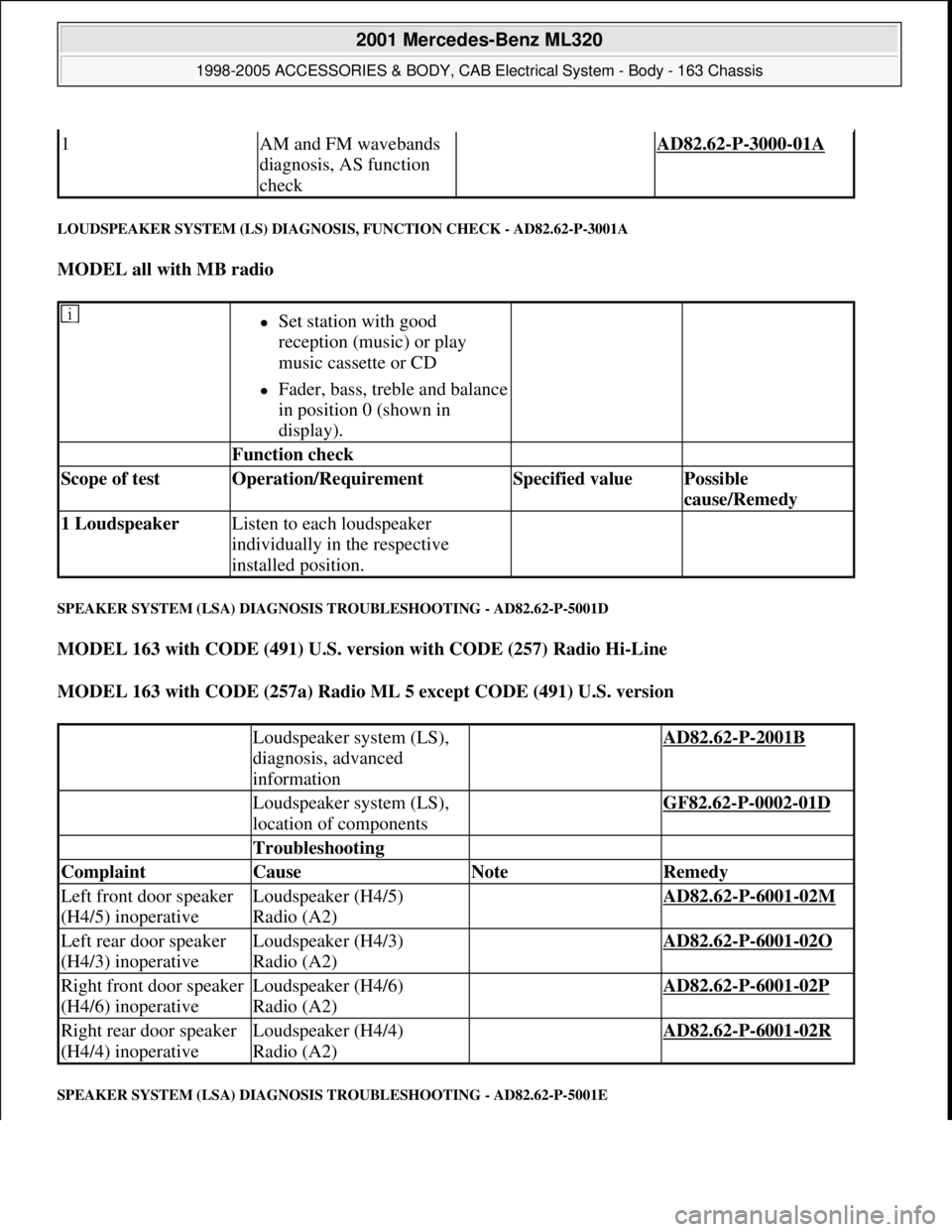

Page 1729 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual LOUDSPEAKER SYSTEM (LS) DIAGNOSIS, FUNCTION CHECK - AD82.62-P-3001A MODEL all with MB radio SPEAKER SYSTEM (LSA) DIAGNOSIS TROUBLESHOOTING - AD82.62-P-5001D MODEL 163 with CODE (491) U.S. version

Page 1730 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual MODEL 163 with CODE (491) U.S. version with CODE (259) Radio Premium with Bose sound system MODEL 163 with CODE (259a) Radio ML 10 with sound system except CODE (491) U.S. version RADIO FREQUENCY CO

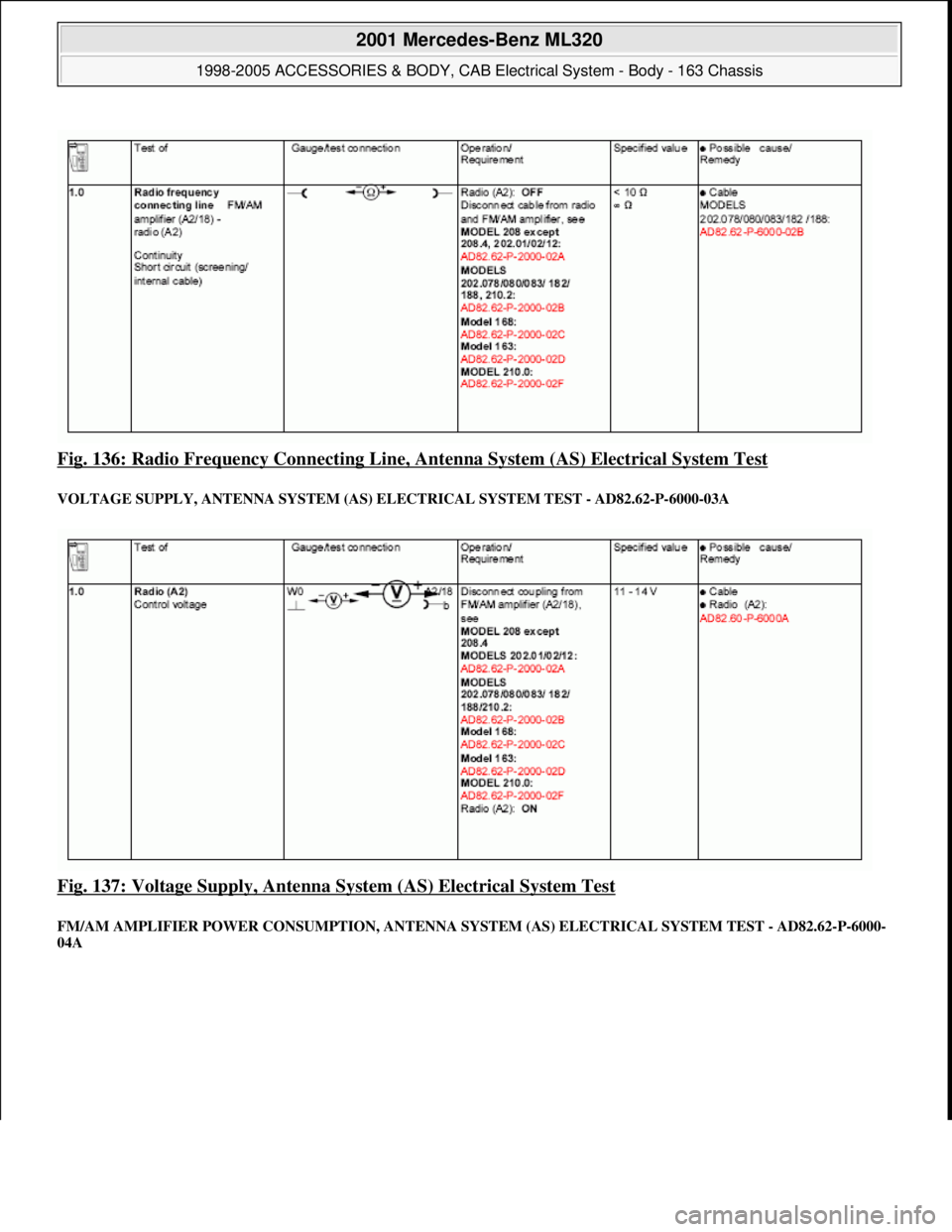

Page 1731 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 136: Radio Frequency Connecting Line, An tenna System (AS) Electrical System Test VOLTAGE SUPPLY, ANTENNA SYSTEM (AS) ELECTRICAL SYSTEM TEST - AD82.62-P-6000-03A Fig. 137: Voltage Supply, Ante

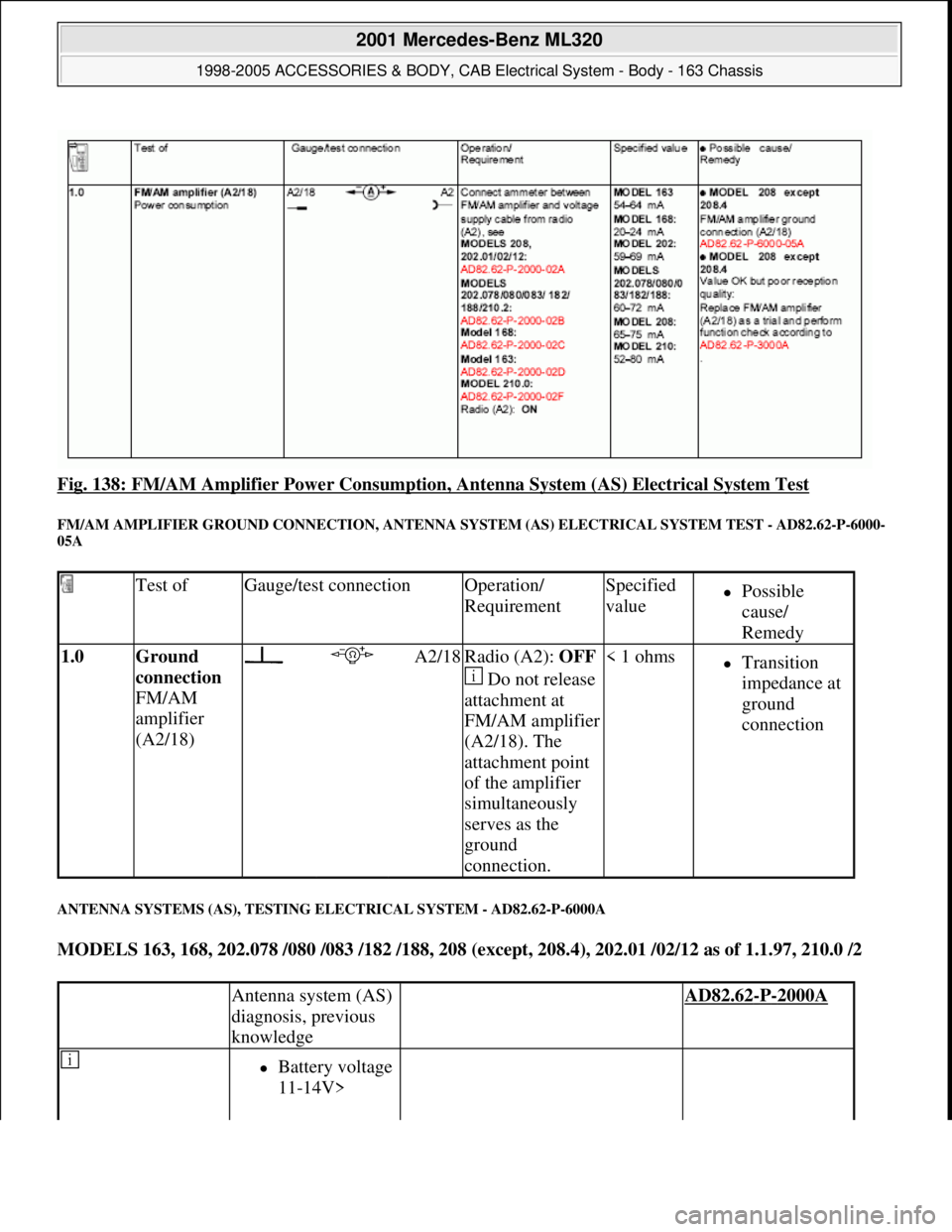

Page 1732 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 138: FM/AM Amplifier Power Consumption, Antenna System (AS) Electrical System Test FM/AM AMPLIFIER GROUND CONNECTION, ANTENNA SYSTEM (AS) ELECTRICAL SYSTEM TEST - AD82.62-P-6000- 05A ANTENNA SY

Page 1733 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual AMPLIFIER CONTROL MODULE TEST ELECTRICS LSA - AD82.62-P-6001-01C Model 163 with sound system Fuses OK Radio in order No damage to the rear window and/or to the rear or side window

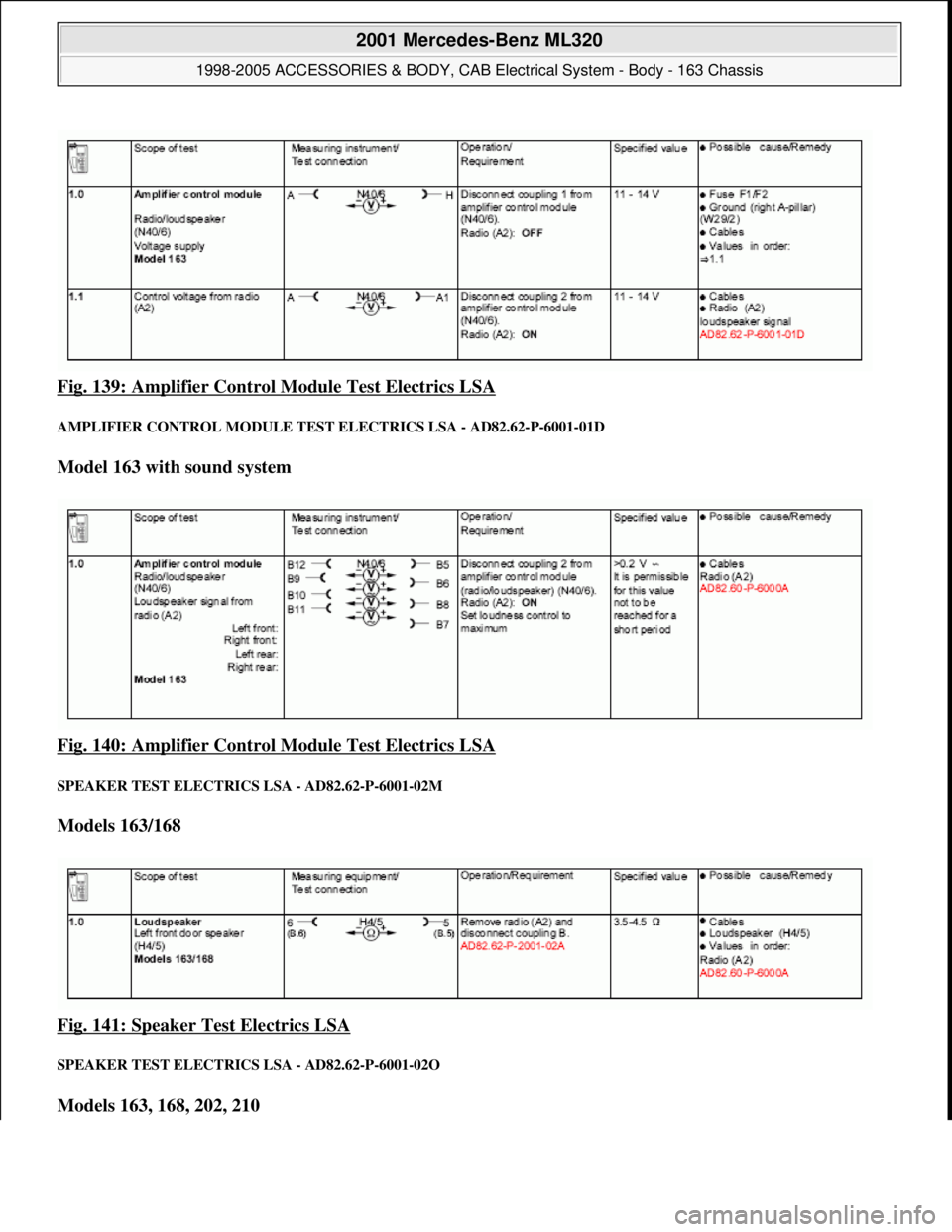

Page 1734 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 139: Amplifier Control Mo dule Test Electrics LSA AMPLIFIER CONTROL MODULE TEST ELECTRICS LSA - AD82.62-P-6001-01D Model 163 with sound system Fig. 140: Amplifier Control Mo dule Test Elec

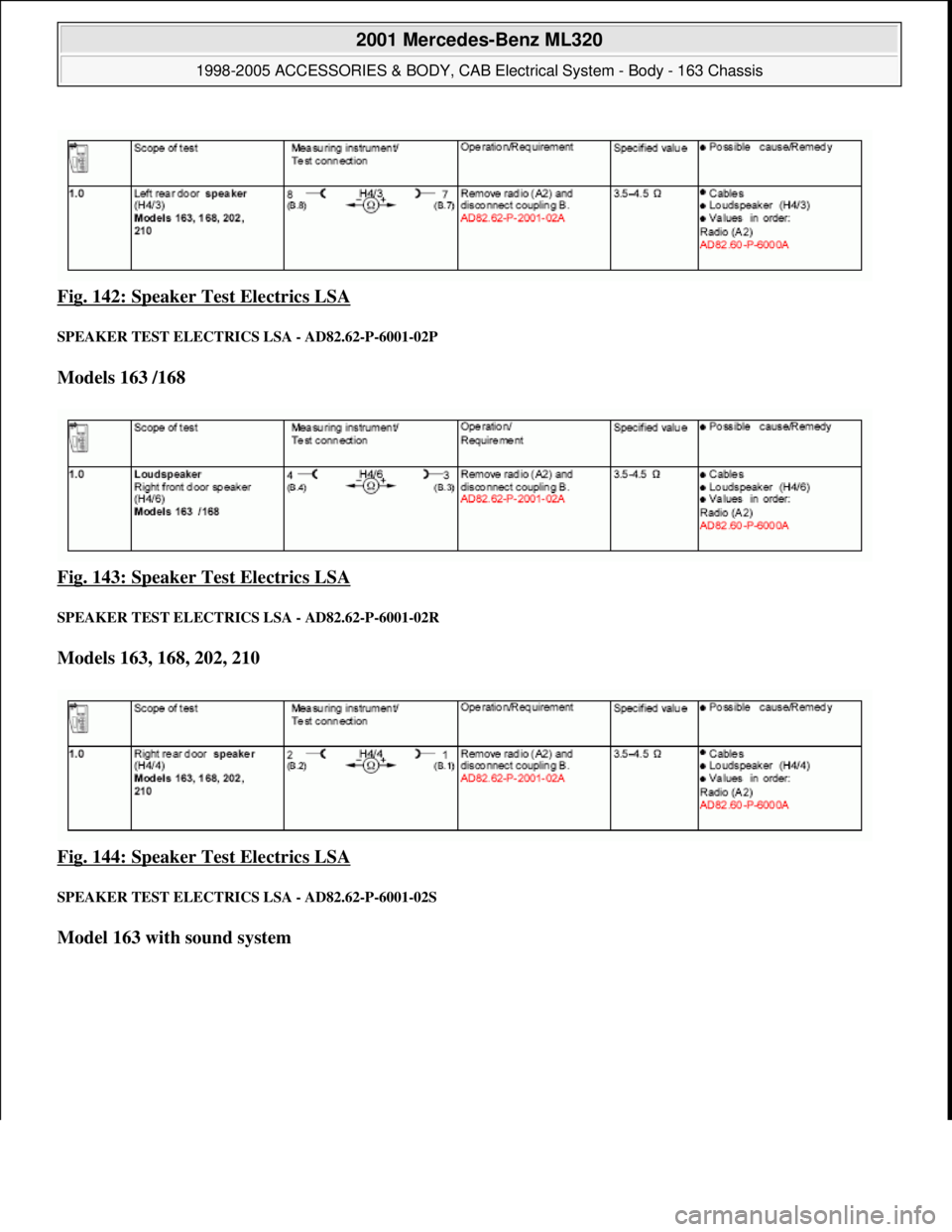

Page 1735 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 142: Speaker Test Electrics LSA SPEAKER TEST ELECTRICS LSA - AD82.62-P-6001-02P Models 163 /168 Fig. 143: Speaker Test Electrics LSA SPEAKER TEST ELECTRIC S LSA - AD82.62-P-6001-02R Mod

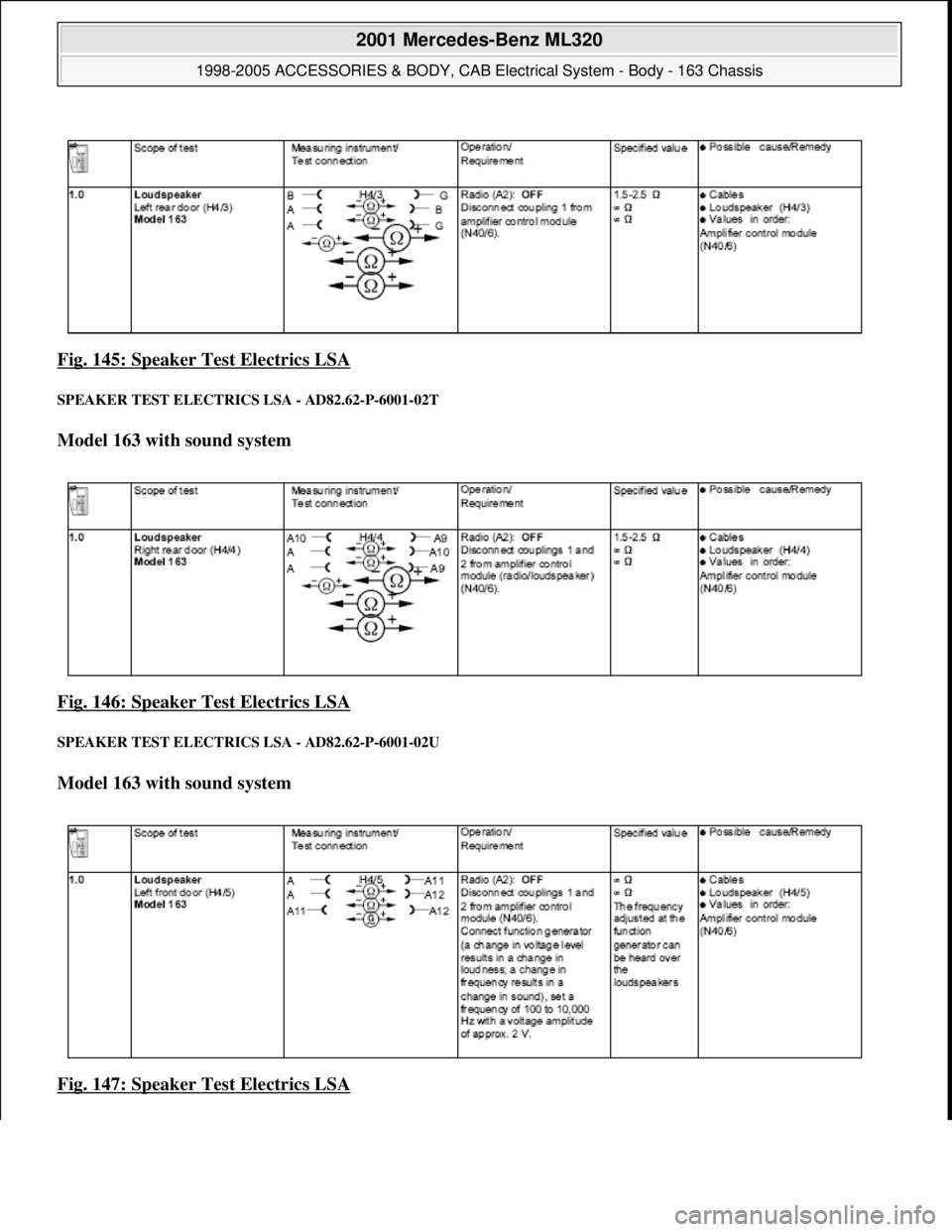

Page 1736 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 145: Speaker Test Electrics LSA SPEAKER TEST ELECTRICS LSA - AD82.62-P-6001-02T Model 163 with sound system Fig. 146: Speaker Test Electrics LSA SPEAKER TEST ELECTRIC S LSA - AD82.62-P-6
