Page 1241 of 4133

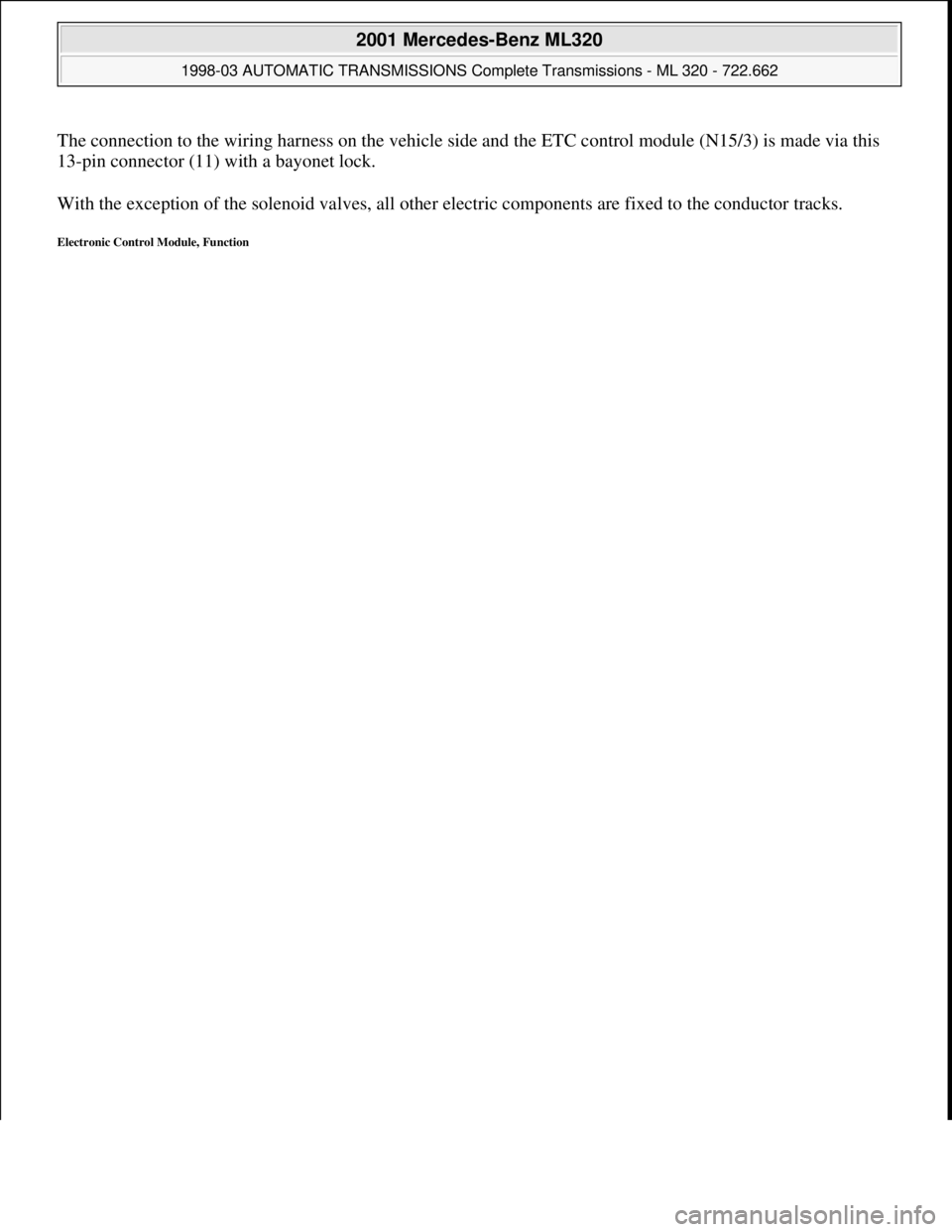

The connection to the wiring harness on the vehicle side and the ETC control module (N15/3) is made via this
13-pin connector (11) with a bayonet lock.
With the exception of the solenoid valves, all other electric components are fixed to the conductor tracks.
Electronic Control Module, Function

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 72 © 2006 Mitchell Repair Information Company, LLC.


        Page 1242 of 4133

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 73 © 2006 Mitchell Repair Information Company, LLC.


        Page 1243 of 4133

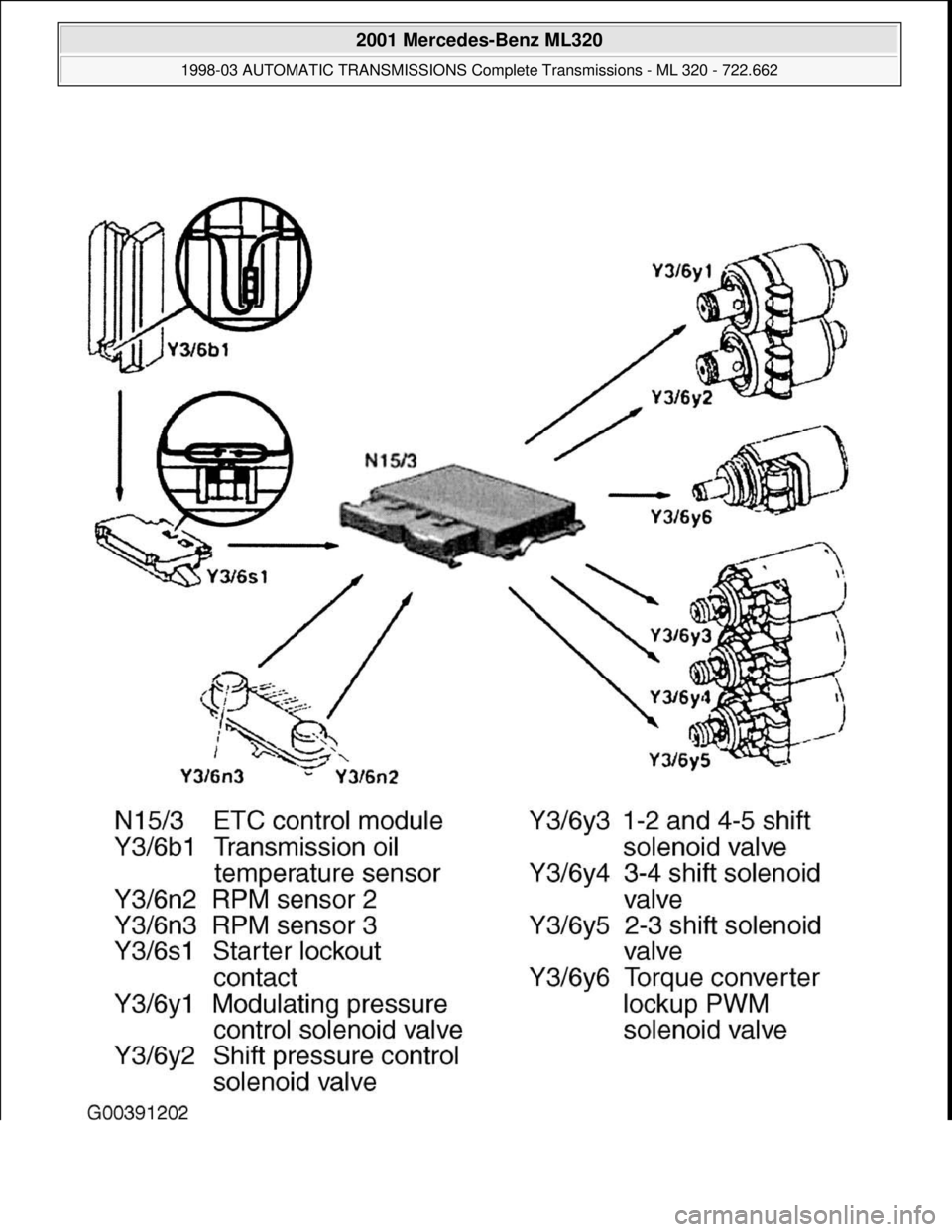

Fig. 36: Electronic Control Module, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Operation
Signals from the ETC control module (N15/3) are conve  rted into hydraulic functions in the electric valve
control unit (Y3/6). The RPM sensors (Y3/6n2, Y3/6n3)  , the starter lockout contact (Y3/6s1) and the
transmission oil temperature   sensor (Y3/6b1) of the electrical cont rol unit (Y3/6) supply the ETC control
module (N15/3) with input signals. The solenoid valves   are controlled by the ETC control module (N15/3) and
trigger the hydraulic functions. See   Fig. 36
.
Location/Task/Design/Function Of Freewheel

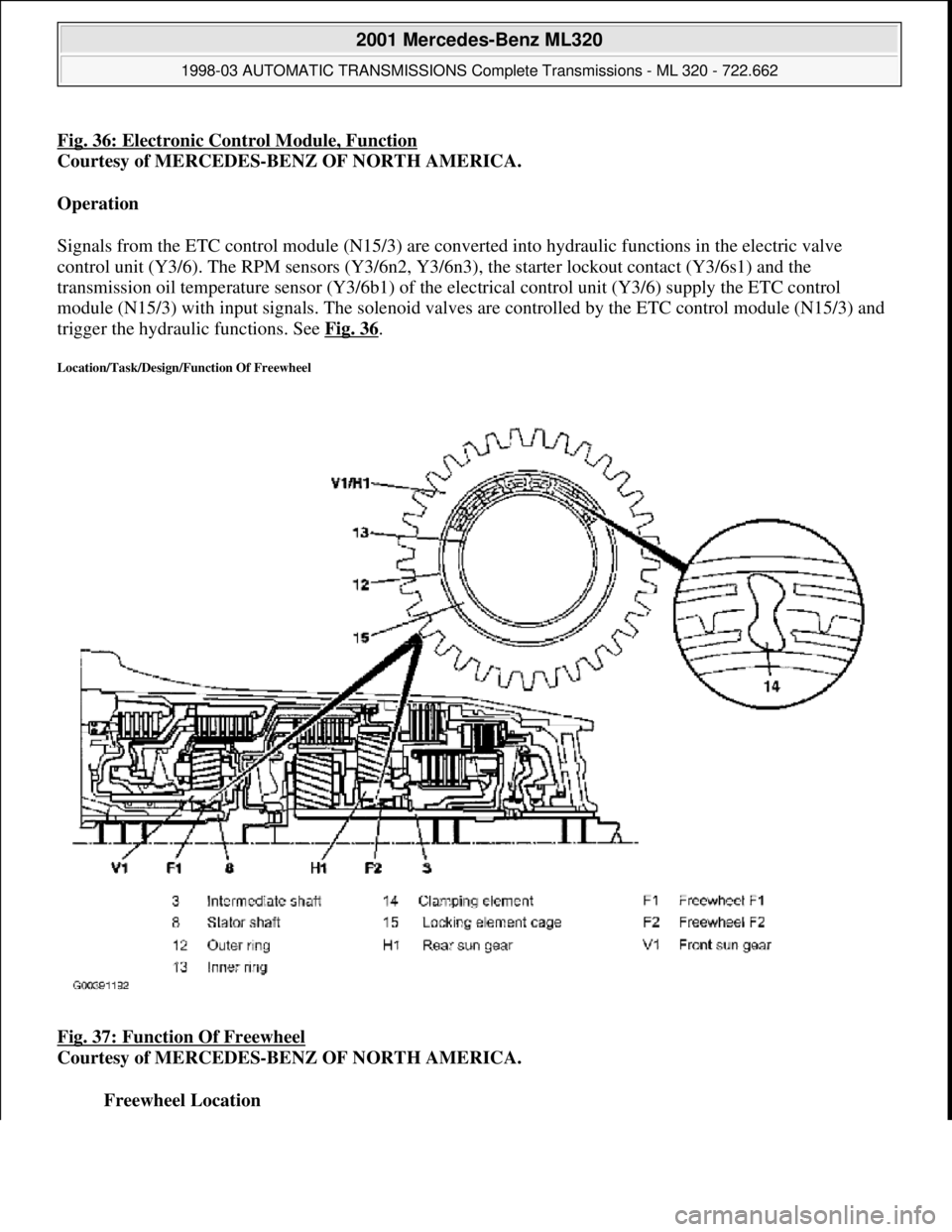

Fig. 37: Function Of Freewheel
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Freewheel Location

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMI  SSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 74 © 2006 Mitchell Repair Information Company, LLC.


        Page 1244 of 4133

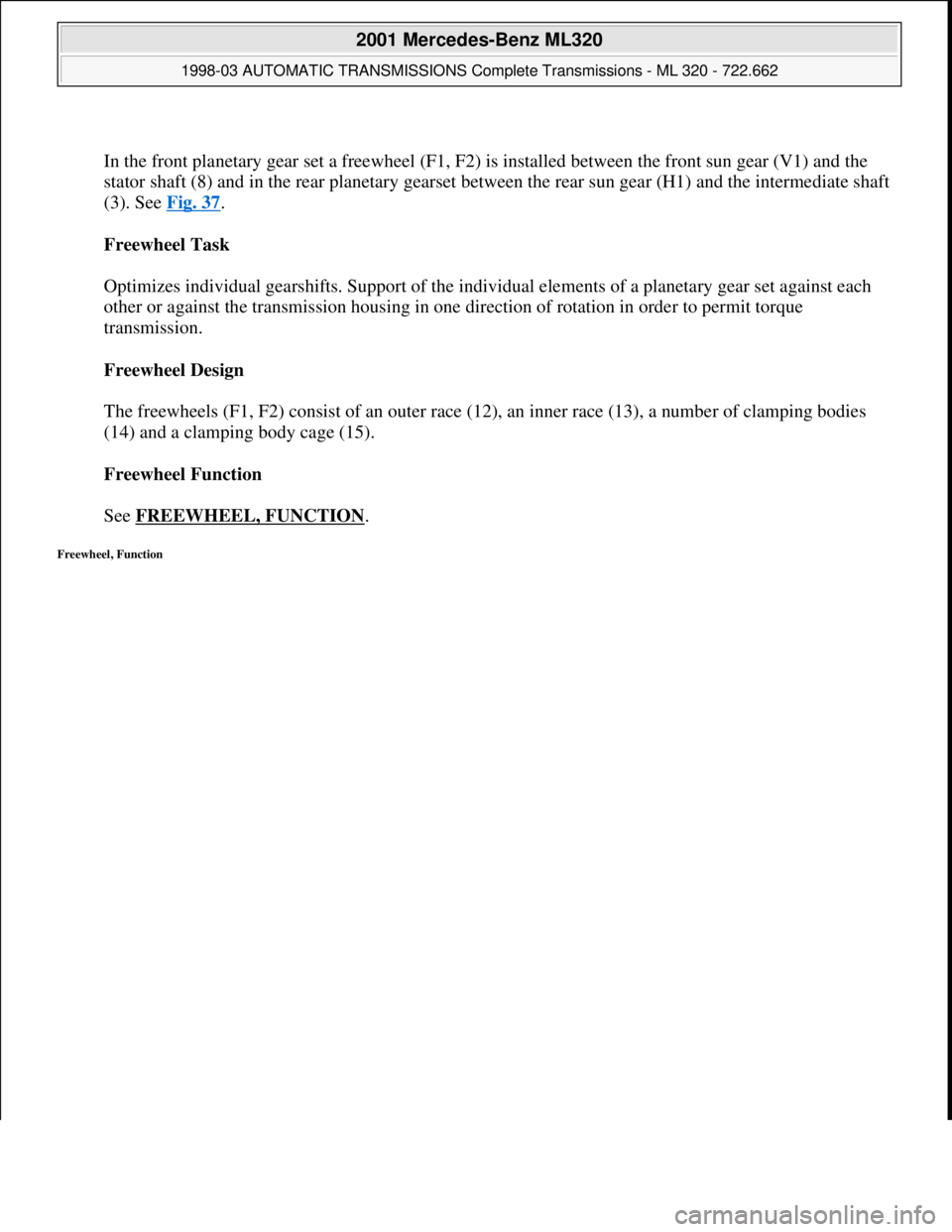

In the front planetary gear set a freewheel (F1, F2) is installed between the front sun gear (V1) and the
stator shaft (8) and in the rear planetary gearset between the rear sun gear (H1) and the intermediate shaft
(3). See Fig. 37
.
Freewheel Task

Optimizes individual gearshifts. Support of the individual elements of a planetary gear set against each
other or against the transmission housing in one direction of rotation in order to permit torque
transmission.
Freewheel Design

The freewheels (F1, F2) consist of an outer race (12), an inner race (13), a number of clamping bodies
(14) and a clamping body cage (15).
Freewheel Function

See FREEWHEEL, FUNCTION
.
Freewheel, Function

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 75 © 2006 Mitchell Repair Information Company, LLC.


        Page 1245 of 4133

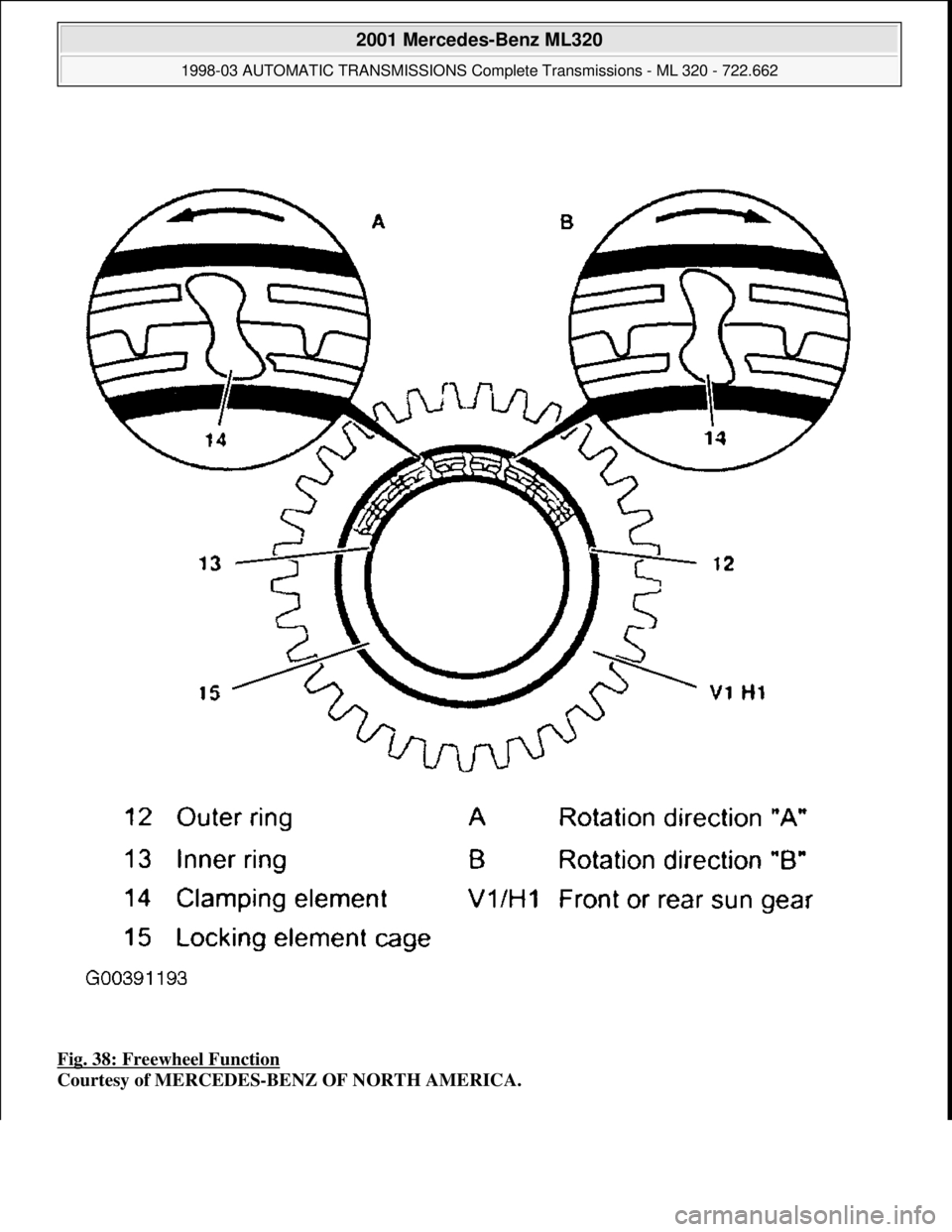

Fig. 38: Freewheel Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMI  SSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 76 © 2006 Mitchell Repair Information Company, LLC.


        Page 1246 of 4133
Operation - If the inner race (13) of the freewheel is locked and the outer race (12) turns in direction "A" , the
locking elements (14) adopt a diagonal position on account of their special contours, allowing the freewheel
function. See Fig. 38
. The outer race (12) slides over the locking elements (14) with negligible friction. If the
rotation of the outer race (12) changes to direction "B", the locking elements (14) stand up and lock the outer
and inner races (12, 13) together.
Transmission Housing Breathing, Location/Task

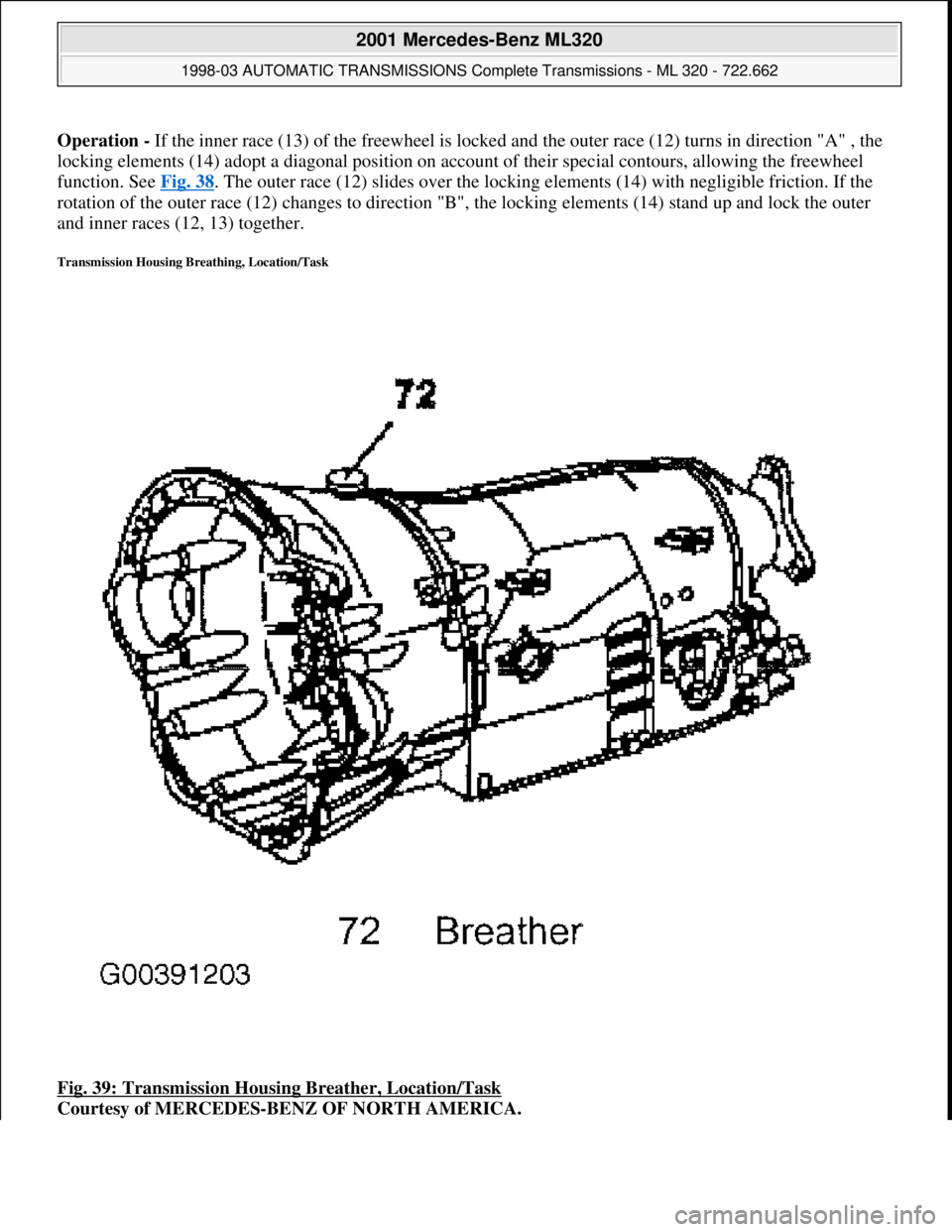

Fig. 39: Transmission Housing Breather, Location/Task
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 77 © 2006 Mitchell Repair Information Company, LLC.


        Page 1247 of 4133
Transmission Housing Breather, Location

The inside of the transmission and the breather (72) are connected by a channel which is cast into the
torque converter casing. See Fig. 39
.
Transmission Housing Breather, Task

The transmission housing vent compensated the pressure in the transmission housing if temperature-
related volume changes in the transmission oil and air occur.
Kick-Down Switch, Location/Task/Design

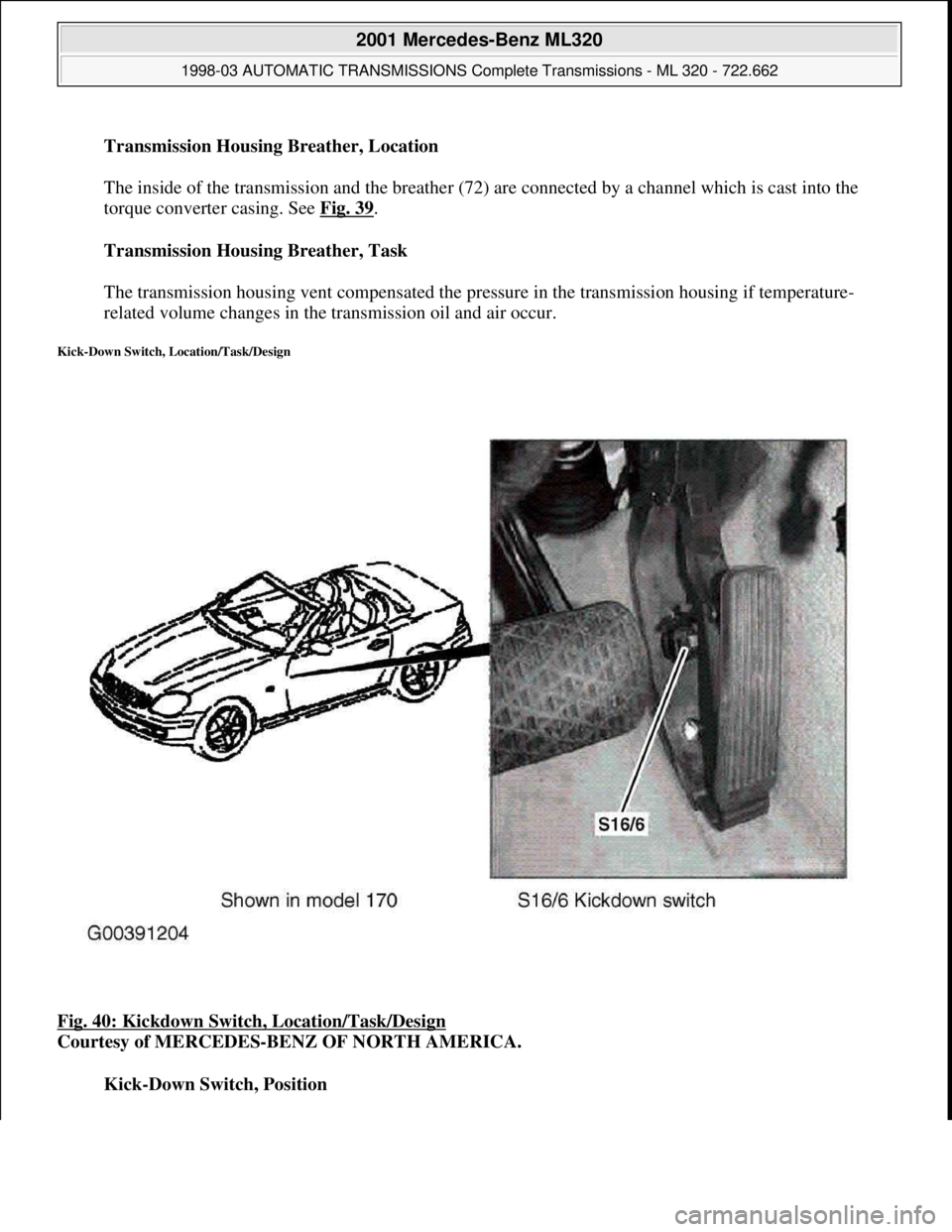

Fig. 40: Kickdown Switch, Location/Task/Design
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Kick-Down Switch, Position


2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:26 PMPage 78 © 2006 Mitchell Repair Information Company, LLC.


        Page 1248 of 4133
The kickdown switch (S16/6) is located  in the footwell, integrated into the electric accelerator pedal. See
Fig. 40
.
Kick-Down Switch, Task

Influencing the shift program of th  e electronic transmission control.
Kick-Down Switch, Design

The kickdown switch (S16/6) cons  ists of a spring-tensioned electrical switch contact.

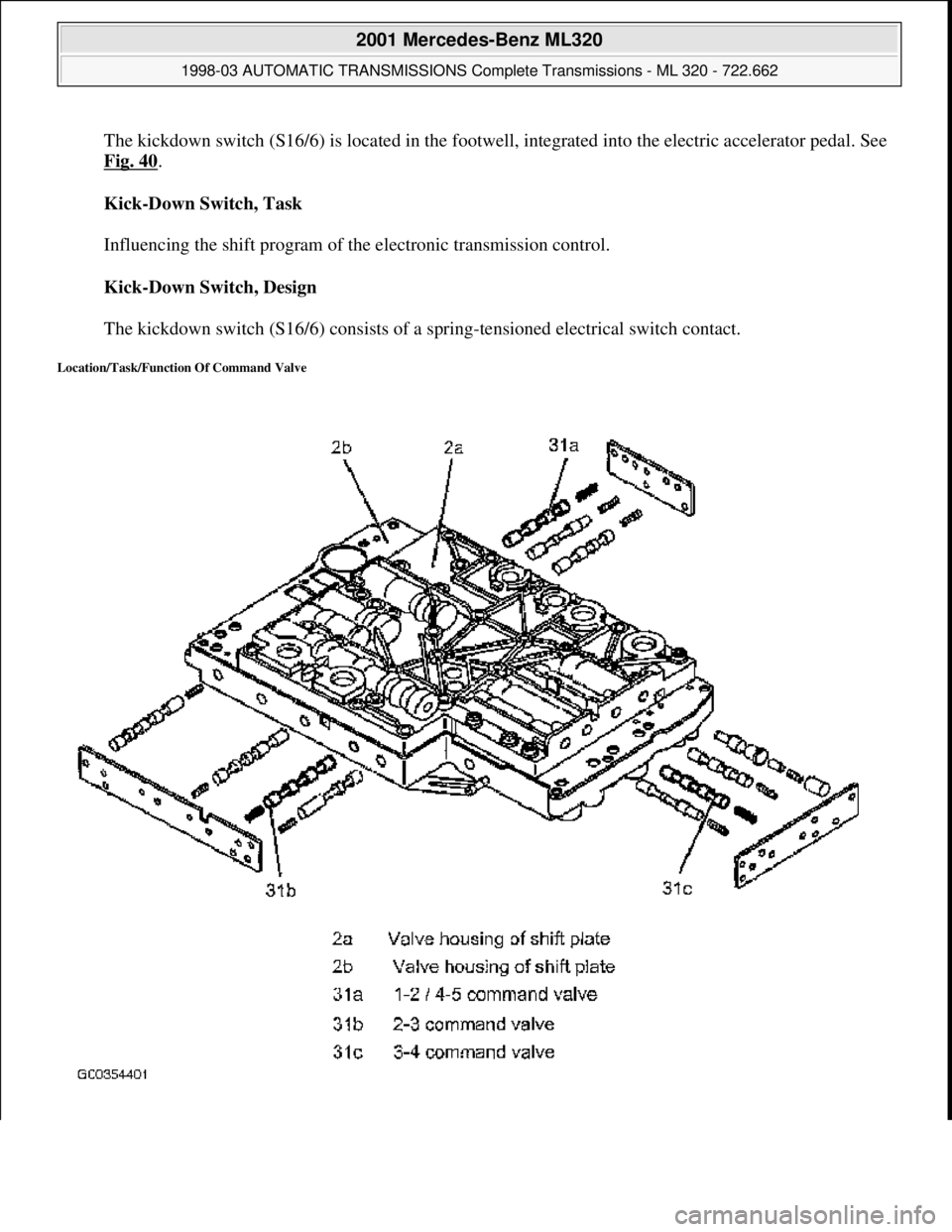

Location/Task/Function Of Command Valve
