MERCEDES-BENZ ML320 1997 Complete Repair Manual
Remove, Install

Danger!
Risk of explosion
from fuel igniting,
risk of

poisoning
from inhaling and swallowing fuel

as well as
risk of injury
to eyes and skin

from contact with fue

Remove, Install

Danger!
Risk of explosion
from fuel igniting,
risk of

poisoning
from inhaling and swallowing fuel

as well as
risk of injury
to eyes and skin

from contact with fuel.
Fire, sparks, open flames or smoking

forbidden.

Pour fuels only into suitable and appropriately

marked containers.

Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A

1
Drain fuel tank

Via fuel pump. NOT for model 163.113/128.

AR47.10-P-4001GH

If fuel pump faulty, and model 163.113/128.

AR47.10-P-4000GH

*BF47.10-P-1001-01A

2
Unscrew filler cap (2) and detach from filler

cap attachment (4)

3.1
Remove left seat of 3rd seat row

If installed. See owner's manual

4
Unclip cover of left-hand side panel (1)

5.1
Detach fuel lines of expansion reservoir and

separate from filler neck

As of VIN A289565. NOT for model

163.113/128.

6
Detach fuel filler neck from guide funnel

Installation:
Check O-ring and replace if

necessary. Ensure that the bayonet-lock
remains above
the pressure sensor.

Ensure it is correctly located when installed.

Open bayonet lock (3) to do this.

7
Pull filler neck through toward interior

Screw on cap again in order to avoid fuel

flowing out.

8.1
Remove fuel tank pressure sensor (B4/3)

Only USA version

AR47.10-P-8022GH
9.1
Detach bolted connection of fuel tank filler

neck/ground (X36/4) from filler neck

NOT for model 163.113/128.

10.1
Cut cable strap for retaining clips of fuel lines
at filler neck and remove retaining clips

As of VIN A289565. NOT for model

163.113/128.

Danger!
Risk of fatal accident
from vehicle slipping

or toppling off the lift platform
Align vehicle between the columns of lifting
platform and position the four support plates

below the support strongpoints specified by

the vehicle manufacturer.

AS00.00-Z-0010-01A

11
Place the vehicle on lifting platform

AR00.60-P-1000GH

12
Separate rubber seal (5) from underside of

vehicle and remove filler neck from interior

Do not damage fuel lines at filler neck.

13
Remove left rear wheel

e

Removing and installing wheels, rotating if

necessary

AP40.10-P-4050GH

14
Remove spare wheel and spare wheel carrier

complete

NOT in the case of spare wheel

holder/spare wheel, code 849.

15
Cut a large safety cable strap for filler neck at

bracket on longitudinal frame member

16
Remove bracket from longitudinal frame

member

17
Disconnect connection for regeneration (77/2)

and fresh air connection (77/4) on activated

charcoal canister (77)

Installation
: Connect up lines as per

connection diagram:

#

Engine 111

AR47.30-P-8212-01GJ

Engines 112, 113

AR47.30-P-8212-01GI

Engines 112, 113 version
I

AR47.30-P-8212-01GH

Charcoal canister and fuel tank form a

single unit.

NOT for model 163.113/128.

18
Detach vent hose

At rear differential to rear of activated

charcoal reservoir.

19
Remove rear exhaust system heat shield.

Do not damage boot at rear axle shaft.

20
Disconnect rear propeller shaft at differential

Installation:
Install new self-locking bolts.

Tie up propeller shaft e.g. using welding

wire

Heat bolts with hot air fan to facilitate

removing. Mark propeller shaft and differential

gear flange for correct installed position.

*BA41.10-P-1002-01C

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2

Page 2610 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
21
Detach rear brake cables

Unclip at underfloor of vehicle and

unscrew brake cable holder on right and left

at frame.

22.1
Unbolt check strap of rear axle carrier from

underfloor of vehicl

21
Detach rear brake cables

Unclip at underfloor of vehicle and

unscrew brake cable holder on right and left

at frame.

22.1
Unbolt check strap of rear axle carrier from

underfloor of vehicle

As of VIN A145273, X708319.

23
Remove left rear stone shield

24
Remove lower tensioning straps (80/2) and

loosen the upper tensioning straps

Tensioning straps are color-coded and

cannot be mixed up.

Support fuel tank using assembly jack.

*BA47.10-P-1001-01D

25
Remove longitudinal strut for tensioning

straps (80/18)

*BA47.10-P-1002-01D

26.1
Unscrew linkage for headlamp range

adjustment
at the top

If installed.

27
Unscrew nuts on bottom of the shock
absorbers at the transverse control arm

Installation:
Install new self-locking nuts.

*BA32.25-P-1001-03D

28
Unscrew rear axle carrier from floor of vehicle

and lower as far as possible

Support rear axle carrier.

Installation:
Install new self-locking bolts.

*BA35.10-P-1001-01C

29
Lower fuel tank

Support fuel tank.

30
Remove upper tensioning strap
at the rear
The tensioning strap at the top at the front.

31.1
Unclip lines from side of fuel tank

As of VIN A289565, X754620.

Installation:
The lines must not be

damaged.

32
Disconnect fuel pump electrical plug

connection

33
Disconnect fuel feed line (90/12) and fuel

return line (90/11)

Fuel lines must not be bent.

Pliers

*163589003700

34
Remove fuel tank (80)

Installation:
Ensure that the sealing

rubbers (5) seat correctly in the body floor to

prevent water entry.

Do not damage fuel lines at filler neck.

Guide filler neck with its chamfered side

(arrow) through between frame and body.

Filler neck and fuel tank cannot be separated

from each other.

35
Install in the reverse order

36.1
Dispose of fuel tank

Ony when replacing the fuel tank.

o

Disposal of fuel tanks

OS47.10-P-0001-01A

Rear axle carrier

Number

Designation
Model

Series 163

BA35.10-P-1001-01C
Self-locking bolt, rear axle carrier at front and rear

to frame floor
Nm
200

Propeller shaft

Number

Designation
Model

Series 163

BA41.10-P-1002-01C
Self-locking bolt, rear propsharft

at rear axle center section
Nm
50

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 3

Page 2611 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
Fuel tank

Number

Designation
Models

163.113/

128/ 136/

154/157/

172/175
Model

163.174

BA47.10-P-1001-01D
Screws for tensioning straps
Nm
2020

BA47.10-P-1002-01D
Longitudinal strut for che

Page 2612 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
AR47.10-P-8022GH
Remove/install fuel tank pressure sensor
18.3.97

MODEL
163.154 with ENGINE 112.942 with CODE (494a) USA version

MODEL
163.157 with ENGINE 112.970 with CODE (494a) USA version

Page 2613 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
AR47.30-P-8200GH
Remove/install fuel vapor expansion reservoir
13.3.01

MODEL
163.113 #A as of 289565,

163.113 #X as of 754620,

163.154 #A as of 289565,

163.154 #X as of 754620,

163.128 /15

Page 2614 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
13
Install in the reverse order

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2

Page 2615 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001-04 ELECTRICAL

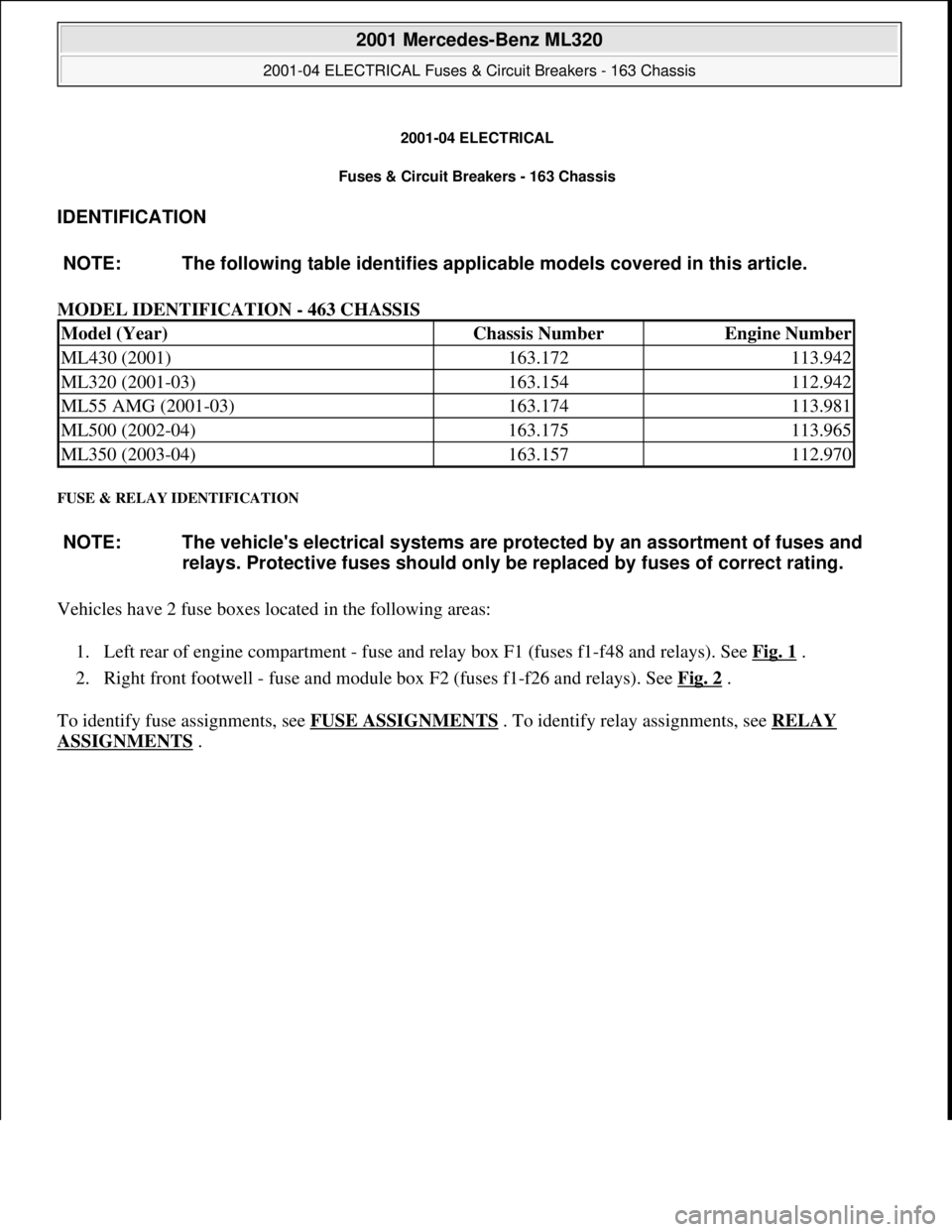

Fuses & Circuit Breakers - 163 Chassis
IDENTIFICATION
MODEL IDENTIFICATION - 463 CHASSIS
FUSE & RELAY IDENTIFICATION
Vehicles have 2 fuse boxes located in the following areas:

Page 2616 of 4133

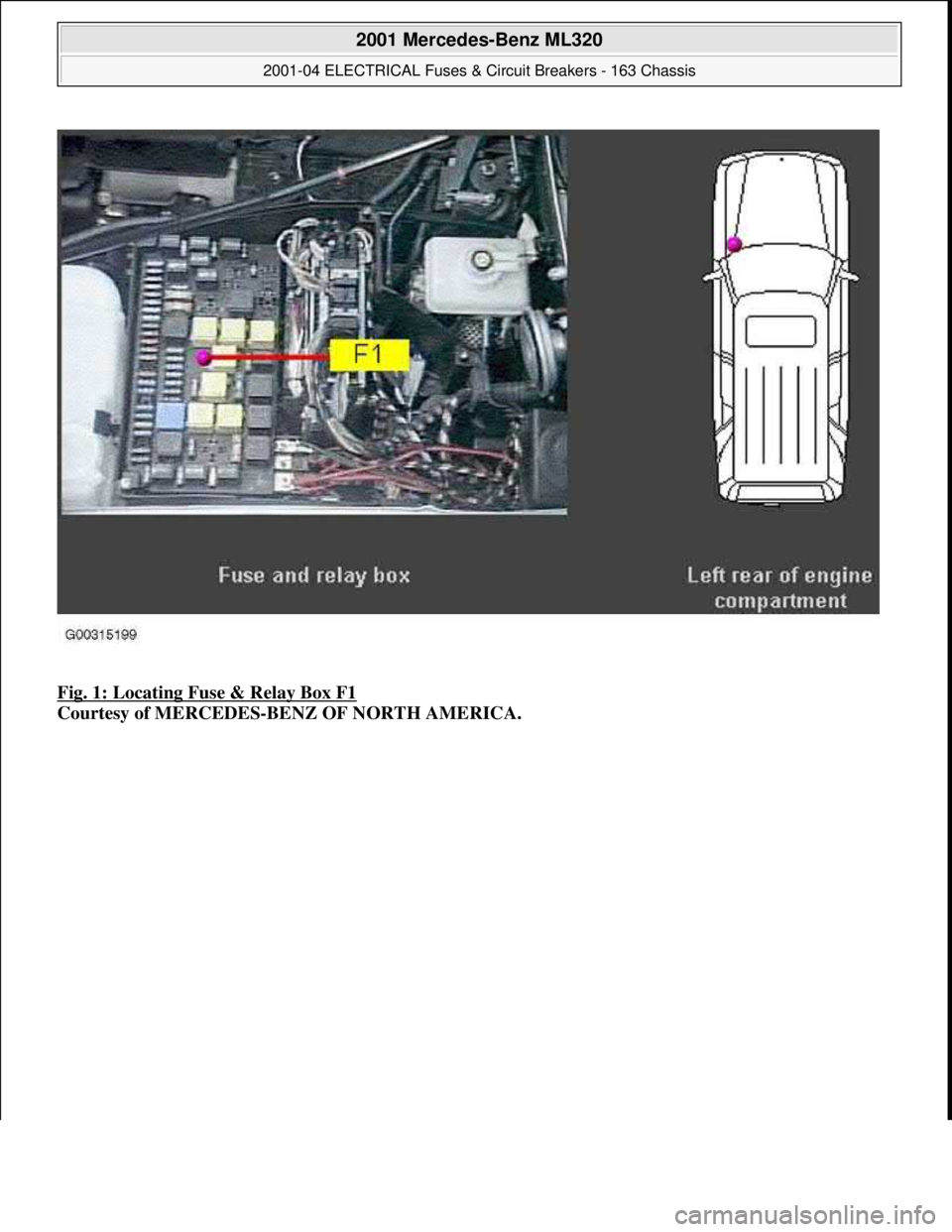

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 1: Locating Fuse & Relay Box F1
