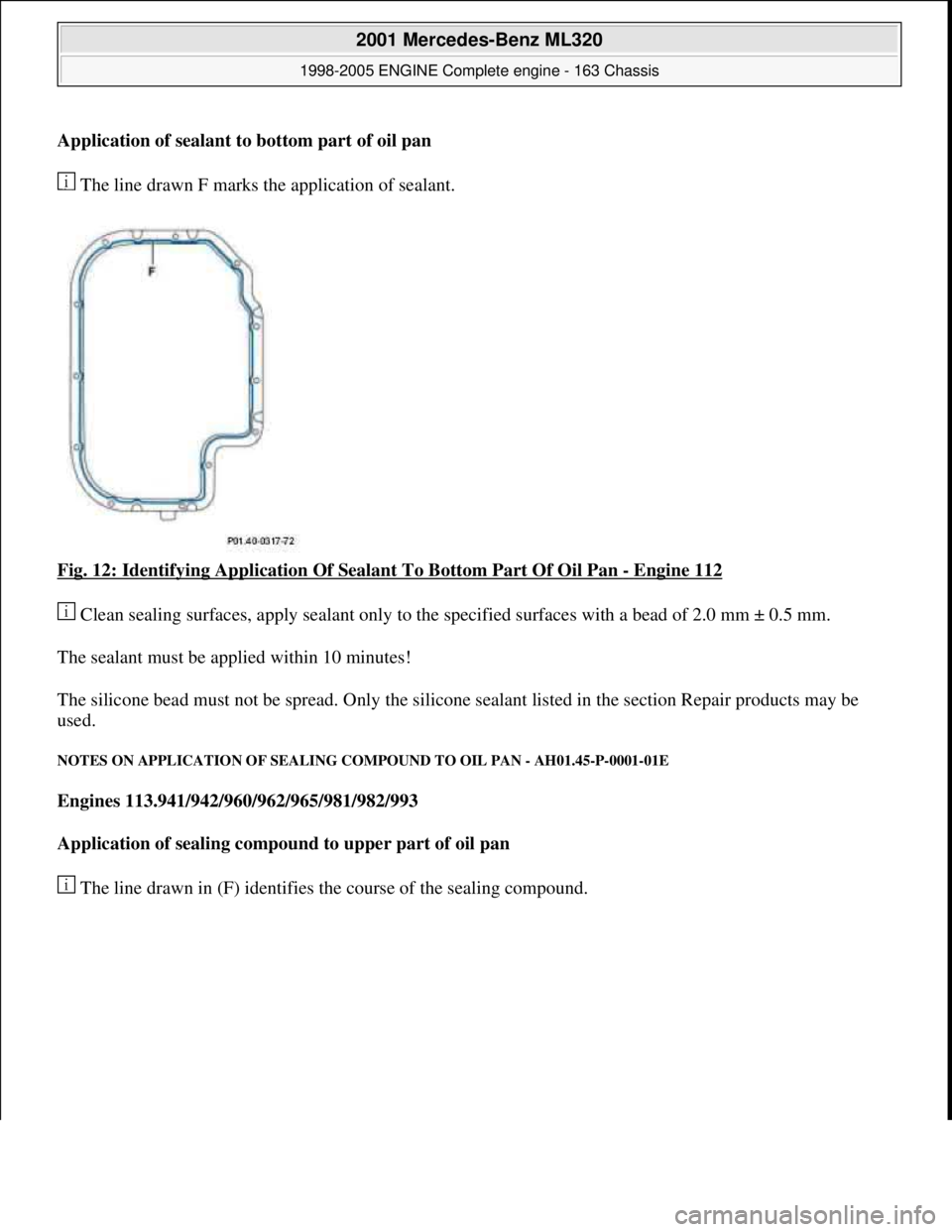

Page 2377 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Application of sealant to bottom part of oil pan The line drawn F marks the application of sealant. Fig. 12: Identifying Application Of Sealant To Bottom Part Of Oil Pan - Engine 112 Clean se

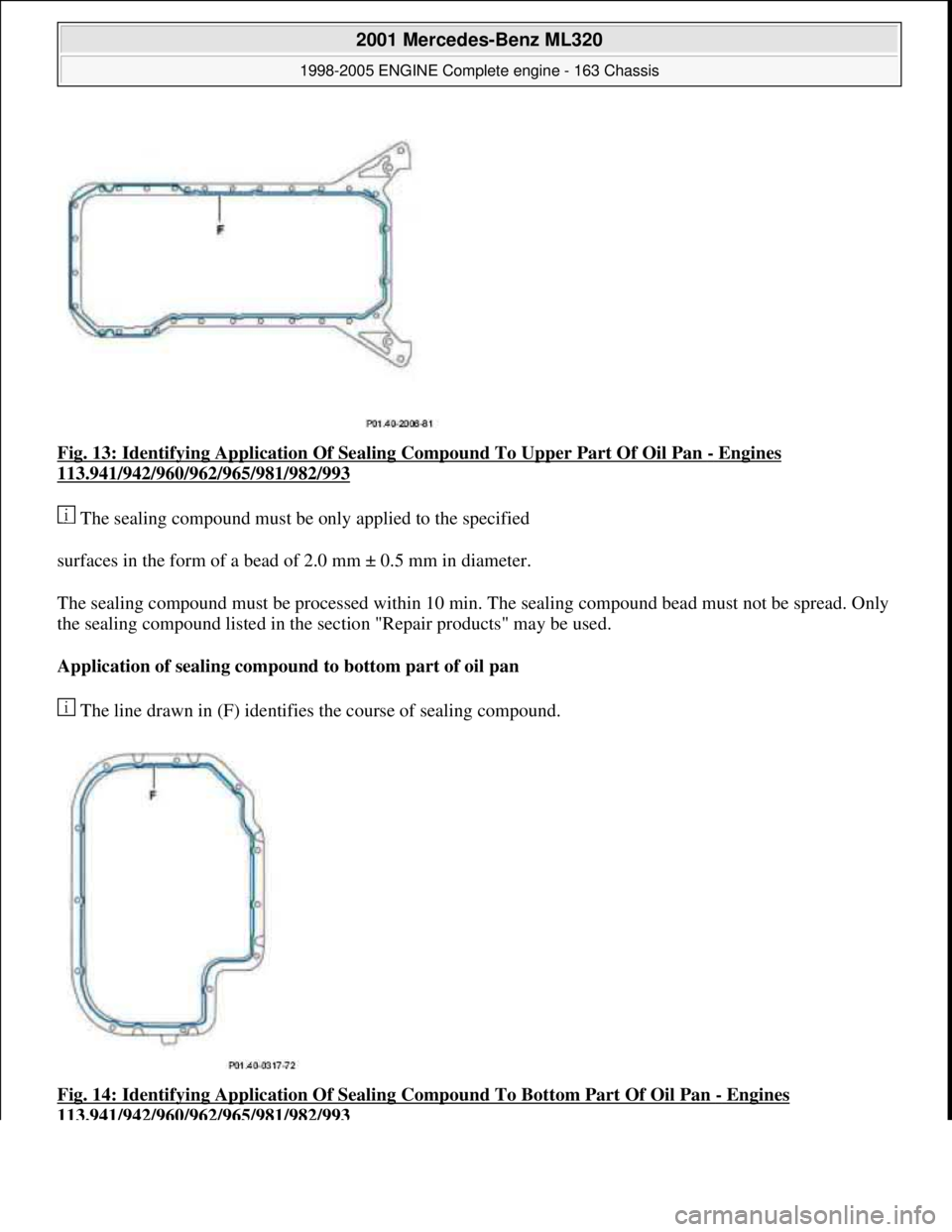

Page 2378 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 13: Identifying Application Of Seal ing Compound To Upper Part Of Oil Pan - Engines 113.941/942/960/962/965/981/982/993 The sealing compound must be only applied to the specified surfaces

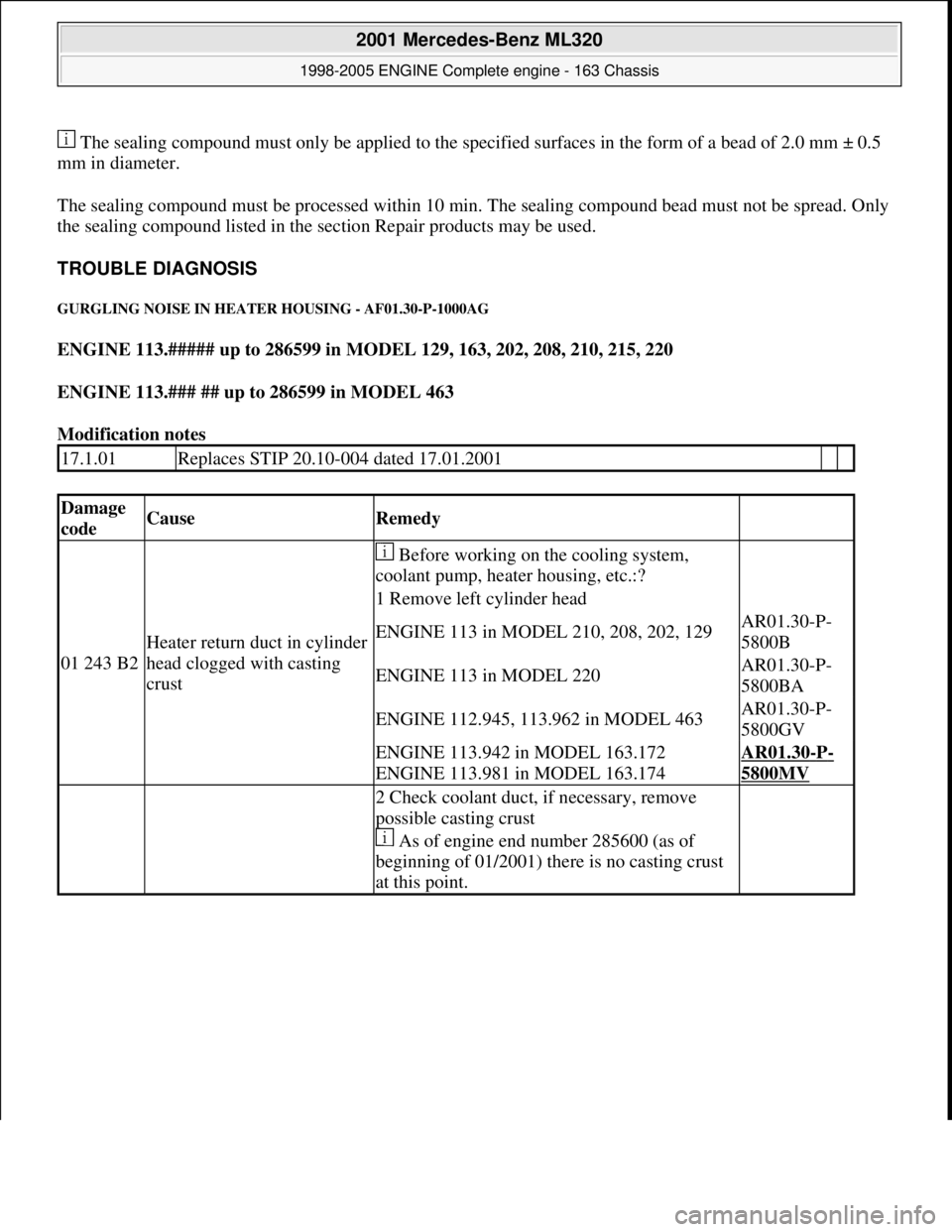

Page 2379 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual The sealing compound must only be applied to the speci fied surfaces in the form of a bead of 2.0 mm ± 0.5 mm in diameter. The sealing compound must be processe d within 10 min. The sealing com

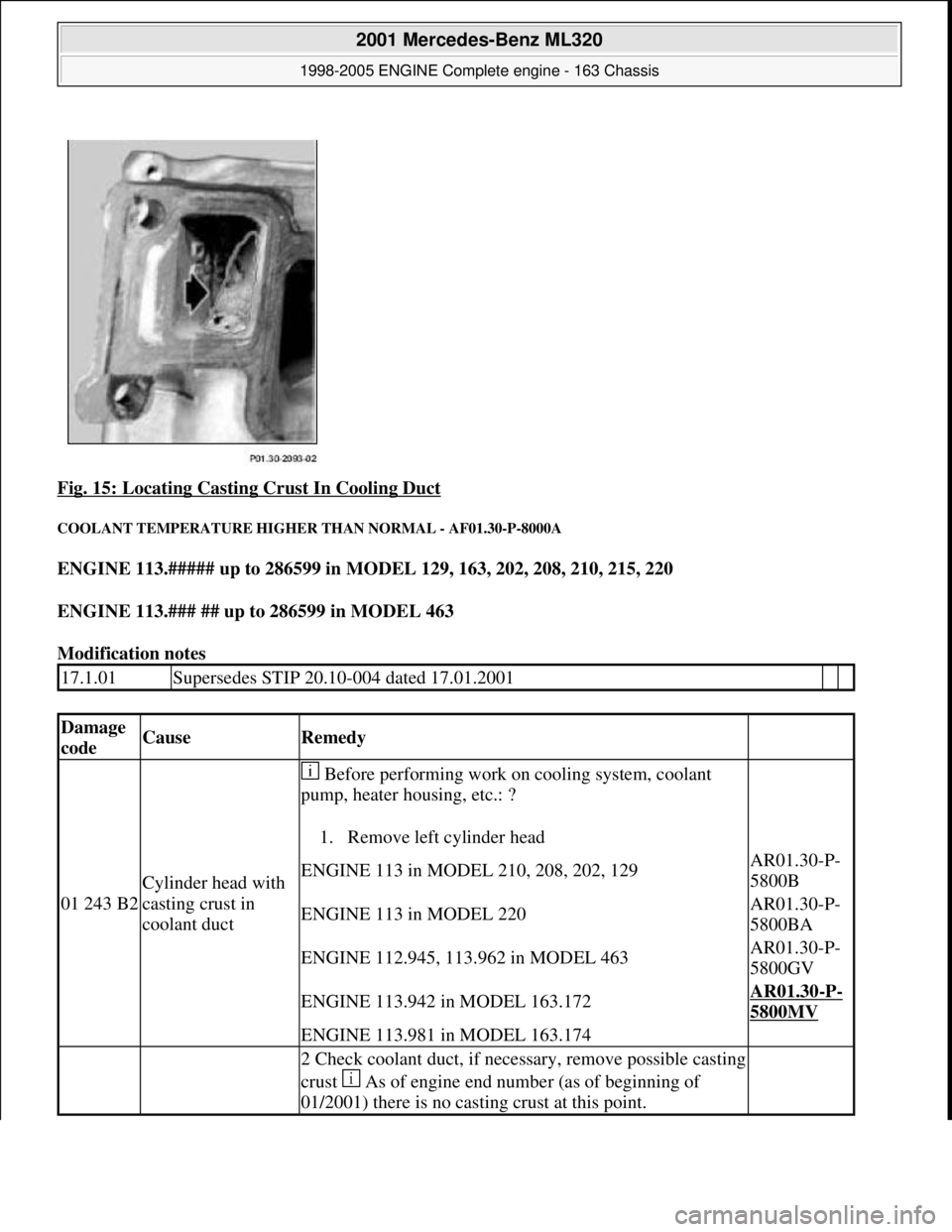

Page 2380 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 15: Locating Casting Crust In Cooling Duct COOLANT TEMPERATURE HIGHER THAN NORMAL - AF01.30-P-8000A ENGINE 113.##### up to 286599 in MODEL 129, 163, 202, 208, 210, 215, 220 ENGINE 113.###

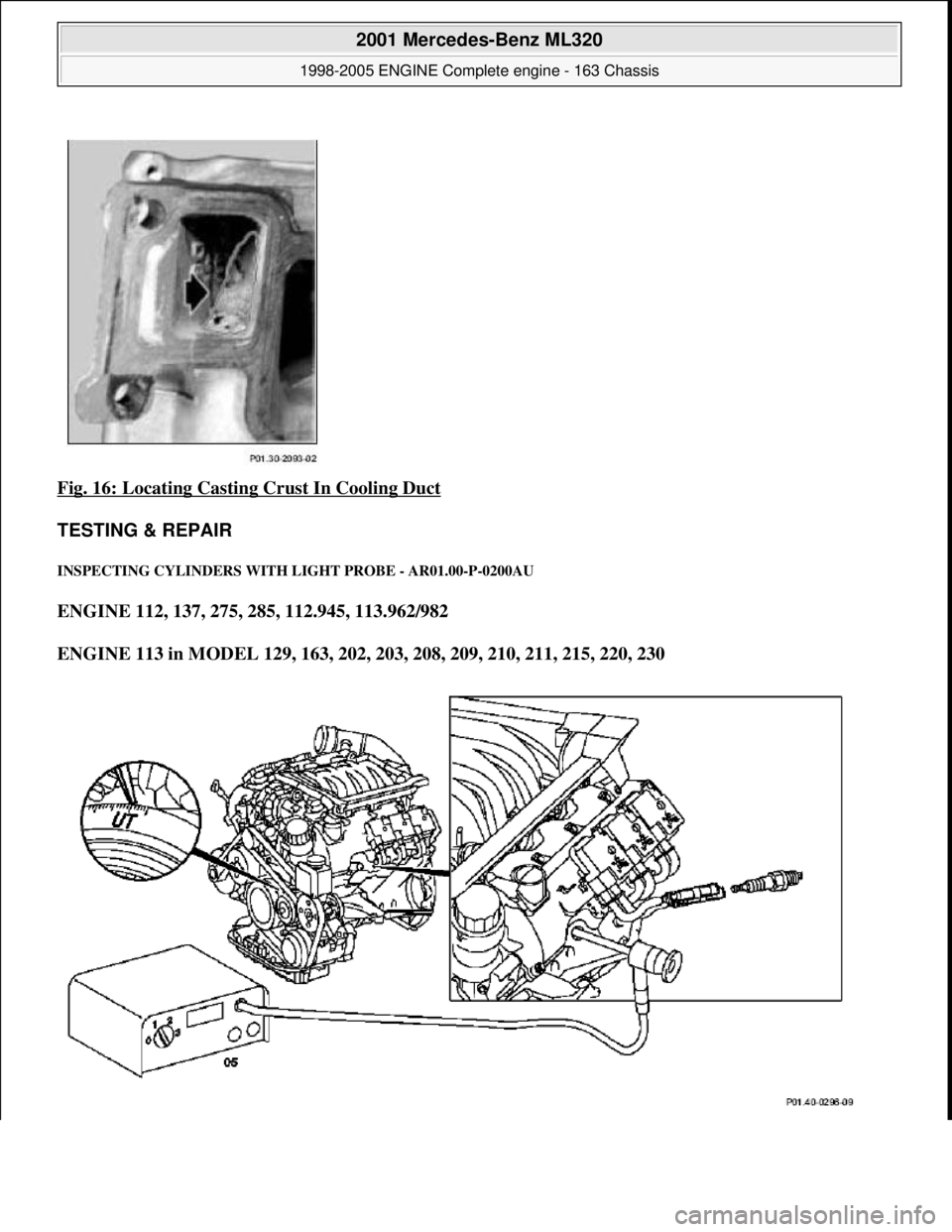

Page 2381 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 16: Locating Casting Crust In Cooling Duct TESTING & REPAIR INSPECTING CY LINDERS WITH LIGHT PROBE - AR01.00-P-0200AU ENGINE 112, 137, 275, 285, 112.945, 113.962/982 ENGINE 113 in MODEL

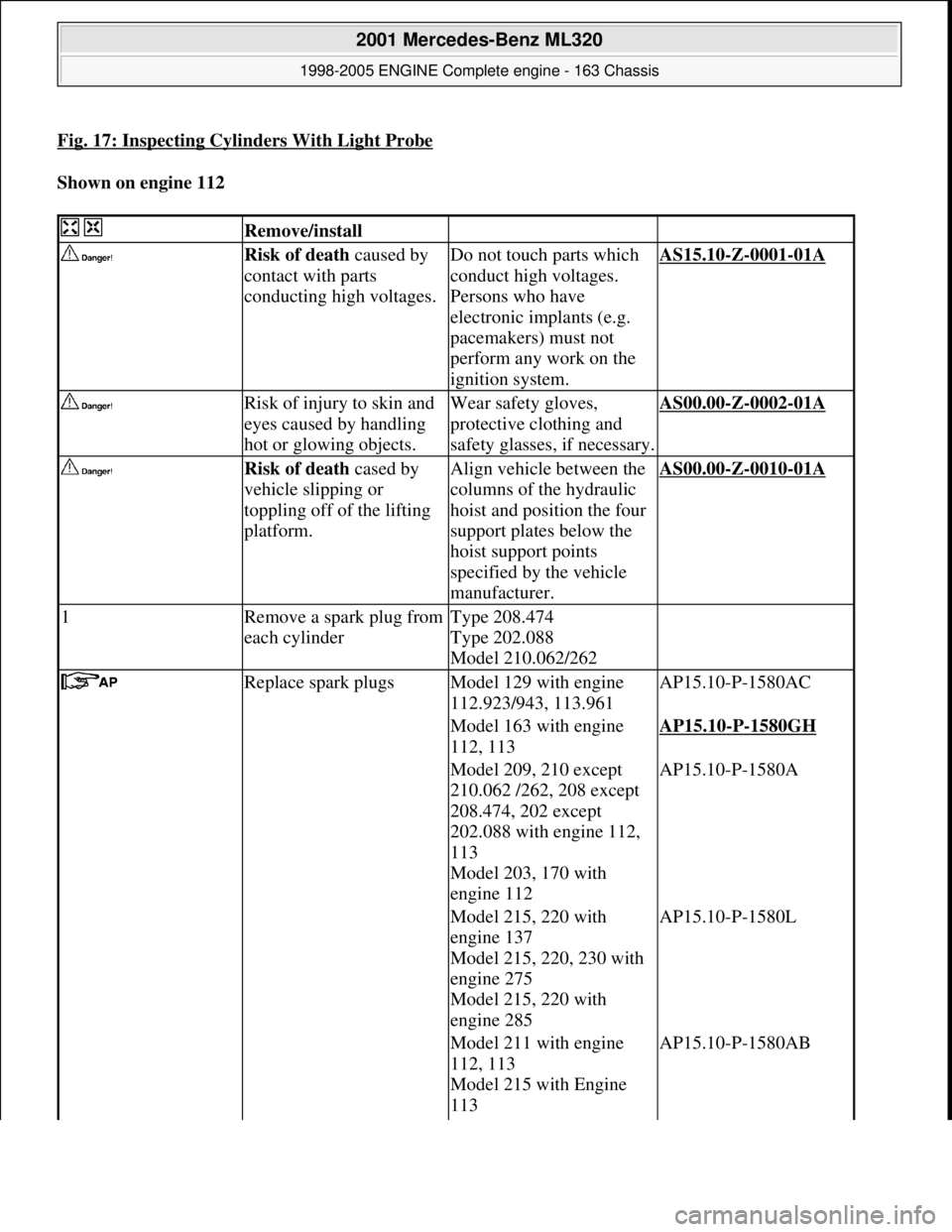

Page 2382 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 17: Inspecting Cylinders With Light Probe Shown on engine 112 Remove/install Risk of death caused by contact with parts conducting high voltages.Do not touch parts which conduct hig

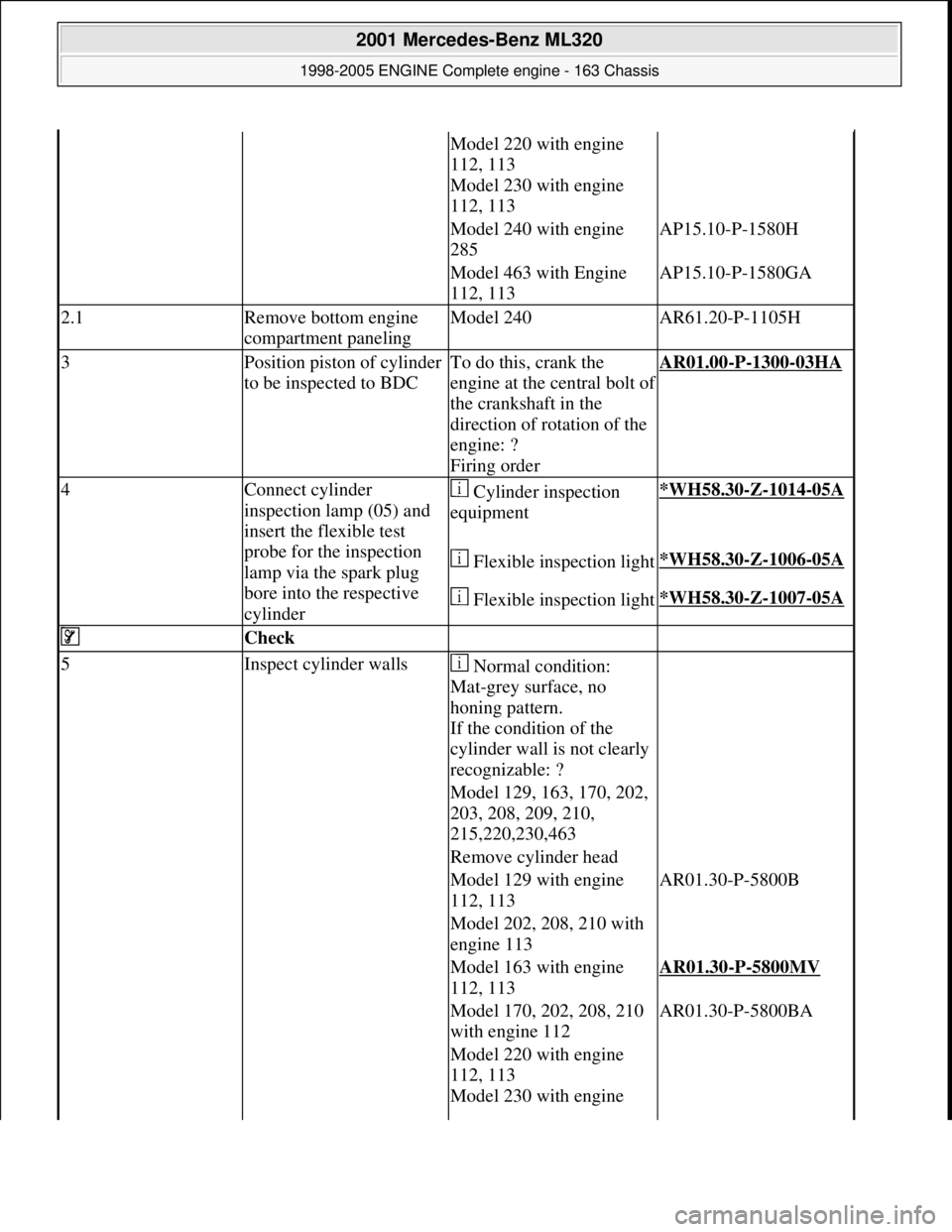

Page 2383 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Model 220 with engine 112, 113 Model 230 with engine 112, 113 Model 240 with engine 285AP15.10-P-1580H Model 463 with Engine 112, 113AP15.10-P-1580GA 2.1Remove bottom engine compartment pan

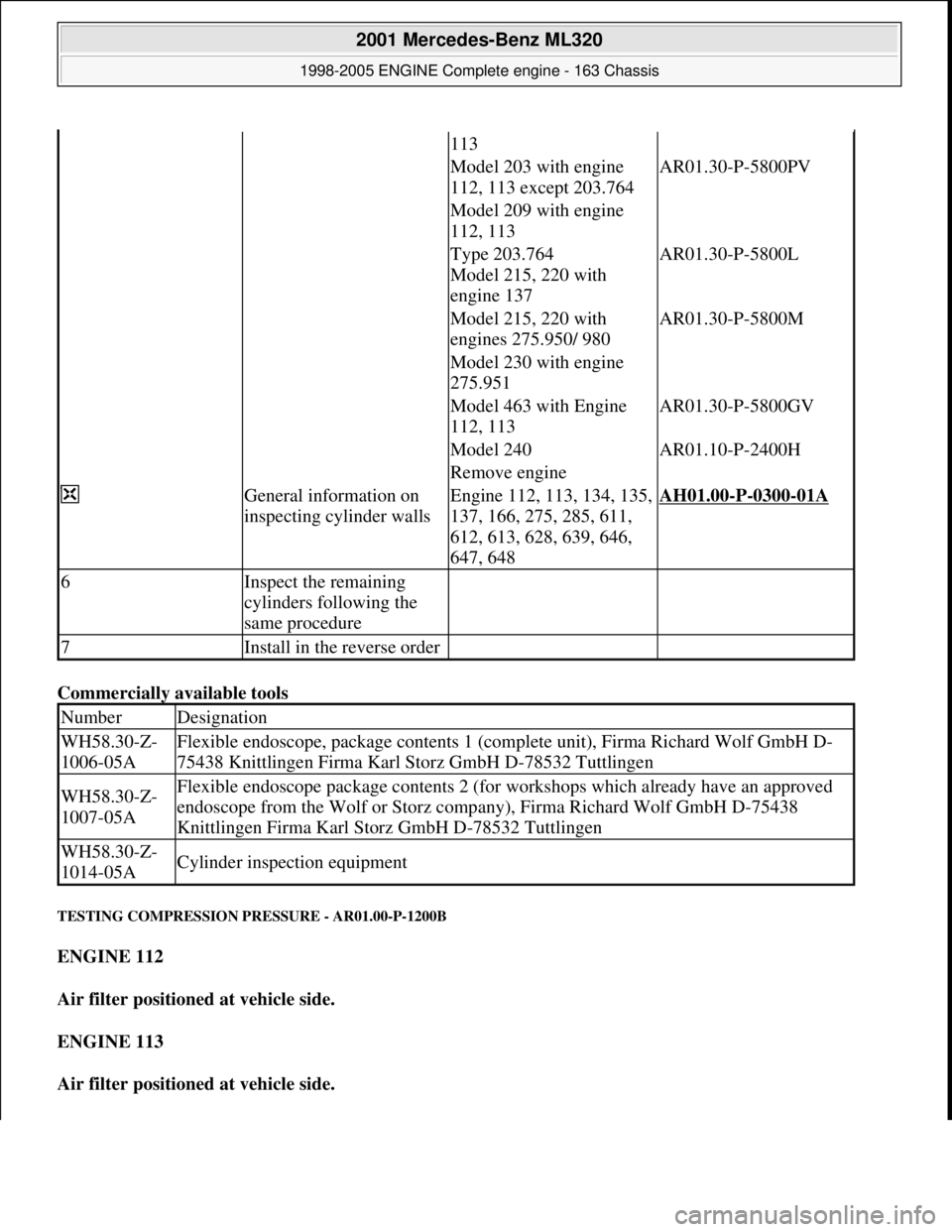

Page 2384 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Commercially available tools TESTING COMPRESSION PR ESSURE - AR01.00-P-1200B ENGINE 112 Air filter positioned at vehicle side. ENGINE 113 Air filter positioned at vehicle side. 113
