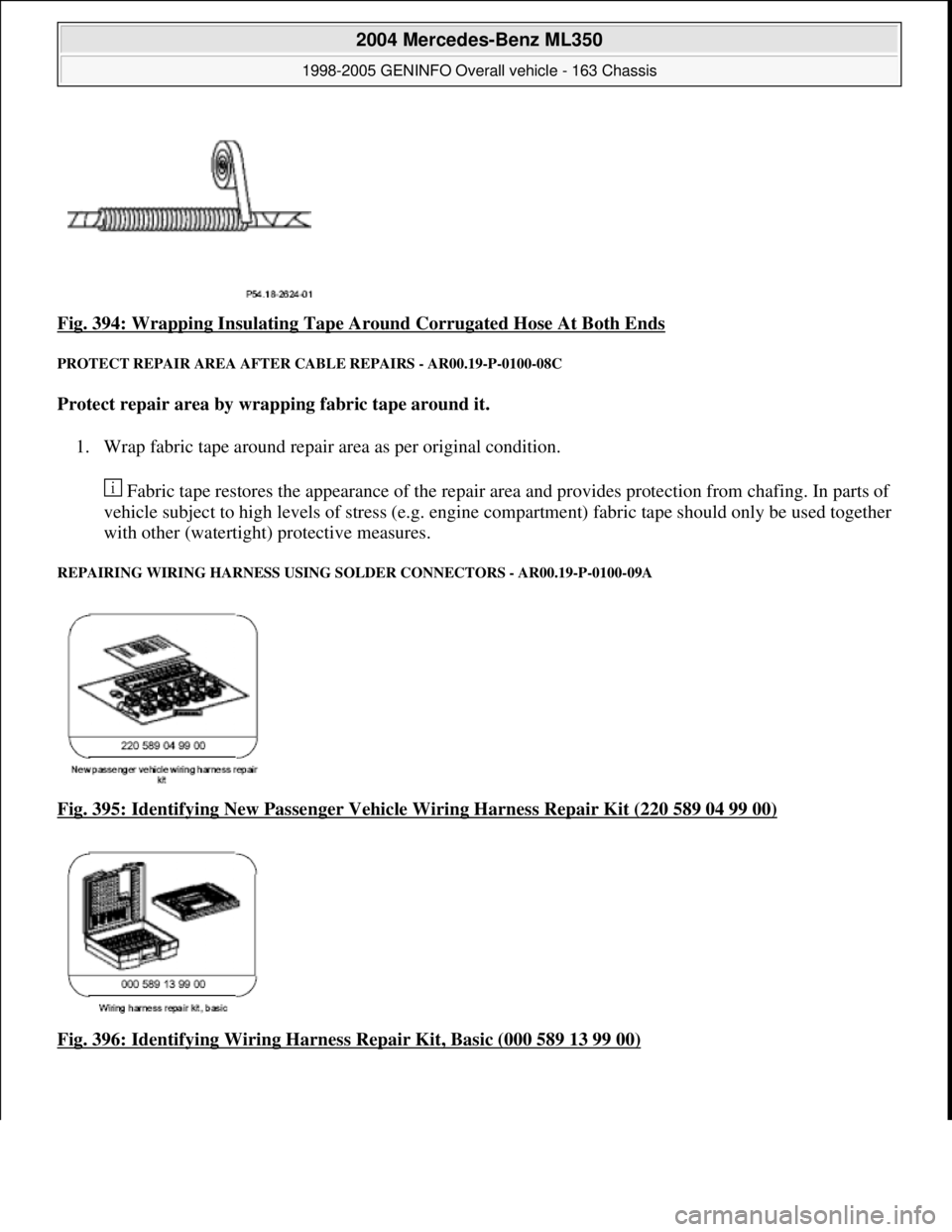

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 394: Wrapping Insulating Tape Around Corrugated Hose At Both Ends PROTECT REPAIR AREA AFTER CABLE REPAIRS - AR00.19-P-0100-08C Protect repair area by wrapping fabric tape around it. 1. Wra

Page 2922 of 4133

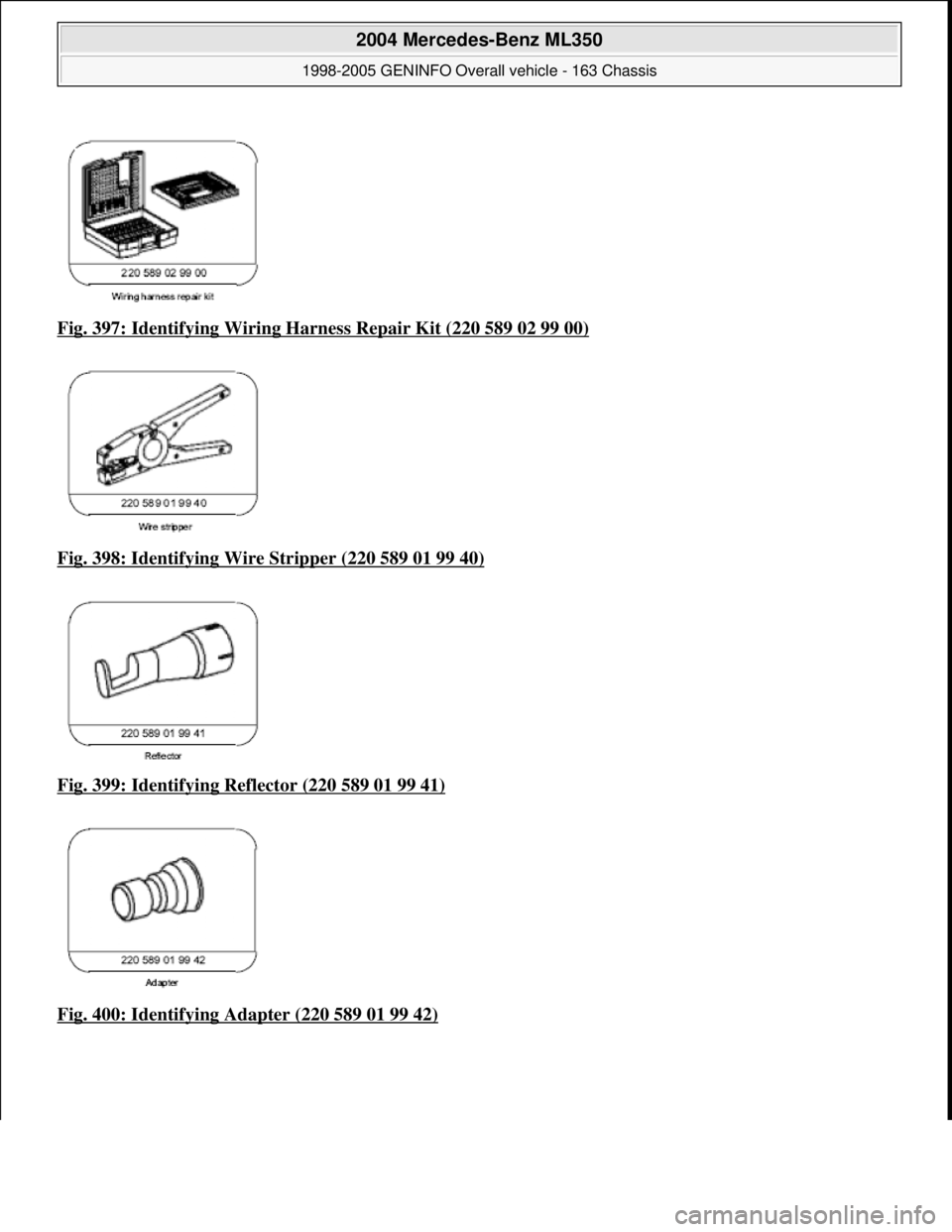

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 397: Identifying Wiring Ha rness Repair Kit (220 589 02 99 00) Fig. 398: Identifying Wi re Stripper (220 589 01 99 40) Fig. 399: Identifying Reflector (220 589 01 99 41) Fig. 400: Identi

Page 2923 of 4133

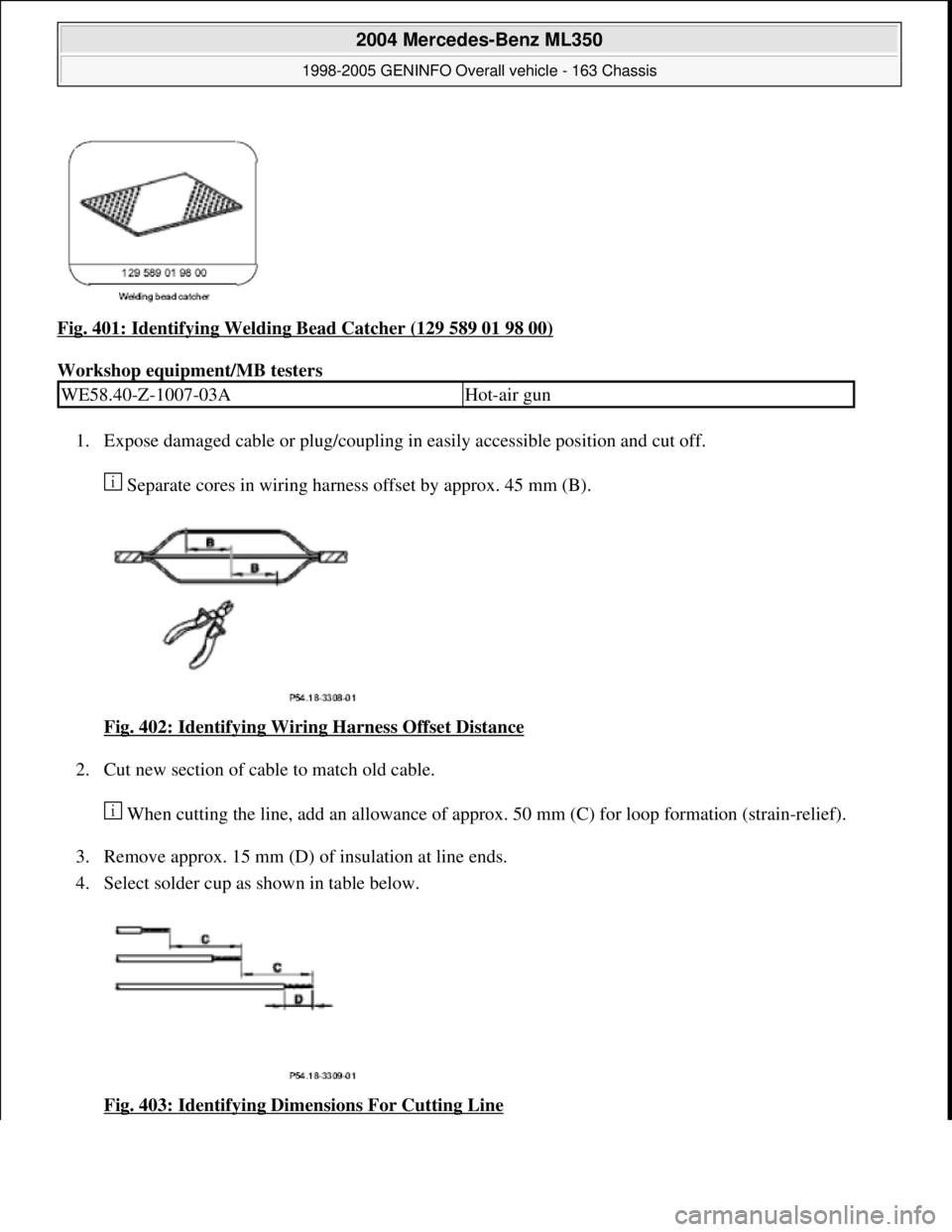

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 401: Identifying Welding Bead Catcher (129 589 01 98 00) Workshop equipment/MB testers 1. Expose damaged cable or plug/coupling in easily accessible position and cut off. Separate cores in wi

Page 2924 of 4133

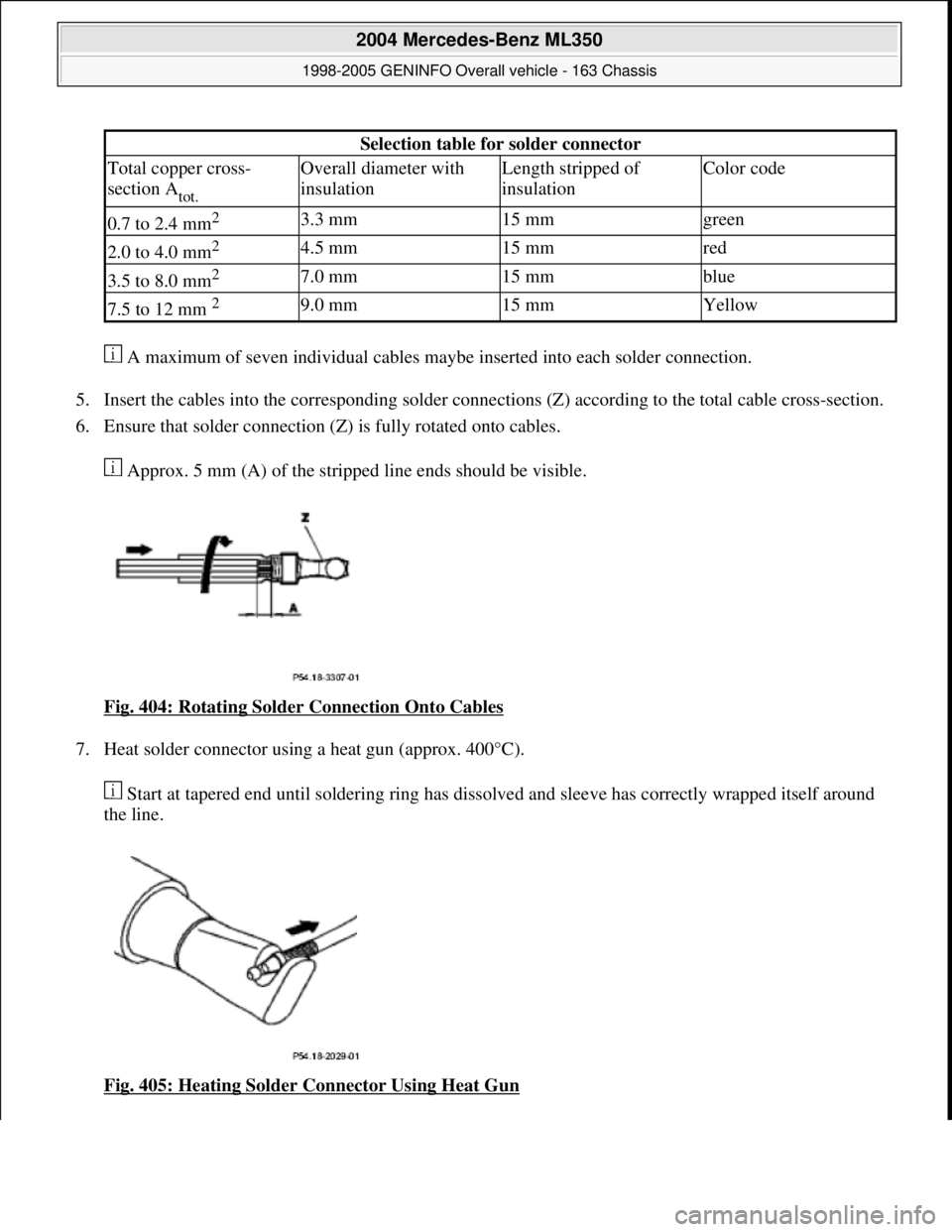

MERCEDES-BENZ ML320 1997 Complete Repair Manual A maximum of seven individual cables maybe inserted into each solder connection. 5. Insert the cables into the corresponding solder connections (Z) according to the total cable cross-section. 6. E

Page 2925 of 4133

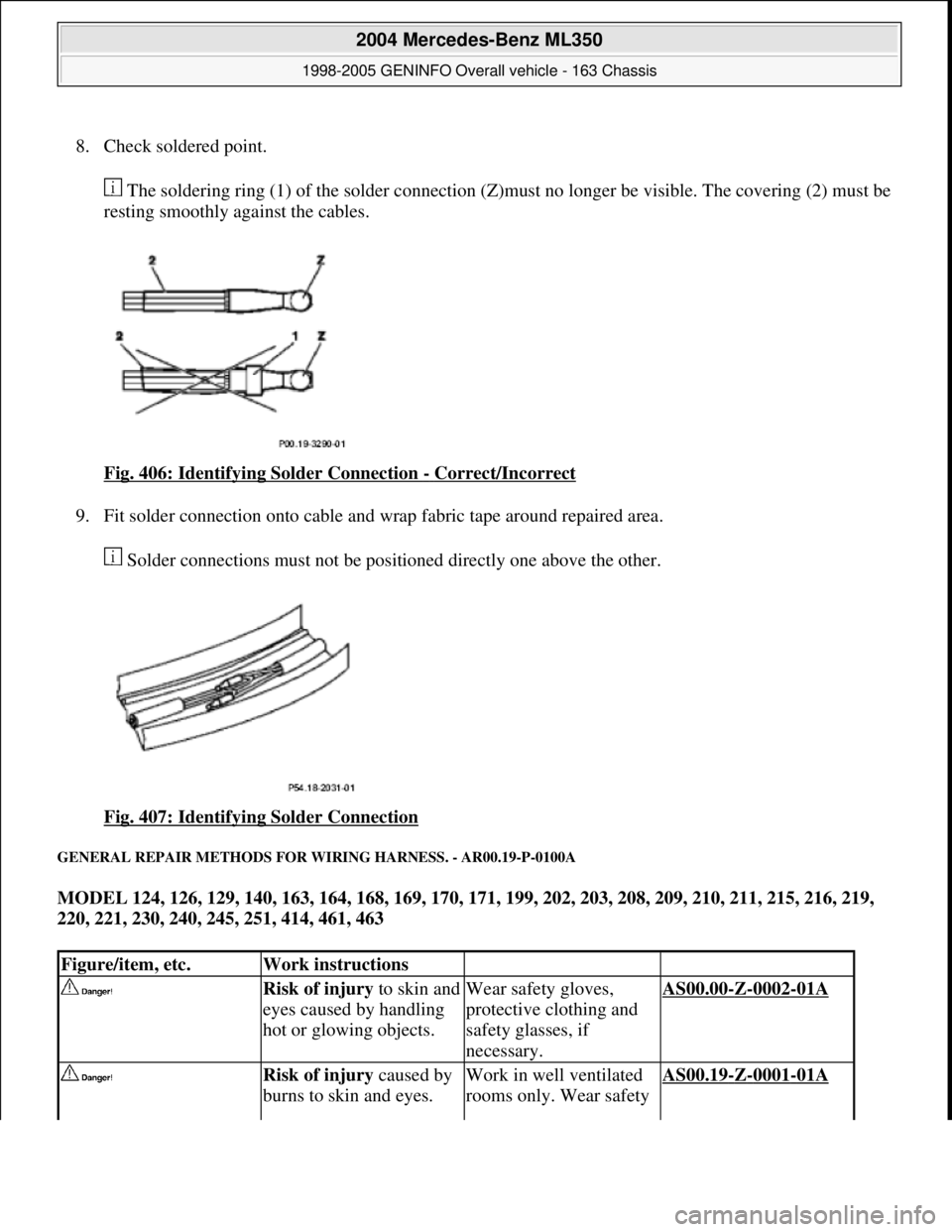

MERCEDES-BENZ ML320 1997 Complete Repair Manual 8. Check soldered point. The soldering ring (1) of the solder connection (Z)must no longer be visible. The covering (2) must be resting smoothly against the cables. Fig. 406: Identifying Solder Co

Page 2926 of 4133

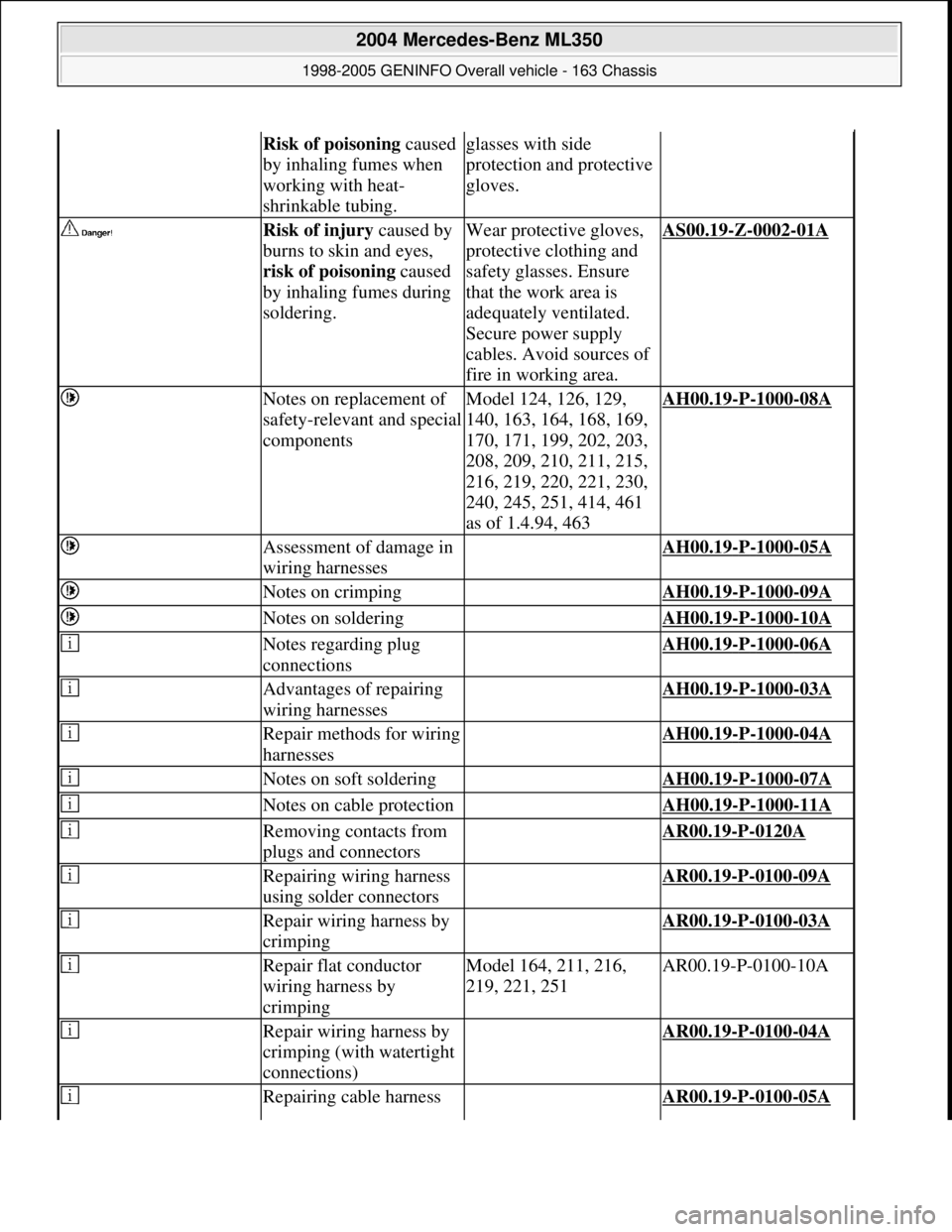

MERCEDES-BENZ ML320 1997 Complete Repair Manual Risk of poisoning caused by inhaling fumes when working with heat- shrinkable tubing.glasses with side protection and protective gloves. Risk of injury caused by burns to skin and eyes, risk of

Page 2927 of 4133

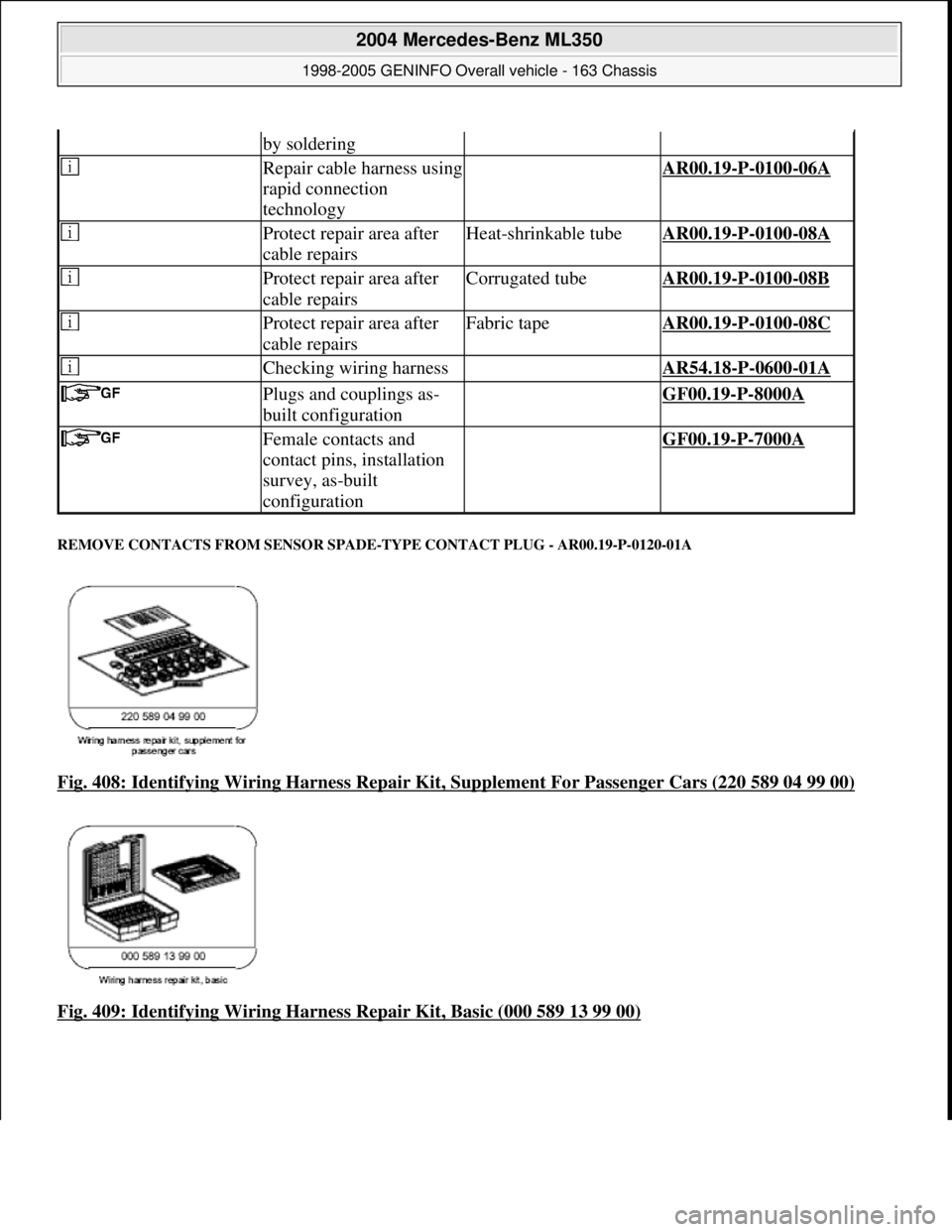

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVE CONTACTS FROM SENSOR SPADE- TYPE CONTACT PLUG - AR00.19-P-0120-01A Fig. 408: Identifying Wiring Harness Repair Kit, Supplement Fo r Passenger Cars (220 589 04 99 00) Fig. 409: Identifying Wi

Page 2928 of 4133

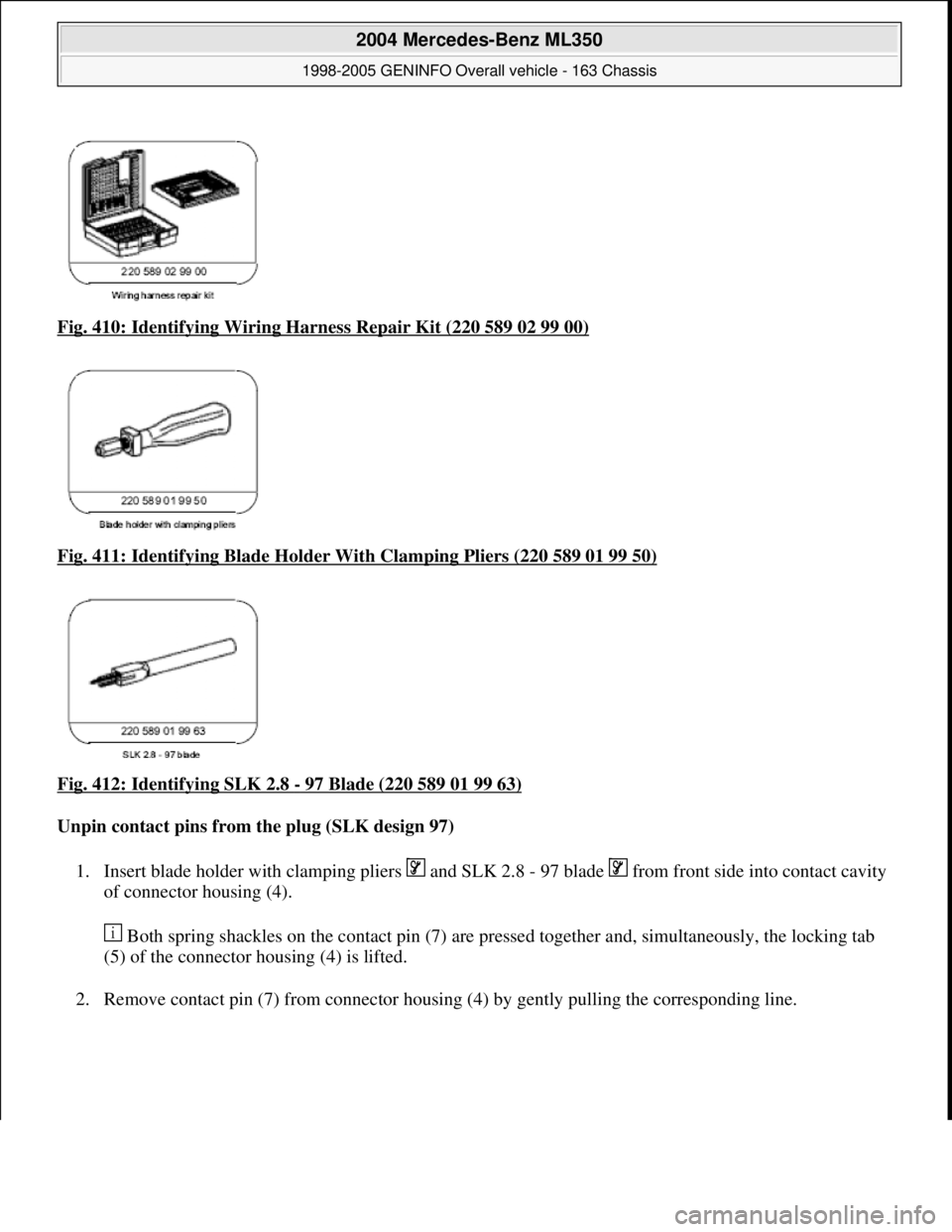

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 410: Identifying Wiring Ha rness Repair Kit (220 589 02 99 00) Fig. 411: Identifying Blad e Holder With Clamping Pliers (220 589 01 99 50) Fig. 412: Identifying SLK 2.8 - 97 Blade (220 589
