Page 3730 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
GF77.20-P-2003GH
Opening pop-up roof, function
19.2.97

MODEL
163 with CODE (414a) Electric glass sliding/pop-up roof

Function prerequisites

D
Voltage not too low or too high

D
Switch-on condi

GF77.20-P-2003GH
Opening pop-up roof, function
19.2.97

MODEL
163 with CODE (414a) Electric glass sliding/pop-up roof

Function prerequisites

D
Voltage not too low or too high

D
Switch-on conditions for convenience control fulfilled

D
Sliding/pop-up roof synchronized

Function

When
switch (SHD, S13/2)
is actuated continuously, circuit 30 is

switched through to the
sliding/pop-up roof (M12)
and the pop-up

roof opens.

The function "Open pop-up roof" is executed as long as

D
switch (SHD, S13/2)
is actuated and

D
the pop-up roof has not yet reached the end position and

D
lock-up is not recognized.

If the sliding/pop-up roof is desynchronized, it moves only in the pop-

up roof direction each time the
switch (SHD, S13/2)
is actuated. This
means that it is possible to move to the zero
position for synchronizing. After successful

synchronization
, the

sliding/pop-up roof can be controlled again without limitation.

Vehicles
up to 11.99:

The power for the
sliding/pop-up roof (M12)
is supplied via a

fuse directly to c. 30.

The power for the
switch (SR, S13/2)
is supplied via the

convenience relay (F1k14)
, which is actuated by the all-

activity module (AAM, N10).

Vehicles
as of 12.99:

The power for the
sliding/pop-up roof (M12)
is supplied via a

fuse directly to c. 30. The power for the
switch (SHD, S13/2) is

supplied via a lead to the
extended-activity module (EAM,

N10/1) , this power is switched through only when the switch-on

conditions for the convenience control are fulfilled and the EAM

is coded accordingly.

Closing sliding /pop-up roof, function

GF77.20-P-2002GH

Sliding /pop-up roof lock-up recognition,
function

GF77.20-P-3000GH

Sliding /pop-up roof position measurement,

function

GF77.20-P-3001GH

Synchronizing sliding /pop-up roof, function

GF77.20-P-3002GH

Convenience control

GF72.29-P-2002GH

All-activity module (AAM)
up to 11.99

GF54.21-P-4100GH

Extended-activity module, location/

purpose/design/function
as of 12.99

GF54.21-P-4107GK

Copyright DaimlerChrysler AG 04.08.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

Page 3731 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
AR88.70-P-9040GI
Remove/install outside rearview mirror paneling
27.2.01

MODEL
163.113 /154 /174 #A as of 289565,

163.113 /154 /174 #X as of 754620,

163.128 /157 /175

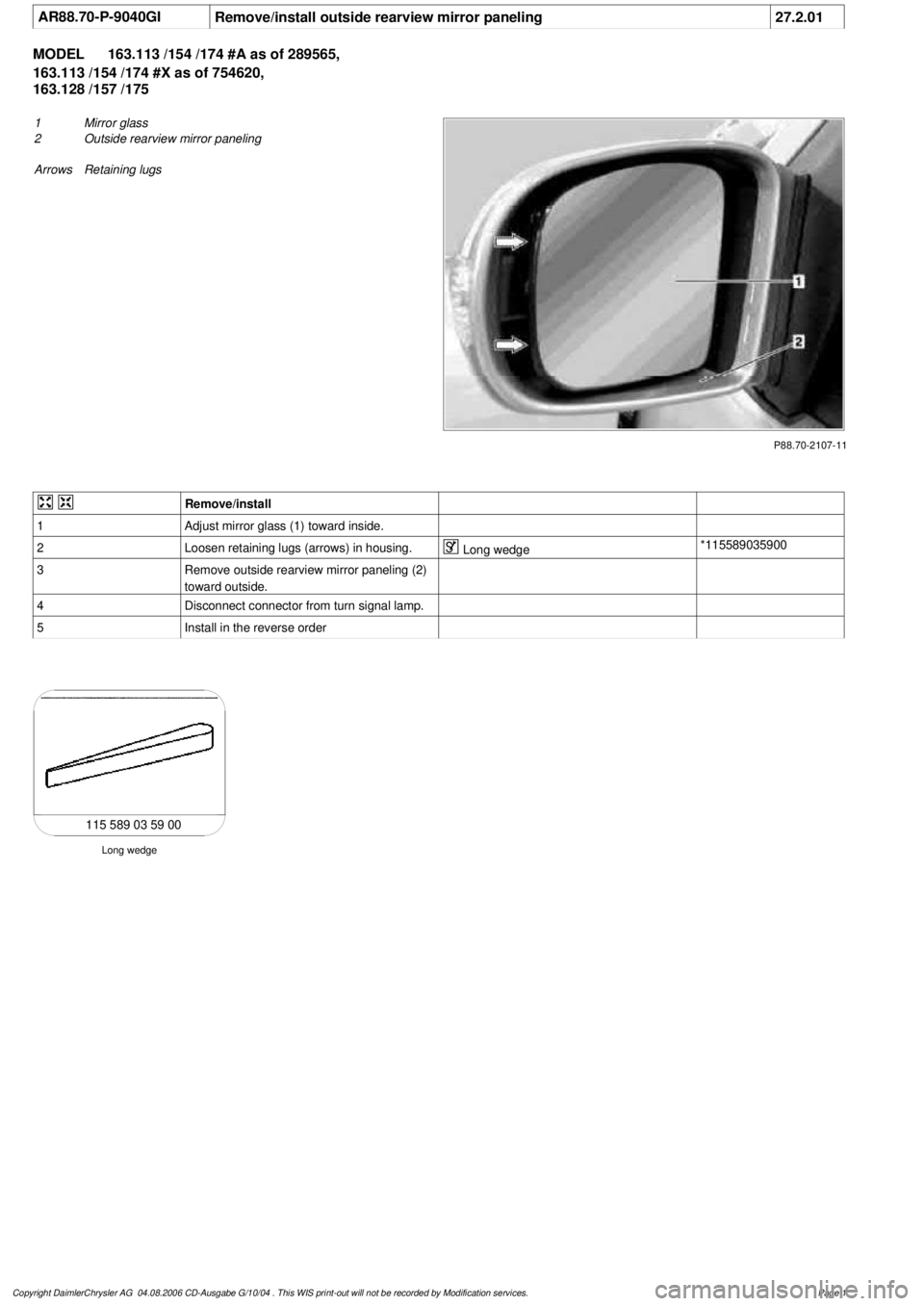

P88.70-2107-11

1
Mirro

Page 3732 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
AR88.70-P-9040GH
Removing and installing outside rearview mirror cover
12.2.97

MODEL
163.113 /136 /154 /172 /174 up to 31.8.01

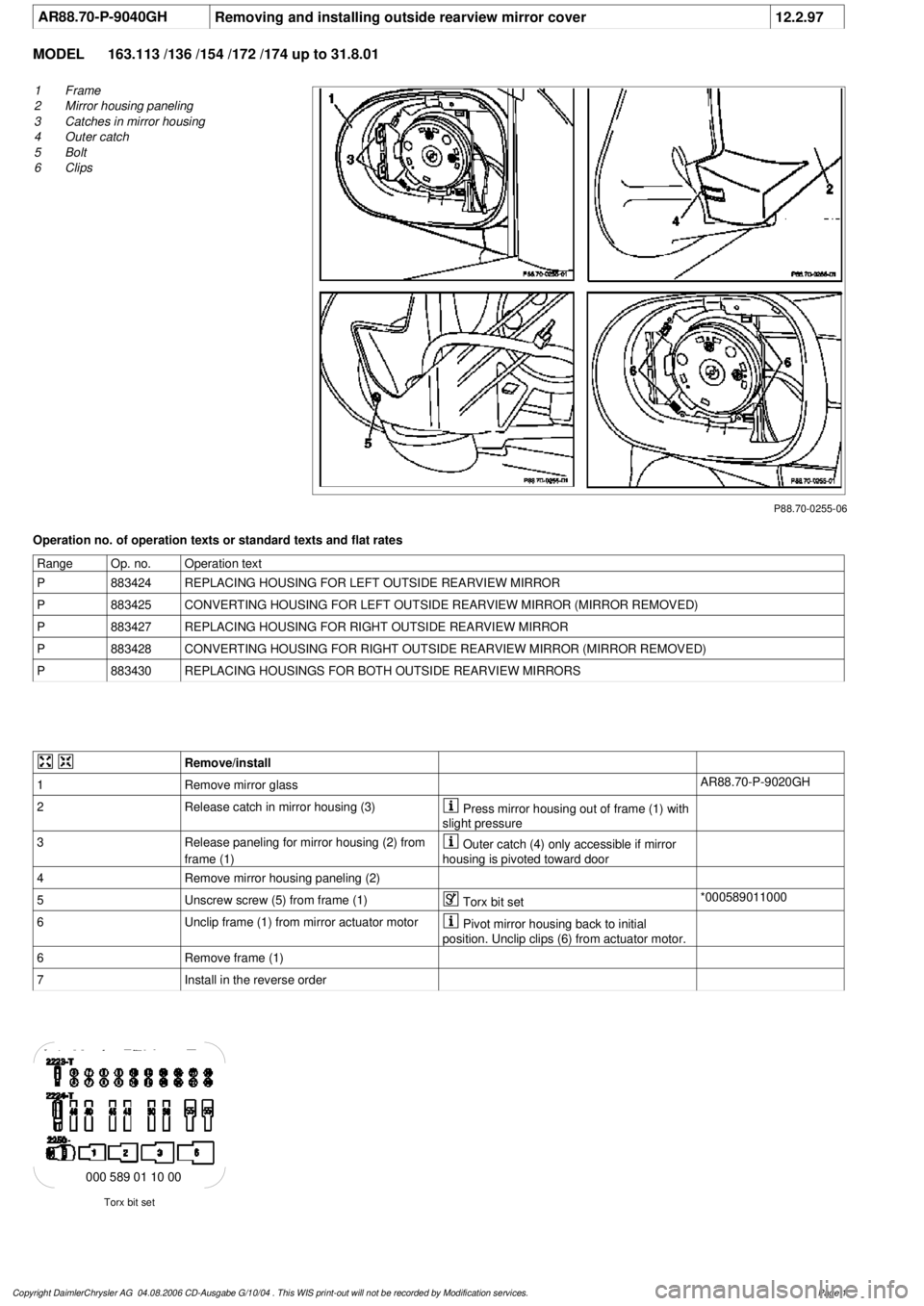

P88.70-0255-06

1
Frame

2
Mirror housing paneling

3
Catches in m

Page 3733 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
AR88.70-P-9020GI
Remove/install mirror glass
24.4.01

MODEL
163.113 /154 /174 #A as of 289565,

163.113 /154 /174 #X as of 754620,

163.128 /157 /175

P88.70-2126-11

1
Locking mechanism

2
Mir

Page 3734 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
GF54.30-P-4104A
Outside temperature display, location/function
8.7.99

MODEL
129

MODEL
140 as of 1.6.96

MODEL
170

MODEL
163, 202 with CODE (240a) Outside temperature display

MODEL
202 a

GF54.30-P-4104A
Outside temperature display, location/function
8.7.99

MODEL
129

MODEL
140 as of 1.6.96

MODEL
170

MODEL
163, 202 with CODE (240a) Outside temperature display

MODEL
202 as of 1.8.96

MODEL
168

MODEL
208 up to 31.7.99,

210 as of 1.6.96 up to 30.6.99

To display the temperature, the
outside temperature indicator

A1p4
requires:

D
the outside temperature

D
the speed signal

D
the engine running time

and
D
the coolant temperature (model 129, and model 140 as of
1.6.96, model 170, model 202 as of 08/96 and model 163,

model 168, model 210)

The outside temperature is determined by the outside temperature

indicator temperature sensor B14. The temperature sensor is

installed at the front left of the vehicle under the bumper and

connected to the instrument cluster A1 via the 21 or 25-pin

connector, coding part A terminal 1 and 2.

The speed signal, engine running time and engine temperature are

determined internally by the instrument cluster A1.

Since the outside temperature display depends on the speed, engine

running time and coolant temperature, high temperatures (influenced

by the heat generated by the engine, for example) are not displayed

when the vehicle is stationary or moving slowly.
Function, model 202 until 08/95

When the ignition is switched on and off and at speeds below approx.

20 km/h, the last temperature measured is stored and displayed.

If the measured outside temperature drops below the stored value,

the current measured temperature is displayed.

If the outside temperature rises above the stored value, the current

measured outside temperature is displayed only after the following

delays:

D
When the engine is not running, the current outside

temperature is only displayed after 6 times the engine running

time. For example, if the preceding running time was 5 minutes,

the current temperature is not displayed until after 30 minutes.
The maximum delay, however, is 1 hour.

Up to 09.94

D
At vehicle speeds between 20-60 km/h, outside temperatures

are displayed after a delay of approx. 5 min.

D
At vehicle speeds over 60 km/h, outside temperatures are

displayed after a delay of approx. 2 minutes.

As of 09.94

D
At vehicle speeds between 20-45 km/h, outside temperatures

are displayed after a delay of approx. 3 min.

D
At vehicle speeds over 45 km/h, outside temperatures are

displayed after a delay of approx. 1.5 min.

Function

Model 129, model 140 as of 1.6.96, model 170, model 202 as of

08/96, model 163, model 168, model 208 and model 210

D
When the ignition is turned on or off

and with an engine temperature < 60°C

the current temperature is always stored and displayed.

D
When the ignition is turned off

and with an engine temperature < 60°C

the temperature last measured is stored and displayed.

D
When the ignition is turned on

and when an engine temperature < 60(C

The stored temperature is displayed.
If the measured outside temperature drops below the stored value,

the current measured temperature is displayed.

If the outside temperature rises above the stored value, the current

measured outside temperature is displayed only after the following

delays:

D
When the engine is not running, the current outside

temperature is only displayed after 6 times the engine running

time. For example, if the preceding running time was 5 minutes,

the current temperature is not displayed until after 30 minutes.
The maximum delay, however, is 1 hour.

D
At vehicle speeds between 20-45 km/h, outside temperatures

are displayed after a delay of approx. 3 minutes.

D
At vehicle speeds above 45 km/h, outside temperatures are

displayed after a delay of approx. 1.5 minutes.

Copyright DaimlerChrysler AG 05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

Page 3735 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
AR77.20-P-0001GH
Removing and installing switch for pop-up/sliding roof
29.4.97

MODEL
163 with CODE (414a) Electric glass pop-up/sliding roof

P77.20-0449-11

1
Overhead control panel

2
Screw

Page 3736 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
AR82.20-P-1100GH
Remove/install front overhead control panel
27.5.97

MODEL
163.113 /128 /136 /154 /157 /172 /174 /175

P68.00-0650-06

1
Garage door opener flap

2
Overhead control panel

3
Cove

Load next 8 pages

Page: < prev 1-10 ... 3697-3704 3705-3712 3713-3720 3721-3728 3729-3736 3737-3744 3745-3752 3753-3760 3761-3768 ... 4136 next >

fog light bulb MPG alternator brakes headlights tailgate
