Page 4057 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 29: Headlights Circuit, W/O Xenon Lamps (2 of 2) HORN 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 59 © 2006 Mi

Page 4058 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 60 © 2006 Mitchell Repair Information Company, LLC.

Page 4059 of 4133

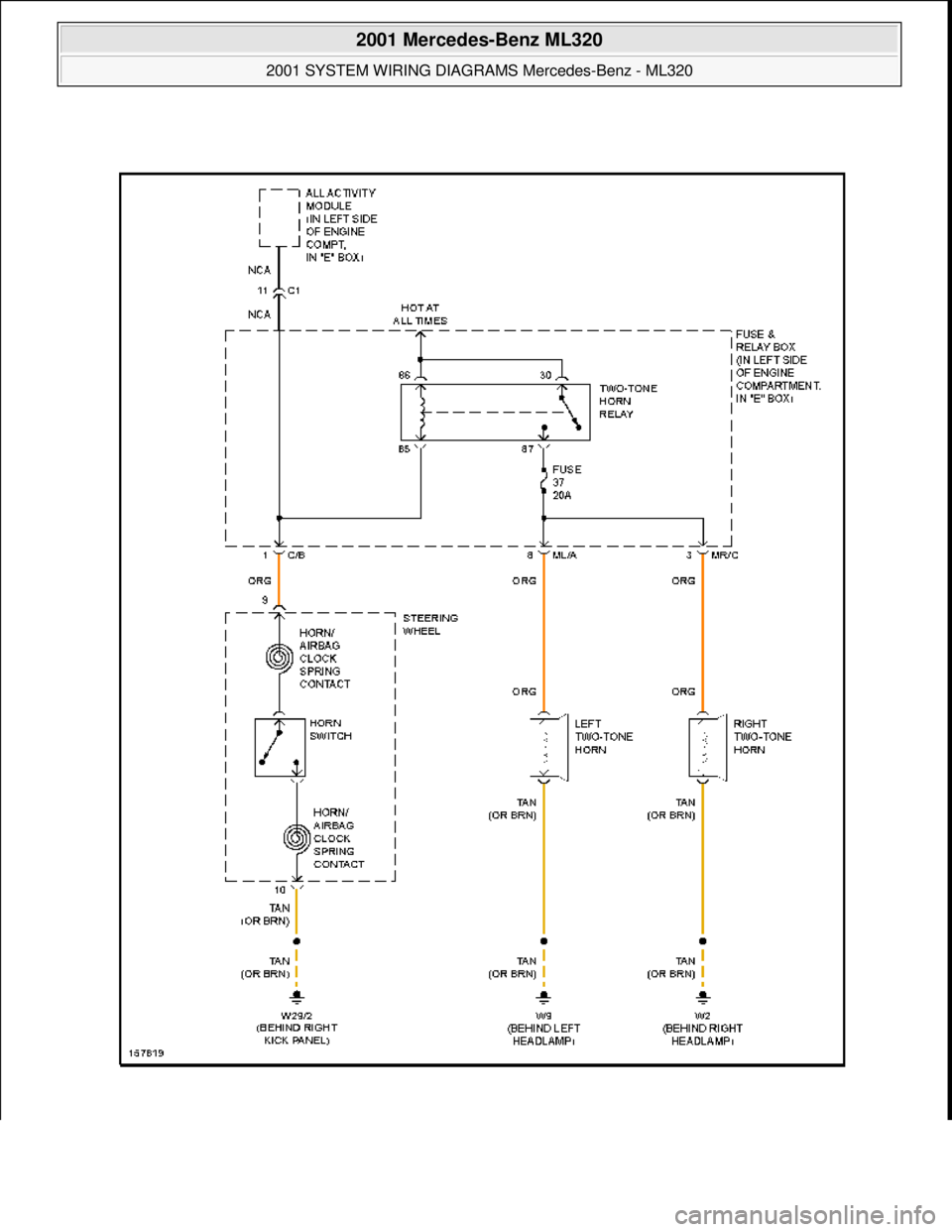

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 30: Horn Circuit INSTRUMENT CLUSTER 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 61 © 2006 Mitchell Repair Inf

Page 4060 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 62 © 2006 Mitchell Repair Information Company, LLC.

Page 4061 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 31: Instrument Cluster Circuit 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 63 © 2006 Mitchell Repair Informati

Page 4062 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 64 © 2006 Mitchell Repair Information Company, LLC.

Page 4063 of 4133

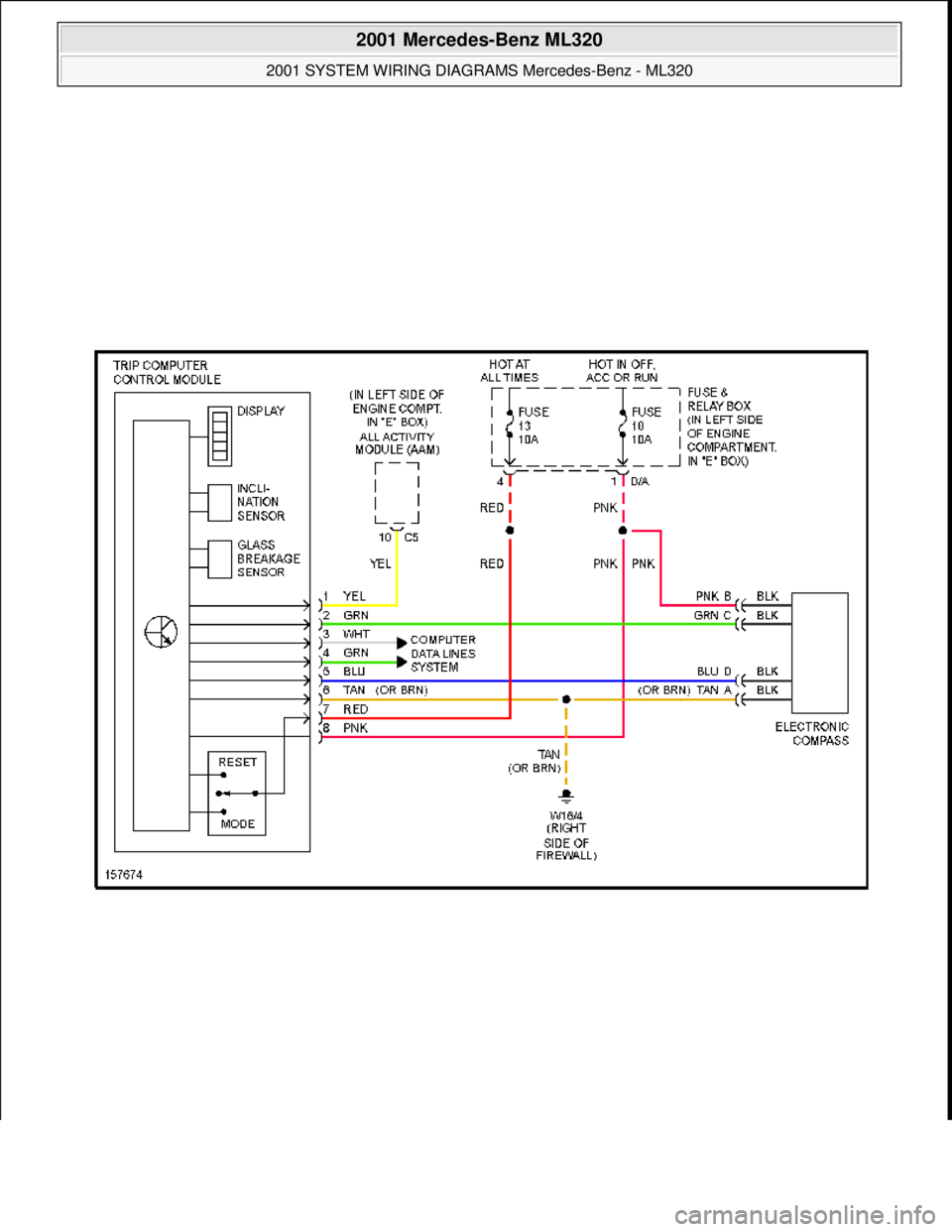

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 32: Trip Computer Circuit INTERIOR LIGHTS 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 65 © 2006 Mitchell Repa

Page 4064 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 66 © 2006 Mitchell Repair Information Company, LLC.
