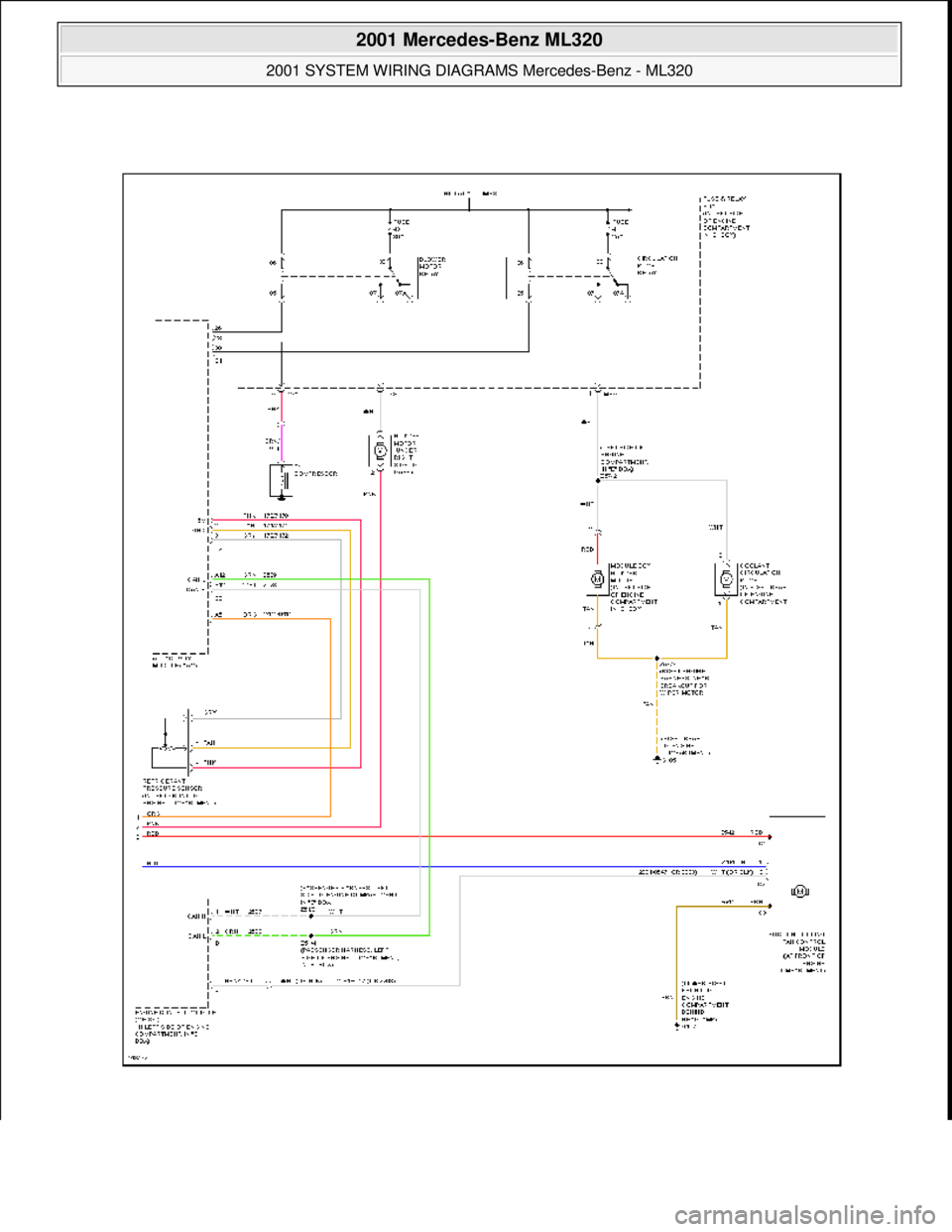

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 1: Manual A/C Circuit, W/ Coolant Fan Control Module (1 of 2) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:58 PMPage 3 © 2

Page 4002 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:58 PMPage 4 © 2006 Mitchell Repair Information Company, LLC.

Page 4003 of 4133

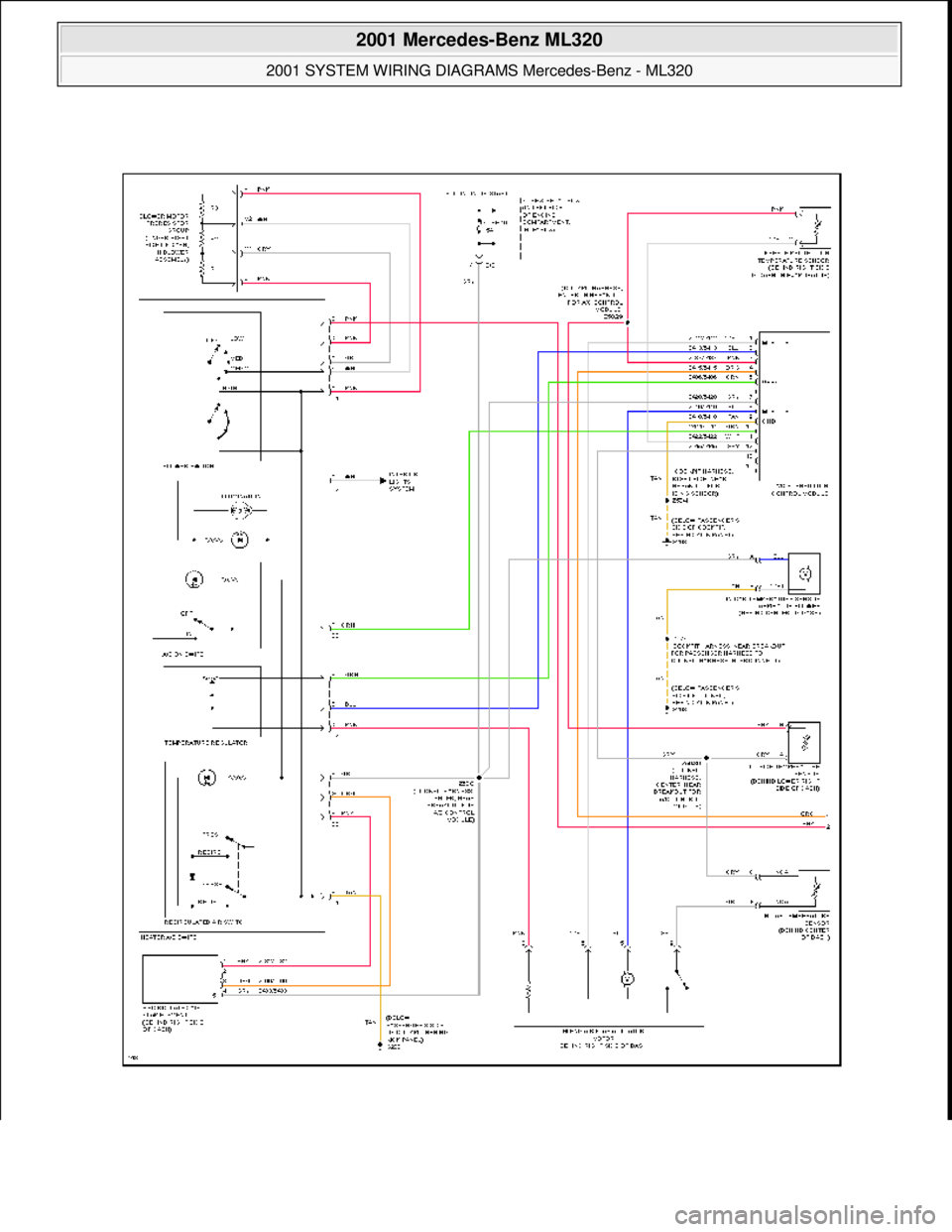

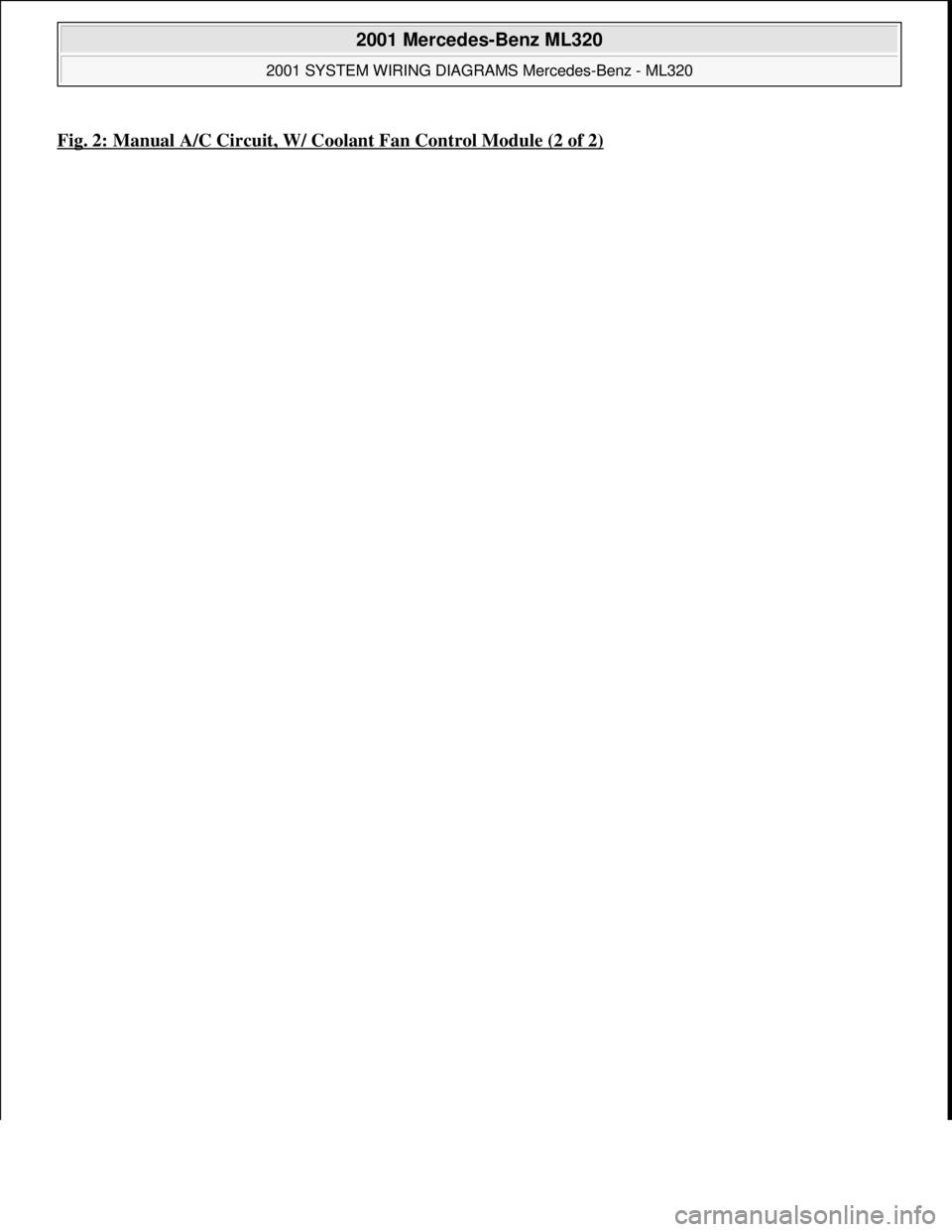

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 2: Manual A/C Circuit, W/ Coolant Fan Control Module (2 of 2) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:58 PMPage 5 © 2

Page 4004 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:58 PMPage 6 © 2006 Mitchell Repair Information Company, LLC.

Page 4005 of 4133

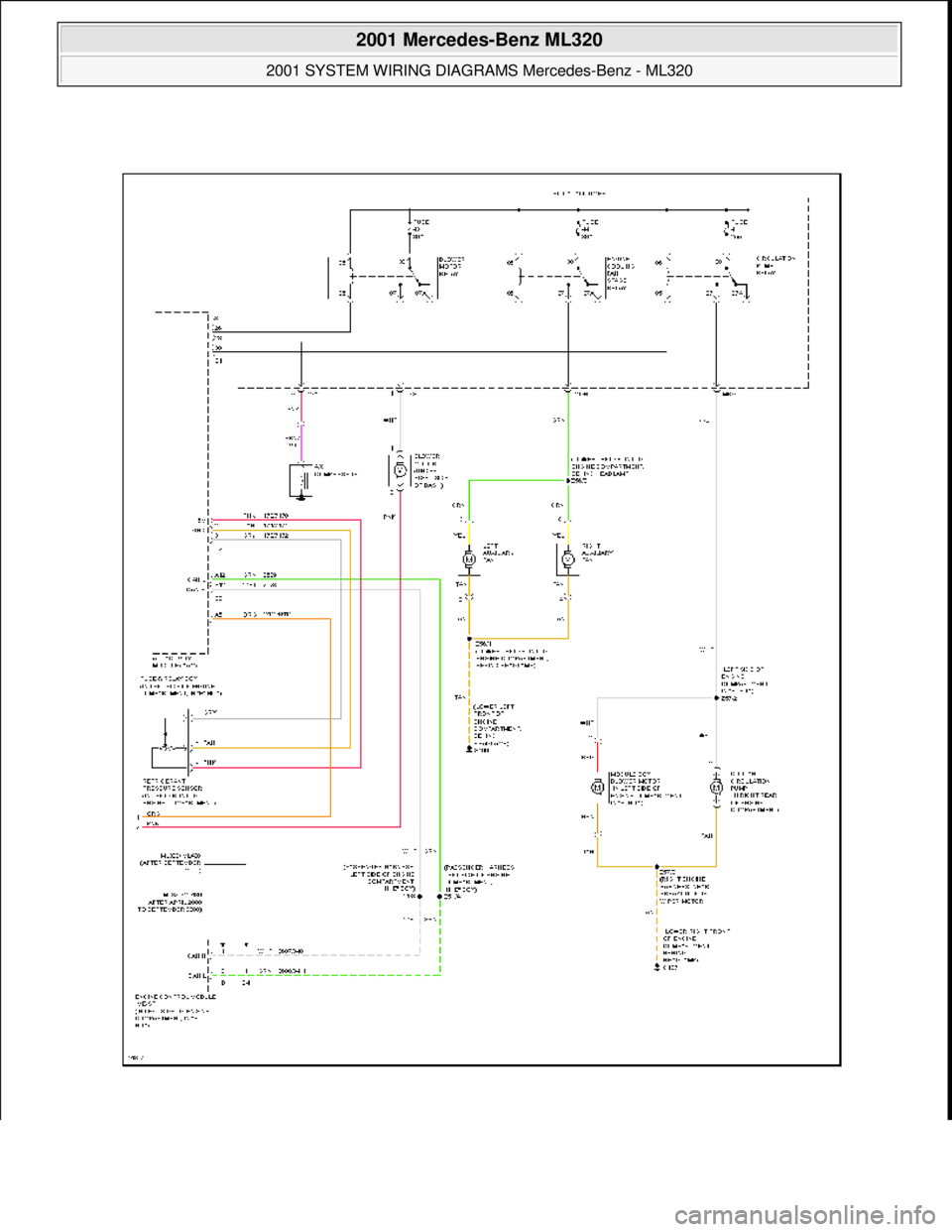

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 3: Manual A/C Circuit, W/O Coolant Fan Control Module (1 of 2) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:58 PMPage 7 ©

Page 4006 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:58 PMPage 8 © 2006 Mitchell Repair Information Company, LLC.

Page 4007 of 4133

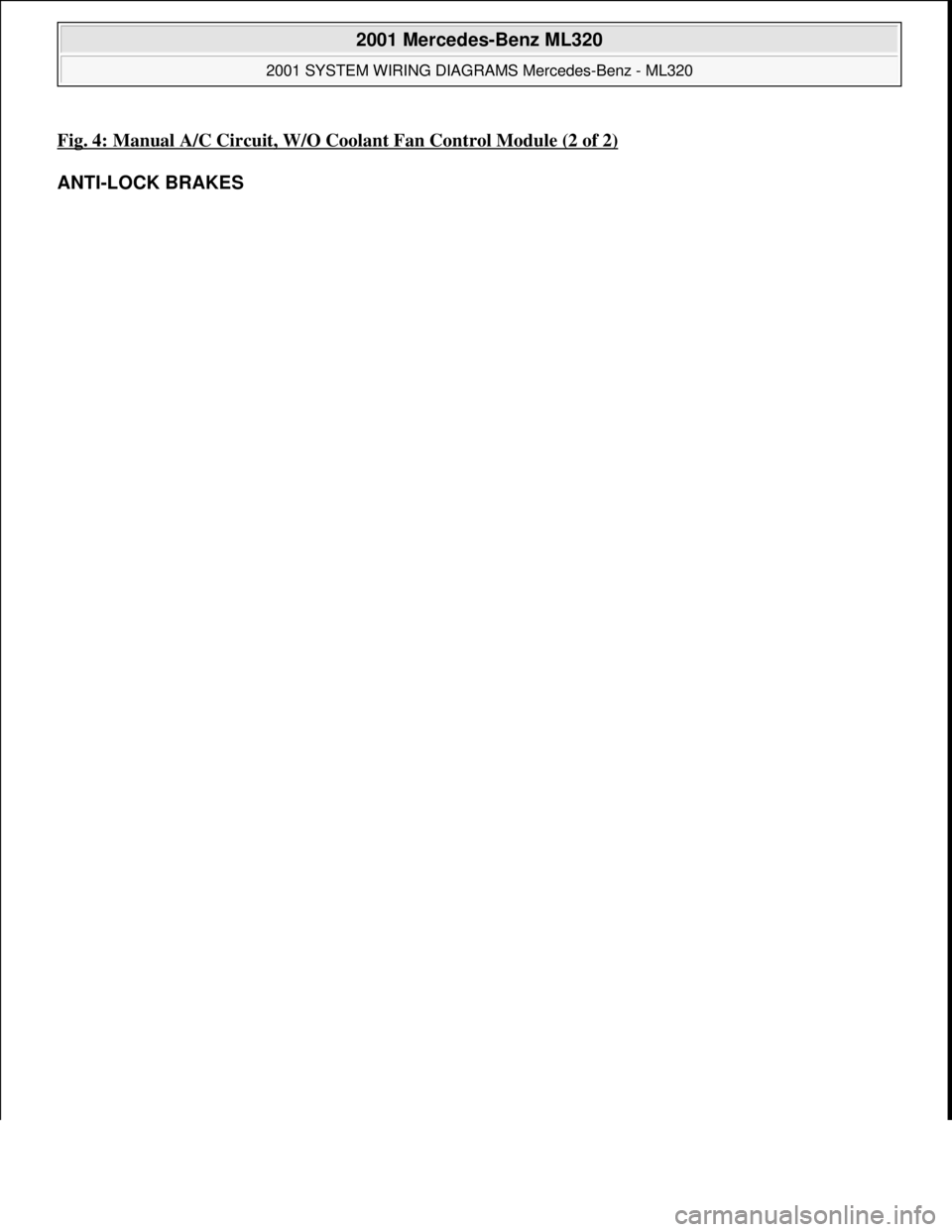

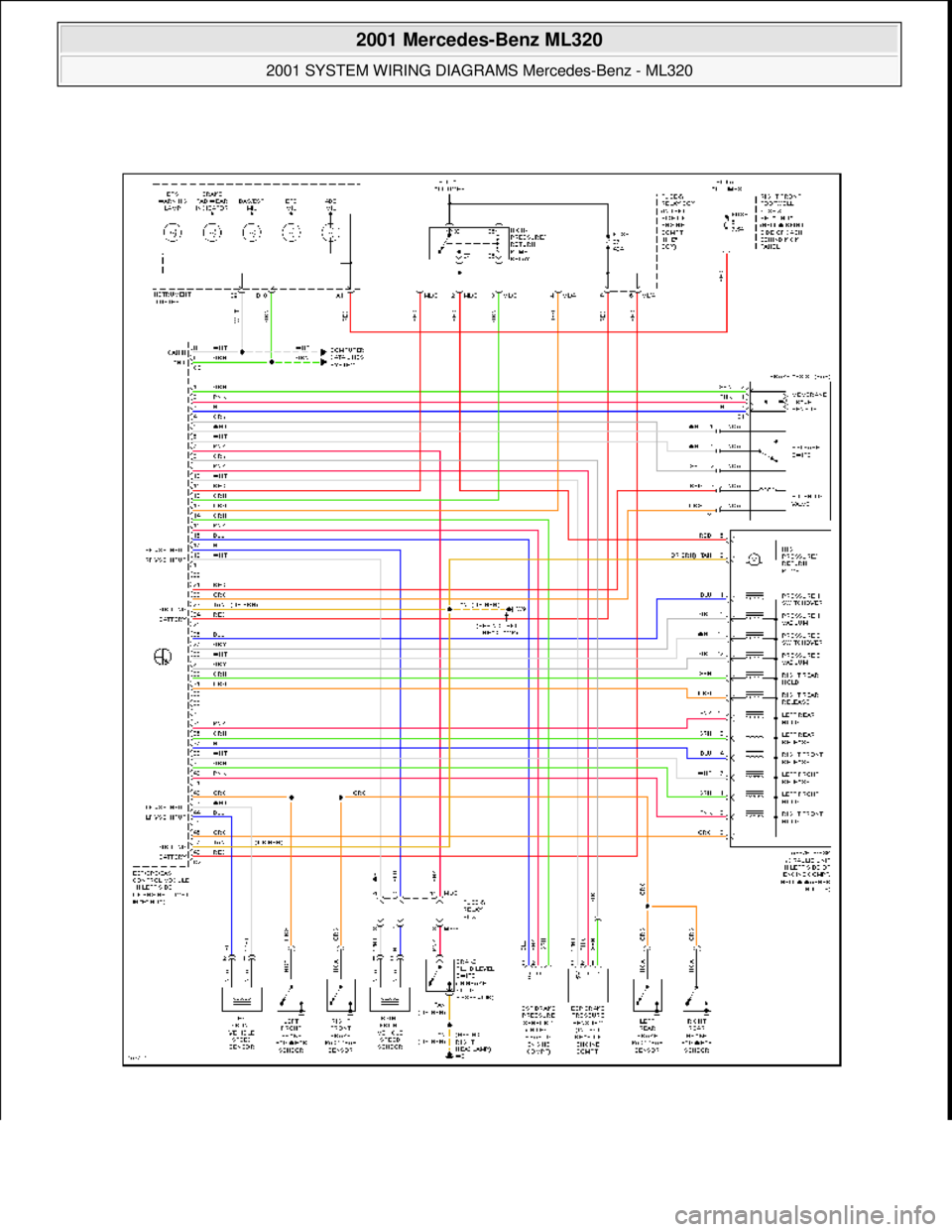

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 4: Manual A/C Circuit, W/O Coolant Fan Control Module (2 of 2) ANTI-LOCK BRAKES 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:

Page 4008 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:58 PMPage 10 © 2006 Mitchell Repair Information Company, LLC.
