Page 2249 of 4133

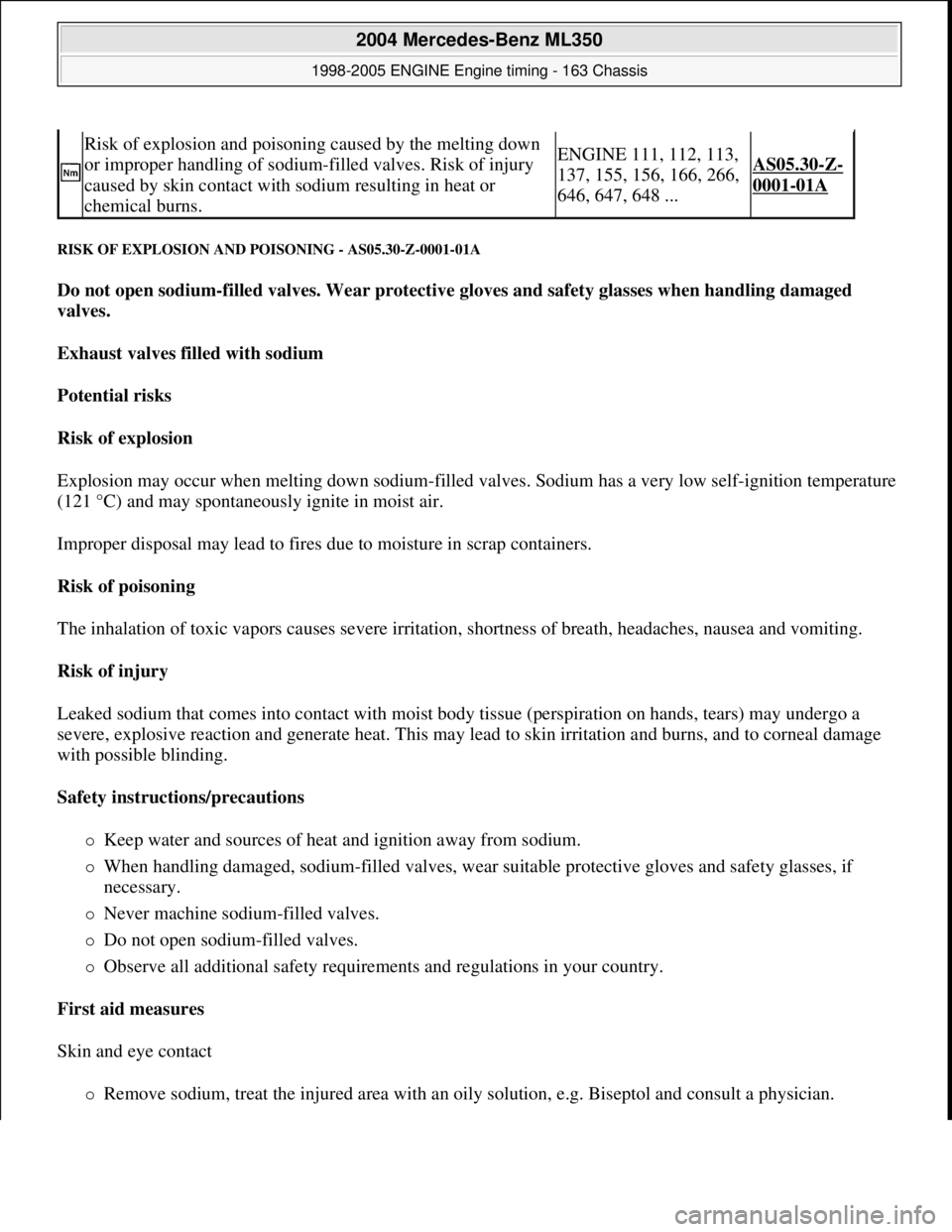

MERCEDES-BENZ ML320 1997 Complete Repair Manual RISK OF EXPLOSION AND PO ISONING - AS05.30-Z-0001-01A Do not open sodium-filled valves. Wear protectiv e gloves and safety glasses when handling damaged valves. Exhaust valves fill ed with so

Page 2250 of 4133

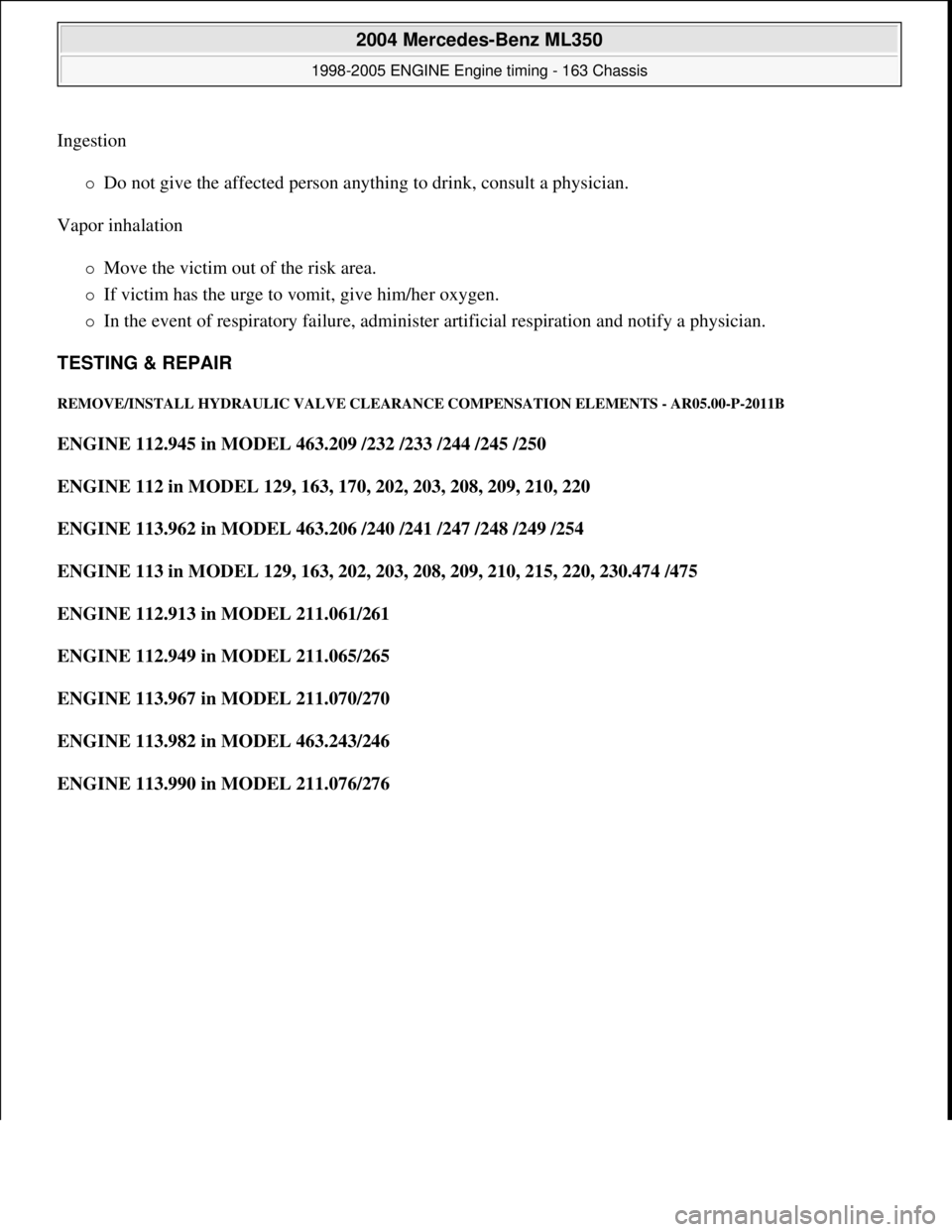

MERCEDES-BENZ ML320 1997 Complete Repair Manual Ingestion Do not give the affected person a nything to drink, consult a physician. Vapor inhalation Move the victim out of the risk area. If victim has the urge to vomit, give him/he

Page 2251 of 4133

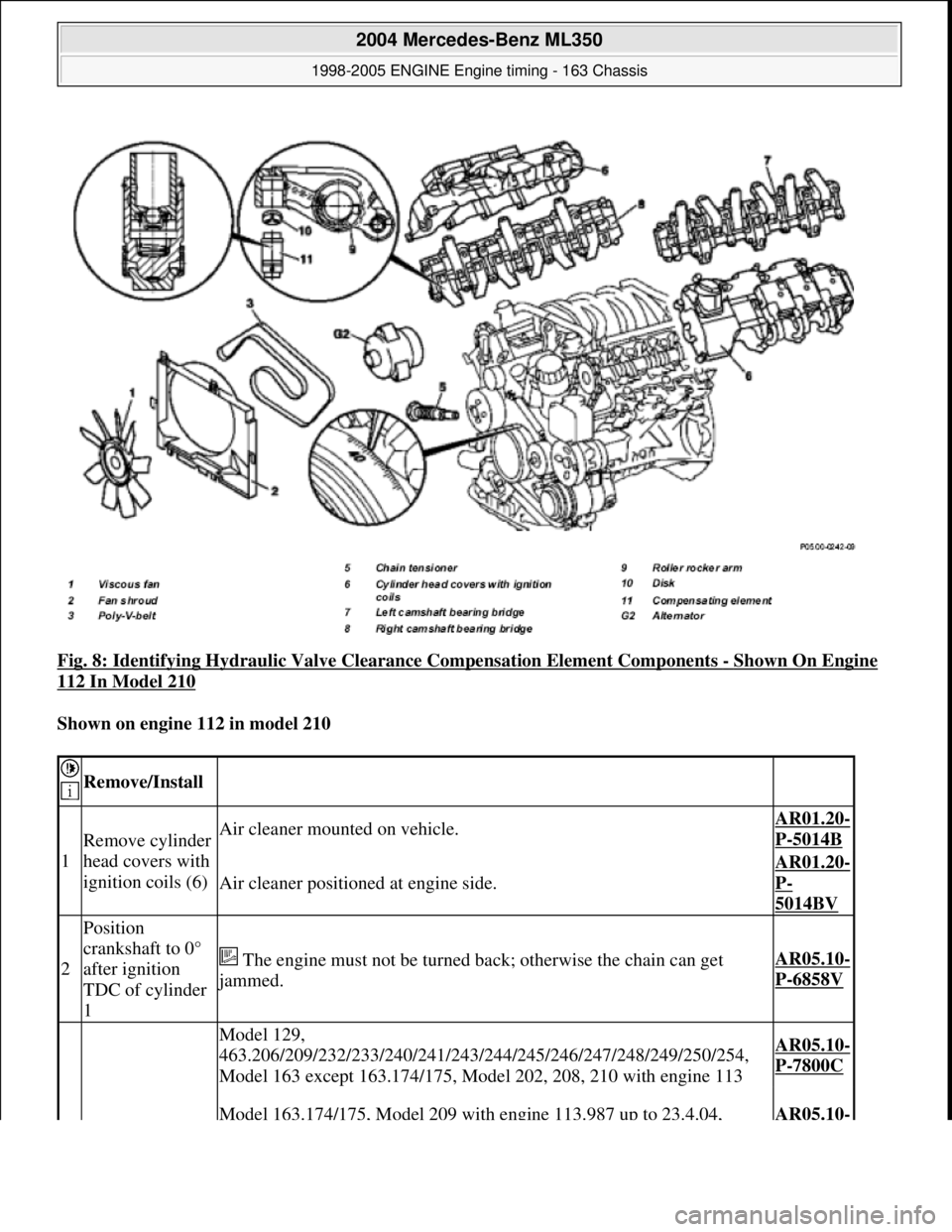

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 8: Identifying Hydraulic Valve Clea rance Compensation Element Components - Shown On Engine 112 In Model 210 Shown on engine 112 in model 210 Remove/Install 1 Remove cylinder head

Page 2252 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual CHECK THE ENGINE VALV E TIMING - AR05.10-P-6858V ENGINE 112 ENGINE 113.962 in MODEL 463.206 /240 /241 /247 /248 /249 /254 ENGINE 113.982 in MODEL 463.243/246 ENGINE 113 (except 113.995)

Page 2253 of 4133

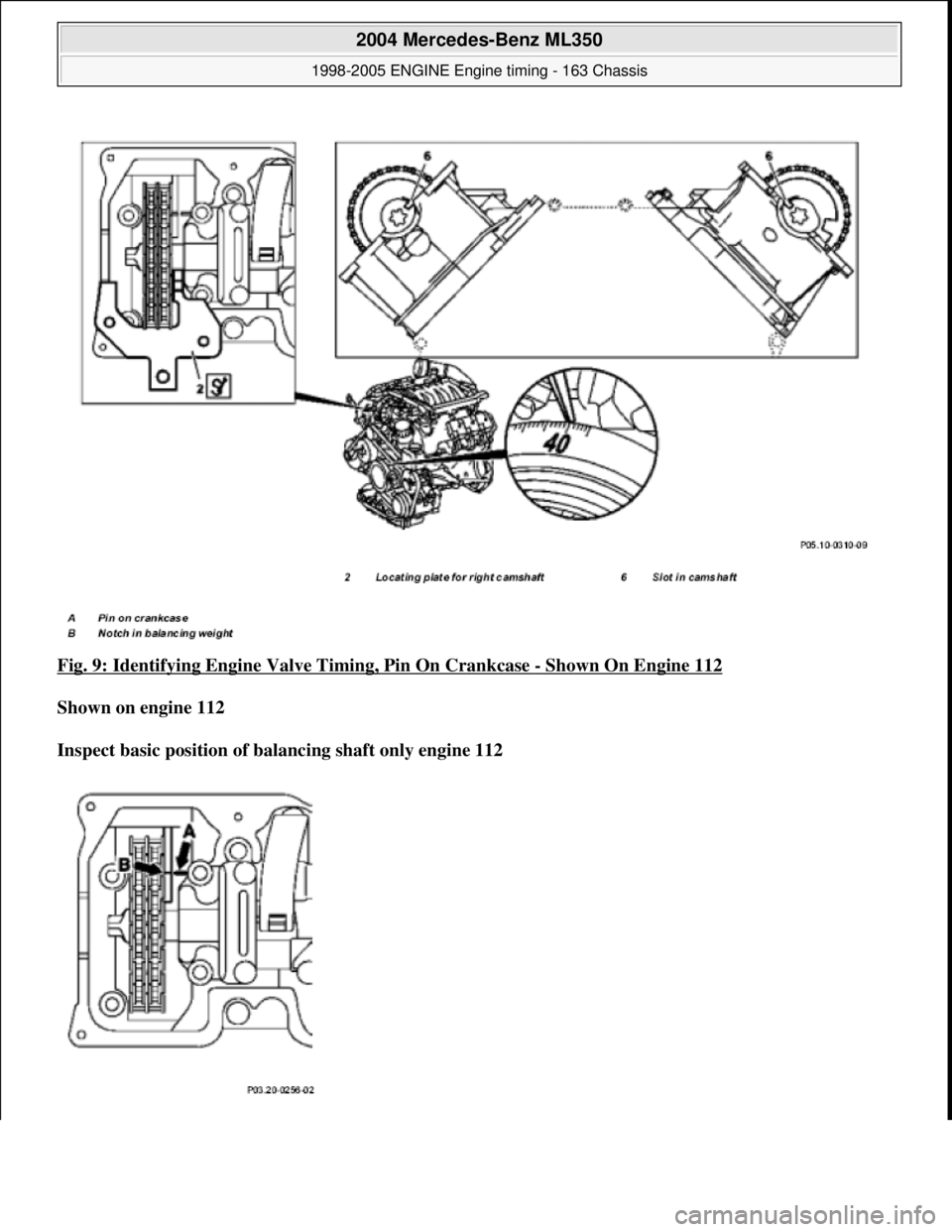

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 9: Identifying Engine Va lve Timing, Pin On Crankcase - Shown On Engine 112 Shown on engine 112 Inspect basic position of ba lancing shaft only engine 112 2004 Mercedes-Benz ML350 1

Page 2254 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 10: Locating Notch In Balancing Weight, Pin On Crankcase Remove/install 1Remove cylinder head covers Air filter located at vehicle side. Air filter located on engine side. 2.1Unbolt

Page 2255 of 4133

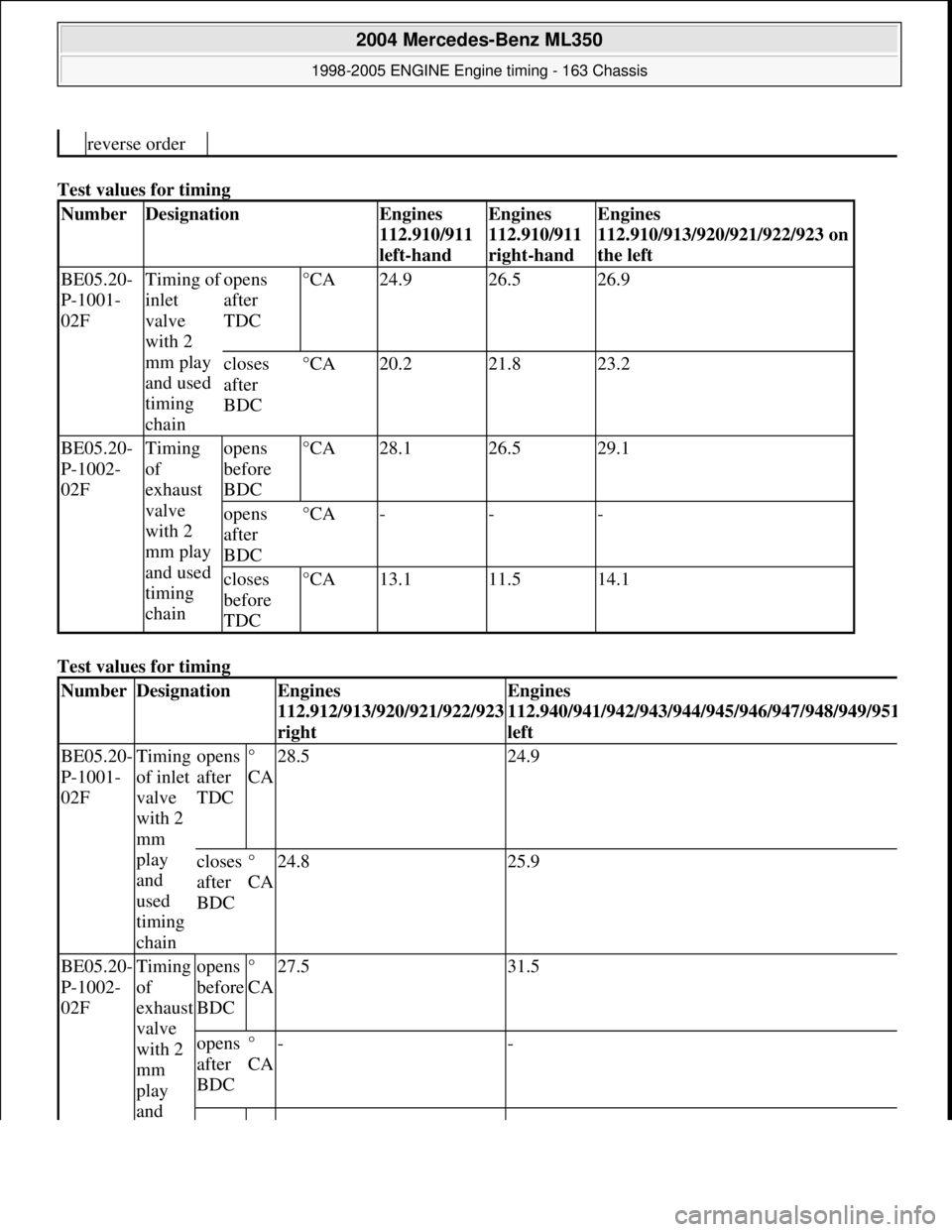

MERCEDES-BENZ ML320 1997 Complete Repair Manual Test values for timing Test values for timing reverse order NumberDesignationEngines 112.910/911 left-handEngines 112.910/911 right-handEngines 112.910/913/920/921/922/923 on the lef

Page 2256 of 4133

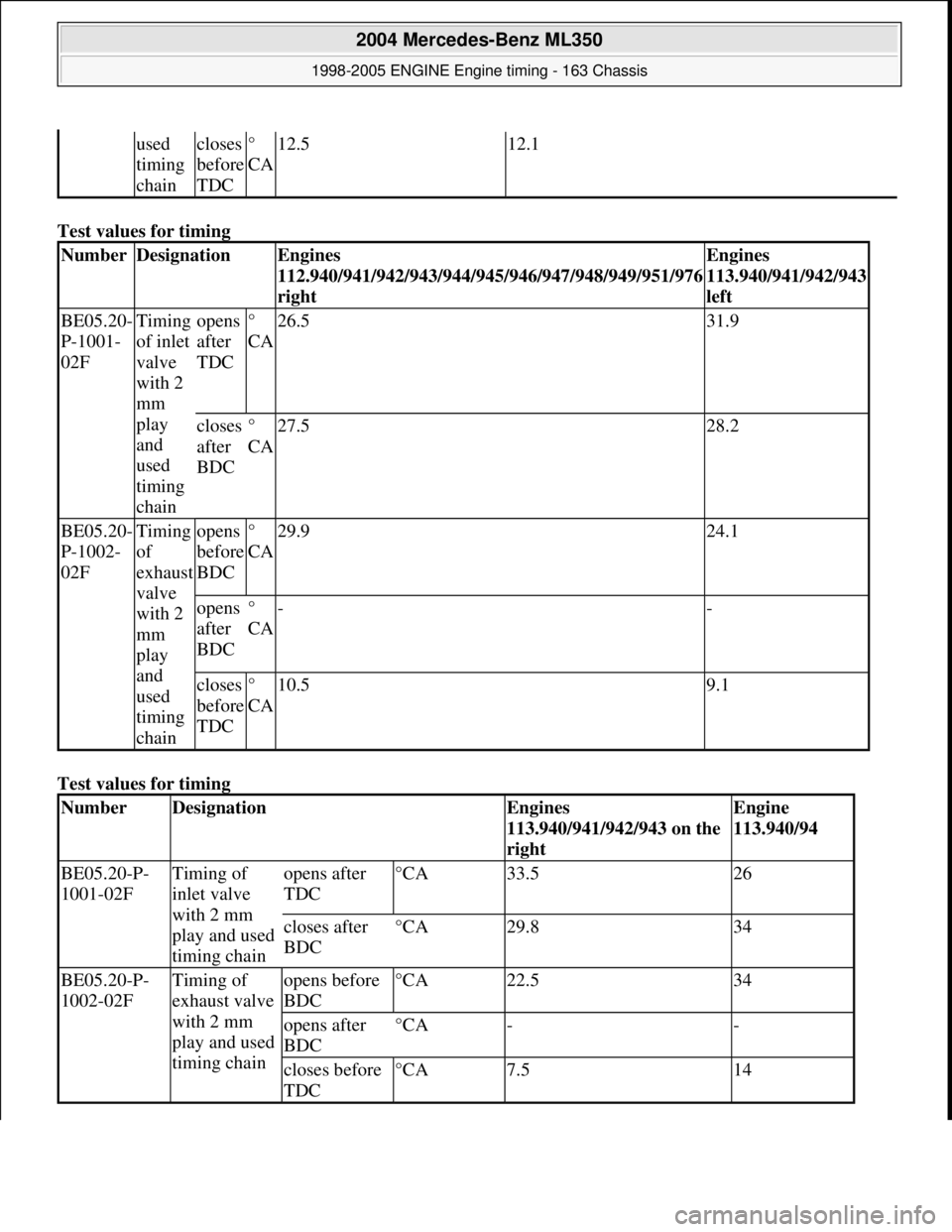

MERCEDES-BENZ ML320 1997 Complete Repair Manual Test values for timing Test values for timing used timing chaincloses before TDC ° CA12.512.1 NumberDesignationEngines 112.940/941/942/943/944/945/946/947/948/949/951/976 rightEngines
