MERCEDES-BENZ ML320 1997 Complete Repair Manual When the kick-down switch (S16/6) is operated via the accelerator pedal a signal is passed on to the ETC control module (N15/3). Based on this information the ETC control module (N15/3) actuates the

Page 1458 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 162: Function Of Locking Of Selector Lever Position "P" Courtesy of MERCEDES-BENZ OF NORTH AMERICA. One of the functions of the shift lock is to lock the selector lever in position "P". The sel

Page 1459 of 4133

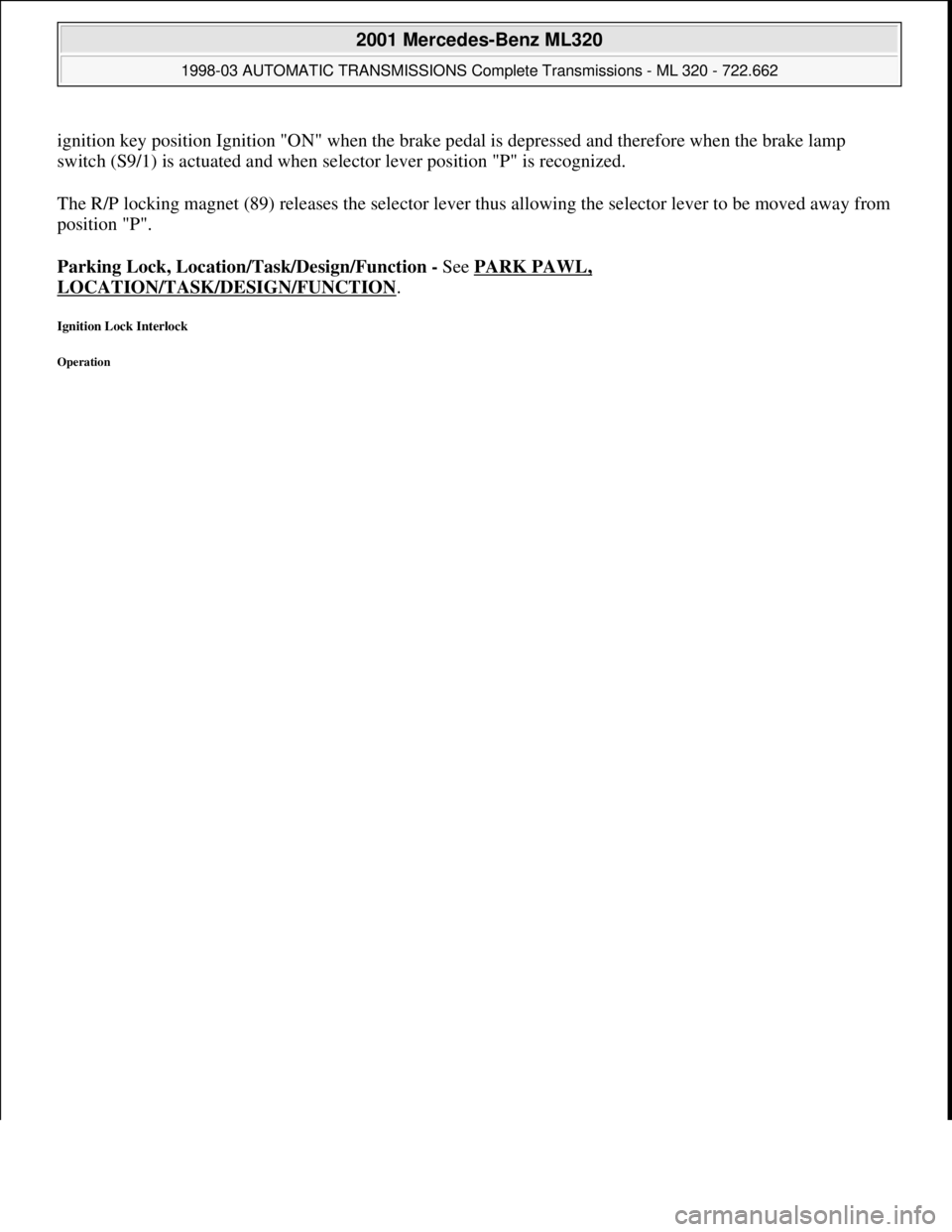

MERCEDES-BENZ ML320 1997 Complete Repair Manual ignition key position Ignition "ON" when the brake pedal is depressed and therefore when the brake lamp switch (S9/1) is actuated and when selector lever position "P" is recognized. The R/P locking

Page 1460 of 4133

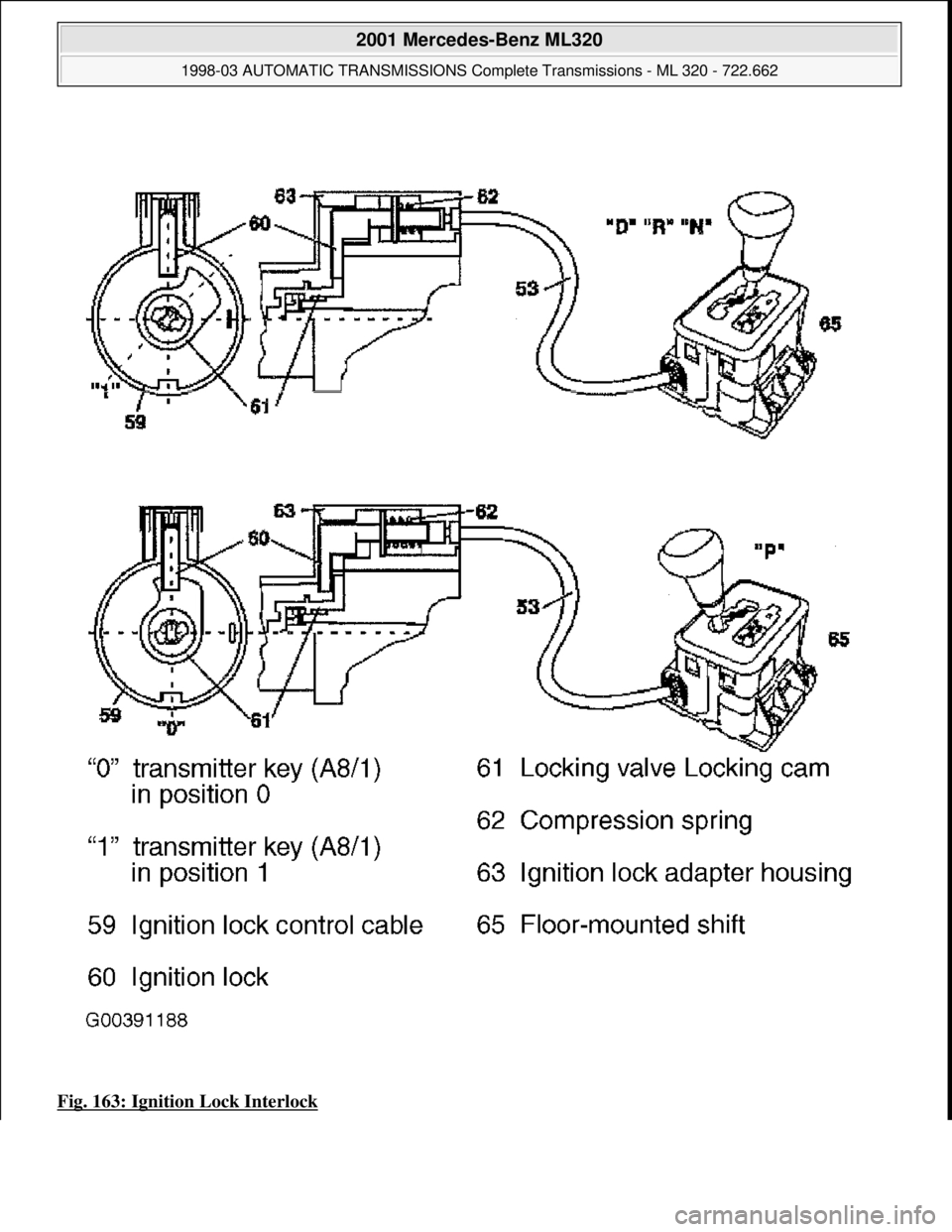

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 163: Ignition Lock Interlock 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:30 PMPage 291 © 2006 M

Page 1461 of 4133

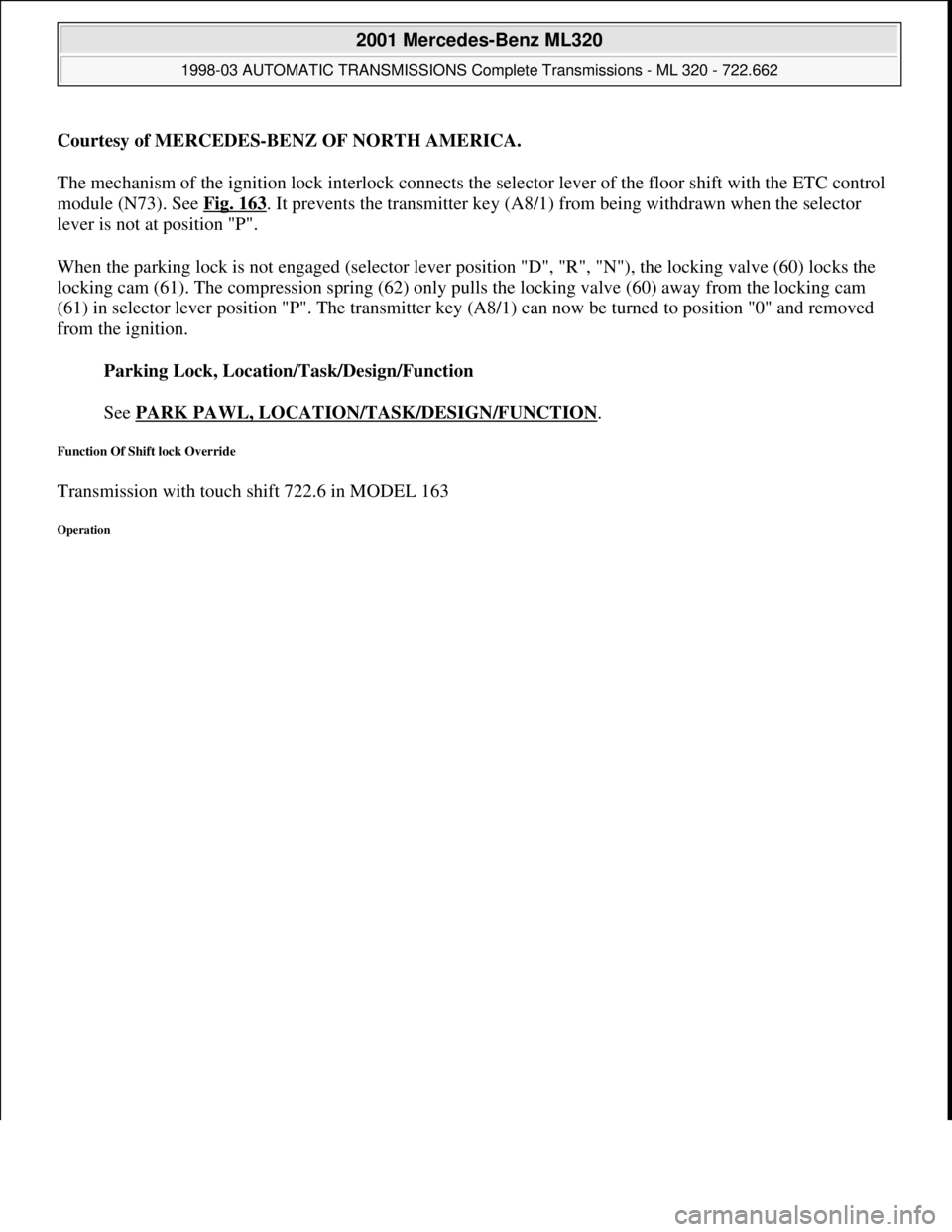

MERCEDES-BENZ ML320 1997 Complete Repair Manual Courtesy of MERCEDES-BENZ OF NORTH AMERICA. The mechanism of the ignition lock interlock connects the selector lever of the floor shift with the ETC control module (N73). See Fig. 163 . It prevents t

Page 1462 of 4133

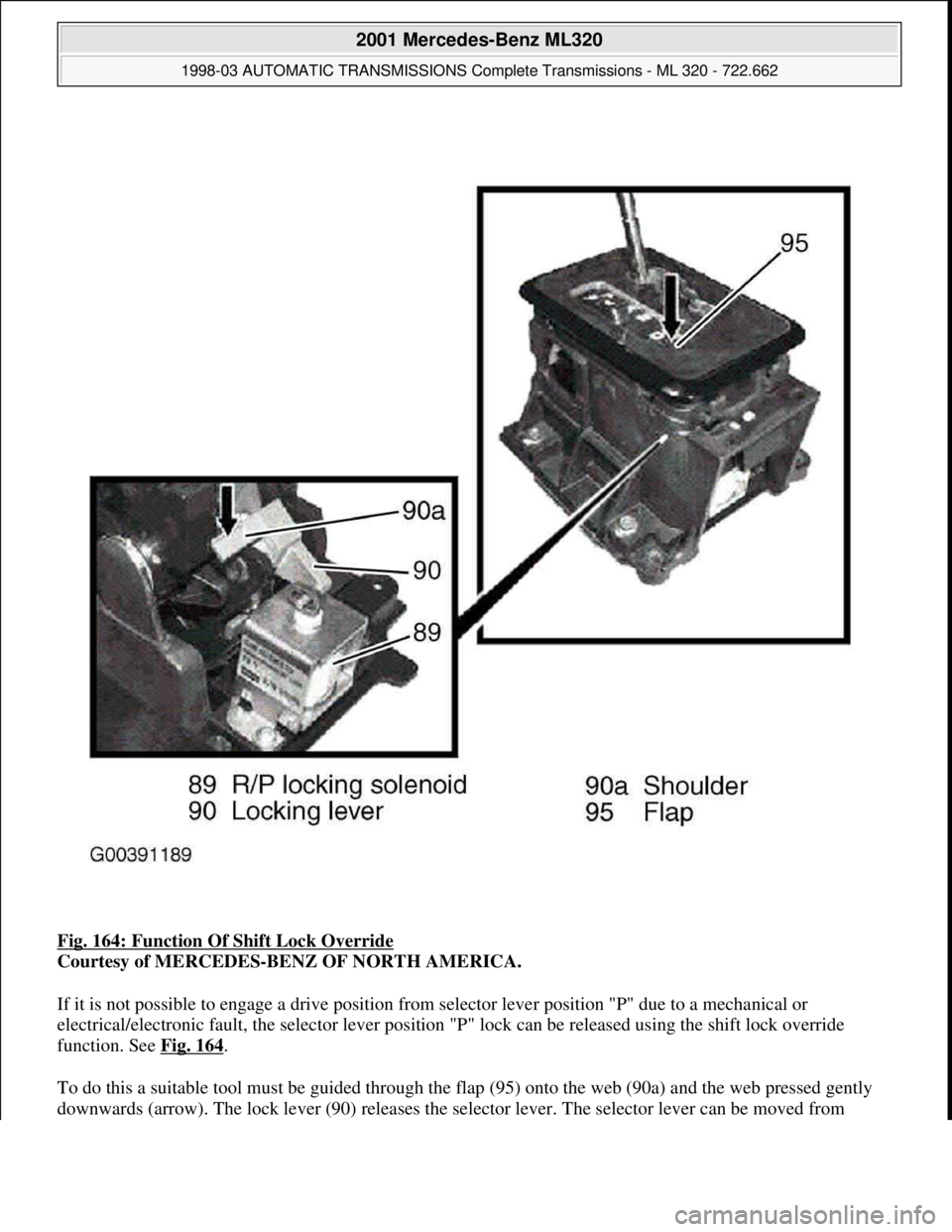

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 164: Function Of Shift Lock Override Courtesy of MERCEDES-BENZ OF NORTH AMERICA. If it is not possible to engage a drive position from selector lever position "P" due to a mechanical or electr

Page 1463 of 4133

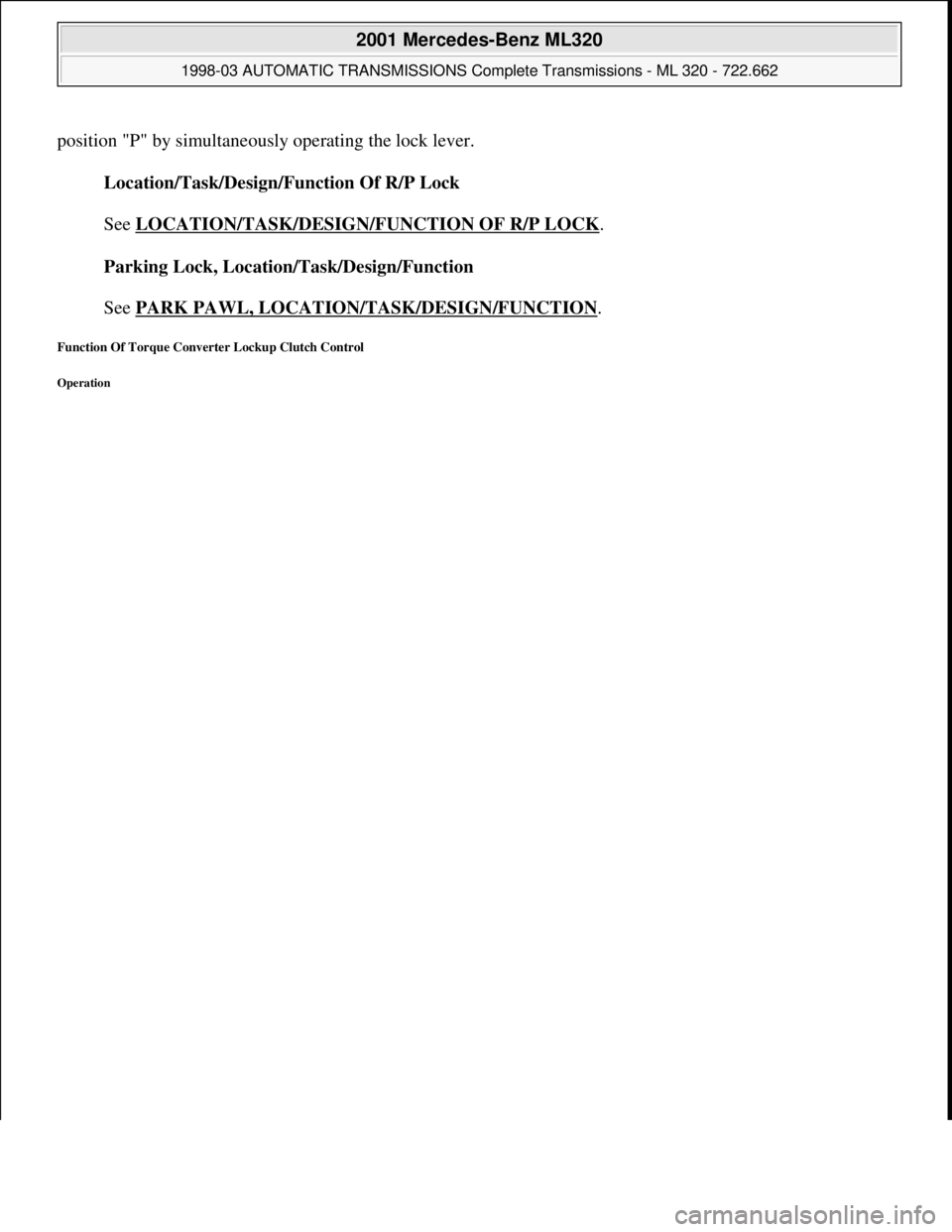

MERCEDES-BENZ ML320 1997 Complete Repair Manual position "P" by simultaneously operating the lock lever. Location/Task/Design/Function Of R/P Lock See LOCATION/TASK/DESIGN/FUNCTION OF R/P LOCK . Parking Lock, Location/Task/Design/Function Se

Page 1464 of 4133

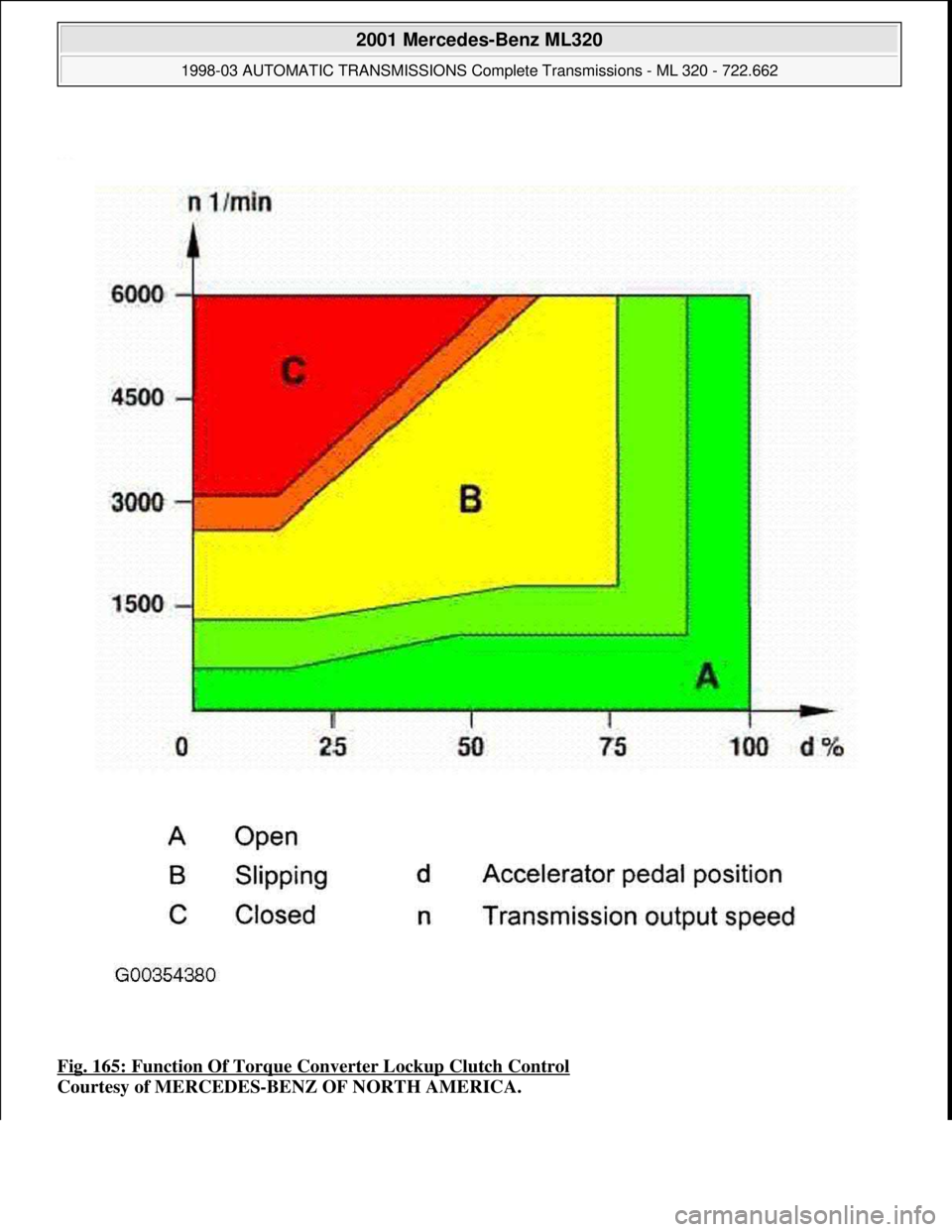

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 165: Function Of Torque Converter Lockup Clutch Control Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 -
