Page 2625 of 4133

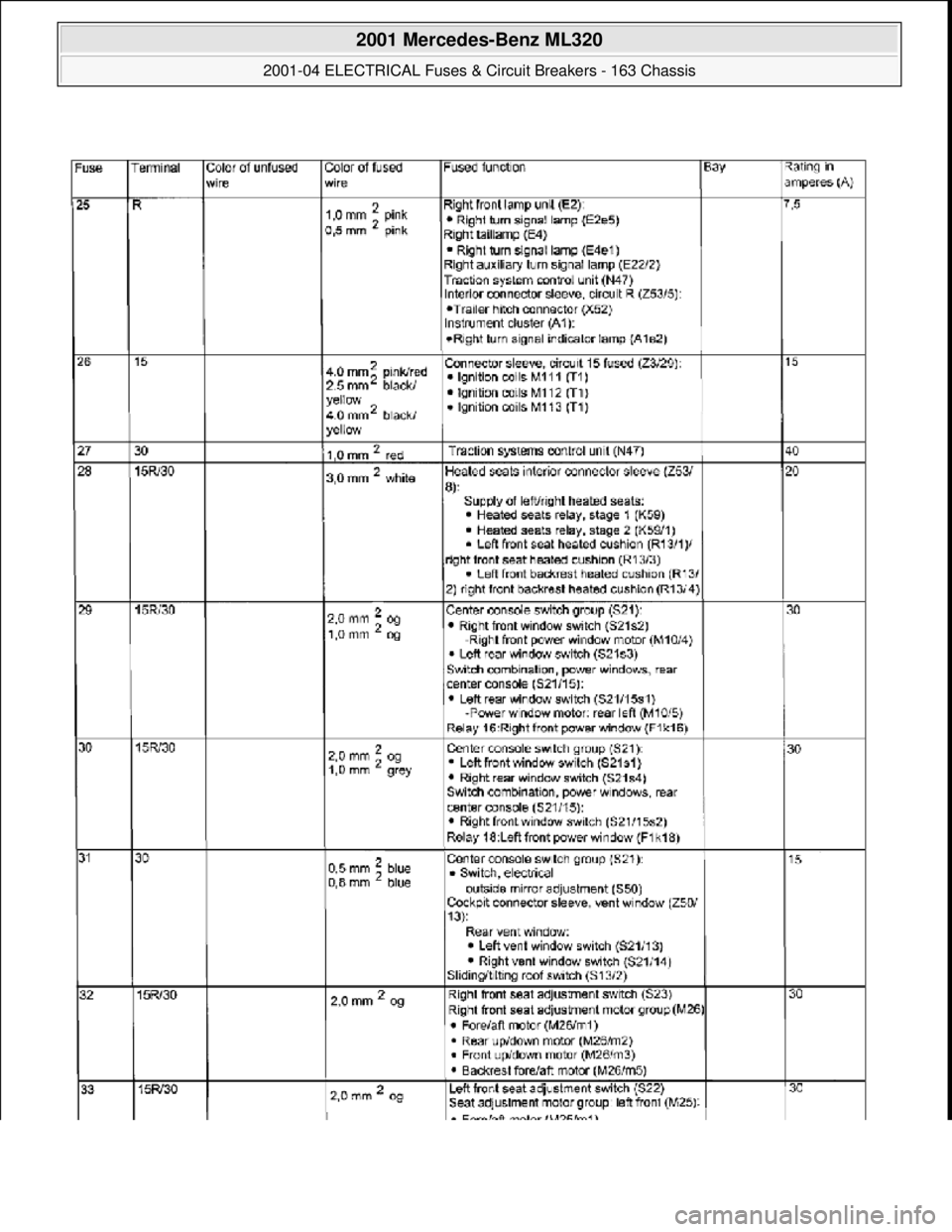

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 7: Fuse Assignments Fuse & Relay Box F1 (4 Of 6) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday,

Page 2626 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday, October 02, 2010 3:22:06 PMPage 12 © 2006 Mitchell Repair Information Company, LLC.

Page 2627 of 4133

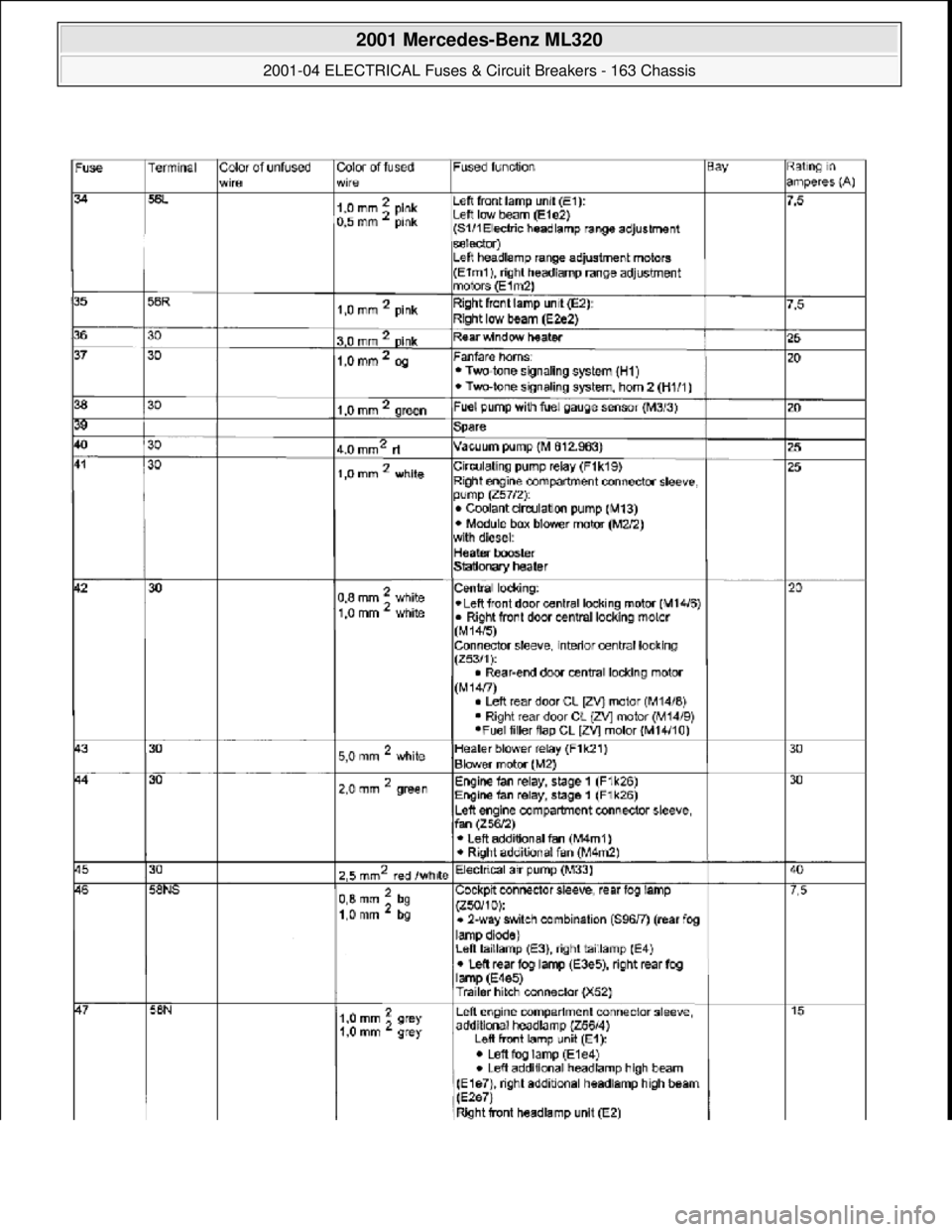

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 8: Fuse Assignments Fuse & Relay Box F1 (5 Of 6) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday,

Page 2628 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday, October 02, 2010 3:22:06 PMPage 14 © 2006 Mitchell Repair Information Company, LLC.

Page 2629 of 4133

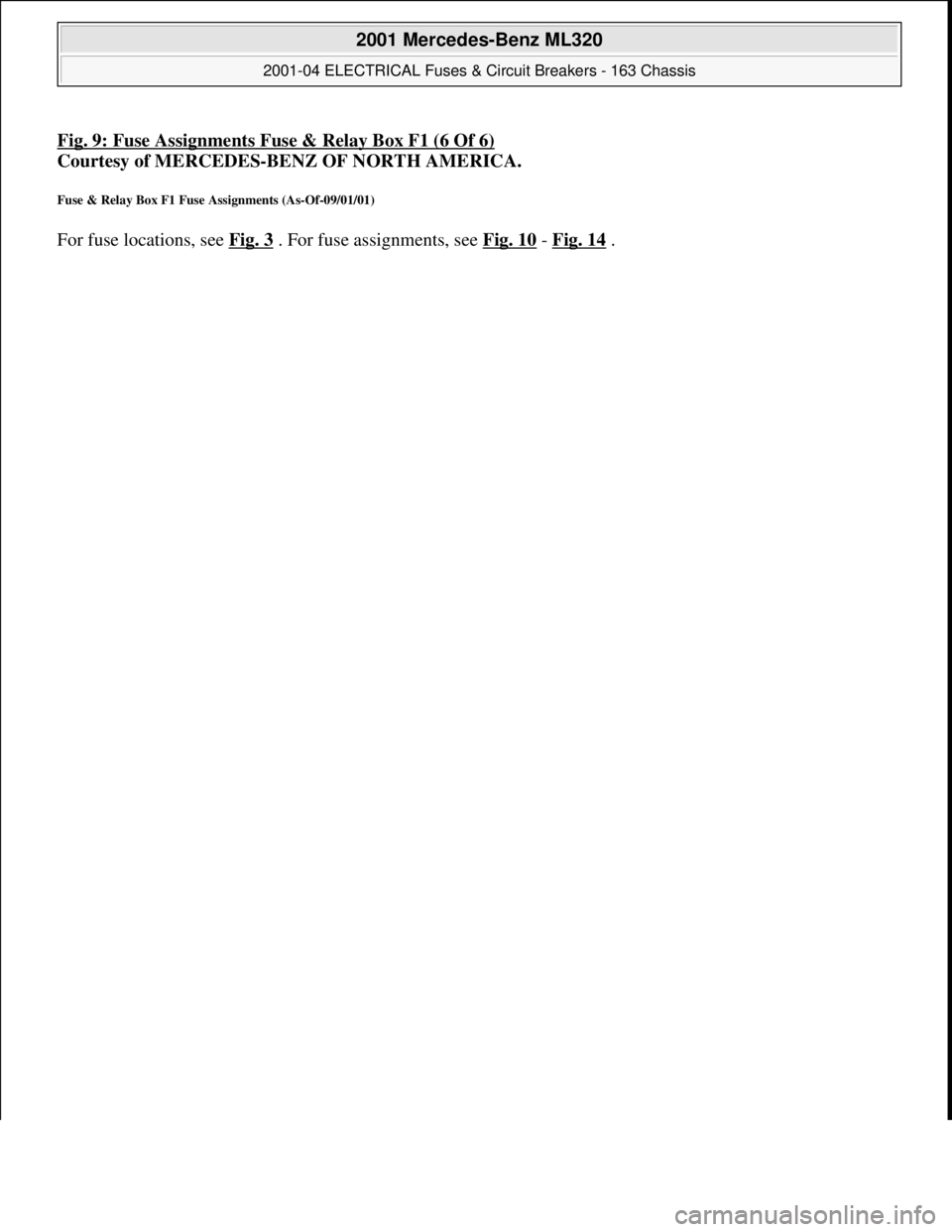

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 9: Fuse Assignments Fuse & Relay Box F1 (6 Of 6) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fuse & Relay Box F1 Fuse Assignments (As-Of-09/01/01) For fuse locations, see Fig. 3 . For fuse assi

Page 2630 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday, October 02, 2010 3:22:06 PMPage 16 © 2006 Mitchell Repair Information Company, LLC.

Page 2631 of 4133

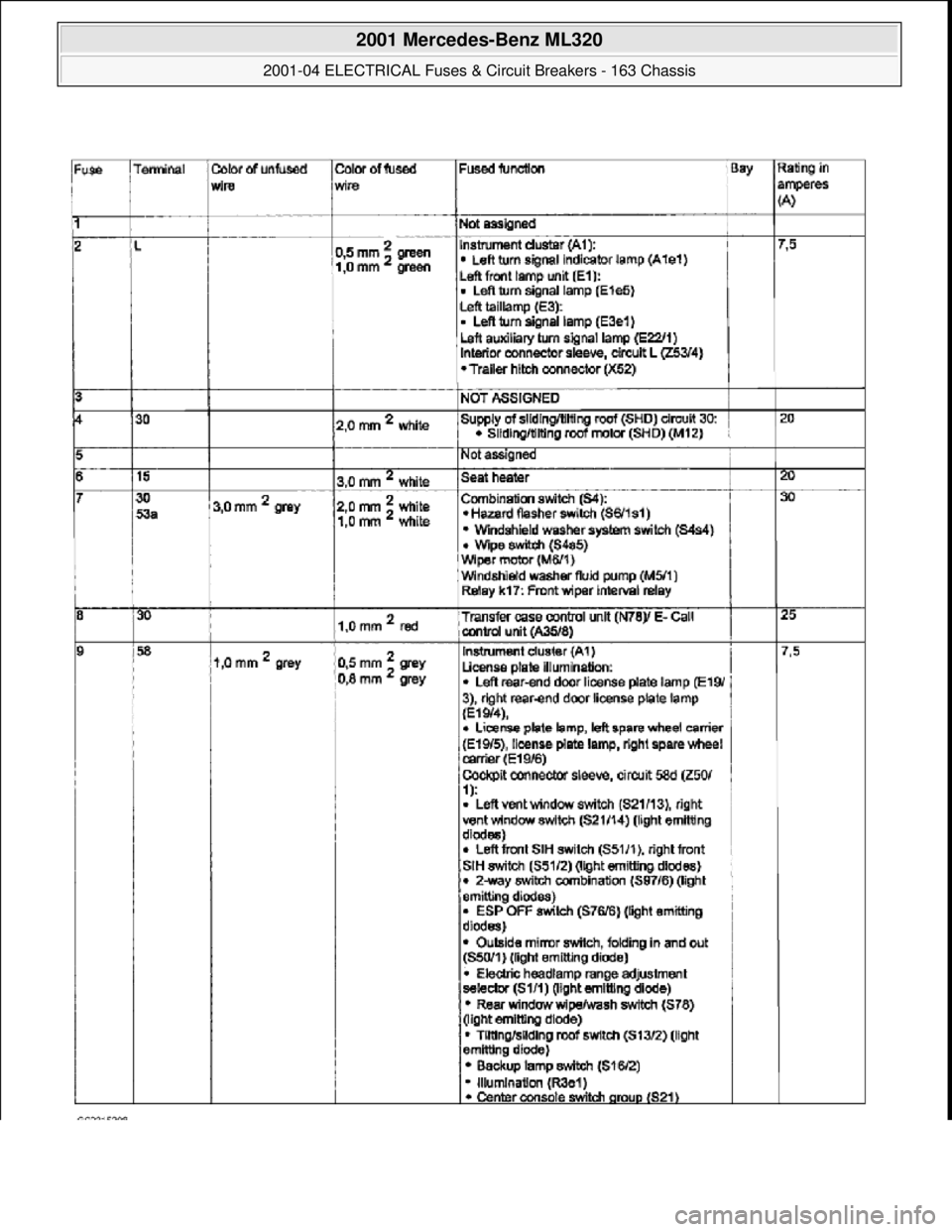

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 10: Fuse Assignments Fuse & Relay Box F1 (1 Of 5) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday

Page 2632 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday, October 02, 2010 3:22:06 PMPage 18 © 2006 Mitchell Repair Information Company, LLC.
