Page 1681 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual bypass mode.
The E-call control
module is not recognized
by the D2B ring.
The emergency call
function is not affected,
this function is
INDEPENDENT of the
D2B ring.1 Connect STAR-
DIAGNOSIS.

Page 1682 of 4133

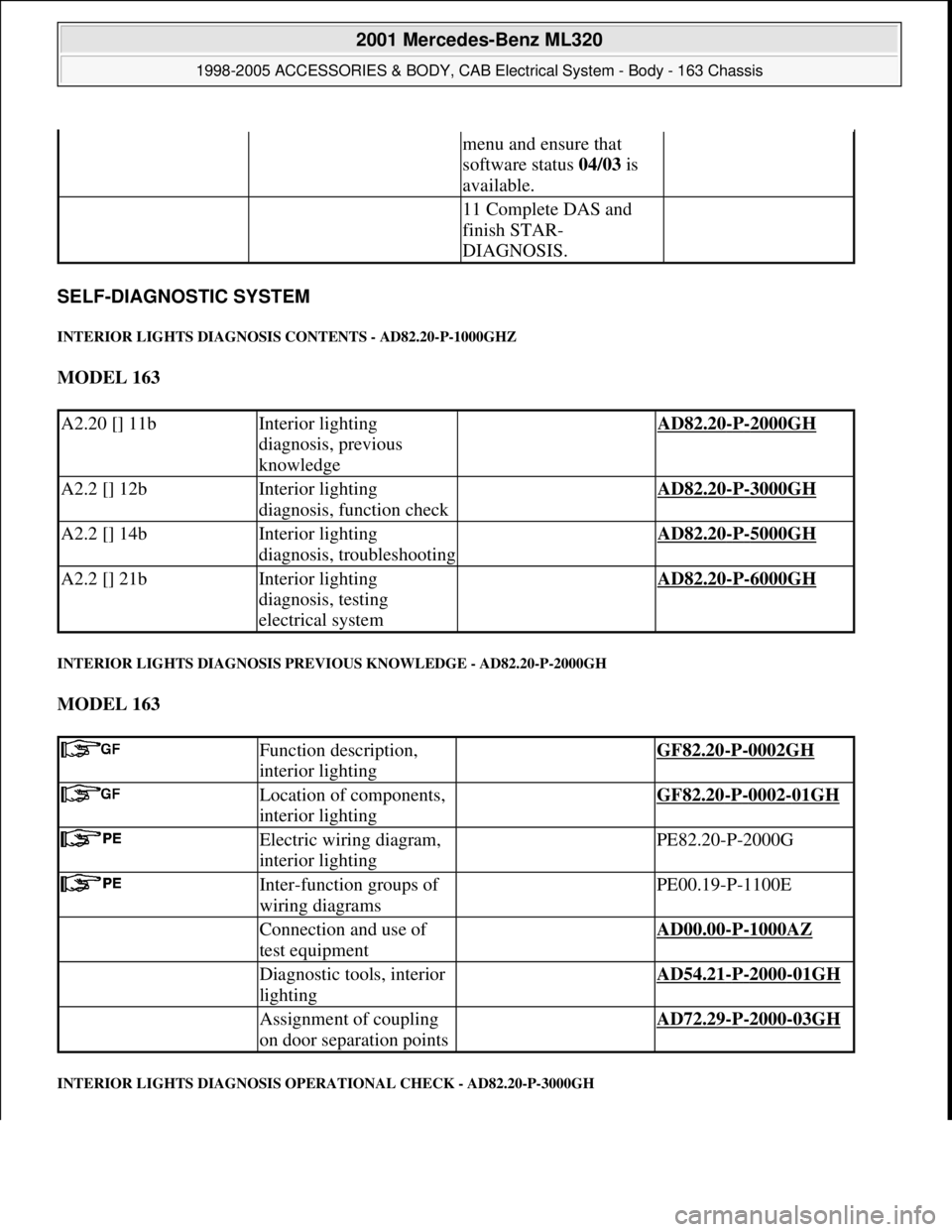

MERCEDES-BENZ ML320 1997 Complete Repair Manual SELF-DIAGNOSTIC SYSTEM
INTERIOR LIGHTS DIAGNOSIS CONTENTS - AD82.20-P-1000GHZ
MODEL 163
INTERIOR LIGHTS DIAGNOSIS PREVIOUS KNOWLEDGE - AD82.20-P-2000GH
MODEL 163
INTERIOR LIGHTS DIAGNOSIS OPERA

Page 1683 of 4133

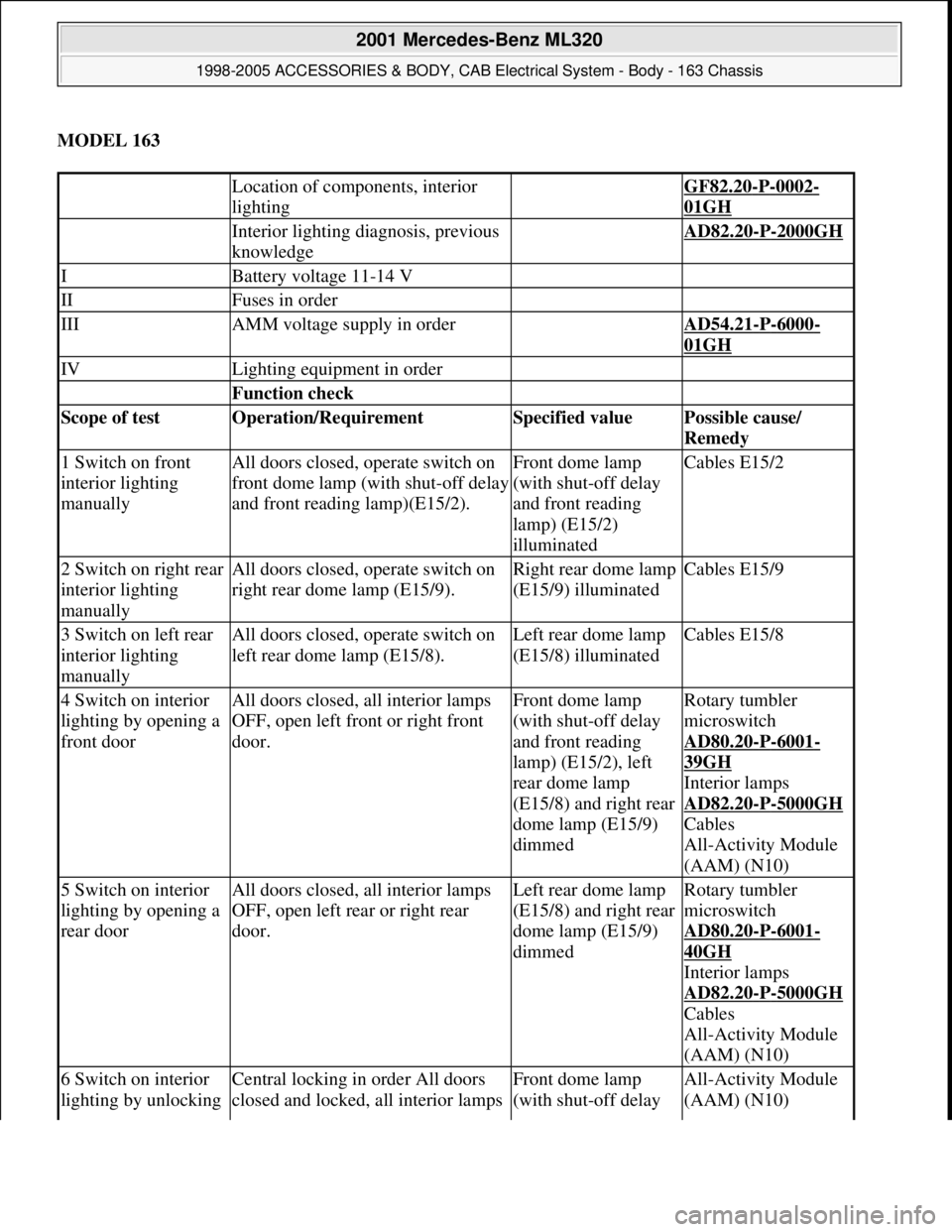

MERCEDES-BENZ ML320 1997 Complete Repair Manual MODEL 163
Location of components, interior
lighting GF82.20-P-0002-
01GH
Interior lighting diagnosis, previous
knowledge AD82.20-P-2000GH
IBattery voltage 11-14 V
IIFuses in order
IIIAMM vol

MODEL 163
Location of components, interior
lighting GF82.20-P-0002-
01GH
Interior lighting diagnosis, previous
knowledge AD82.20-P-2000GH
IBattery voltage 11-14 V
IIFuses in order
IIIAMM voltage supply in order AD54.21-P-6000-
01GH
IVLighting equipment in order
Function check
Scope of test Operation/Requirement Specified value Possible cause/
Remedy
1 Switch on front
interior lighting
manuallyAll doors closed, operate switch on
front dome lamp (with shut-off delay
and front reading lamp)(E15/2).Front dome lamp
(with shut-off delay
and front reading
lamp) (E15/2)
illuminatedCables E15/2
2 Switch on right rear
interior lighting
manuallyAll doors closed, operate switch on
right rear dome lamp (E15/9).Right rear dome lamp
(E15/9) illuminatedCables E15/9
3 Switch on left rear
interior lighting
manuallyAll doors closed, operate switch on
left rear dome lamp (E15/8).Left rear dome lamp
(E15/8) illuminatedCables E15/8
4 Switch on interior
lighting by opening a
front doorAll doors closed, all interior lamps
OFF, open left front or right front
door.Front dome lamp
(with shut-off delay
and front reading
lamp) (E15/2), left
rear dome lamp
(E15/8) and right rear
dome lamp (E15/9)
dimmedRotary tumbler
microswitch
AD80.20
-P-6001-
39GH
Interior lamps
AD82.20
-P-5000GH
Cables
All-Activity Module
(AAM) (N10)
5 Switch on interior
lighting by opening a
rear doorAll doors closed, all interior lamps
OFF, open left rear or right rear
door.Left rear dome lamp
(E15/8) and right rear
dome lamp (E15/9)
dimmedRotary tumbler
microswitch
AD80.20
-P-6001-
40GH
Interior lamps
AD82.20
-P-5000GH
Cables
All-Activity Module
(AAM) (N10)
6 Switch on interior
lighting by unlocking Central locking in order All doors
closed and locked, all interior lamps Front dome lamp
(with shut-off delay All-Activity Module
(AAM) (N10)

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:07 PMPage 188 © 2006 Mitchell Repair Information Company, LLC.

Page 1684 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual INTERIOR LIGHTS DIAGNOSIS TROUBLESHOOTING - AD82.20-P-5000GH
MODEL 163
vehicleOFF, unlock vehicle with transmitter
key.and front reading
lamp) (E15/2), left
rear dome lamp
(E15/8) and right rea

Page 1685 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual inoperativeTerminal 30
Interior lighting does not
switch off with ignition
"ON", or does not switch
on with ignition "OFF"All-Activity Module (AAM)
(N10) N10
Malfunctions only when
switched on
a

Page 1686 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual INTERIOR LIGHTS TEST OF ELECTRICAL SY STEM FRONT DOME LAMP - AD82.20-P-6000-01GH
Fig. 103: Interior Lights Test Of Electrical System Front Dome Lamp
INTERIOR LIGHTS TEST OF ELECTRICAL SYSTEM REAR

Page 1687 of 4133

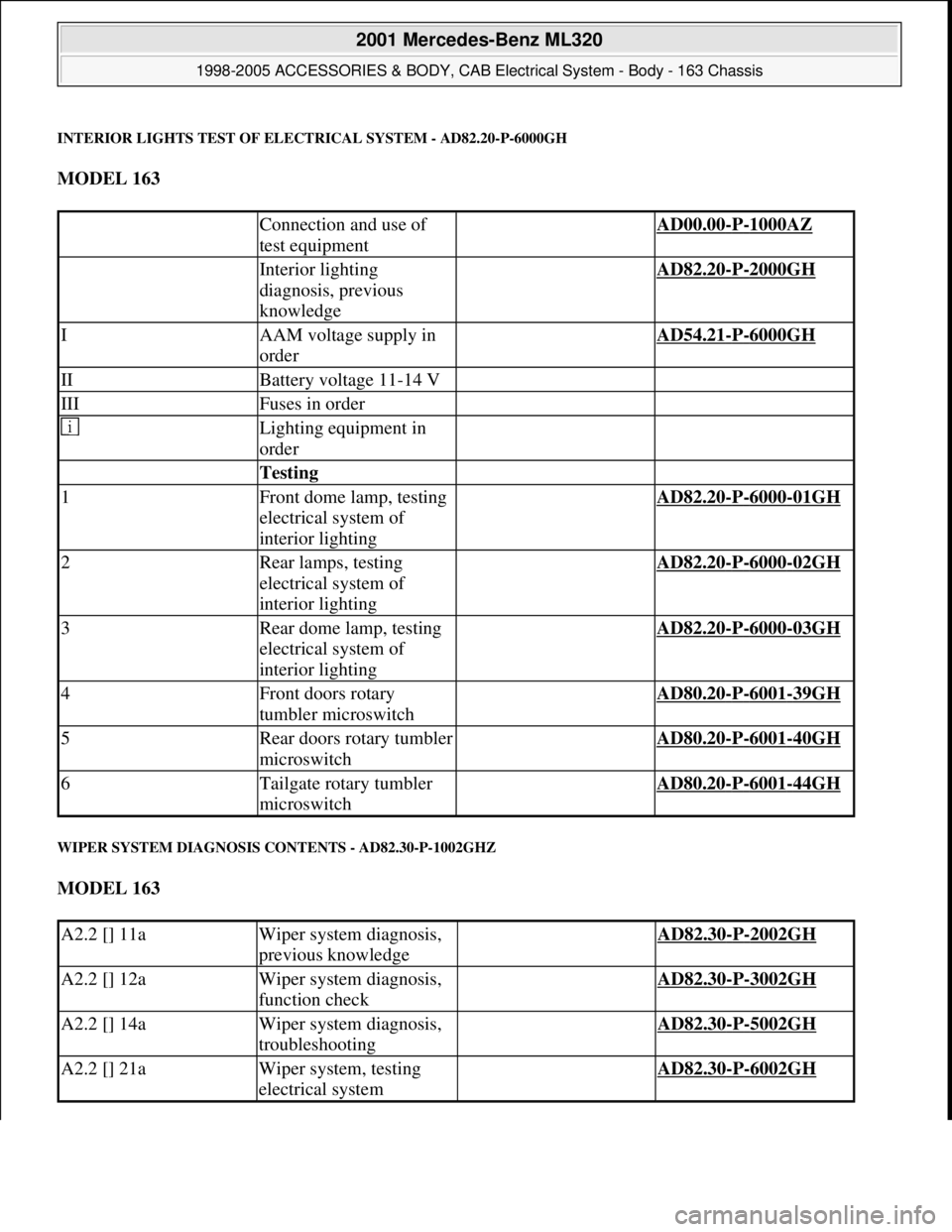

MERCEDES-BENZ ML320 1997 Complete Repair Manual INTERIOR LIGHTS TEST OF ELECTRICAL SYSTEM - AD82.20-P-6000GH
MODEL 163
WIPER SYSTEM DIAGNOSIS CONTENTS - AD82.30-P-1002GHZ
MODEL 163
Connection and use of
test equipment AD00.00-P-1000AZ
Inte

Page 1688 of 4133

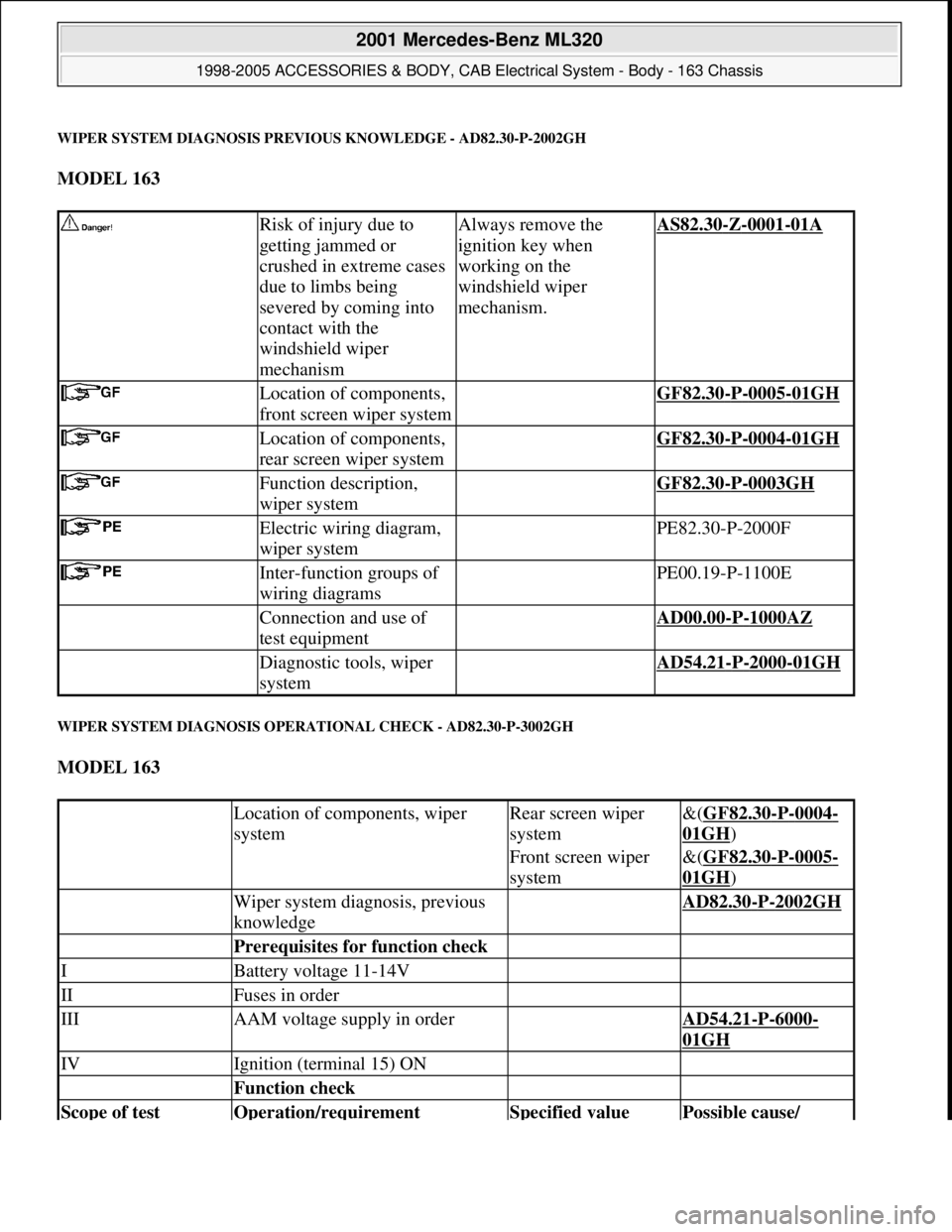

MERCEDES-BENZ ML320 1997 Complete Repair Manual WIPER SYSTEM DIAGNOSIS PREVIOUS KNOWLEDGE - AD82.30-P-2002GH
MODEL 163
WIPER SYSTEM DIAGNOSIS OPERATIONAL CHECK - AD82.30-P-3002GH
MODEL 163
Risk of injury due to
getting jammed or
crushed in
