Page 3769 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
AR68.30-P-4470GH
Remove/install rear roof frame paneling
24.2.97

MODEL
163.113 /128 /136 /154 /157 /172 /174 /175

P68.30-0507-06

1

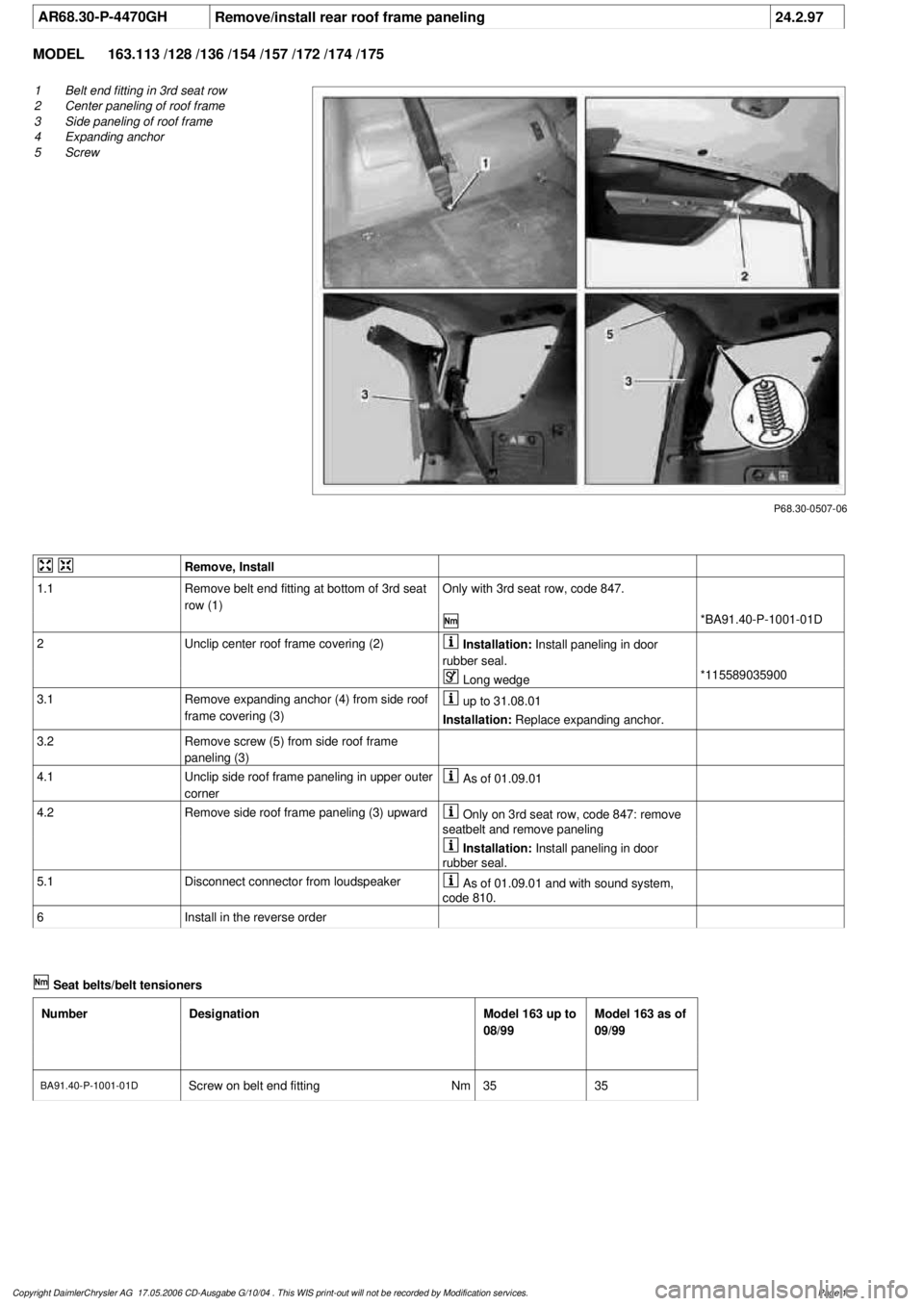

Belt end fitting in 3rd seat row

2
Center paneling of roof fr

Page 3770 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
Assembly wedge

115 589 03 59 00

Copyright DaimlerChrysler AG 17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2

Page 3771 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
AR20.00-P-1250B
Remove oil from cooling and heating system
22.7.97

ENGINE
611.960 in MODEL 202.134 /193 /194 /133

ENGINE
611.961 in MODEL 210.006 /206 /007 /606

ENGINE
611.962 in MODEL 203.0

AR20.00-P-1250B
Remove oil from cooling and heating system
22.7.97

ENGINE
611.960 in MODEL 202.134 /193 /194 /133

ENGINE
611.961 in MODEL 210.006 /206 /007 /606

ENGINE
611.962 in MODEL 203.006 /004 /206 /204 /706

ENGINE
612.961 in MODEL 210.616 /216 /016

ENGINE
612.962 in MODEL 203.016 /216

ENGINE
612.963 in MODEL 163.113

ENGINE
613.960 in MODEL 220.026

ENGINE
613.961 in MODEL 210.026 /226

ENGINE
628.960 in MODEL 220.028 /128

ENGINE
628.961 in MODEL 211.028

ENGINE
628.963 in MODEL 163.128

ENGINE
646.951 in MODEL 211.004

ENGINE
646.961 in MODEL 211.006 /206 /606

ENGINE
647.961 in MODEL 211.016 /216 /616

ENGINE
648.961 in MODEL 211.023 /026 /223 /226

ENGINE
612.967 in MODEL 209.316

ENGINE
612.990 in MODEL 203.018 /218 /718

ENGINE
646.962 in MODEL 203.007 /207 /707

ENGINE
646.963 in MODEL 203.008 /208 /708

P20.00-2078-06

Shown on engine 611.962

1
Coolant expansion reservoir

18
Radiator

20
Coolant thermostat

Remove/Install

Danger!

Risk of accident
caused by vehicle starting

off when engine is running.
Risk of injury

caused by contusions and burns when

working in engine during starting procedure
Secure vehicle to prevent it from moving.
Wear closed and snug-fitting work clothes.

Do not grasp hot or rotating parts.

AS00.00-Z-0005-01A

Danger!

Risk of injury
from
fingers being jammed

or crushed
when removing / install / aligning
hoods, doors, trunk lid/tailgate or sliding roof.
With moving components, ensure that no

body parts or limbs are within the operating

range of moving parts.

AS00.00-Z-0011-01A

Danger!

Risk of injury
to skin and eyes suffering

scalding from contact with hot coolant spray.
Risk of poisoning
if coolant is swallowed.
Do not open cooling system unless coolant

temperature is below 90 °C. Open cap slowly

and release the pressure. Do not pour coolant

into beverage bottles.

Wear protective gloves, protective clothing

and eye protection.

AS20.00-Z-0001-01A

1
Open the engine hood and raise to vertical

position
Model 163

AR88.40-P-1000GI

Model 202

AR88.40-P-1000E

Model 203

AR88.40-P-1000P

Model 209

AR88.40-P-1000Q

Model 210

AR88.40-P-1000F

Model 211

AR88.40-P-1000T

Model 220

AR88.40-P-1000M

Copyright DaimlerChrysler AG 12.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

Page 3772 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2
Drain the coolant
Engine 611.960/961/962,

612.961/962/967/990, 613.960/961,
628.960/961/963, 646, 647, 648
AR20.00-P-1142HB

Engine 612.963

AR20.00-P-1142M

3
Remove coolant thermostat (20)

E

2
Drain the coolant
Engine 611.960/961/962,

612.961/962/967/990, 613.960/961,
628.960/961/963, 646, 647, 648
AR20.00-P-1142HB

Engine 612.963

AR20.00-P-1142M

3
Remove coolant thermostat (20)

Engine 611, 612, 613, 646, 647, 648

AR20.10-P-2460PP

Engine 628.960/963

AR20.10-P-2460M

4
Mount the housing to remove oil and flush the

cooling/heating system

The housing may be used only for the

purpose of removing the oil, and must be

removed again after it has been rinsed.

Engine 611.960/961/962/ 612.961/962

/963/967/990, 613.960/961

*BA20.10-P-1005-01A

Engine 628.960/961/962/963

*BA20.10-P-1002-01F

Engine 646.962/963

*BA20.10-P-1002-01G

y
Housing for removing oil and flushing the

cooling/heating system

WF58.50-P-2000-01A

Cleaning

5
Set the heater control to full power

6
Set the auxiliary heater to full power

7
Fill the cooling/heating system with a rinsing

solution

Rinsing solution consisting of 5% cleaning

agent and 95% water.

*BF20.00-P-1001-02E

Cleaning agent

*BR00.45-Z-1001-04A

8
Warm up the engine to operating temperature

at moderate engine speed

While engine is running, hold operating

temperature at 80 °C for about 5 min.

9
Switch off engine and allow the cooling

system to

cool to about 50 °C

10
Drain the rinsing solution completely at the

drain plug of radiator (18)

Observe the environmental instructions of

the manufacturer of the cleaning agent.

11
Fill cooling system with fresh water

Pour fresh water into the coolant

expansion reservoir (1).

12
Warm up the engine to operating temperature

at moderate engine speed

While engine is running, hold the

operating temperature at 80 °C for about

5 min.

13
Drain the fresh water completely at the drain

plug of radiator (18)

Repeat the flushing process until all of the

rinsing solution has been removed.

14
Install in the reverse order

Coolant pump, coolant thermostat

Number

Designation
Engine

611.960/

961
Engine

611.962
Engine

612.961/

963
Engine

612.962/

967/990

BA20.10-P-1005-01A
Bolt of coolant thermostat housing to cylinder head
Nm
9999

Designation
Engine

613.960/

961

BA20.10-P-1005-01A
Bolt of coolant thermostat housing to cylinder head
Nm
9

Designation
Engine

628.960/961/962/

963

Copyright DaimlerChrysler AG 12.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2

Page 3773 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
BA20.10-P-1002-01F
Bolt of coolant thermostat housing to

crankcase
Nm
9

Designation
Engine

647, 648
Engine

646.951/

961
Engine

646.962/

963

BA20.10-P-1002-01G
Bolt of coolant thermostat

Page 3774 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
Cooling system

Number

Designation
Engine

628.961
Engine

628.963

BF20.00-P-1001-02E
Cooling system
Total capacity
Liters
Y
15.3
Y
12.0

Capacity of anticorrosion/

antifreeze agent down to

Page 3775 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual

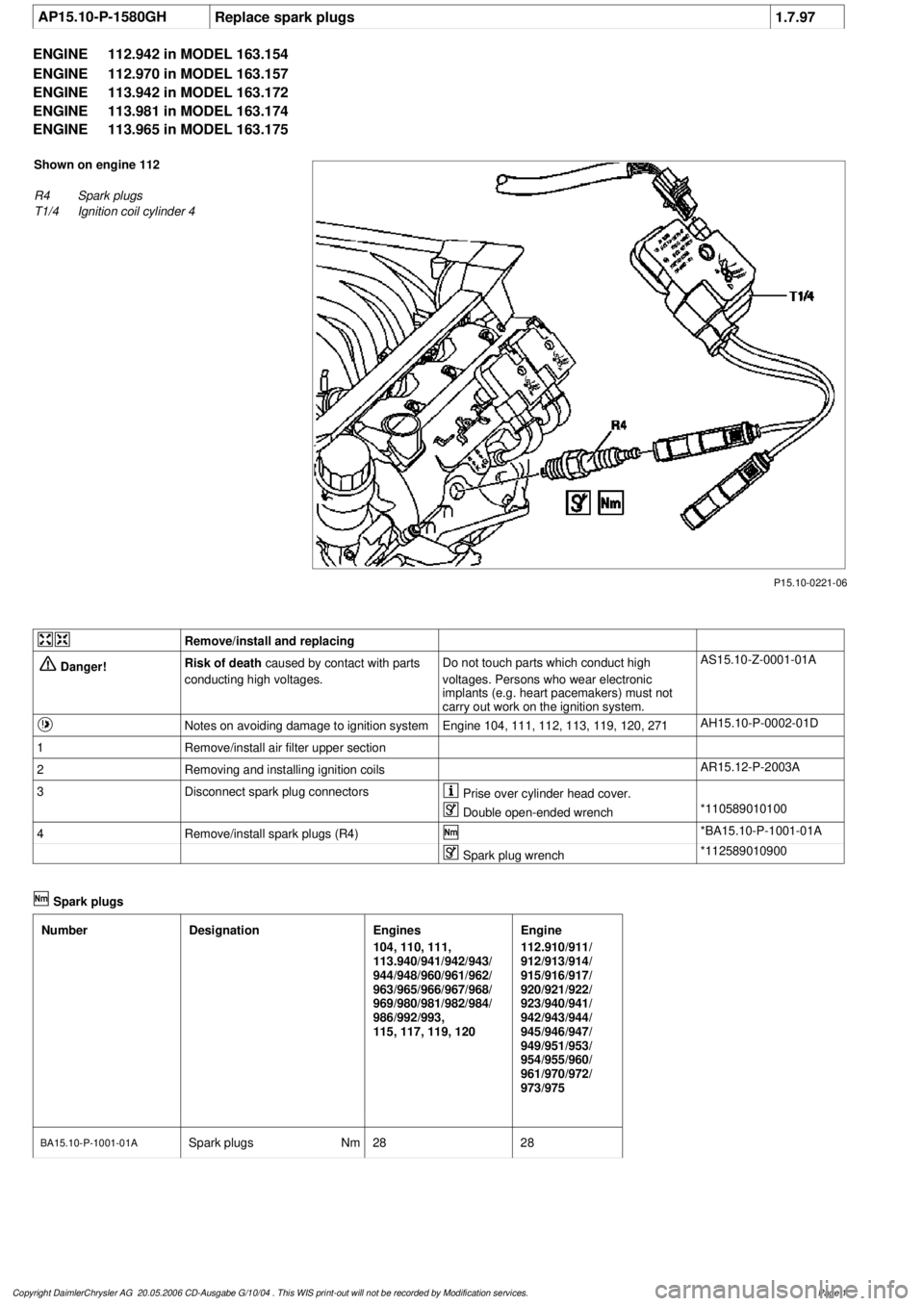

AP15.10-P-1580GHReplace spark plugs
1.7.97

ENGINE
112.942 in MODEL 163.154

ENGINE
112.970 in MODEL 163.157

ENGINE
113.942 in MODEL 163.172

ENGINE
113.981 in MODEL 163.174

ENGINE
113.96

Page 3776 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual

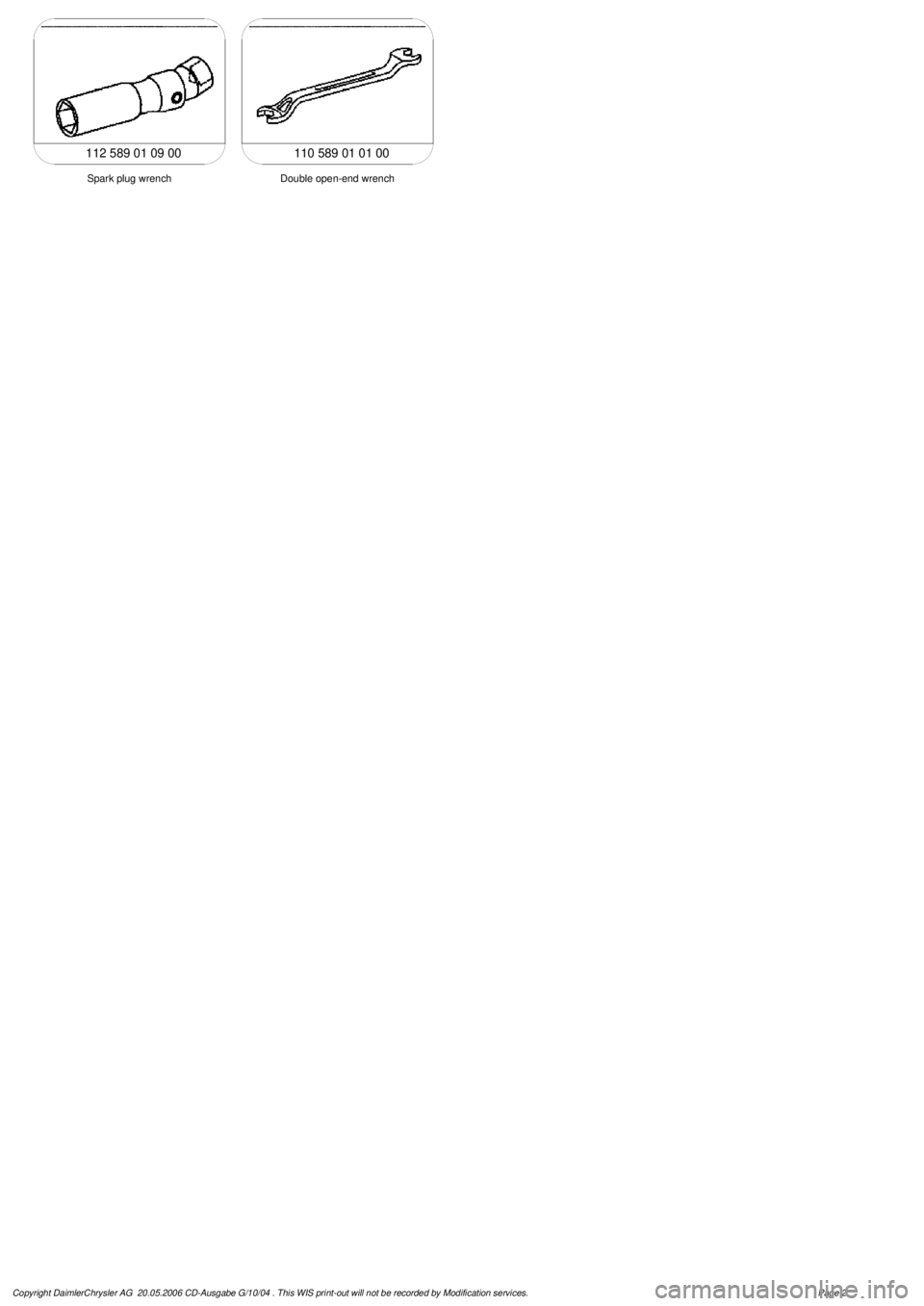

112 589 01 09 00110 589 01 01 00

Double open-end wrench
Spark plug wrench

Copyright DaimlerChrysler AG 20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification se
