Page 2449 of 4133

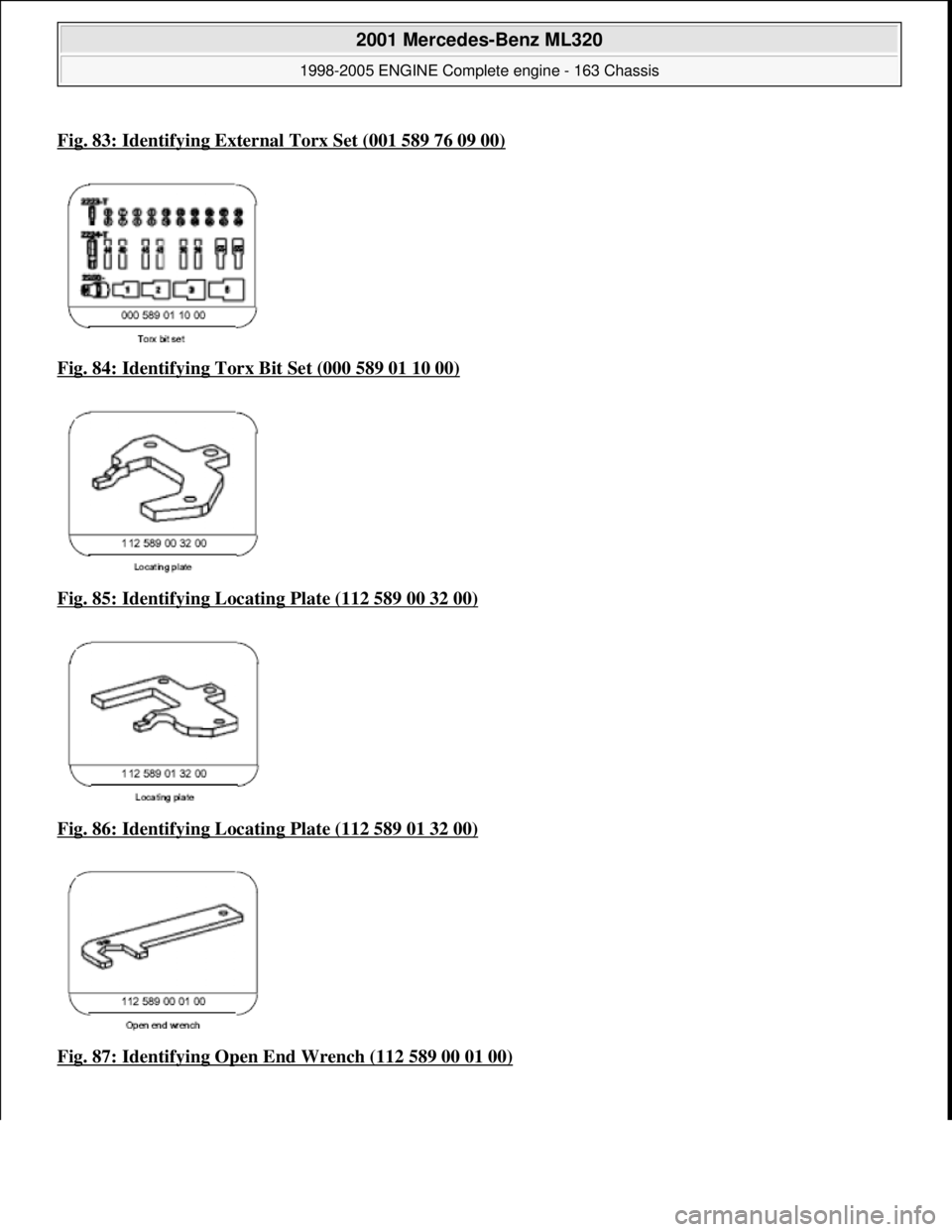

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 83: Identifying External Torx Set (001 589 76 09 00) Fig. 84: Identifying Torx Bit Set (000 589 01 10 00) Fig. 85: Identifying Locating Plate (112 589 00 32 00) Fig. 86: Identifying Locating

Page 2450 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 88: Identifying Insertion Tool (112 589 01 03 00) Fig. 89: Identifying Screwdr iver Insert (000 589 03 10 00) Fig. 90: Identifying Screwdr iver Insert (000 589 04 10 00) Fig. 91: Identi

Page 2451 of 4133

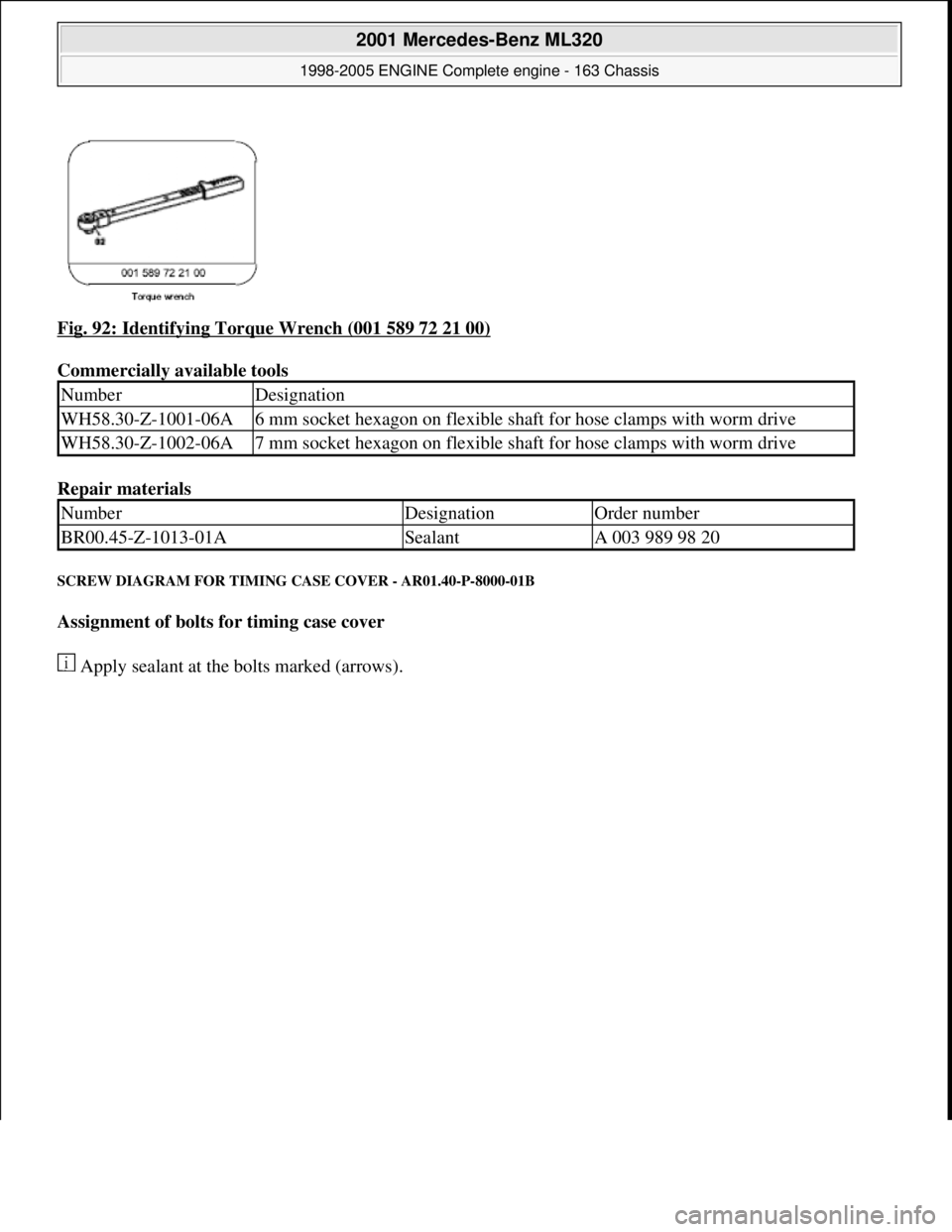

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 92: Identifying Torque Wrench (001 589 72 21 00) Commercially available tools Repair materials SCREW DIAGRAM FOR TIMING CASE COVER - AR01.40-P-8000-01B Assignment of bolts for timing c

Page 2452 of 4133

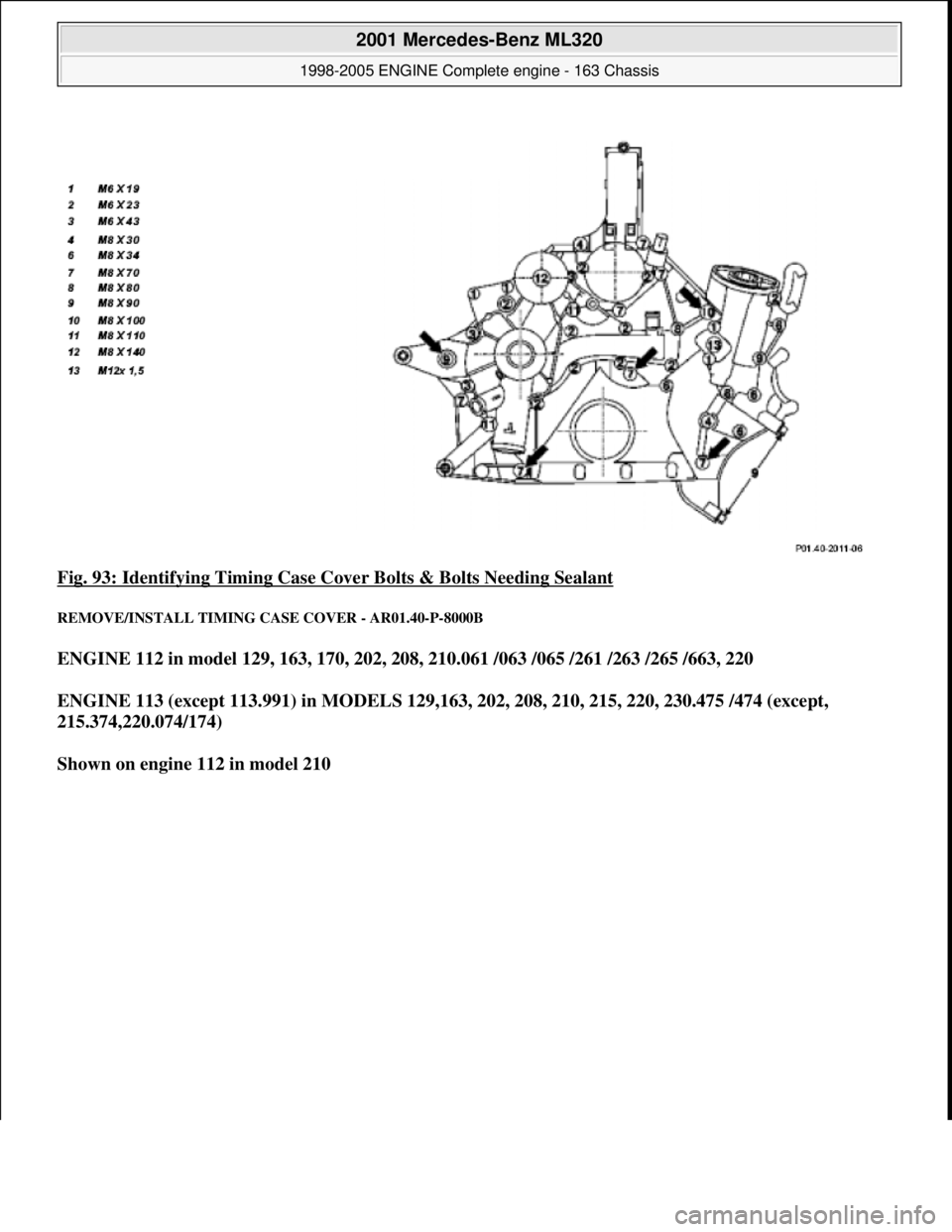

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 93: Identifying Timing Case C over Bolts & Bolts Needing Sealant REMOVE/INSTALL TIMING CA SE COVER - AR01.40-P-8000B ENGINE 112 in model 129, 163, 170, 202, 208, 210.061 /063 /065 /261 /263 /2

Page 2453 of 4133

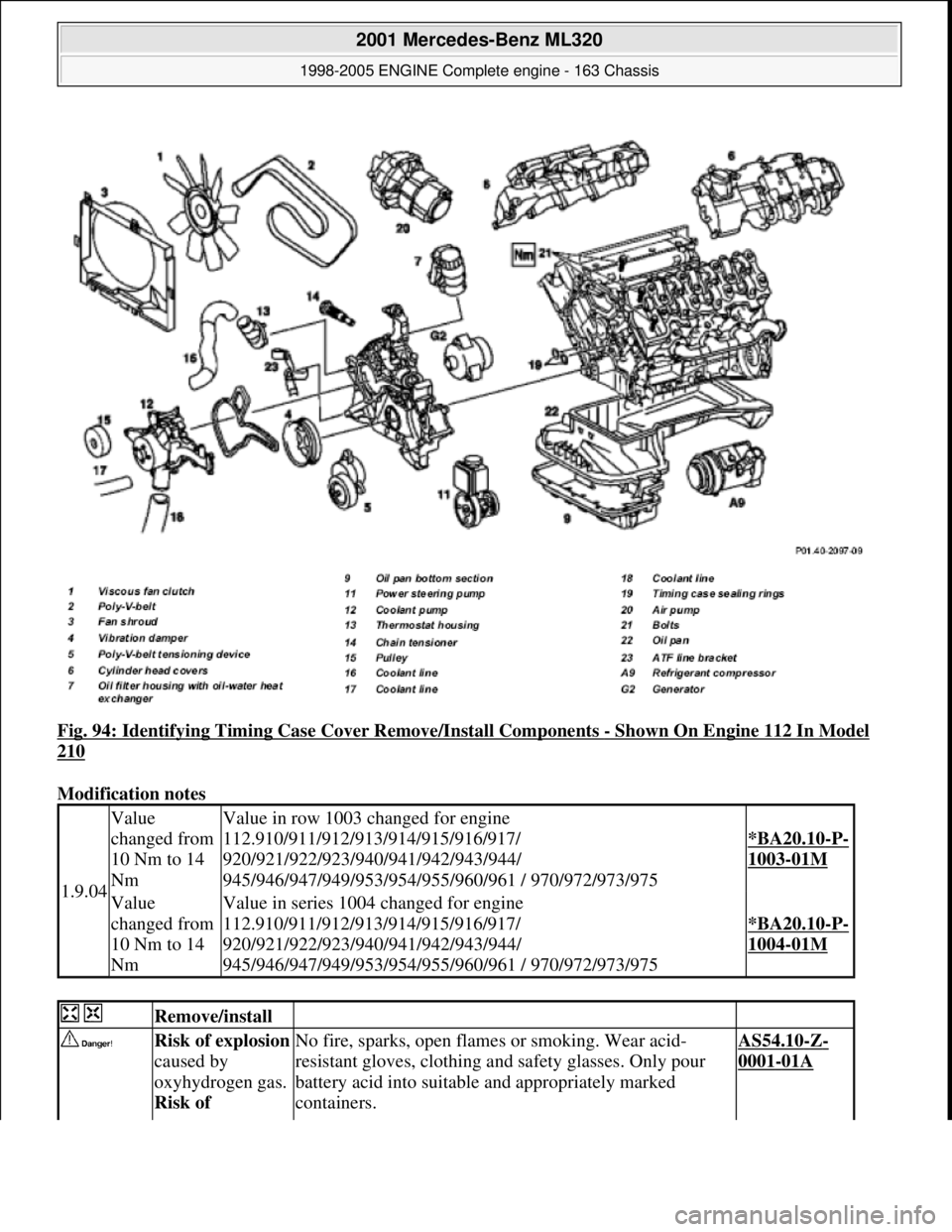

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 94: Identifying Timing Case Cover Remove/Install Components - Shown On Engine 112 In Model 210 Modification notes 1.9.04 Value changed from 10 Nm to 14 NmValue in row 1003 changed fo

Page 2454 of 4133

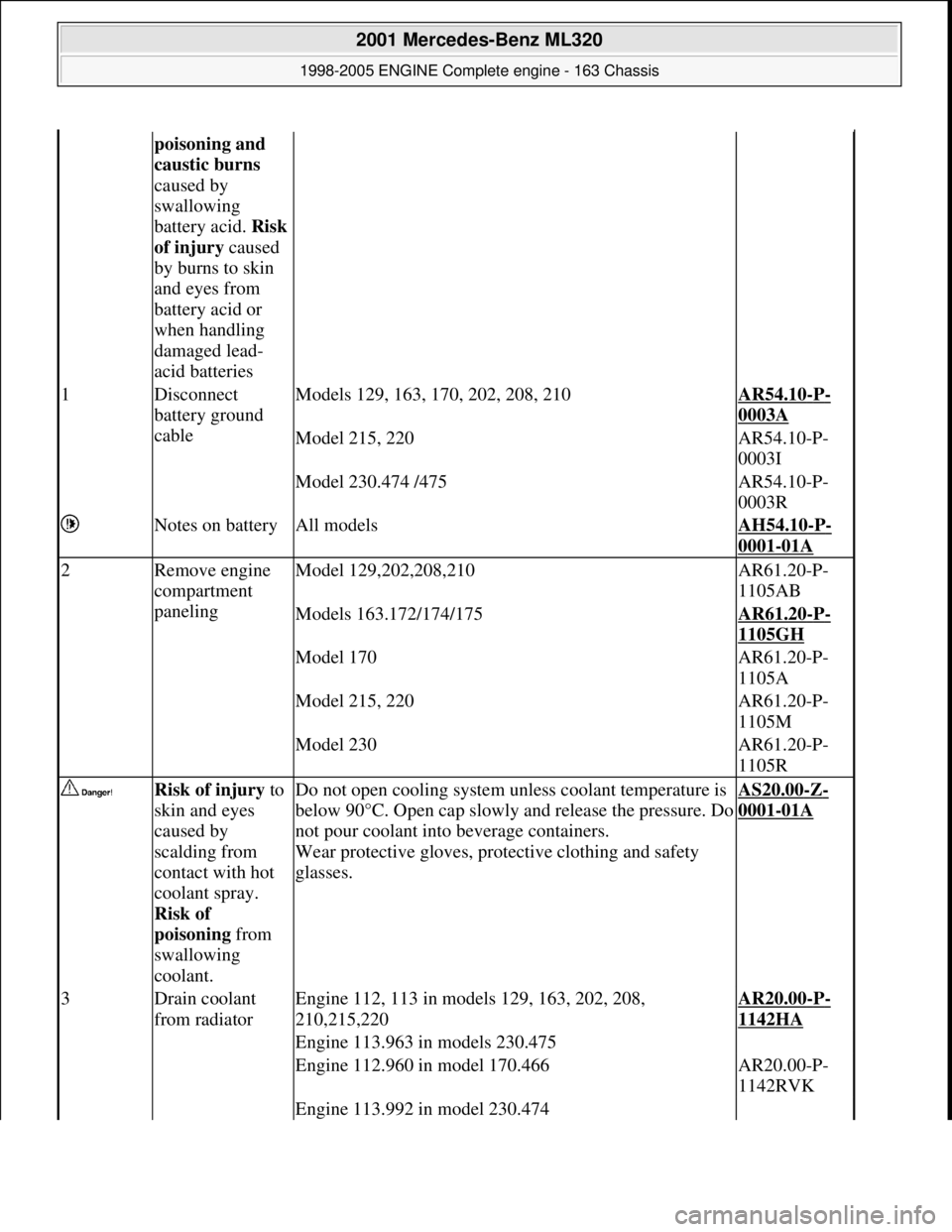

MERCEDES-BENZ ML320 1997 Complete Repair Manual poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead- acid batterie

Page 2455 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Engine 113.963 in models 230.475 Engine 112.947 in model 170.465AR20.00-P- 1142SV Engine 112.960 in model 170.466 4.1Remove engine cover with integrated air filterModel 129 Type 170.465 Mod

Page 2456 of 4133

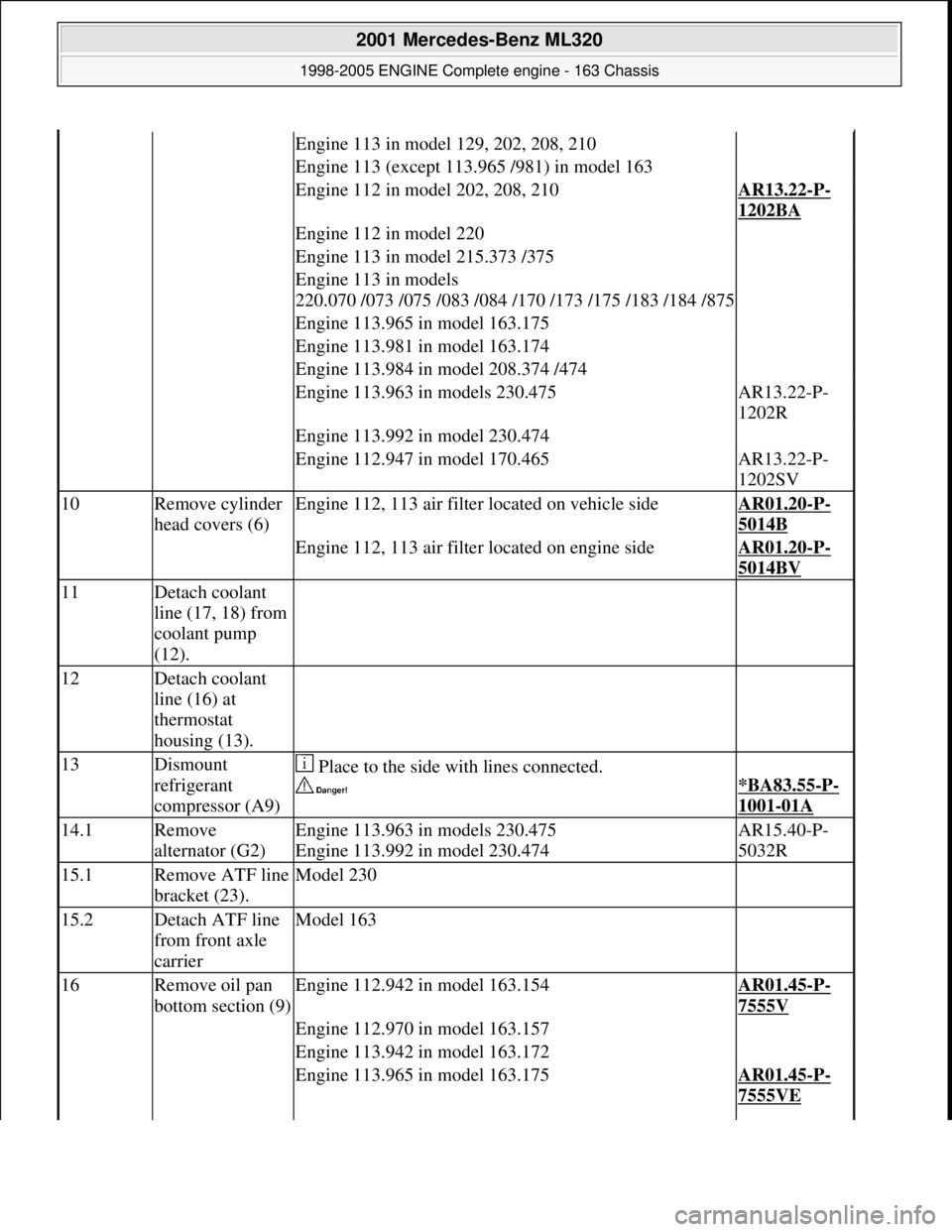

MERCEDES-BENZ ML320 1997 Complete Repair Manual Engine 113 in model 129, 202, 208, 210 Engine 113 (except 113.965 /981) in model 163 Engine 112 in model 202, 208, 210AR13.22-P- 1202BA Engine 112 in model 220 Engine 113 in model 215.373 /375 En
