Page 2897 of 4133

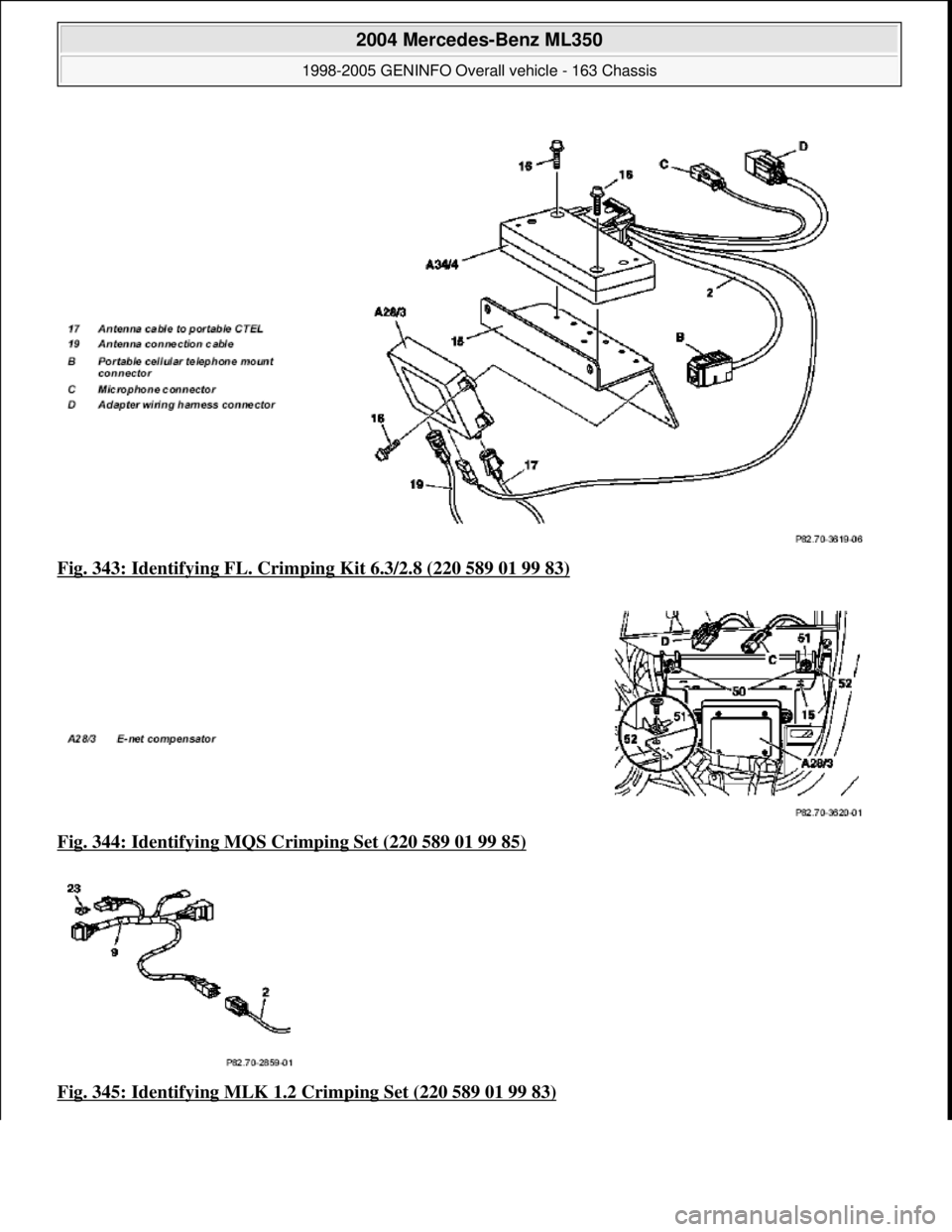

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 343: Identifying FL. Crim ping Kit 6.3/2.8 (220 589 01 99 83) Fig. 344: Identifying MQS Crimping Set (220 589 01 99 85) Fig. 345: Identifying MLK 1.2 Crimping Set (220 589 01 99 83) 2004

Page 2898 of 4133

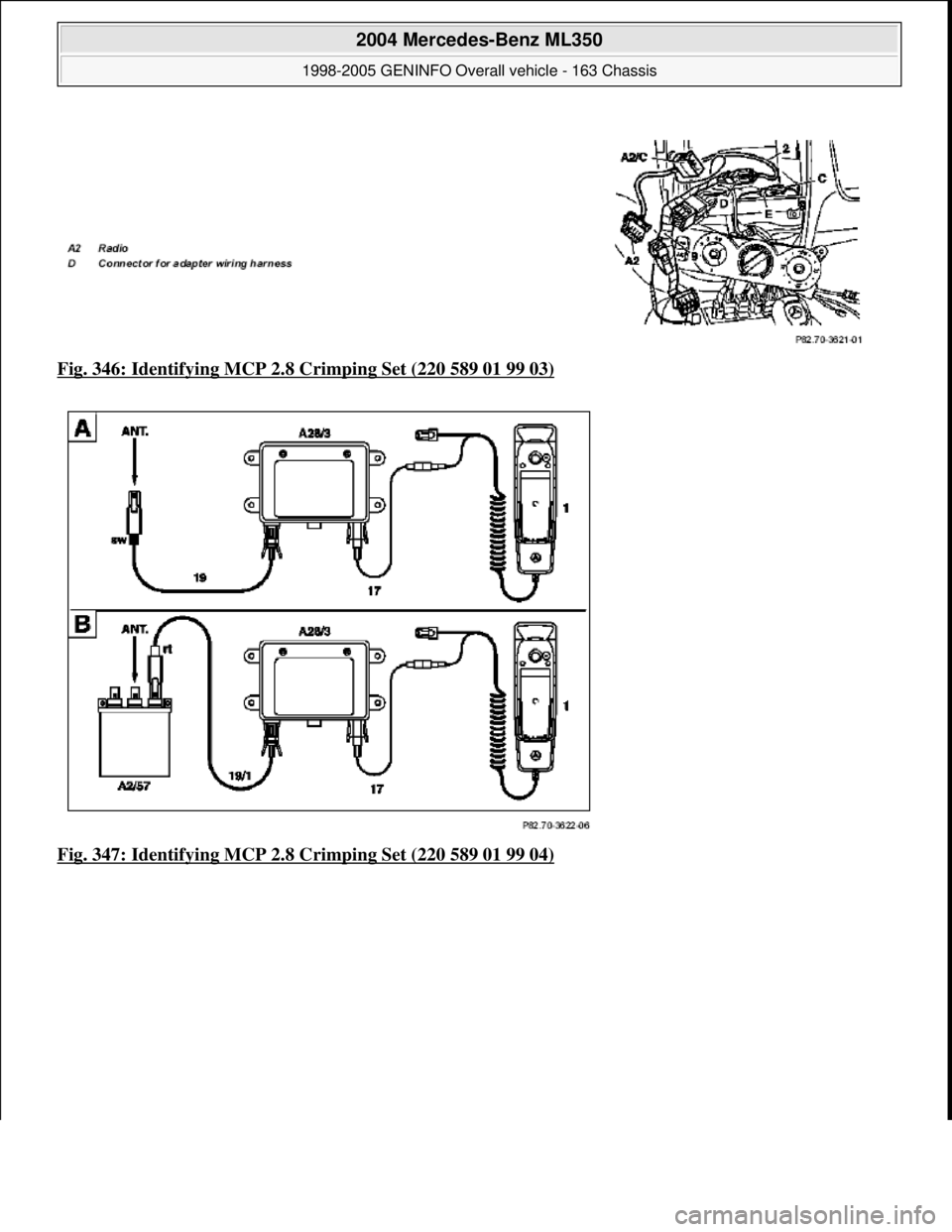

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 346: Identifying MCP 2.8 Crimping Set (220 589 01 99 03) Fig. 347: Identifying MCP 2.8 Crimping Set (220 589 01 99 04) 2004 Mercedes-Benz ML350 1998-2005 GENINFO Overall vehicle - 163 Chassi

Page 2899 of 4133

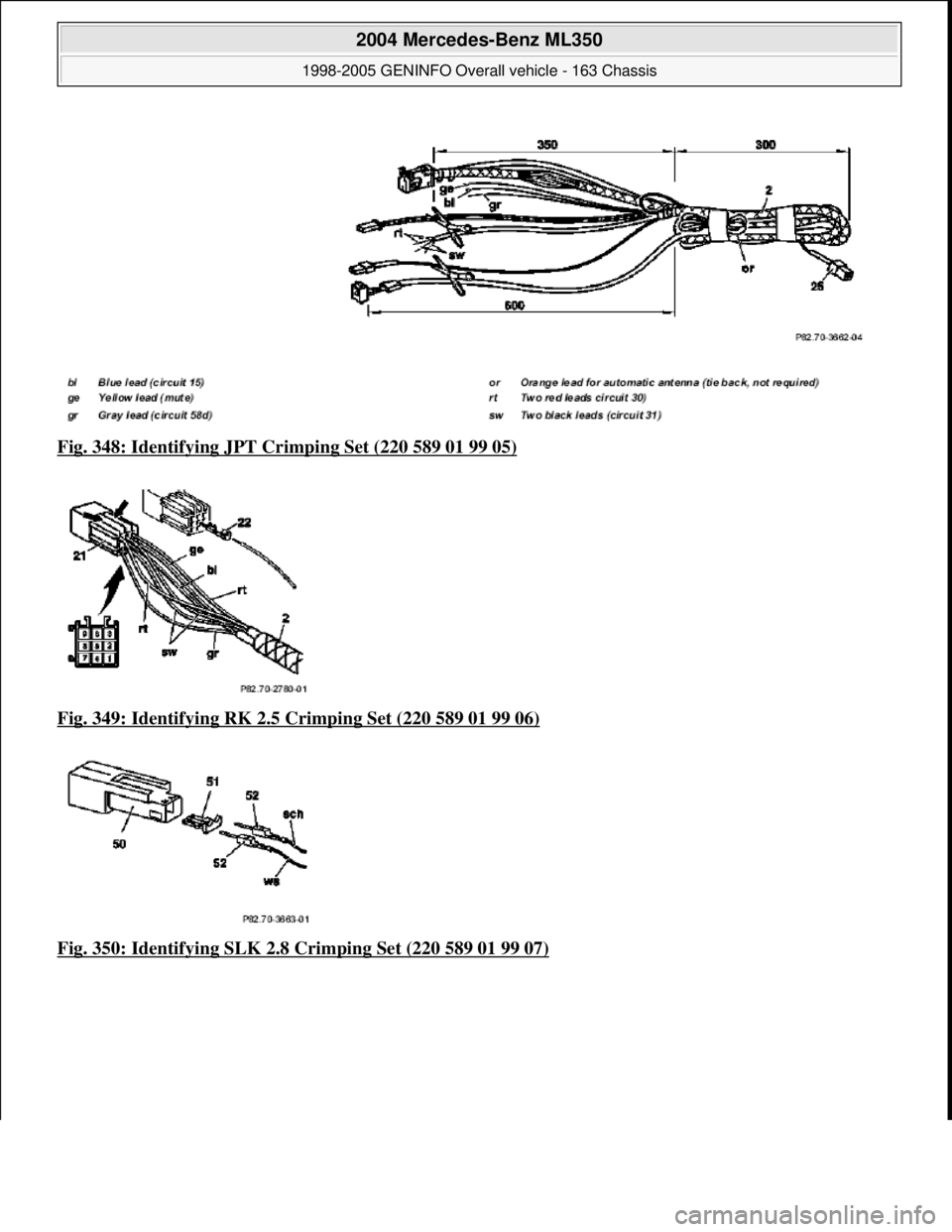

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 348: Identifying JPT Cr imping Set (220 589 01 99 05) Fig. 349: Identifying RK 2.5 Crimping Set (220 589 01 99 06) Fig. 350: Identifying SLK 2.8 Crimping Set (220 589 01 99 07) 2004 Merc

Page 2900 of 4133

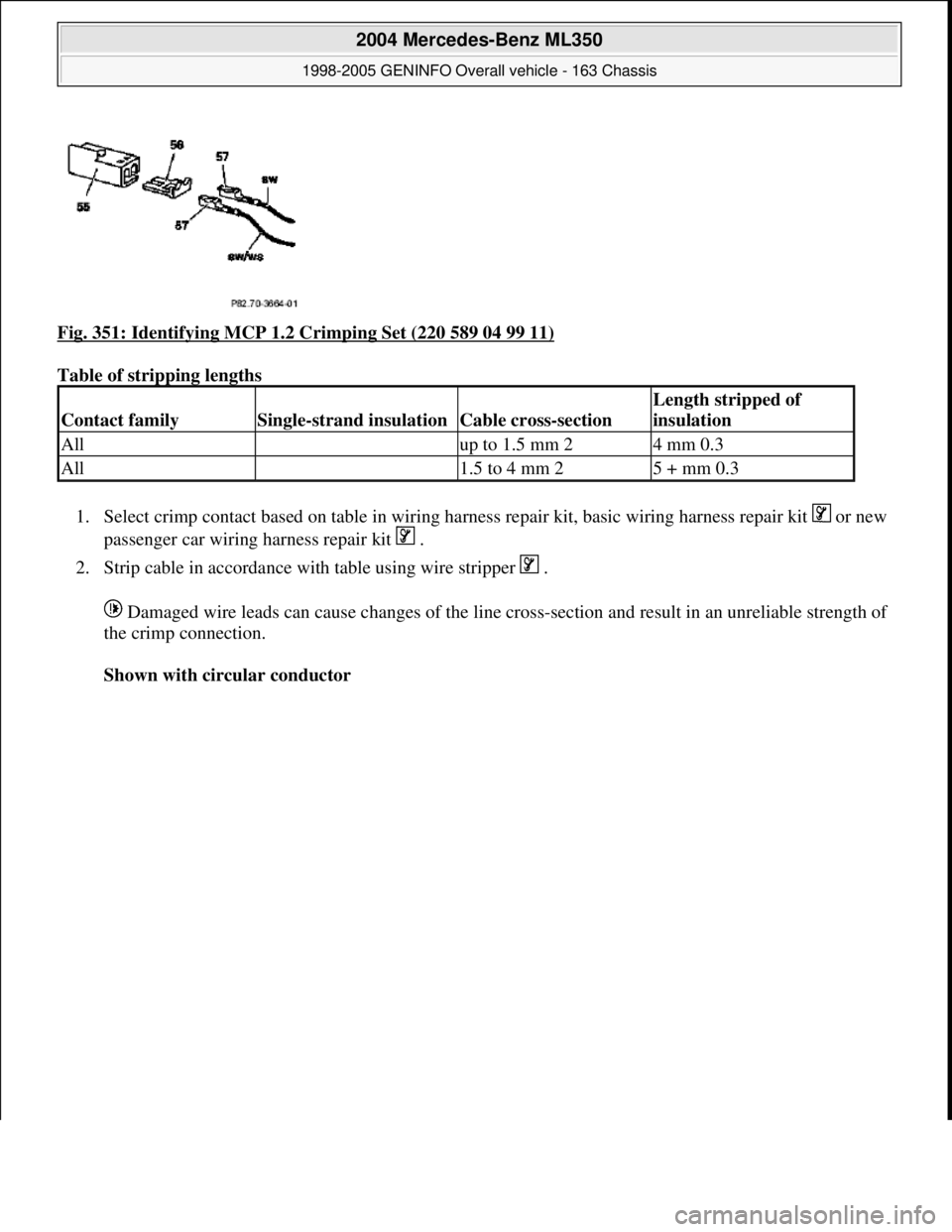

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 351: Identifying MCP 1.2 Crimping Set (220 589 04 99 11) Table of stripping lengths 1. Select crimp contact based on table in wiring harness repair kit, basic wiring harness repair kit or new

Page 2901 of 4133

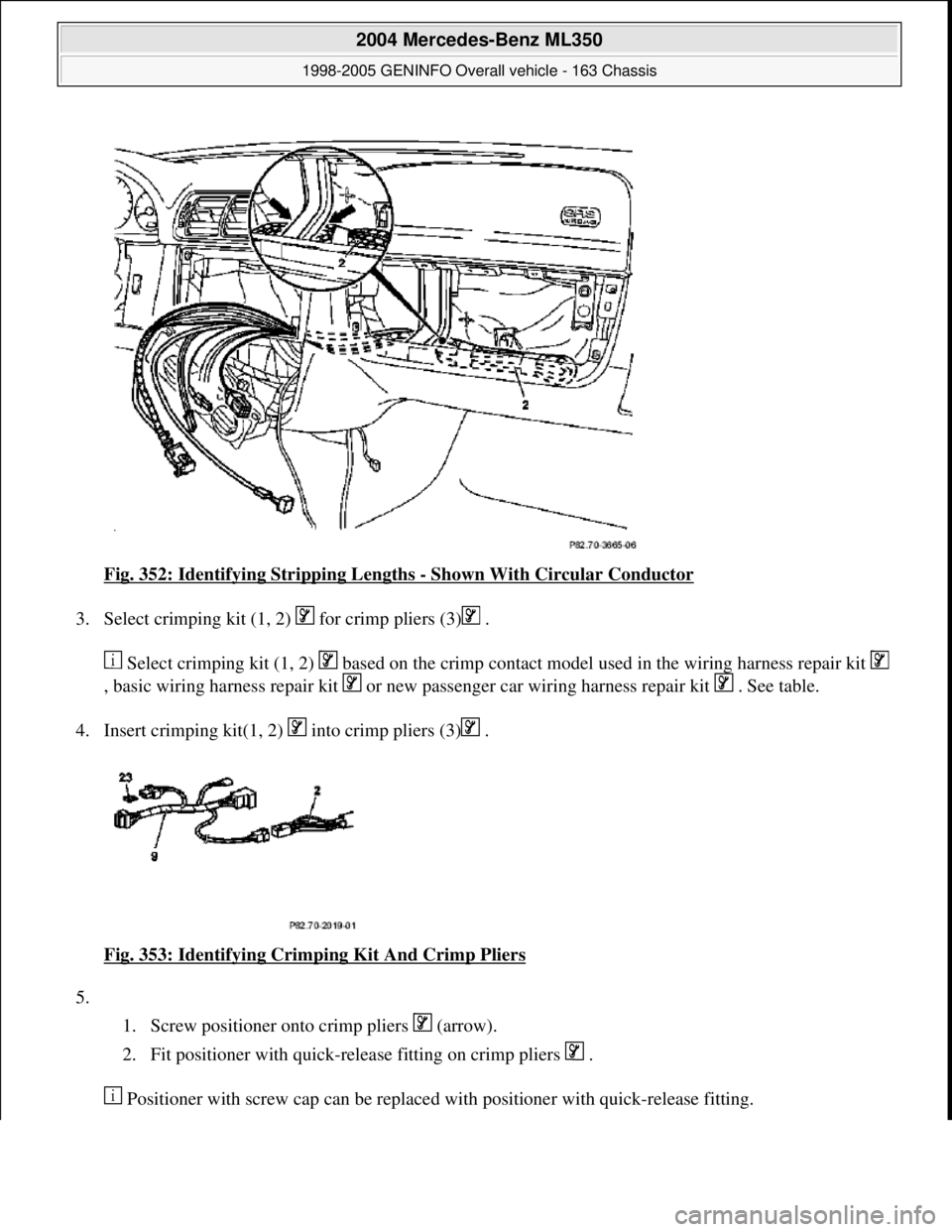

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 352: Identifying Stripping Lengths - Shown With Circular Conductor 3. Select crimping kit (1, 2) for crimp pliers (3) . Select crimping kit (1, 2) based on the crimp contact model used in

Page 2902 of 4133

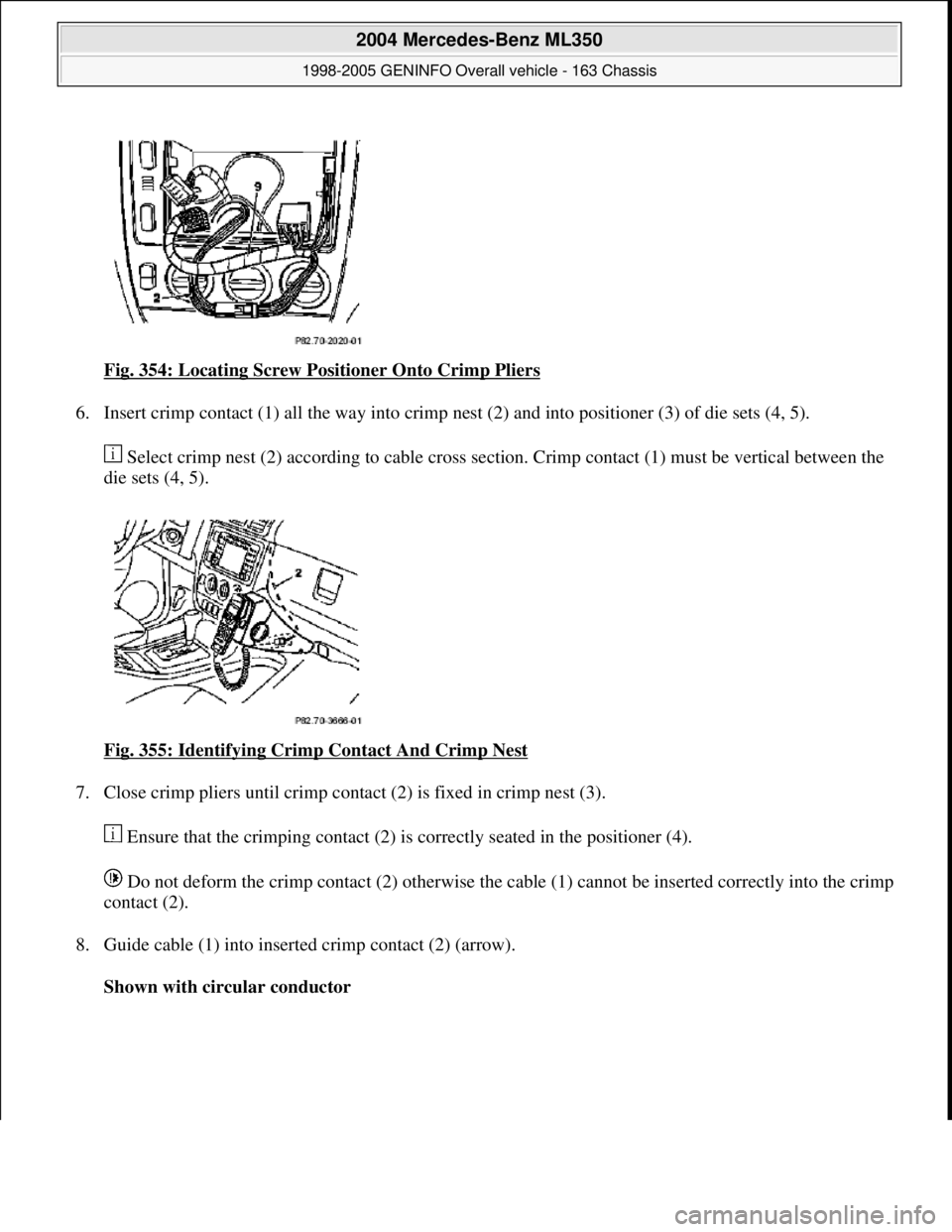

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 354: Locating Screw Positioner Onto Crimp Pliers 6. Insert crimp contact (1) all the way into crimp nest (2) and into positioner (3) of die sets (4, 5). Select crimp nest (2) according to cabl

Page 2903 of 4133

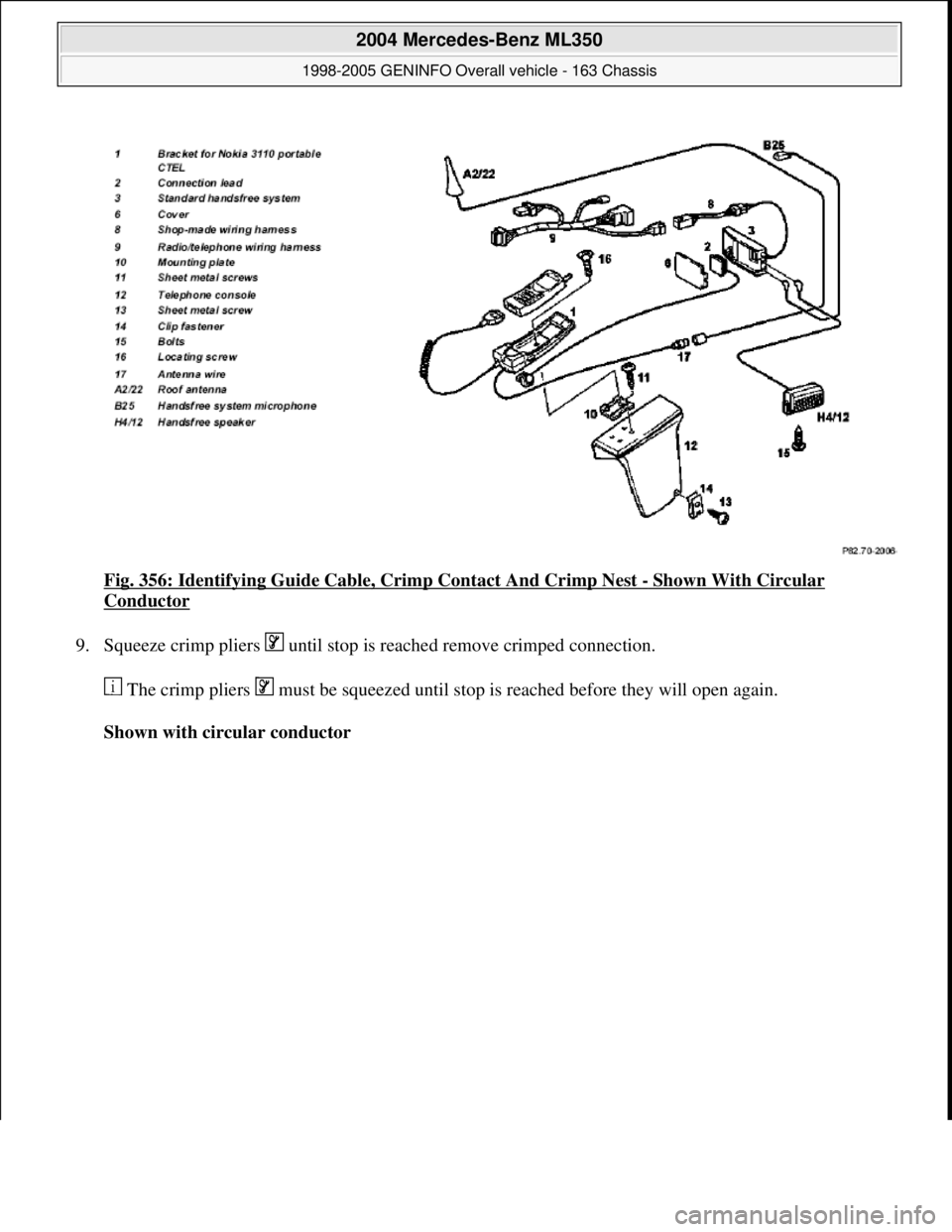

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 356: Identifying Guide Cable, Crimp Contact And Crimp Nest - Shown With Circular Conductor 9. Squeeze crimp pliers until stop is reached remove crimped connection. The crimp pliers must b

Page 2904 of 4133

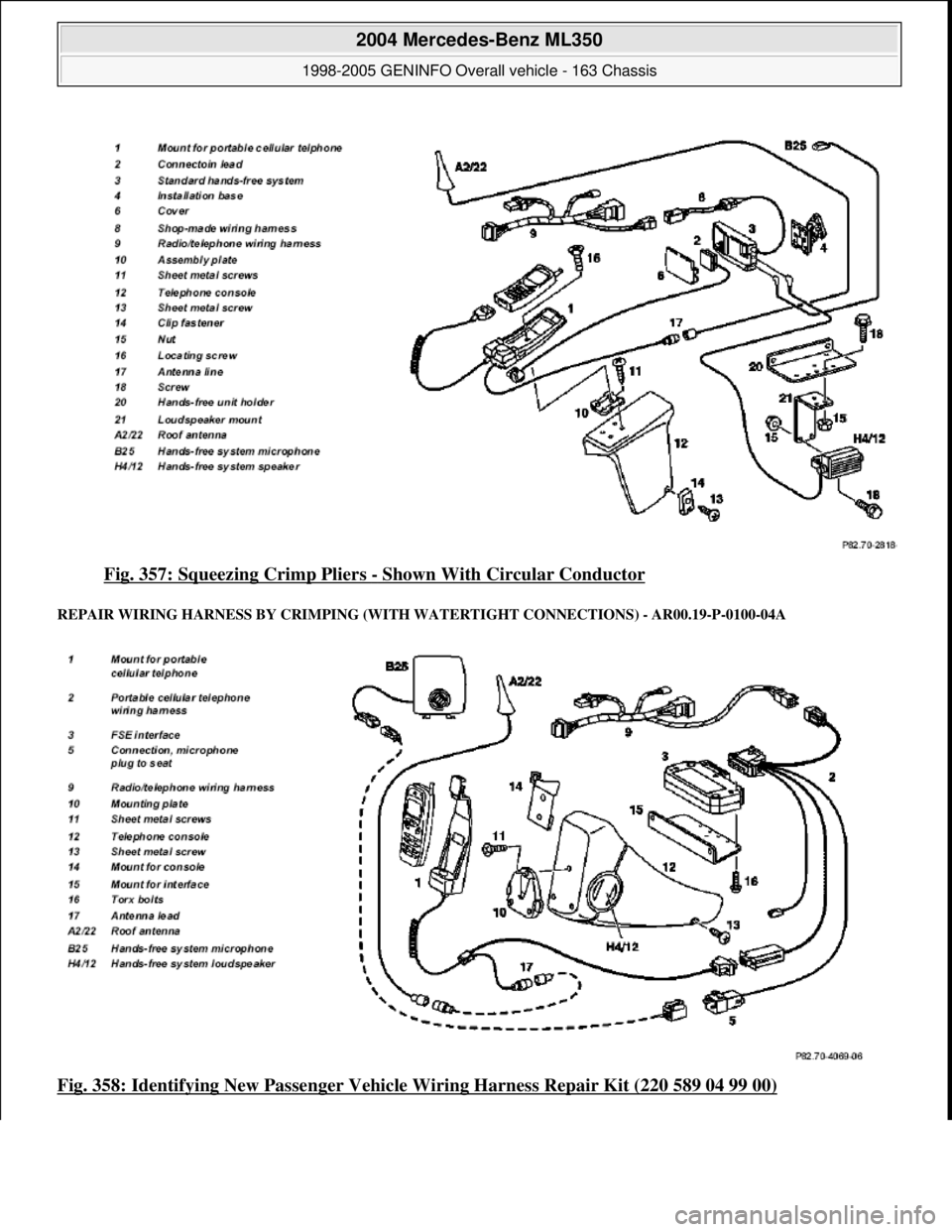

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 357: Squeezing Crimp Pliers - Shown With Circular Conductor REPAIR WIRING HARNESS BY CRIMPING (WITH WATERTIGHT CONNECTIONS) - AR00.19-P-0100-04A Fig. 358: Identifying New Passenger Vehicle Wiri
