Page 2905 of 4133

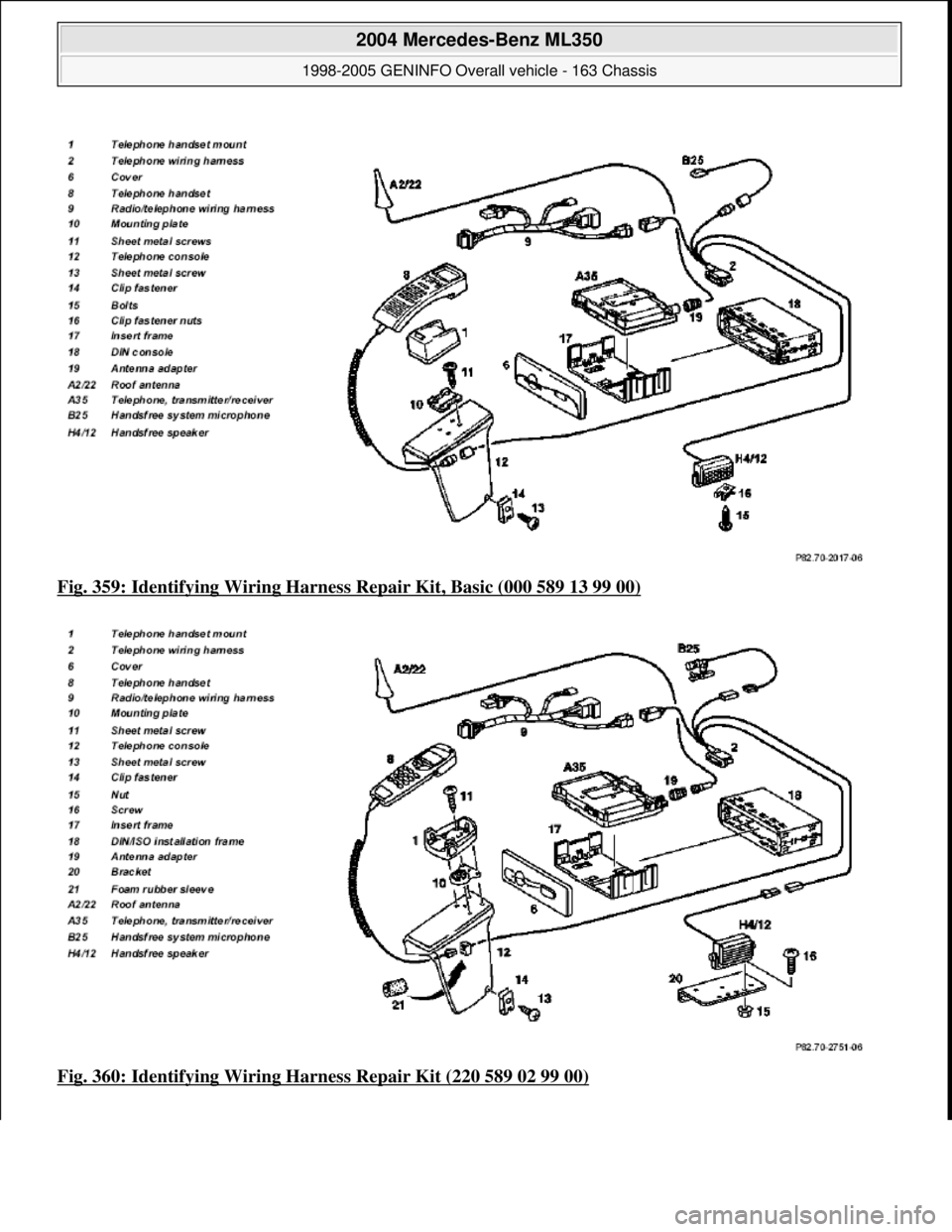

Fig. 359: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)
Fig. 360: Identifying Wiring Ha rness Repair Kit (220 589 02 99 00)
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 260 © 2006 Mitchell Repair Information Company, LLC.
Page 2906 of 4133

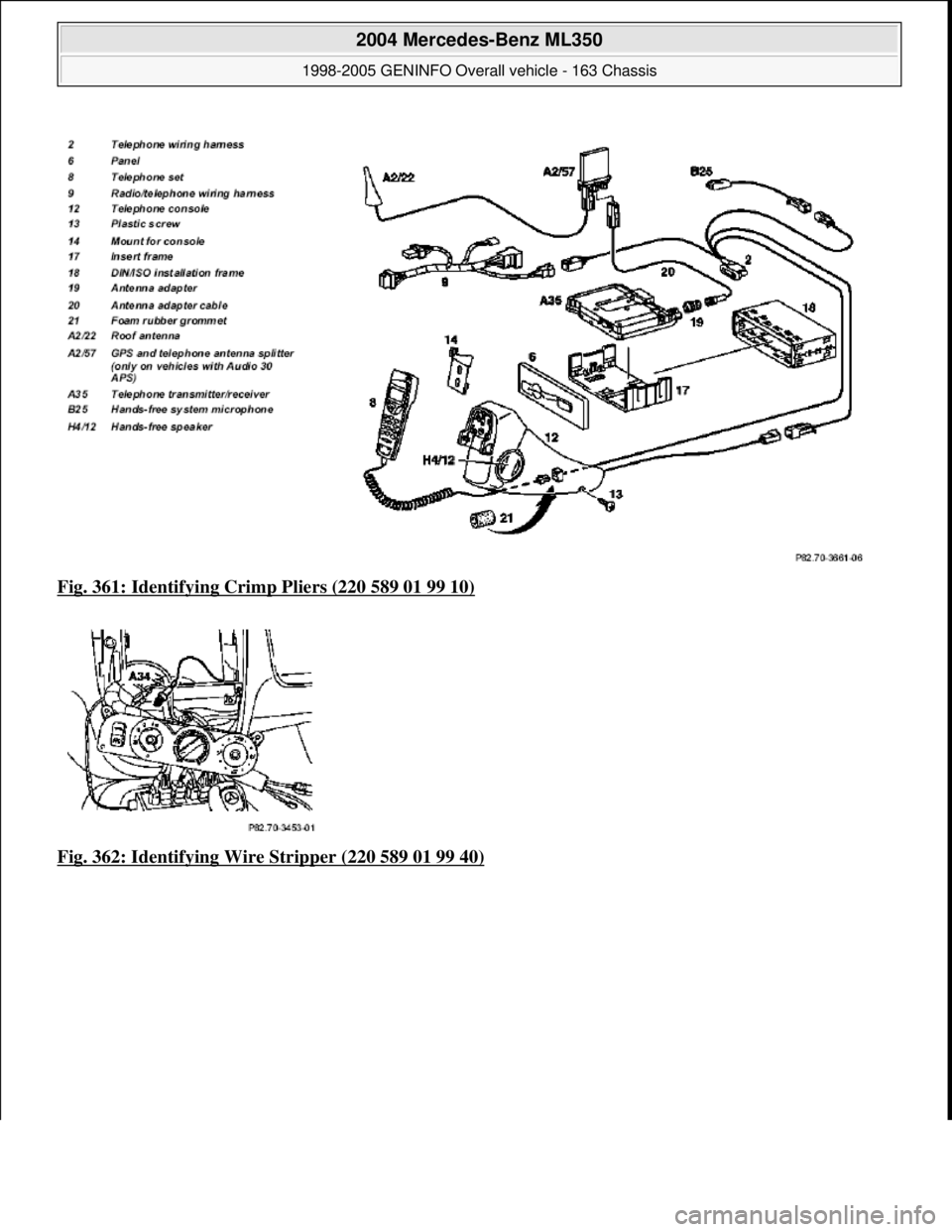

Fig. 361: Identifying Crimp Pliers (220 589 01 99 10)
Fig. 362: Identifying Wi re Stripper (220 589 01 99 40)
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 261 © 2006 Mitchell Repair Information Company, LLC.
Page 2907 of 4133

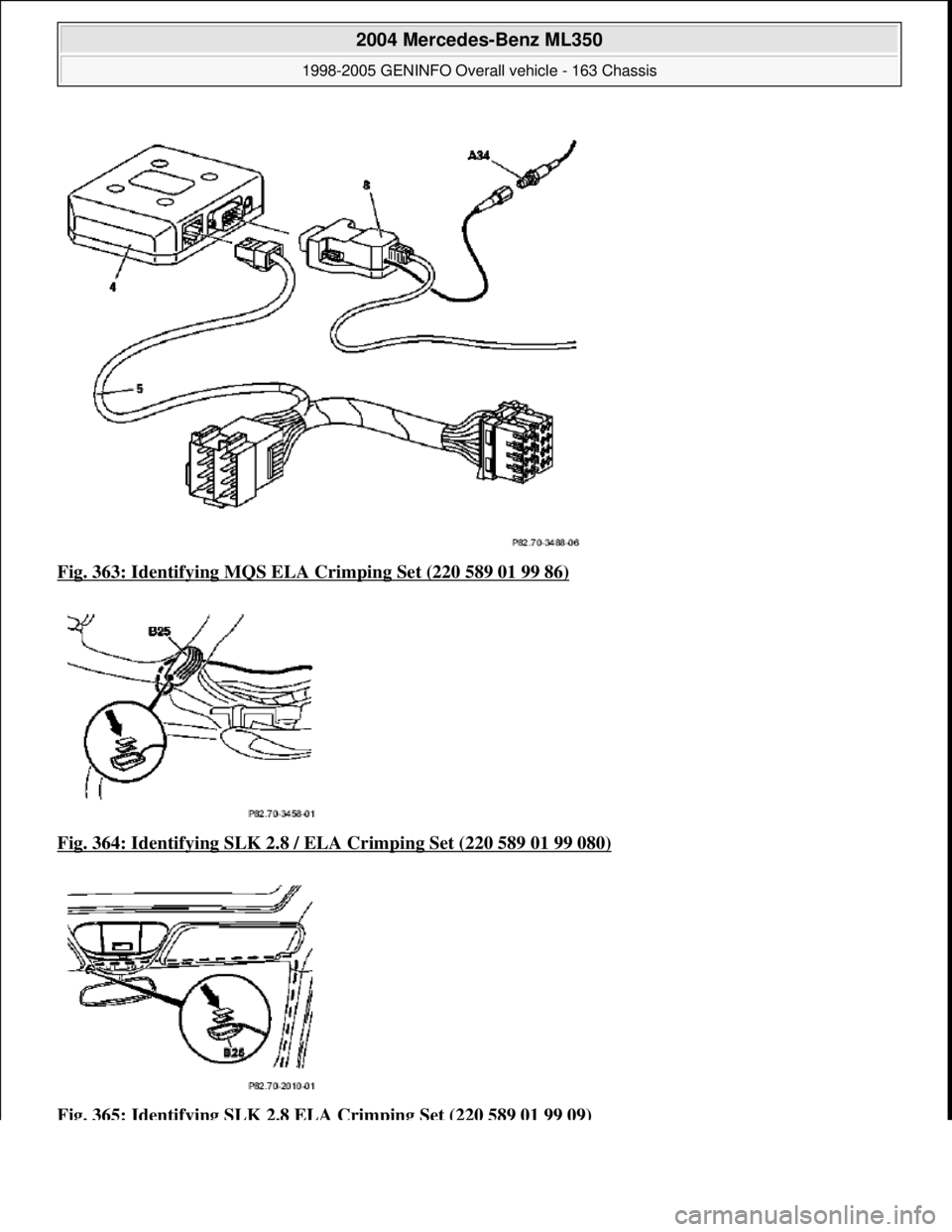

Fig. 363: Identifying MQS ELA Crimping Set (220 589 01 99 86)
Fig. 364: Identifying SLK 2.8 / ELA Crimping Set (220 589 01 99 080)
Fig. 365: Identifying SLK 2.8 ELA Crimping Set (220 589 01 99 09)
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 262 © 2006 Mitchell Repair Information Company, LLC.
Page 2908 of 4133

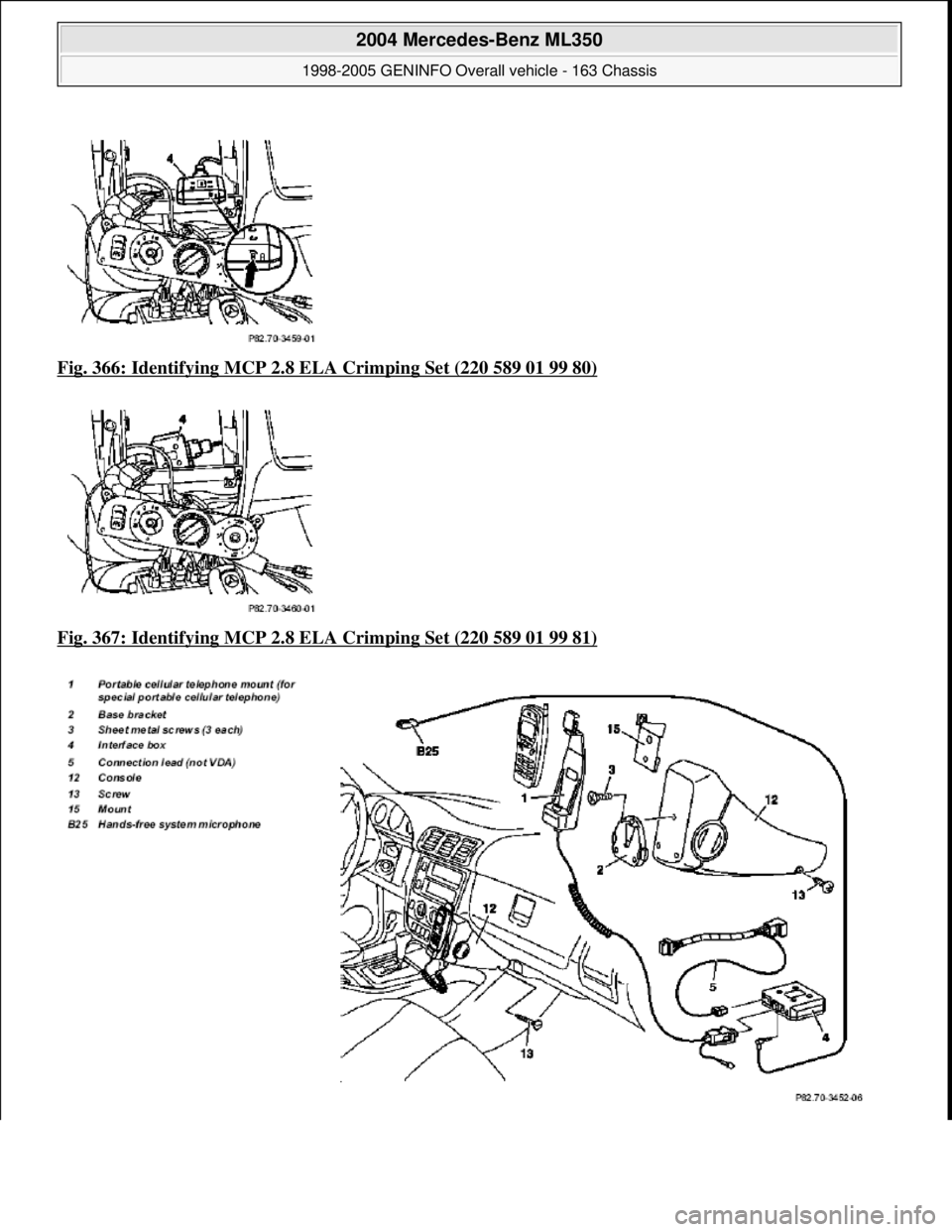

Fig. 366: Identifying MCP 2.8 EL A Crimping Set (220 589 01 99 80)
Fig. 367: Identifying MCP 2.8 EL A Crimping Set (220 589 01 99 81)
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 263 © 2006 Mitchell Repair Information Company, LLC.
Page 2909 of 4133

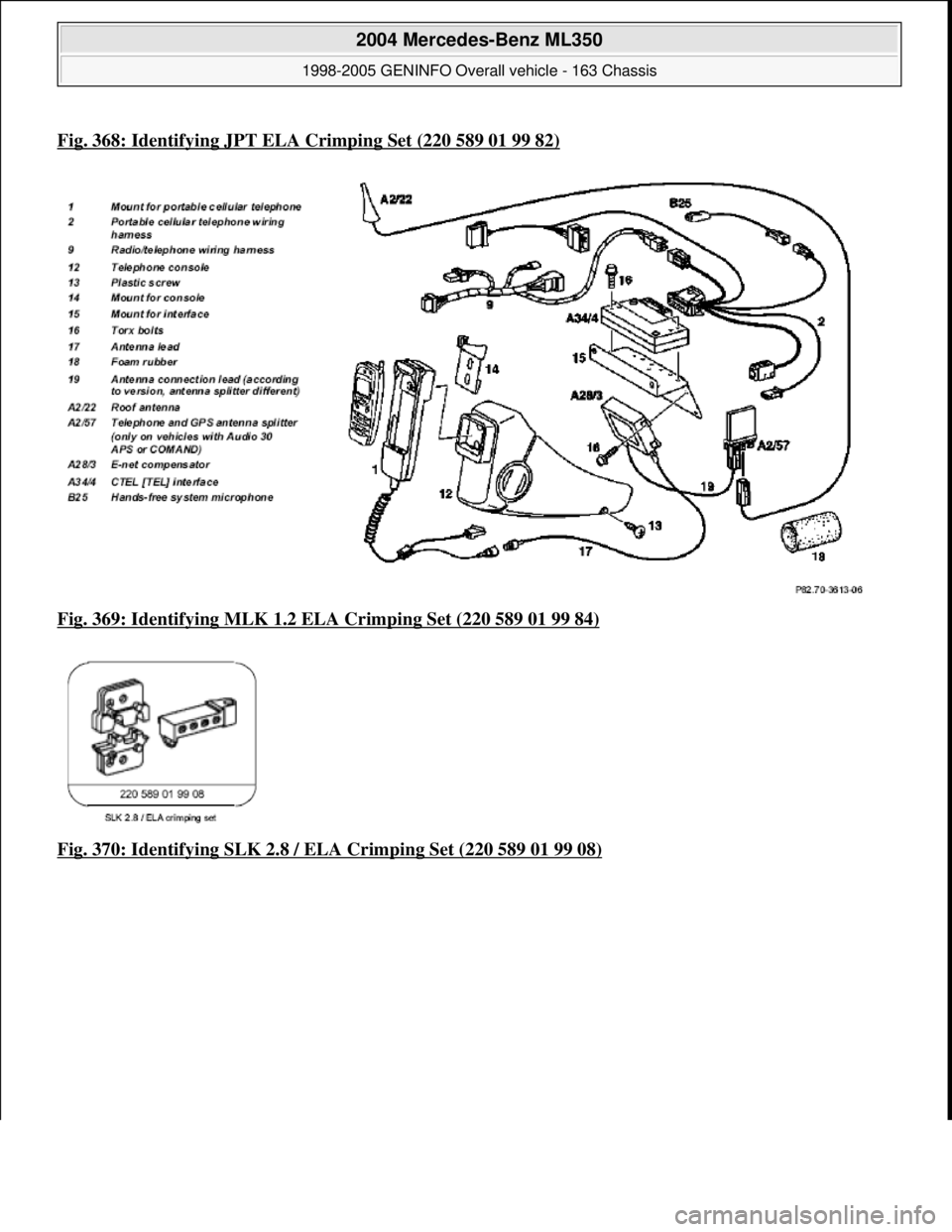

Fig. 368: Identifying JPT ELA Crimping Set (220 589 01 99 82)
Fig. 369: Identifying MLK 1.2 ELA Crimping Set (220 589 01 99 84)
Fig. 370: Identifying SLK 2.8 / ELA Crimping Set (220 589 01 99 08)
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 264 © 2006 Mitchell Repair Information Company, LLC.
Page 2910 of 4133

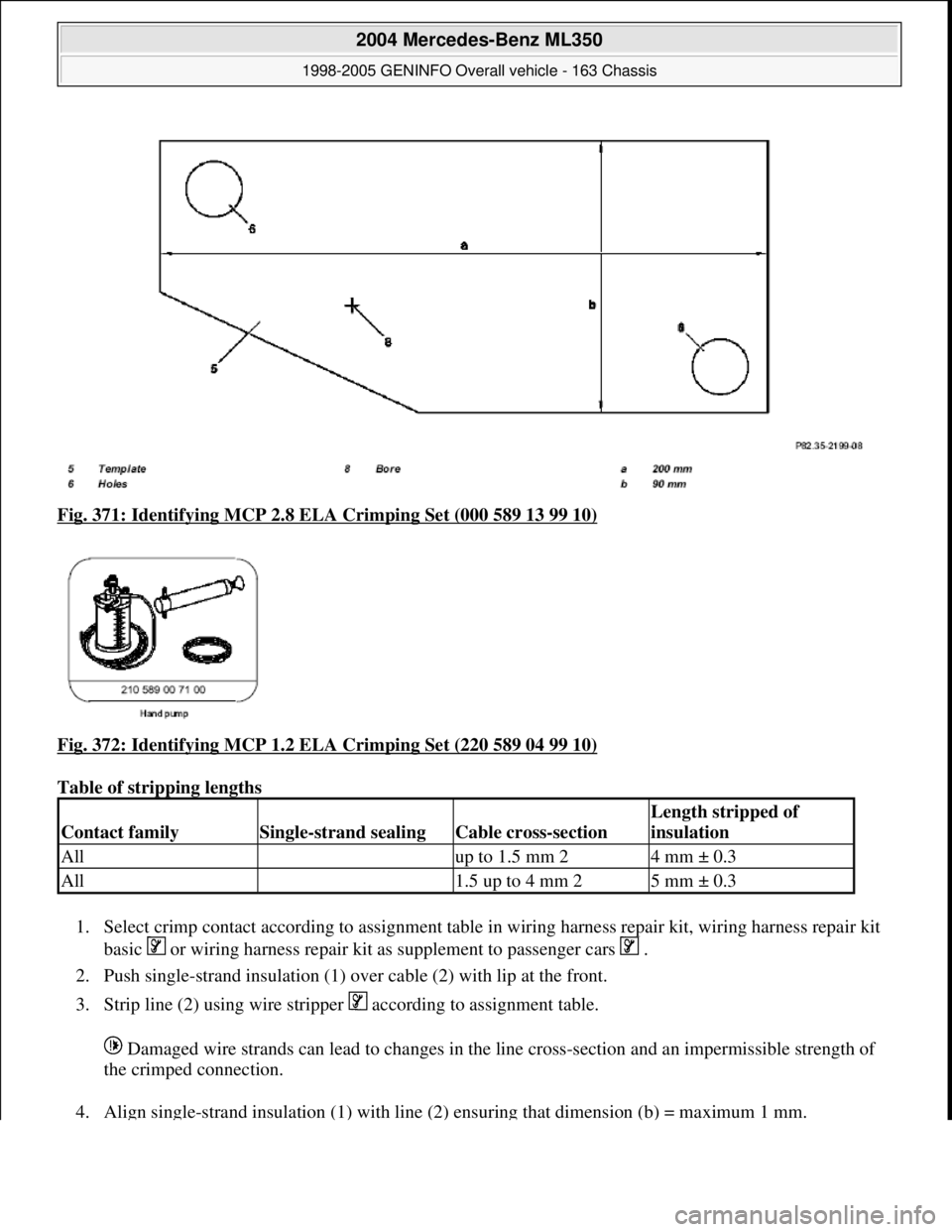

Fig. 371: Identifying MCP 2.8 EL A Crimping Set (000 589 13 99 10)
Fig. 372: Identifying MCP 1.2 EL A Crimping Set (220 589 04 99 10)
Table of stripping lengths
1. Select crimp contact accor ding to assignment table in wiring harnes s repair kit, wiring harness repair kit
basic or wiring harness repair kit as supplement to passenger cars .
2. Push single-strand insulation (1) over cable (2) with lip at the front.
3. Strip line (2) using wire strippe r according to assignment table.
Damaged wire strands can lead to changes in the line cross-section and an impermissible strength of
the crimped connection.
4. Ali
gn single-strand insulation (1) with line (2) ensuring that dimension (b) = maximum 1 mm.
Contact familySingle-strand sealingCable cross-section
Length stripped of
insulation
All up to 1.5 mm 24 mm ± 0.3
All 1.5 up to 4 mm 25 mm ± 0.3
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 265 © 2006 Mitchell Repair Information Company, LLC.
Page 2911 of 4133

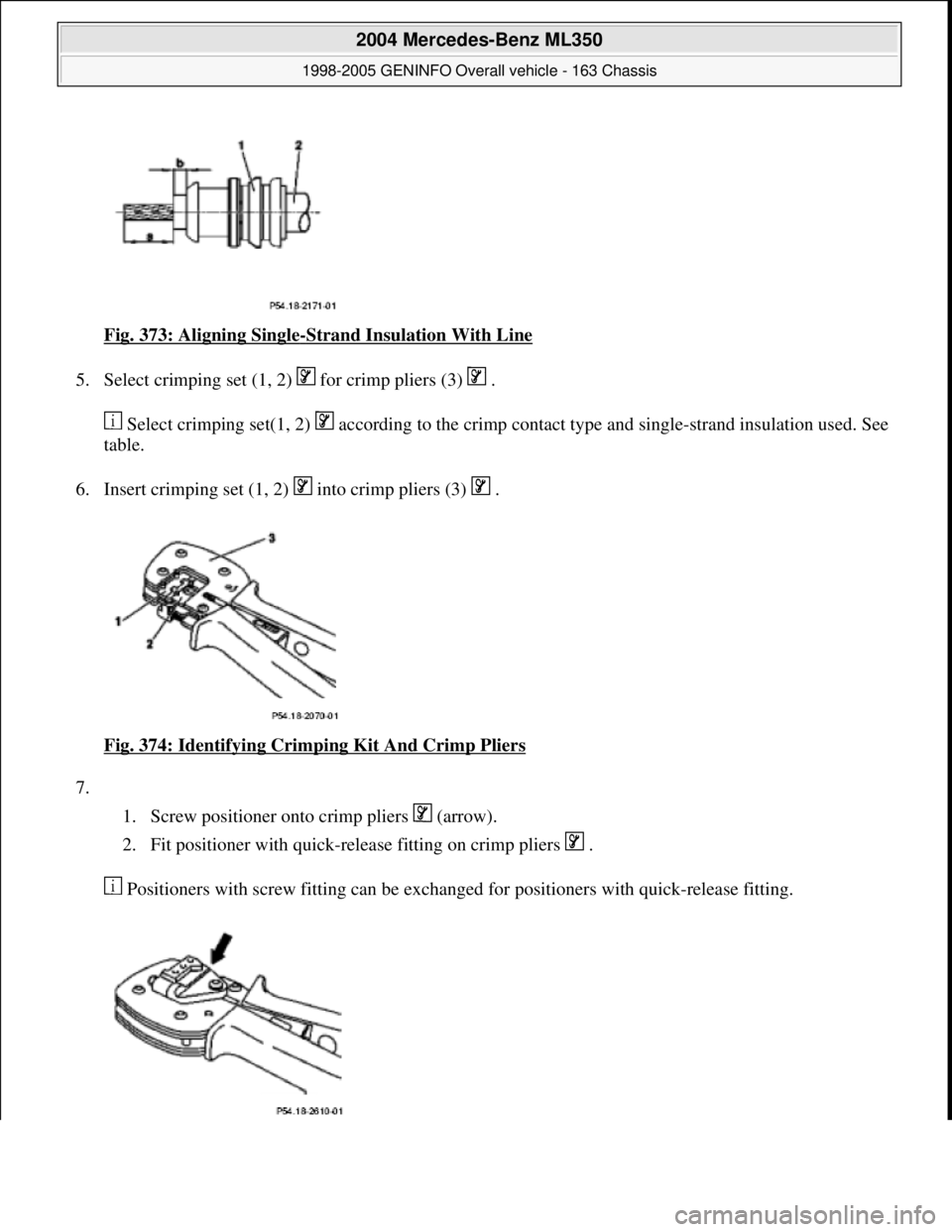

Fig. 373: Aligning Single-Strand Insulation With Line
5. Select crimping set (1, 2) for crimp pliers (3) .
Select crimping set(1, 2) according to the crimp contact type and single-strand insulation used. See
table.
6. Insert crimping set (1, 2) into crimp pliers (3) .
Fig. 374: Identifying Crimping Kit And Crimp Pliers
7.
1. Screw positioner onto crimp pliers (arrow).
2. Fit positioner with quick-release fitting on crimp pliers .
Positioners with screw fitting can be exchanged for positioners with quick-release fitting.
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 266 © 2006 Mitchell Repair Information Company, LLC.
Page 2912 of 4133

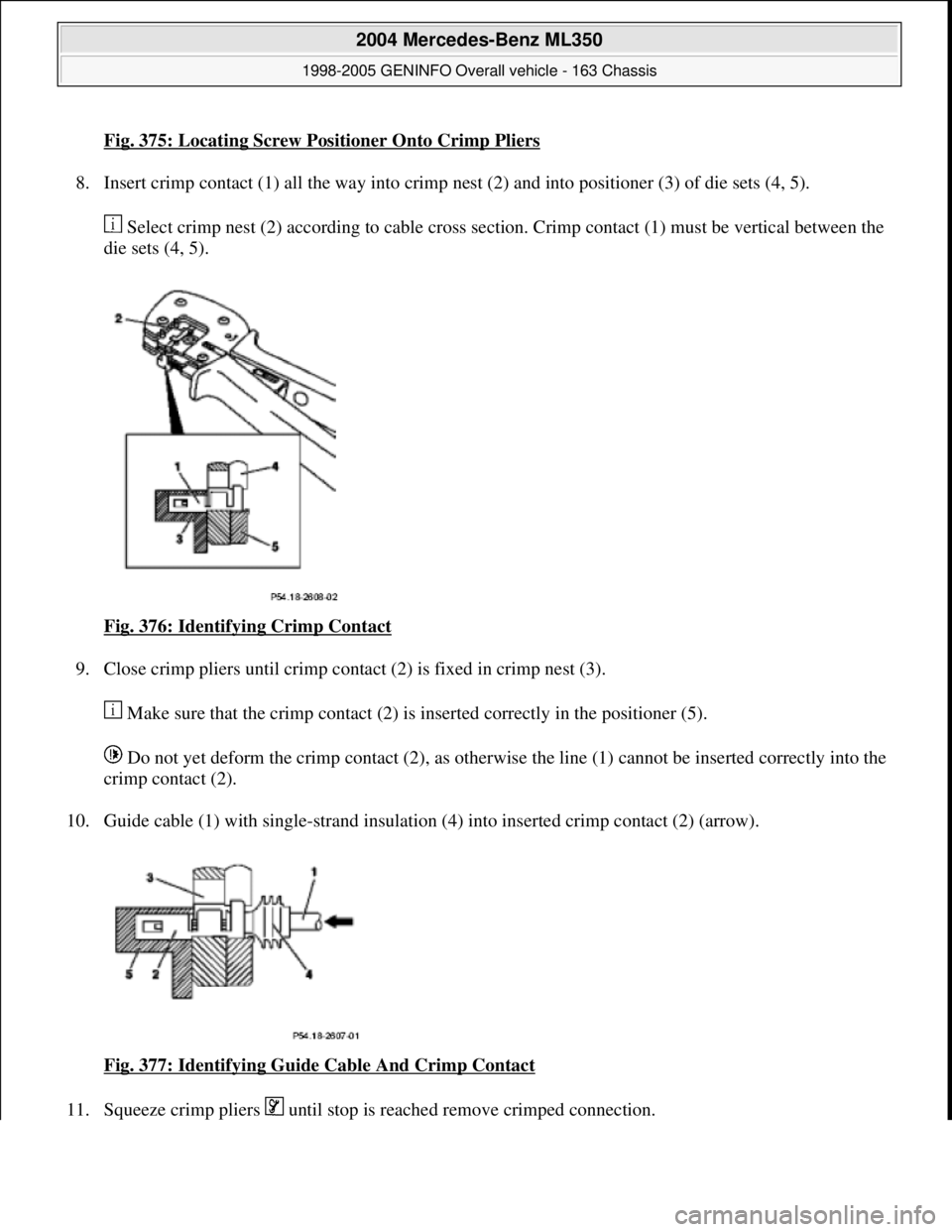

Fig. 375: Locating Screw Positioner Onto Crimp Pliers
8. Insert crimp contact (1) all the way into crimp nest (2) and into positioner (3) of die sets (4, 5).
Select crimp nest (2) according to cable cross section. Crimp contact (1) must be vertical between the
die sets (4, 5).
Fig. 376: Identifying Crimp Contact
9. Close crimp pliers until crimp contact (2) is fixed in crimp nest (3).
Make sure that the crimp contact (2) is inserted correctly in the positioner (5).
Do not yet deform the crimp contact (2), as otherwise the line (1) cannot be inserted correctly into the
crimp contact (2).
10. Guide cable (1) with single-strand insulation (4) into inserted crimp contact (2) (arrow).
Fig. 377: Identifying Guide Cable And Crimp Contact
11. Squeeze crimp pliers until stop is reached remove crimped connection.
2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 267 © 2006 Mitchell Repair Information Company, LLC.
