Page 2977 of 4133

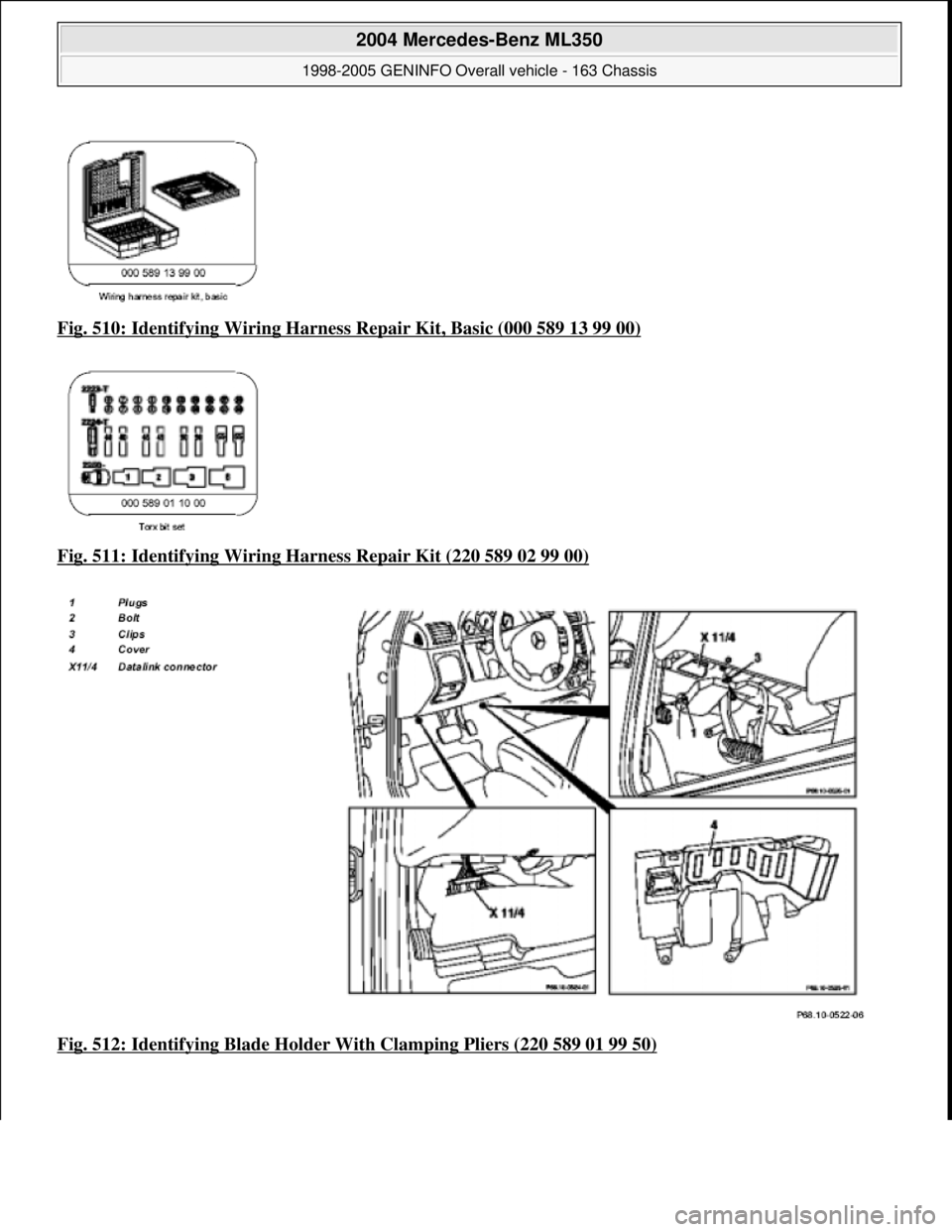

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 510: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00) Fig. 511: Identifying Wiring Ha rness Repair Kit (220 589 02 99 00) Fig. 512: Identifying Blad e Holder With Clamping

Page 2978 of 4133

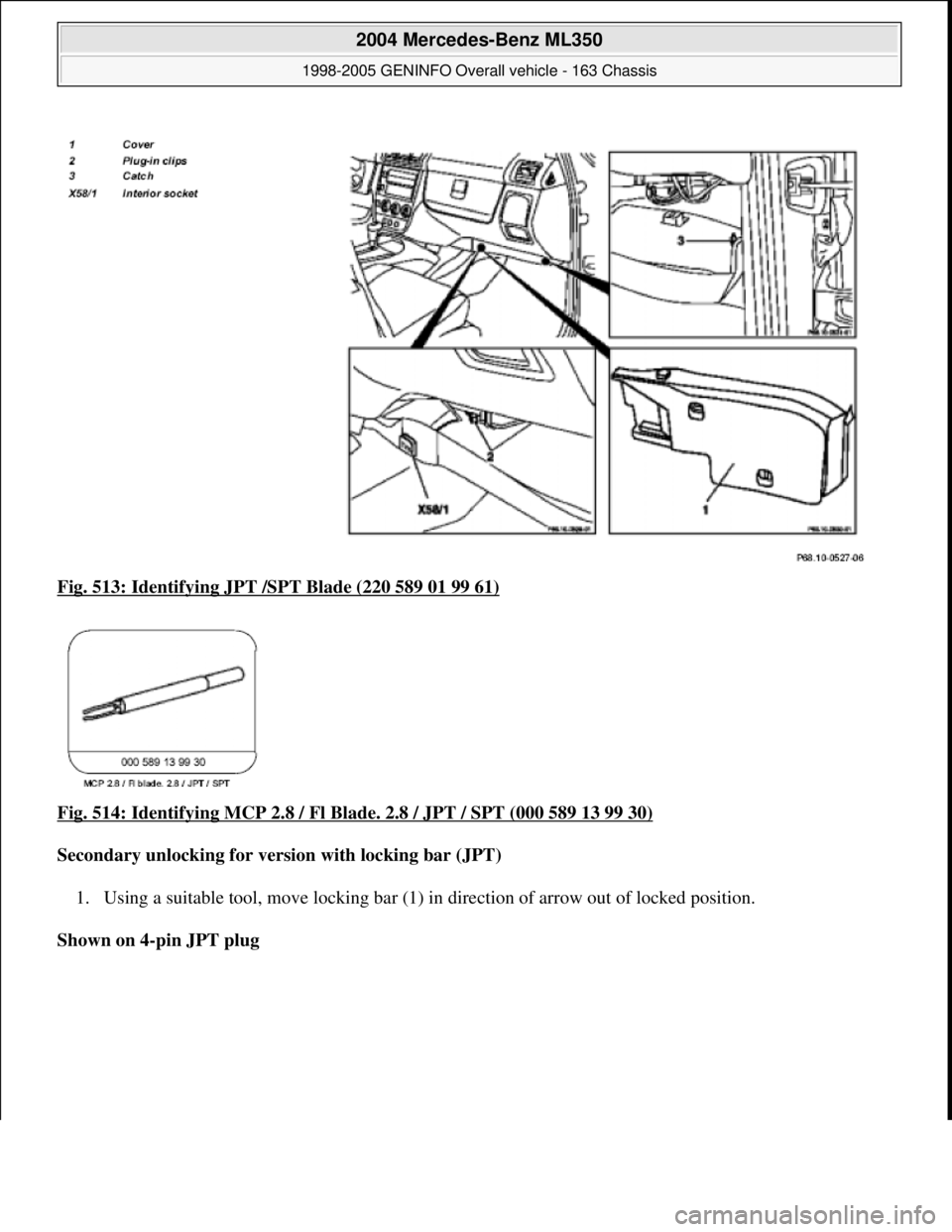

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 513: Identifying JPT /SPT Blade (220 589 01 99 61) Fig. 514: Identifying MCP 2.8 / Fl Blade. 2.8 / JPT / SPT (000 589 13 99 30) Secondary unlocking for version with locking bar (JPT) 1.

Page 2979 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 515: Moving Locking Bar - Shown On 4-Pin JPT Plug Secondary release on version with retaining cap (JPT) 1. Using a suitable tool, pry up the lock tab on the retaining cap (6). 2. Move t

Page 2980 of 4133

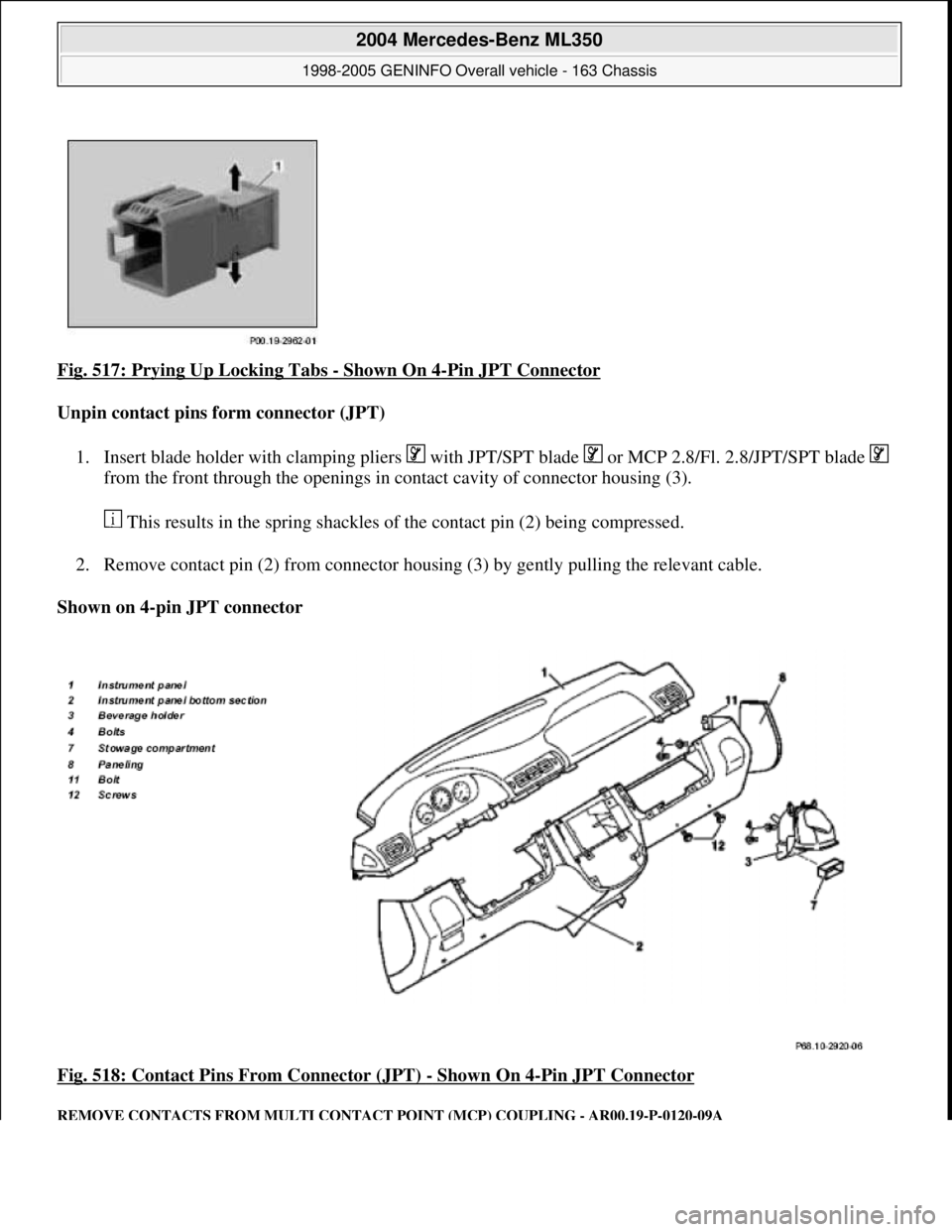

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 517: Prying Up Locking Tabs - Shown On 4-Pin JPT Connector Unpin contact pins form connector (JPT) 1. Insert blade holder with clamping pliers with JPT/SPT blade or MCP 2.8/Fl. 2.8/JPT/SPT

Page 2981 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 519: Identifying New Passe nger Vehicle Wiring Harness Repair Kit (220 589 04 99 00) Fig. 520: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00) Fig. 521: Identifying Wiring

Page 2982 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 522: Identifying Blad e Holder With Clamping Pliers (220 589 01 99 50) Fig. 523: Identifying MCP 2.8 / FL Blade. 2.8 (220 589 01 99 59) Fig. 524: Identifying MCP 2.8 / Fl Blade. 2.8 / JPT /

Page 2983 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 525: Lifting Locking Shackles - Shown On A 4-Pin MCP Coupling Secondary release on version with coupling cap (MCP) 1. Using a suitable tool (1), pry up lock tab (2) for coupling cap (4).

Page 2984 of 4133

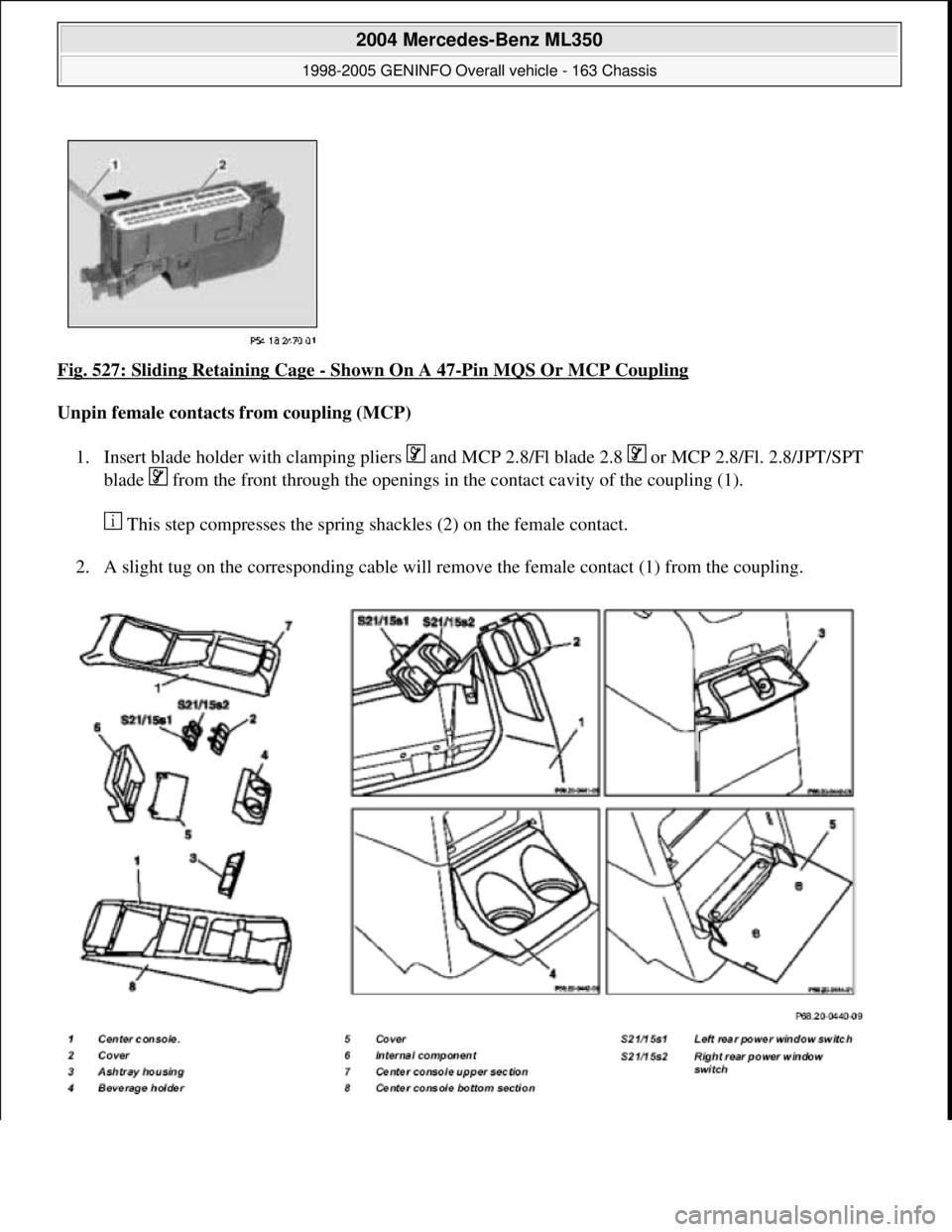

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 527: Sliding Retaining Cage - Shown On A 47-Pin MQS Or MCP Coupling Unpin female contacts from coupling (MCP) 1. Insert blade holder with clamping pliers and MCP 2.8/Fl blade 2.8 or MCP 2.
