Page 4017 of 4133

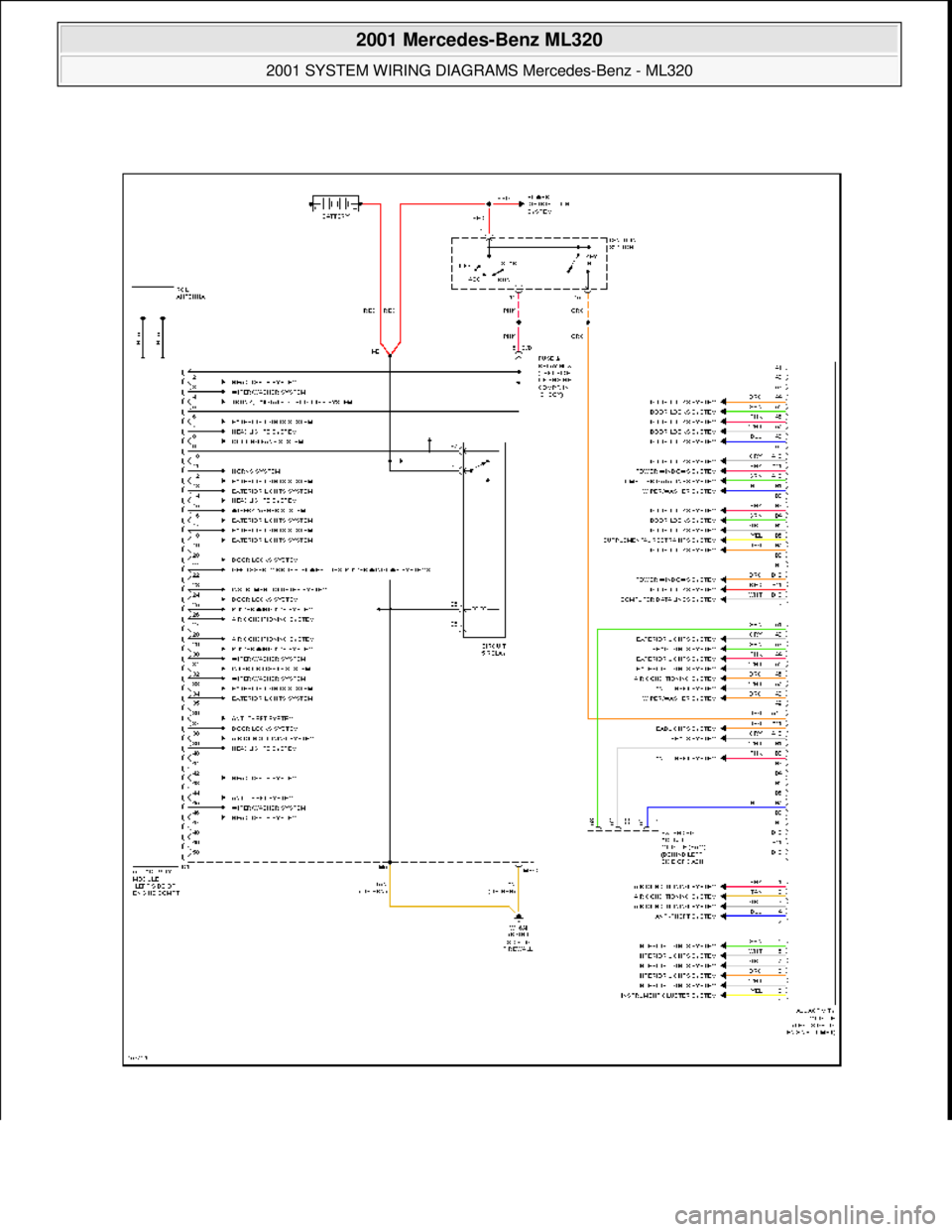

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 9: Anti-theft Circuit, W/O Auxiliary Alarm BODY CONTROL MODULES 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 19

Page 4018 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 20 © 2006 Mitchell Repair Information Company, LLC.

Page 4019 of 4133

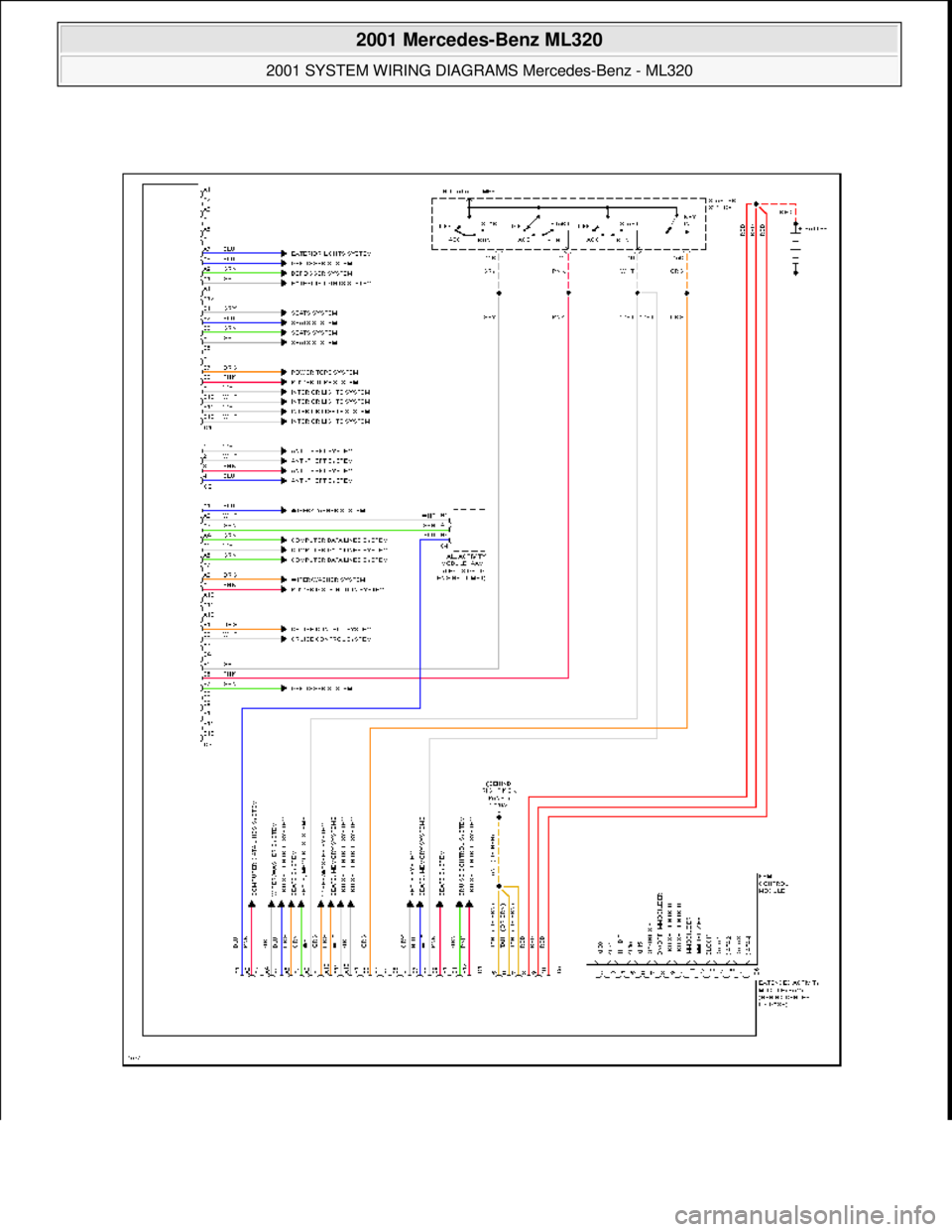

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 10: All Activity Module Circuit 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 21 © 2006 Mitchell Repair Informat

Page 4020 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 22 © 2006 Mitchell Repair Information Company, LLC.

Page 4021 of 4133

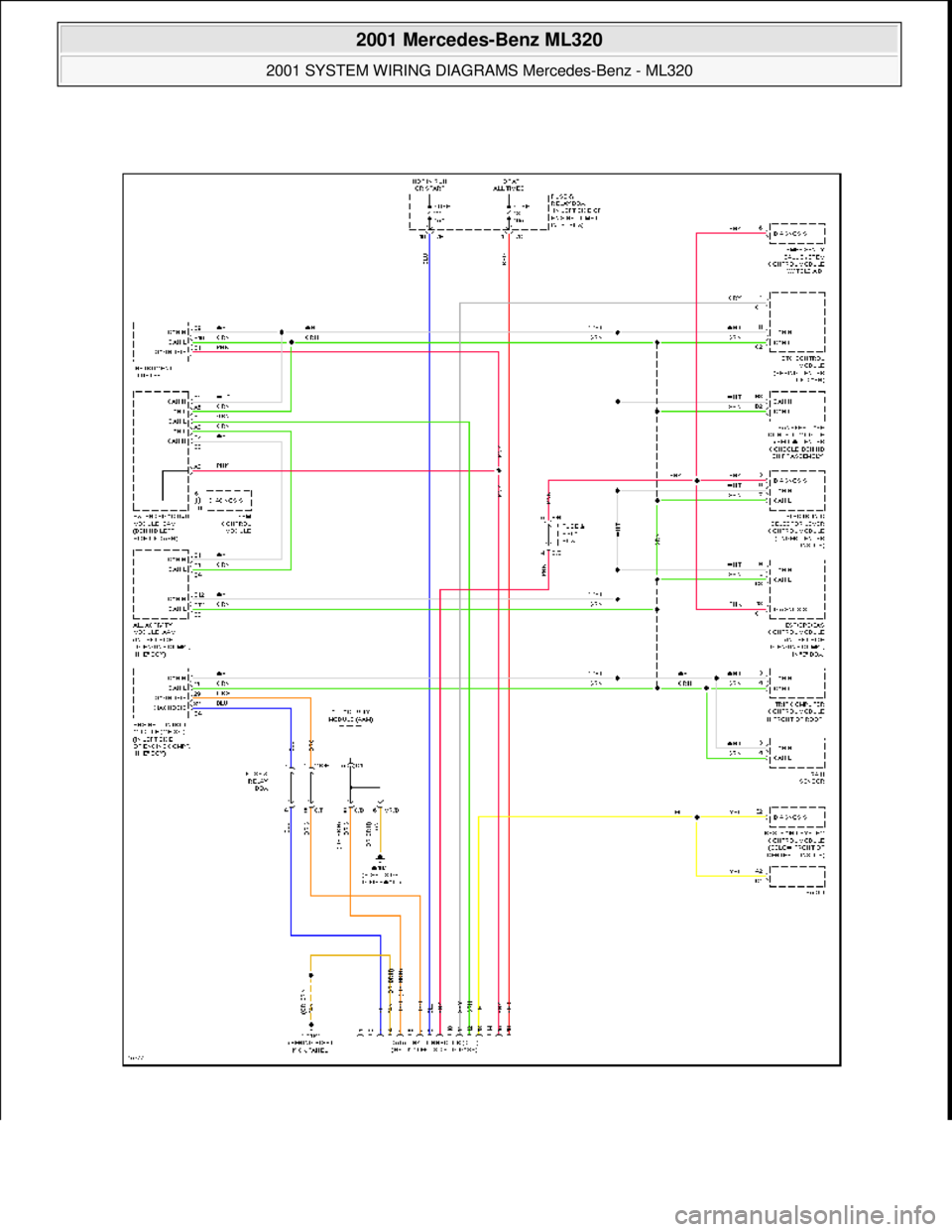

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 11: Extended Activity Module Circuit COMPUTER DATA LINES 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 23 © 2006

Page 4022 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 24 © 2006 Mitchell Repair Information Company, LLC.

Page 4023 of 4133

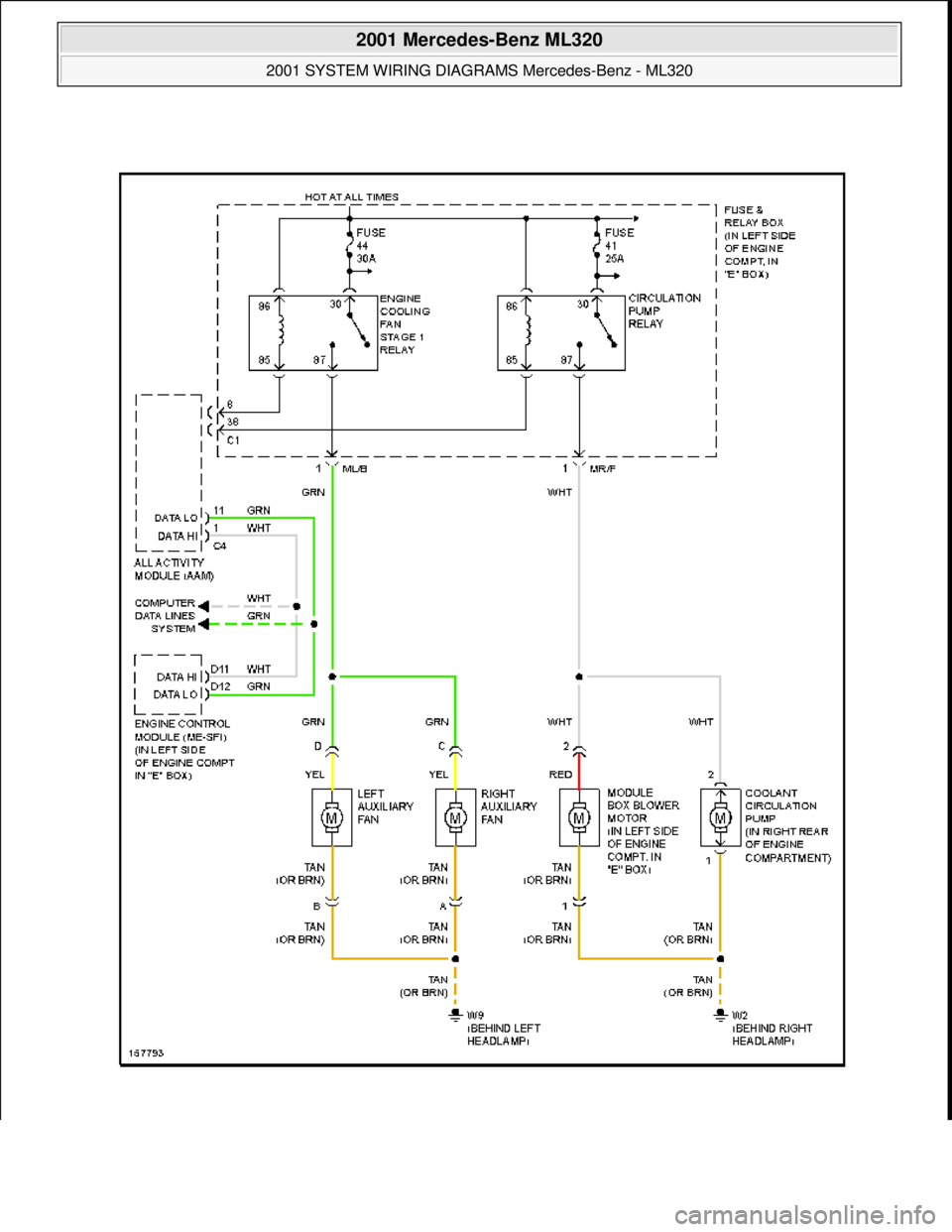

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 12: Computer Data Lines Circuit COOLING FAN 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 25 © 2006 Mitchell Re

Page 4024 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 26 © 2006 Mitchell Repair Information Company, LLC.
