Page 2345 of 4133

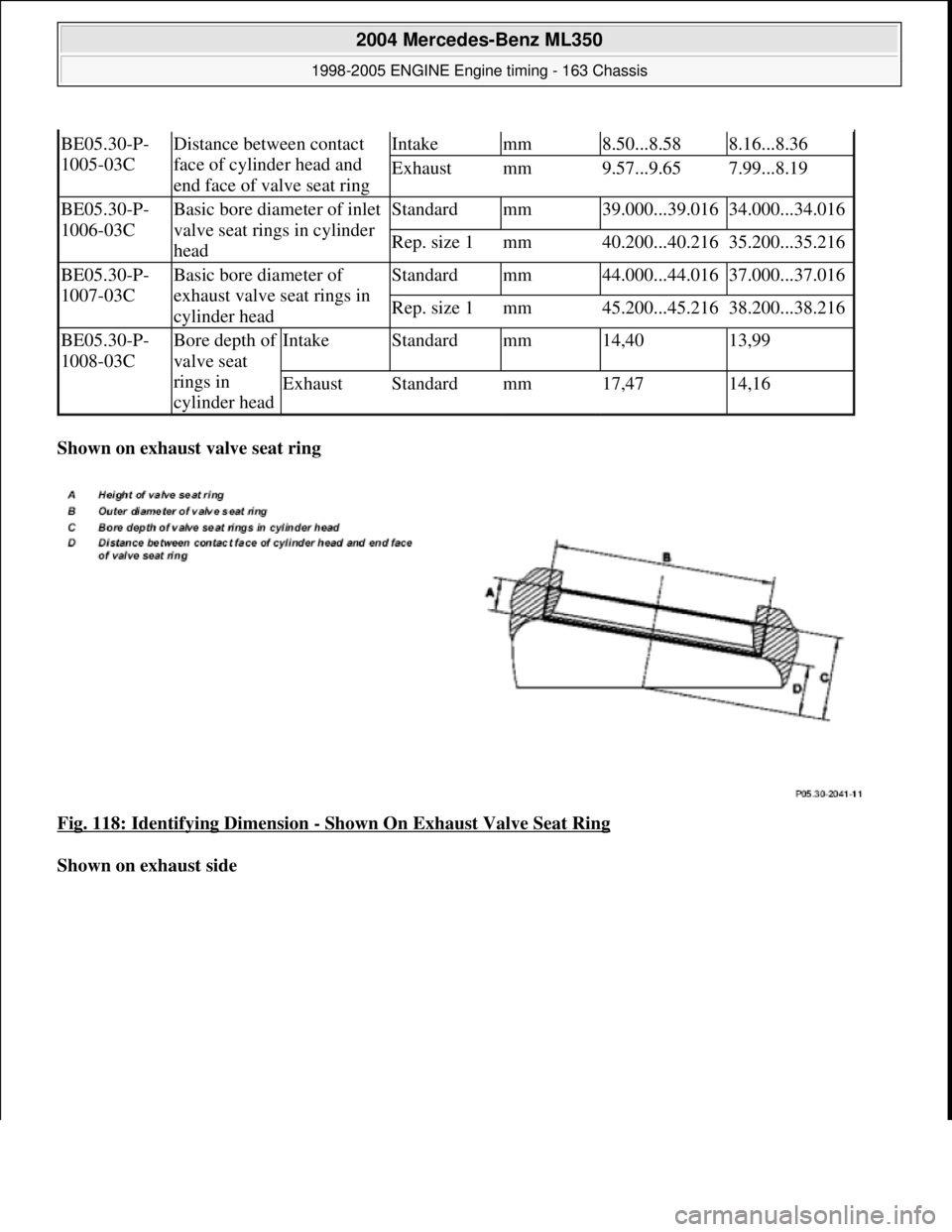

MERCEDES-BENZ ML320 1997 Complete Repair Manual Shown on exhaust valve seat ring Fig. 118: Identifying Dimension - Shown On Exhaust Valve Seat Ring Shown on exhaust side BE05.30-P- 1005-03CDistance between contact face of cylinder head

Page 2346 of 4133

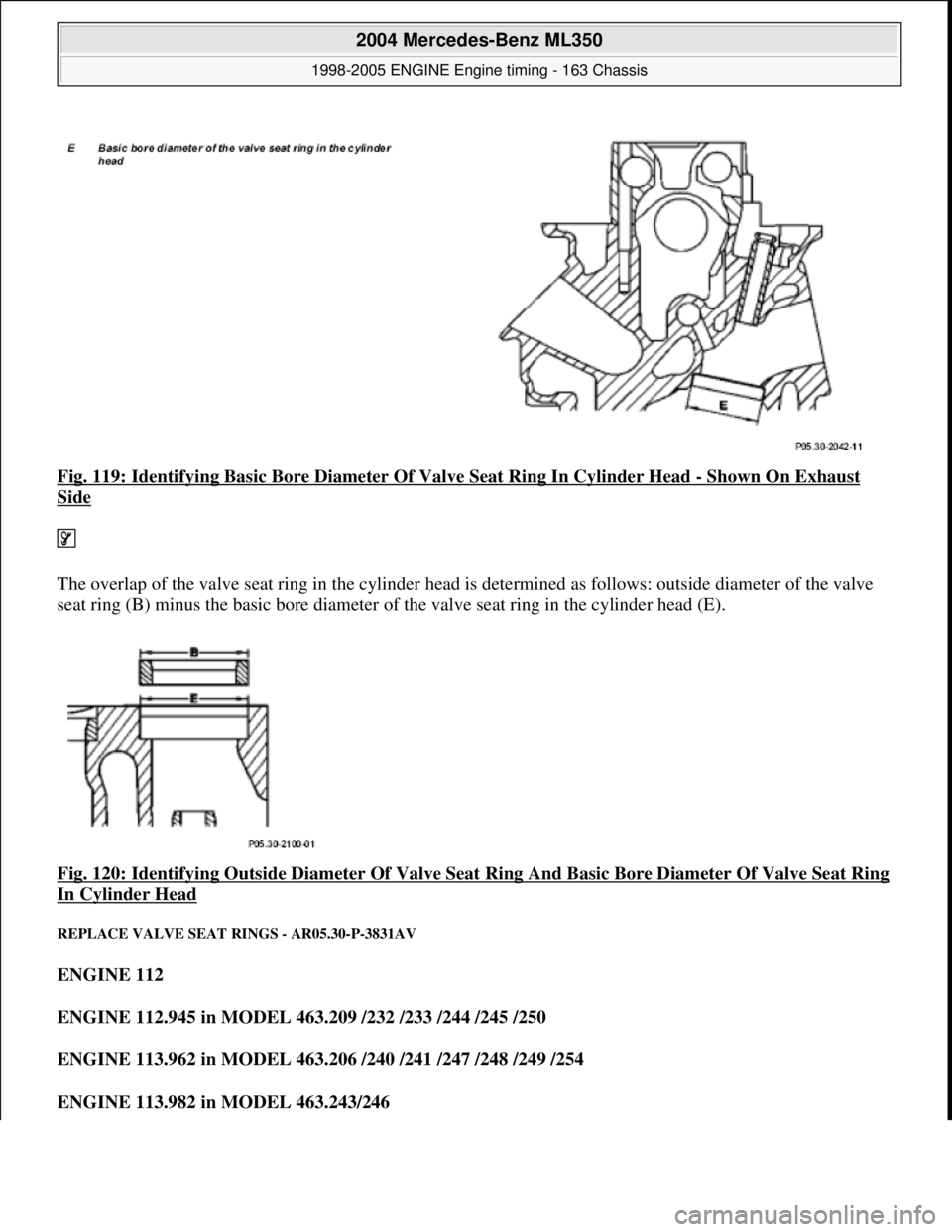

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 119: Identifying Basic Bore Diameter Of Valve Seat Ring In Cylinder Head - Shown On Exhaust Side The overlap of the valve seat ring in the cylinder head is determined as follows: outsid

Page 2347 of 4133

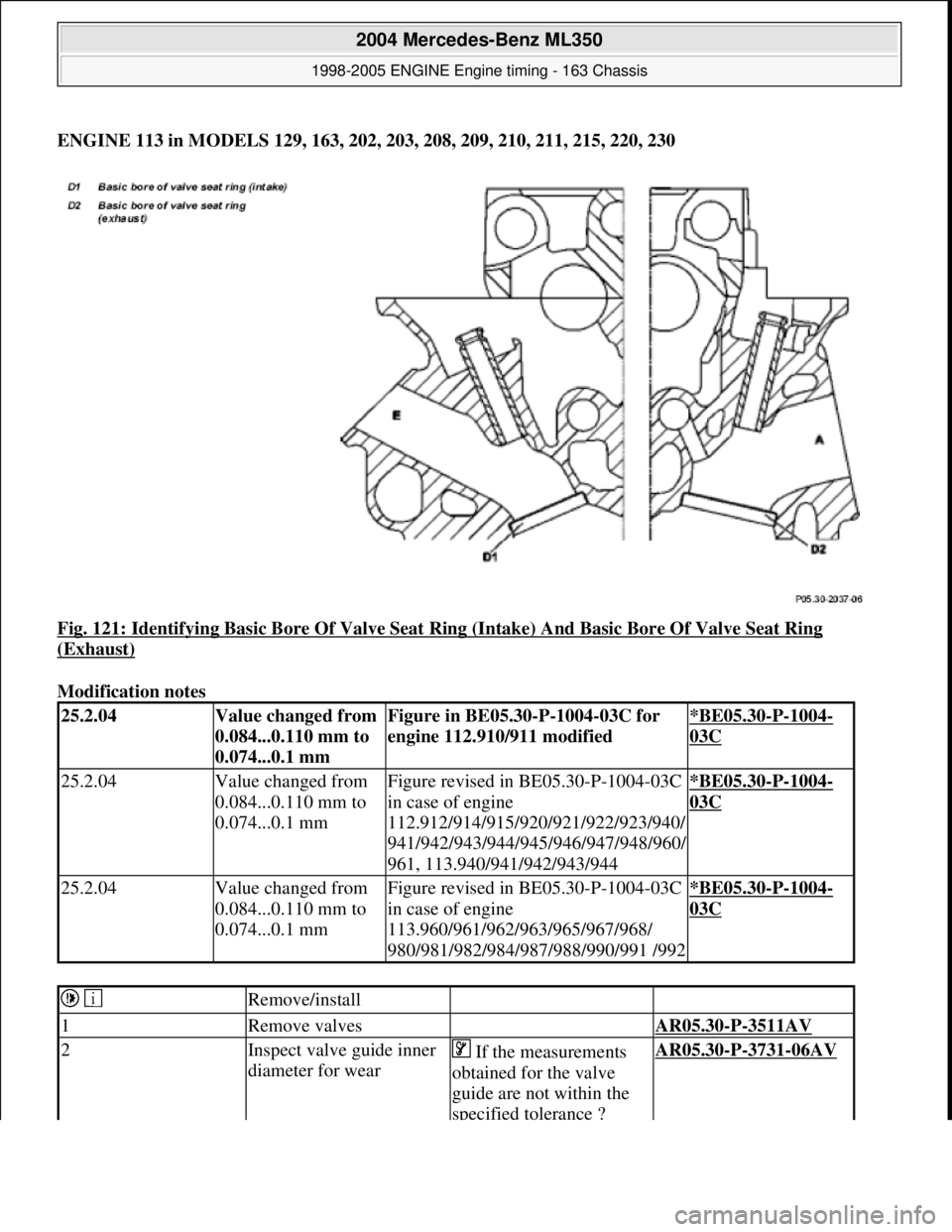

MERCEDES-BENZ ML320 1997 Complete Repair Manual ENGINE 113 in MODELS 129, 163, 202, 203, 208, 209, 210, 211, 215, 220, 230 Fig. 121: Identifying Basic Bore Of Valve Seat Ring (Intake) And Basic Bore Of Valve Seat Ring (Exhaust) Modificatio

Page 2348 of 4133

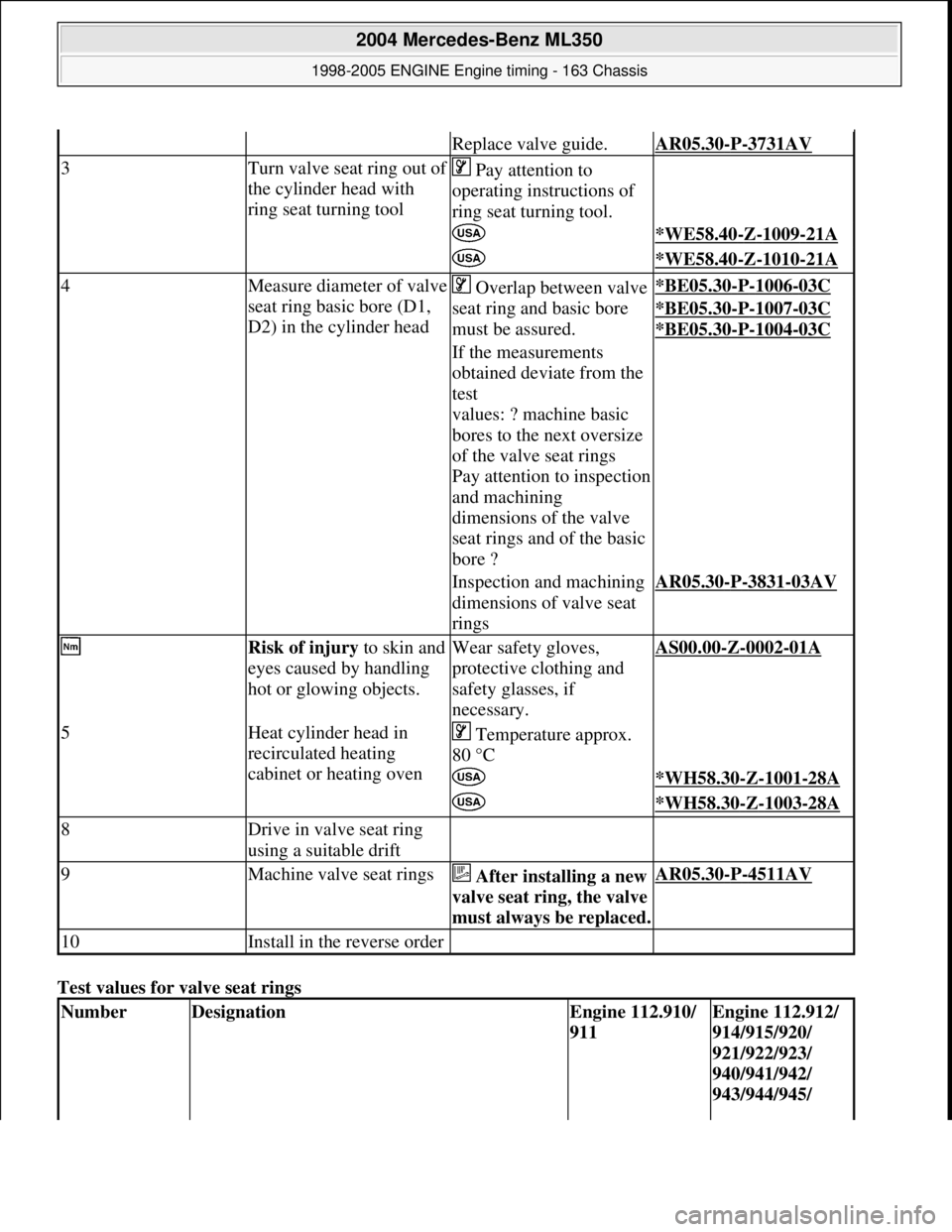

MERCEDES-BENZ ML320 1997 Complete Repair Manual Test values for valve seat rings Replace valve guide.AR05.30-P-3731AV 3Turn valve seat ring out of the cylinder head with ring seat turning tool Pay attention to operating instructions of ri

Page 2349 of 4133

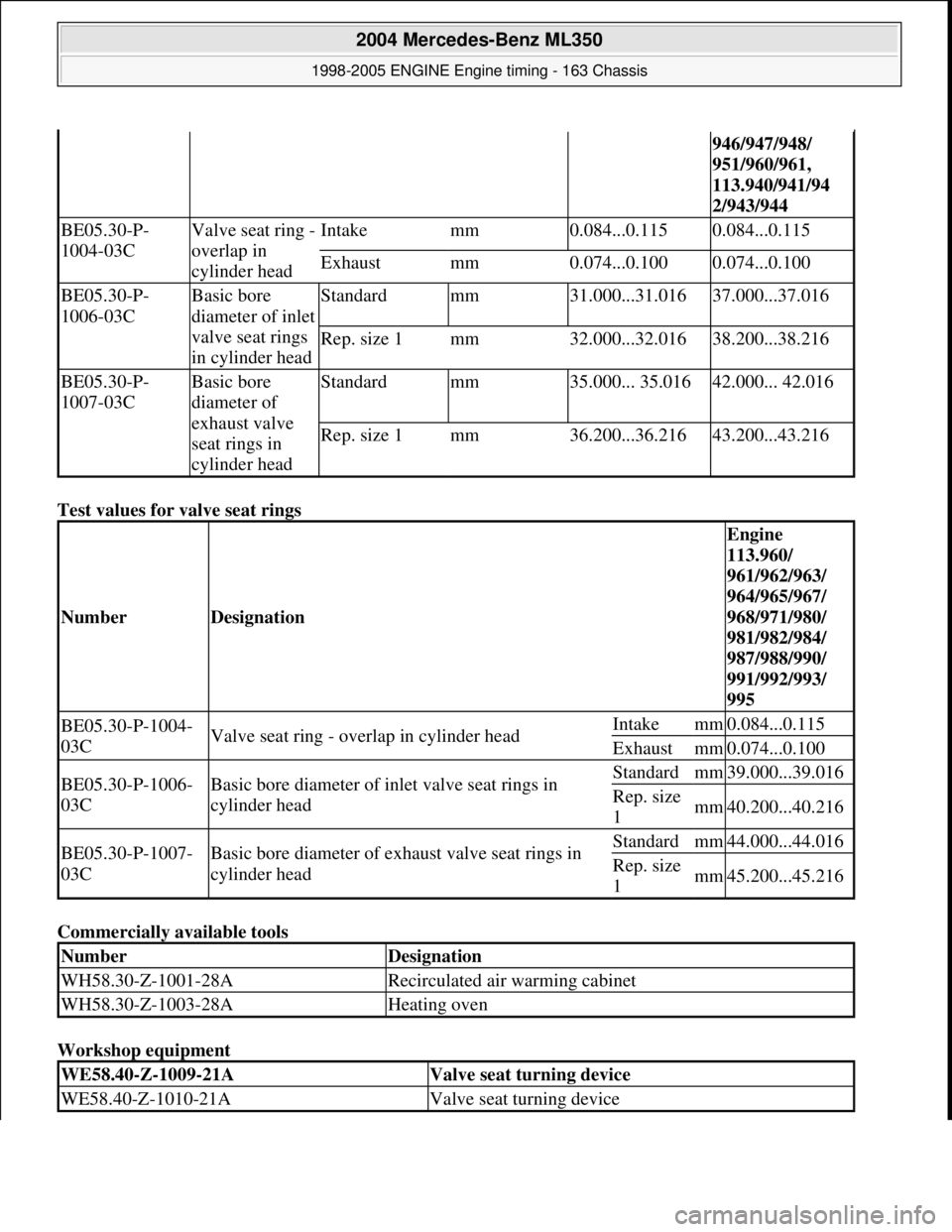

MERCEDES-BENZ ML320 1997 Complete Repair Manual Test values for valve seat rings Commercially available tools Workshop equipment 946/947/948/ 951/960/961, 113.940/941/94 2/943/944 BE05.30-P- 1004-03CValve seat ring - overlap in c

Page 2350 of 4133

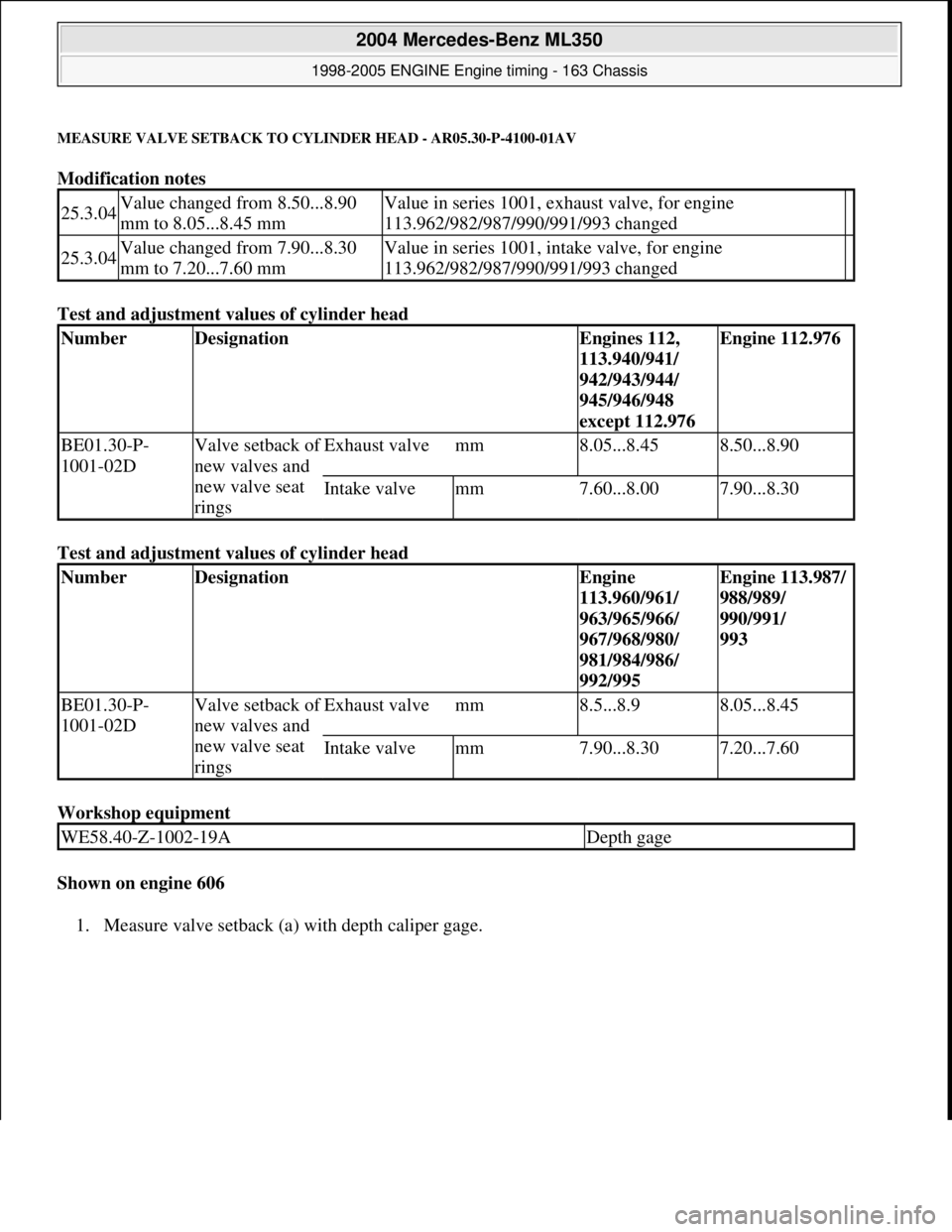

MERCEDES-BENZ ML320 1997 Complete Repair Manual MEASURE VALVE SETBACK TO CYLI NDER HEAD - AR05.30-P-4100-01AV Modification notes Test and adjustment values of cylinder head Test and adjustment values of cylinder head Workshop equipment

Page 2351 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 122: Identifying Valve Setback - Shown On Engine 606 CHECK VALVES - AR05.30-P-4201-01AV Modification notes Test values for valves Test values for valves 19.11.04Value changed from 45

Page 2352 of 4133

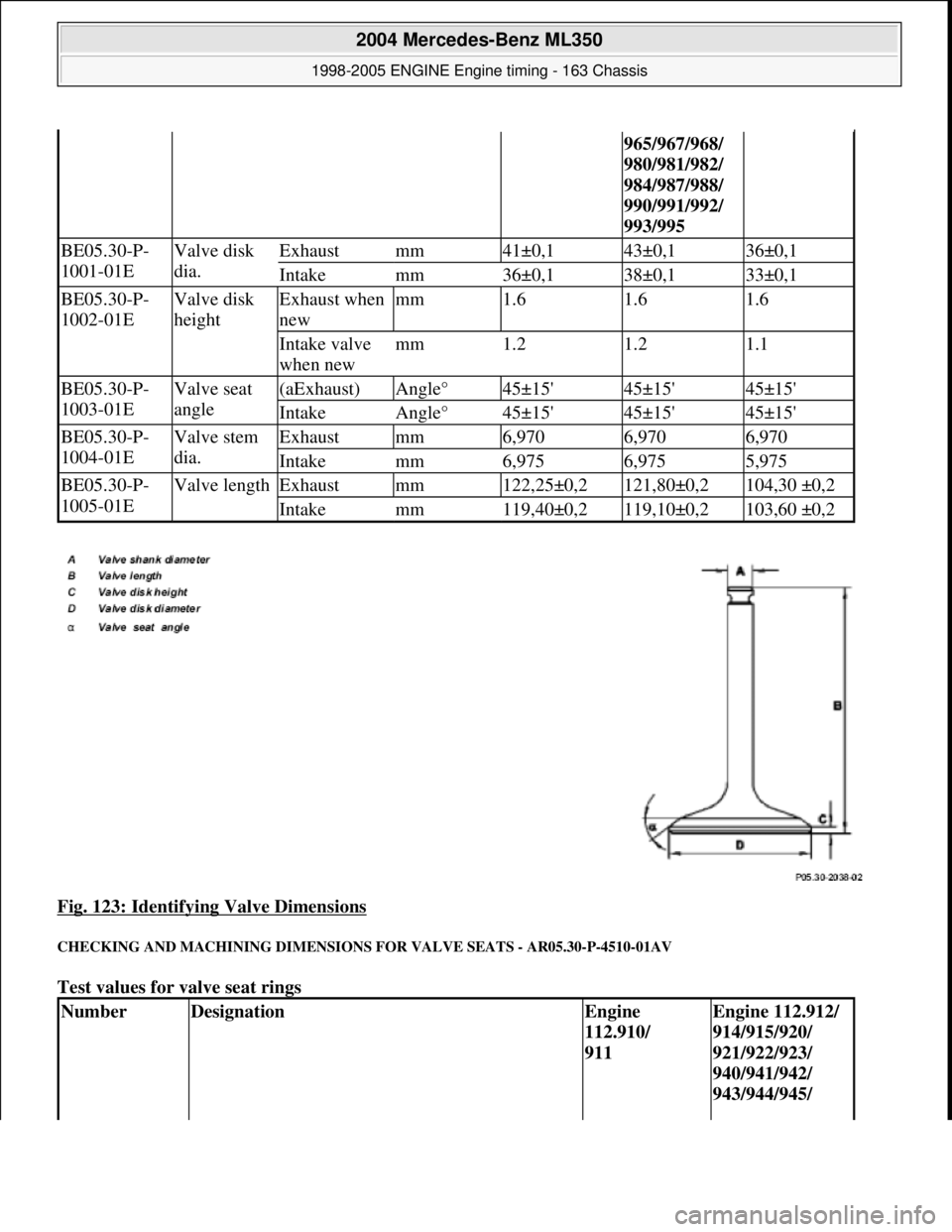

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 123: Identifying Valve Dimensions CHECKING AND MACHINING DIMENSIONS FOR VALVE SEATS - AR05.30-P-4510-01AV Test values for valve seat rings 965/967/968/ 980/981/982/ 984/987/988/ 990/991
