MERCEDES-BENZ ML320 1997 Complete Repair Manual Integrated V60 Digital Cellular Phone
In-Vehicle Operation Guide
Mercedes-Benz
Mercedes-Benz USA, LLC
One Mercedes Drive
Montvale, New Jersey 07645
© 2001 Mercedes-Benz USA, LLC
Technical Information

Page 3979 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual DCAG Ref. No.
This bulletin has been created and maintained in accordance with MBUSA-SLP 5.1, Document and Data Control, and
MBUSA-SLP 16.1, Control of Quality Records.

Page 3980 of 4133

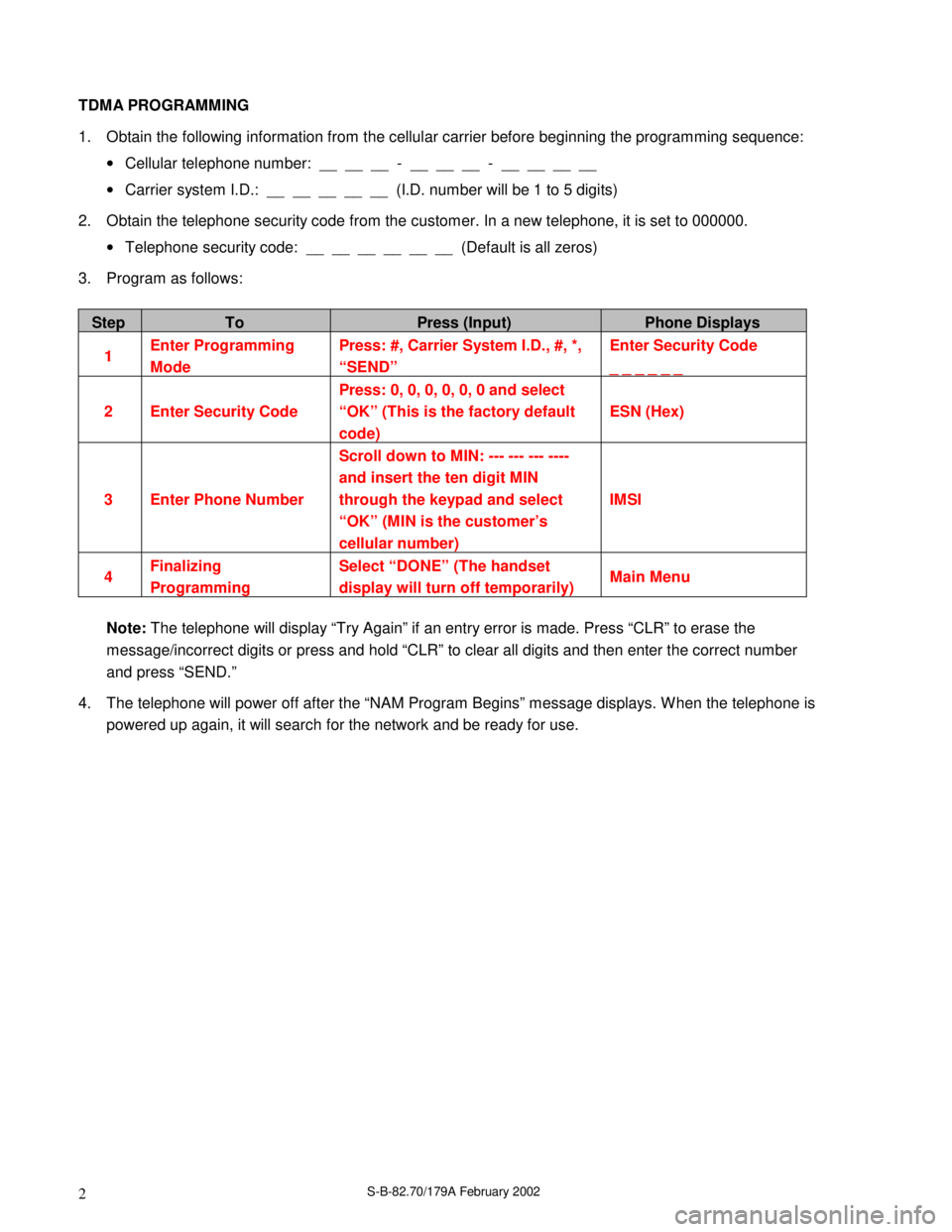

MERCEDES-BENZ ML320 1997 Complete Repair Manual S-B-82.70/179A February 20022 TDMA PROGRAMMING
1. Obtain the following information from the cellular carrier before beginning the programming sequence:
• Cellular telephone number: __ __ __ -

Page 3981 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual S-B-82.70/179AFebruary 20023 CDMA PROGRAMMING
1. Obtain the following information from the cellular carrier before beginning the programming sequence:
• Cellular telephone number: __ __ __ -

S-B-82.70/179AFebruary 20023 CDMA PROGRAMMING
1. Obtain the following information from the cellular carrier before beginning the programming sequence:
• Cellular telephone number: __ __ __ - __ __ __ - __ __ __ __
• Carrier analog system I.D.: __ __ __ __ __ (I.D. number will be 1 to 5 digits)
• Carrier digital system I.D.: __ __ __ __ __ (I.D. number will be 1 to 5 digits)
Note: Generally, the analog and digital system I.D. numbers will be the same. Questions regarding
system I.D. numbers should be addressed with the cellular carrier.
2. Program as follows:
StepToPress (Input)Telephone Displays
1Enter
Programming
ModePress: 7, 4, 6, 6, 3, #, MENU,
MENUNam 1
Nam 2
2
Selecting NAM Choose “SELECT” for NAM 1 MIN: 0000000000
3Enter Phone
NumberInsert the ten digit MIN
through the keypad and select
“OK” (This is the customer’s
cellular number)IMSI
4Enter AMPS
System I.D.Scroll down to AMPS Sys ID,
insert the number and select
“OK” (AMPS data is provided
by the carrier)CDMA Sys ID:
5Enter CDMA
System I.D.Insert the CDMA Sys ID and
select “OK” (CDMA data is
provided by the carrier)MIN:
6Finalizing
ProgrammingSelect “DONE” and then press
the “END” keyMain Menu
Note: The telephone will display “Try Again” if an entry error is made. Press “CLR” to erase the
message/incorrect digits or press and hold “CLR” to clear all digits and then enter the correct number
and press “STO.”
3. After the “Entry Done” message appears, the telephone will display “Searching” as it attempts to contact
a network. W hen the “Searching” message disappears, the telephone is ready for use.
4. To program a second number, follow step 1 in the table below and steps 2-6 in the above table.
StepToPress (Input)Phone Displays
1Enter NAM2
Programming
Mode7, 4, 6, 6, 3, #, 2, FCN, FCN Enter MIN
Note: Be sure to obtain the system I.D. for each before beginning the programming sequence if the
second through fourth numbers are with different cellular carriers.
Note: The CDMA telephone has a two telephone number maximum. Refer to the operation guide for
instructions on how to switch between the various telephone numbers.

Page 3982 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
AZ82.60-P-0004A
Retrofit vehicle video system
3.10.00

MODELS
163.136 /154 /172 1A as of 145273,

163.136 /154 /172 1X as of 708319,

163.113 /128 /157 /174 /175 1#

left hand drive vehicle

P82.

Page 3983 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
10
Remove edge guard for tilting/sliding roof

cutout

11
Release upper right B-pillar paneling

12
Remove covers at lower rear seat

Do NOT remove center cover for lower

40% seat. Do NOT reinst

10
Remove edge guard for tilting/sliding roof

cutout

11
Release upper right B-pillar paneling

12
Remove covers at lower rear seat

Do NOT remove center cover for lower

40% seat. Do NOT reinstall curtain on 60%

front bench seat.

f

Remove and install cover on bottom of rear

seat

AR91.12-P-1100GH

13
Release side shade at the 60% bench

Fold shade upward so that the working

area is not obstructed.

14
Remove 40% rear seat

f

Remove and install bench

AR91.12-P-1010GI

Torx bit set

*000589011000

Install

15
Retrofit central interface module (1)

AZ82.60-P-0004-01A

16
Insert antenna cable for FM modulator (6) into

vehicle antenna cable (7)

17
Cover connector with self-adhesive foamed

material (8)

18
Plug remaining antenna cable of FM

modulator (9) into radio

19
Install radio (A2)

f

Remove/install radio

AR82.60-P-7502EA

20
Retrofit video monitor (2) and wiring harness

of video monitor (C)

With
glass version of electric sliding/tilting

roof, code 414a.

AZ82.60-P-0004-02A

Except
glass version of electric

sliding/tilting roof, code 414a.
AZ82.60-P-0004-02B

21
Secure upper right B-pillar paneling

Ensure that the lugs of the seat belt height

adjustment are located correctly in the recess

clearance of the paneling.

22
Install right front handle

23
Install right sun visor

f

Remove/install sun visor

AR68.60-P-5480GH

24
Install right front A-pillar cover

f

Remove/install paneling on A-pillar

AR68.30-P-4050GH

25
Re-secure upper area of rubber door seal

26
Route wiring harness of video/DVD player

(B), additional interface module (4) and wiring

harness of video monitor (C) later
Up to VIN A289564, X754619.

AZ82.60-P-0004-03A

As of VIN A289565, X754620.

AZ82.60-P-0004-03B

27
Retrofit auxiliary interface module (4) in

center console

Up to VIN A289564, X754619.

AZ82.60-P-0004-04A

As of VIN A289565, X754620.

AZ82.60-P-0004-04B

28
Install center console insulating mat

29
Install center console

f

Remove/install center console

AR68.20-P-2000GH

30.1
Plug in plug of additional interface module

and secure the wiring harness of the

additional interface module (10) to the clip

(11) together with the wiring harness of the

rear power windows in the center console

Up to VIN A289564, X754619.

30.2
Insert auxiliary interface module (13)

connector and route between center console

mount (14) and center console.

As of VIN A289565, X754620.

31.1
Secure auxiliary interface module plug in the

left rear corner of the ashtray housing using

self-adhesive foamed material (12)

Up to VIN A289564, X754619.

32
Open ashtray and cup holder and close to

check correct function

33
Attach side shade of the 60% bench

34.1
Retrofit video player (3)

AZ82.60-P-0004-05A

*BA91.12-P-1005-03A

*BA91.12-P-1008-03A

34.2
Retrofit DVD player

AZ82.60-P-0005-01GH

35
Install 40% rear seat

f

Remove and install bench

AR91.12-P-1010GI

Torx bit set

*000589011000

Copyright DaimlerChrysler AG 09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2

Page 3984 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
36
Install remaining covers under rear seat bench

Replace cover under rear seat bench at

rear with cover from the conversion kit.

f

Remove and install cover on bottom of rear

seat

AR91.

36
Install remaining covers under rear seat bench

Replace cover under rear seat bench at

rear with cover from the conversion kit.

f

Remove and install cover on bottom of rear

seat

AR91.12-P-1100GH

37
Disconnect ground lead from battery

f

Disconnect ground lead from battery

AR54.10-P-0003A

38
Retrofit voltage supply for central interface

module (1)

AZ82.60-P-0004-06A

39
Install glove compartment

f

Remove/install glove compartment

AR68.10-P-1400GI

Torx bit set

*000589011000

40
Connect ground cable for battery

f

Disconnect ground lead from battery

AR54.10-P-0003A

41.1
Initialize DVD player

As of VIN A289565, X754620.

AZ82.60-P-0004-07GH

Rear seats

Number

Designation
Model

163 as of

09/99

BA91.12-P-1005-03A
Nuts for rear seat console on vehicle floor
NM
40

BA91.12-P-1008-03A
Screws for rear seat console on vehicle floor
NM
40

115 589 03 59 00

Longitudinal wedge

Torx bit set

000 589 01 10 00

Parts ordering notes
Part no.

Designation
Quantity

B6 782 6500
Monitor, anthracite/orion, with 2 earphones (NTSC)
1

B6 782 6501
Monitor, java, with 2 earphones (NTSC)
1

B6 782 6505
DVD player (national code 1), with bracket
1

B6 782 6506
Video player (NTSC), with bracket
1

B6 782 6507
Earphones (NTSC)
1

B6 782 6508
Radio-controlled earphones (NTSC)
1

B6 782 6530
Floor covering at bottom of rear seat, orion (only with video player) (NTSC)
1

B6 782 6531
Floor covering at bottom of rear seat, anthracite (only with video player) (NTSC)
1

B6 782 6532
Floor covering at bottom of rear seat, Java (only with video player) (NTSC)
1

B6 782 6536
Monitor, anthracite/orion, with 2 earphones (PAL)
1

B6 782 6537
Monitor, java, with 2 earphones (PAL)
1

B6 782 6538
DVD player (national code 2), with bracket
1

B6 782 6539
Video player (PAL), with bracket
1

B6 782 6540
Floor covering at bottom of rear seat, orion (only with video player) (PAL)
1

B6 782 6541
Floor covering at bottom of rear seat, anthracite (only with video player) (PAL)
1

B6 782 6542
Floor covering at bottom of rear seat, Java (only with video player) (PAL)
1

B6 782 6545
Earphones (PAL)
1

B6 782 6551
Central interface module
1

B6 782 6570
Supplementary kit as of VIN A289565, X754620 (PAL)
1

B6 782 6571
Supplementary kit as of VIN A289565, X754620 (NTSC)
1

Copyright DaimlerChrysler AG 09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 3
