Page 1185 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Removing & Installing Wire Cable/Transmission For Parking Shift Lock On Transmission 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturd

Page 1186 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:25 PMPage 17 © 2006 Mitchell Repair Information Company, L

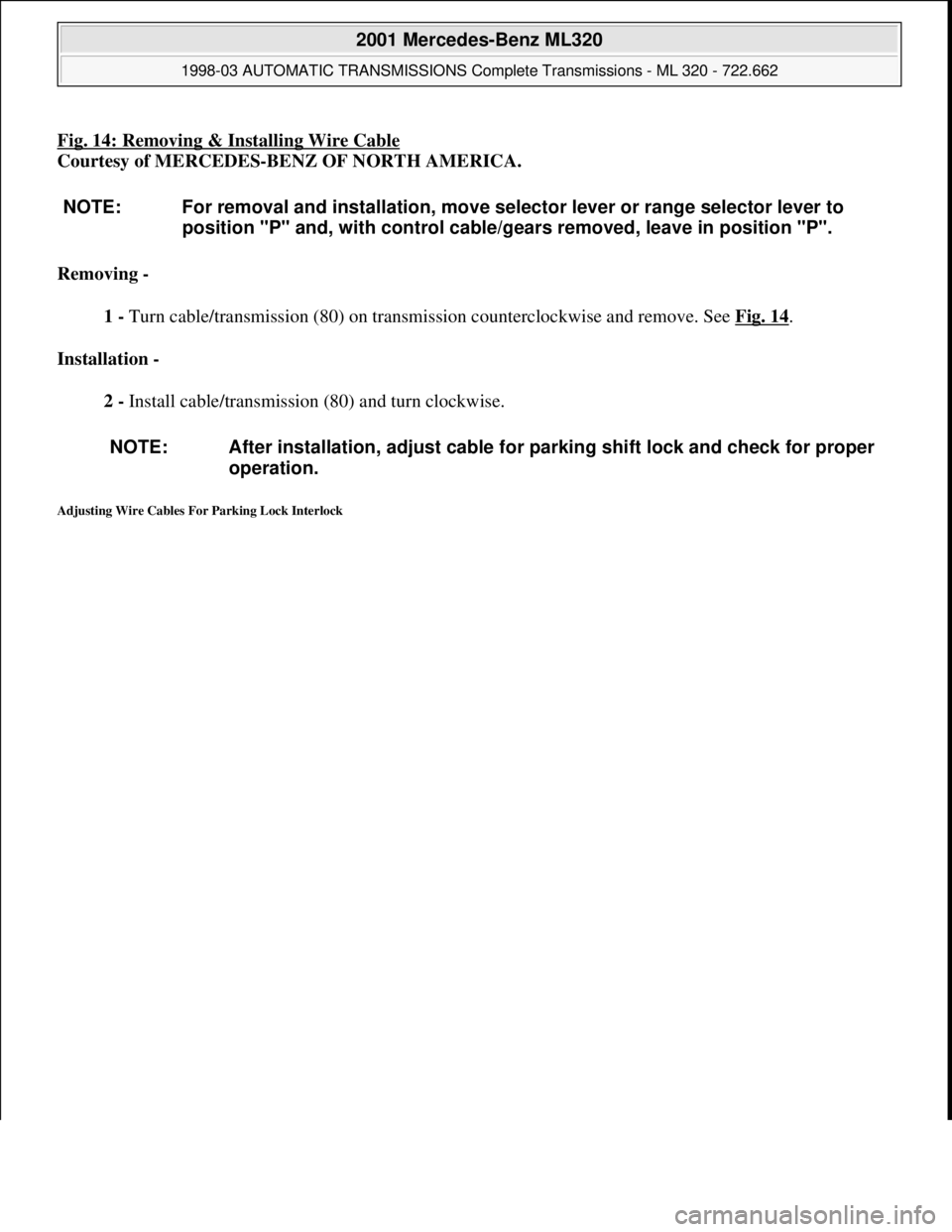

Page 1187 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 14: Removing & Installing Wire Cable Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Removing - 1 - Turn cable/transmission (80) on transmission counterclockwise and remove. See Fig. 14 . Instal

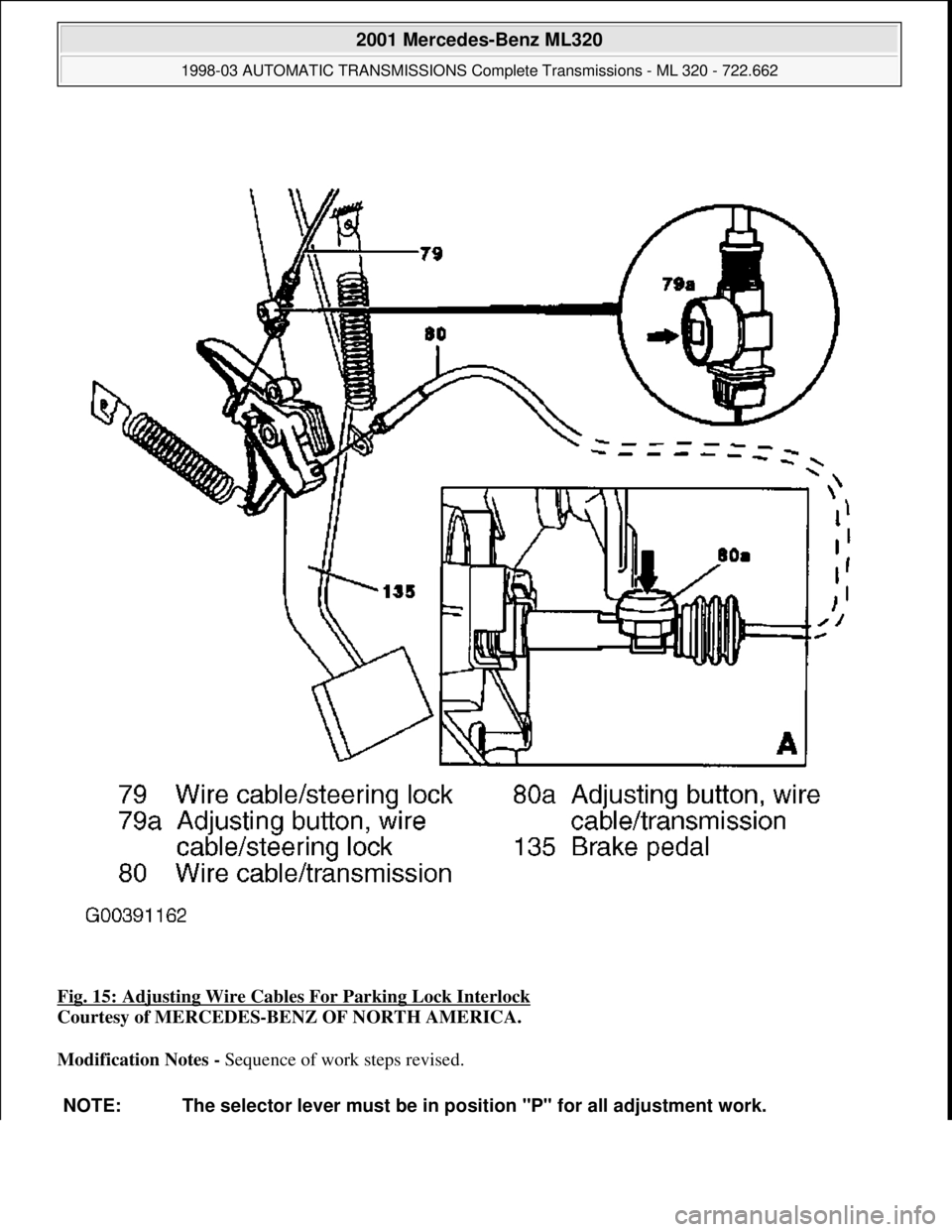

Page 1188 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 15: Adjusting Wire Cables For Parking Lock Interlock Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Modification Notes - Sequence of work steps revised. NOTE: The selector lever must be in

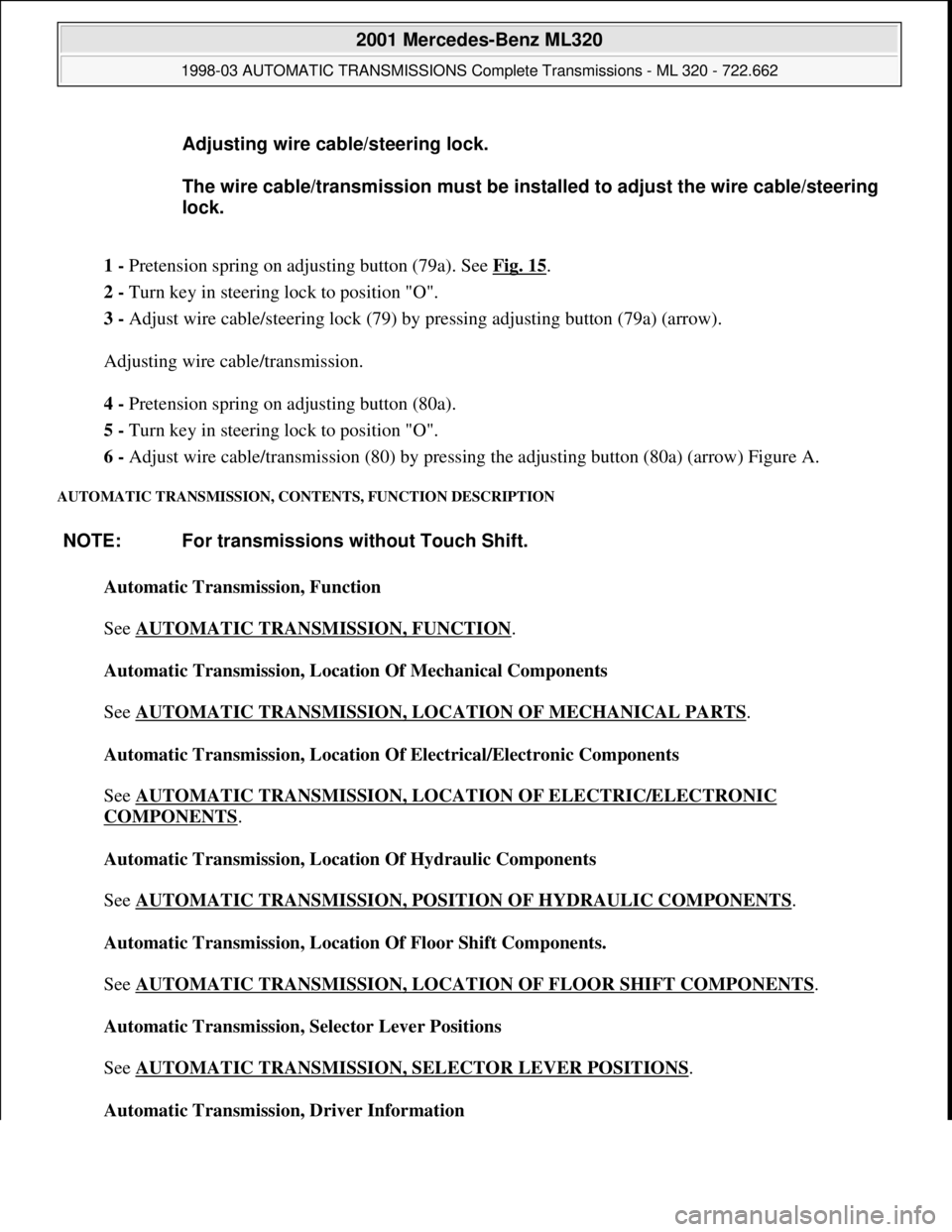

Page 1189 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 1 - Pretension spring on adjusting button (79a). See Fig. 15. 2 - Turn key in steering lock to position "O". 3 - Adjust wire cable/steering lock (79) by pressing adjusting button (79a) (arrow). A

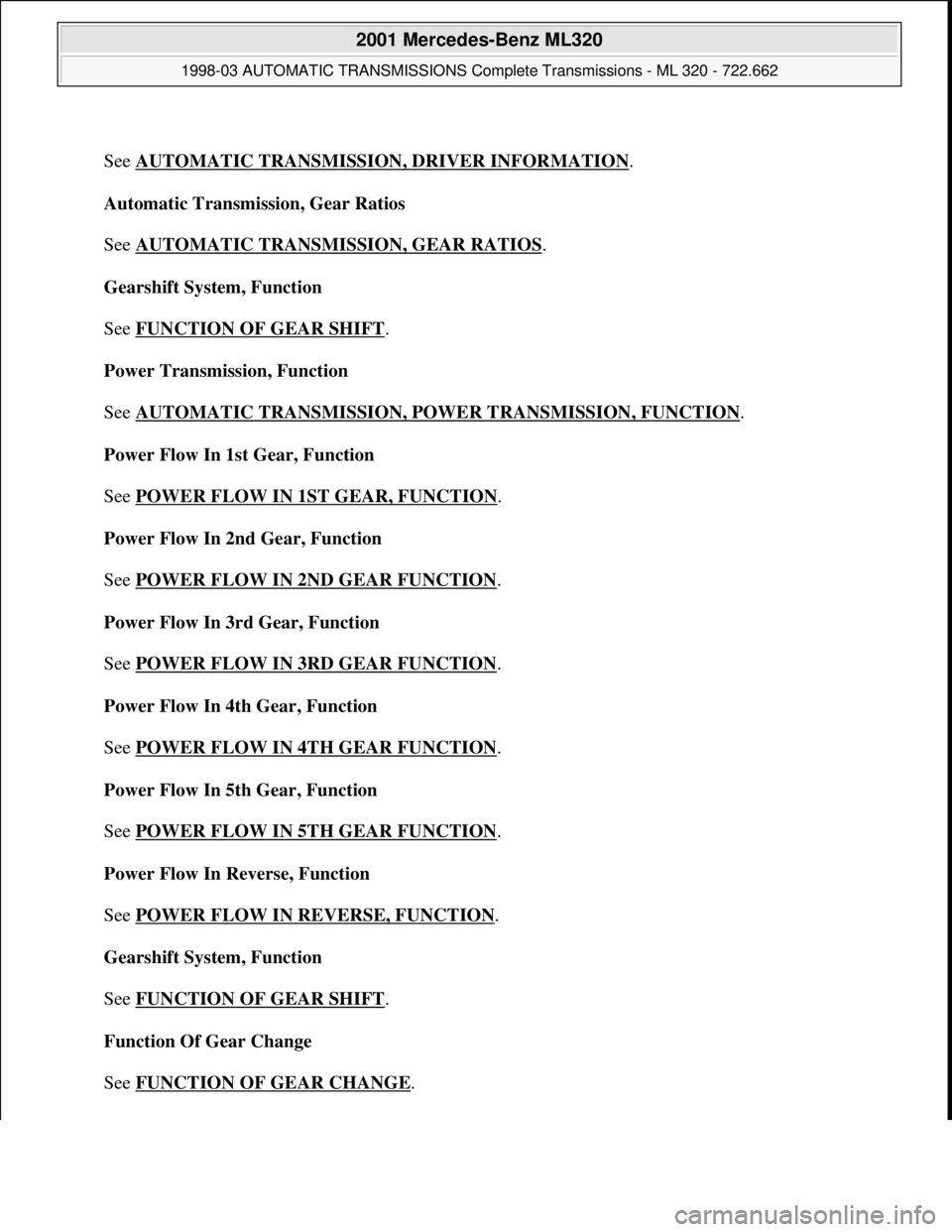

Page 1190 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual See AUTOMATIC TRANSMISSION, DRIVER INFORMATION . Automatic Transmission, Gear Ratios See AUTOMATIC TRANSMISSION, GEAR RATIOS . Gearshift System, Function See FUNCTION OF GEAR SHIFT . Power

Page 1191 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Shifting "N" To "D" (1st Gear), Function See SHIFTING N TO D (1ST GEAR), FUNCTION . Function Of Shift From 1 To 2 See SHIFT FROM 1 TO 2, FUNCTION . Limp-home Mode, Function See LIMP -HOME M

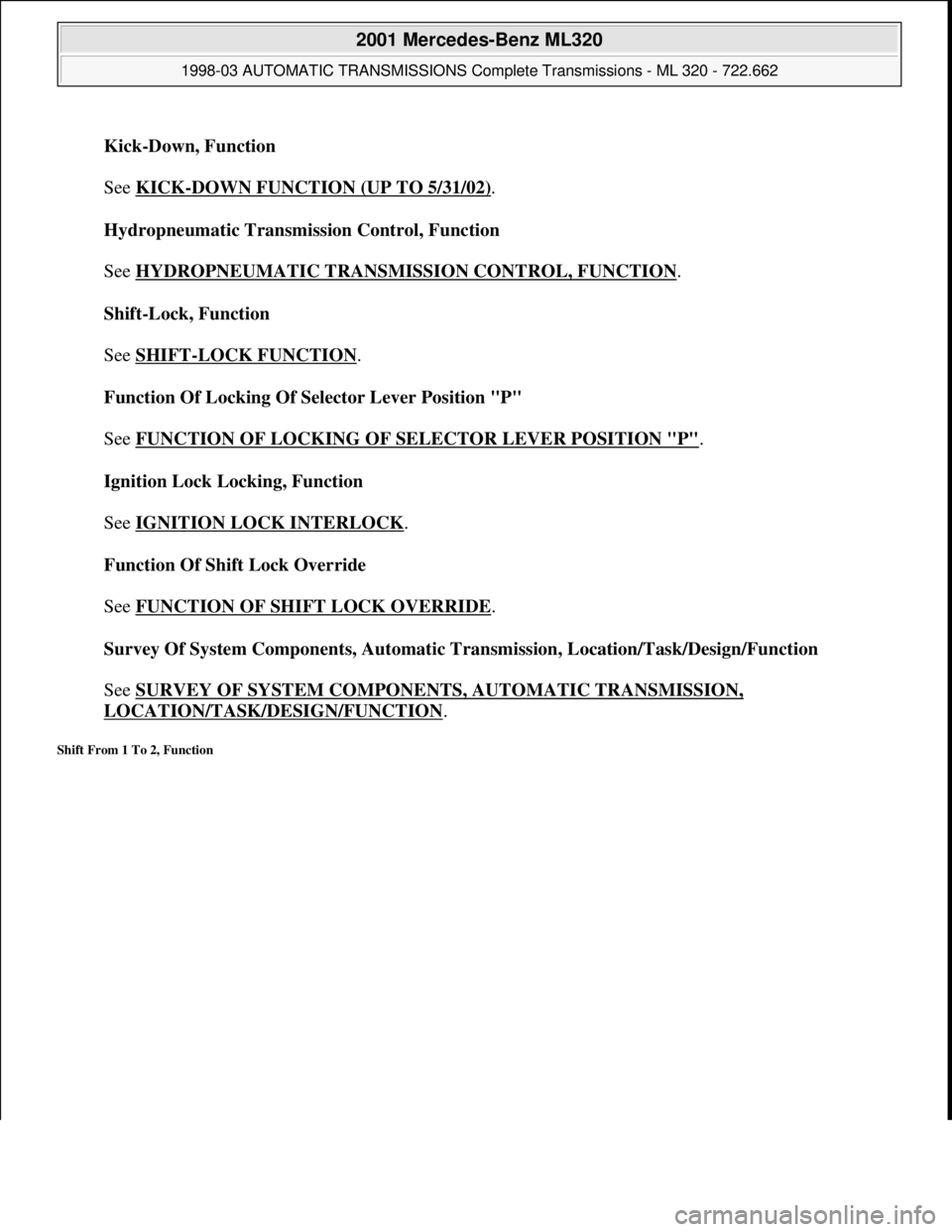

Page 1192 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Kick-Down, Function See KICK -DOWN FUNCTION (UP TO 5/31/02). Hydropneumatic Transmission Control, Function See HYDROPNEUMATIC TRANSMISSION CONTROL, FUNCTION . Shift-Lock, Function See SHIFT
